Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant to select the engine oil viscosity based on
the temperatures at which the vehicle will be
operated before the next oil change. Choos-
ing an oil viscosity other than that recom-
mended could cause serious engine damage.
Selecting the correct oil filter
Your new INFINITI vehicle is equipped with a
high-quality Genuine NISSAN oil filter. When
replacing, use a Genuine NISSAN oil filter or
its equivalent for the reason described in
“Change intervals”.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and
filters that are not of the specified quality, or
exceeding recommended oil and filter change
intervals could reduce engine life. Damage to
the engine caused by improper maintenance
or use of incorrect oil and filter quality and/or
viscosity is not covered by the INFINITI New
Vehicle Limited Warranty.Your engine was filled with a high-quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter change
intervals depend upon how you use your ve-
hicle.
Operation under the following conditions
may require more frequent oil and filter
changes:
∙ repeated short distance driving at cold outside temperatures
∙ driving in dusty conditions
∙ extensive idling
∙ towing a trailer
∙ stop and go commuting
For additional information on maintenance
schedules, refer to the “Maintenance and
schedules” section of this manual.AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your INFINITI
vehicle must be charged with the refrigerant
HFC-134a (R-134a) and the oil, Genuine
NISSAN A/C System Oil Type PAG or the
exact equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replacement
of all air conditioner system components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle does not harm the earth’s
ozone layer. Although this refrigerant does
not affect the earth’s atmosphere, certain
government regulations require the recovery
and recycling of any refrigerant during auto-
motive air conditioner system service. An
INFINITI retailer has the trained technicians
and equipment needed to recover and recycle
your air conditioner system refrigerant.
It is recommended that you visit an INFINITI
retailer when servicing your air conditioner
system.
Technical and consumer information10-7

ENGINE
ModelVQ35DD
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 6-cylinder, V-block, Slanted at 60°
Bore x Stroke in (mm) 3.780 x 3.189 (96 x 81)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order 1–2–3–4–5–6
Idle speed
No adjustment is necessary.
CVT in N (Neutral) position
Ignition timing (degree B.T.D.C. at idle speed)
CO%atidle
Spark plug
FXE22HR-11
Spark plug gap (Nominal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
SPECIFICATIONS
10-8Technical and consumer information

WHEELS AND TIRES
Wheel typeOffset in (mm) Size
Aluminum 1.97 (50)18 x 7.5J
1.97 (50) 20 x 7.5J
Spare Wheel - Steel 0.98 (25) 18 x 4T
Tire size 235/65R18
235/55R20
Spare tire T165/90D18
DIMENSIONS AND WEIGHTS
Overall length
with front license plate bracket in (mm) 200.6 (5,094)
without front license plate bracket in (mm) 200.1 (5,083)
Overall width in (mm) 77.2 (1,960)
Overall height
without roof rails in (mm)68.6 (1,743)
with roof rails in (mm)68.7 (1,746)
with roof rails/cross bars in (mm)71.4 (1,813)
Front and rear track in (mm)65.7 (1,670)
Wheelbase in (mm)114.2 (2,900)
Gross vehicle weight rating lbs. (kg) Refer to the “F.M.V.S.S./
C.M.V.S.S. certification
label” on the center pillar
between the driver’s side front and rear doors.
Gross axle weight rating
Front lbs. (kg)
Rear lbs. (kg)
Technical and consumer information10-9

When planning to drive your INFINITI ve-
hicle in another country,you should first find
out if the fuel available is suitable for your
vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your vehicle
to areas where appropriate fuel is not avail-
able.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and reg-
istered, its modifications, transportation,
and registration are the responsibility of the
user. INFINITI is not responsible for any in-
convenience that may result.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
The VIN plate is located as shown. This num-
ber is the identification for your vehicle and is
used in the vehicle registration.
The VIN number is also available through the
center display screen. For additional informa-
tion, refer to the separate INFINITI InTouch™
Owner’s Manual.
VEHICLE IDENTIFICATION
NUMBER (chassis number)
The vehicle identification number is located
as shown.
LTI2050LTI2028
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
10-10Technical and consumer information

ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certifica-
tion label is affixed as shown. This label con-
tains valuable vehicle information, such as:
(GVWR), (GAWR), month and year of manu-
facture, (VIN), etc. Review it carefully.
EMISSION CONTROL
INFORMATION LABEL
The emission control information label is at-
tached to the underside of the hood as
shown.
LTI2255WTI0172WTI0198
Technical and consumer information10-11

TIRE AND LOADING
INFORMATION LABEL
The cold tire pressure is shown on the Tire
and Loading Information label. The label is
located as shown.
AIR CONDITIONER
SPECIFICATION LABEL
The air conditioner specification label is af-
fixed to the underside of the hood as shown.1. Find the centerline of the vehicle and
measure down 1.5 in (37.5 mm). Mark
the location on the fascia.
2. Drill a 0.39 in (10 mm) holeAin the
fascia.
LTI2251WTI0173LTI2237
INSTALLING FRONT LICENSE PLATE
10-12Technical and consumer information

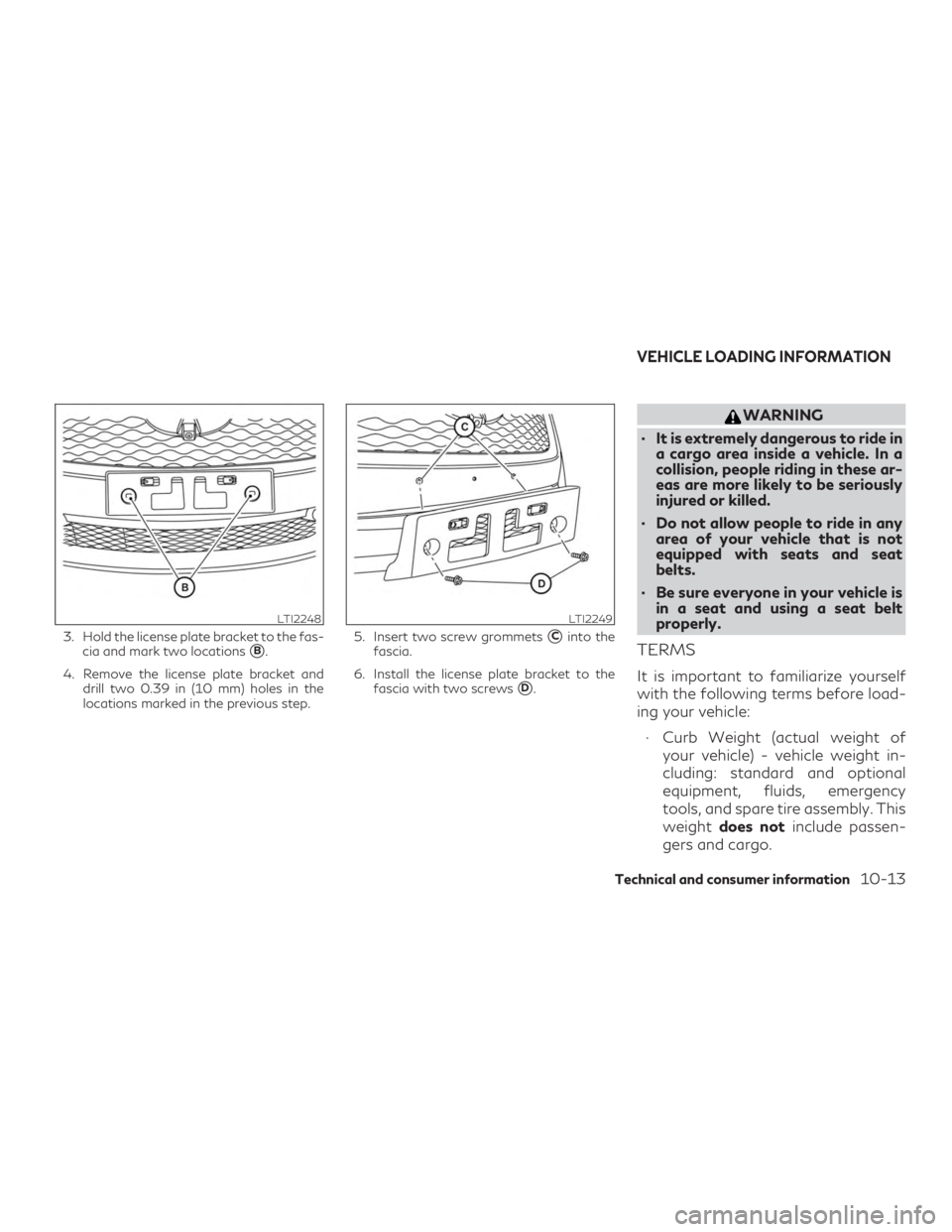

3. Hold the license plate bracket to the fas-cia and mark two locations
B.
4. Remove the license plate bracket and drill two 0.39 in (10 mm) holes in the
locations marked in the previous step. 5. Insert two screw grommetsCinto the
fascia.
6. Install the license plate bracket to the fascia with two screws
D.
WARNING
∙ It is extremely dangerous to ride in a cargo area inside a vehicle. In a
collision, people riding in these ar-
eas are more likely to be seriously
injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not
equipped with seats and seat
belts.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt
properly.
TERMS
It is important to familiarize yourself
with the following terms before load-
ing your vehicle:
∙ Curb Weight (actual weight of your vehicle) - vehicle weight in-
cluding: standard and optional
equipment, fluids, emergency
tools, and spare tire assembly. This
weight does not include passen-
gers and cargo.
LTI2248LTI2249
VEHICLE LOADING INFORMATION
Technical and consumer information10-13

∙ GVW (Gross Vehicle Weight) -curb weight plus the combined
weight of passengers and cargo.
∙ GVWR (Gross Vehicle Weight Rat- ing) - maximum total combined
weight of the unloaded vehicle,
passengers, luggage, hitch, trailer
tongue load and any other op-
tional equipment. This information
is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label.
∙ GAWR (Gross Axle Weight Rating) - maximum weight (load) limit
specified for the front or rear axle.
This information is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label.
∙ GCWR (Gross Combined Weight rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer. ∙ Vehicle Capacity Weight, Load
limit, Total load capacity - maxi-
mum total weight limit specified of
the load (passengers and cargo)
for the vehicle. This is the maxi-
mum combined weight of occu-
pants and cargo that can be
loaded into the vehicle. If the ve-
hicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.
∙ Cargo capacity - permissible weight of cargo, the subtracted
weight of occupants from the load
limit.VEHICLE LOAD CAPACITY
Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on the
Tire and Loading Information label. Do
not exceed the number of occupants
shown as “Seating Capacity” on the
Tire and Loading Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in the
following illustration.
10-14
Technical and consumer information

Steps for determining correct load
limit
1. Locate the statement “The com-bined weight of occupants and
cargo should never exceed XXX
lbs. or XXX kg” on your vehicle’s
Tire and Loading Information la-
bel.
2. Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from
XXX lbs. or XXX kg.
4. The resulting figure equals the available amount of cargo and
luggage load capacity. For ex-
ample, if the XXX amount equals
1,400 lbs. and there will be five
150 lbs. passengers in your ve-
hicle, the amount of available
cargo and luggage load capacity
is 650 lbs. (1,400-750 (5 X 150)
= 650 lbs.) or (640-340 (5 X 70) =
300 kg.)
Example
LTI2320
Technical and consumer information10-15

5. Determine the combined weightof luggage and cargo being
loaded on the vehicle. That
weight may not safely exceed the
available cargo and luggage load
capacity calculated in step 4.
6. If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity
of your vehicle.
Before driving a loaded vehicle, con-
firm that you do not exceed the GVWR
or the GAWR for your vehicle. For ad-
ditional information, refer to “Mea-
surement of weights” in this section.
Also check tires for proper inflation
pressures. For additional information,
refer to “Tire and Loading Information
label” in the “Do-it-yourself” section of
this manual.
SECURING THE LOAD
There are luggage hooks located in the cargo
area as shown. The hooks can be used to
secure cargo with ropes or other types of
straps.
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
WARNING
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
∙ The child restraint top tether strap may be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
∙ Do not load your vehicle any heavier than the GVWR or the maximum front and
rear GAWRs. If you do, parts of your ve-
hicle can break, tire damage could occur,
or it can change the way your vehicle
handles. This could result in loss of con-
trol and cause personal injury.
Cargo area luggage hooks
LIC3684
10-16Technical and consumer information
