–The vehicle is towing an object (if so
equipped).
– Suspension parts other than those
designated as Genuine INFINITI
parts are used. (If the vehicle height
or the vehicle body inclination is
changed, the system may not detect
an obstacle correctly.)
– If the vehicle is using an accessory like
a bike rack, or cargo carrier that
blocks the sensors.
• Excessive noise (e.g., audio system vol-
ume, an open vehicle window) will inter-
fere with the chime sound, and it may not
be heard.
SYSTEM MALFUNCTION
If the RAB system malfunctions, it will be
turned off automatically, the RAB system
warning light will illuminate, and the “Mal-
function” warning message will appear in the
vehicle information display.
Action to take
If the warning light illuminates, park the ve-
hicle in a safe location, turn the engine off,
and restart the engine. If the warning light
continues to illuminate, have the RAB system
checked. It is recommended that you visit an
INFINITI retailer for this service.
NOTE:
If the RAB system cannot be operated tem-
porarily, the RAB system warning light
blinks.
SYSTEM MAINTENANCE
Observe the following items to ensure proper
operation of the system:
• Always keep the parking sensors
O1clean.
• If the parking sensors are dirty, wipe them off with a soft cloth while being careful to
not damage them.
• Do not subject the area around the parking sensors
O1to strong impact. Also, do not
remove or disassemble the parking sensors.
If the parking sensors and peripheral areas
are deformed in an accident, etc., have the
sensors checked. It is recommended that
you visit an INFINITI retailer for this service.
LSD4426
Starting and driving5-127

• Do not install any stickers (including trans-parent stickers) or accessories on the park-
ing sensors
O1and their surrounding areas.
This may cause a malfunction or improper
operation.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the FEB with Pedes-
trian Detection system could result in seri-
ous injury or death.
• The FEB with Pedestrian Detection sys-
tem is a supplemental aid to the driver. It
is not a replacement for the driver’s at-
tention to traffic conditions or responsi-
bility to drive safely. It cannot prevent
accidents due to carelessness or danger-
ous driving techniques.
• The FEB with Pedestrian Detection sys-
tem does not function in all driving, traf-
fic, weather and road conditions.
The FEB with Pedestrian Detection system
can assist the driver when there is a risk of a
forward collision with the vehicle ahead in the
traveling lane or with a pedestrian ahead in
the traveling lane. The FEB with Pedestrian Detection system
uses a radar sensor located on the front of
the vehicle
OBto measure the distance to the
vehicle ahead in the same lane. For pedestri-
ans, the FEB with Pedestrian Detection sys-
tem uses a camera installed behind the wind-
shield
OAin addition to the radar sensor.
LSD4514
FORWARD EMERGENCY BRAKING
(FEB) WITH PEDESTRIAN
DETECTION
5-128Starting and driving

FEB WITH PEDESTRIAN
DETECTION SYSTEM
OPERATION
1. Vehicle ahead detection indicator
2. FEB with Pedestrian Detection emer-gency warning indicator
3. FEB with Pedestrian Detection system OFF warning light
The FEB system operates at speeds above
approximately 3 mph (5 km/h). For the pe-
destrian detection function, the system oper-
ates at speeds between6–37mph(10–60
km/h).
If a risk of a forward collision is detected, the
FEB with Pedestrian Detection system will
firstly provide the warning to the driver by
flashing the vehicle ahead detection indicator
(yellow) in the vehicle information display and
providing an audible alert. If the driver applies
the brakes quickly and forcefully after the
warning, and the FEB with Pedestrian De-
tection system detects that there is still the
possibility of a forward collision, the system
will automatically increase the braking force.
LSD4527
For vehicles with the 7 inch (18 cm) display
Starting and driving5-129

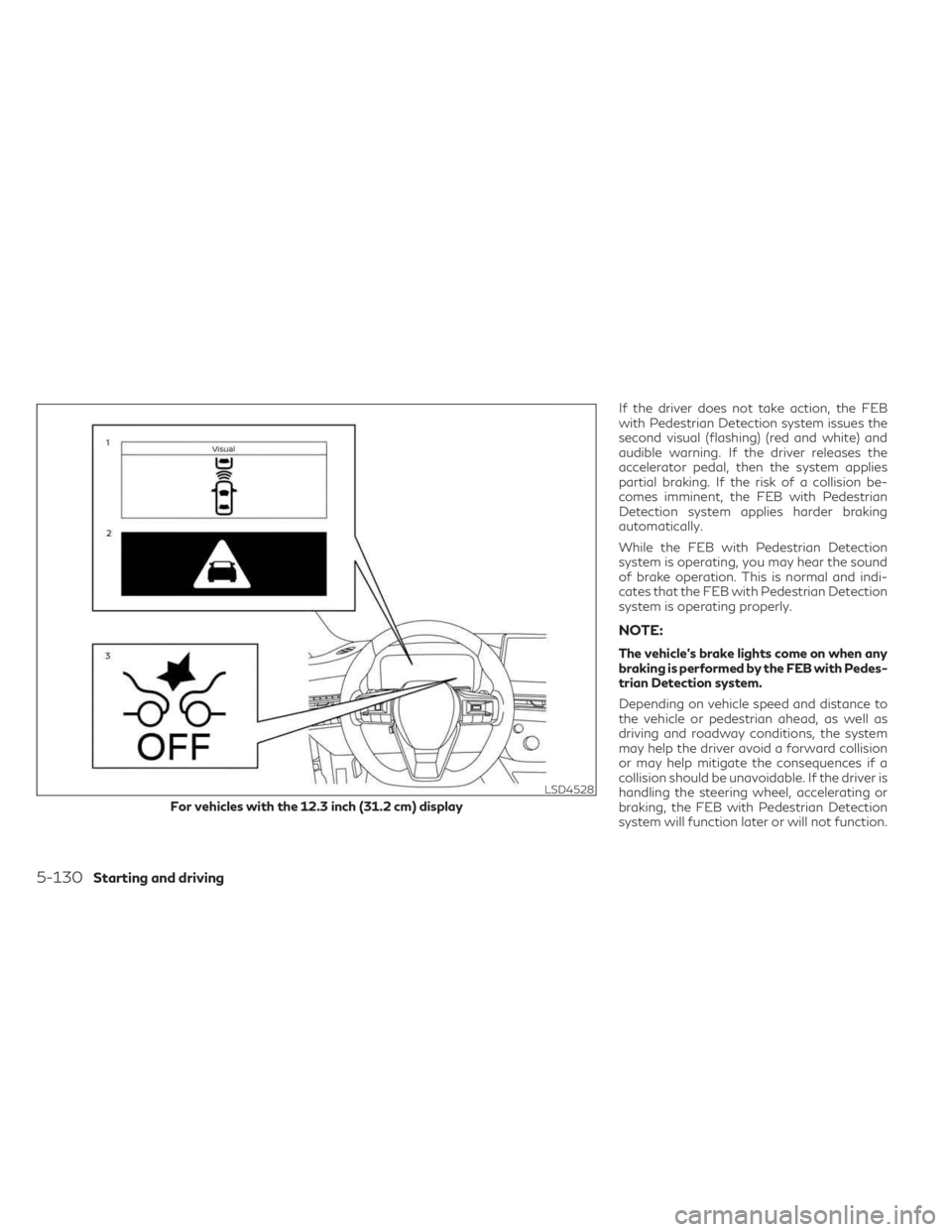

If the driver does not take action, the FEB
with Pedestrian Detection system issues the
second visual (flashing) (red and white) and
audible warning. If the driver releases the
accelerator pedal, then the system applies
partial braking. If the risk of a collision be-
comes imminent, the FEB with Pedestrian
Detection system applies harder braking
automatically.
While the FEB with Pedestrian Detection
system is operating, you may hear the sound
of brake operation. This is normal and indi-
cates that the FEB with Pedestrian Detection
system is operating properly.
NOTE:
The vehicle’s brake lights come on when any
braking is performed by the FEB with Pedes-
trian Detection system.
Depending on vehicle speed and distance to
the vehicle or pedestrian ahead, as well as
driving and roadway conditions, the system
may help the driver avoid a forward collision
or may help mitigate the consequences if a
collision should be unavoidable. If the driver is
handling the steering wheel, accelerating or
braking, the FEB with Pedestrian Detection
system will function later or will not function.
LSD4528
For vehicles with the 12.3 inch (31.2 cm) display
5-130Starting and driving

Perform the following steps to enable or dis-
able the FEB with Pedestrian Detection
system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.
2. Select “Emergency Assist” and press the OK button.
3. Select “Front” and press the OK button to turn the system on or off.
When the FEB with Pedestrian Detection
system is turned off, the FEB with Pedestrian
Detection system warning light illuminates.
NOTE:
• The FEB with Pedestrian Detection sys-
tem will be automatically turned on when
the engine is restarted.
• The PFCW system is integrated into the
FEB with Pedestrian Detection system.
There is not a separate selection in the ve-
hicle information display for the PFCW
system. When the FEB system is turned
off, the PFCW system is also turned off.
LSD4650
For vehicles with the 12.3 inch (31.2 cm) display
5-132Starting and driving

FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.
• The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
•
The FEB with Pedestrian Detection sys-
tem does not detect the following objects:
–Pedestrians that are small (for ex-
ample, children), in a sitting position,
operating toys/skateboards, on
scooters or in wheelchairs, or not in an
upright standing or walking position.
– Animals of any size.
– Obstacles (for example, cargo or de- bris) on the roadway or roadside.
– Oncoming or crossing vehicles.
– Vehicles where the tires are difficult to see or the shape of the rear of the
vehicle is unclear or obstructed.
– Parked vehicles. •
The FEB with Pedestrian Detection sys-
tem has some performance limitations.
– If a stationary vehicle is in the vehi-
cle’s path, the system will not func-
tion when the vehicle approaches the
stationary vehicle at speeds over ap-
proximately 50 mph (80 km/h).
– Pedestrian detection will not func-
tion when the vehicle is driven at
speeds over approximately 37 mph
(60 km/h) or below approximately 6
mph (10km/h).
• For pedestrians, the FEB with Pedes-
trian Detection system will not issue the
first warning.
• The FEB with Pedestrian Detection sys-
tem may not function properly or detect
a vehicle or pedestrians ahead in the fol-
lowing conditions:
– In poor visibility conditions (such as
rain, snow, fog, dust storms, sand
storms, smoke, and road spray from
other vehicles).
– If dirt, ice, snow, fog or other material
is covering the radar sensor area or
camera area of windshield. –
If strong light (for example, sunlight
or high beams) enters the front cam-
era or a sudden change in brightness
occurs (for example, entering a tun-
nel or driving in lightning).
– In dark or dimly lit conditions, such as
at night or in tunnels, including cases
where your vehicle’s headlights are
off or dim, or the tail lights of the
vehicle ahead are off.
– When the direction of the camera is
misaligned.
– When driving on a steep downhill
slope, on roads with sharp curves,
and/or bumpy or dirt roads.
– If there is interference by other radar
sources.
– When your vehicle’s position or
movement is changed quickly or sig-
nificantly (for example, lane change,
turning vehicle, abrupt steering, sud-
den acceleration or deceleration).
Starting and driving5-133

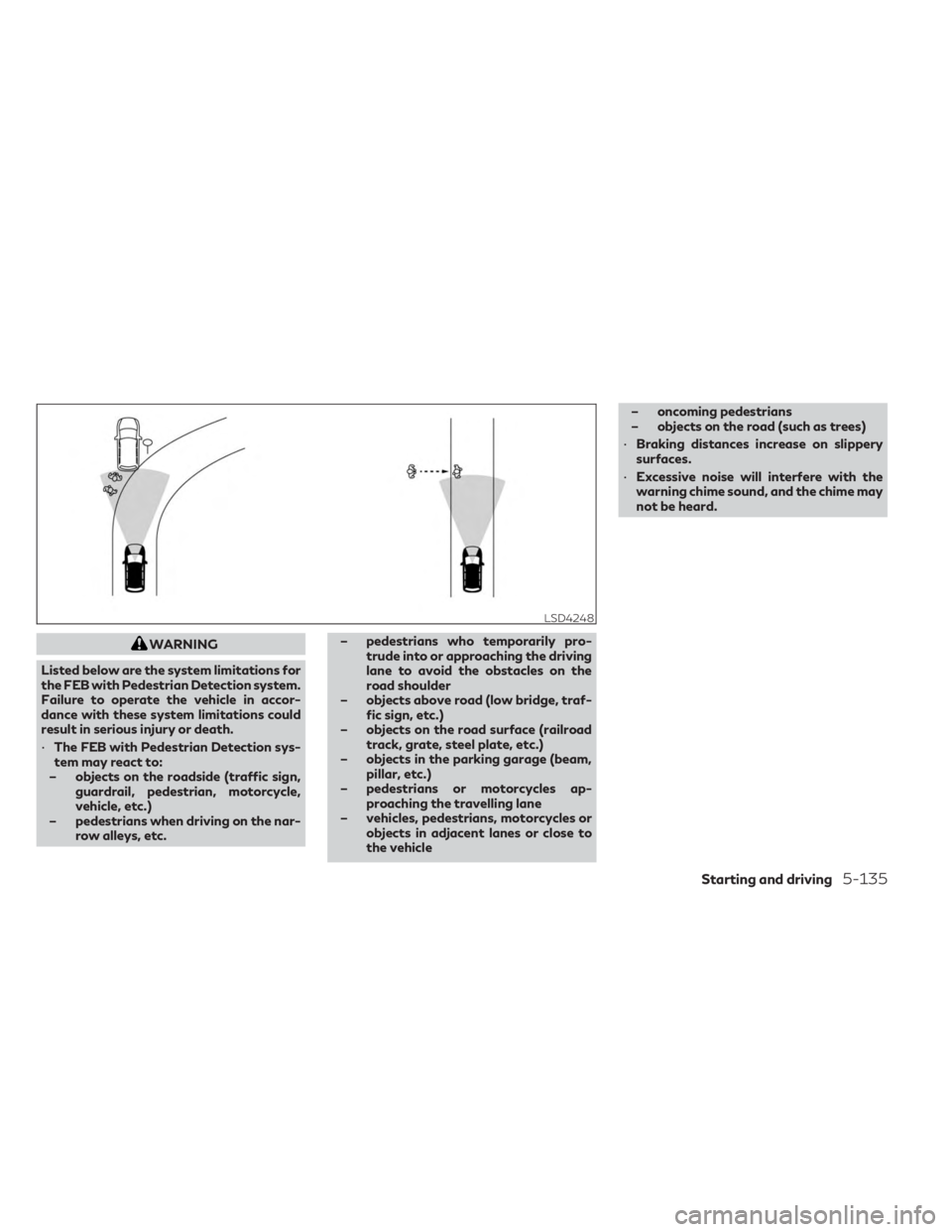

WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.
• The FEB with Pedestrian Detection sys-
tem may react to:
– objects on the roadside (traffic sign, guardrail, pedestrian, motorcycle,
vehicle, etc.)
– pedestrians when driving on the nar- row alleys, etc. – pedestrians who temporarily pro-
trude into or approaching the driving
lane to avoid the obstacles on the
road shoulder
– objects above road (low bridge, traf- fic sign, etc.)
– objects on the road surface (railroad track, grate, steel plate, etc.)
– objects in the parking garage (beam, pillar, etc.)
– pedestrians or motorcycles ap- proaching the travelling lane
– vehicles, pedestrians, motorcycles or objects in adjacent lanes or close to
the vehicle – oncoming pedestrians
– objects on the road (such as trees)
• Braking distances increase on slippery
surfaces.
• Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.
LSD4248
Starting and driving5-135

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with
Pedestrian Detection system warning light
blinks and the system will be turned off
automatically:
• The radar sensor picks up interference fromanother radar source.
• The camera area of the windshield is misted or frozen.
• Strong light is shining from the front.
• The cabin temperature is over approxi- mately 104°F (40°C) in direct sunlight.
• The camera area of the windshield glass is continuously covered with dirt, etc.
Action to take
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
NOTE:
When the inside of the windshield on the
camera area is misted or frozen, it will take a
period of time to remove it after the A/C
turns on. If dirt appears on this area, it is
recommended that you visit an INFINITI
retailer.
LSD4433
For vehicles with the 7 inch (18 cm) display
5-136Starting and driving

Condition B:
When there is inclement weather (rain, fog,
snow, etc.) blocking the front radar sensor,
the FEB with Pedestrian Detection system
will be canceled, the chime will sound and the
“Forward Driving Aids temporarily disabled
Front Sensor blocked See Owner’s Manual”
warning message will appear in the vehicle
information display.
Action to take:
When the conditions listed above are no lon-
ger present, the warning message will no
longer be available in the vehicle information
display. If the “Forward Driving Aids tempo-
rarily disabled Front Sensor blocked See
Owner’s Manual” warning message contin-
ues to be displayed, have the system checked.
It is recommended that you visit an INFINITI
retailer for this service.
Condition C:
When the Vehicle Dynamic Control (VDC)
system is off, the FEB with Pedestrian De-
tection brake will not operate. In this case
only visible and audible warning operates.
The FEB with Pedestrian Detection system
OFF warning light (orange) will illuminate.
LSD4434
For vehicles with the 12.3 inch (31.2 cm) display
Starting and driving5-137

Action to take:
When the VDC system is on, the FEB with
Pedestrian Detection system will resume
automatically.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, push the park
button to engage the P (Park) position, turn
the engine off and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service.
LSD4448
5-138Starting and driving
