RF Exposure Information according 2.1091/
2.1093/OET bulletin 65:
Radiofrequency radiation exposure information:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be in-
stalled and operated with minimum distance
of 20 cm between the radiator and your
body.
The transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.
For Canada
Type approval number:
IC: 3387A-FR5CPEC
Legal warning for RF equipment:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
• The PFCW system can help warn the
driver before a collision occurs but will
not avoid a collision. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane.

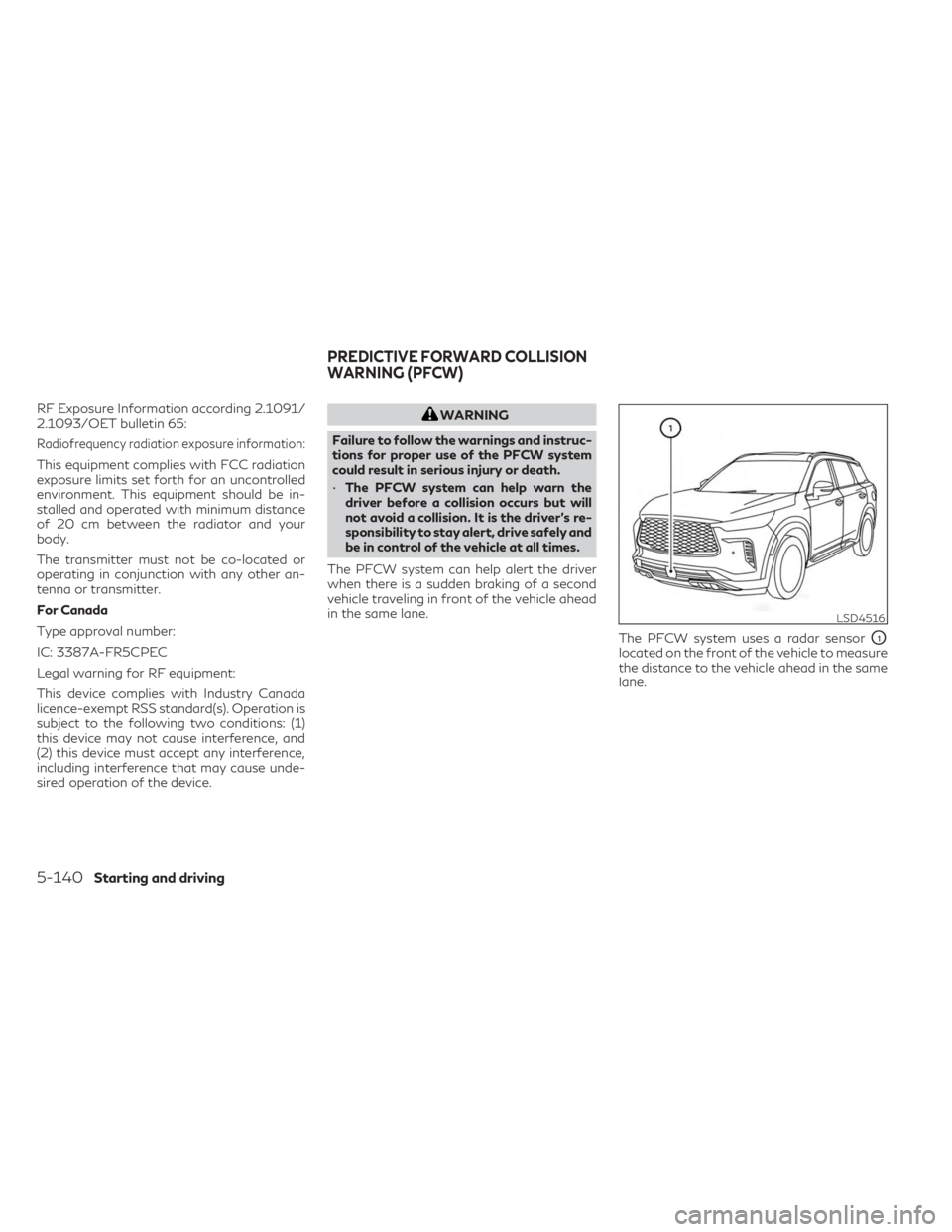

The PFCW system uses a radar sensor
O1
located on the front of the vehicle to measure
the distance to the vehicle ahead in the same
lane.
LSD4516
PREDICTIVE FORWARD COLLISION
WARNING (PFCW)
5-140Starting and driving

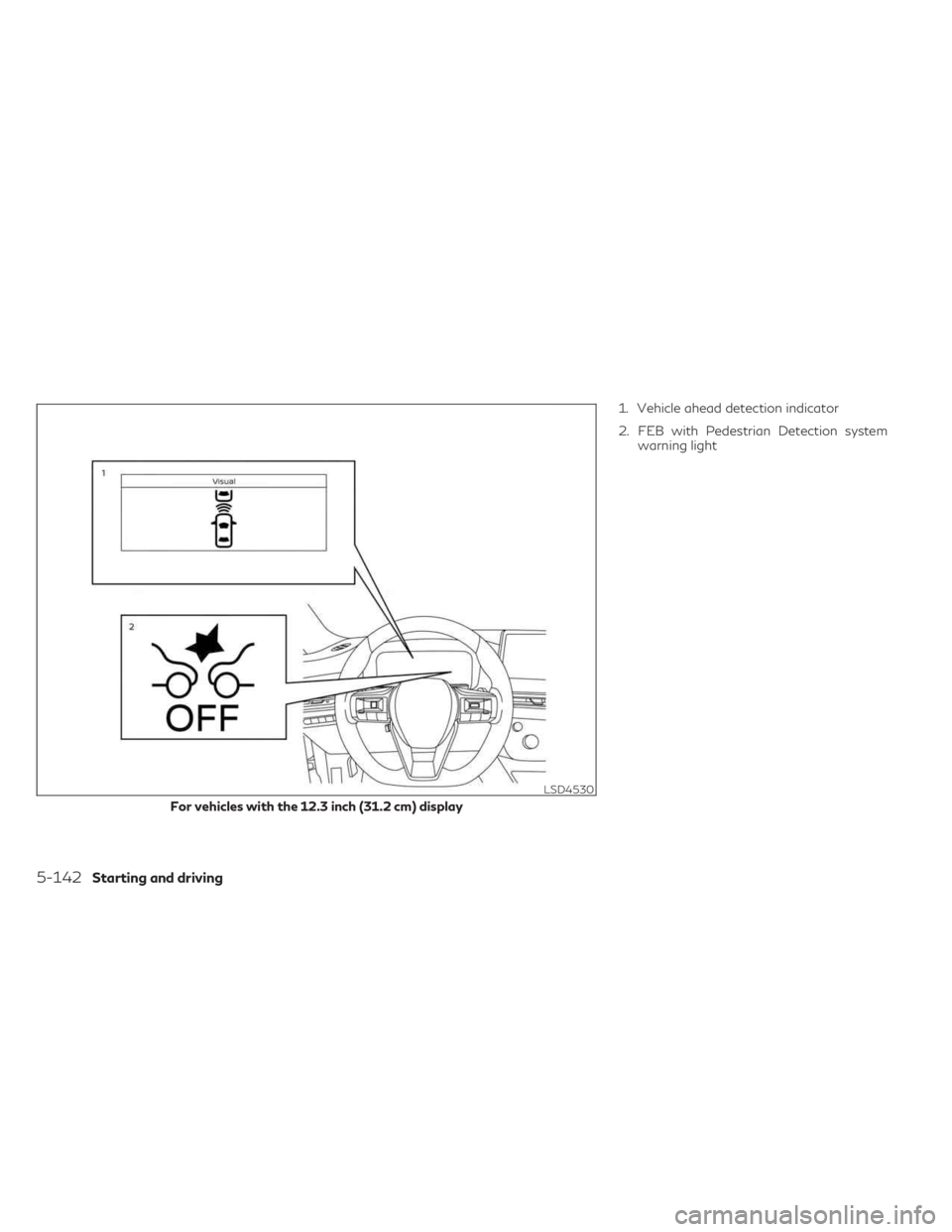

1. Vehicle ahead detection indicator
2. FEB with Pedestrian Detection systemwarning light
LSD4530
For vehicles with the 12.3 inch (31.2 cm) display
5-142Starting and driving

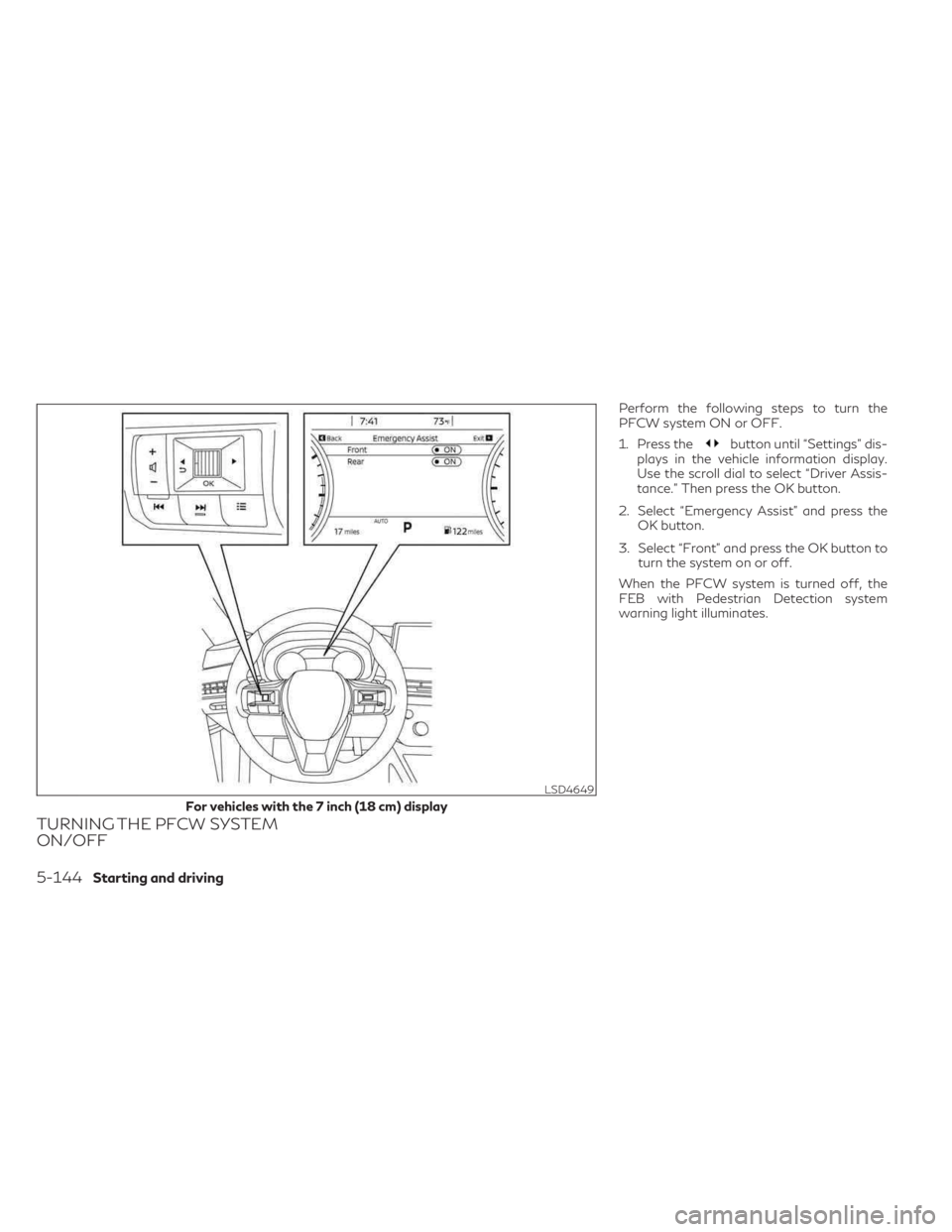

TURNING THE PFCW SYSTEM
ON/OFF
Perform the following steps to turn the
PFCW system ON or OFF.
1. Press the
button until “Settings” dis-
plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.
2. Select “Emergency Assist” and press the OK button.
3. Select “Front” and press the OK button to turn the system on or off.
When the PFCW system is turned off, the
FEB with Pedestrian Detection system
warning light illuminates.
LSD4649
For vehicles with the 7 inch (18 cm) display
5-144Starting and driving

WARNING
Listed below are the system limitations for
the PFCW system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
• The PFCW system cannot detect all ve-
hicles under all conditions. •
The radar sensor does not detect the fol-
lowing objects:
– Pedestrians, animals or obstacles in
the roadway
– Oncoming vehicles
– Crossing vehicles
• (Illustration A) The PFCW system does
not function when a vehicle ahead is a
narrow vehicle, such as a motorcycle.
• The radar sensor may not detect a ve-
hicle ahead in the following conditions:
– Snow or heavy rain –
Dirt, ice, snow or other material cov-
ering the radar sensor.
– Interference by other radar sources.
– Snow or road spray from traveling
vehicles.
– Driving in a tunnel
– Towing a trailer

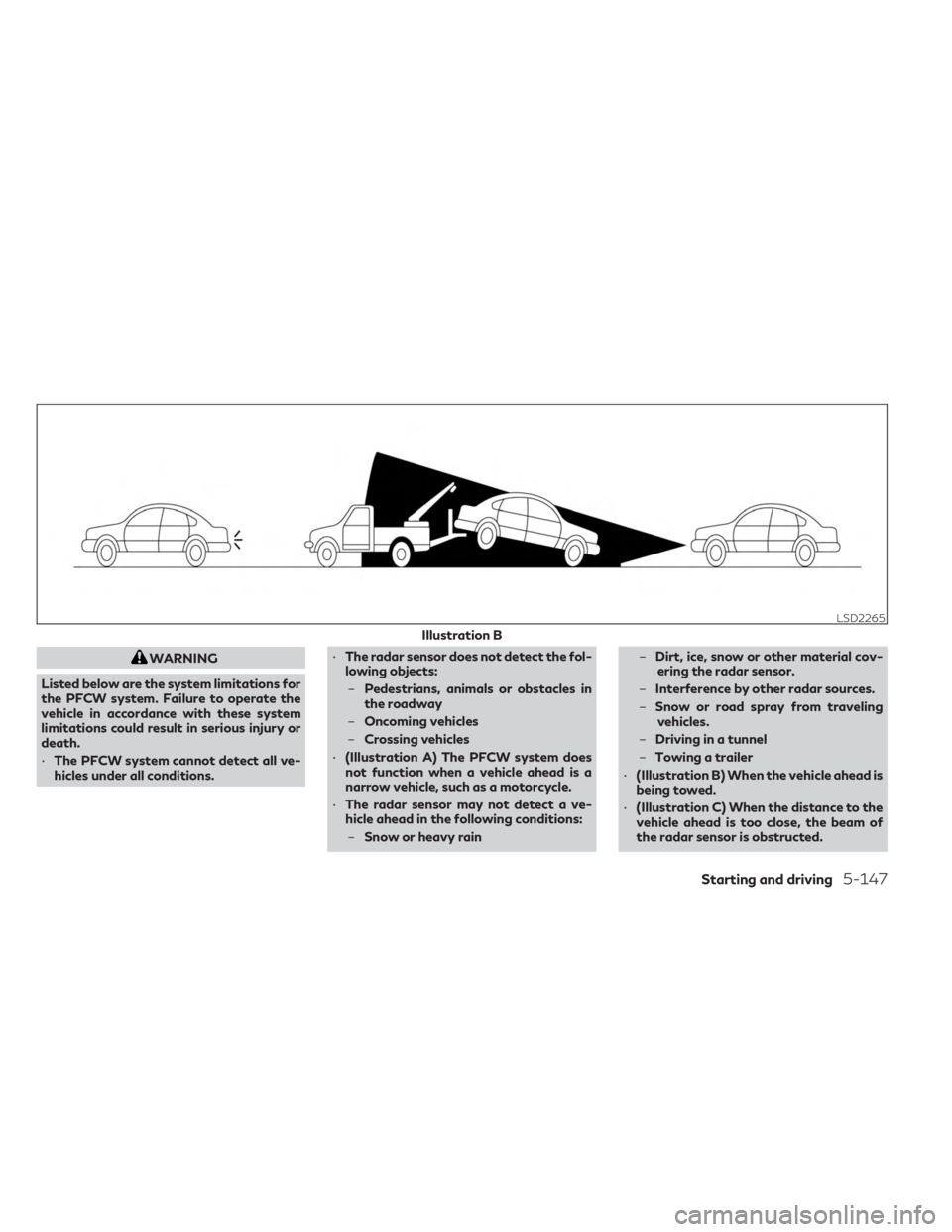

• (Illustration B) When the vehicle ahead is
being towed.
• (Illustration C) When the distance to the
vehicle ahead is too close, the beam of
the radar sensor is obstructed.
LSD2265
Illustration B
Starting and driving5-147

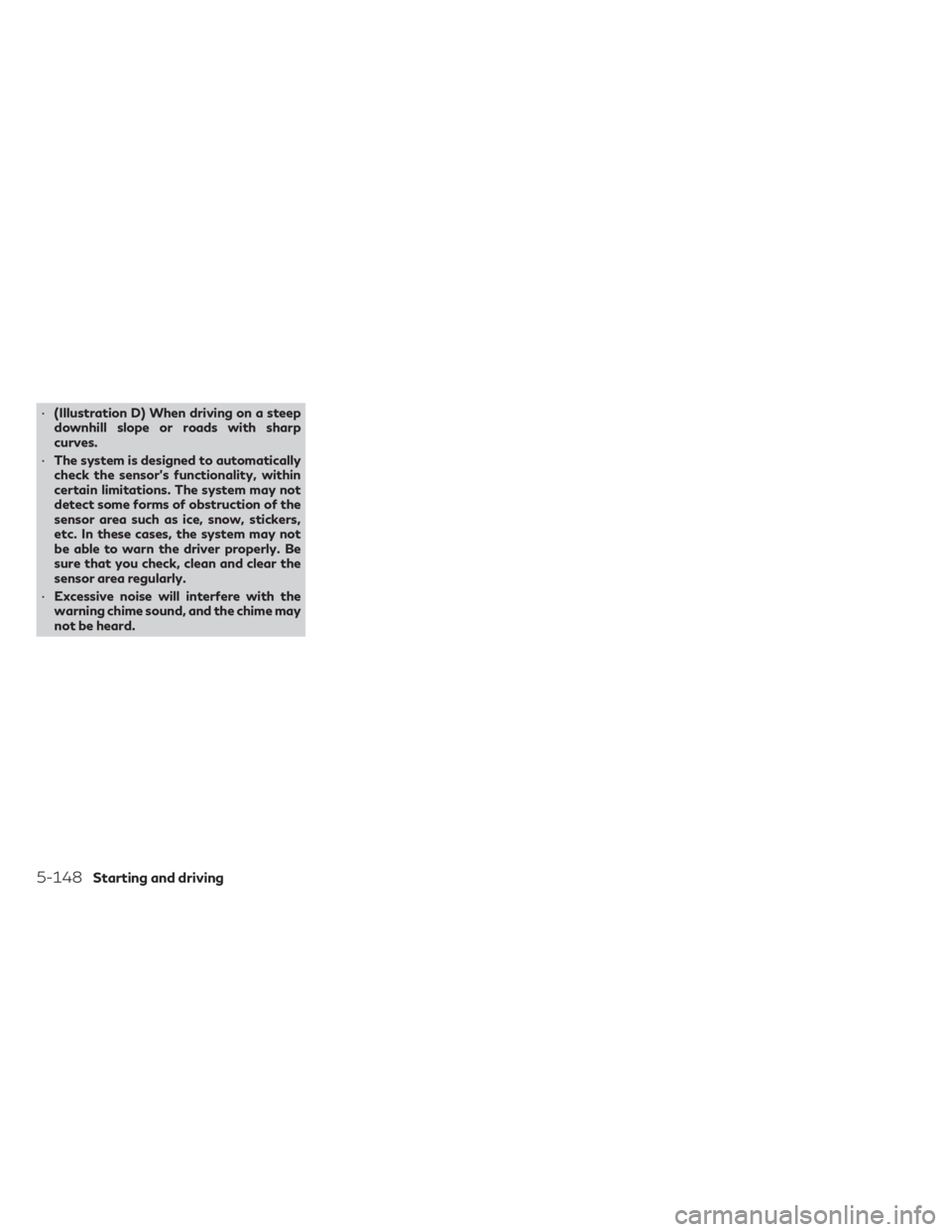

•(Illustration D) When driving on a steep
downhill slope or roads with sharp
curves.
• The system is designed to automatically
check the sensor’s functionality, within
certain limitations. The system may not
detect some forms of obstruction of the
sensor area such as ice, snow, stickers,
etc. In these cases, the system may not
be able to warn the driver properly. Be
sure that you check, clean and clear the
sensor area regularly.
• Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.
5-148Starting and driving

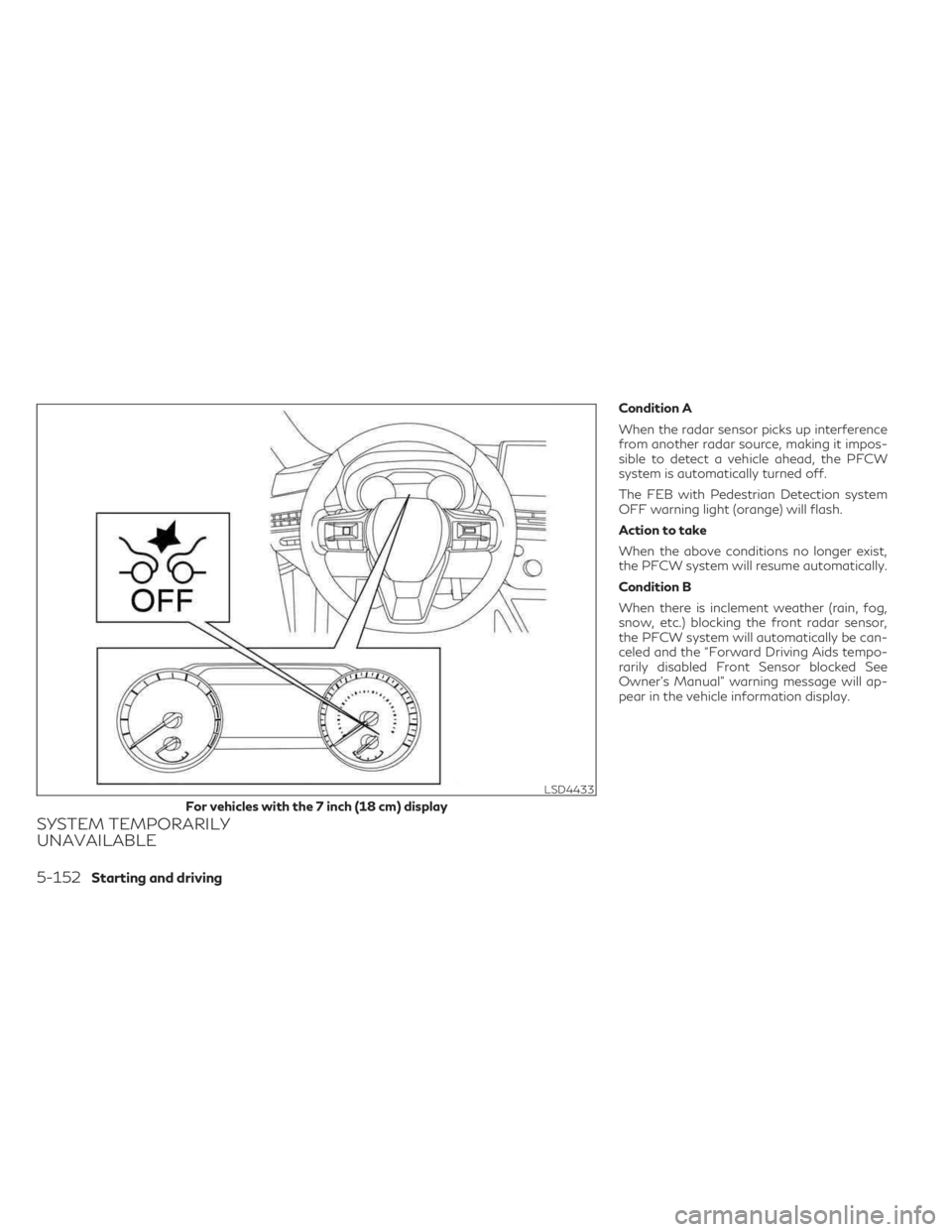

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interference
from another radar source, making it impos-
sible to detect a vehicle ahead, the PFCW
system is automatically turned off.
The FEB with Pedestrian Detection system
OFF warning light (orange) will flash.
Action to take
When the above conditions no longer exist,
the PFCW system will resume automatically.
Condition B
When there is inclement weather (rain, fog,
snow, etc.) blocking the front radar sensor,
the PFCW system will automatically be can-
celed and the “Forward Driving Aids tempo-
rarily disabled Front Sensor blocked See
Owner’s Manual” warning message will ap-
pear in the vehicle information display.
LSD4433
For vehicles with the 7 inch (18 cm) display
5-152Starting and driving

Action to take:
When the conditions listed above are no lon-
ger present, the warning message will no
longer be available in the vehicle information
display. If the “Forward Driving Aids tempo-
rarily disabled Front Sensor blocked See
Owner’s Manual” warning message contin-
ues to be displayed, have the system checked.
It is recommended that you visit an INFINITI
retailer for this service.

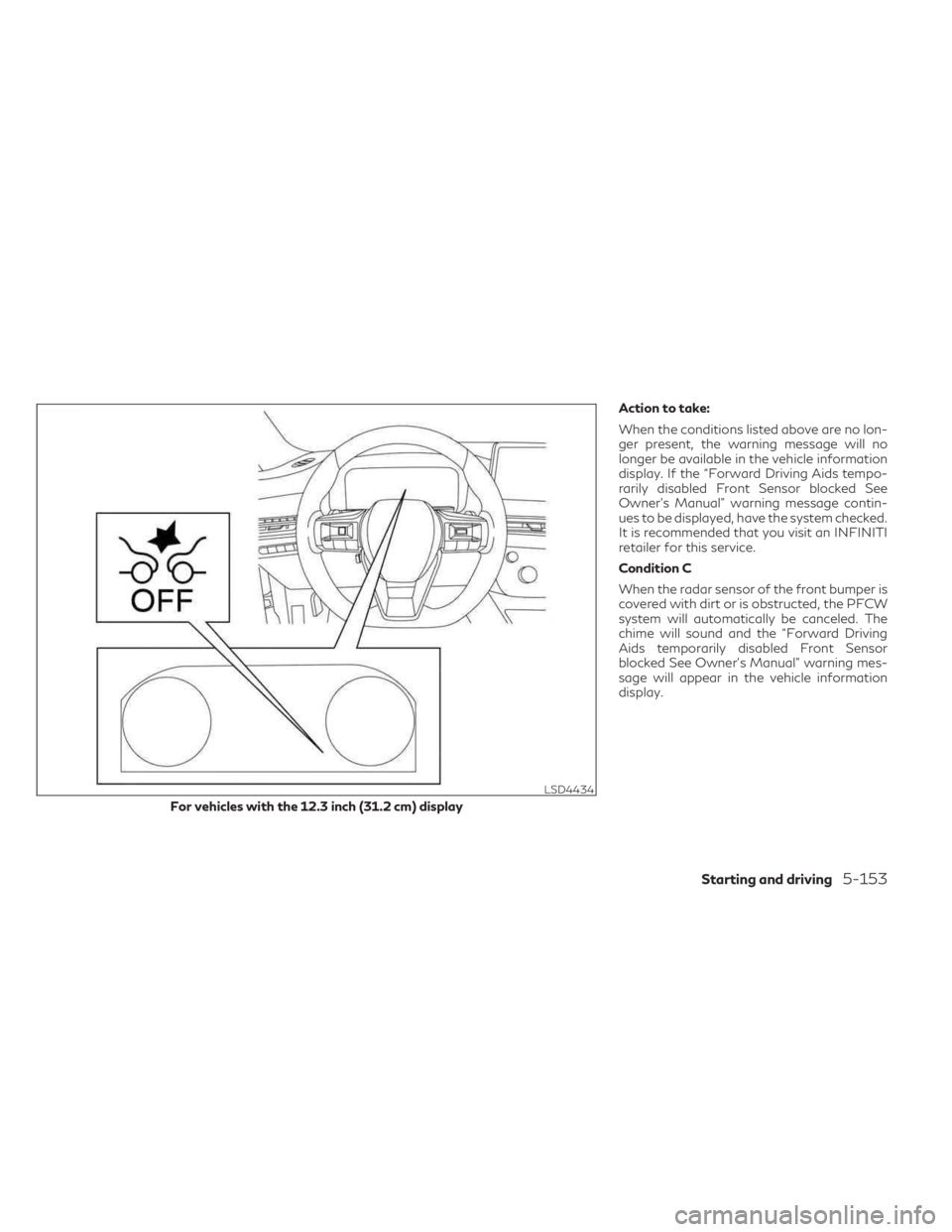

Condition C
When the radar sensor of the front bumper is
covered with dirt or is obstructed, the PFCW
system will automatically be canceled. The
chime will sound and the “Forward Driving
Aids temporarily disabled Front Sensor
blocked See Owner’s Manual” warning mes-
sage will appear in the vehicle information
display.
LSD4434
For vehicles with the 12.3 inch (31.2 cm) display
Starting and driving5-153

Action to take:
If the warning message appears, stop the
vehicle in a safe place, push the park button
to engage the P (Park) position, and turn the
engine off. When the radar signal is tempo-
rarily interrupted, clean the sensor area of the
front bumper and restart the engine. If the
“Forward Driving Aids temporarily disabled
Front Sensor blocked See Owner’s Manual”
warning message continues to be displayed,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Condition D
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snowfields, driving next to
long walls), the system may illuminate the
system warning light and display the “For-
ward Driving Aids temporarily disabled Front
Sensor blocked See Owner’s Manual”
warning message.
Action to take:
When the above driving conditions no longer
exist, turn the system back on.
SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, push the park
button to engage the P (Park) position, turn
the engine off and restart the engine. If the
warning light continues to illuminate, have
the PFCW system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
LSD4448
5-154Starting and driving

RF Exposure Information according 2.1091/
2.1093/OET bulletin 65:
Radiofrequency radiation exposure information:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be in-
stalled and operated with minimum distance
of 20 cm between the radiator and your
body.
The transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.
For Canada
Type approval number:
IC: 3387A-FR5CPEC
Legal warning for RF equipment:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the DAA system
could result in serious injury or death.
• The DAA system is only a warning to in-
form the driver of a potential lack of
driver attention or drowsiness. It will not
steer the vehicle or prevent loss of
control.
• The DAA system does not detect and
provide an alert of the driver’s lack of
attention or fatigue in every situation.
• It is the driver’s responsibility to:
– stay alert,
– drive safely,
– keep the vehicle in the traveling lane,
– be in control of the vehicle at all times,
– avoid driving when tired,
– avoid distractions (texting, etc.). The DAA system helps alert the driver if the
system detects a lack of attention or driving
fatigue.
The system monitors driving style and steer-
ing behavior over a period of time, and it
detects changes from the normal pattern. If
the system detects that driver attention is
decreasing over a period of time, the system
uses audible and visual warnings to suggest
that the driver take a break.
DRIVER ATTENTION ALERT (DAA)
(if so equipped)
5-156Starting and driving

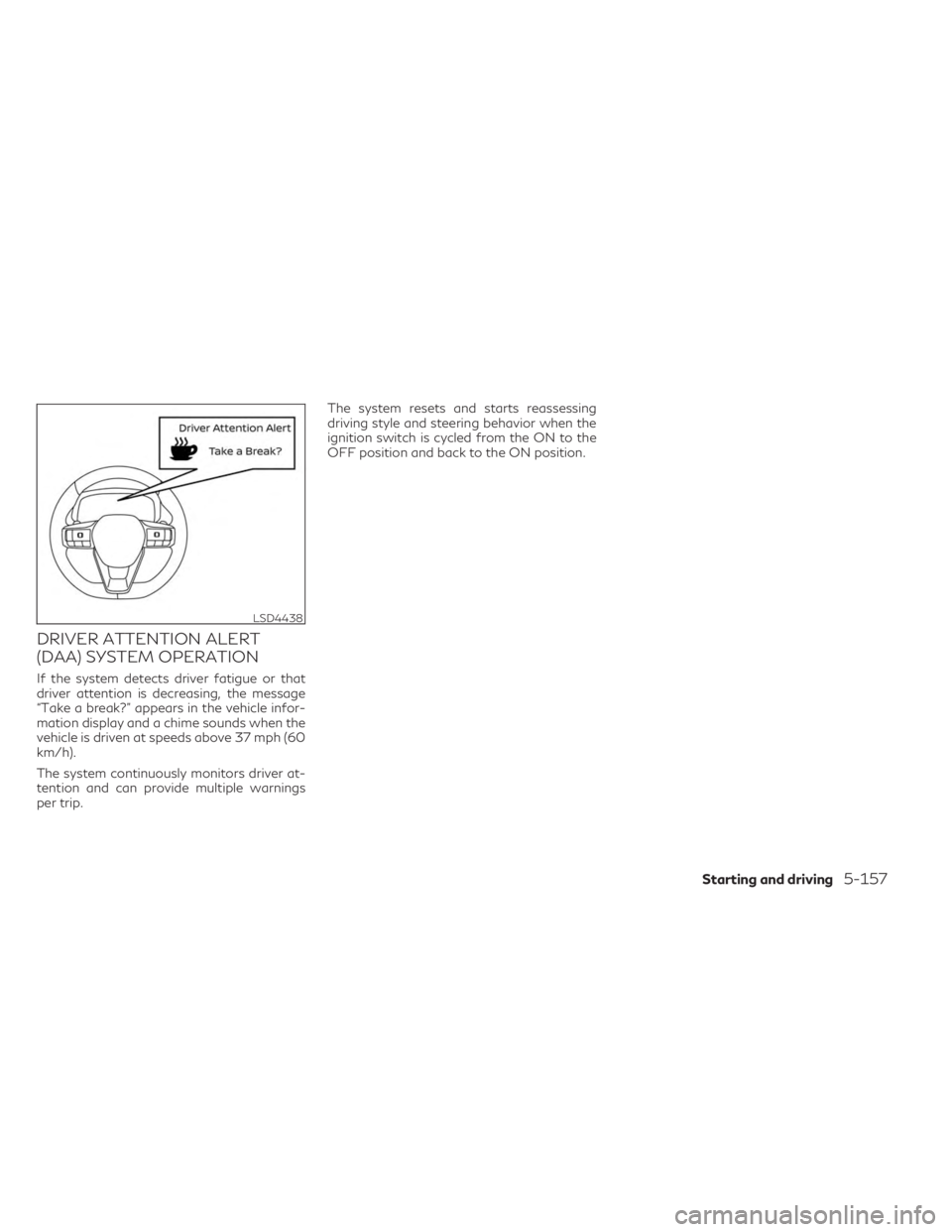

DRIVER ATTENTION ALERT
(DAA) SYSTEM OPERATION
If the system detects driver fatigue or that
driver attention is decreasing, the message
“Take a break?” appears in the vehicle infor-
mation display and a chime sounds when the
vehicle is driven at speeds above 37 mph (60
km/h).
The system continuously monitors driver at-
tention and can provide multiple warnings
per trip.The system resets and starts reassessing
driving style and steering behavior when the
ignition switch is cycled from the ON to the
OFF position and back to the ON position.
LSD4438
