INFINITI QX60 2023 Owners Manual

Manual shift mode
When the shift lever is shifted to the D (Drive)
position again with the vehicle in the D (Drive)
position while driving, the transmission en-
ters the manual shift mode. Shift ranges can
be selected manually by pulling the paddle
shifters on the steering wheel.
When shifting up, pull the right-side paddle
shifter (+)
OA. The transmission shifts to the
higher range.
When shifting down, pull the left-side paddle
shifter (−)
OB. The transmission shifts to the
lower range. When canceling the manual shift mode, move
the shift lever to the D (Drive) position again.
The transmission returns to the normal driv-
ing mode.
When you pull the paddle shifter while in the
D (Drive) position, the transmission will shift
to the upper or lower range temporarily. The
transmission will automatically return to the
D (Drive) position after a short period of time.
If you want to return to the D (Drive) position
manually, pull and hold the paddle shifter for
about 1.5 seconds.
In the manual shift mode, the shift range is
displayed in the vehicle information display.
Shift ranges up or down one by one as
follows:
1M⇔
2M⇔3M ⇔4M ⇔5M ⇔6M ⇔7M ⇔
8M ⇔9M
9M (9th) and 8M (8th)
Use this position for all normal forward driv-
ing at highway speeds.
7M (7th), 6M (6th) and 5M (5th)
Use these positions when driving up long
slopes, or for engine braking when driving
down long slopes.
4M (4th), 3M (3rd) and 2M (2nd)
Use these positions for hill climbing or engine
braking on downhill grades.
1M (1st)
Use this position when climbing steep hills
slowly or driving slowly through deep snow,
or for maximum engine braking on steep
downhill grades.
• Remember not to drive at high speeds for
extended periods of time in lower than the
8th range. This reduces fuel economy.
• Pulling the same paddle shifter twice will shift the ranges in succession. However, if
this motion is rapidly done, the second
shifting may not be completed properly.
• In the manual shift mode, the transmission
may not shift to the selected gear. This
helps maintain driving performance and
reduces the chance of vehicle damage or
loss of control.
• In the manual shift mode, the transmission
may shift up automatically to a higher
range than selected if the engine speed is
too high. When the vehicle speed de-
creases, the transmission automatically
shifts down and shifts to 1st gear before
the vehicle comes to a stop.
LSD4396
Starting and driving5-23

Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.
High fluid temperature protection
mode
This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.
Fail-safe
When the fail-safe operation occurs, please
note that the transmission will be locked in
any of the forward gears according to the
condition.If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may come on to indicate
the fail-safe mode is activated. For addi-
tional information, see “Malfunction Indica-
tor Light (MIL)” (P. 2-19). This will occur
even if all electrical circuits are functioning
properly. In this case, place the ignition
switch in the OFF position and wait for 10
seconds. Then push the switch back to the
ON position. The vehicle should return to its
normal operating condition. If it does not re-
turn to its normal operating condition, have
the transmission checked and repaired, if
necessary. It is recommended that you visit
an INFINITI retailer for this service.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs, ve-
hicle speed may be gradually reduced. The
reduced speed may be lower than other
traffic, which could increase the chance of
a collision. Be especially careful when driv-
ing. If necessary, pull to the side of the road
at a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
5-24Starting and driving

WARNING
• Be sure the parking brake is fully re-
leased before driving. Failure to do so
can cause brake failure and lead to an
accident.
• Do not release the parking brake from
outside the vehicle.
• Do not use the shift lever in place of the
parking brake. When parking, be sure the
parking brake is fully engaged.
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
ELECTRONIC PARKING BRAKE
(switch type)
The electronic parking brake can be applied
or released by operating the parking brake
switch.
WARNING
• Before leaving the vehicle, move the shift
position to the P (Park) position and
check that the electronic parking brake
warning light is illuminated to confirm
that the electronic parking brake is ap-
plied. The electronic parking brake
warning light will remain on for a period
of time after the driver’s door is locked.
CAUTION
When parking in an area where the outside
temperature is below 32°F (0°C), the park-
ing brake, if applied, may freeze in place
and may be difficult to release.
For safe parking, it is recommended that
you place the shift position in the P (Park)
position and securely block the wheels.
NOTE:
• To keep the electronic parking brake re- leased after the engine is turned off, place
the ignition switch in the OFF position, de-
press the brake pedal and push down the
parking brake switch before opening the
driver’s door.
LSD4139
PARKING BRAKE
Starting and driving5-25

• If a malfunction occurs in the electronicparking brake system (for example, due to
battery discharge), it is recommended that
you visit an INFINITI retailer.
• Under the following conditions the elec- tronic parking brake will automatically be
applied and the braking force of the auto-
matic brake hold will be released:
– The braking force is applied by the auto- matic brake hold function for 3 minutes
or longer.
– The vehicle is in the P (Park) position.
– The electronic parking brake is applied manually.
– The driver’s seat belt is unfastened.
– The driver’s door is opened.
– The ignition switch is placed in the OFF position.
– A malfunction occurs in the automatic brake hold function.Manual operation
To apply: Pull the switch upO1. The indicator
light
OAwill illuminate.
To release: With the ignition switch in the ON
position, depress the brake pedal and push
the switch down
O2. The indicator lightOAwill turn off.
Before driving, check that the electronic
parking brake indicator light (
or PARK)
goes out. For additional information, see
“Warning lights, indicator lights and audible
reminders” (P. 2-12).
NOTE:
• A buzzer will sound if the vehicle is driven without releasing the parking brake. For
additional information, see “Warning
lights, indicator lights and audible remind-
ers” (P. 2-12).
• While the electronic parking brake is ap- plied or released, an operating sound is
heard from the lower side of the rear seat.
This is normal and does not indicate a
malfunction. • When the electronic parking brake is fre-
quently applied and released in a short pe-
riod of time, the parking brake may not
operate in order to prevent the parking
brake system from overheating. If this oc-
curs, operate the electronic parking brake
switch again after waiting approximately
1 minute.
• If the electronic parking brake must be ap- plied while driving in an emergency, pull up
and hold the parking brake switch. When
you release the parking brake switch, the
parking brake will be released.
• While pulling up the electronic parking brake switch during driving, the parking
brake is applied and a chime sounds. The
electronic parking brake indicator light in
the meter and in the parking brake switch
illuminates. This does not indicate a mal-
function. The electronic parking brake in-
dicator light in the meter and in the park-
ing brake switch turns off when the
parking brake is released.
• When pulling the electronic parking brake switch up with the ignition switch in the
OFF or AUTO ACC position, the parking
brake switch indicator light will continue
to illuminate for a short period of time.
5-26Starting and driving

The automatic brake hold function maintains
the braking force without the driver having to
depress the brake pedal when the vehicle is
stopped at a traffic light or intersection. As
soon as the driver depresses the accelerator
pedal again, the automatic brake hold func-
tion is deactivated and the braking force is
released. The operating status of the auto-
matic brake hold can be displayed.
To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.
For additional information, see “Warning
lights, indicator lights and audible reminders”
(P. 2-12).
WARNING
• The automatic brake hold function is not
designed to hold the vehicle on a steep
hill or slippery road. Never use the auto-
matic brake hold function when the ve-
hicle is stopped on a steep hill or slippery
road. Failure to do so may cause the ve-
hicle to move. •
Warnings may appear to request that
the driver retake control by depressing
the brake pedal.
•
When the automatic brake hold function is
activated but fails to maintain the vehicle
at a standstill, depress the brake pedal to
stop the vehicle. If the vehicle unexpect-
edly moves due to outside conditions, the
chime may sound and automatic brake
hold warning may illuminate.
• Be sure to deactivate the automatic
brake hold function when using a car
wash or towing your vehicle.
• Make sure to place the shift position in
the P (Park) position and apply the park-
ing brake when parking your vehicle, en-
tering or exiting the vehicle, or loading
luggage. Failure to do so could cause the
vehicle to move or roll away unexpect-
edly and result in serious personal injury
or property damage.
• If any of the following conditions occur,
the automatic brake hold function may
not function. Have the system checked
promptly. It is recommended that you
visit an INFINITI retailer for this service.
– A warning message appears. –
The indicator light on the automatic
brake hold switch does not illuminate
when the switch is pushed.
Failure to operate the vehicle in accordance
with these conditions could cause the ve-
hicle to move or roll away unexpectedly and
result in serious personal injury or property
damage.
• The automatic brake hold function will
not be activated if the Slip indicator
light, electronic parking brake warning
light or master warning light illuminate
and the chassis control system fault
message appears in the vehicle informa-
tion display.
• Automatic brake hold function is oper-
ated by applying sufficient braking force
to hold the vehicle in its place, so there
are cases when this hold function is
maintained even if the accelerator pedal
is depressed. In this situation, it is ad-
vised to depress the brake pedal first,
then to turn off automatic brake hold
switch. This will cancel the hold function.
• To maintain the braking force to keep
the vehicle to a standstill, a noise may be
heard. This is not a malfunction.
AUTOMATIC BRAKE HOLD
Starting and driving5-27

HOW TO ACTIVATE/
DEACTIVATE THE AUTOMATIC
BRAKE HOLD FUNCTION
How to activate the automatic
brake hold function
1. With the ignition switch in the ON posi-tion, push the automatic brake hold switch
O1. The indicator light on the automatic
brake hold switch
O2illuminates.
2. When the automatic brake hold function goes into standby, the automatic brake
hold indicator light (white) illuminates. To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.
NOTE:
The automatic brake hold function retains
the last state until the driver changes the
option even if the ignition switch is turned
off.
How to deactivate the automatic
brake hold function
While the automatic brake hold function is
activated, push the automatic brake hold
switch to turn off the automatic brake hold
indicator light and deactivate the automatic
brake hold function. To deactivate the auto-
matic brake hold function while the brake
force has been maintained by the automatic
brake hold function, depress the brake pedal
and push the automatic brake hold switch.
WARNING
Make sure to firmly depress and hold the
brake pedal when turning off the auto-
matic brake hold function while the brake
force is applied. When the automatic brake
hold function is deactivated, the brake
force will be released. This could cause the
vehicle to move or roll away unexpectedly.
Failure to prevent the vehicle from rolling
may result in serious personal injury or
property damage.
HOW TO USE THE AUTOMATIC
BRAKE HOLD FUNCTION
For additional information on using the auto-
matic brake hold function, refer to the in-
structions outlined in this section.
To maintain braking force
automatically
With the automatic brake hold function acti-
vated and the automatic brake hold indicator
light (white) illuminated, depress the braking
pedal to stop the vehicle. The indicator light
(green) illuminates. The brake force is auto-
matically applied without your foot de-
pressed on the brake pedal. While the brake
force is maintained, the automatic brake hold
indicator light (green) illuminates.
LSD4397
5-28Starting and driving

The automatic brake hold indicator light
(green) will not illuminate if the brake pedal is
not pressed with sufficient force to hold the
vehicle or is released too quickly when the
vehicle is stopped.
Confirm automatic brake hold indicator light
(green) is illuminated before removing your
foot from the brake pedal.
To start the vehicle from a standstill
With the vehicle not in the P (Park) position or
in the N (Neutral) position, depress the accel-
erator pedal while the brake force is main-
tained. The brake force will automatically be
released to restart the vehicle.
The automatic brake hold indicator light
(white) illuminates and the automatic brake
hold returns to standby.
Parking
When the vehicle is in the P (Park) position
with the brake force maintained by the auto-
matic brake hold function, the parking brake
will automatically be applied and the brake
force of the automatic brake hold will be
released. The automatic brake hold indicator
light turns off. When the parking brake is
applied with the brake force maintained by
the automatic brake hold function, the brakeforce of the automatic brake hold will be
released. The automatic brake hold indicator
light turns off.
NOTE:
• Under the following conditions, the elec-
tronic parking brake will automatically be
applied and the braking force of the auto-
matic brake hold will be released. The au-
tomatic brake hold indicator light turns
off.
– The braking force is applied by the auto- matic brake hold function for 3 minutes
or longer.
– The vehicle is in the P (Park) position.
– The electronic parking brake is applied manually.
– The driver’s seat belt is unfastened.
– The driver’s door is opened.
– The ignition switch is placed in the OFF position.
– A malfunction occurs in automatic brake hold function.
• When the vehicle stops, but the brake force is not automatically applied, depress
the brake pedal firmly until the automatic
brake hold indicator light (green)
illuminates. Multiple driving modes can be selected by
using the INFINITI Drive Mode Selector.
PERSONAL, SPORT, STANDARD (2WD
model)/AUTO (AWD models), ECO and
SNOW.
To change the mode push the INFINITI Drive
Mode Selector up or down.
LSD4398
INFINITI Drive Mode Selector
INFINITI DRIVE MODE SELECTOR
Starting and driving5-29

NOTE:
• When the INFINITI Drive Mode Selectorselects a mode, the mode may not switch
immediately. This is not a malfunction.
• The current mode is displayed in the ve- hicle information display. The mode list
will appear in the vehicle information dis-
play and you can select the mode.
• The mode list will be turned off in approxi- mately 5 seconds after the mode is se-
lected. You can also clear the message by
pressing the OK button on the steering
wheel switch.
• If the driving mode cannot be switched us- ing the INFINITI Drive Mode Selector
when the ignition switch is in the ON posi-
tion, have the system checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
• The STANDARD (2WD models)/AUTO (4WD models) mode will be selected first
each time the ignition switch is placed in
the ON position.
WARNING
Do not stare at the Drive Mode Selector or
the display while driving so that full atten-
tion may be given to vehicle operation.
STANDARD (2WD models)/AUTO
(AWD models)
This is the standard mode that is most suit-
able for normal driving.
SPORT MODE
Adjusts the engine points for a higher
response.
The setting of the steering system is adjusted
to moderately increase steering wheel effort
for a sporty feel.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
SNOW MODE
This mode makes it easier to start and drive
on snowy roads and frozen roads.
CAUTION
Never drive on dry, hard surface roads in
the SNOW mode, as this will overload
the powertrain and may cause a serious
malfunction. Additionally, this will cause
premature tire wear and reduced fuel
economy. When the SNOW mode is se-
lected, small vibration in cornering may oc-
cur. This is not a malfunction.
PERSONAL MODE
This mode is used for adjusting the steering
mode and drive modes. Turn the PERSONAL
mode off for normal driving.
5-30Starting and driving

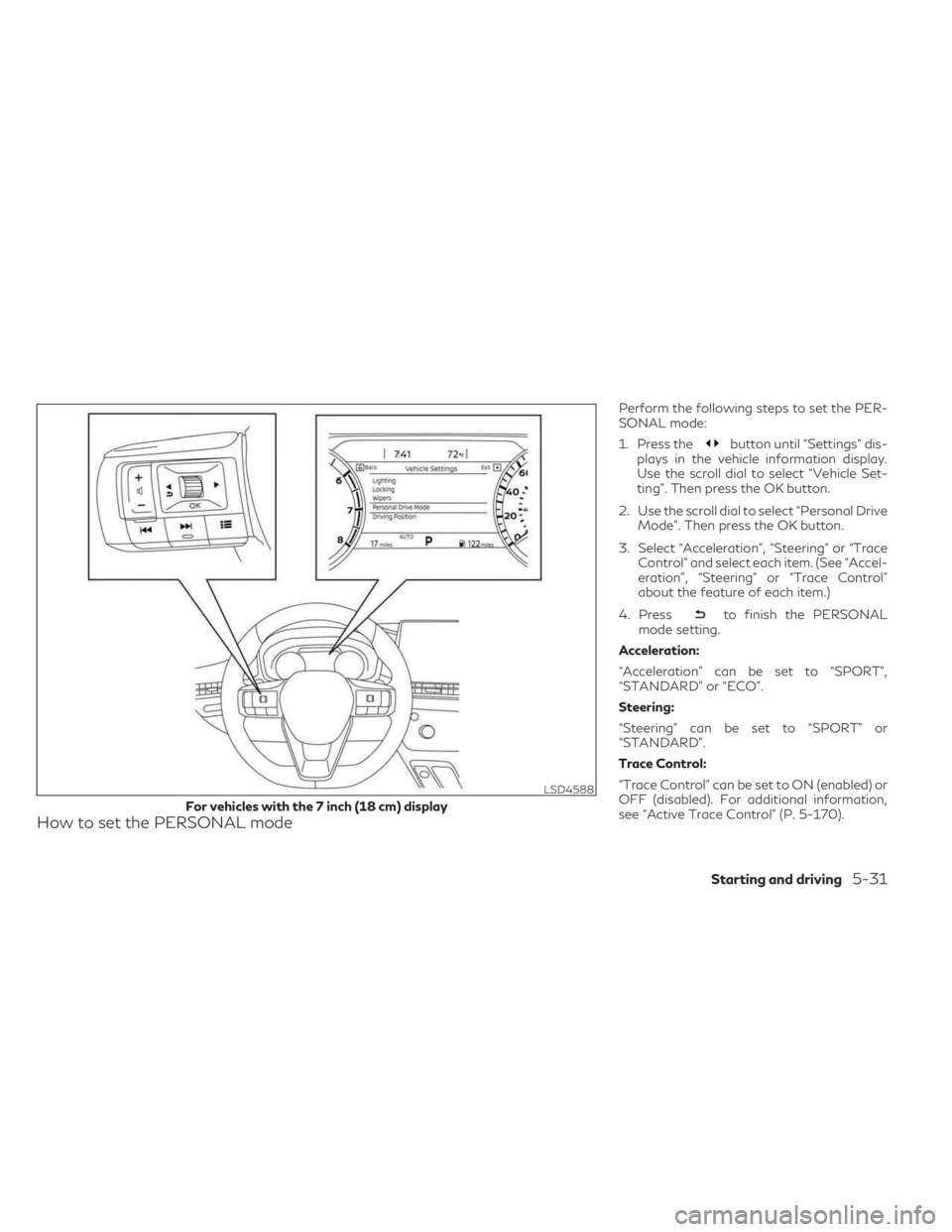

How to set the PERSONAL mode
Perform the following steps to set the PER-
SONAL mode:
1. Press the
button until “Settings” dis-
plays in the vehicle information display.
Use the scroll dial to select “Vehicle Set-
ting”. Then press the OK button.
2. Use the scroll dial to select “Personal Drive Mode”. Then press the OK button.
3. Select “Acceleration”, “Steering” or “Trace Control” and select each item. (See “Accel-
eration”, “Steering” or “Trace Control”
about the feature of each item.)
4. Press
to finish the PERSONAL
mode setting.
Acceleration:
“Acceleration” can be set to “SPORT”,
“STANDARD” or “ECO”.
Steering:
“Steering” can be set to “SPORT” or
“STANDARD”.
Trace Control:
“Trace Control” can be set to ON (enabled) or
OFF (disabled). For additional information,
see “Active Trace Control” (P. 5-170).
LSD4588
For vehicles with the 7 inch (18 cm) display
Starting and driving5-31

Reset:
Select “Reset” and select “Yes” to restore all
the PERSONAL mode settings to default.
NOTE:
The PERSONAL mode setting can be saved
for each user on the center display screen.
ECO MODE
Assists the driver’s ECO-driving. The engine
points are adjusted for improved fuel
economy, providing such driving features as
smooth starting or constant cruising.
NOTE:
• Selecting the ECO mode will not necessar-ily improve fuel economy as many driving
factors influence its effectiveness.
LSD4589
For vehicles with the 12.3 inch (31.2 cm) display
5-32Starting and driving
