NOTE:
If the battery is completely drained the
transmission will not manually shift to other
positions.

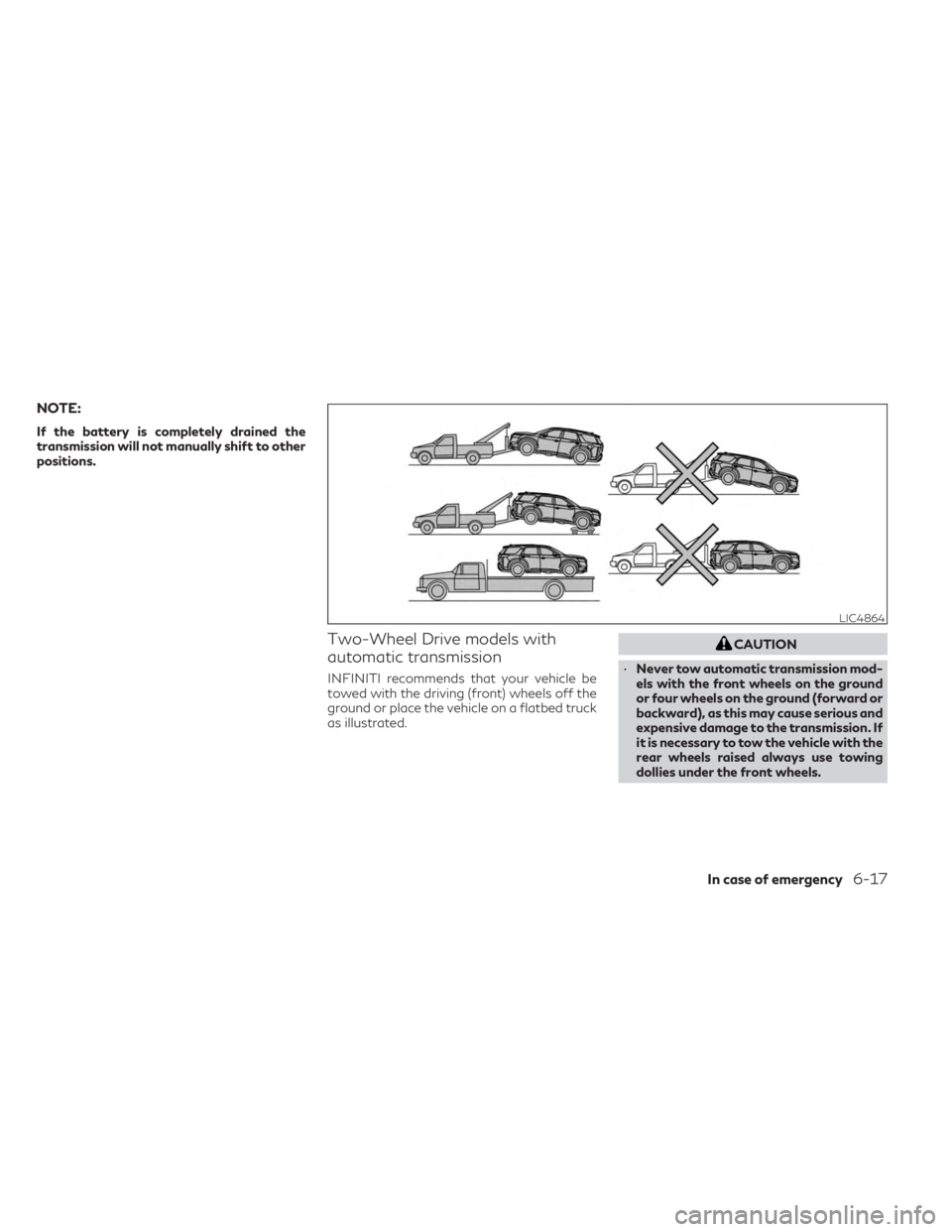

Two-Wheel Drive models with
automatic transmission
INFINITI recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flatbed truck
as illustrated.
CAUTION
• Never tow automatic transmission mod-
els with the front wheels on the ground
or four wheels on the ground (forward or
backward), as this may cause serious and
expensive damage to the transmission. If
it is necessary to tow the vehicle with the
rear wheels raised always use towing
dollies under the front wheels.
LIC4864
In case of emergency6-17

•When towing automatic transmission
models with the rear wheels on the
ground or on towing dollies:
– Place the ignition switch in the OFF
position, and secure the steering
wheel in a straight-ahead position
with a rope or similar device. Never
secure the steering wheel by placing
the ignition switch in the LOCK posi-
tion. This may damage the steering
lock mechanism (for models with a
steering lock mechanism).
NOTE:
If the battery is completely drained the
transmission will not manually shift to other
positions.
VEHICLE RECOVERY (freeing a
stuck vehicle)
WARNING
To avoid vehicle damage, serious personal
injury or death when recovering a stuck
vehicle:
• Contact a professional towing service to
recover the vehicle if you have any ques-
tions regarding the recovery procedure. •
Tow chains or cables must be attached
only to main structural members of the
vehicle.
• Do not use the vehicle tie-downs to tow
or free a stuck vehicle.
• Only use devices specifically designed for
vehicle recovery and follow the manu-
facturer's instructions.
• Always pull the recovery device straight
out from the front of the vehicle. Never
pull at an angle.
• Route recovery devices so they do not
touch any part of the vehicle except the
attachment point.
If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device designed
specifically for vehicle recovery. Always fol-
low the manufacturer's instructions for the
recovery device.Rocking a stuck vehicle
WARNING
• Stand clear of a stuck vehicle.
• Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged. If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:
1. Turn off the Vehicle Dynamic Control
(VDC) system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and backward.
• Shift back and forth between R (Re- verse) and D (Drive).
• Apply the accelerator as little as pos- sible to maintain the rocking motion.
• Release the accelerator pedal before shifting between R (Reverse) and D
(Drive).
• Do not spin the tires above 35 mph (55 km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing ser-
vice to remove the vehicle.
6-18In case of emergency

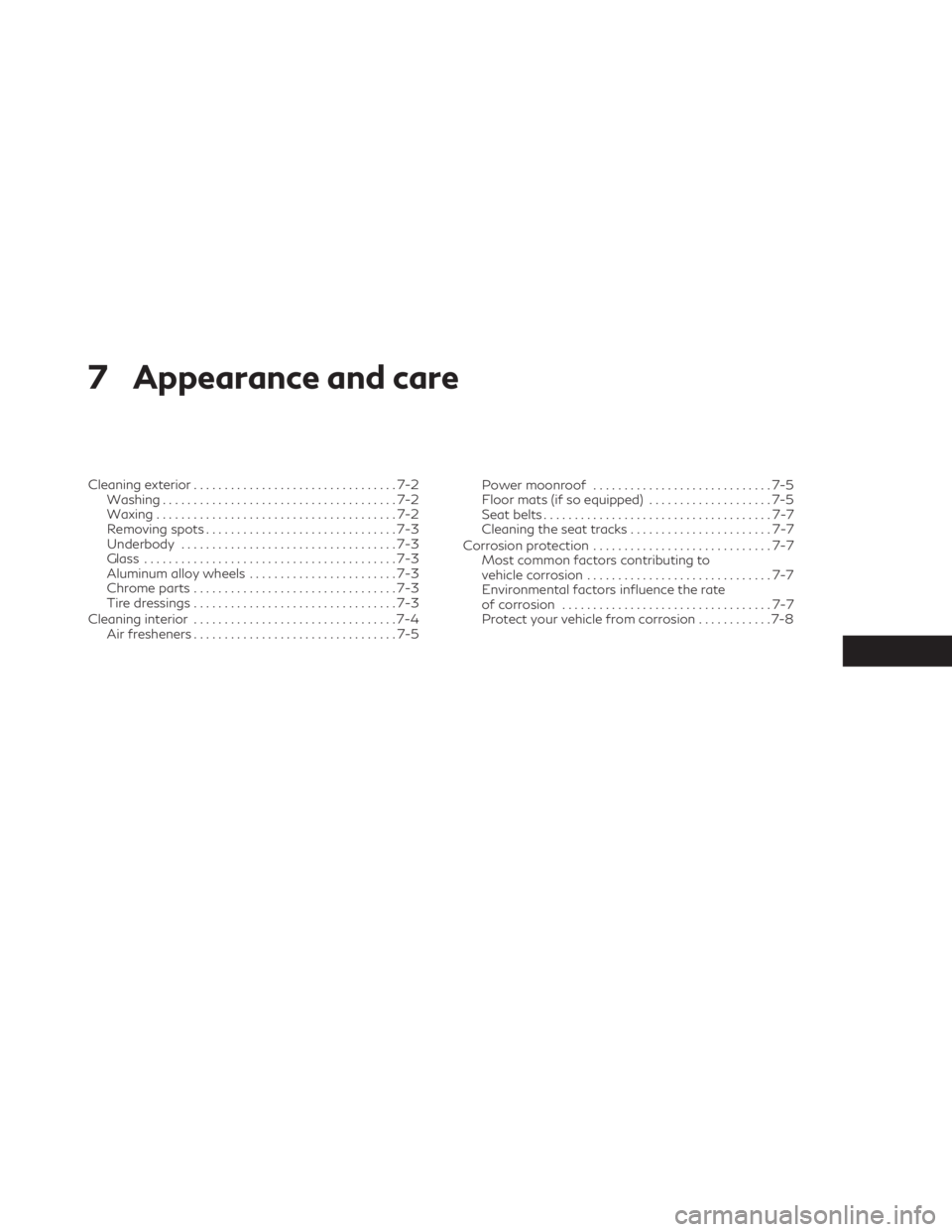

7 Appearance and care
Cleaning exterior.................................7-2
Washing ......................................7-2
Waxing .......................................7-2
Removing spots ...............................7-3
Underbody ...................................7-3
Glass .........................................7-3
Aluminum alloy wheels ........................7-3
Chrome parts .................................7-3
Tire dressings .................................7-3
Cleaning interior .................................7-4
Air fresheners .................................7-5 Power moonroof
.............................7-5
Floor mats (if so equipped) ....................7-5
Seat belts .....................................7-7
Cleaning the seat tracks .......................7-7
Corrosion protection .............................7-7
Most common factors contributing to
vehicle corrosion ..............................7-7
Environmental factors influence the rate
of corrosion ..................................7-7
Protect your vehicle from corrosion ............7-8

In order to maintain the appearance of your
vehicle, it is important to take proper care of
it.
To protect the paint surfaces, wash your ve-
hicle as soon as you can:
• After a rainfall to prevent possible damagefrom acid rain.
• After driving on coastal roads.
• When contaminants such as soot, bird droppings, tree sap, metal particles or bugs
get on the paint surface.
• When dust or mud builds up on the surface.
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body cover.
WASHING
Wash dirt off with a wet sponge and plenty
of water. Clean the vehicle thoroughly using a
mild soap, a special vehicle soap or general
purpose dishwashing liquid mixed with clean,
lukewarm (never hot) water.
CAUTION
• Do not concentrate water spray directly
on the sonar sensors (if so equipped) on
the bumper as this will result in damage
to the sensors. Do not use pressure
washers capable of spraying water over
1,200 psi (8,274 kPa) to wash your ve-
hicle. Use of high-pressure washers over
1,200 psi (8,274 kPa) can result in dam-
age to or removal of paint or graphics.
Avoid using a high-pressure washer
closer than 12 inches (30 cm) to the ve-
hicle. Always use a wide-angle nozzle
only, keep the nozzle moving and do not
concentrate the water spray on any one
area.
• Do not use car washes that use acid in the
detergent. Some car washes, especially
brushless ones, use some acid for clean-
ing. The acid may react with some plastic
vehicle components, causing them to
crack. This could affect their appear-
ance, and also could cause them not to
function properly. Always check with
your car wash to confirm that acid is not
used.
• Do not wash the vehicle with strong
household soap, strong chemical deter-
gents, gasoline or solvents. •
Do not wash the vehicle in direct sunlight
or while the vehicle body is hot, as the
surface may become water-spotted.
• Avoid using tight-napped or rough
cloths, such as washing mitts. Care must
be taken when removing caked-on dirt
or other foreign substances so the paint
surface is not scratched or damaged.
Rinse the vehicle thoroughly with plenty of
clean water.
Inside edges, seams and folds on the doors,
hatches and hood are particularly vulnerable
to the effects of road salt. Therefore, these
areas must be cleaned regularly. Take care
that the drain holes in the lower edge of the
door are open. Spray water under the body
and in the wheel wells to loosen the dirt and
wash away road salt.
A damp chamois can be used to dry the ve-
hicle to avoid water spots.
WAXING
Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove built-up
wax residue and to avoid a weathered ap-
pearance before re-applying wax.
An INFINITI retailer can assist you in choos-
ing the proper product.
CLEANING EXTERIOR
7-2Appearance and care

• Wax your vehicle only after a thoroughwashing. Follow the instructions supplied
with the wax.
• Do not use a wax containing any abrasives, cutting compounds or cleaners that may
damage the vehicle finish.
Machine compounding or aggressive polish-
ing on a base coat/clear coat paint finish may
dull the finish or leave swirl marks.
REMOVING SPOTS
Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the surface of the paint to avoid lasting dam-
age or staining. Special cleaning products are
available at an INFINITI retailer or any auto-
motive accessory store. It is recommended
that you visit an INFINITI retailer for these
products.
UNDERBODY
In areas where road salt is used in winter, it is
necessary to clean the underbody regularly in
order to prevent dirt and salt from building up
and causing the acceleration of corrosion on
the underbody and suspension. Before the
winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.
GLASS
Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.
CAUTION
When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
ALUMINUM ALLOY WHEELS
Wash the wheels regularly with a sponge
dampened in a mild soap solution, especially
during winter months in areas where road
salt is used. If not removed, road salt can
discolor the wheels.
CAUTION
Follow the directions below to avoid stain-
ing or discoloring the wheels:
• Do not use a cleaner that uses strong acid
or alkali contents to clean the wheels. •
Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as am-
bient temperature.
• Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.
CHROME PARTS
Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGS
INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a
compound. This compound may come off the
tire while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
• Use a water-based tire dressing. The coat- ing on the tire dissolves more easily than
with an oil-based tire dressing.
• Apply a light coat of tire dressing to help prevent it from entering the tire tread/
grooves (where it would be difficult to
remove).
Appearance and care7-3

• Wipe off excess tire dressing using a drytowel. Make sure the tire dressing is com-
pletely removed from the tire tread/
grooves.
• Allow the tire dressing to dry as recom- mended by tire dressing manufacturer. This vehicle has new and unique surfaces on
the center console and door pull finishers. If
cleaning is required use mild soap and water.
However if mild soap and water won’t clean
the center console and door pull finishers, use
Genuine INFINITI Vinyl and Leather Cleaner
(or equivalent).
Occasionally remove loose dust from the in-
terior trim, plastic parts and seats using a
vacuum cleaner or soft bristled brush. Wipe
the vinyl and leather surfaces with a clean,
soft cloth dampened in mild soap solution,
then wipe clean with a dry, soft cloth.
Regular care and cleaning is required in order
to maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer's recommendations. Some
fabric protectors contain chemicals that may
stain or bleach the seat material.
Use a cloth dampened only with water to
clean the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification sen-
sor. This can also affect the operation of
the air bag system and result in serious per-
sonal injury.
CAUTION
• Never use benzine, thinner, or any similar
material on the interior surfaces or sur-
face damage may occur. Such damage
is not covered under the INFINITI
warranty.
• Small dirt particles can be abrasive and
damaging to leather surfaces (if so
equipped) and should be removed
promptly. Do not use saddle soap, car
waxes, polishes, oils, cleaning fluids, sol-
vents, detergents or ammonia-based
cleaners as they may damage the leath-
er’s natural finish.
• Never use fabric protectors unless rec-
ommended by the manufacturer.
• Do not use glass or plastic cleaner on me-
ter or gauge lens covers. It may damage
the lens cover.
• Never use Chloride solutions for cleaning
aluminum decoratives (if so equipped),
damage may occur.
CLEANING INTERIOR
7-4Appearance and care

AIR FRESHENERS
Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
• Hanging-type air fresheners can cause per-manent discoloration when they contact
vehicle interior surfaces. Place the air fresh-
ener in a location that allows it to hang free
and not contact an interior surface.
• Liquid-type air fresheners typically clip on the vents. These products can cause imme-
diate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer's
instructions before using the air fresheners.
POWER MOONROOF
The sunshade is made from a tricot material.
CAUTION
To help prevent damaging the moonroof
while cleaning:
• Do not rub the material with a cloth. Do-
ing so can damage the surface of the ma-
terial or cause a stain to spread. •
Never use benzine, thinner or any similar
chemical to clean the sunshade. This may
discolor the moonroof and damage the
surface.
• Clean water based stains by patting the
surface with a clean soft cloth dampened
in warm water. Press a clean dry cloth
onto the surface to remove as much
dampness as possible and then let air dry.
• Clean oil based stains by patting the sur-
face with a clean soft cloth dampened in
warm water. Press a clean dry cloth onto
the surface to remove as much dampness
as possible and then let air dry.
FLOOR MATS (if so equipped)
WARNING
To avoid potential pedal interference that
may result in a collision, injury or death:
• NEVER place a floor mat on top of an-
other floor mat in the driver front posi-
tion or install them upside down or
backwards.
• Use only Genuine INFINITI floor mats or
equivalent floor mats, specifically de-
signed for use in your vehicle model and
model year.
LAI2094
Appearance and care7-5

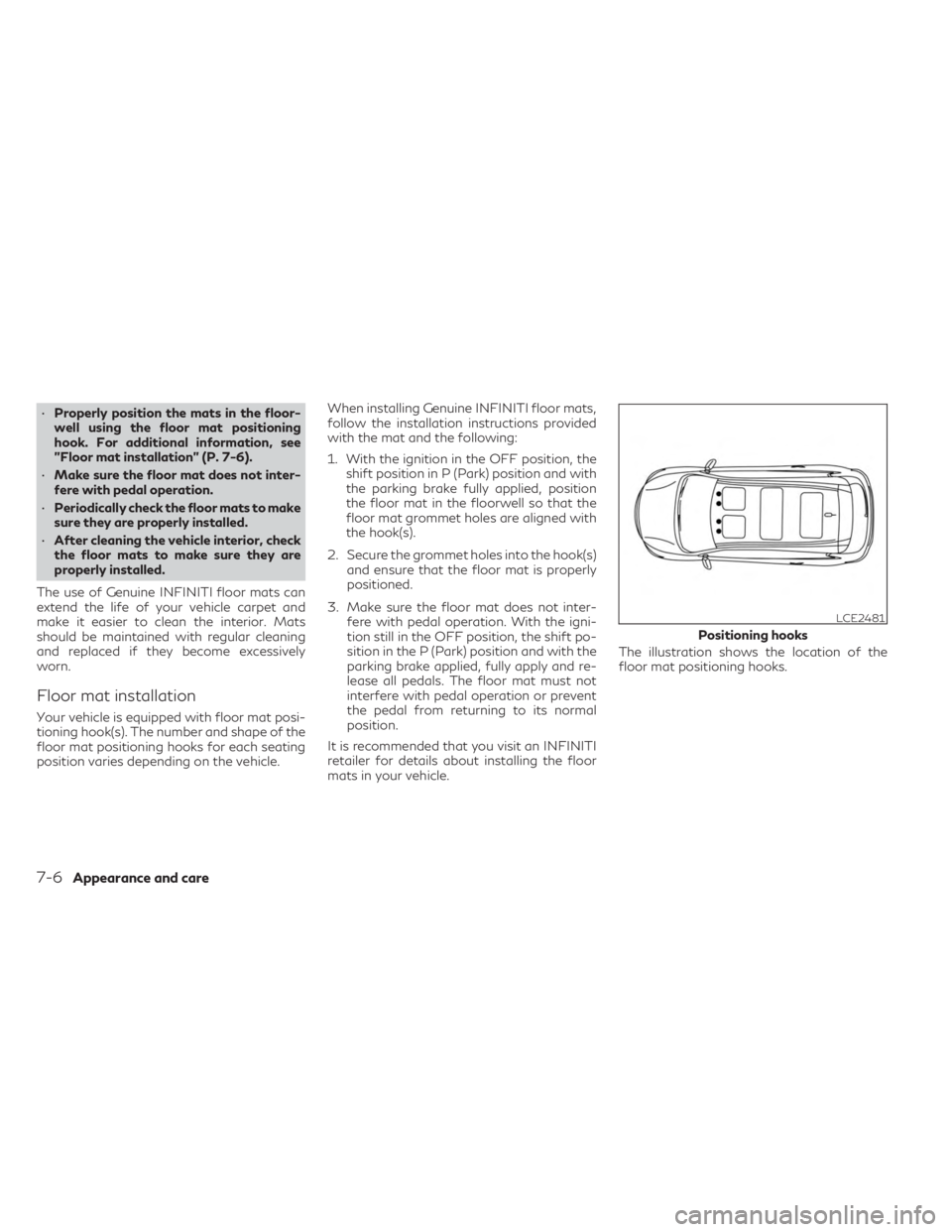

•Properly position the mats in the floor-
well using the floor mat positioning
hook. For additional information, see
"Floor mat installation" (P. 7-6).
• Make sure the floor mat does not inter-
fere with pedal operation.
• Periodically check the floor mats to make
sure they are properly installed.
• After cleaning the vehicle interior, check
the floor mats to make sure they are
properly installed.
The use of Genuine INFINITI floor mats can
extend the life of your vehicle carpet and
make it easier to clean the interior. Mats
should be maintained with regular cleaning
and replaced if they become excessively
worn.
Floor mat installation
Your vehicle is equipped with floor mat posi-
tioning hook(s). The number and shape of the
floor mat positioning hooks for each seating
position varies depending on the vehicle. When installing Genuine INFINITI floor mats,
follow the installation instructions provided
with the mat and the following:
1. With the ignition in the OFF position, the
shift position in P (Park) position and with
the parking brake fully applied, position
the floor mat in the floorwell so that the
floor mat grommet holes are aligned with
the hook(s).
2. Secure the grommet holes into the hook(s) and ensure that the floor mat is properly
positioned.
3. Make sure the floor mat does not inter- fere with pedal operation. With the igni-
tion still in the OFF position, the shift po-
sition in the P (Park) position and with the
parking brake applied, fully apply and re-
lease all pedals. The floor mat must not
interfere with pedal operation or prevent
the pedal from returning to its normal
position.
It is recommended that you visit an INFINITI
retailer for details about installing the floor
mats in your vehicle. The illustration shows the location of the
floor mat positioning hooks.
LCE2481
Positioning hooks
7-6Appearance and care

Floor mat installation for 3rd row
seats
When installing Genuine INFINITI floor mats
in the 3rd row seating positions:
1. Position the floor mat in the floorwell sothat the floor mat’s installation tabs are
aligned with the rearmost part of 2nd row
seat tracks.
2. Insert the floor mat installation tabs
OAunderneath the 2nd row seat tracksOBand ensure that the floor mat is properly
positioned. It is recommended that you visit an INFINITI
retailer for details about installing the floor
mats in your vehicle.
SEAT BELTS
The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solu-
tion. Allow the belts to dry completely in the
shade before using them. For additional in-
formation, see “Seat belt maintenance”
(P. 1-25).
WARNING
Do not allow wet seat belts to roll up in the
retractor. NEVER use bleach, dye or
chemical solvents to clean the seat belts,
since these materials may severely weaken
the seat belt webbing.
CLEANING THE SEAT TRACKS
CAUTION
Periodically clean the seat tracks to pre-
vent reduction of ability to move the seats.
Clean periodically with a high-powered
vacuum cleaner. Dirt and debris may reduce
the ability to adjust the seat. A wet cleansing
agent may be used if necessary.
MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION
Most vehicle corrosion is caused by:
• The accumulation of moisture-retaining dirt and debris in body panel sections, cavi-
ties, and other areas.
• Damage to paint and other protective coatings caused by gravel and stone chips
or minor traffic collisions.
ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION
Moisture
Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry com-
pletely inside the vehicle and should be re-
moved for drying to avoid floor panel
corrosion.
Relative humidity
Corrosion will be accelerated in areas of high
relative humidity, especially those areas
where the temperatures stay above freezing
and where atmospheric pollution exists and
road salt is used.
LAI2089
CORROSION PROTECTION
Appearance and care7-7

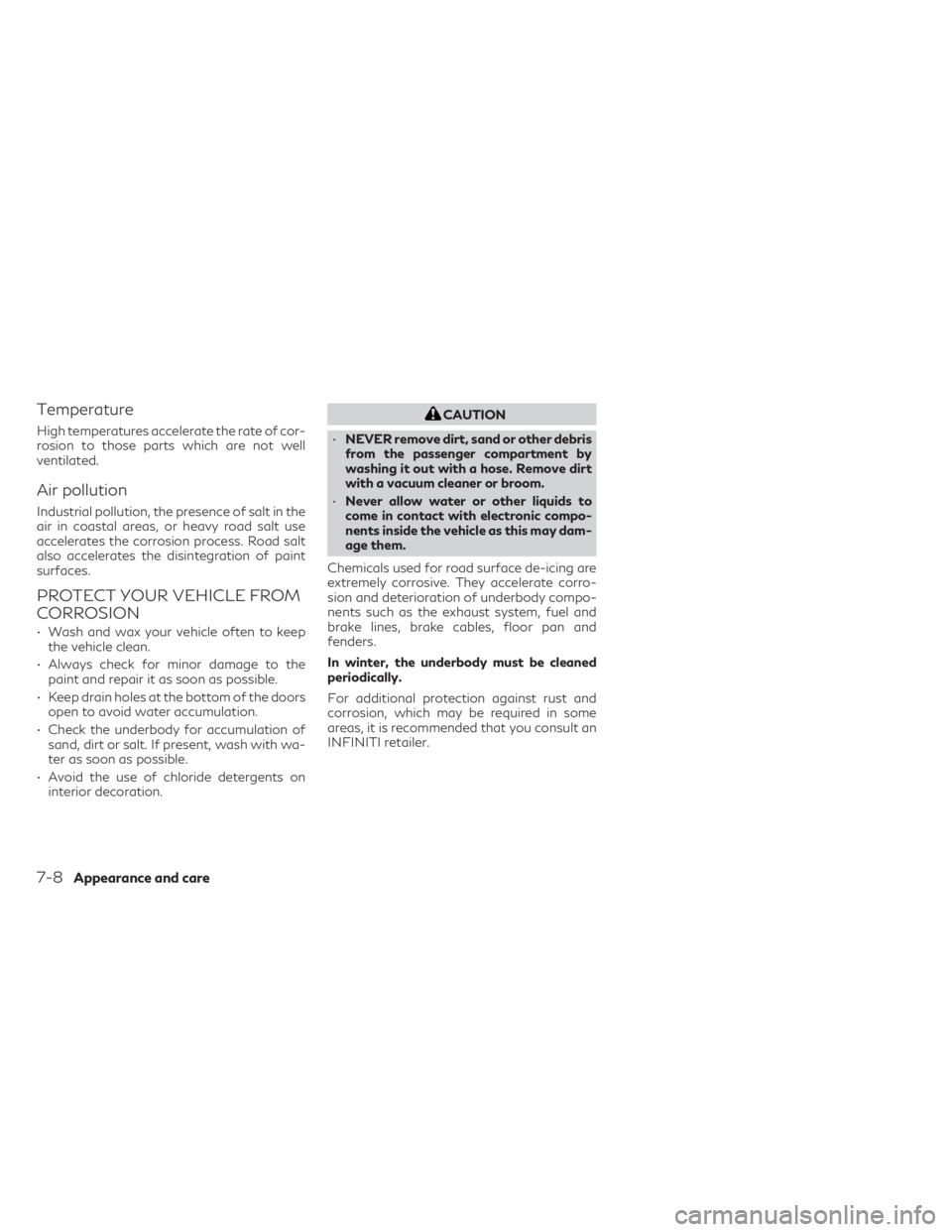

Temperature
High temperatures accelerate the rate of cor-
rosion to those parts which are not well
ventilated.
Air pollution
Industrial pollution, the presence of salt in the
air in coastal areas, or heavy road salt use
accelerates the corrosion process. Road salt
also accelerates the disintegration of paint
surfaces.
PROTECT YOUR VEHICLE FROM
CORROSION
• Wash and wax your vehicle often to keepthe vehicle clean.
• Always check for minor damage to the paint and repair it as soon as possible.
• Keep drain holes at the bottom of the doors open to avoid water accumulation.
• Check the underbody for accumulation of sand, dirt or salt. If present, wash with wa-
ter as soon as possible.
• Avoid the use of chloride detergents on interior decoration.
CAUTION
• NEVER remove dirt, sand or other debris
from the passenger compartment by
washing it out with a hose. Remove dirt
with a vacuum cleaner or broom.
• Never allow water or other liquids to
come in contact with electronic compo-
nents inside the vehicle as this may dam-
age them.
Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corro-
sion and deterioration of underbody compo-
nents such as the exhaust system, fuel and
brake lines, brake cables, floor pan and
fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some
areas, it is recommended that you consult an
INFINITI retailer.
7-8Appearance and care
