INFINITI QX60 2023 Owners Manual

If your vehicle sustains damage to the bum-
per fascia, leaving it misaligned or bent, the
sensing zone may be altered causing inaccu-
rate measurement of obstacles or false
alarms.
CAUTION
• Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.
• Keep the sonar sensors (located on the
bumper fascias) free from snow, ice and
large accumulations of dirt. Do not clean
the sensors with sharp objects. If the
sensors are covered, the accuracy of the
sonar function will be diminished.
SYSTEM OPERATION
1Center sonar sensors
2Corner sonar sensors
The system informs with a visual and audible
alert of:
• front obstacles when the shift lever is in the D (Drive) position
• front and rear obstacles when the shift le- ver is in the R (Reverse) position How the system alerts of obstacles:
The system is deactivated at speeds above 6
mph (10 km/h). It is reactivated at lower
speeds.
The intermittent tone will stop after several
seconds when the obstacle is identified only
with the center sensor. The tone will stop
when the obstacle gets away from the
vehicle.
When the object is detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking increases. When the vehicle is very
close to the object, the indicator stops blink-
ing and turns red, and the tone sounds
continuously.
LSD4336
Starting and driving5-173

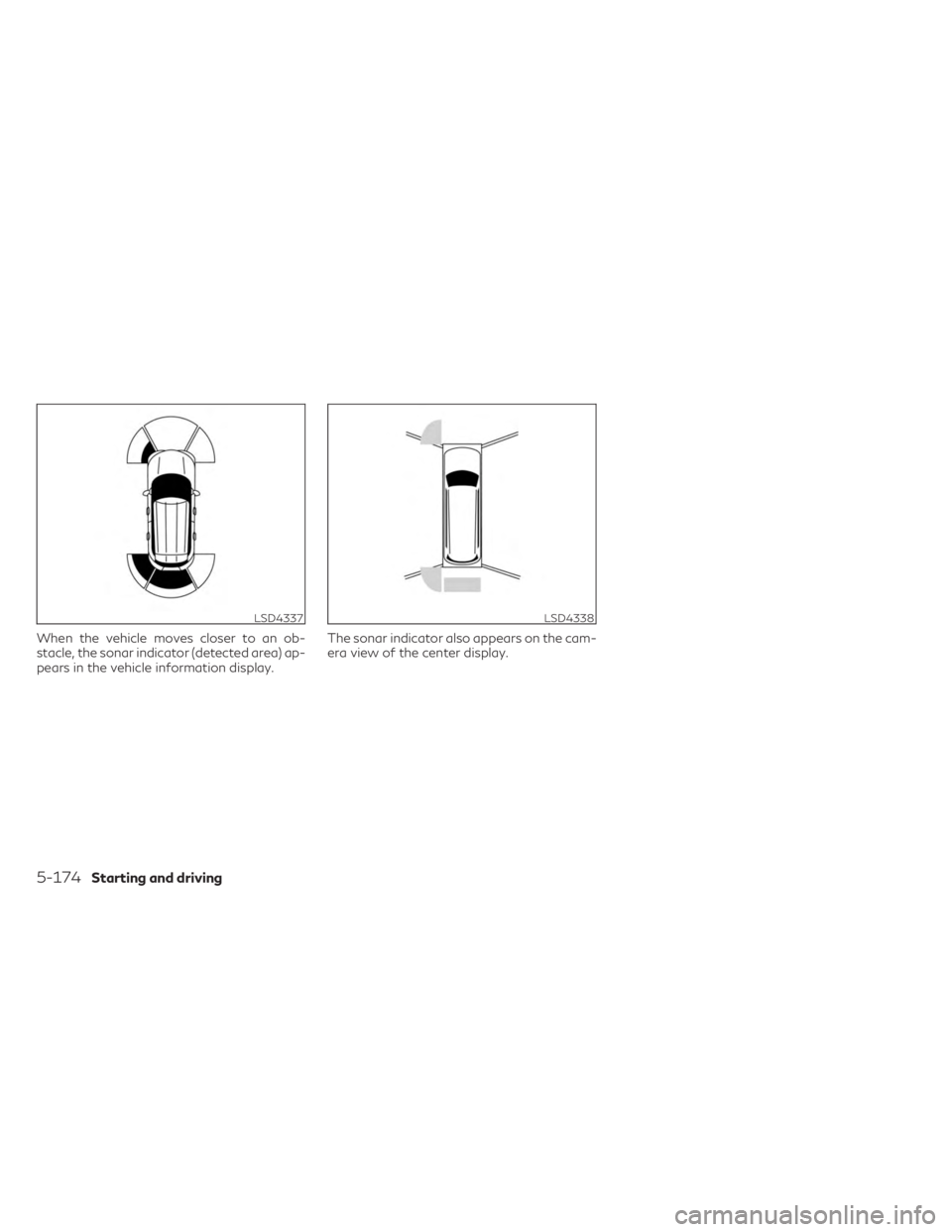

When the vehicle moves closer to an ob-
stacle, the sonar indicator (detected area) ap-
pears in the vehicle information display.The sonar indicator also appears on the cam-
era view of the center display.
LSD4337LSD4338
5-174Starting and driving

HOW TO ENABLE/DISABLE THE
FRONT AND REAR SONAR
SYSTEM
The system is automatically activated when
the push button ignition is placed in the ON
position and the shift lever is in the R (Re-
verse) position.
Perform the following steps to enable or dis-
able the sonar system:
1. Press the
button until “Settings” ap-
pears in the vehicle information display
and then press OK. Use the scroll dial to
select “Driver Assistance.” Then press the
OK button.
2. Select “Parking Aids” and press the OK button.
• Select “Auto Show Sonar” and press the OK button to turn on or off the option to
automatically display the sonar when
activated.
• Select “Front Sonar” (if so equipped) and press the OK button to turn the front
sonar sensors only on or off.
• Select “Rear Sonar” and press the OK button to turn the rear sonar sensors
only on or off.
• Select “Sonar Distance” to change the sonar system volume to “Long,” Me-
dium” or “Short.”
• Select “Sonar Volume” to change the sonar system distance to “High,” “Me-
dium” or “Low.”
LSD4656
For vehicles with the 7 inch (18 cm) display
Starting and driving5-175

NOTE:
The system will automatically be turned on
when the engine is restarted.
SONAR LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
• Read and understand the limitations of
the sonar system as contained in this
section. Inclement weather may affect
the function of the sonar system; this
may include reduced performance or a
false activation.
• The sonar system is deactivated at
speeds above 6 mph (10 km/h). It is re-
activated at lower speeds.
• Inclement weather or ultrasonic sources
such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem; this may include reduced perfor-
mance or a false activation.
LSD4520
For vehicles with the 12.3 inch (31.2 cm) display
5-176Starting and driving

•The system is not designed to prevent
contact with small or moving objects. Al-
ways move slowly. The system will not
detect small objects below the bumper or
on the ground.
• The system may not detect the following
objects: fluffy objects such as snow,
cloth, cotton, glass-wool, etc.; thin ob-
jects such as rope, wire and chain, etc.; or
wedge-shaped objects; complex-shaped
objects or multiple objects in close.
• The sonar system may not detect objects
at speeds above 3 mph (5 km/h) and may
not detect certain angular or moving
objects.
• The sonar system may not operate in the
following conditions:
– When rain, snow, ice, dirt, etc. ad- heres to the sonar.
– When a loud sound is heard in the area around the vehicle.
– When the surface of the obstacle is diagonal to the front or rear of the
vehicle.
– When a sonar or the area around the sensor is extremely hot or cold. •
The sonar system may unintentionally
operate in the following conditions:
– When there is overgrown grass in the area around the vehicle.
– When there are bumps, protrusions or manhole covers on the road
surface.
– When the vehicle drives through a draped flag or a curtain.
– When there is an accumulation of snow or ice behind the vehicle.
– When driving on a steep hill.
SYSTEM TEMPORARILY
UNAVAILABLE
When sonar blockage is detected, the system
will be deactivated automatically.
The system is not available until the condi-
tions no longer exist.
The sonar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the sonar sensors.
Action to take:
When the above conditions no longer exist,
the system will resume automatically.
SYSTEM MAINTENANCE
The sonar sensorsOAandOBare located on
the front and rear bumpers.
• Always keep the area near the sonar sen- sors clean.
LSD4521
Starting and driving5-177

• If the sonar sensors are dirty, wipe them offwith a soft cloth while being careful to not
damage them.
• The sonar sensors may be blocked by tem- porary ambient conditions such as splash-
ing water, mist or fog. The blocked condi-
tion may also be caused by objects such as
ice, frost or dirt obstructing the sonar sen-
sors. Check for and remove objects ob-
structing the area around the sonar
sensors.
• Do not subject the area around the sonar sensors to strong impact. Also, do not re-
move or disassemble the sonar sensors. If
the sonar sensors and peripheral areas are
deformed in an accident, etc., have the so-
nar sensors checked by an INFINITI retailer.
• Do not attach stickers (including transpar- ent material), install accessories or apply
additional paint on the sonar sensors and
their surrounding areas. This may cause a
malfunction or improper operation.
• When washing the vehicle using a high- pressure washer, do not apply direct
washer pressure on the sonar sensors. This
may cause a malfunction of the sonar
sensors. The Idling Stop System activates to prevent
unnecessary fuel consumption, exhaust
emissions and noise.
• When you stop the vehicle, the engine is
turned off automatically.
• When you release the brake pedal to begin moving again, the engine is turned on
automatically.
WARNING
The engine restarts if the vehicle moves at
approximately 1 mph (2 km/h) or more (on
a downhill grade, etc.) while the engine is
turned off by the Idling Stop System. De-
press the brake pedal immediately to stop
the vehicle to prevent an accident.
CAUTION
At the end of the journey the engine must
be stopped and ignition switch be pushed
off. Lock the vehicle as normal. Pushing the
ignition switch off will shut down all elec-
trical systems. Failure to do this may result
in a discharged battery.
NOTE:
The Idling Stop System will not activate un-
der the following conditions:
• When the engine is kept idling without the
vehicle being driven after the engine is
turned on.
• When the engine coolant temperature is
low.
• When the battery capacity is low.
• When the battery temperature is low.
• When the vehicle is moving.
• When a negative pressure booster
decreases.
• When the engine hood is opened with the
engine running.
• When the engine is turned on with the en-
gine hood open.
• When the driver’s seat belt is not fastened.
• When the driver’s door is open.
• When the steering wheel is operated.
• When the Idling Stop System indicator
blinks at a low speed.
•
When the fan speed control is in any position
other than “OFF,” (0) while the air flow con-
trol is in the front defogger position.
• When the front defroster switch is on.
IDLING STOP SYSTEM
5-178Starting and driving

•When the rear window defroster switch is
on.
• When the temperature inside the vehicle is
lower than approximately 20°C (68°F),
unless the Air Conditioning ECO custom-
ize option is selected, and the ECO driving
mode is on.
• When the temperature inside the vehicle is
higher than approximately 30°C (86°F),
unless the Air Conditioning ECO custom-
ize option is selected, and the ECO driving
mode is on. (When the air conditioner is
off, the Idling Stop System will operate.)
• When the fan speed of the air conditioner
is set to the maximum speed, unless the Air
Conditioning ECO customize option is se-
lected, and the ECO driving mode is on.
• When the Idling Stop OFF switch is turned
on.
• When the power consumption is large.
• When the altitude is high.
• When the accelerator pedal is depressed.
• When the shift lever is any range other
than D (Drive).
• When the brake pedal is not firmly
depressed.
• When stopping the vehicle on steep slop-
ing roads.NOTE:
The Idling Stop System may not activate
when the Intelligent Key is not in the vehicle
and you open/close any door.
NOTE:
The engine will not restart even if the brake
pedal is released while the Idling Stop Sys-
tem is activated under the following condi-
tions: (The engine may restart under other
conditions.)
• When the automatic brake hold system is
activated.
• When the engine hood is opened.
NOTE:
It may take some time until the Idling Stop
System activates under the following
conditions:
•When the battery is discharged.
• When the outside temperature is low or
high.
• When the battery is replaced or the bat-
tery terminal is disconnected for extended
periods and then reconnected.
NOTE:
When the Idling Stop System indicator light
illuminates, the engine starts running auto-
matically under at least one of the following
conditions:
• The vacuum pressure for brake system is
not enough as the brake pedal is repeat-
edly depressed.
• The driver’s seat belt is unfastened, or the
driver’s door is open.
• The battery voltage becomes low (due to
electrical load from other vehicle systems
like headlights, heaters, etc., or auxiliary
devices connected to the 12 volt socket
inside the vehicle).
• The vehicle speed is above about 1 mph
(2 km/h).
• When the rear window defroster is
operated.
• When the temperature inside the vehicle is
lower than approximately 68°F (20°C),
unless the Air Conditioning ECO custom-
ize option is selected, and the ECO driving
mode is on.
Starting and driving5-179

•When the temperature inside the vehicle is
higher than approximately 86°F (30°C),
unless the Air Conditioning ECO custom-
ize option is selected, and the ECO driving
mode is on. (When the air conditioner is
off, the Idling Stop System will operate.)
• When the front defroster is turned on.
• When more than 3 minutes have elapsed
since the Idling Stop System was active.
• When the accelerator pedal is depressed.
• When the steering wheel is operated. (The
steering wheel operation may become
heavy, but this is not a malfunction.)
• When the battery capacity is low.
• When the power consumption is high.
• When the shift lever is any range other
than D (Drive).
• When the Idling Stop OFF switch is
pushed.
• When the negative pressure of the brake
system is not sufficiently applied by de-
pressing the brake pedal several times.
NOTE:
The Idling Stop System may not active when
the Intelligent Key is not in the vehicle and
you open/close any door.
NOTE:
The following condition will prevent the
Idling Stop System from automatically re-
starting the engine. Starting the engine with
the ignition switch operation is then
necessary:
• The hood is open.
Use this system while waiting at a stop light,
etc. When the vehicle is stopped for long
periods of time, turn off the engine.
When the engine is stopped by the Idling Stop
System, heating, cooling and dehumidifying
functions will be deactivated. To avoid the air
conditioning functions from being deacti-
vated, turn off the Idling Stop System by
pushing the Idling Stop OFF switch.
RETROGRADE MOVEMENT
CONTROL FUNCTION
This system is designed to reduce the retro-
grade movement that occurs while the driv-
er’s foot changes from depressing the brake
pedal to the accelerator pedal when moving
the vehicle while the Idling Stop System is
active on a hilly road.
IDLING STOP SYSTEM DISPLAY
The status of the Idling Stop System can be
checked in the vehicle information display.
5-180Starting and driving

If the Idling Stop System is activated or de-
activated using the Idling Stop OFF switch,
the message is shown.The fuel saved and the engine stop time
mode shows the following items:
• The fuel saved shows the estimated quan-
tity of fuel that was saved by the Idling
Stop System every time the engine is auto-
matically stopped.
• The engine stop time shows the time that the engine has been stopped for by the
Idling Stop System.
The total fuel saved and the engine stop time
can also be checked in the vehicle information
display. For additional information, see “Ve-
hicle information display” (P. 2-22 or 2-44). If the engine stops when the Idling Stop Sys-
tem is activated and will not start automati-
cally, the message is shown.
LSD4277
Idling Stop System ON or OFF
LSD4278
Fuel saved and engine stop time
LSD4279
Auto start deactivation
Starting and driving5-181

This message is displayed when the Idling
Stop System is malfunctioning.
It is recommended that you have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.This indicator is displayed when the vehicle is
stopped if the engine is prevented from au-
tomatically stopping by the Idling Stop sys-
tem under the inhibition conditions. For addi-
tional information, see “Idling Stop System”
(P. 5-178).
When the vehicle is stopped, the guidance is
displayed if the Idling Stop system is deacti-
vated due to not fully depressing the brake
pedal.
If you wish to activate the Idling Stop system,
further depress the brake pedal. For addi-
tional information, see “Idling Stop System”
(P. 5-178).
The display disappears under the following
conditions:
• The Idling Stop system is activated.
• The vehicle starts running.
LSD4280
System fault
LSD4776
Idling Stop inhibition
LSD4777
Idling Stop guidance display (further
depressing the brake pedal)
5-182Starting and driving
