Page 11 of 577

The INFINITI Direct Response Hybrid® System
combines the power of a gasoline engine and an
electric motor to help minimize fuel consumption
and emissions.
Depending on driving conditions, the vehicle runs
on a combination of the gasoline engine and the
electric motor, whichever is best for those condi-
tions.
Because the gasoline engine charges the
Lithium-ion (Li-ion) battery as needed, the battery
does not have to be charged from an outside
source like an all-electric vehicle.WARNING
If you continue to drive the vehicle while
the warning is displayed, the hybrid sys-
tem may become temporarily inoperative
and the system can not provide power to
the wheels. This can result in reduced or
zero vehicle speed. The reduced speed or
zero speed may be lower than other traf-
fic, which could increase the chance of a
collision. If the vehicle cannot maintain a
safe driving speed, pull to the side of the
road in a safe area. If this occurs, place the
shift lever in the “P” position, ignition in
the READY position with the vehicle
stopped until the display turns off. The
Hybrid system overheat warning and the
SHIFT “P” warning messages will be alter-
nately displayed. For additional informa-
tion, refer to “Shift to Park” in the “Instru-
ments and controls” section of this
manual.
WARNING
Your vehicle contains a sealed Lithium ion
(Li-ion) high-voltage battery. If the Li-ion
battery is disposed of improperly, there is
a risk of severe burns and electrical shock
that may result in serious injury or death
and there is also a risk of environmental
damage.
CAUTION
Do not misuse the Li-ion battery (to use
the Li-ion battery for completely another
purpose) .
The Li-ion battery is used to drive the electric
motors in the INFINITI Direct Response Hybrid®
System.
The Li-ion battery has a limited service life. Con-
tact your INFINITI retailer for information about
recycling or disposal of the battery.
INFINITI DIRECT RESPONSE
HYBRID® SYSTEM LITHIUM-ION (Li-ion) BATTERY
HEV-2HEV Overview
Page 15 of 577

The INFINITI Direct Response Hybrid® System
monitors the status of power being sent to the
electric motor and the Li-ion battery state of
charge. The status is shown on the assist charge
gauge in the meter and the energy
flow/remaining Li-ion battery charge in the ve-
hicle information display and the meter. System
status can also be shown on the navigation sys-
tem display (if so equipped) when the screen is in
the energy flow mode or energy/fuel history
mode.
ASSIST CHARGE GAUGE
This meter displays the actual electric motor
power consumption and the charging power to
the Li-ion battery.
For additional information, refer to “Assist charge
gauge” in the “Instruments and controls” section
of this manual.
ENERGY FLOW (models with
navigation system)
When you use this system, make sure the hybrid
system is in the READY to drive mode. For addi-
tional information, refer to “Operation of the hy-
brid system” in this section.If you use the system with the hybrid sys-
tem off (ignition switch placed in the ACC
position) for a long time, it will discharge
the 12-volt battery power, and the hybrid
system will not start.
Energy monitor for various operating modes can
be displayed on the navigation system monitor
and the meter.
Push the INFO button on the control panel and
highlight the “Energy Flow” key on the display
using the INFINITI controller then push the EN-
TER button.
LIC2544
ENERGY MONITORS
HEV-6HEV Overview
Page 16 of 577

This is an example of the Energy Flow display.
The Energy Flow display changes, depending on
the following operating conditions. The graphic
indicates the amount of power in the Li-ion bat-
tery.
The following are displayed on the Energy Flow
screen.● When the vehicle is powered only by the
electric motor or gasoline engine.
● When the vehicle is powered by both the
electric motor and the gasoline engine. ●
When the vehicle is charging the Li-ion bat-
tery with the regenerative brake and gaso-
line engine.
● When the vehicle is powered by the gaso-
line engine and is charging the Li-ion battery.
● When there is no Energy Flow in the vehicle
The Energy Flow and remaining Li-ion battery
charge can be also shown on the vehicle infor-
mation display. For additional information, refer to
“Trip computer” in the “Instruments and controls”
section of this manual.FUEL ECONOMY (models with
navigation system)
Press the INFO button, then touch the FUEL
ECONOMY key on the display screen.
This screen displays the rate of fuel consumption
and distance to empty.
NJE0003NJE0013
HEV OverviewHEV-7
Page 17 of 577

FUEL ECONOMY (models without
navigation system)
Press the INFO button, then select the FUEL
ECONOMY key on the display screen.
This screen displays the rate of fuel consumption
and distance to empty.
FUEL ECONOMY HISTORY (models
with navigation system)
The Fuel Economy History screen appears in the
display with the navigation system when the
screen is in the Fuel Economy History mode.1. Push the INFO button on the control panel and highlight the “Energy Flow” key on the
display using the INFINITI controller. Then
push the ENTER button.
2. Highlight the “History” key, and push the ENTER button. The Fuel Economy History can be displayed on
the navigation system monitor. This displays the
vehicle’s average fuel consumption and regen-
erative electric power at 2 minute intervals.
The displayed values on the screen indicate gen-
eral driving conditions. Accuracy varies with driv-
ing habits and road conditions.
1. Regenerated energy in the past 12 minutes: The regenerated energy in the past 12 min-
utes is indicated with symbols. One symbol
indicates 30 watt-hour. The energy of
30 watt-hour illuminates a 30 watt bulb for
an hour.
2. Fuel consumption in the past 12 minutes: Fuel consumption in the past 12 minutes is
displayed.
3. Current fuel consumption (Latest column): The current fuel consumption is calculated
and displayed based on distance and fuel
consumption.
NOTE:
Information shown in the yellow column
means current (within 2 minutes) and infor-
mation shown in the blue columns means
past (more than 2 minutes) .
NJE0012NJE0008
HEV-8HEV Overview
Page 18 of 577

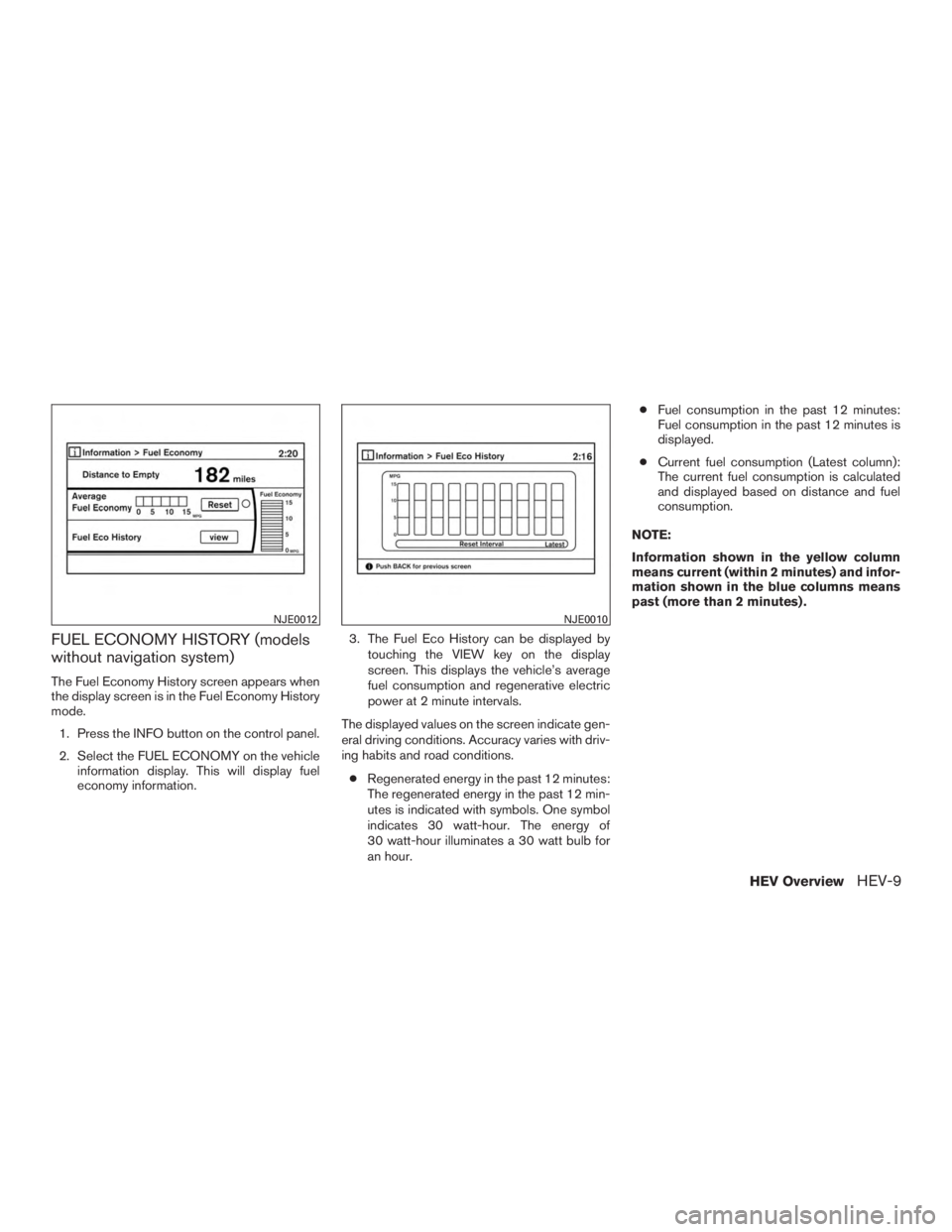

FUEL ECONOMY HISTORY (models
without navigation system)
The Fuel Economy History screen appears when
the display screen is in the Fuel Economy History
mode.1. Press the INFO button on the control panel.
2. Select the FUEL ECONOMY on the vehicle information display. This will display fuel
economy information. 3. The Fuel Eco History can be displayed by
touching the VIEW key on the display
screen. This displays the vehicle’s average
fuel consumption and regenerative electric
power at 2 minute intervals.
The displayed values on the screen indicate gen-
eral driving conditions. Accuracy varies with driv-
ing habits and road conditions. ● Regenerated energy in the past 12 minutes:
The regenerated energy in the past 12 min-
utes is indicated with symbols. One symbol
indicates 30 watt-hour. The energy of
30 watt-hour illuminates a 30 watt bulb for
an hour. ●
Fuel consumption in the past 12 minutes:
Fuel consumption in the past 12 minutes is
displayed.
● Current fuel consumption (Latest column):
The current fuel consumption is calculated
and displayed based on distance and fuel
consumption.
NOTE:
Information shown in the yellow column
means current (within 2 minutes) and infor-
mation shown in the blue columns means
past (more than 2 minutes) .
NJE0012NJE0010
HEV OverviewHEV-9
Page 19 of 577

This vehicle is equipped with two braking sys-
tems.● Hydraulic brake system
● Regenerative brake system
When the vehicle decelerates while the vehicle is
driven with the shift lever in the D (drive) position
or in the manual shift mode, the Li-ion battery can
be charged by the electric motor. The electric
motor converts the energy of the rotating wheels
into electric power under the following circum-
stances: ● When the accelerator pedal is released
● When the brake pedal is depressed
● When there is no malfunction in the brake
system or the INFINITI Direct Response Hy-
brid® System
The regenerative brake may not work properly if
the vehicle is installed with tires and road wheels
other than the ones specified in this manual.
While the regenerative cooperative brake system
is operating, you might feel a slight vibration or
hear the system working when braking. This is
normal. The regenerative cooperative brake system con-
trols both hydraulic and regenerative brakes. If
you feel unusual deceleration when braking, have
an INFINITI retailer check both the brake and
hybrid systems.
Drive your vehicle with smooth accelera-
tion and deceleration.
● While driving, energy is recovered through
the regenerative brake as the vehicle decel-
erates. However, for most efficient use, do
not accelerate or decelerate your vehicle
more than necessary.
● Avoid abrupt acceleration and deceleration.
● The power of the Li-ion battery can be
checked on the Energy Flow in the center
display (models with navigation system) or
Li-ion battery status meter in the vehicle
information display. For additional informa-
tion, refer to “Energy Flow (models with navi-
gation system)” or “Trip computer” in the
“Instruments and controls” section of this
manual. Gradual or non-abrupt acceleration
and deceleration will make more effective
use of the electric power.
● When parking, be sure to place the shift
lever in the P (Park) position. While driving,
place the shift lever in the D (Drive) position.
REGENERATIVE BRAKE EFFICIENT USE OF YOUR VEHICLE
HEV-10HEV Overview
Page 29 of 577

1. Vent (P. 4-41)
2. Headlight/fog light/turn signal switch(P. 2-35)
3. Instrument brightness control (P. 2-39) 4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-13, 2-17)
5. Driver supplemental air bag/Horn
(P.1-48, P. 2-40) 6. Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-32)
7. Twin trip odometer reset switch (P. 2-5)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-32, P. 2-32)
9. Vent (P. 4-41)
10. Rear window defroster switch (P. 4-42)
11. Display screen (P. 2-17)
12. Automatic heater and air conditioning
controls (P. 4-42)
13. Vent (P. 4-41)
14. Front passenger supplemental air bag
(P. 1-48)
15. Vent (P. 4-41)
16. Glove box (P. 2-53)
17. Control panel with Navigation System/
Control panel without Navigation
System (P. 4-10)
18. Power outlet (P.2-48)
19. Audio system controls (P. 4-49)
20. Shift lever (P.5-17)
21. Front passenger air bag status light
(P. 1-48)
22. Hazard warning flasher switch (P. 6-2)
23. Push start ignition switch (P. 5-12)
LIC2290
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 30 of 577

24. Cruise control main/set switches (if soequipped) and Intelligent cruise control
main/set switches (if so equipped)
(P. 5-52, P.5-54)
25. Dynamic Driver Assistance switch
(if so equipped) (P. 5-74)
26. Tilt steering wheel control (P. 3-28)
27. Bluetooth® Hands-Free Phone System
(P. 4-107)
28. Steering wheel switch for audio control
(P.4-92)
29. Hood release (P. 3-21)
30. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-46)
Warning System switch (if so
equipped) (P. 2-46)
Power inverter switch (if so equipped)
(P. 2-45)
Liftgate release switch (P.3-22)
Heated Steering Wheel (if so
equipped) (P. 2-45)
Power liftgate main switch (P. 3-22)
31. Control panel and Vehicle Information
Display switches (P.2-17)
* For additional information, refer to the separate
Navigation System Owner’s Manual (if so
equipped) . Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7
Page 99 of 577

1. SRS Air Bag Warning LabelsThe warning labels are located on the sur-
face of the sun visor.
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
WARNING
Extreme Hazard! Do not use a rearward
facing child restraint on a seat protected
by an air bag in front of it!
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioners and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
OFF. This means the system is operational.
WRS0885LRS0100
1-66Safety—Seats, seat belts and supplemental restraint system
Page 101 of 577

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Assist Charge Gauge ...........................2-4
Speedometer and odometer .....................2-5
Tachometer ....................................2-6
Engine coolant temperature gauge ...............2-6
Fuel gauge ....................................2-7
Warning/indicator lights and audible reminders .......2-8
Checking bulbs ................................2-9
Warning lights .................................2-9
Indicator lights ................................ 2-13
Audible reminders ............................. 2-16
Vehicle Information Display ........................2-17
How to use the vehicle information display .......2-17
Main Menu Selection .......................... 2-17
Startup display ................................ 2-19
Settings ...................................... 2-19
Vehicle information display warnings and
indicators ..................................... 2-25
Security systems ................................. 2-29
Vehicle security system ......................... 2-29
INFINITI vehicle immobilizer system ..............2-30
Windshield wiper and washer switch ...............2-32Switch operation
.............................. 2-32
Rain-sensing auto wiper system
(if so equipped) ............................... 2-33
Rear window wiper and washer switch ..............2-34
Rear window and outside mirror defroster switch .....2-35
Headlight and turn signal switch ....................2-35
Xenon headlights .............................. 2-35
Headlight control switch ........................ 2-36
Daytime running light system (Canada only) ......2-38
Instrument brightness control ...................2-39
Turn signal switch ............................. 2-39
Fog light switch ............................... 2-40
Horn ............................................ 2-40
Heated front seats ................................ 2-41
Heated rear seats (if so equipped) ..................2-42
Climate control seat switch (if so equipped) .........2-43
Heated steering wheel
(if so equipped) .............2-45
Power inverter switch (if so equipped) ..............2-45
Warning systems switch (if so equipped) ............2-46
Vehicle Dynamic Control (VDC) off switch ...........2-46
Tow mode switch ................................. 2-47
Cigarette lighter (if so equipped) ...................2-47
Power outlets .................................... 2-48
