INFINITI QX60 HYBRID 2017 Owner's Manual

●On roads where there are sharply contrast-
ing objects, such as shadows, snow, water,
wheel ruts, seams or lines remaining after
road repairs. (The LDW system could detect
these items as lane markers.)
● On roads where the traveling lane merges or
separates.
● When the vehicle’s traveling direction does
not align with the lane marker.
● When traveling close to the vehicle in front of
you, which obstructs the lane camera unit
detection range.
● When rain, snow, dirt or object adheres to
the windshield in front of the lane camera
unit.
● When the headlights are not bright due to
dirt on the lens or if the aiming is not adjusted
properly.
● When strong light enters the lane camera
unit. (For example, the light directly shines on
the front of the vehicle at sunrise or sunset.)
● When a sudden change in brightness oc-
curs. (For example, when the vehicle enters
or exits a tunnel or under a bridge.)SYSTEM TEMPORARILY
UNAVAILABLE
If the vehicle is parked in direct sunlight under
high temperature conditions (over approximately
104°F (40°C)) and then started, the LDW system
may be deactivated automatically, the warning
systems ON indicator on the switch will flash and
the following message will appear in the vehicle
information display. - “Unavailable High Cabin
Temp.”
When the interior temperature is reduced, the
LDW system will resume operating automatically
and the warning systems ON indicator will stop
flashing.

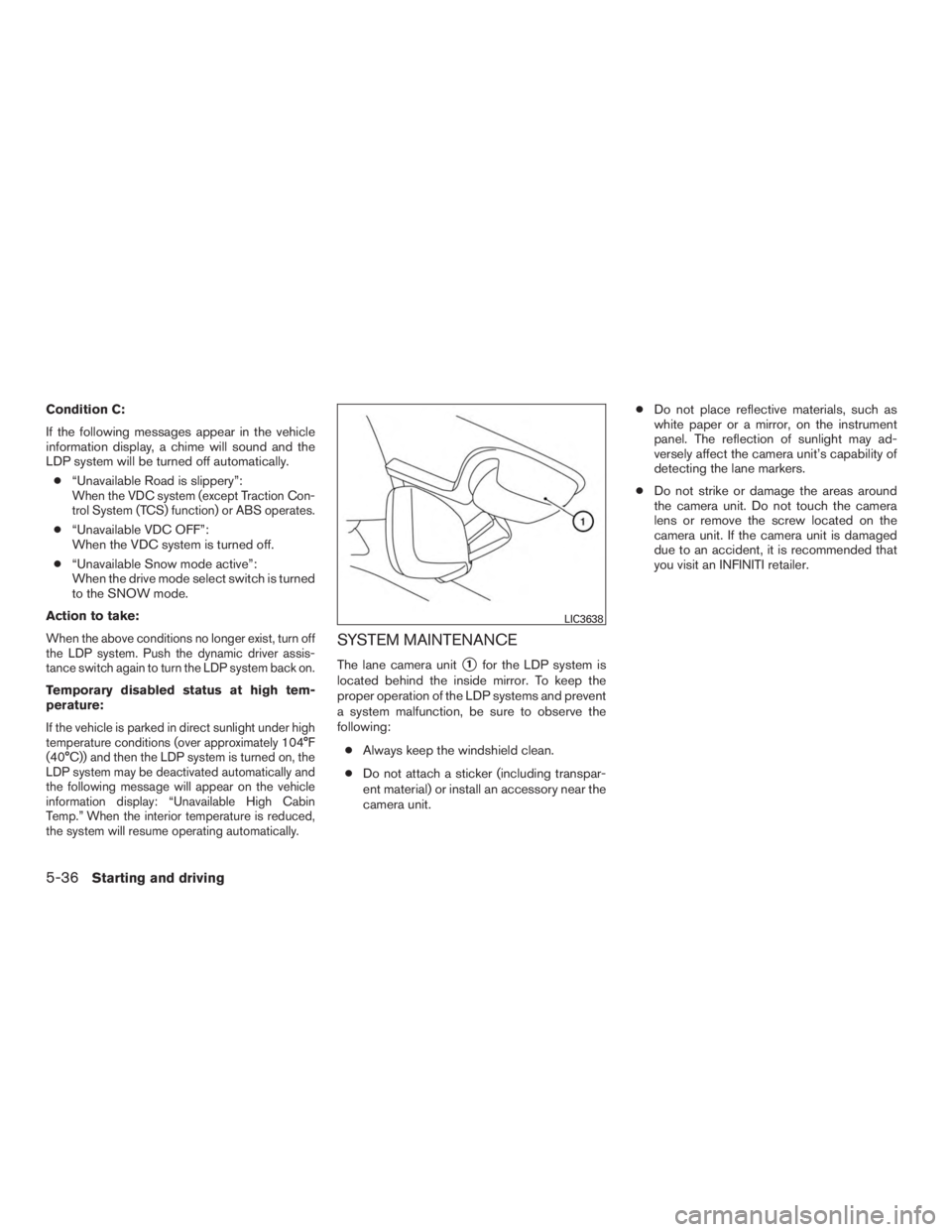

SYSTEM MAINTENANCE
The lane camera unit1for the LDW system is
located behind the inside mirror. To keep the
proper operation of the LDW systems and pre-
vent a system malfunction, be sure to observe the
following:
● Always keep the windshield clean.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
camera unit.
LIC3638
5-30Starting and driving

●Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
● Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. If the camera unit is damaged
due to an accident, it is recommended that
you visit an INFINITI retailer.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the LDP system
could result in serious injury or death.
The LDP system will operate when the vehicle is
driven at speeds of approximately 45 mph
(70 km/h) and above, and only when the lane
markings are clearly visible on the road.
The LDP system warns the driver with a warning
light and chime, and helps assist the driver to
return the vehicle to the center of the traveling
lane by applying the brakes to the left or right
wheels individually (for a short period of time) . The LDP system monitors the lane markers on the
traveling lane using the camera unit
1located
above the inside mirror. When the camera unit
detects that the vehicle is traveling close to either
the left or the right of the traveling lane, the Lane
Departure Warning indicator light on the instru-
ment panel blinks in orange and a warning chime
sounds. When the LDP system is on, it will auto-
matically apply the brakes for a short period of
time, using the function of the Vehicle Dynamic
Control (VDC) system.
LSD2701
LANE DEPARTURE PREVENTION
(LDP) (if so equipped)
Starting and driving5-31

LDP SYSTEM OPERATION
The LDP system operates above approximately
45 mph (70 km/h). When the vehicle approaches
either the left or the right side of the traveling lane,
a warning chime will sound and the LDW indica-
tor light (orange) on the instrument panel will
blink to alert the driver. Then, the LDP system will
automatically apply the brakes for a short period
of time to help assist the driver to return the
vehicle to the center of the traveling lane.
To turn on the LDP system, push the dynamic
driver assistance switch on the steering wheel
after starting the hybrid system. The LDW indica-
tor light (green) on the instrument panel will illu-
minate. Push the dynamic driver assistance
switch again to turn off the LDP system. The
LDW indicator light will turn off.
LSD2548
5-32Starting and driving

HOW TO ENABLE/DISABLE THE
LDP SYSTEM
When the LDP system is enabled in the vehicle
information display, the system can be turned off
temporarily by pushing the dynamic driver assis-
tance switch on the steering wheel.
Perform the following steps to enable or disable
the LDP system.1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button.
2. Select “Driving Aids” and press the ENTER button.
3. To set the LDP system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Lane” and press the ENTER but-
ton.
– To turn on the assistance system, use the ENTER button to check box for “Assis-
tance (LDP)”
LSD2549
Starting and driving5-33

LDP SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the LDP system. Failure to follow the
warnings and instructions for proper use
of the LDP system could result in serious
injury or death.
●The LDP system will not steer the ve-
hicle or prevent loss of control. It is the
driver’s responsibility to stay alert, drive
safely, keep the vehicle in the traveling
lane, and be in control of the vehicle at
all times.
● The LDP system is primarily intended
for use on well-developed freeways or
highways. It may not detect the lane
markers in certain roads, weather or
driving conditions.
● The LDP system may activate if you
change lanes without first activating
your turn signal or, for example, if a
construction zone directs traffic to
cross an existing lane marker. If this
occurs you may need to apply corrective
steering to complete your lane change. ●
Because the LDP may not activate un-
der the road, weather, and lane marker
conditions described in this section, it
may not activate every time your vehicle
begins to leave its lane and you will
need to apply corrective steering.
● When the LDP system is operating,
avoid excessive or sudden steering ma-
neuvers. Otherwise, you could lose con-
trol of the vehicle.
● The LDP system will not operate at
speeds below approximately 45 mph
(70 km/h) or if it cannot detect lane
markers.
● Do not use the LDP system under the
following conditions as it may not func-
tion properly:
– During bad weather (rain, fog, snow, etc.) .
– When driving on slippery roads, such as on ice or snow.
– When driving on winding or uneven roads.
– When there is a lane closure due to road repairs.
– When driving in a makeshift or tem- porary lane. – When driving on roads where the
lane width is too narrow.
–When driving without normal tire con-
ditions (for example, tire wear, low tire
pressure, installation of spare tire, tire
chains, non-standard wheels) .
– When the vehicle is equipped with nonoriginal brake parts or suspen-
sion parts.
– When you are towing a trailer or other vehicle.
● If the LDP system malfunctions, it will
cancel automatically. The LDP system
warning light (orange) will illuminate in
the display.
● If LDP system warning light (orange)
illuminates in the display, pull off the
road to a safe location and stop the
vehicle. Turn the hybrid system off and
restart the hybrid system. If the LDP
system warning light (orange) contin-
ues to illuminate, have the LDP system
checked. It is recommended that you
visit an INFINITI retailer for this service.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
5-34Starting and driving

The LDP system may or may not operate
properly under the following conditions:
●On roads where there are multiple par-
allel lane markers; lane markers that
are faded or not painted clearly; yellow
painted lane markers; non-standard
lane markers; or lane markers covered
with water, dirt, snow, etc.
● On roads where discontinued lane
markers are still detectable.
● On roads where there are sharp curves.
●
On roads where there are sharply con-
trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDP system
could detect these items as lane markers.)
● On roads where the traveling lane
merges or separates.
● When the vehicle’s traveling direction
does not align with the lane marker.
● When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
● When rain, snow or dirt adheres to the
windshield in front of the lane camera
unit. ●
When the headlights are not bright due
to dirt on the lens or if the aiming is not
adjusted properly.
● When strong light enters the lane cam-
era unit. (For example, the light directly
shines on the front of the vehicle at
sunrise or sunset.)
● When a sudden change in brightness
occurs. (For example, when the vehicle
enters or exits a tunnel or under a
bridge.)
While the LDP system is operating, you may hear
a sound of brake operation. This is normal and
indicates that the LDP system is operating prop-
erly.SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
The warning and assist functions of the LDP
system are not designed to work under the fol-
lowing conditions: ● When you operate the lane change signal
and change the traveling lanes in the direc-
tion of the signal. (The LDP system will be
deactivated for approximately 2 seconds af-
ter the lane change signal is turned off.) ●
When the vehicle speed lowers to less than
approximately 45 mph (70 km/h).
After the above conditions have finished and the
necessary operating conditions are satisfied, the
warning and assist functions will resume.
Condition B:
The assist function of the LDP system is not
designed to work under the following conditions
(warning is still functional): ● When the brake pedal is depressed.
● When the steering wheel is turned as far as
necessary for the vehicle to change lanes.
● When the vehicle is accelerated during LDP
system operation.
● When the Intelligent Cruise Control (ICC)
approach warning occurs.
●When the hazard warning flashers are operated.
● When driving on a curve at high speed.
After the above conditions have finished and the
necessary operating conditions are satisfied, the
LDP system application of the brakes will resume.
Starting and driving5-35

Condition C:
If the following messages appear in the vehicle
information display, a chime will sound and the
LDP system will be turned off automatically.● “Unavailable Road is slippery”:
When the VDC system (except Traction Con-
trol System (TCS) function) or ABS operates.
●“Unavailable VDC OFF”:
When the VDC system is turned off.
● “Unavailable Snow mode active”:
When the drive mode select switch is turned
to the SNOW mode.
Action to take:
When the above conditions no longer exist, turn off
the LDP system. Push the dynamic driver assis-
tance switch again to turn the LDP system back on.
Temporary disabled status at high tem-
perature:
If the vehicle is parked in direct sunlight under high
temperature conditions (over approximately 104°F
(40°C)) and then the LDP system is turned on, the
LDP system may be deactivated automatically and
the following message will appear on the vehicle
information display: “Unavailable High Cabin
Temp.” When the interior temperature is reduced,
the system will resume operating automatically.
SYSTEM MAINTENANCE
The lane camera unit1for the LDP system is
located behind the inside mirror. To keep the
proper operation of the LDP systems and prevent
a system malfunction, be sure to observe the
following:
● Always keep the windshield clean.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
camera unit. ●
Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
● Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. If the camera unit is damaged
due to an accident, it is recommended that
you visit an INFINITI retailer.
LIC3638
5-36Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BSW system
could result in serious injury or death.
●The BSW system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When changing lanes,
always use the side and rear mirrors
and turn and look in the direction your
vehicle will move to ensure it is safe to
change lanes. Never rely solely on the
BSW system.
The BSW system helps alert the driver of other
vehicles in adjacent lanes when changing lanes. The BSW system uses radar sensors
1in-
stalled near the rear bumper to detect other ve-
hicles in an adjacent lane. The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and ex-
tends approximately 10 ft (3.0 m) behind the rear
bumper, and approximately 10 ft (3.0 m) side-
ways.
LSD2221
Detection zone
SSD1030
BLIND SPOT WARNING (BSW) (if so
equipped)
Starting and driving5-37

1. Side BSW/RCTA Indicator Light
2. BSW/RCTA Indicator
BSW SYSTEM OPERATION
The BSW system operates above approximately
20 mph (32km/h) .
If the radar sensors detect a vehicle in the detec-
tion zone, the side BSW/RCTA indicator light (1)
illuminates. If the turn signal is then activated, the
system chimes (twice) and the side BSW/RCTA
indicator light flashes. The BSW indicator light
continues to flash until the detected vehicles
leaves the detection zone.
The side BSW/RCTA indicator light illuminates
for a few seconds when the ignition switch is
placed in the ON position.
The brightness of the side BSW/RCTA indicator
light is adjusted automatically depending on the
brightness of the ambient light.
If a vehicle comes into the detection zone after
the driver activates the turn signal, then only the
side BSW/RCTA indicator light flashes and no
chime sounds. For additional information, refer to
“BSW driving situations” in this section.
LSD2595
5-38Starting and driving

HOW TO ENABLE/DISABLE THE
BSW SYSTEM
When the BSW system is enabled in the vehicle
information display, the system can be turned off
temporarily by pushing the warning systems
switch. For additional information, refer to “Warn-
ing systems switch” in the “Instruments and con-
trols” section of this manual.
Perform the following steps to enable or disable
the BSW system.1. Press the
button until “Settings” dis-
plays in the vehicle information display and
then press ENTER. Use the
button to
select “Driver Assistance”. Then press the
ENTER button.
2. Select “Driving Aids” and press the ENTER button.
3. Select “Blind Spot” and press the ENTER button.
4. Select “Blind Spot” and press the ENTER button.
NOTE: ● When enabling/disabling the system, the
system will retain current settings even if the
hybrid system is restarted.
LSD2609
Starting and driving5-39
