Page 11 of 36
8
• To slide the seat forward or backward, push the switch forward or backward.
• To recline the seatback, push the switch forward or backward.
SEAT LIFTER
• To adjust the angle of the front portion or height of the seat, push the front or rear end of the switch up or down.
LUMBAR SUPPORT
• Push each side of the adjusting switch to adjust the seat lumbar area until the desired position is achieved.
SEAT/STEERING POSITIONING ON EXIT
• The shift lever must be in P (PARK) position with the ignition switch in the OFF position.
• The entry/exit function can be activated by pushing SET switch , located on the driver’s side door, and then
the corresponding seat switch .
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and feature information.
Seat Adjustments

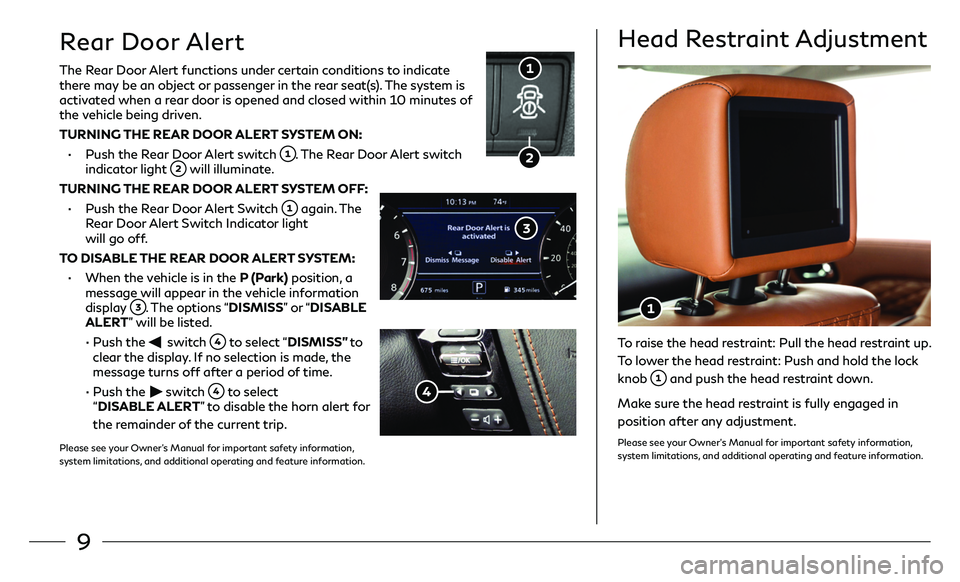

Page 12 of 36
9
The Rear Door Alert functions under certain conditions to indicate
there may be an object or passenger in the rear seat(s). The system is
activated when a rear door is opened and closed within 10 minutes of
the vehicle being driven.
TURNING THE REAR DOOR ALERT SYSTEM ON:
• Push the Rear Door Alert switch . The Rear Door Alert switch indicator light will illuminate.
TURNING THE REAR DOOR ALERT SYSTEM OFF:
• Push the Rear Door Alert Switch again. The Rear Door Alert Switch Indicator light
will go off.
TO DISABLE THE REAR DOOR ALERT SYSTEM:
• When the vehicle is in the P (Park) position, a
message will appear in the vehicle information
display
. The options “DISMISS” o r “ DISABLE
ALERT” will be listed.
• Push the switch to select “DISMISS” to
clear the display. If no selection is made, the
message turns off after a period of time.
• Push the switch to select “DISABLE ALERT” to disable the horn alert for
the remainder of the current trip.
Please see your Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
Rear Door Alert Head Restraint Adjustment
To raise the head restraint: Pull the head restraint up.
To lower the head restraint: Push and hold the lock
knob
and push the head restraint down.
Make sure the head restraint is fully engaged in
position after any adjustment.
Please see your Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
Page 13 of 36
10
All power windows can be operated through the main
switch on the driver’s door.
Power windows open/close
Disable passengers’ window operation
POWER WINDOW CONVENIENCE OPENING/
CLOSING FEATURE
To unlock the vehicle and open the windows
simultaneously, press and hold the
button on
the Intelligent Key for about 3 seconds after the door
is unlocked.
To stop opening, release the
button .
The window cannot be closed using the Intelligent Key.
Using the mechanical key:
Insert the mechanical key and turn the driver’s door key cylinder
to the rear of the vehicle for longer than 1 second. The door is
unlocked and the window keeps opening while turning the key.
To close the windows, turn the driver’s door key cylinder to the
front of the vehicle for longer than 1 second. The door is locked and
the window keeps closing while turning the key.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
Windows
You can switch between the conventional rearview mirror mode and Smart Rear View Mirror mode
(camera view mode) by using the mode select lever
.
• When the Smart Rear View Mirror mode is on,
the settings menu can be selected by pressing the
menu button
.
• Press the adjustment buttons to adjust the
following settings:
• Brightness • Down/Up • Left/right
• Indication • Language • Rotation
• Dimming Mirror
Please see your Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
Smart Rear View Mirror
(if so equipped)
Page 14 of 36
11
To complete HomeLink® programing, you can download the HomeLink app or read the
instructions below.
Before you start programing HomeLink
®, park outside and within range of your garage.
Then, clear the area around your garage door, place the ignition switch in the ON or
ACC position and locate the remote control transmitter, ensuring a fresh battery is
installed. Please note, a ladder and secondary person may be needed.
To program HomeLink:
1. Position the handheld transceiver within 3 in (8 cm) from the HomeLink surface.
2. Press and hold the desired HomeLink and garage door opener button. Release both when the indicator
flashes rapidly (if so equipped) or “TRAINED” (if so equipped) is displayed in the status area of the mirror.
Before proceeding to the next steps, be sure your garage door is not moving.
• Press the HomeLink button for 2 seconds up to 3 times. If the garage door responds, training is complete.
If the garage door doesn’t respond:
• Press the “learn” or “set” button on the garage opener until an indicator illuminates. Within 30 seconds, press the
HomeLink button
in your vehicle for 2 seconds up to 3 times.
If the garage door doesn’t respond, please see your owner’s manual, go to www.HomeLink.com/infiniti or call 1-800-355-3515.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and feature information.
HomeLink® Garage Door Opener
Page 15 of 36
12
OFF position
Automatic (AUTO) headlight mode ON position (headlights switch on/
off automatically depending on ambient light conditions/daytime running
light system)
Headlight ON position
Side lights, license plate lights and combination meter lighting ON position
Front fog light switch
Push the headlight switch forward for the high beams.
For High Beam Auto-Dimming (Auto position):
• When the vehicle speed is less than 17 mph (27 km/h), the headlight returns to low beam.
• To disable high beam auto-dimming, turn headlight switch to headlight
ON position .
Pull the headlight swit ch rearward to flash the high beams.
For normal headlight operation, leave the exterior light switch in the AUTO position.Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
Exterior Light Operation
Page 16 of 36
13
Wiper and Washer Switch
REAR WIPER AND WASHER
Intermittent (INT) — Rear wiper operates intermittently.
Low (ON) — Rear wiper operates at a
continuous low-speed.
Push the lever forward to activate the rear washer.
RAIN-SENSING AUTOMATIC WIPER SYSTEM
To set the Rain-Sensing Automatic Wiper System:
• Push the lev er down to the AUTO position .
The rain sensor sensitivity level can be adjusted by:
• Turning the knob toward the rear (Low) for low
sensitive operation .
• Turning the knob toward the front (High) for high
sensitive operation .
To turn the Rain-Sensing Automatic Wiper System
off, push the lever to the OFF position.
Please see your Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
Move the lever up or down to one of
the following positions to operate the
windshield wipers:
MIST
One sweep oper ation
OFF Wipers are OFF
AUTO Rain-sensing automatic wipe
LO Continuous wipe, slow
HI Continuous wipe, fast
To adjust the wiper sensitivity for the AUTO
setting, twist the control ring
.
Pull the lever toward you operate the
windshield washer.
Page 17 of 36
14
Sun Visors
Pull down the sun visor to block glare
from the front.
Remove the sun visor from the center mount
by lifting it slightly and swing it to the side to
block glare from the side window.
Draw out the extension sun visor from the
main sun visor to block further glare.
Please see your Owner’s Manual for important safety
information, system limitations, and additional operating and
feature information.
Fuel-filler Door
To open the fuel-filler door, unlock
the vehicle and gently push the rear
side of the fuel-filler door.
Please see your Owner’s Manual for important
safety information, system limitations, and
additional operating and feature information.
Clock Set/Adjustment
To adjust the time and the appearance of
the clock on the display:
1. Press the MENU button below the
lower display. Then select the “Settings”
key on the lower display.
2. Select the “ Clock” key to adjust “On-
Screen Clock”, “Daylight Savings Time”,
“Clock Format (24h)” and “Time Zone”.
Please see your INFINITI InTouch™ Owner’s Manual for
important safety information, system limitations, and
additional operating and feature information.
Page 18 of 36
15
Your vehicle is equipped with two USB ports , located under
the control panel, to which you can connect compatible devices
(cellular phones, iPod®, other compatible audio devices, USB memory
sticks, etc.).
After connecting your device through one of the USB ports, press
the AUDIO button on the control panel to select audio playback
from the device connected through the USB ports.
A second device can be connected for charging. In order to switch to
the second device for audio playback, both devices will need to be
removed and the second device reconnected first.
There are also USB charging ports located in the second row
on the back of the center console. These ports will charge
compatible devices.
Please see your INFINITI InTouch™ Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
USB Connection PortConnecting your Cellular Phone
or Device via Bluetooth®*
Using Bluetooth® technology, you can
connect (pair) your cellular phone with
the in-vehicle system for hands-free use
of your cellular phone.
1. Press the MENU button and touch
the “Connections” key.
2. Touch “Devices” and then “Add
New”. A message is displayed.
3. Operate as guided by the system.
(Operations may differ depending
on the device.)
The paired cellular phone will be added
to the list on the “Connections” screen.
FAVORITE HANDS-FREE PHONE
• You can register a favorite hands-free phone. The phone device
name selected as a favorite will be marked with a star.
For any Bluetooth® connectivity issues, reboot your cellular
phone or device.
* Some jurisdictions prohibit the use of cellular telephones while driving.
Please see your INFINITI InTouch™ Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
Page 19 of 36
16
Bluetooth® Streaming Audio
If you have a compatible Bluetooth® device with streaming audio (A2DP and AVRCP profiles), you can set up a wireless connection between your
Bluetooth® device and the in-vehicle audio system, enabling you to listen to the audio from your device through the vehicle’s audio system.
After connecting your Bluetooth® device, press the MEDIA button on the control panel to switch to Bluetooth® Streaming Audio.
For any Bluetooth® connectivity issues, reboot your cellular phone or device.* Some jurisdictions prohibit the use of cellular telephones while driving.
Please see your INFINITI InTouch™ Owner’s Manual for important safety information, system limitations, and additional operating and feature information.
Page 20 of 36
17
Apple CarPlay®
Apple CarPlay® lets you use your compatible iPhone® to make calls, listen to music, send and receive
messages, get directions and use iPhone apps directly from your vehicle display.
If your compatible iPhone does not connect wirelessly, connect your iPhone to the USB connection
port located in the center console.
• Depending on the setting, the startup information screen will appear on the upper display.
• Select “Yes” to use Apple CarPlay.
• After the iPhone is connected, the Apple CarPlay home screen will appear and the iPhone
functions displayed on the screen can be operated by the in-vehicle system.
While connected to Apple CarPlay, Siri
® operation can be accessed.
There are two ways to start a Siri session:
1 . Press and hold the button on the steering wheel.
2 . Select and hold the key on the lower left corner of the Apple CarPlay screen.
Press the
button on the steering wheel or select the key on the lower left corner of the
Apple CarPlay screen to end the Siri session.
Keep the interior of the vehicle as quiet as possible. Close the windows to eliminate the surrounding
noises (traffic noises, vibration sounds, etc.) and point the heater and air conditioner vents away from
the ceiling, which may prevent the system from recognizing the voice commands correctly.
Some Siri functions may not be available during driving. For functions that can be used with Siri,
please refer to the Apple
® website.
To return to the Apple CarPlay home screen after operation, select the
key on the lower left corner of the Apple CarPlay screen.
To return to the Apple CarPlay screen from the main menu:
1 . Press the MENU button and select the Apple CarPlay key , or
2 . Select the “Information” key , select the “Apps” key, and then select the “Apple CarPlay” key.Please see your INFINITI InTouch™ Owner’s Manual for important safety information, system limitations, and additional operating and feature information.
