applies harder braking automatically.
While the FEB with Pedestrian Detection
system is operating, you may hear the sound
of brake operation. This is normal and
indicates that the FEB with Pedestrian
Detection system is operating properly.
NOTE:
The vehicle’s stop lights come on when
braking is performed by the FEB with
Pedestrian Detection system.
Depending on vehicle speed and distance to
the vehicle or pedestrian ahead, as well as
driving and roadway conditions, the system
may help the driver avoid a forward collision
or may help mitigate the consequences of a
collision should one be unavoidable.
If the driver is handling the steering wheel,
accelerating or braking, the FEB with Pe-
destrian Detection system will function later
or will not function.
The automatic braking will cease under the
following conditions:
.When the steering wheel is turned as far
as necessary to avoid a collision.
. When the accelerator pedal is depressed.
. When there is no longer a vehicle,
pedestrian detected ahead.
If the FEB with Pedestrian Detection system
has stopped the vehicle, the vehicle will
remain at a standstill for approximately 2 seconds before the brakes are released.
When the brake pedal is depressed while the
brake is applied by the system, you may feel
the pedal effort is changed and may hear a
sound and vibration noise. This is normal and
does not indicate a malfunction. In addition,
the braking force can be increased by adding
the pedal effort.
Starting and driving5-97

5-98Starting and driving
WAF0741X
FEB system warning light (on the meter
panel)
Vehicle information display
Steering-wheel-mounted controls (left
side)
TURNING THE FEB WITH PE-
DESTRIAN DETECTION SYSTEM
ON/OFF
Perform the following steps to turn the FEB
with Pedestrian Detection system on or off.1. Push the
button until “Settings”
appears in the vehicle information dis-
play. Use the
button to select “Driver
Assistance.” Then push the OK button.
2. Select “Emergency Brake” and push the OK button.
3. Select “Front” and use the OK button to turn the system on or off.
When the FEB with Pedestrian Detection
system is turned off, the FEB system warn-
ing light illuminates.
NOTE:
. The FEB with Pedestrian Detection
system will be automatically turned
ON when the engine is restarted.
. The Predictive Forward Collision Warn-
ing (PFCW) system is integrated into
the FEB system. There is not a separate
selection for the PFCW system. When
the PFCW system is also turned off.
FEB WITH PEDESTRIAN DETEC-
TION SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations
for the FEB with Pedestrian Detection
system. Failure to operate the vehicle in
accordance with these system limita-

tions could result in serious injury or
death.
.The FEB with Pedestrian Detection
system cannot detect all vehicles or
pedestrians under all conditions.
. The FEB with Pedestrian Detection
system does not detect the following:
— Pedestrians that are small (for example, children), in a sitting
position, operating toys/skate-
boards, on scooters or in wheel-
chairs, or not in an upright
standing or walking position.
— Animals of any size.
— Obstacles (for example, cargo or debris) on the roadway or road-
side.
— Oncoming or crossing vehicles.
— Vehicles where the tires are diffi- cult to see or the shape of the rear
of the vehicle is unclear or ob-
structed.
— Parked vehicles.
. The FEB with Pedestrian Detection
system has some performance limita-
tions.
— If a stationary vehicle is in the vehicle’s path, the system will not function when the vehicle ap-
proaches the stationary vehicle
at speeds over approximately 50
MPH (80 km/h).
— Pedestrian detection will not function when the vehicle is driven
at speeds over approximately 37
MPH (60 km/h) or below ap-
proximately 6 MPH (10 km/h).
. For pedestrians, the FEB with Pedes-
trian Detection system will not issue
the first warning.
. The FEB with Pedestrian Detection
system may not function properly or
detect a vehicle or pedestrian ahead
in the following conditions:
— In poor visibility conditions (such as rain, snow, fog, dust storms,
sand storms, smoke, and road
spray from other vehicles).
— If dirt, ice, snow, fog or other material is covering the radar
sensor area or camera area of
the windshield.
— If strong light (for example, sun- light or high beams) enters the
front camera or a sudden change
in brightness occurs (for example,
entering a tunnel or driving in
lightning). — In dark or dimly lit conditions,
such as at night or in tunnels,
including cases where your vehi-
cle’s headlights are off or dim, or
the tail lights of the vehicle ahead
are off.
— When the direction of the camera is misaligned.
— When driving on a steep downhill slope, on roads with sharp curves,
and/or bumpy or dirt roads.
— If there is interference by other radar sources.
— When your vehicle’s position or movement is changed quickly or
significantly (for example, lane
change, turning vehicle, abrupt
steering, sudden acceleration or
deceleration).
— When your vehicle or the vehicle or pedestrian ahead moves quickly
or significantly such that the sys-
tem cannot detect and react in
time (for example, pedestrian
moving quickly toward the vehicle
at close range, vehicle cutting in,
changing lanes, making a turn,
steering abruptly, sudden accel-
eration or deceleration).
Starting and driving5-99

5-100Starting and driving
— When the vehicle or pedestrian isoffset from the vehicle’s forward
path.
— If the speed difference between the two vehicles is small.
— The pedestrian’s profile is par- tially obscured or unidentifiable;
for example, due to transporting
luggage, pushing a stroller, wear-
ing bulky or very loose-fitting
clothing or accessories, or being
in a unique posture (such as rais-
ing hands).
— There is poor contrast of a person to the background, such as having
clothing color or pattern which is
similar to the background.
— For approximately 15 seconds after starting the engine
— If the vehicle ahead has a unique or unusual shape, extremely low
or high clearance heights, or unu-
sual cargo loading or is narrow
(for example, a motorcycle).
— When the vehicle or pedestrian is located near a traffic sign, a
reflective area (for example,
water on road), or is in a shadow. — When multiple pedestrians are
grouped together.
— When the view of the pedestrian is obscured by a vehicle or other
object.
— While towing a trailer or other vehicle.
. The system performance may be
degraded in the following conditions:
— The vehicle is driven on a slippery road.
— The vehicle is driven on a slope.
— Excessively heavy baggage is loaded in the rear seat or the
cargo area of your vehicle.
. The system is designed to automati-
cally check the sensor (radar and
camera)’s functionality, within cer-
tain limitations. The system may not
detect some forms of obstruction of
the sensor area such as ice, snow or
stickers, for example. In these cases,
the system may not be able to warn
the driver properly. Be sure that you
check, clean and clear sensor areas
regularly.
. In some road and traffic conditions,
the FEB with Pedestrian Detection
system may unexpectedly apply par- tial braking. When acceleration is
necessary, depress the accelerator
pedal to override the system.
. The FEB with Pedestrian Detection
system may operate when a pattern,
object, shadow or lights are detected
that are similar to the outline of
vehicles or pedestrians, or if they
are the same size and position as a
vehicle or motorcycle’s tail lights.
. The system may keep operating when
the vehicle ahead is turning right or
left.
. The system may operate when your
vehicle is approaching and passing a
vehicle ahead.
. Depending on the road shape (curved
road, entrance and exit of the curve,
winding road, lane regulation, under
construction, etc.), the system may
operate temporarily for the oncoming
vehicle in front of your vehicle.

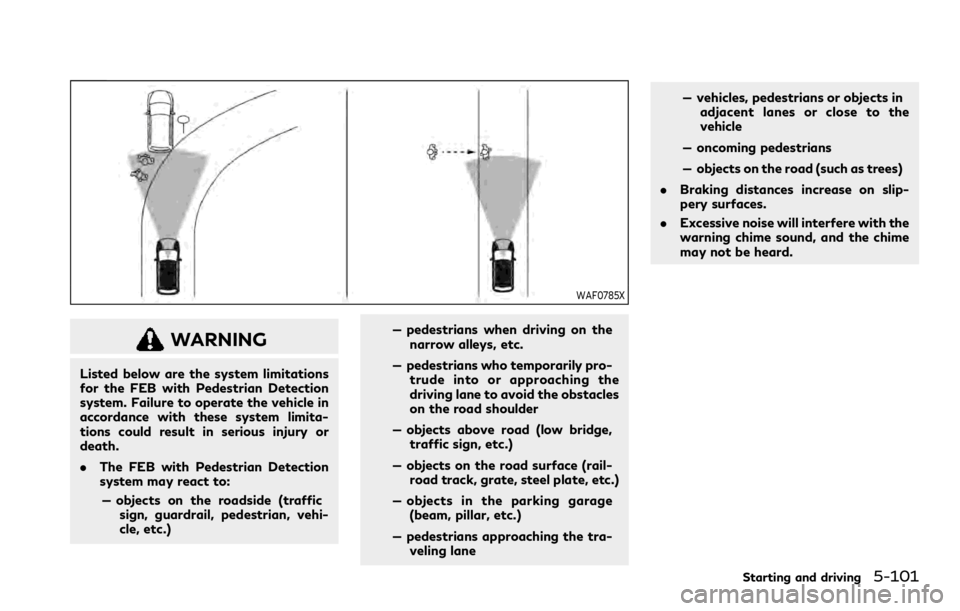

WAF0785X
WARNING
Listed below are the system limitations
for the FEB with Pedestrian Detection
system. Failure to operate the vehicle in
accordance with these system limita-
tions could result in serious injury or
death.
.The FEB with Pedestrian Detection
system may react to:
— objects on the roadside (traffic sign, guardrail, pedestrian, vehi-
cle, etc.) — pedestrians when driving on the
narrow alleys, etc.
— pedestrians who temporarily pro- trude into or approaching the
driving lane to avoid the obstacles
on the road shoulder
— objects above road (low bridge, traffic sign, etc.)
— objects on the road surface (rail- road track, grate, steel plate, etc.)
— objects in the parking garage (beam, pillar, etc.)
— pedestrians approaching the tra- veling lane — vehicles, pedestrians or objects in
adjacent lanes or close to the
vehicle
— oncoming pedestrians
— objects on the road (such as trees)
. Braking distances increase on slip-
pery surfaces.
. Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
Starting and driving5-101

5-102Starting and driving
SSD0253
When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction or on a slope,
the sensor may detect vehicles in a different
lane, or may temporarily not detect a vehicle
traveling ahead. This may cause the system
to work inappropriately.
The detection of vehicles may also be
affected by vehicle operation (steering man-
euver or traveling position in the lane, etc.) or
vehicle condition.If this occurs, the system
may warn you by blinking the system
indicator and sounding the chime unexpect-
edly. You will have to manually control the
proper distance away from the vehicle
traveling ahead.SYSTEM TEMPORARILY UNA-
VAILABLE
Condition A
In the following conditions, the FEB system
warning light (orange) will blink and the
system will be turned off automatically.
. The camera area of windshield is misted
or frozen.
. Strong light is shining from the front.
. The cabin temperature is over approxi-
mately 104°F (40°C) in direct sunlight.
. The camera area of windshield glass is
continuously covered with dirt, etc.
Action to take: When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
NOTE:
When the inside of the windshield on
camera area is misted or frozen, it will take
a period of time to remove it after air
conditioner turns on. If dirt appears on this
area, it is recommended you visit an
INFINITI retailer.
Condition B
When the radar sensor picks up interference
from another radar source, making it im-
possible to detect a vehicle ahead, the FEB
system is automatically turned off. The FEB
system warning light (orange) will illuminate.
Action to take:
When the above conditions no longer exist,
the FEB system will resume automatically.
Condition C
Under the following conditions, making it
impossible to detect a vehicle ahead, the
FEB with Pedestrian Detection system is
automatically turned off.
The FEB system warning light (orange) will
illuminate and the “Forward Driving Aids
temporarily disabled Front Sensor blocked
See Owner’s Manual” warning message will
appear in the vehicle information display.

.When the sensor area of the front
bumper is covered with dirt or is ob-
structed
Action to take:
If the FEB system warning light (orange)
comes on, stop the vehicle in a safe place,
place the shift lever in the P (Park) position
and turn the engine off. Clean the radar
cover below the front bumper with a soft
cloth, and restart the engine. If the FEB
system warning light continues to illuminate,
have the FEB with Pedestrian Detection
system checked. It is recommended you visit
an INFINITI retailer for this service.
. When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)
Action to take:
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
Condition D
When the accelerator pedal actuator detects
that the internal motor temperature is high,
the FEB with Pedestrian Detection system is
automatically turned off. The FEB system
warning light (orange) will illuminate.
Action to take: When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
Condition E
When VDC system is OFF, the FEB brake
will not operate. In this case only visible and
audible warning operates. The FEB system
warning light (orange) will illuminate.
Action to take:
When VDC system is ON, the FEB with
Pedestrian Detection system will resume
automatically.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automa-
tically, a chime will sound, the FEB system
warning light will (orange) will illuminate and
the “Malfunction” warning message will
appear in the vehicle information display.
Action to take:
If the warning light (orange) comes on, stop
the vehicle in a safe location. Turn the engine
off and restart the engine. If the warning
light continues to illuminate, have the FEB
with Pedestrian Detection system checked.
It is recommended that you visit an INFINITI
retailer for this service.
JVS1158X
SYSTEM MAINTENANCE
The radar sensoris located on the front of
the vehicle. The camerais located on the
upper side of the windshield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
. Always keep the sensor area on the front
of the vehicle and windshield clean.
. Do not strike or damage the areas around
the sensors (ex. bumper, windshield).
. Do not cover or attach stickers or similar
objects on the front of the vehicle near
the sensor area. This could cause failure
or malfunction.
Starting and driving5-103

5-104Starting and driving
.Do not attach metallic objects near the
radar sensor area (brush guard, etc.).
This could cause failure or malfunction.
. Do not place reflective materials, such as
white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
detection capability.
. Do not alter, remove or paint the front of
the vehicle near the sensor area. Before
customizing or restoring the sensor area,
it is recommended that you visit an
INFINITI retailer.
Radio frequency statement
Model: ARS4–A
IC: 4135A-ARS4A
FCC ID: OAYARS4A
This device complies with Part 15 of the FCC
Rules and with Industry Canada licence
exempt RSS standard(s). Operation is sub-
ject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interfer- ence received, including interference
that may cause undesired operation.
WARNING
Failure to follow the warnings and
instructions for proper use of the PFCW
system could result in serious injury or
death.
.The PFCW system helps warn the
driver before a collision but will not
avoid a collision. It is the driver’s
responsibility to stay alert, drive
safely and be in control of the vehicle
at all times.
The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane.
JVS1154X
The PFCW system uses a radar sensorlocated on the front of the vehicle to
measure the distance to a second vehicle
ahead in the same lane.
PREDICTIVE FORWARD
COLLISION WARNING (PFCW)

WAF0743X
Vehicle ahead detection indicator (on
the vehicle information display)
Forward Emergency Braking (FEB)
system warning light (on the meter
panel)
Starting and driving5-105

5-106Starting and driving
JVS0294X
PFCW SYSTEM OPERATION
The PFCW system operates at speeds above
approximately 3 MPH (5 km/h).
If there is a potential risk of a forward
collision, the PFCW system will warn the
driver by blinking the vehicle ahead detection
indicator, and sounding an audible alert.
