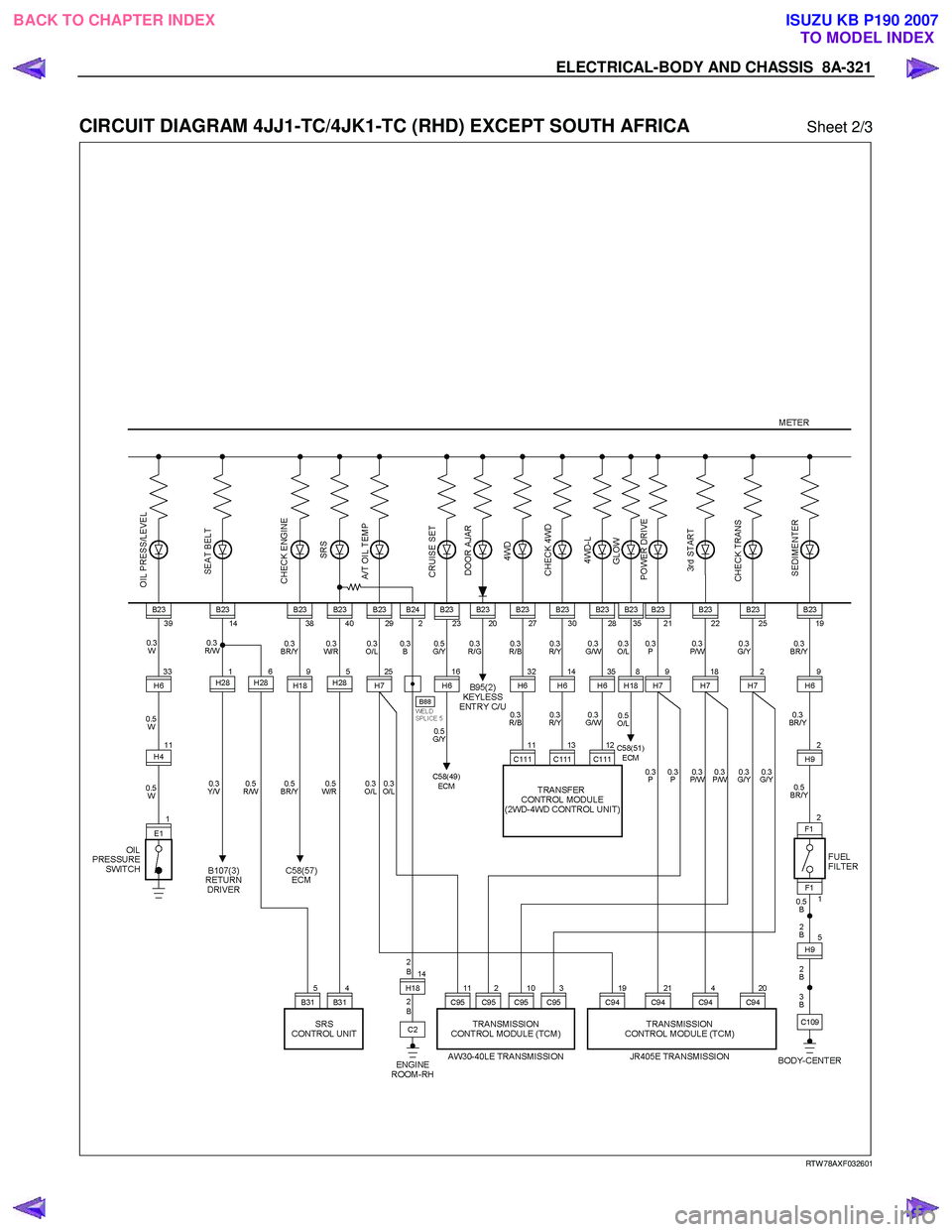

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-321 CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 2/3 RTW 78AXF032601 BACK TO CHAPTER INDEX TO MODEL INDEXIS

Page 5260 of 6020

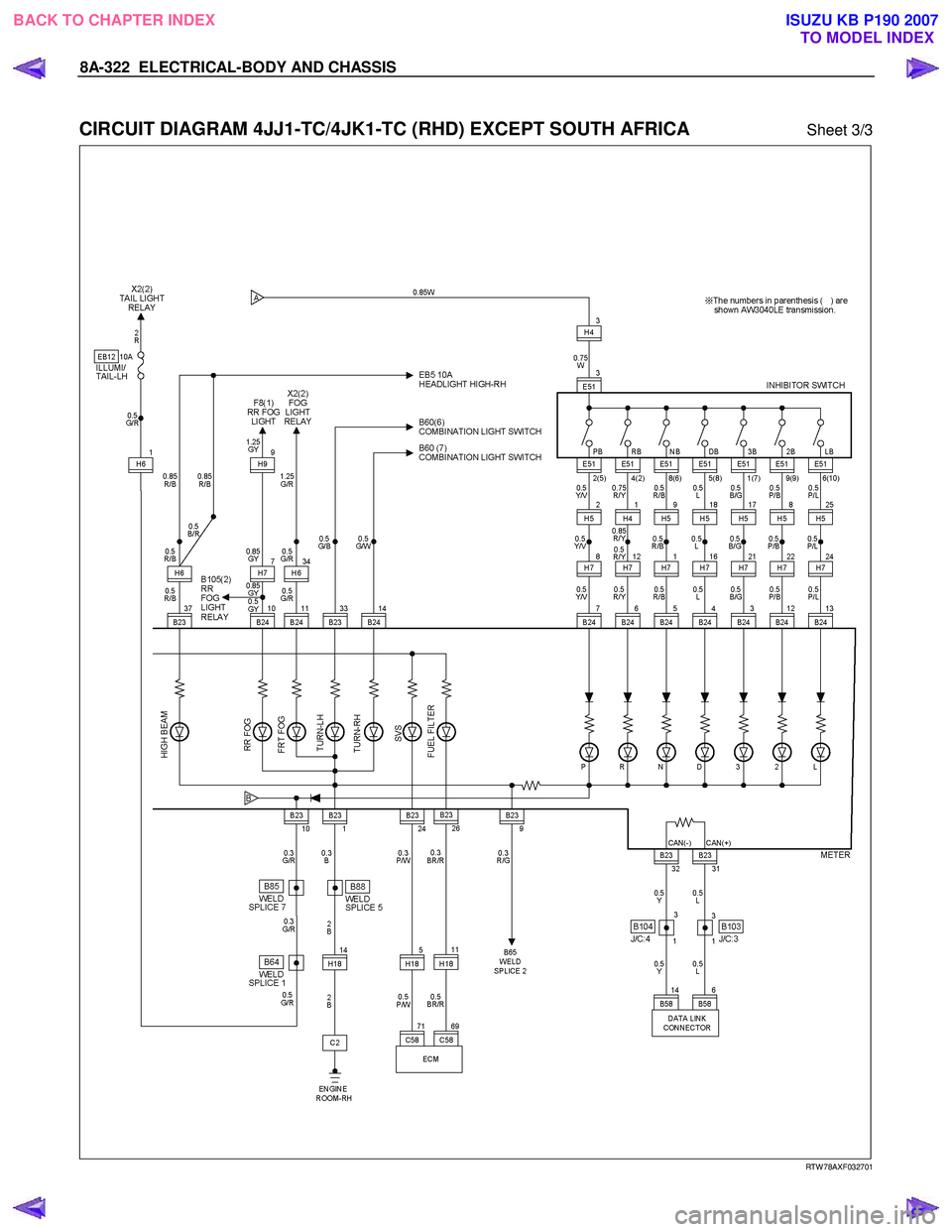

ISUZU KB P190 2007 Workshop Repair Manual 8A-322 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 3/3 RTW 78AXF032701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P

Page 5261 of 6020

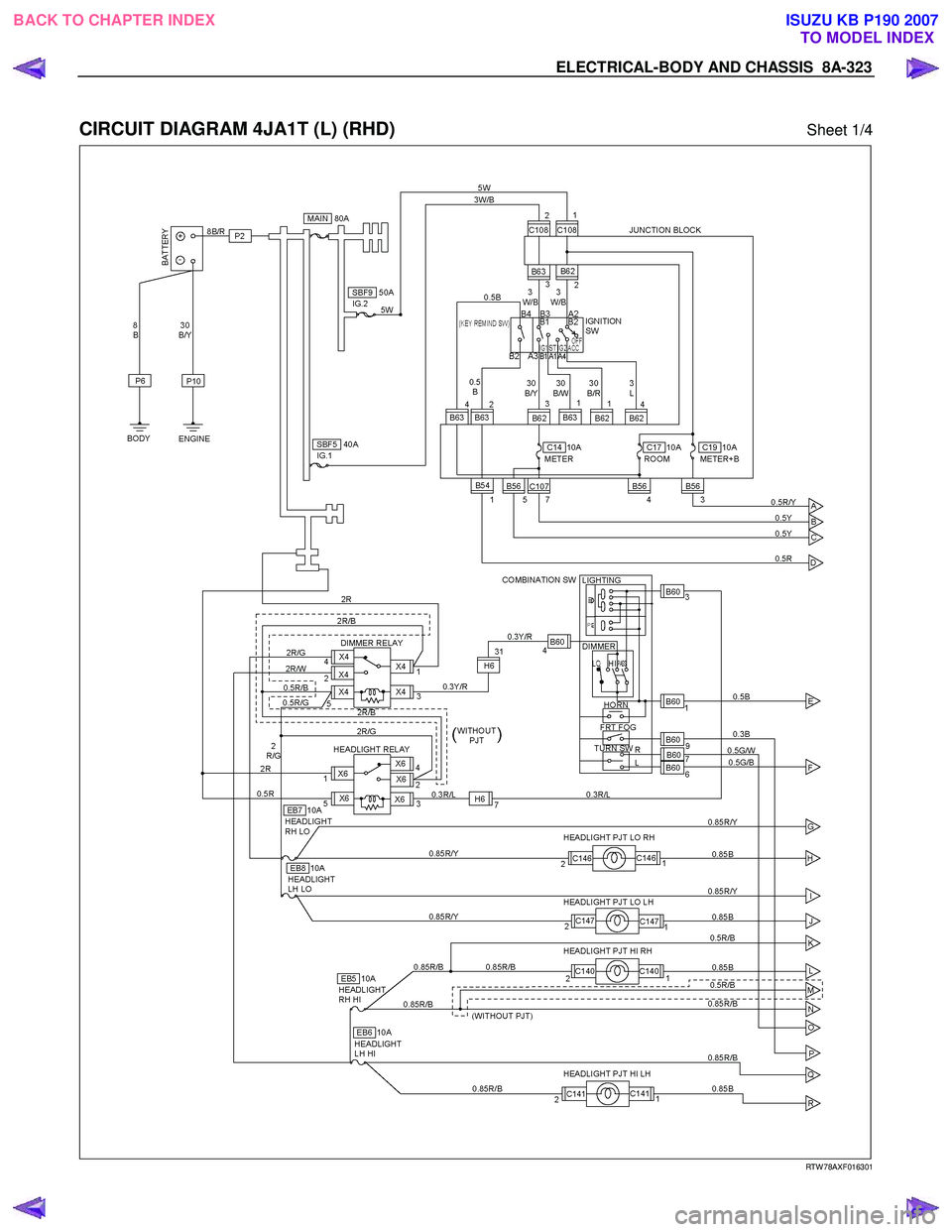

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-323 CIRCUIT DIAGRAM 4JA1T (L) (RHD) Sheet 1/4 RTW 78AXF016301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5262 of 6020

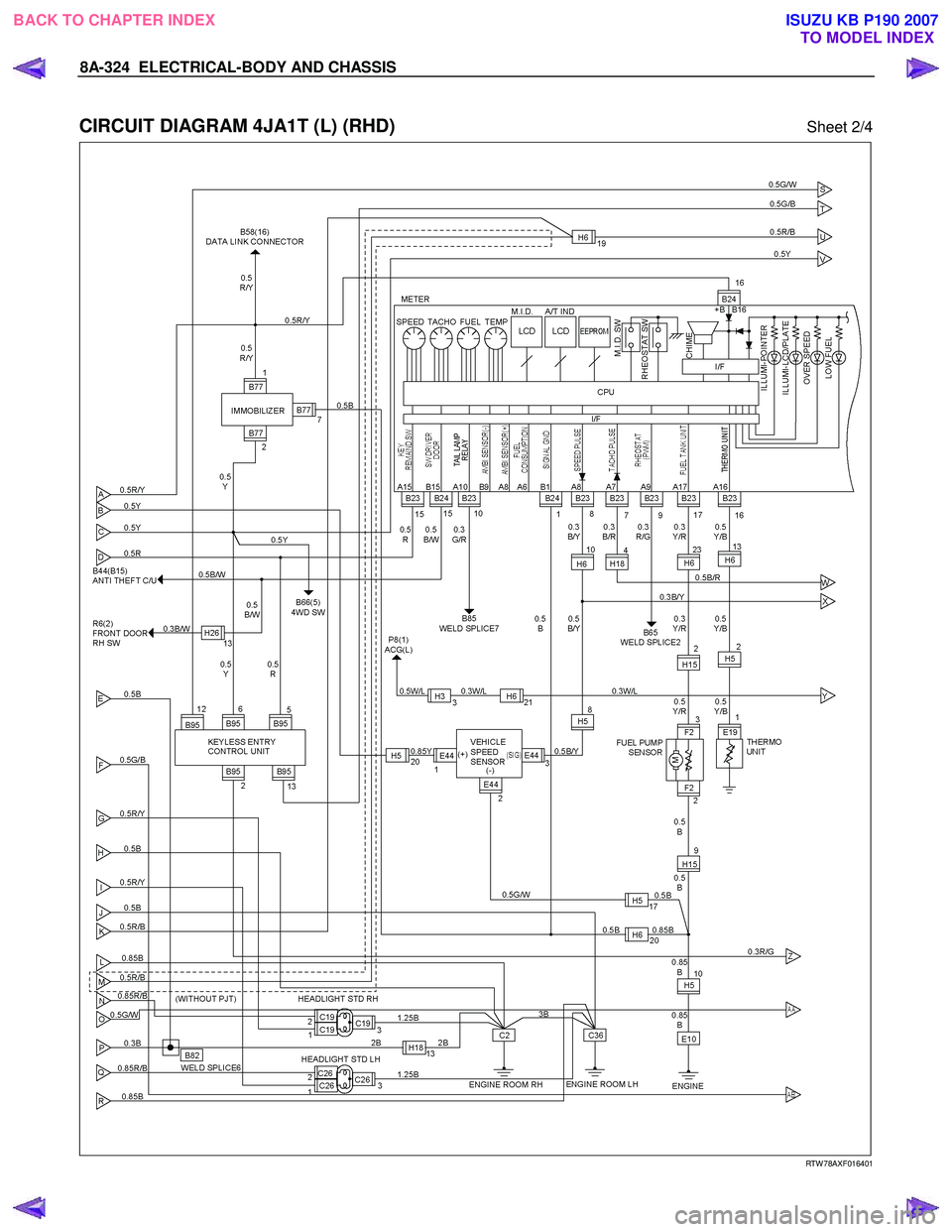

ISUZU KB P190 2007 Workshop Repair Manual 8A-324 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JA1T (L) (RHD) Sheet 2/4 RTW 78AXF016401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5263 of 6020

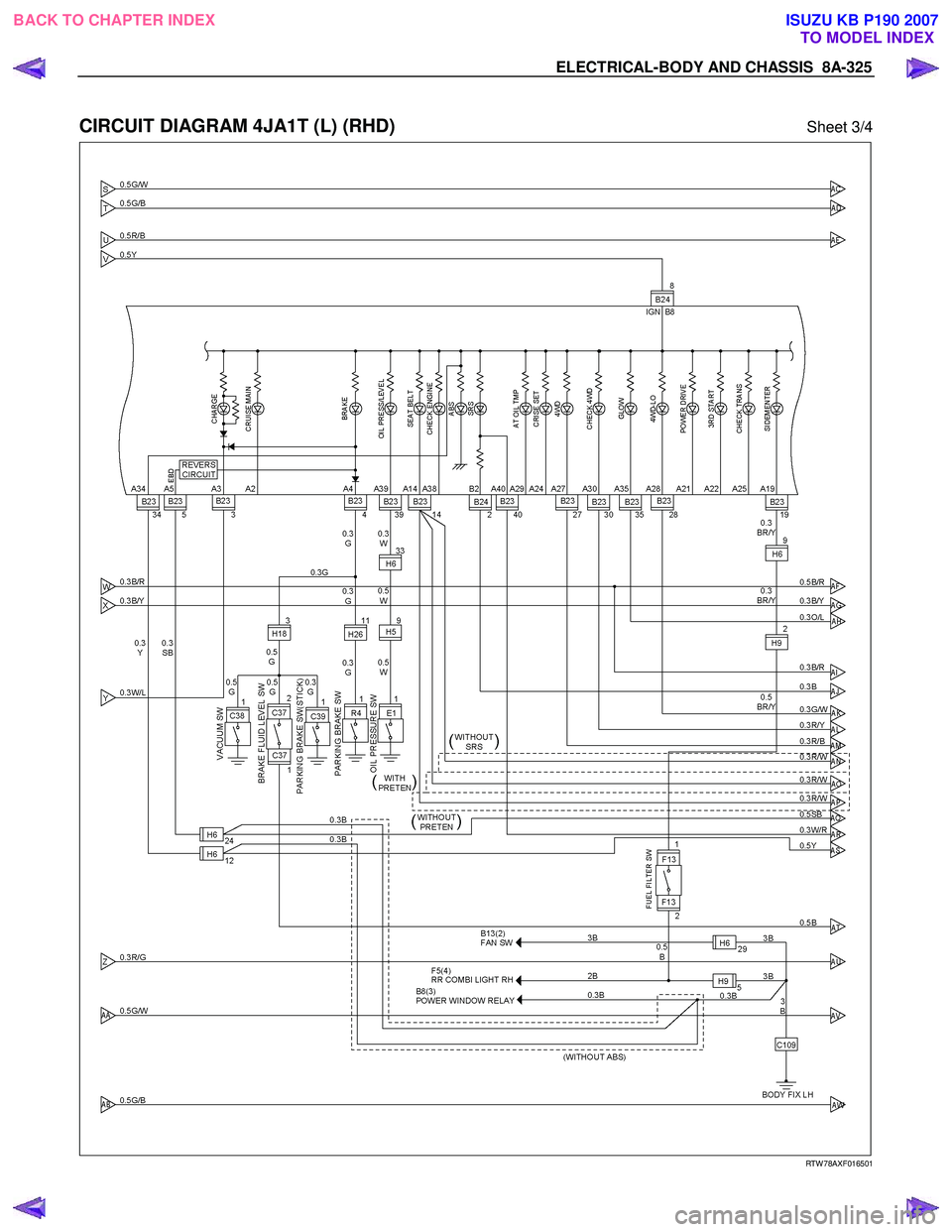

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-325 CIRCUIT DIAGRAM 4JA1T (L) (RHD) Sheet 3/4 RTW 78AXF016501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5264 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-326 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JA1T (L) (RHD) Sheet 4/4 RTW 78AXF016601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5265 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-327 CIRCUIT DIAGRAM C24SE (LHD) Sheet 1/3 RTW 780XF015201 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5266 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-328 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM C24SE (LHD) Sheet 2/3 RTW 780XF015301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5267 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-329 CIRCUIT DIAGRAM C24SE (LHD) Sheet 3/3 RTW 780XF015401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5268 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-330 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM HFV6 (LHD) G.EXP Sheet 1/3 RTW 78AXF013001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
