KB P190

ISUZU KB P190 2007

0A-6 GENERAL INFORMATION
IDENTIFICATION




CHASSIS NUMBER
The chassis number is stamped on the right-hand side of the
chassis side member under the right door.



RTW 50ASH000201

VEHICLE IDENTIFICATION PLATE
The vehicle identification plate is attached to the upper face of
the radiator sill in the engine compartment.



BODY AND OPTION IDENTIFICATION
PLATE
The body and option plate shows body style, body serial
number, paint and trim colour combination, paint number,
engine transmissions, axle ratio options and built date. The
built date is defined as 'the date of manufacture' by the
calendar month and year in which the body shell and power
train sub-assemblies are co-joined or moved from the
production line.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MAINTENANCE AND LUBRICATION 0B-3


I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate

SERVICE INTERVAL: × 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading × 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60or months whichever
comes first)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
CLUTCH
Clutch fluid I I - I - I - I - I - I - I - I - I - I Clutch pedal travel and free play I I - I - I - I - I - I - I - I - I - I TRANSMISSION OR TRANSMISSION
W ITH TRANSFER CASE

* Automatic transmission fluid (HFV6)
- - I - - I - - I - - I - - I - - I - R (4JH1-TC, 4JJ1 (Standard Output),
4JJ1 (High Output)) - - - I - - - I - - - I - - - I - - - I
* Transfer case oil
- - - I - - - I - - - I - - - I - - - I * Manual transmission fluid - R - I - - - R - - - I - - - R - - - I Oil leakage I I I I I I I I I I I I I I I I I I I I Gear control mechanism for
looseness - - - I - - - I - - - I - - - I - - - I

PROPELLER SHAFT Loose connections - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear
- I - I - I - I - I - I - I - I - I - I Universal joints and sliding sleeve
(4W D) - L - L - L - L - L - L - L - L - L - L

FRONT AND REAR AXLE * Differential gear oil (Front and rear) - R - I - - - R - - - I - - - R - - - I Oil leakage I I I I I I I I I I I I I I I I I I I I Shift on the fly system gear oil I - - I - - - I - - - I - - - I - - - I Front axle shaft boot for damage - - - I - - - I - - - I - - - I - - - I Axle shafts for distortion or damage - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage - - - I - - - I - - - I - - - I - - - I STEERING Power steering fluid I I I I I I I R I I I I I I I R I I I I Oil leakage I I I I I I I I I I I I I I I I I I I I * Steering system for looseness or
damage - I - I - I - I - I - I - I - I - I - I
Power steering hose
- I - I - I - I - I - I - I - R - I - I Steering wheel play I I I I I I I I I I I I I I I I I I I I Steering function I I I I I I I I I I I I I I I I I I I I Right and left turning radius - - - I - - - I - - - I - - - I - - - I W heel alignment - - - I - - - I - - - I - - - I - - - I Joint ball for oil leakage or damage - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage - I - I - I - I - I - I - I - I - I - I SERVICE BRAKES Brake fluid - - - I - - - I - - - I - - - I - - - I Brake system for fluid leakage I I I I I I I I I I I I I I I I I I I I Brake function I I I I I I I I I I I I I I I I I I I I * Rear brake lining and drum wear - I - I - I - I - I - I - I - I - I - I * Front disc brake pads and discs wear - I - I - I - I - I - I - I - I - I - I Brake pedal travel and free play I I I I I I I I I I I I I I I I I I I I Pipes and hoses loose connections
or damage I I - I - I - I - I - I - I - I - I - I


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MAINTENANCE AND LUBRICATION 0B-5
MAINTENANCE SCHEDULE (For EUROPE)
Items followed by an asterisk (*) require more frequent maintenance if the vehicle is driven under severe conditions.
Replace the fuel filter (**Mark) when the fuel filter indicator light is lit.
Refer to "SEVERE CONDITIONS MAINTENANCE SCHEDULE."
Diesel Engine model (ACEA B2 specification engine oil)

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate

SERVICE INTERVAL: × 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
(Use odometer reading or × 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60
months whichever comes
first)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
DIESEL ENGINE * Engine oil - R - R - R - R - R - R - R - R - R - R* Engine oil filter - - - R - - - R - - - R - - - R - - - ROil leakage and contamination I I I I I I I I I I I I I I I I I I I I Idling speed and acceleration I I I I I I I I I I I I I I I I I I I I Fan belt tension and damage I I I I I I I I I I I I I I I I I I I I Exhaust system I I - I - I - I - I - I - I - I - I - I All hoses and pipes in engine
compartment for clog of damage - I I I I I I I I I I I I I I I I I I I
Valve clearance
- - - A - - - A - - - A - - - A - - - A * Air cleaner element I I I I I I I R I I I I I I I R I I I I ** Fuel filter Replace the fuel filter when the fuel filter indicator light is lit. Engine coolant concentration - I - I - I - I - I - I - I - I - I - I Cooling system for water leakage - I - I - I - I - I - I - I - I - I - I CLUTCH Clutch fluid I I - I - I - I - I - I - I - I - I - I Clutch pedal travel and play I I - I - I - I - I - I - I - I - I - I TRANSMISSION OR TRANSMISSION
W ITH TRANSFER CASE

* Manual transmission with fluid - R - I - - - R - - - I - - - R - - - I * Transfer case oil (MT) - - - I - - - I - - - I - - - I - - - I Oil leakage I I I I I I I I I I I I I I I I I I I I Gear control mechanism for
looseness - - - I - - - I - - - I - - - I - - - I
* Automatic transmission fluid - - - I - - - I - - - I - - - I - - - I * Transfer case oil (AT)
- - - I - - - - - - - I - - - - - - - I PROPELLER SHAFT Loose connections - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear - I - I - I - I - I - I - I - I - I - I Universal joints and sliding sleeve (4W D) - L - L - L - L - L - L - L - L - L - L
FRONT AND REAR AXLE * Differential gear oil (Front and rear) - R - I - - - R - - - I - - - R - - - I Oil leakage I I I I I I I I I I I I I I I I I I I I Shift on the fly system gear oil I - - I - - - I - - - I - - - I - - - I
Front axle shaft boot for damage - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage - - - I - - - I - - - I - - - I - - - I Axle shafts for distortion or damage - - - I - - - I - - - I - - - I - - - I

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MAINTENANCE AND LUBRICATION 0B-7

Diesel Engine model (Engine oil that meet or exceeds ACEA B3 specification)
I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate

SERVICE INTERVAL: × 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
(Use odometer reading or × 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60
months whichever comes
first)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
DIESEL ENGINE * Engine oil - - - R - - - R - - - R - - - R - - - R*
Engine oil filter
- - - R - - - R - - - R - - - R - - - R
Oil leakage and contamination I I I I I I I I I I I I I I I I I I I I Idling speed and acceleration I I I I I I I I I I I I I I I I I I I I Fan belt tension and damage I I I I I I I I I I I I I I I I I I I I Exhaust system I I - I - I - I - I - I - I - I - I - I All hoses and pipes in engine
compartment for clog of damage - - - I - - - I - - - I - - - I - - - I
Valve clearance
- - - A - - - A - - - A - - - A - - - A * Air cleaner element I I I I I I I R I I I I I I I R I I I I ** Fuel filter Replace the fuel filter when the fuel filter indicator light is lit. Engine coolant concentration - - - I - - - I - - - I - - - I - - - I Cooling system for water leakage - - - I - - - I - - - I - - - I - - - I CLUTCH Clutch fluid I I - I - I - I - I - I - I - I - I - I Clutch pedal travel and play I I - I - I - I - I - I - I - I - I - I TRANSMISSION OR TRANSMISSION
W ITH TRANSFER CASE

* Manual transmission with fluid - - - R - - - I - - - R - - - I - - - I * Transfer case oil (MT) - - - R - - - I - - - R - - - I - - - I Oil leakage - - - I - - - I - - - I - - - I - - - I Gear control mechanism for
looseness - - - - - - - - - - - I - - - - - - - -
* Automatic transmission fluid - - - I - - - I - - - I - - - I - - - I * Transfer case oil (AT)
- - - R - - - I - - - R - - - I - - - R PROPELLER SHAFT Loose connections - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear - I - I - I - I - I - I - I - I - I - I Universal joints and sliding sleeve
(4W D) - L - L - L - L - L - L - L - L - L - L
FRONT AND REAR AXLE
* Differential gear oil (Front and rear) - R - I - - - R - - - I - - - R - - - I Oil leakage I I I I I I I I I I I I I I I I I I I I Shift on the fly system gear oil I - - I - - - I - - - I - - - I - - - I Front axle shaft boot for damage - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage - - - I - - - I - - - I - - - I - - - I Axle shafts for distortion or damage - - - I - - - I - - - I - - - I - - - I STEERING Power steering fluid I I I I I I I R I I I I I I I R I I I I Oil leakage I I I I I I I I I I I I I I I I I I I I * Steering system for looseness or
damage - I - I - I - I - I - I - I - I - I - I
Power steering hose
- I - I - I - I - I - I - I - R - I - I Steering wheel play I I I I I I I I I I I I I I I I I I I I Steering function I I I I I I I I I I I I I I I I I I I I Right and left turning radius - - - I - - - I - - - I - - - I - - - I W heel alignment - - - I - - - I - - - I - - - I - - - I Joint ball for oil leakage or damage - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage - I - I - I - I - I - I - I - I - I - I


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MAINTENANCE AND LUBRICATION 0B-9
SEVERE CONDITIONS MAINTENANCE SCHEDULE (For GENERAL EXPORT)

Severe driving conditions
A : Repeated short trips
C24SE : C24SE Gasoline engine
B : Driving on rough roads
HFV6 : HFV6 Gasoline engine
C : Driving on dusty roads
G : Gasoline engine
D : Driving in extremely cold weather and/or on salted roads
4JA1-T : 4JA1-T Diesel engine
E : Towing trailer or climbing mountain frequently
4JH1-TC : 4JH1-TC Diesel engine
F : Operation in high ambient temperature conditions
4JJ1 (Standard Output):
4JJ1 Standard Output Diesel engine

4JJ1 (High Output): 4JJ1 High Output Diesel engine

D : Diesel engine

MT : Manual transmission

AT : Automatic transmission

4W D : Four wheel drive


Condition
A B C D E F A+D
Engine oil G : Change every 5,000 km (3,000 miles) or 3 month
4JA1-T : Change every 2,500 km (1,500 miles) 4JH1-TC 4JJ1 (Standard Output) 4JJ1 (High Output):

Change every 5,000 km (3,000 miles)




Engine oil filter G : Replace every 5,000 km (3,000 miles) or 3 monthD : Replace every 5,000 km (3,000 miles)



Exhaust pipes and mounting Inspect every 5,000 km (3,000 miles)





Air cleaner element
Replace every 20,000 km (12,000 miles) D : Inspect every 2,500 km (1,500 miles)


Steering system for looseness
or damage Inspect every 5,000 km (3,000 miles)


Universal joints and sleeves Inspect for wear and lubricate every 5,000 km (3,000 miles)




Transmission or transmission
with transfer case oil MTC24SE D Change every 20,000 km (12,000 miles)
after changing at initial 10,000 km (6,000 miles)
MT HFV6 Change every 40,000 km (24,000 miles)

AT Transmission:
Change every 20,000 km (12,000 miles)








4W D Transfer:
Change every 20,000 km (12,000 miles)


Differential oil
Change every 20,000 km (12,000 miles)
after changing at initial 10,000 km (6,000 miles)


Front brake pads and di
scs
wear Inspect every 5,000 km (3,000 miles)




Rear brake lining and drum
wear Inspect every 5,000 km (3,000 miles)





Interval
Item

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

0B-10 MAINTENANCE AND LUBRICATION
SEVERE CONDITIONS MAINTENANCE SCHEDULE (For EUROPE)

Severe driving conditions
MT : Manual transmission
A: Repeated short trips
AT : Automatic transmission
B: Driving on rough roads
4W D : Four wheel drive
C: Driving on dusty roads
D: Driving in extremely cold weather and/or on salted roads
E: Towing trailer or climbing mountein frequently

Condition
Item Interval A B C D E A+D
Engine oil Change every 5,000 km (3,000 miles)





Engine oil filter Replace every 5,000 km (3,000 miles)





Exhaust pipes and mounting Inspect every 10,000 km (6,000 miles)





Air cleaner element
Replace every 20,000 km (12,000 miles)



Steering system for looseness or
damage Inspect every 5,000 km (3,000 miles)


Universal joints and sleeves Inspect for wear and lubricate every 10,000 km (6,000 miles)




Transmission or transmission
with transfer case oil MT Change every 30,000 km (18,000 miles)
after changing at initial 10,000 km (6,000 miles)


AT
Transmission:
Inspection every 20,000 km (12,000 miles)







4W D Transfer:
Change every 30,000 km (18,000 miles)
After changing at initial 10,000 km (6,000 miles)


Differential oil
Change every 20,000 km (12,000 miles)
after changing at initial 10,000 km (6,000 miles)


Front brake pads and di
scs wear Inspect every 5, 000 km (3,000 miles)




Rear brake lining and drum wear Inspect every 5,000 km (3,000 miles)







BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MAINTENANCE AND LUBRICATION 0B-11
Recommended Fluids and Lubricants (For GENERAL EXPORT)
In order to obtain maximum performance and longest service life from your ISUZU vehicles, it is very important to
select and use correctly the best lubricants and diesel fuels.
W hen lubricating, be sure to use ISUZU genuine lubricants or recommended lubricants listed below, according to
the maintenance schedule for each vehicle model.
The lubrication intervals in the maintenance schedule and coverage and period of new vehicle warranty are based
on the use of ISUZU genuine lubricants or recommended lubricants listed in the chart, which will serve as a guide
for selecting lubricants of the correct brand name.

GRADE
LUBRICATION MAKE BRAND/TYPE API ACEA JASO
Gasoline engine
crankcase C24SE
ISUZU GENUINE
ISUZU GENUINE
CALTEX
SHELL
ELF
TOTAL
CASTROL
BP BESCO RACING ACE TYPE SJ (5W-30)
BESCO MULTI ACE (7.5W-30)
HAVOLINE FORMULA (15W-40, 10W-30, 20W-50) HELIX PLUS (15W-50)
SUPER SPORTI S (15W-40)
QUARTZ 5000 (15W-40, 20W-50)
GTX-7 (15W-40)
VISCO 3000 (15W-40) SJ
SG SL
SJ/CF SG
SJ/CF
SG/SH
SG/SH


A3/B3
A2/B2


Gasoline engine
crankcase HFV6

CALTEX 10W-30

HAVOLINE FORMULA (10W-30) SL
SL
Diesel engine crankcase
ISUZU GENUINE
ISUZU GENUINE
ISUZU GENUINE
CALTEX/CHEVRON
CALTEX/CHEVRON
SHELL
SHELL
ELF
TOTAL
CASTROL
CASTROL
BP BESCO MULTI-Z TYPE CF-4 (10W-30)
BESCO MULTI-Z SUV (5W-30)
BESCO S-3 (10W, 20W, 30, 40)
DELO CXJ (15W-40, 20W-50, 40)
DELO 400 MULTIGRADE (15W-40)
RIMULA X (15W-40)
RIMULA D (15W-40, 30, 40)
PERFO 3F (15W-40)
RUBIA XT (15W-40)
RX SUPER PLUS (15W-40)
TECTION J PLUS (15W-40)
BP VANELLUS C6 (15W-40) CF-4
CD
CD
CD/CF
CD/CE/CF/CI-4 CH-4
CD/CF
CF-4/CE CF-4
CH-4
CH-4
CH-4



E3/E5 E3
B2/E2 E2
E3
E3/B3 E3


DH-1
DH-1
DH-1



DH-1
Manual transmission
C24SE D
Transfer case
ISUZU GENUINE
CALTEX/CHEVRON
SHELL
ELF
TOTAL
CASTROL
BP

BESCO GEAR OIL TRANSAXLE (5W-30)
DELO 400 MULTIGRADE (15W-40)
HELIX PLUS (15W-50)
SUPER SPORTI (15W-40)
QUARTZ 5000 (15W-40, 20W-50)
RX SUPER PLUS (15W-40)
BP VANELLUS C6 (15W-40)

SG CD/CE/CF/CI-4 SJ/CF
SG/CD SJ/CF
CD/CE/CF
CD/CE/CF


E3/E5
A3/B3
A2/B2

DH-1




Manual transmission
HFV6
MOBIL 75W-90
MOBIL XHP (75W-90) GL-3



Differential
Shift on the fly system
(GL-5 only) ISUZU GENUINE
ISUZU GENUINE
CALTEX
SHELL
ELF
TOTAL
CASTROL
CASTROL
BP
BP BESCO GEAR OIL SH (80W-90, 90, 140)
BESCO SHIFT ON THE FLY (75W-90)
THURBAN GL-5 EP (80W-90, 85W-140)
SPIRAX A (140)
TRANSELF TYPE B (80W-90, 85W-140)
TRANSMISSION TM (80W-90, 85W-140)
EPX90 (90)
DYNA DRIVE (80W-90)
ENERGEAR HYPO (90)
ENERGEAR EP (80W-90) GL-5
GL-5 GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5


Differential
(Limited Slip Differential) ISUZU GENUINE
CALTEX
SELL
ELF
TOTAL
CASTROL
BP BESCO GEAR OIL LSD (140)
GEAR OIL LSD (90)
SPIRAX A LS 90 (90)
TRANSELF TYPE BLS (90)
TRANSMISSION DA (85W-90)
HYPOY LSX (90)
ENERGEAR LS-M (90) GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
GL-5
Automatic transmission
4JH1-TC 4JJ1 (Standard Output)
Power steering
ISUZU GENUINE
CALTEX/TEXACO
SHELL
ELF
TOTAL
CASTROL
BP BESCO ATF III
TEXAMATIC 1888 (DEXRON  III)
SHELL DONAX TG (DEXRON  III)
ELFMATIC G3 (DEXRON  III)
TOTAL FLUID AT42 (DEXRON  III)
TQ DEXRON III (DEXRON  III)
AUTORAN DX3 (DEXRON  III)






Automatic transmission
4JJ1 (High Output)
EXXON MOBIL
MOBIL ATF 3309

Automatic transmission
HFV6
DEXRON III

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MAINTENANCE AND LUBRICATION 0B-13
RECOMMENDED FLUIDS AND LUBRICANTS (For EUROPE)


In order to obtain maximum performance and longest service life from your ISUZU vehicles, it is very important to
select and use correctly the best lubricants and diesel fuels.
W hen lubricating, be sure to use ISUZU genuine lubricants or recommended lubricants listed below, according to
the maintenance schedule for each vehicle model.

LUBRICATION/FLUID GRADE
API ACEA OTHER
Diesel engine crankcase B2/B3
E2/E3
Manual transmission
Transfer case B2/B3
E2/E3
Differential
Shift on the fly system
(GL-5 only)
GL-5

BESCO GEAR OIL SH (80W-90, 90, 140) (ISUZU GENUINE)
BESCO SHIFT ON THE FLY (75W-90) (ISUZU GENUINE)
THURBAN GL-5 EP (80W-90, 85W-140) (CALTEX)
SPIRAX A (140) (SHELL)
TRANSELF TYPE B (80W-90, 85W-140) (ELF)
TRANSMISSION TM (80W-90, 85W-140) (TOTAL)
EPX90 (90)(CASTROL)
DYNA DRIVE (80W-90) (CASTROL)
ENERGEAR HYPO (90) (BP)
ENERGEAR EP (80W-90) (BP)
Differential
(Limited Slip Differential)
(GL-5 only) GL-5

BESCO GEAR OIL LSD (140) (ISUZU GENUINE)
GEAR OIL LSD (90) (CALTEX)
SPIRAX A LS 90 (90) (SHELL)
TRANSELF TYPE BLS (90) (ELF)
TRANSMISSION DA (85W-90) (TOTAL)
HYPOY LSX (90) (CASTROL)
ENERGEAR LS-M (90) (BP)
Automatic transmission MOBIL ATF 3309
Power steering

DEXRON III
Propeller shaft sliding yoke
Universal joint
(General purpose grease in
Molybdenum) NLGI #2 or #3
multi purpose type grease
containing molybdenum disulfide
Engine cooling system Good quality ethylene glycol antifreeze or GM spec.
6033-M or equivalent

NOTE:
* If GL-5 Limited Slip Differential Lubricant is not available, use GL-5 Lubricant mixed with 1 bottle (118ml) of Limited
Slip Differential Lubricant additive (Parts No. 8-01052-358-0) or equivalent.



FLUID TYPE

Clutch and brake fluid reservoir Besco brake fluid (For light duty)
Hydraulic brake fluid SAE J1703
FMVSS 116 DOT.3 grade


DIESEL FUEL/APPLICABLE STANDARD
JIS (JAPANESE INDUSTRIAL STANDARD)
DIN (DEUTSCHE INDUSTRIE NORMEN)
SAE (SOCIETY OF AUTOMOTIVE ENGINEERS)
BS (BRITISH STANDARD) Based on K2204 GAS OIL
Based on EN590: 1997L
Based on SAE J-313C
Based on BS EN590: 1997

NOTE:
Use the applicable standard or equivalent for diesel fuels.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

0B-16 MAINTENANCE AND LUBRICATION

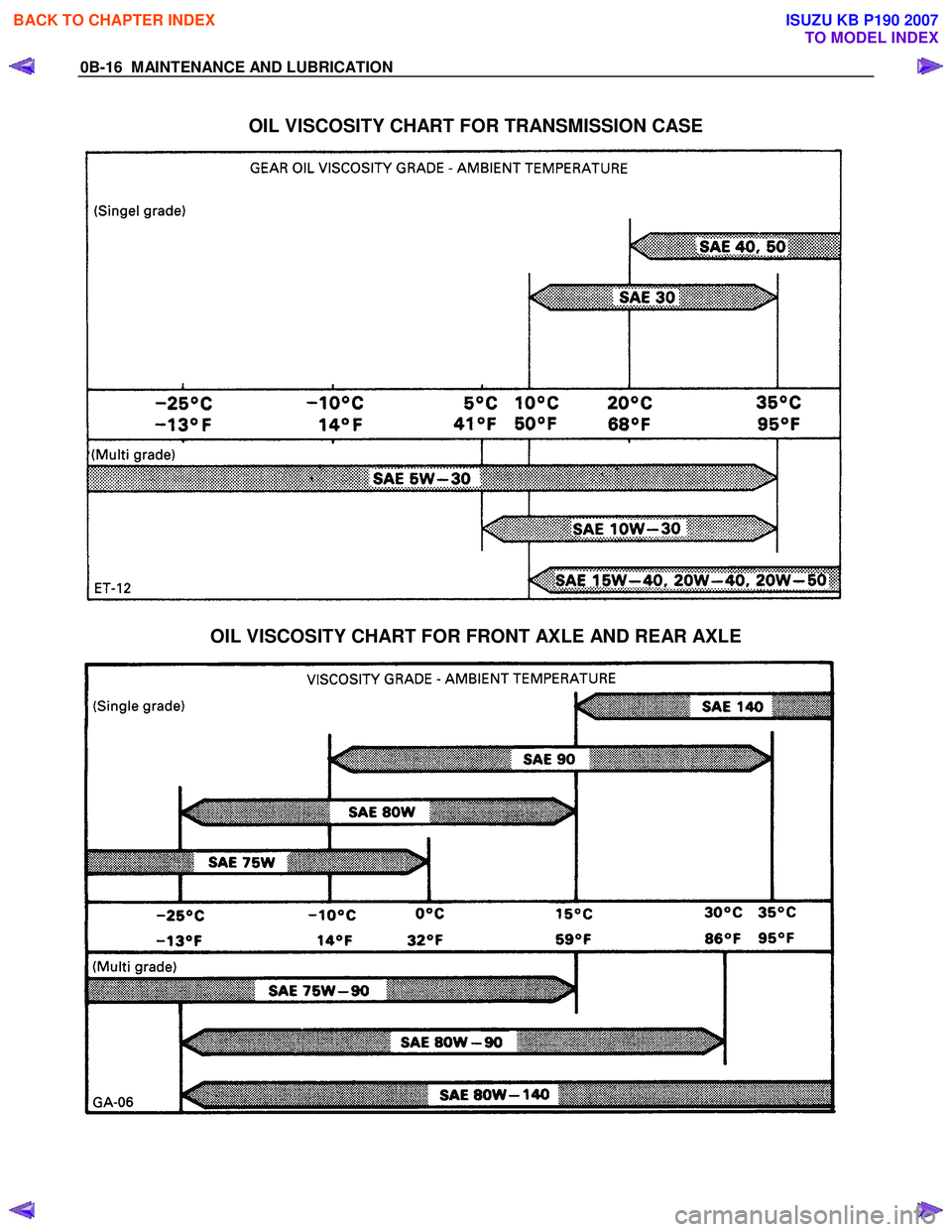

OIL VISCOSITY CHART FOR TRANSMISSION CASE


OIL VISCOSITY CHART FOR FRONT AXLE AND REAR AXLE




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
