wiring ISUZU TF SERIES 2004 Workshop Manual

6E-34 3.5L ENGINE DRIVEABILITY AND EMISSIONS

ECM WIRING DIAGRAM (2/10)



RUW46EMF000101

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-35

ECM WIRING DIAGRAM (3/10)



RUW46EMF000201

6E-36 3.5L ENGINE DRIVEABILITY AND EMISSIONS

ECM WIRING DIAGRAM (4/10)



RTW46EMF000301

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-37

ECM WIRING DIAGRAM (5/10)



RTW36EMF000901

6E-38 3.5L ENGINE DRIVEABILITY AND EMISSIONS

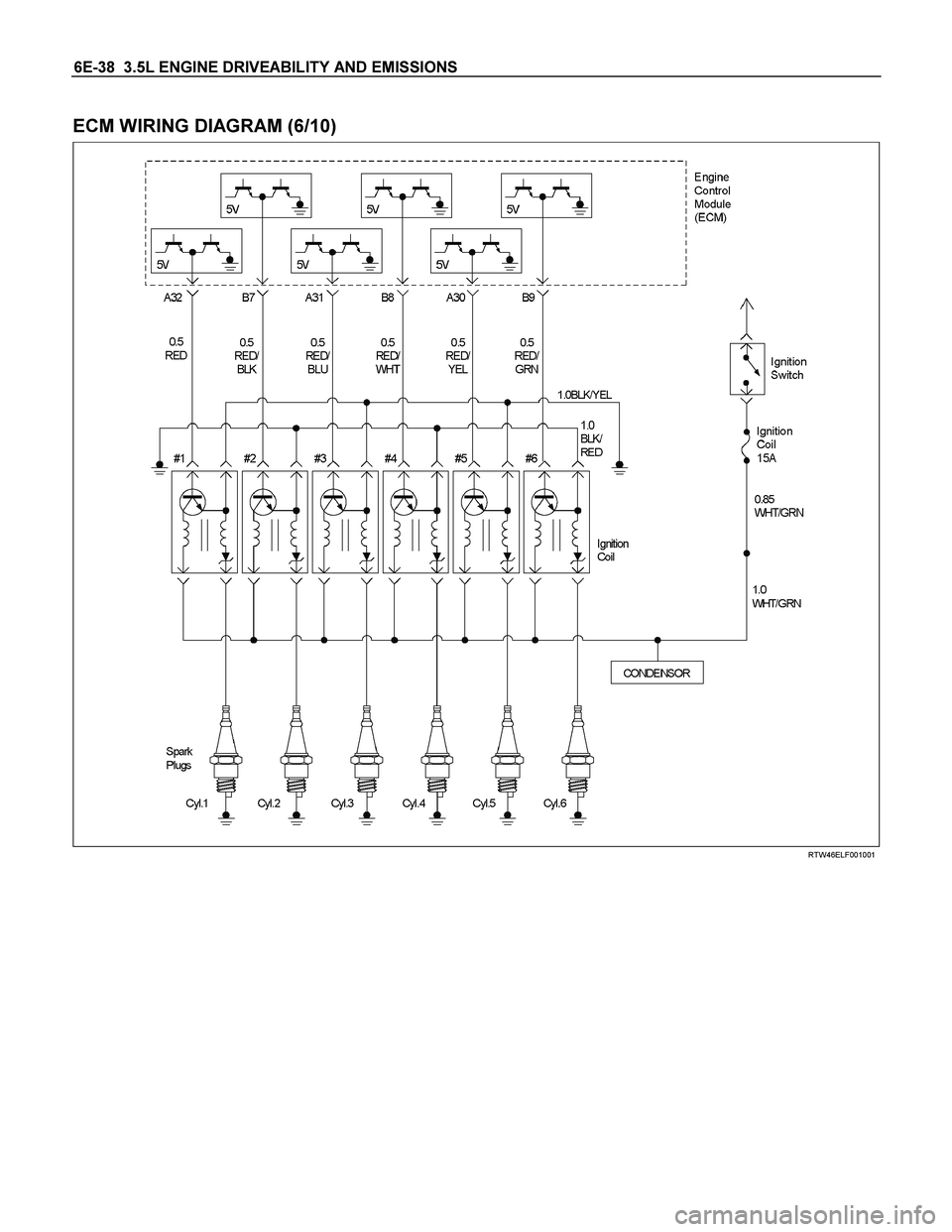

ECM WIRING DIAGRAM (6/10)



RTW46ELF001001

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-39

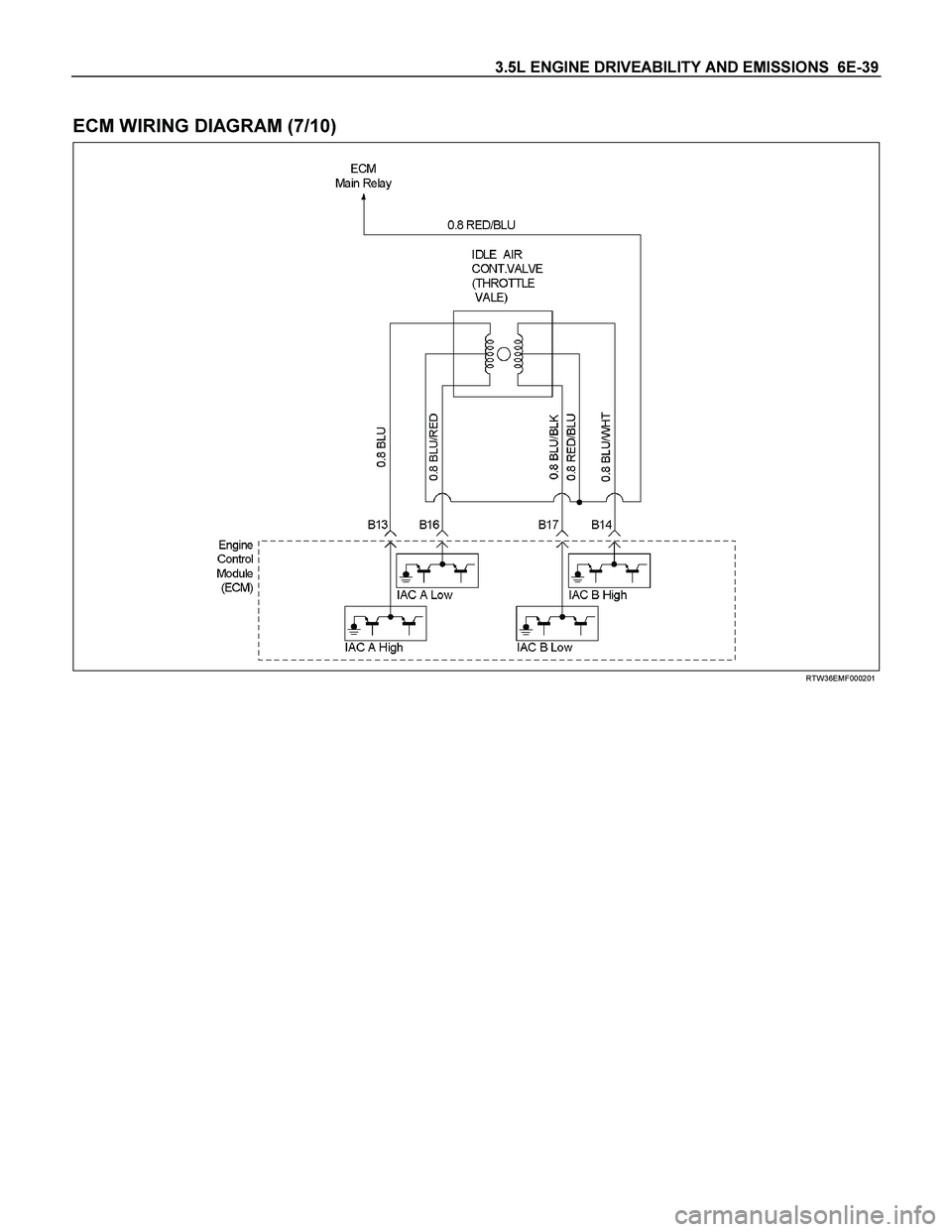

ECM WIRING DIAGRAM (7/10)



RTW36EMF000201

6E-40 3.5L ENGINE DRIVEABILITY AND EMISSIONS

ECM WIRING DIAGRAM (8/10)




RTW36ELF000101

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-41

ECM WIRING DIAGRAM (9/10)



RTW36EMF000101

6E-42 3.5L ENGINE DRIVEABILITY AND EMISSIONS

ECM WIRING DIAGRAM (10/10)




RTW36EMF000801

6E-64 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Thought Process
As you follow a diagnostic plan, every box on the
Strategy Based Diagnostics chart requires you to use
the diagnostic thought process. This method of thinking
optimizes your diagnosis in the following ways:

Improves your understanding and definition of the
customer complaint

Saves time by avoiding testing and/or replacing
good parts


Allows you to look at the problem from different
perspectives

Guides you to determine what level o
f
understanding about system operation is needed:
 Owner’s manual level
 Service manual level
 In-depth (engineering) level
1. Verify the Complaint
What you should do
To verify the customer complaint, you need to know the
correct (normal) operating behavior of the system and
verify that the customer complaint is a valid failure o
f
the system.
The following information will help you verify the
complaint:

WHAT the vehicle model/options are

WHAT aftermarket and dealer-installed
accessories exist

WHAT related system(s) operate properly

WHEN the problem occurs

WHERE the problem occurs

HOW the problem occurs

HOW LONG the condition has existed (and if the
system ever worked correctly)

HOW OFTEN the problem occurs

Whether the severity of the problem has
increased, decreased or stayed the same
What resources you should use
Whenever possible, you should use the following
resources to assist you in verifying the complaint:
Service manual Theory or Circuit Description
sections

Service manual “System Performance Check”

Owner manual operational description

Technician experience

Identical vehicle for comparison


Circuit testing tools

Vehicle road tests

Complaint check sheet

Contact with the customer
2. Perform Preliminary Checks
NOTE: An estimated 10 percent of successful
vehicle repairs are diagnosed with this step!
What you should do
You perform preliminary checks for several reasons:

To detect if the cause of the complaint is
VISUALLY OBVIOUS

To identify parts of the system that work correctly

To accumulate enough data to correctly and
accurately search for a ISUZU Service Bulletin.
The initial checks may vary depending on the
complexity of the system and may include the following
actions:

Operate the suspect system

Make a visual inspection of harness routing and
accessible/visible power and ground circuits

Check for blown fuses

Make a visual inspection for separated connectors

Make a visual inspection of connectors (includes
checking terminals for damage and tightness)

Check for any DTCs stored by the on-board
computers

Sense unusual noises, smells, vibrations o
r
movements

Investigate the vehicle service history (call othe
r
dealerships, if appropriate)
What resources you should use
Whenever appropriate, you should use the following
resources for assistance in performing preliminary
checks:

Tech 2 or other technical equipment for viewing
DTCs

Service manual information:
 Component locations
 Harness routing
 Wiring schematics
 Procedures for viewing DTCs

Dealership service history file

Vehicle road test

Identical vehicle or system for comparison
