ISUZU TF SERIES 2004 Workshop Manual

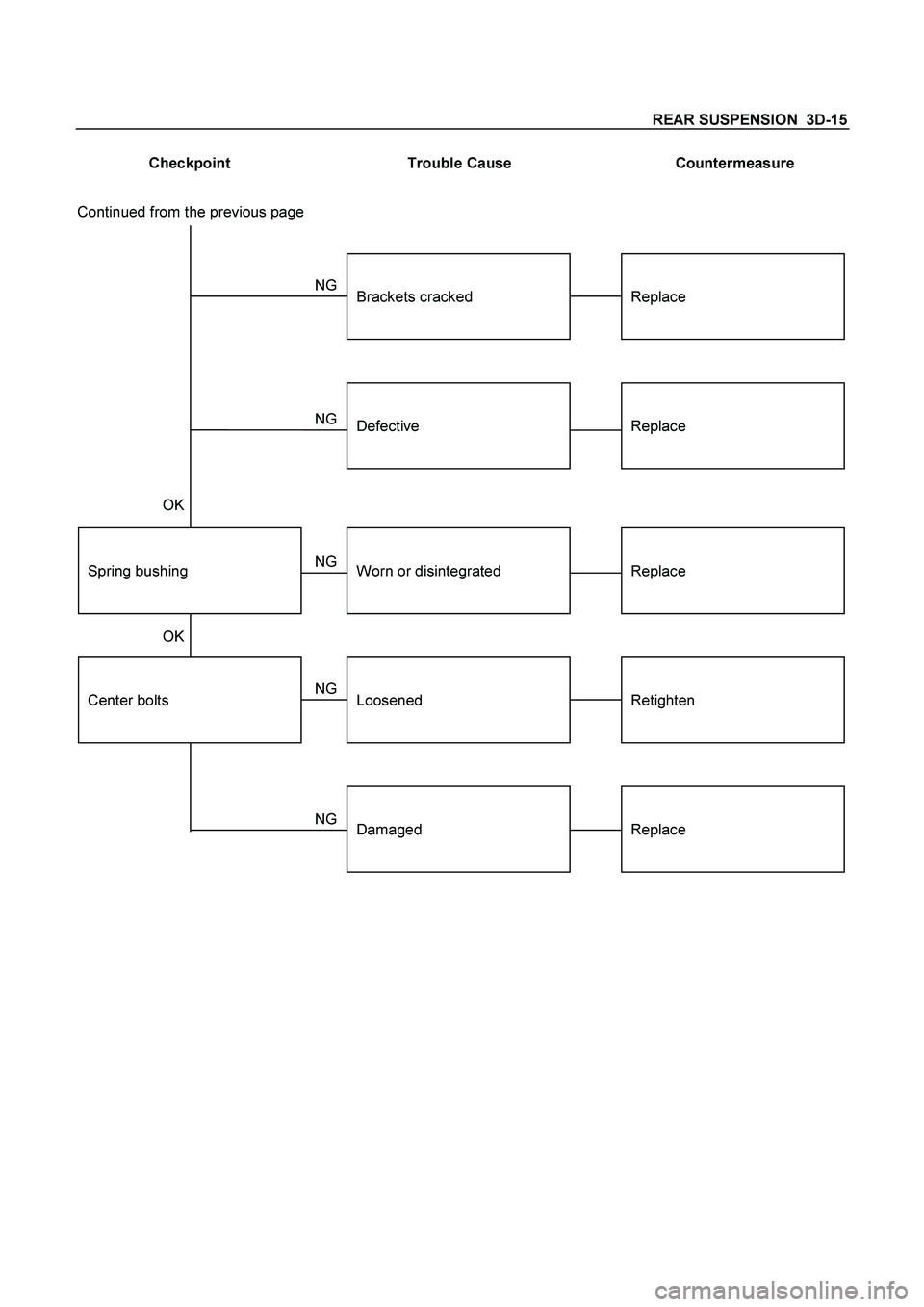

REAR SUSPENSION 3D-15
Checkpoint Trouble Cause Countermeasure



Center bolts


Replace


Retighten


Replace


Damaged


Loosened


Defective


Spring bushing

Replace


Replace


Worn or disintegrated


Brackets cracked

OK NG
NG
NG
NG
NG
OK
Continued from the previous page

3D-16 REAR SUSPENSION
4. HARSHNESS

Checkpoint Trouble Cause Countermeasure


Bushings in suspension
System


Tire inflation pressure


Retighten or replace


Replace


Adjust


Loosen or broken


Defective


Incorrect


Tires for out of balance

Adjust or replace


Replace tires


Incorrect

Noise does not have any
specific pattern

OK
NG NG NG NG NG
OK OK Road test vehicle(Noise has a
certain pattern)

WHEELS AND TIRES 3E-1

SECTION 3E
WHEELS AND TIRES
TABLE OF CONTENTS
PAGE
Main Data and Specifications ........................................................................................... 3E- 2
Torque Specifications ....................................................................................................... 3E- 3
Special Parts Fixing Nuts and Bolts ............................................................................ 3E- 3
Wheels and Tires ...............................................................................................................3E- 4
General Description ...................................................................................................... 3E- 4
Servicing ........................................................................................................................ 3E- 6
Disassembly and Reassembly ..................................................................................... 3E- 7
Inspection and Repair................................................................................................... 3E- 8
Troubleshooting ................................................................................................................3E- 10

3E-2 WHEELS AND TIRES

MAIN DATA AND SPECIFICATIONS
Tire Size and Pressure
Model 4




2 Except HIGH RIDE SUS 4




2 HIGH RIDE SUS, 4




4
Tire Size



Wheel Size

Tire Pressure

Front
kg/cm
2 (psi/kPa)

Rear
kg/cm2 (psi/kPa)195R14C
8PR 106/104Q


14 x 5.5J


2.5 (36/250)
4.5 (65/450) 215/70R15C
106/104S


15 x 6.5JJ


2.25 (33/225)
3.75 (54/375) 225/75R15C
110/108S


15 x 6.5JJ


2.25 (33/225)
3.25 (47/325) 245/70R16
111S


16 x 7JJ


2.0 (29/200)
2.8 (41/280)

WHEELS AND TIRES 3E-3

TORQUE SPECIFICATIONS
SPECIAL PARTS FIXING NUTS AND BOLTS
WHEELS AND TIRES
kgf

m (lb

ft/N

m)

3E-4 WHEELS AND TIRES

WHEELS AND TIRES
GENERAL DESCRIPTION

TIRE DESIGNATION

WHEELS AND TIRES 3E-5

TIRE PRESSURE LABEL (LOCATION : DRIVERS DOOR OR FRAME OF DRIVERS DOOR)

4




2 Except HIGH RIDE SUS
SEE OWNERS AND
DRIVERS MANUAL FOR
ADDITIONAL INFORMATION 4




2 HIGH RIDE SUS, 4




4

SEE OWNERS AND
DRIVERS MANUAL FOR
ADDITIONAL INFORMATION
TIRE PRESSURE : kg/cm
2 (PSI) TIRE PRESSURE : kg/cm2 (PSI)
TIRE FRONT REAR
TIRE FRONT REAR
195R14C8PR 2.5 (36) 4.5 (65)
225/75R15C
2.25 (33) 3.25 (47)
215/70R15C 2.25 (33) 3.75 (54)
245/70R16 111S2.0 (29)
2.8 (41)


Note :


The air pressure of the tire should be maintained as indicated in the label instruction on the driver's
door or frame of driver's door.
Lower pressure can cause burst and adverse vehicle handling.
On the other hand, higher pressure can cause shock-burst and reduce gripping effect.

3E-6 WHEELS AND TIRES

SERVICING
Servicing refers to general maintenance procedures to be performed by qualified service personnel.





WHEEL NUT TORQUES
Wheel Nut Torque kgf
m(lb
ft/N
m)
12.0  1.0 (86.8  7.2 / 117.7  9.8)




TIRE ROTATION
For of radial tires, interchange the front and the rear wheels on
the same side as shown in the figure.




If one-sided tire wear appears on radial tires, rotate the wheels
as shown in the figure.

Note:
After rotation, adjust the front and rear tire pressure and be sure to check wheel nut tightness.

WHEELS AND TIRES 3E-7

DISASSEMBLY and REASSEMBLY


Disassembly Steps
(for Alumi models)
1. Wheel cap
2. Wheel nut
3. Wheel and tire assembly
4. Tire assembly
(for Steel models)
1. Wheel nut
2. Wheel cap
3. Wheel and tire assembly
4. Tire assembly
Reassembly Steps
(for Alumi models)
4. Tire assembly
3. Wheel and tire assembly
2. Wheel nut
1. Wheel cap
(for Steel models)
4 Tire assembly
3. Wheel and tire assembly
2. Wheel cap
1. Wheel nut

3E-8 WHEELS AND TIRES

INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found
through inspection.




Visual Check
Inspect all disassembled parts for wear, damage or other
abnormal conditions.




Measure Wheel Runout
mm
Wheel Type Radial Lateral
14 inch Steel
15 inch Steel
16 inch Steel Less than 1.0 Less than 1.0
15 inch Alumi
16 inch Alumi Less than 0.4 Less than 0.55
If the measured value exceed the specified limit, the wheel
must be replaced.




Balancing Wheel and Tire
On-vehicle Balancing

On-Vehicle balancing methods very with equipment and tool
manufacturers. Be sure to follow each manufacturer’s
instructions during balancing operation.
Off- vehicle Balancing

Most electronic off-vehicle balancers are more accurate than
the on-vehicle spin balancers. They are easy to use and give a
dynamic balance. Although they do not correct for drum or
disc unbalance (as on-vehicle spin balancing does), they are
very accurate.
