ACCESSORIES 9-1
SECTION 9
ACCESSORIES
TABLE OF CONTENTS
PAGE
Parts Location ................................................................................................................... 9-2
Circuit Diagram ................................................................................................................. 9-6
Connector List .................................................................................................................. 9-10
Radio .................................................................................................................................. 9-12
Front Speaker .................................................................................................................... 9-13
Tweeter .............................................................................................................................. 9-14
Rear Speaker (Extend Cab)............................................................................................... 9-15
Rear Speaker (Crew Cab) .................................................................................................. 9-16
Clock ................................................................................................................................... 9-17
Antenna ............................................................................................................................. 9-18
Page 8 of 4264
9-6 ACCESSORIES
CIRCUIT DIAGRAM
RHD
RTW48AXF011101
Page 74 of 4264
9A1-4 RESTRAINT CONTROL SYSTEM
cautions in the service manual and on warning labels
attached to SRS components.
Basic Electrical Circuits
You should understand the basic theory of electricity
including series and parallel circuits, and understand
the voltage drops across series resistors. You should
know the meaning of voltage (volts), current (amps),
and resistance (ohms). You should understand what
happens in a circuit with an open or a shorted wire. You
should be able to read and understand a wiring
diagram.
“Flash Code” Diagnostics
Flash code diagnostics can be used to read active
codes and to determine if history codes are present but
cannot be used to clear codes or read history codes.
Flash code diagnostics is enabled by grounding by
terminal 4 shorting to terminal 13 of the DLC connector
with the ignition switch “ON”. Grounding terminal 4 of
the DLC connector pulls the “Diagnostics Request”
input (Terminal 1) of the SRS control unit low and
signals the SRS control unit to enter the flash code
diagnostic display mode.
060R300052
Page 300 of 4264
4C2-2 SHIFT ON THE FLY SYSTEM
Shift On The Fly System
Outline of Shift on The Fly System
The shift on the fly system switches between 2 wheel
drive (2WD) and 4 wheel drive (4WD) electrically b
y
driver's pressing the 4WD switch (push button type) on
instrument panel.
This system controls below operations.
1.
Shifting the transfer front output gear (Connecting to,
and disconnecting from, front propeller shaft b
y
motor actuator).
2. Retrial of shifting the transfer front output gear.
3. Connecting front wheels to, and disconnecting them
from, the front axles by axle motor actuator.
4. Indicator on instrument panel.
5. 4WD out signal to other Electronic Hydraulic Control
Unit.
System Diagrams
RUW34BLF000201
Page 317 of 4264
BRAKE CONTROL SYSTEM 5A-1
SECTION 5A
BRAKE CONTROL SYSTEM
CONTENTS
Service Precaution ............................................................................................................. 5A-4
General Description ........................................................................................................... 5A-5
EHCU, Brake Pipe Diagram .......................................................................................... 5A-6
Hydraulic Unit (H/U)....................................................................................................... 5A-7
Normal Braking ......................................................................................................... 5A-8
Pressure Isolation (Pressure Maintain) .................................................................. 5A-9
Pressure Reduction .................................................................................................. 5A-10
Brake Release ........................................................................................................... 5A-11
Circuit Diagram.............................................................................................................. 5A-12
Connector List ............................................................................................................... 5A-13
Part Location ................................................................................................................. 5A-15
EHCU Pin-outs ............................................................................................................... 5A-17
System Components ..................................................................................................... 5A-19
Electronic Hydraulic Control Unit (EHCU) .............................................................. 5A-19
ABS Warning Lamp .................................................................................................. 5A-19
Wheel Speed Sensor (WSS)..................................................................................... 5A-19
G-Sensor ................................................................................................................... 5A-19
Normal and Anti-lock Braking ................................................................................. 5A-19
Electronic Brake-force Distribution (EBD) System ................................................ 5A-20
Brake Pedal Travel.................................................................................................... 5A-20
Acronyms and Abbreviations ....................................................................................... 5A-20
General Diagnosis ............................................................................................................. 5A-20
General Information ...................................................................................................... 5A-20
ABS Service Precautions.............................................................................................. 5A-20
Computer System Service Precautions....................................................................... 5A-21
General Service Precautions........................................................................................ 5A-21
Note on Intermittents .................................................................................................... 5A-21
Test Driving ABS Complaint Vehicles ......................................................................... 5A-21
"ABS and Brake" Warning Lamp ................................................................................. 5A-22
Normal Operation .......................................................................................................... 5A-22
Page 322 of 4264
5A-6 BRAKE CONTROL SYSTEM
EHCU, Brake Pipe Diagram
This illustration is based on RHD model
C05L300011
Legend
(1) Front Right Brake Port (out)
(4) Front Brake Port (in)
(2) Front Left Brake Port (out)
(5) Rear Brake Port (in)
(3) Rear Brake Port (out)
Page 328 of 4264
5A-12 BRAKE CONTROL SYSTEM
Circuit Diagram
RTW45AXF000101
Page 431 of 4264
BRAKES 5C-5
PIPING DIAGRAM (MODEL WITH BLEND PROPORTIONING VALVE)
Page 445 of 4264
BRAKES 5C-19
SERVICING
BLEND PROPORTIONING VALVE (IF SO EQUIPPED)

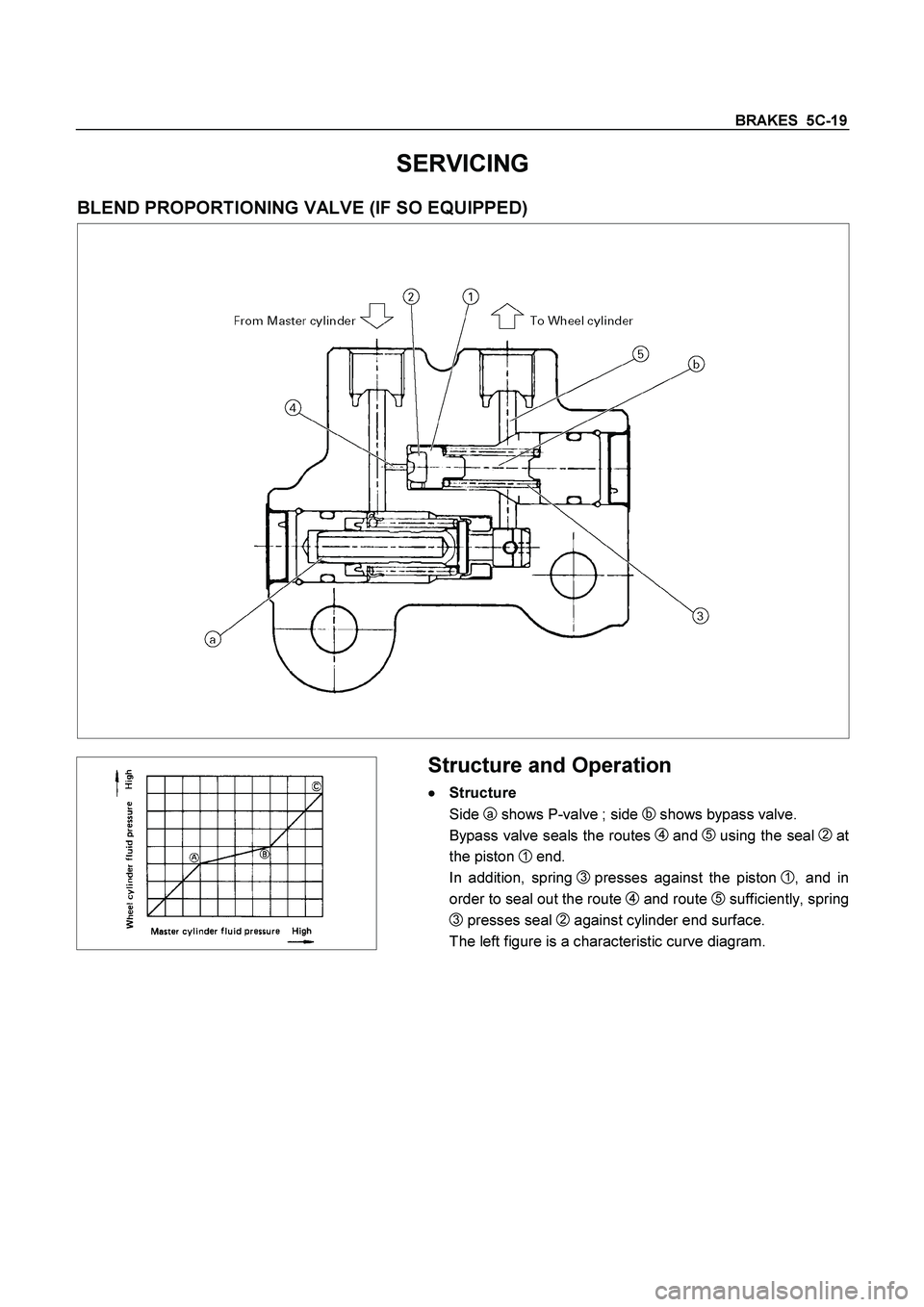

Structure and Operation
Structure
Side
a shows P-valve ; side b shows bypass valve.
Bypass valve seals the routes
4 and 5 using the seal 2at
the piston
1 end.
In addition, spring
3 presses against the piston 1, and in
order to seal out the route
4 and route 5 sufficiently, spring
3 presses seal 2 against cylinder end surface.
The left figure is a characteristic curve diagram.
Page 659 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-1
SECTION 8A
ELECTRICAL-BODY AND CHASSIS
TABLE OF CONTENTS
PAGE
General Information ........................................................................................................ 8A- 4
Notes for Working on Electrical Items .......................................................................... 8A- 5
Symbols and Abbreviations ........................................................................................... 8A- 11
Symbols ...................................................................................................................... 8A- 11
Abbreviations ............................................................................................................. 8A- 12
Parts for Electrical Circuit .............................................................................................. 8A- 13
Wiring .......................................................................................................................... 8A- 13
Fuse ............................................................................................................................. 8A- 15
Fusible Link ................................................................................................................ 8A- 15
Relay ............................................................................................................................ 8A- 16
Diode ........................................................................................................................... 8A- 17
Connector ................................................................................................................... 8A- 18
Battery ......................................................................................................................... 8A- 19
Reading the Circuit Diagram .......................................................................................... 8A- 22
Parts Location ............................................................................................................ 8A- 22
Circuit Diagram ........................................................................................................... 8A- 23
Connector List ............................................................................................................. 8A- 23
Main Data and Specifications ........................................................................................ 8A- 24
Bulb Specifications .................................................................................................... 8A- 24
Relay and Fuse ................................................................................................................ 8A- 26
Relay and Fuse Box Location ................................................................................... 8A- 26
Relay Location ............................................................................................................ 8A- 28
