ISUZU TF SERIES 2004 Owner's Guide
Page 589 of 4264

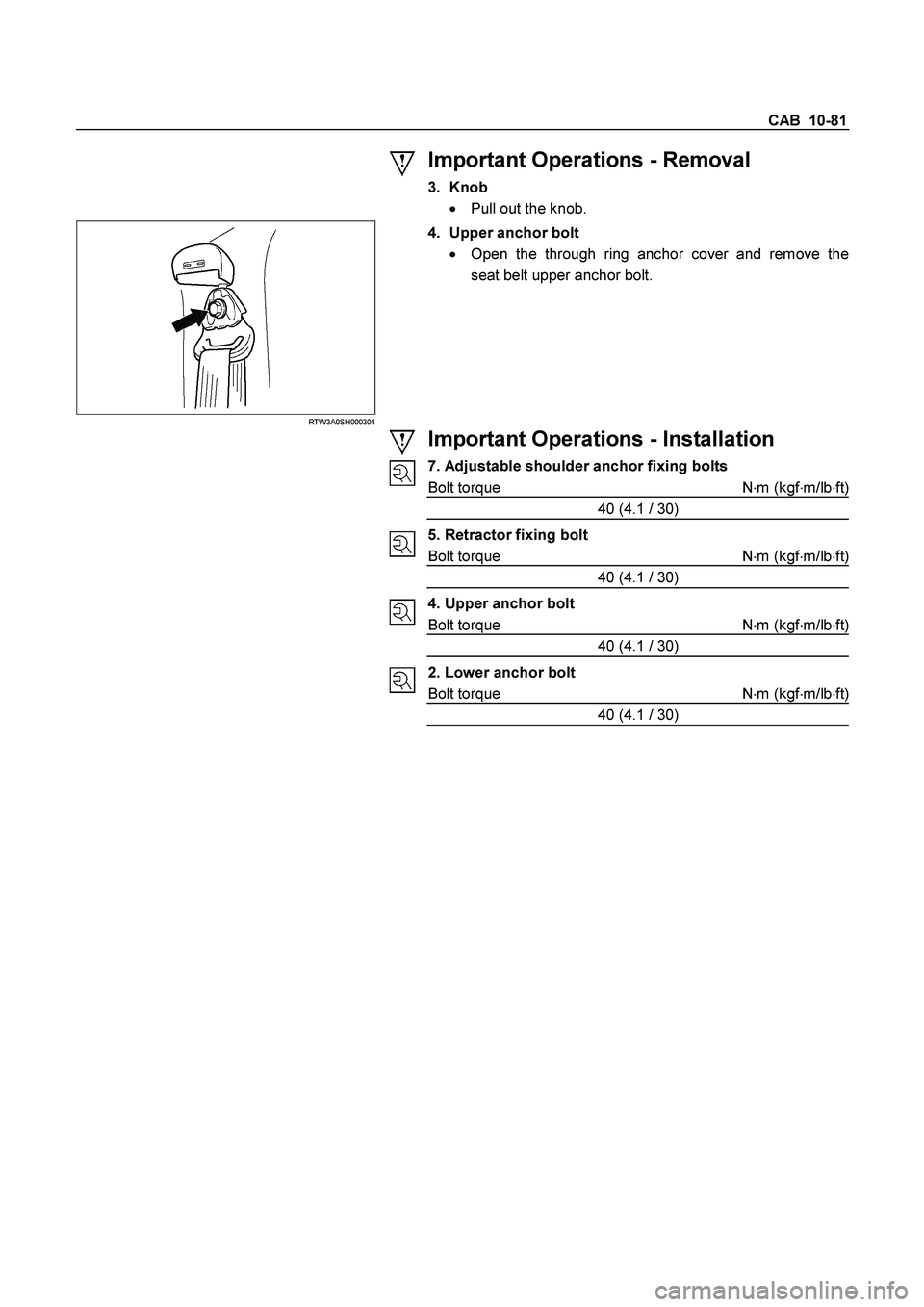

CAB 10-81
Important Operations - Removal
3. Knob
Pull out the knob.
RTW3A0SH000301
4. Upper anchor bolt
Open the through ring anchor cover and remove the
seat belt upper anchor bolt.
Important Operations - Installation
7. Adjustable shoulder anchor fixing bolts
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
5. Retractor fixing bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
4. Upper anchor bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
2. Lower anchor bolt
Bolt torque Nm (kgfm/lbft)
40 (4.1 / 30)
Page 590 of 4264

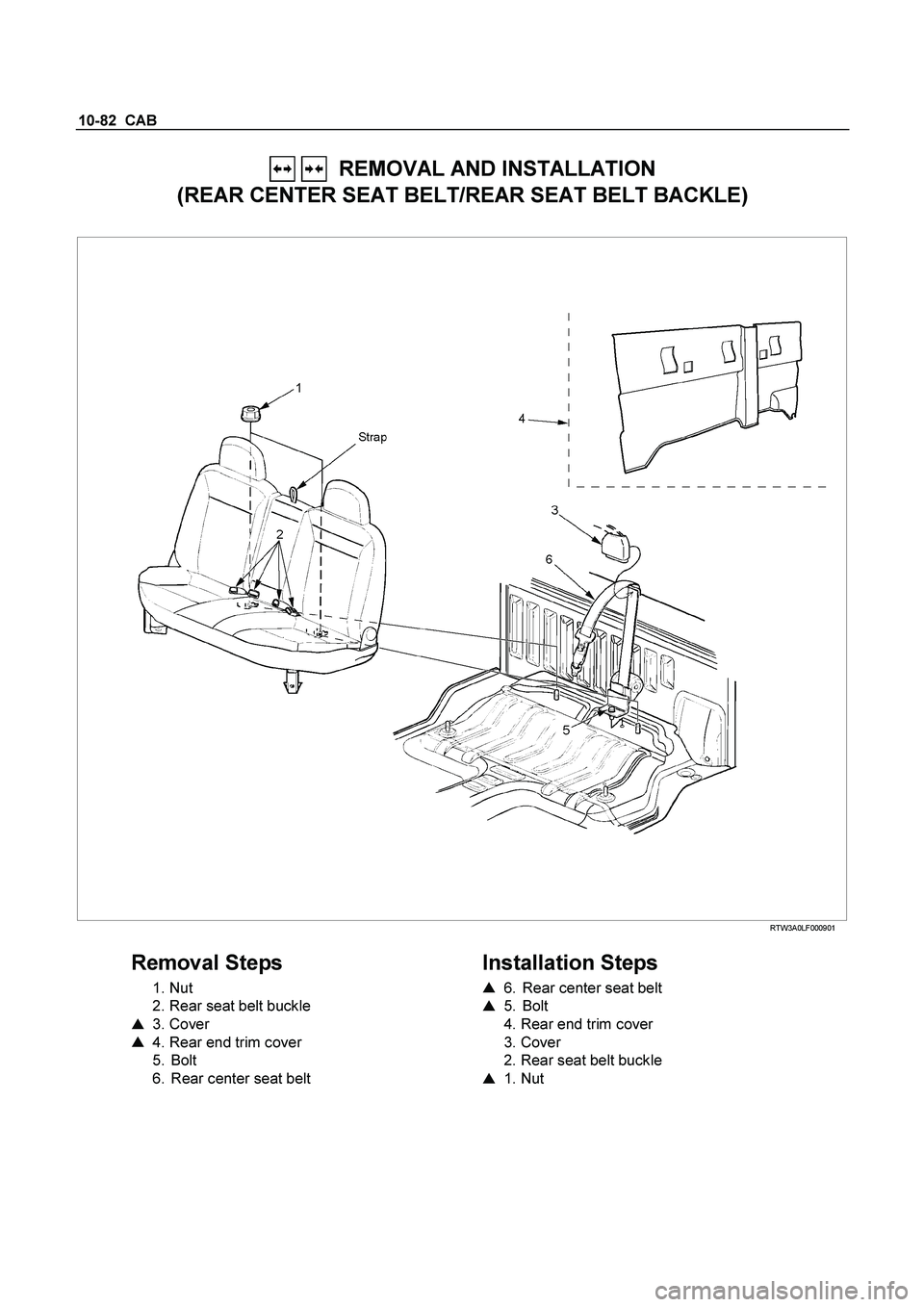

10-82 CAB
REMOVAL AND INSTALLATION
(REAR CENTER SEAT BELT/REAR SEAT BELT BACKLE)
RTW3A0LF000901
Removal Steps
1. Nut
2. Rear seat belt buckle
3. Cover
4. Rear end trim cover
5. Bolt
6. Rear center seat belt
Installation Steps
6. Rear center seat belt
5. Bolt
4. Rear end trim cover
3. Cover
2. Rear seat belt buckle
1. Nut
Page 591 of 4264

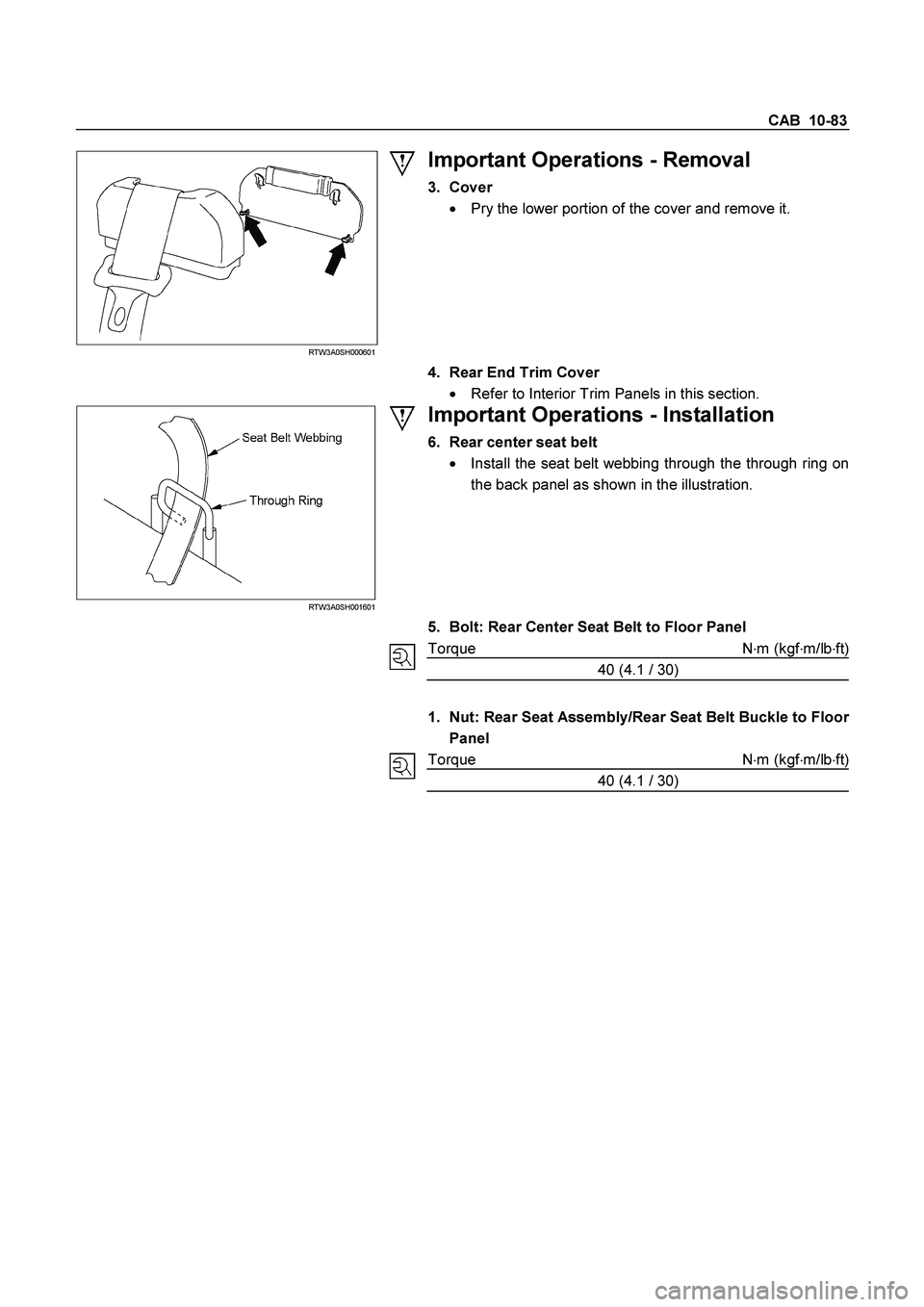

CAB 10-83
RTW3A0SH000601
Important Operations - Removal
3. Cover
Pry the lower portion of the cover and remove it.
4. Rear End Trim Cover
Refer to Interior Trim Panels in this section.
RTW3A0SH001601
Important Operations - Installation
6. Rear center seat belt
Install the seat belt webbing through the through ring on
the back panel as shown in the illustration.
5. Bolt: Rear Center Seat Belt to Floor Panel
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
1. Nut: Rear Seat Assembly/Rear Seat Belt Buckle to Floo
r
Panel
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
Page 592 of 4264

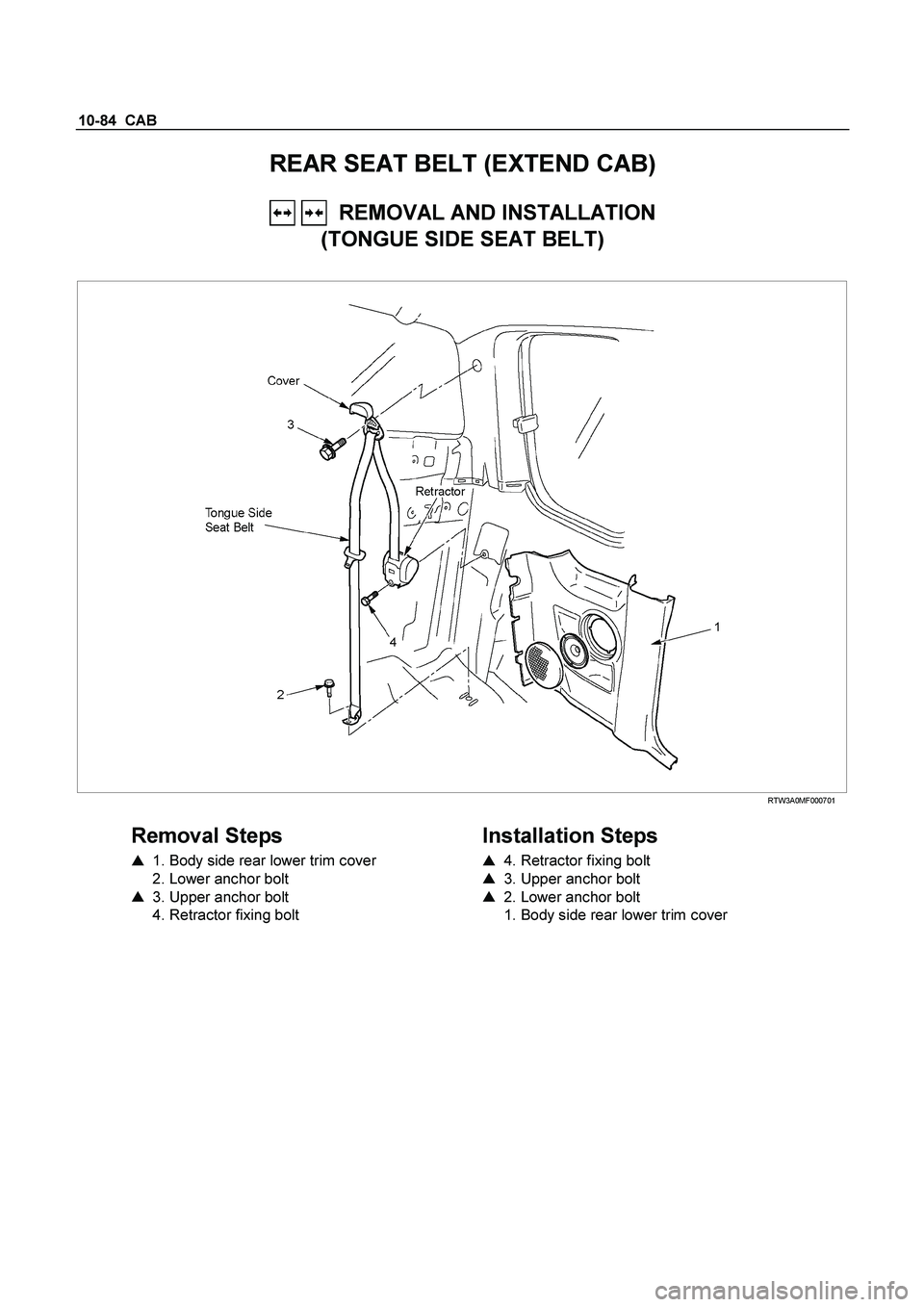

10-84 CAB
REAR SEAT BELT (EXTEND CAB)
REMOVAL AND INSTALLATION
(TONGUE SIDE SEAT BELT)
RTW3A0MF000701
Removal Steps
1. Body side rear lower trim cover
2. Lower anchor bolt
3. Upper anchor bolt
4. Retractor fixing bolt
Installation Steps
4. Retractor fixing bolt
3. Upper anchor bolt
2. Lower anchor bolt
1. Body side rear lower trim cover
Page 593 of 4264

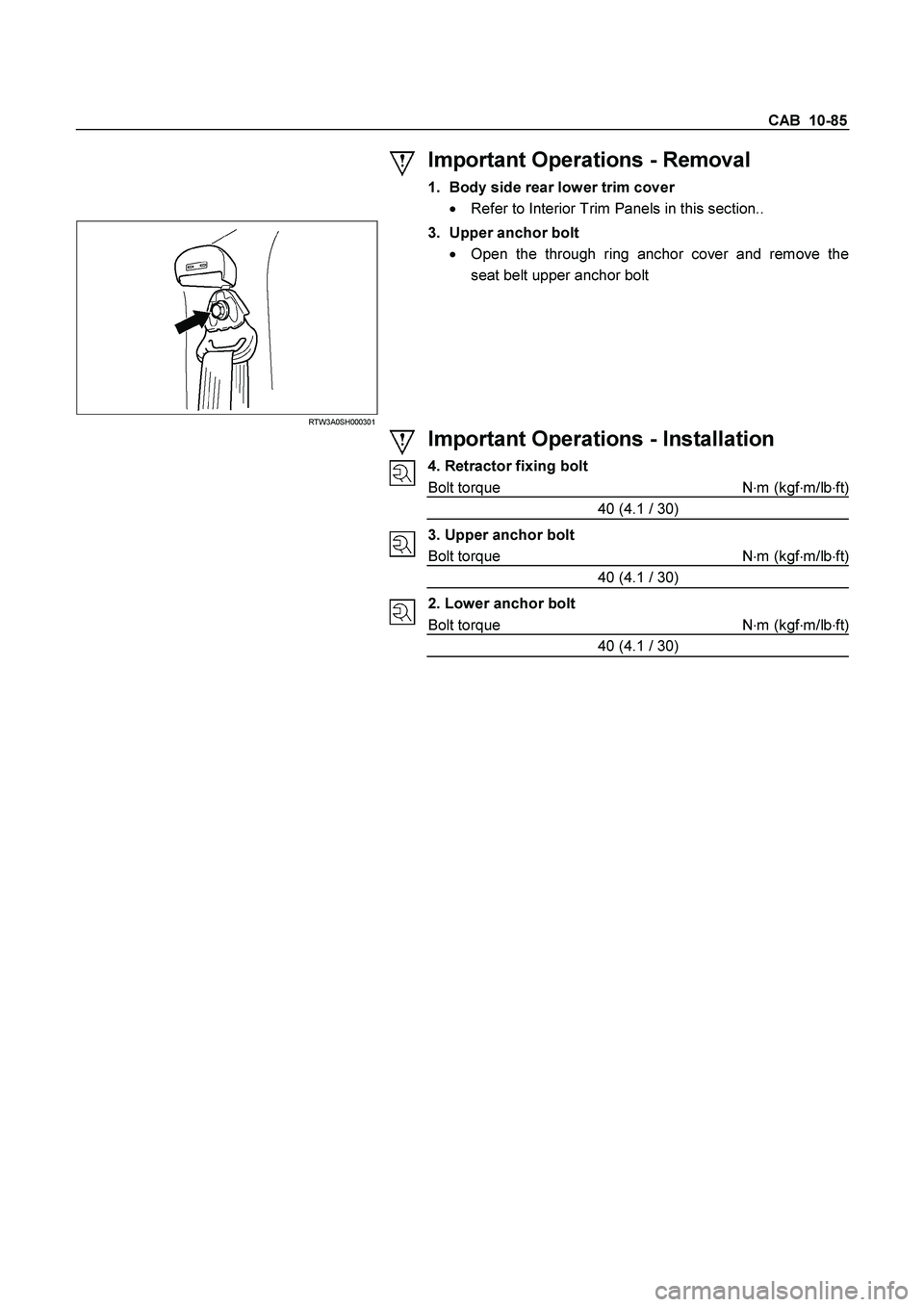

CAB 10-85
Important Operations - Removal
1.
Body side rear lower trim cover
Refer to Interior Trim Panels in this section..
RTW3A0SH000301
3. Upper anchor bolt
Open the through ring anchor cover and remove the
seat belt upper anchor bolt
Important Operations - Installation
4. Retractor fixing bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
3. Upper anchor bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
2. Lower anchor bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
Page 594 of 4264

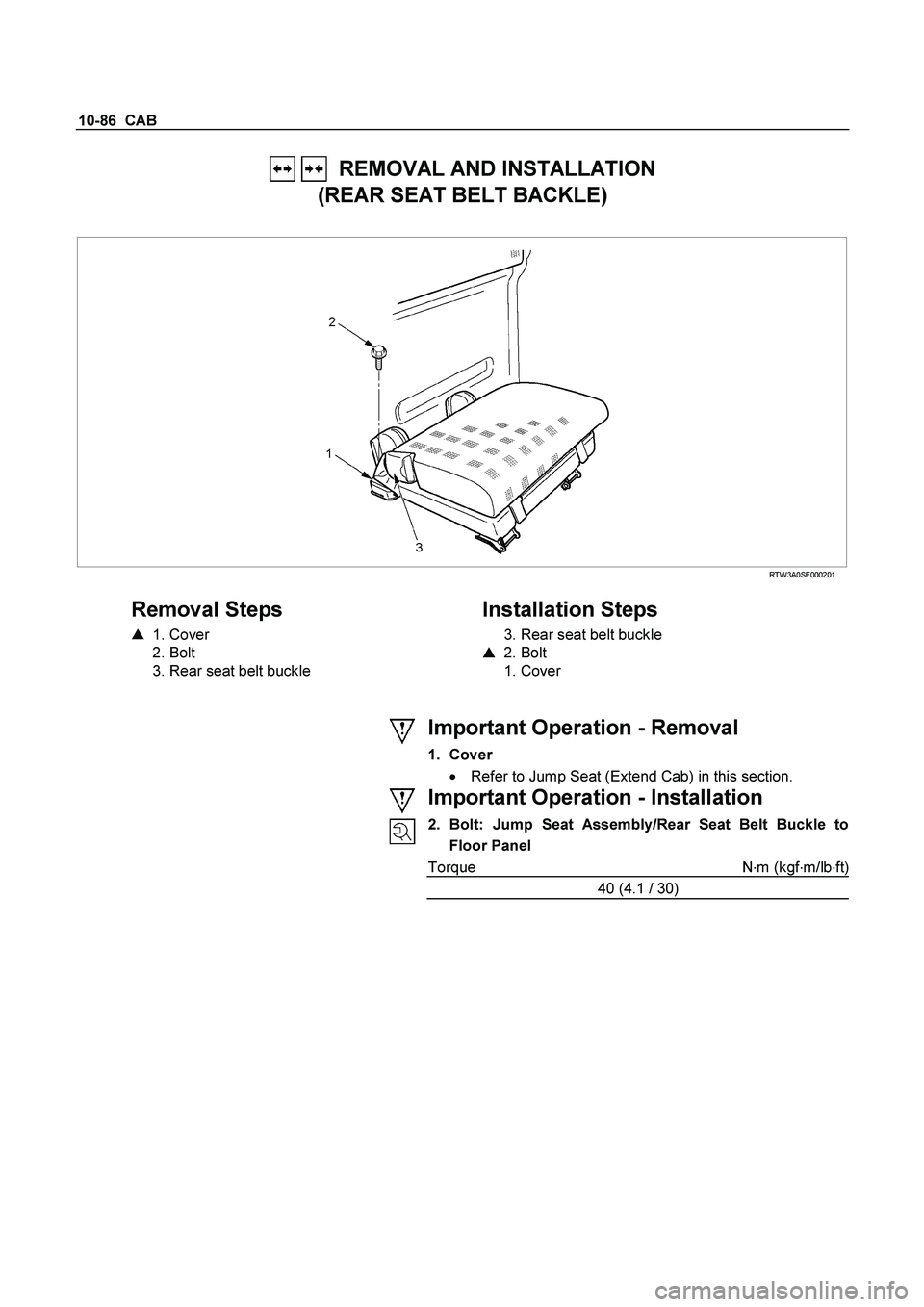

10-86 CAB
REMOVAL AND INSTALLATION
(REAR SEAT BELT BACKLE)
RTW3A0SF000201
Removal Steps
1. Cover
2. Bolt
3. Rear seat belt buckle
Installation Steps
3. Rear seat belt buckle
2. Bolt
1. Cover
Important Operation - Removal
1. Cover
Refer to Jump Seat (Extend Cab) in this section.
Important Operation - Installation
2. Bolt: Jump Seat Assembly/Rear Seat Belt Buckle to
Floor Panel
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
Page 683 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-25
Light Name Rated Power
V-W Number of
Bulbs Lens
Color Remarks
W/O Tacho 5Illumination light 14-2
W/ Tacho 7White
Turn Signal 14-1.12 2 Green
High Beam 14-1.12 1 Blue
Low Fuel 14-1.12 1 Amber
A/T Oil Temp 14-1.12 1 Red
Brake system 14-1.12 1 Red
4WD 14-1.12 1 Green
Seat belt 14-1.12 1 Red
Oil pressure 14-1.12 1 Red
ABS 14-1.12 1 Amber
SEDIMENTER 14-1.12 1 Red
AIR BAG 14-1.12 1 Red
Brake 14-1.12 1 Red
Charge 14-1.12 1 Red
Check Trans 14-1.12 1 Red
Check 4WD 14-1.12 1 Red
Power drive 14-1.12 1 Amber
3rd start 14-1.12 1 Green
4L 14-1.12 1 Green
Cruise Set 14-1.12 1 Green
Check Engine 14-1.12 1 Amber
Front Fog 14-1.12 1 Green
Rear foglight 14-1. 12 1 Amber
Glow 14-1.12 1 Amber
P LED 1 Green
R LED 1 Green
N LED 1 Green
D LED 1 Green
3 LED 1 Green
2 LED 1 Green
Indicator/
Warning
light
A/T shift
indicator
L LED 1 Green
Page 932 of 4264
8A-274 ELECTRICAL-BODY AND CHASSIS
Terminal Connector No. B-23
No. C24SE
1
ABS CONT. (BRAKE)
2
3
4
5
6
7
8
9
BRAKE
10
CHARGE
11
TURN (RIGHT)
12
13
14
15
16
17
ILLUMI (-)
18
ILLUMI (+)
Terminal Connector No. B-24
No. C24SE
1
2
4LO
3
OIL PRESSURE
4
5
4WD
6
CHECK 4WD
7
8
9
SPEED (+)
10
4P OUTPUT
11
12
STARTER
13
TEMP
14
FUEL
15
FRONT FOG
16
17
CHECK ENGINE
18
AIR BAG
19
SEAT BELT
20
BEAM (+)
21
TURN (LEFT)
22
BEAM (-)
23
BEAM (+)
24
25
26
POWER GND
27
SPEED (-)
28
GND UNIT
29
+B
30
IGN
Page 934 of 4264
8A-276 ELECTRICAL-BODY AND CHASSIS
Connector No. B-24
Terminal Connector place SOUTH
AFRICA SAUDI
ARABIA ISRAEL EC UK OTHER
1
SEDIMENTER
2
4LO
3
OIL PRESS
4
4WD
5
CHECK 4WD
6
GLOW
7
POWER DRIVE
8
9
SPEED (+)
10
4P OUTPUT
11
TACHO
12
STARTER
13
TEMP
14
FUEL
RR FOG 15
FRONT FOG
16
ABS CONT. (ABS)
17
CHECK ENGINE
18
AIR BAG
SEAT BELT 19
LOW COOLANT
CRUISE SET 20
BEAM (+)
21
TURN (LEFT)
22
BEAM (-)
BEAM (+) 23
FRONT FOG
24
3rd START (A/T)
25
26
POWER GND
27
SPEED (-)
28
GND UNIT
29
+B
30
IGN
Page 1096 of 4264
8A-438 ELECTRICAL-BODY AND CHASSIS
No. Connector face No. Connector face
R-1
Black
Front door switch-LH R-12
Pretensioner - RH
R-2
NOT USED R-13
Pretensioner - LH
R-3
Gray
Seat belt switch R-14
2-4WD control
R-4
Natural
Parking brake switch (Lever type) R-15
2-4WD control
R-5
NOT USED
R-6
Black
Front door switch-RH
R-7
~
R-8 NOT USED
R-9
Black
Rear speaker-LH
R-10
Black
Rear speaker-RH
R-11
Seat belt switch
