Page 117 of 4264
RESTRAINT CONTROL 9A1-47
DTC B0059 (Flash Code 59) Passenger Pretensioner Squib Circuit Voltage
Range/Performance
RTW49JLF000101
Circuit Description
When the ignition switch is turned “ON”, the SRS
control unit will perform tests to diagnose critical
malfunctions within itself. Upon passing these tests,
“Ignition 1”, and pretensioner loop voltages are
measured to ensure they are within their respective
normal voltage ranges.
The SRS control unit monitors the voltages at “Drive
r
Pretensioner Low” terminal “41” and “Passenger
Pretensioner Low” terminal “43” to detect short to
ground/+B in the pretensioner assembly circuits.
DTC Will Set When
Neither of the air bag and the pretensioner are belt
open. “Ignition 1” is within the normal operating voltage
range. Once these conditions are met and the voltage
at “Passenger Pretensioner Low” is out of a specified
value, DTC B0059 will set. This test is run once each
ignition cycle and “Continuous Monitoring”.
Action Taken
SRS control unit turns “ON” the “AIR BAG” warning
lamp and sets a diagnostic trouble code.
Page 495 of 4264
PARKING BRAKE SYSTEM 5D-5
Front Parking Brake Cable
Front Parking Brake Cable and Associated Parts (Bench Seat)
750R300003
Legend
(1)
Shift Knob (manual transmission)
(2)
Front Floor Console
(3)
Rear Cover
(4)
Bolt
(5)
Seat Assembly
(6)
Buckle: side seat and Center Seat Belt
(7)
Seat Adjuster
Page 509 of 4264
CAB 10-1
SECTION 10
CAB
TABLE OF CONTENTS
PAGE
Windshield.......................................................................................................................... 10- 2
Rear Window Assembly .................................................................................................... 10- 7
Front Door Assembly ........................................................................................................ 10- 10
Rear Door Assembly (Crew Cab) ...................................................................................... 10- 20
Instrument Panel................................................................................................................ 10- 28
Floor Console..................................................................................................................... 10- 34
Console Box (Without Floor Console) ............................................................................. 10- 38
Headlining .......................................................................................................................... 10- 39
Interior Trim Panels ...........................................................................................................10- 44
Fuel Filler Lid Opener Lever/Cable................................................................................... 10- 55
Quarter Glass (Extend Cab) .............................................................................................. 10- 70
Font Seat ............................................................................................................................ 10- 71
Rear Seat (Crew Cab) ........................................................................................................ 10- 74
Jump Seat (Extend Cab) ................................................................................................... 10- 75
Front Seat Belt ................................................................................................................... 10- 76
Rear Seat Belt (Crew Cab) ................................................................................................ 10- 80
Rear Seat Belt (Extend Cab) ............................................................................................. 10- 84
Front Wheel Extension ...................................................................................................... 10- 87
Rear Wheel Extension ....................................................................................................... 10- 88
Tail Gate Assembly ............................................................................................................ 10- 89
Page 552 of 4264

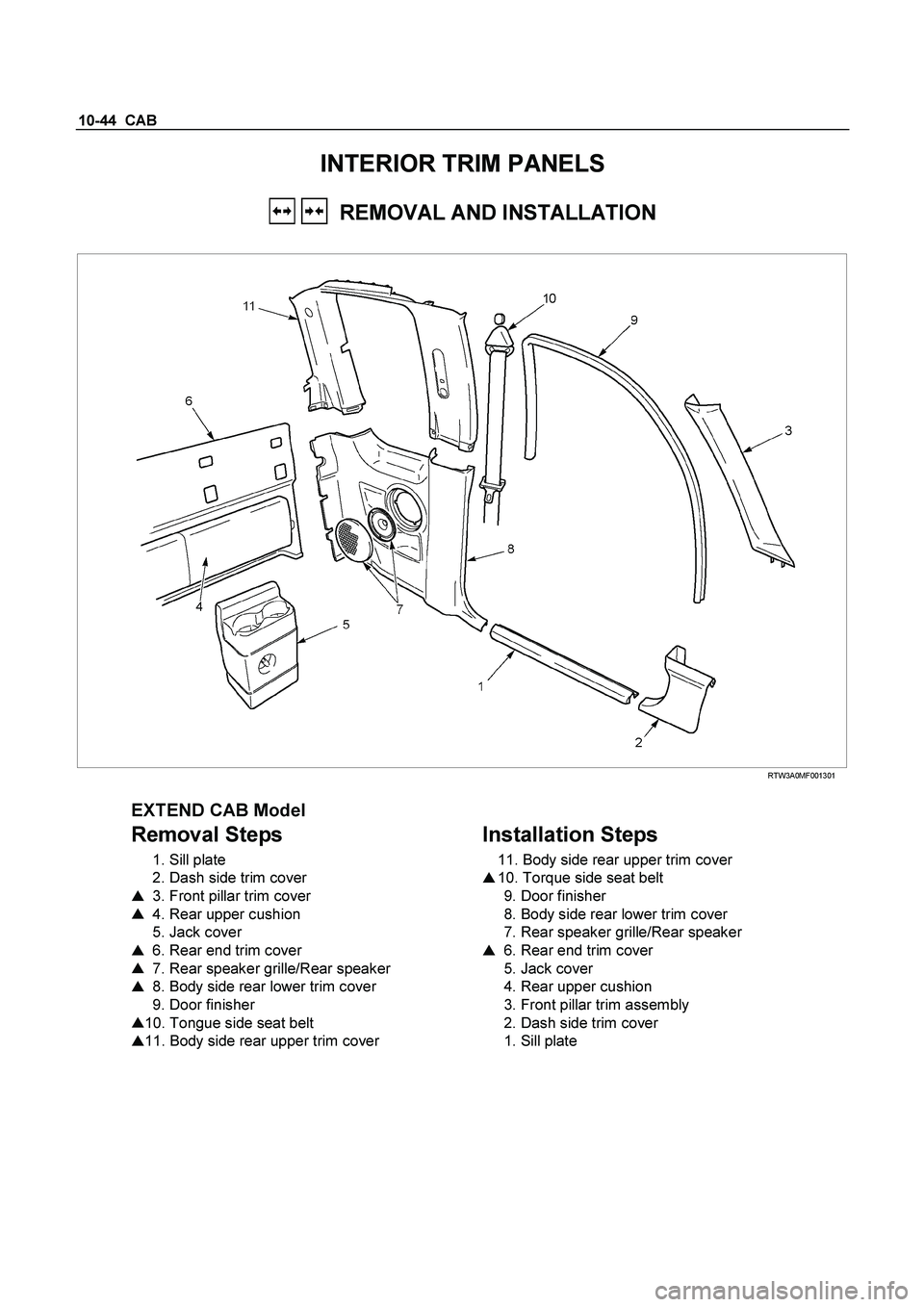

10-44 CAB
INTERIOR TRIM PANELS
REMOVAL AND INSTALLATION
RTW3A0MF001301
EXTEND CAB Model
Removal Steps
1. Sill plate
2. Dash side trim cover
3. Front pillar trim cover
4. Rear upper cushion
5. Jack cover
6. Rear end trim cover
7. Rear speaker grille/Rear speaker
8. Body side rear lower trim cover
9. Door finisher
10. Tongue side seat belt
11. Body side rear upper trim cover
Installation Steps
11. Body side rear upper trim cover
10. Torque side seat belt
9. Door finisher
8. Body side rear lower trim cover
7. Rear speaker grille/Rear speaker
6. Rear end trim cover
5. Jack cover
4. Rear upper cushion
3. Front pillar trim assembly
2. Dash side trim cover
1. Sill plate
Page 554 of 4264

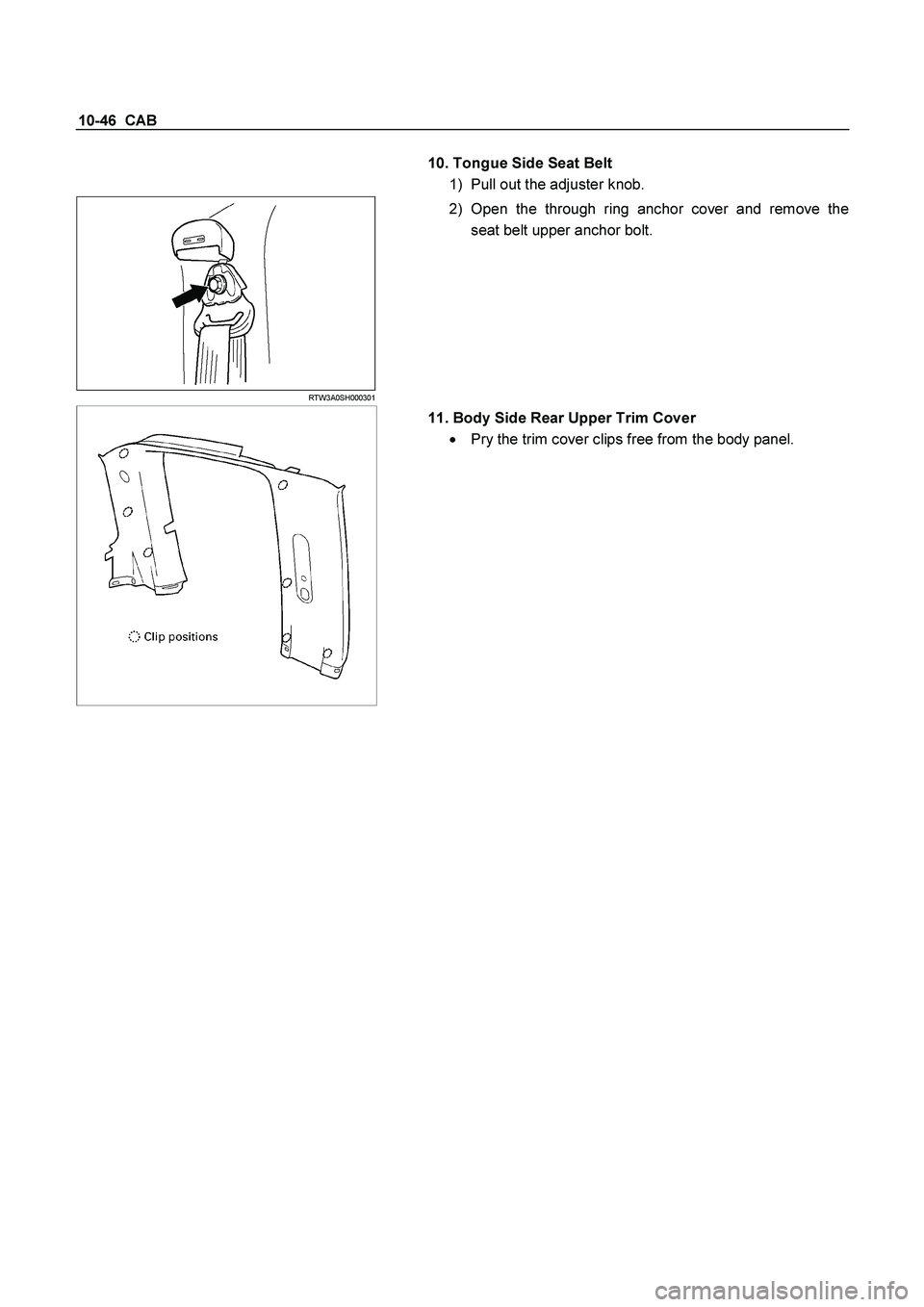

10-46 CAB
10. Tongue Side Seat Belt
1) Pull out the adjuster knob.
RTW3A0SH000301
2) Open the through ring anchor cover and remove the
seat belt upper anchor bolt.
11. Body Side Rear Upper Trim Cover
Pry the trim cover clips free from the body panel.
Page 555 of 4264

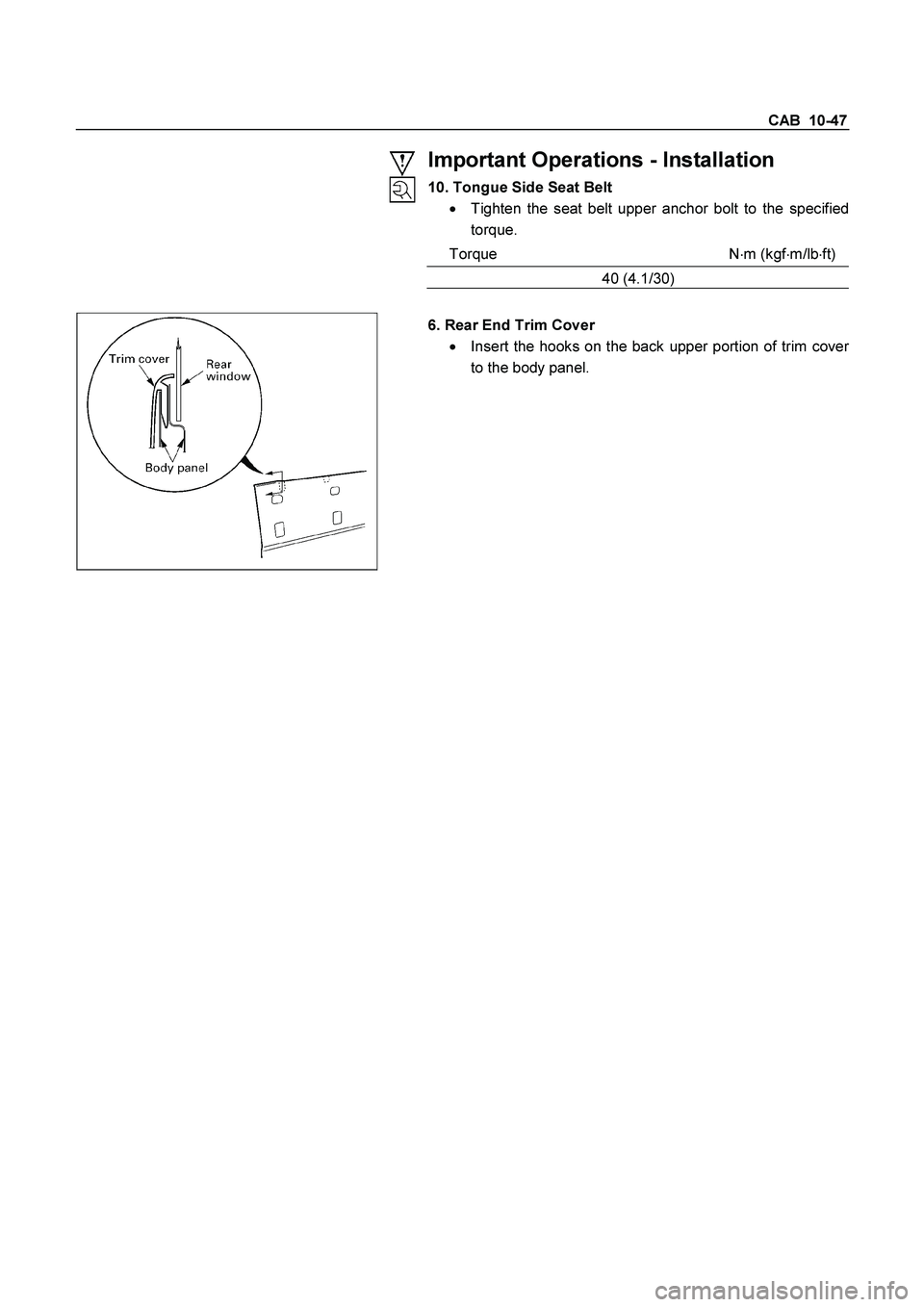

CAB 10-47
Important Operations - Installation
10. Tongue Side Seat Belt
Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1/30)
6. Rear End Trim Cover
Insert the hooks on the back upper portion of trim cove
r
to the body panel.
Page 556 of 4264

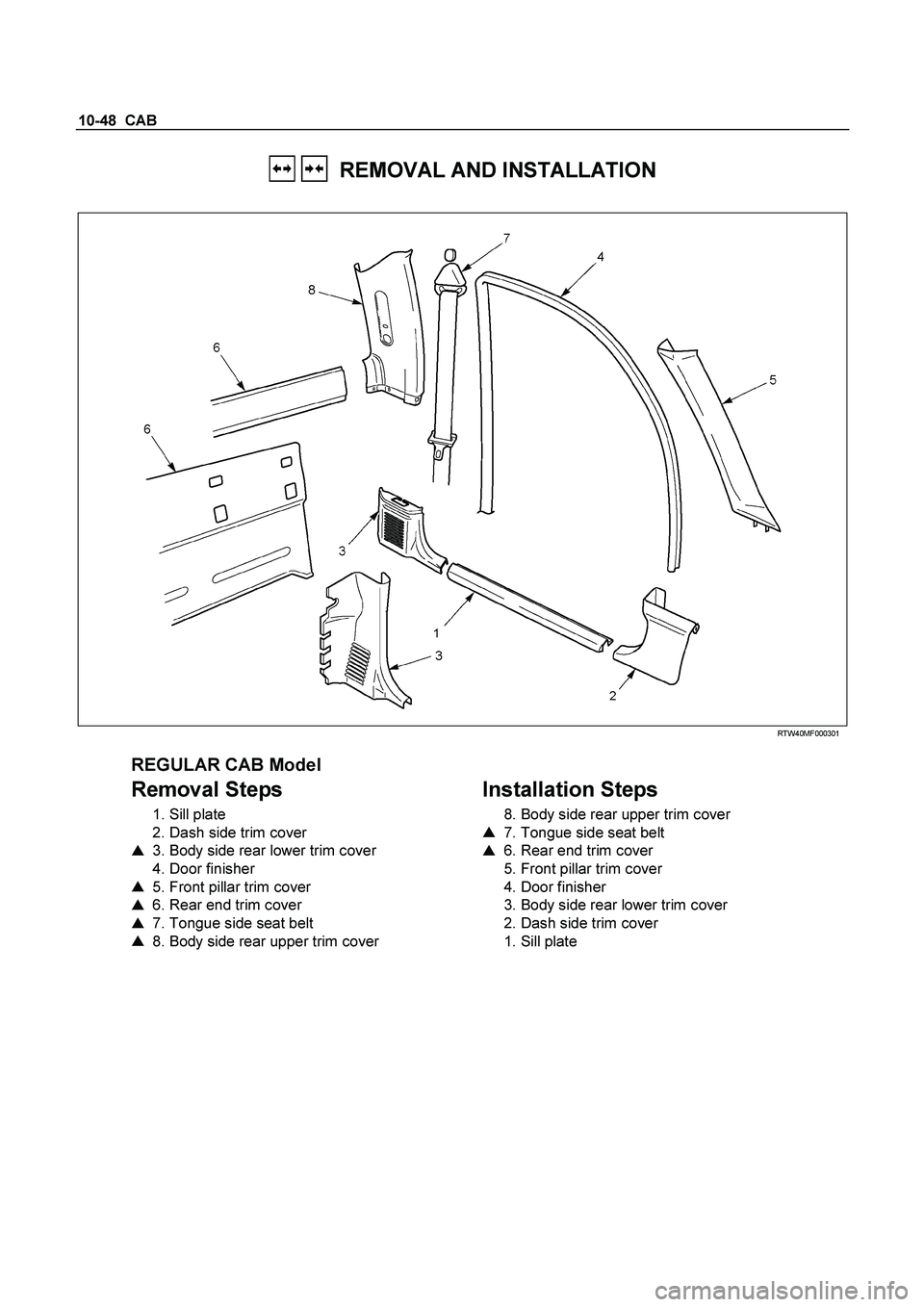

10-48 CAB
REMOVAL AND INSTALLATION
RTW40MF000301
REGULAR CAB Model
Removal Steps
1. Sill plate
2. Dash side trim cover
3. Body side rear lower trim cover
4. Door finisher
5. Front pillar trim cover
6. Rear end trim cover
7. Tongue side seat belt
8. Body side rear upper trim cover
Installation Steps
8. Body side rear upper trim cover
7. Tongue side seat belt
6. Rear end trim cover
5. Front pillar trim cover
4. Door finisher
3. Body side rear lower trim cover
2. Dash side trim cover
1. Sill plate
Page 557 of 4264

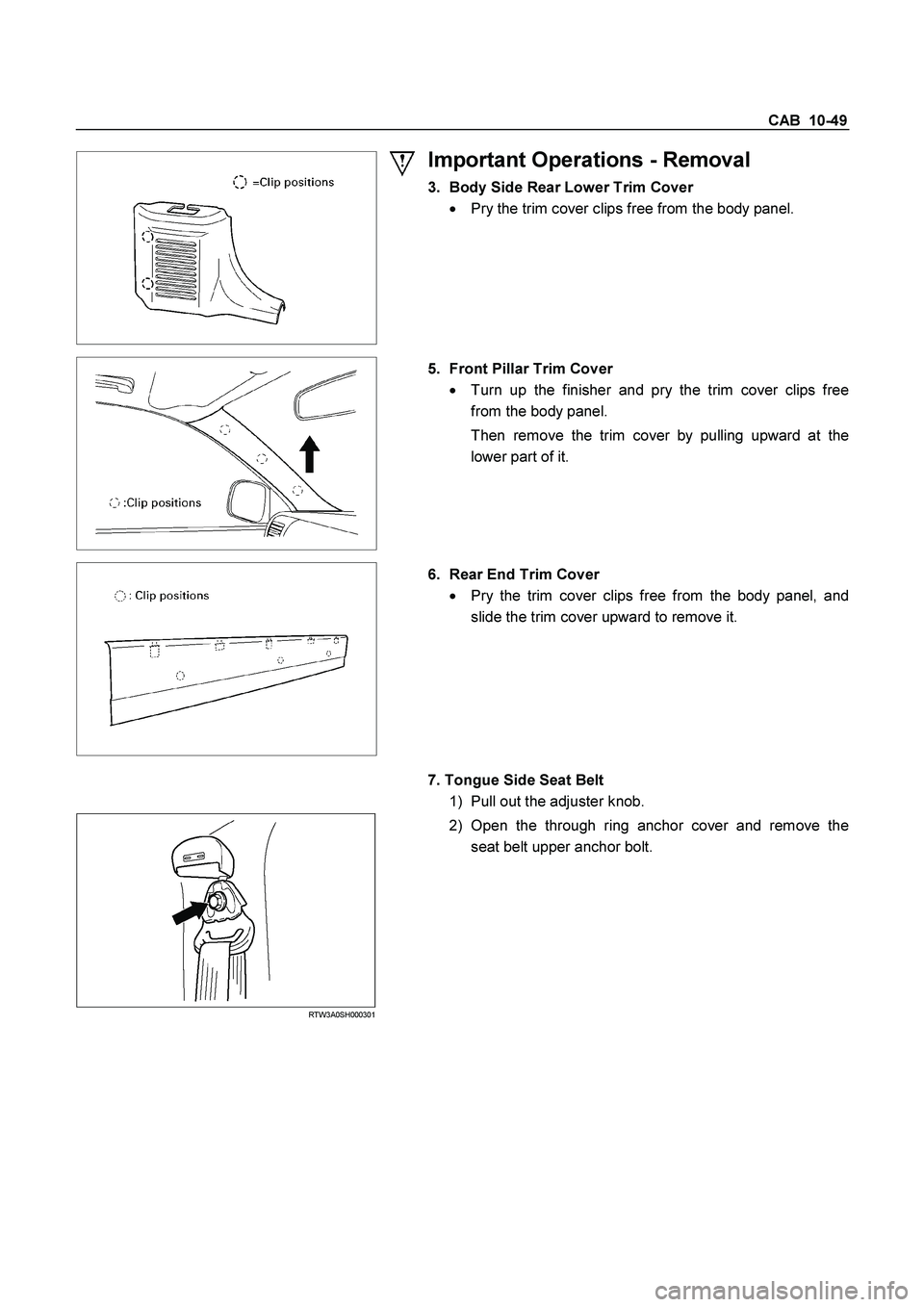

CAB 10-49
Important Operations - Removal
3. Body Side Rear Lower Trim Cover
Pry the trim cover clips free from the body panel.
5. Front Pillar Trim Cover
Turn up the finisher and pry the trim cover clips free
from the body panel.
Then remove the trim cover by pulling upward at the
lower part of it.
6. Rear End Trim Cover
Pry the trim cover clips free from the body panel, and
slide the trim cover upward to remove it.
7.
Tongue Side Seat Belt
1) Pull out the adjuster knob.
RTW3A0SH000301
2) Open the through ring anchor cover and remove the
seat belt upper anchor bolt.
Page 558 of 4264

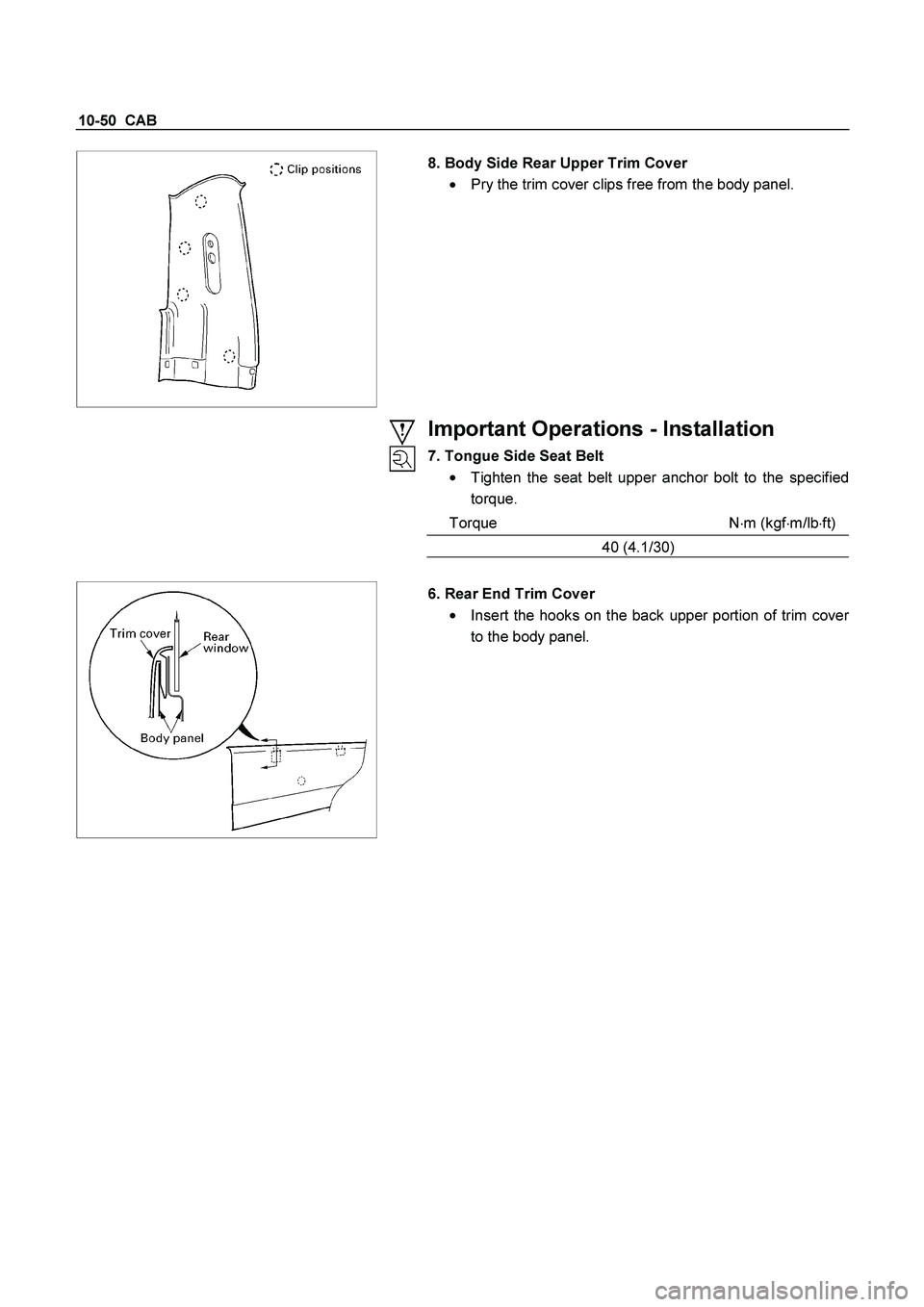

10-50 CAB
8. Body Side Rear Upper Trim Cover
Pry the trim cover clips free from the body panel.
Important Operations - Installation
7. Tongue Side Seat Belt
Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1/30)
6. Rear End Trim Cover
Insert the hooks on the back upper portion of trim cove
r
to the body panel.
Page 559 of 4264

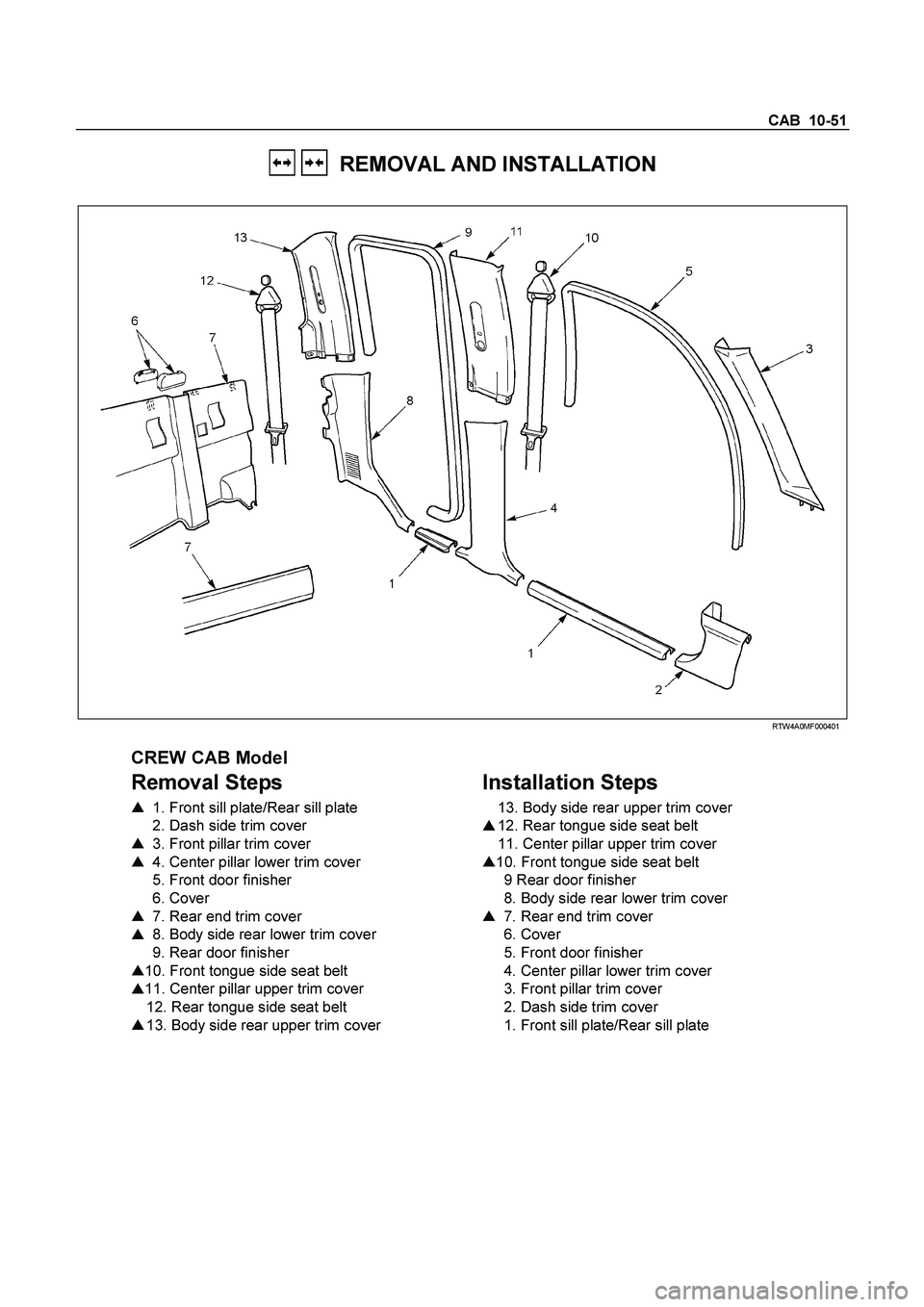

CAB 10-51
REMOVAL AND INSTALLATION
RTW4A0MF000401
CREW CAB Model
Removal Steps
1. Front sill plate/Rear sill plate
2. Dash side trim cover
3. Front pillar trim cover
4. Center pillar lower trim cover
5. Front door finisher
6. Cover
7. Rear end trim cover
8. Body side rear lower trim cover
9. Rear door finisher
10. Front tongue side seat belt
11. Center pillar upper trim cover
12. Rear tongue side seat belt
13. Body side rear upper trim cover
Installation Steps
13. Body side rear upper trim cover
12. Rear tongue side seat belt
11. Center pillar upper trim cover
10. Front tongue side seat belt
9 Rear door finisher
8. Body side rear lower trim cover
7. Rear end trim cover
6. Cover
5. Front door finisher
4. Center pillar lower trim cover
3. Front pillar trim cover
2. Dash side trim cover
1. Front sill plate/Rear sill plate
