ISUZU TF SERIES 2004 Workshop Manual

CAB 10-73

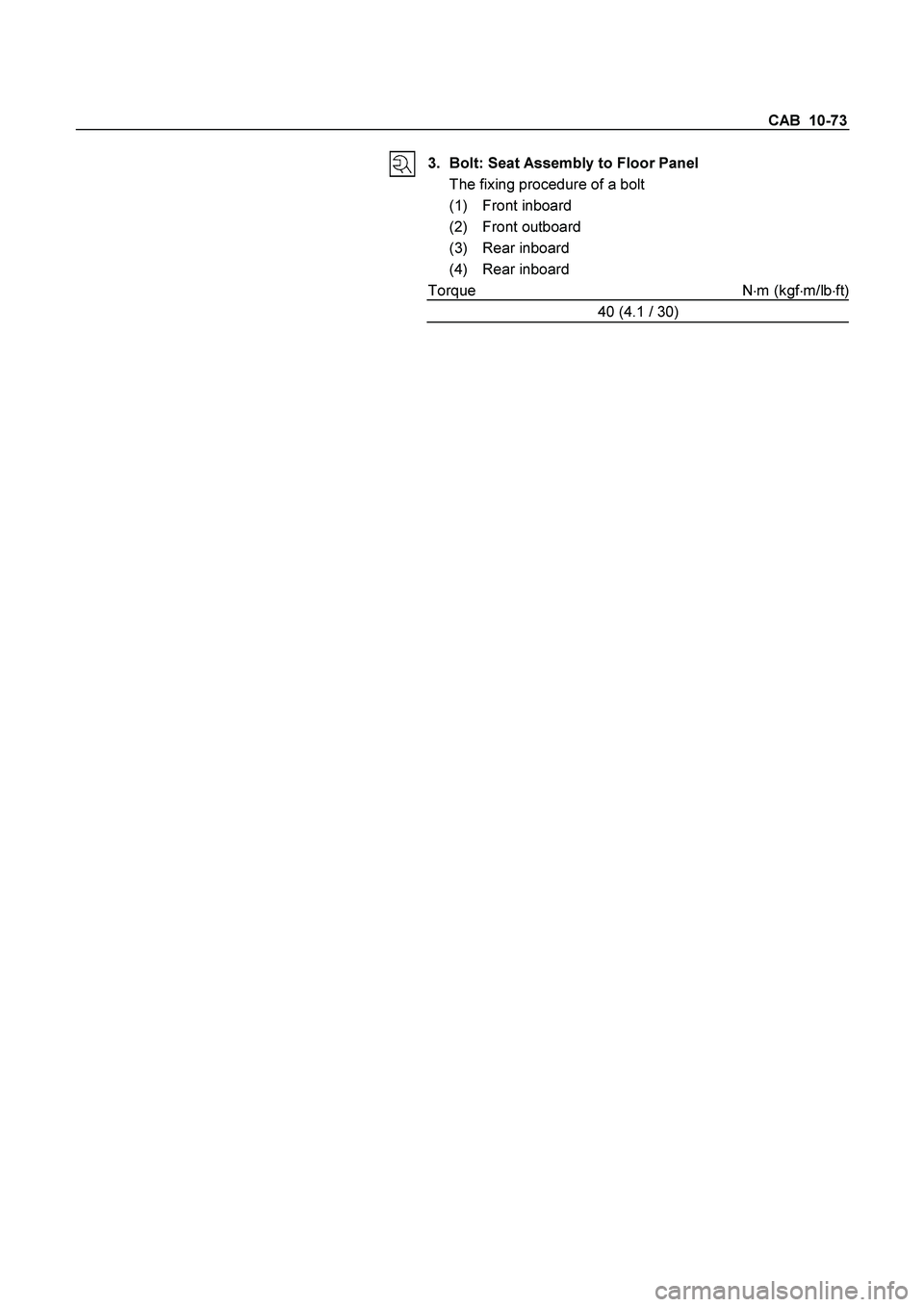

3. Bolt: Seat Assembly to Floor Panel
The fixing procedure of a bolt
(1) Front inboard
(2) Front outboard
(3) Rear inboard
(4) Rear inboard
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)

10-74 CAB

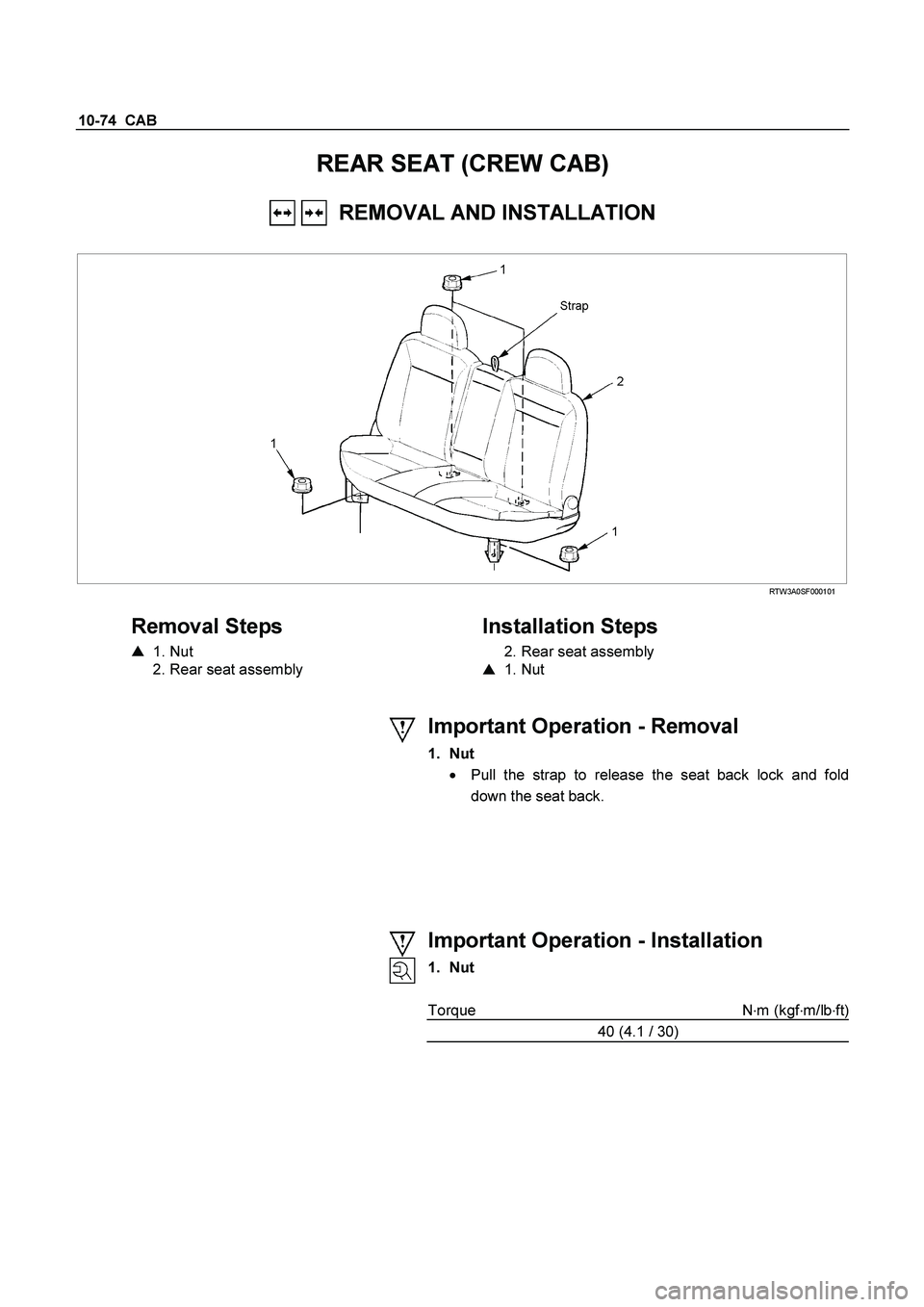

REAR SEAT (CREW CAB)
REMOVAL AND INSTALLATION

RTW3A0SF000101

Removal Steps

1. Nut
2. Rear seat assembly

Installation Steps
2. Rear seat assembly

1. Nut





Important Operation - Removal
1. Nut
Pull the strap to release the seat back lock and fold
down the seat back.



Important Operation - Installation
1. Nut

Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)

CAB 10-75

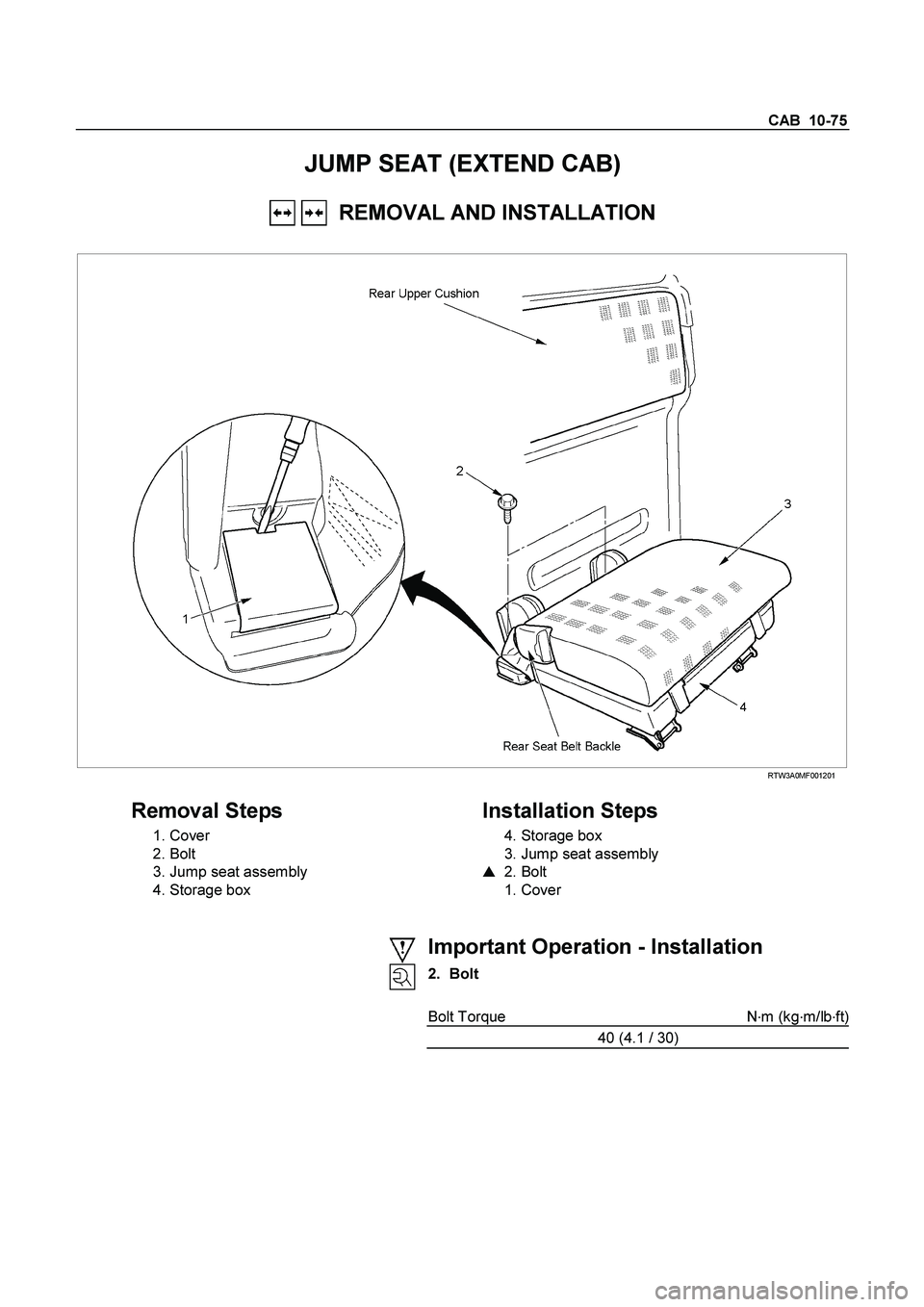

JUMP SEAT (EXTEND CAB)
REMOVAL AND INSTALLATION

RTW3A0MF001201

Removal Steps
1. Cover
2. Bolt
3. Jump seat assembly
4. Storage box

Installation Steps
4. Storage box
3. Jump seat assembly

2. Bolt
1. Cover




Important Operation - Installation
2. Bolt

Bolt Torque N
m (kg
m/lb
ft)
40 (4.1 / 30)

10-76 CAB
FRONT SEAT BELT
REMOVAL AND INSTALLATION
(TONGUE SIDE SEAT BELT)



Removal Steps
1. Body side rear lower trim cover
2. Lower anchor bolt

3. Knob

4. Upper anchor bolt
5. Retractor fixing bolt
6. Body side rear upper trim cover
7. Adjustable shoulder anchor fixing bolts
Installation Steps


7. Adjustable shoulder anchor fixing bolts
6. Body side rear upper trim cover

5. Retractor fixing bolt

4. Upper anchor bolt
3. Knob

2. Lower anchor bolt
1. Body side rear lower trim cover

CAB 10-77


Important Operations - Removal
3. Knob


Pull out the knob.
RTW3A0SH000301

4. Upper anchor bolt


Open the through ring anchor cover and remove the
seat belt upper anchor bolt.







Important Operations - Installation
7. Adjustable shoulder anchor fixing bolts
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
5. Retractor fixing bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
4. Upper anchor bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
2. Lower anchor bolt
Bolt torque Nm (kgfm/lbft)
40 (4.1 / 30)

10-78 CAB
REMOVAL AND INSTALLATION
(SIDE SEAT BELT BUCKLE/PRETENSIONER SEAT BELT/ CENTER SEAT BELT)

RTW3A0MF000401

Removal Steps

1. Front seat assembly

2. Side seat belt buckle/Pretensioner seat
belt/Center seat belt

Installation Steps


2. Side seat belt buckle/Pretensioner seat
belt/Center seat belt

1. Front seat assembly

CAB 10-79


Important Operations - Removal
1. Front Seat Assembly


Refer to Front Seat in this section.




2. Side Seat Belt Buckle/Pretensioner Seat Belt/Center
Seat Belt

Remove the seat belt fixing screw and the warning
harness connector clip (Bucket seat model).



RTW4A0SH000101-X



Remove the pretensioner seat belt fixing screw and the
warning harness connector (With pretensioner seat bel
t
model).


Remove the seat belt fixing screws and the warning
harness connector clip (Bench seat model).







Important Operations - Installation
2. Side Seat Belt Buckle/Pretensioner Seat Belt /Center
Seat Belt


Tighten the seat belt fixing screws to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
1. Front Seat Assembly


Tighten the seat assembly fixing bolts to the specified
torque.
Torque Nm (kgfm/lbft)
40 (4.1 / 30)

10-80 CAB
REAR SEAT BELT (CREW CAB)
REMOVAL AND INSTALLATION
(TONGUE SIDE SEAT BELT)



Removal Steps
1. Body side rear lower trim cover
2. Lower anchor bolt

3. Knob

4. Upper anchor bolt
5. Retractor fixing bolt
6. Body side rear upper trim cover
7. Adjustable shoulder anchor fixing bolts
Installation Steps


7. Adjustable shoulder anchor fixing bolts
6. Body side rear upper trim cover

5. Retractor fixing bolt

4. Upper anchor bolt
3. Knob

2. Lower anchor bolt
1. Body side rear lower trim cover

CAB 10-81
Important Operations - Removal
3. Knob


Pull out the knob.
RTW3A0SH000301

4. Upper anchor bolt


Open the through ring anchor cover and remove the
seat belt upper anchor bolt.







Important Operations - Installation
7. Adjustable shoulder anchor fixing bolts
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
5. Retractor fixing bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
4. Upper anchor bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
2. Lower anchor bolt
Bolt torque Nm (kgfm/lbft)
40 (4.1 / 30)

10-82 CAB
REMOVAL AND INSTALLATION
(REAR CENTER SEAT BELT/REAR SEAT BELT BACKLE)

RTW3A0LF000901

Removal Steps
1. Nut
2. Rear seat belt buckle

3. Cover

4. Rear end trim cover
5. Bolt
6. Rear center seat belt

Installation Steps


6. Rear center seat belt

5. Bolt
4. Rear end trim cover
3. Cover
2. Rear seat belt buckle

1. Nut
