ISUZU TF SERIES 2004 Workshop Manual

CAB 10-33
Important Operations
15. Instrument Panel & Crass Beam Assembly
1) Tighten the 4 bolts fixing the cross beam and body panel
to the specified torque.
Torque N
m (kgf
m/lb
ft)
19 (1.9/14)

2) A Bolt: Steering Column to Cross Beam
Torque N
m (kgf
m/lb
ft)
20 (2.0/14)
B Bolt: Pedal Bracket to Cross Beam
Torque N
m (kgf
m/lb
ft)
15 (1.5/11)


3) C Bolt: Parking Brake Bracket to Cross Beam
Torque Nm (kgfm/lbft)
15 (1.5/11)

21. Steering Wheel/Steering Cowl

Tighten the steering wheel fixing nut to the specified
truque.
Torque N
m (kgf
m/lb
ft)
35 (3.6/26)

10-34 CAB

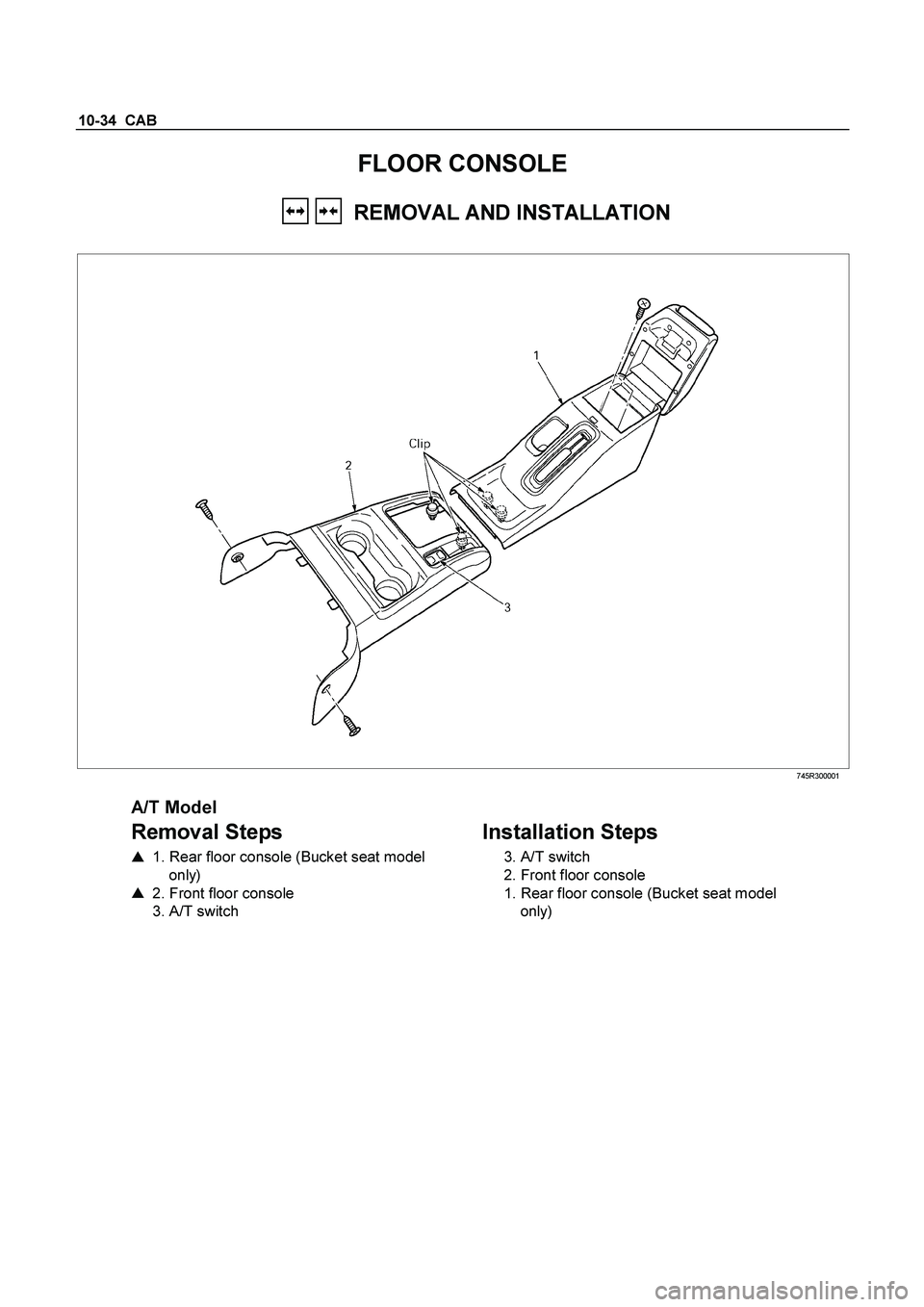

FLOOR CONSOLE
REMOVAL AND INSTALLATION

745R300001

A/T Model
Removal Steps

1. Rear floor console (Bucket seat model
only)

2. Front floor console
3. A/T switch


Installation Steps
3. A/T switch
2. Front floor console
1. Rear floor console (Bucket seat model only)

CAB 10-35

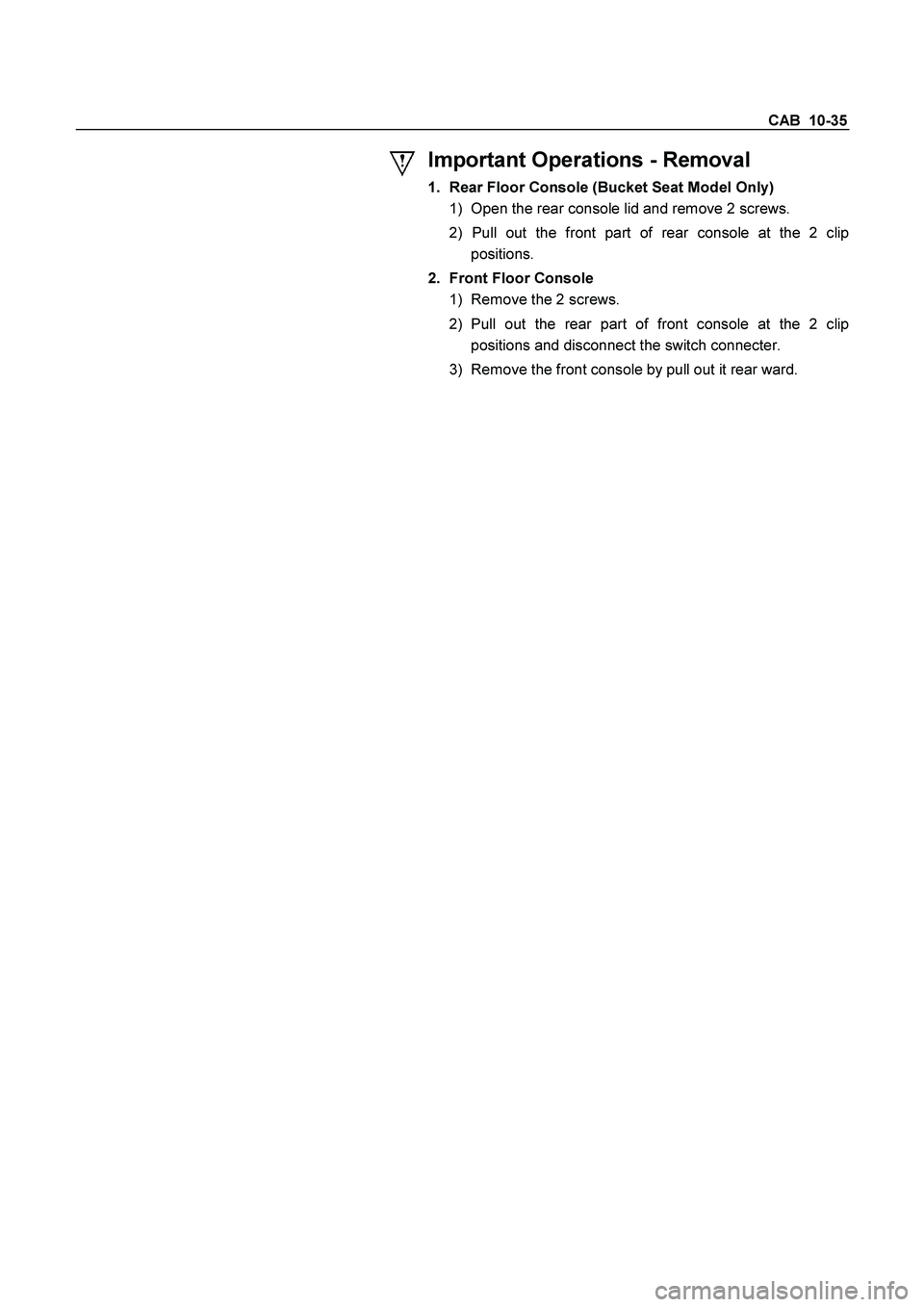

Important Operations - Removal
1. Rear Floor Console (Bucket Seat Model Only)
1) Open the rear console lid and remove 2 screws.
2) Pull out the front part of rear console at the 2 clip
positions.
2. Front Floor Console
1) Remove the 2 screws.
2) Pull out the rear part of front console at the 2 clip
positions and disconnect the switch connecter.
3) Remove the front console by pull out it rear ward.

10-36 CAB

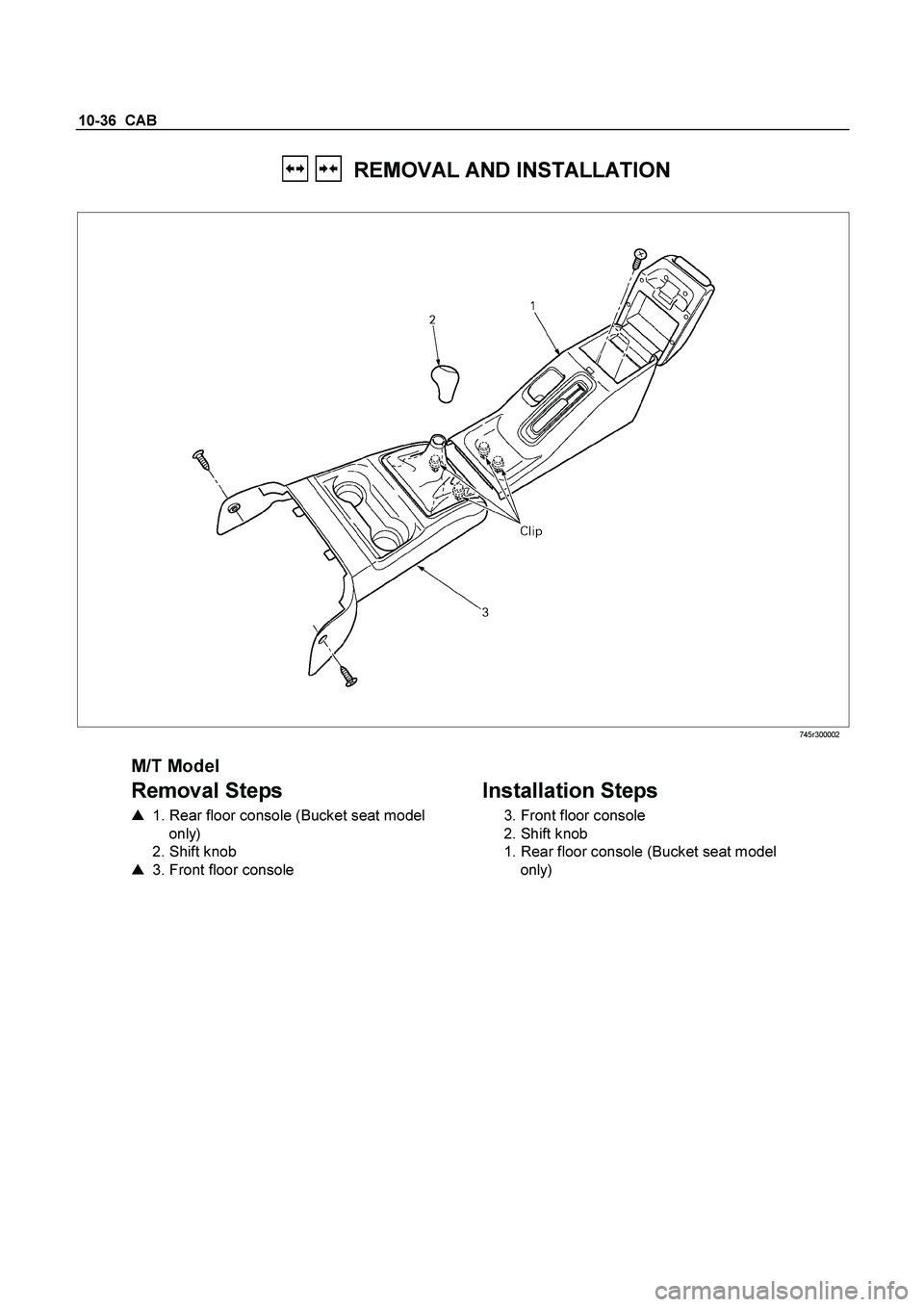

REMOVAL AND INSTALLATION

745r300002

M/T Model
Removal Steps

1. Rear floor console (Bucket seat model
only)
2. Shift knob

3. Front floor console


Installation Steps
3. Front floor console
2. Shift knob
1. Rear floor console (Bucket seat model
only)

CAB 10-37

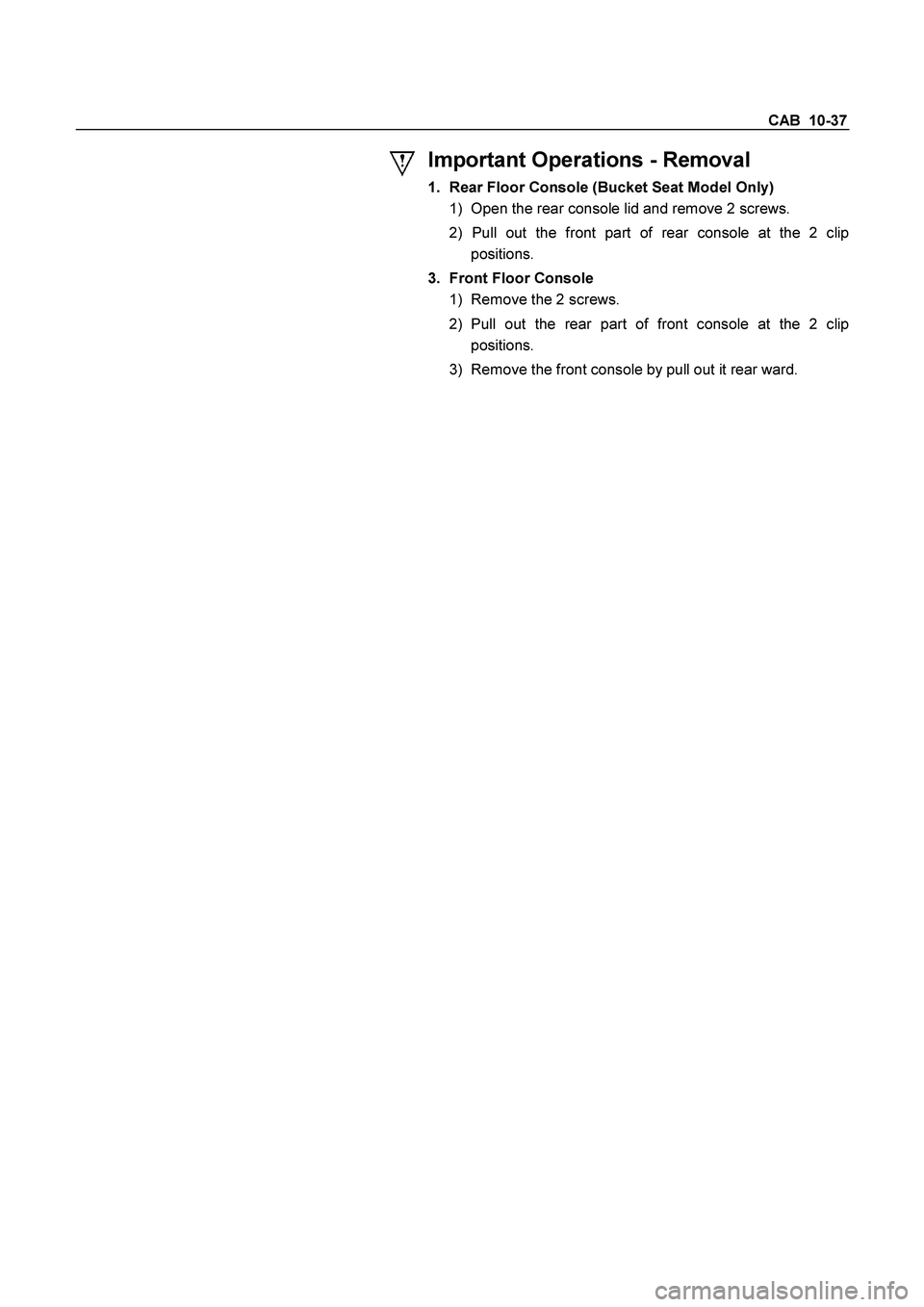

Important Operations - Removal
1. Rear Floor Console (Bucket Seat Model Only)
1) Open the rear console lid and remove 2 screws.
2) Pull out the front part of rear console at the 2 clip
positions.
3. Front Floor Console
1) Remove the 2 screws.
2) Pull out the rear part of front console at the 2 clip
positions.
3) Remove the front console by pull out it rear ward.

10-38 CAB

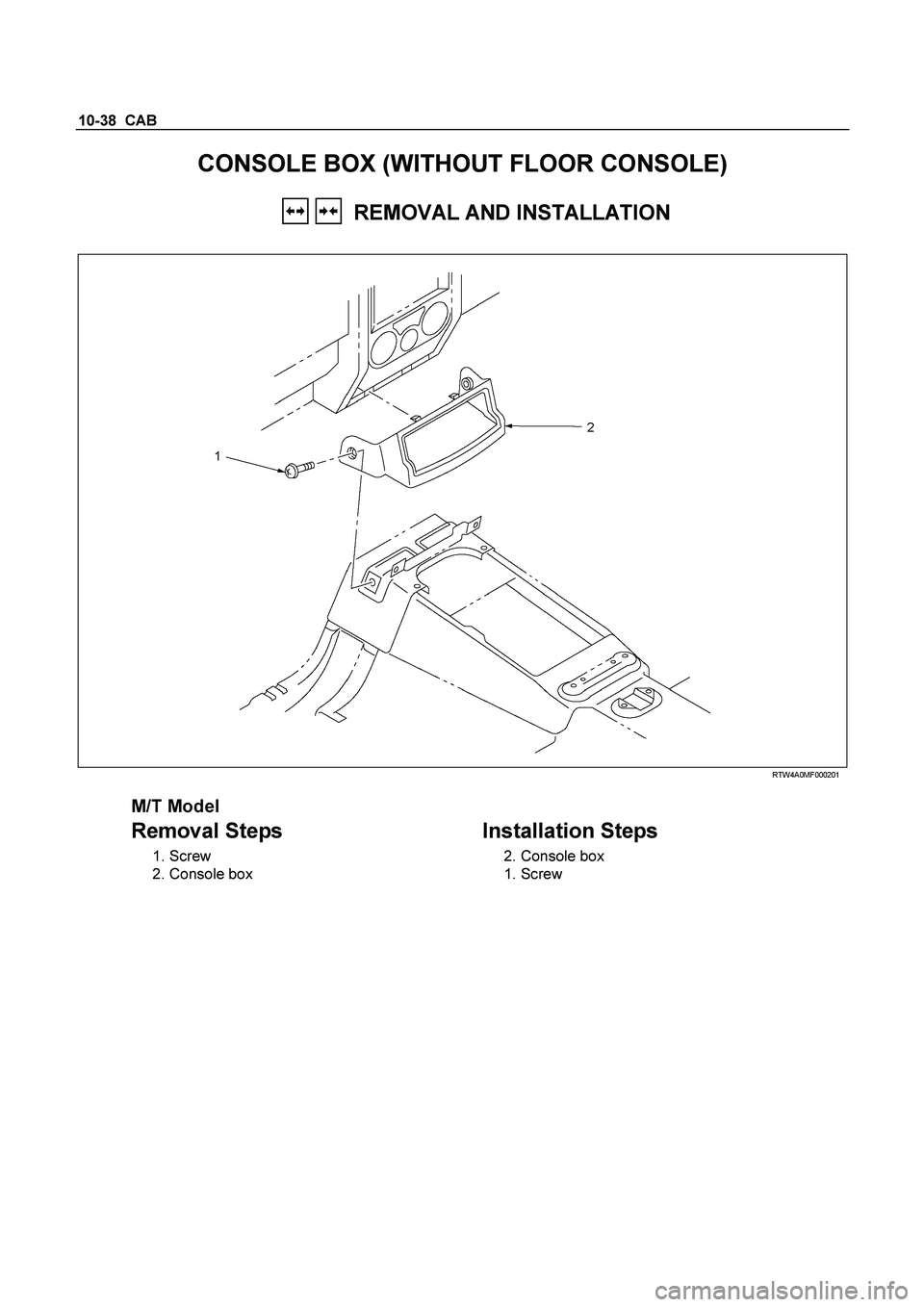

CONSOLE BOX (WITHOUT FLOOR CONSOLE)

REMOVAL AND INSTALLATION


RTW4A0MF000201

M/T Model
Removal Steps
1. Screw
2. Console box


Installation Steps
2. Console box
1. Screw

CAB 10-39

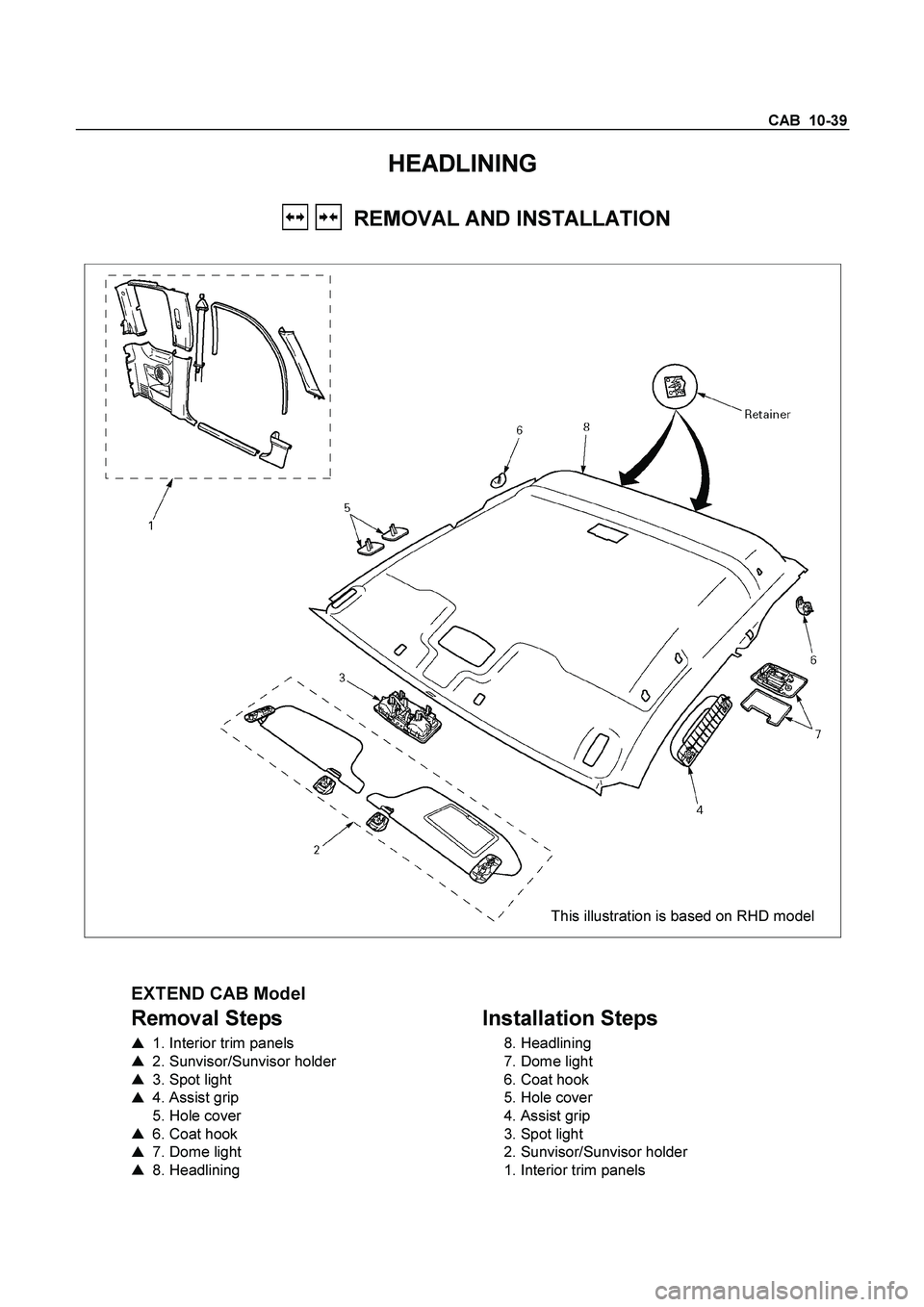

HEADLINING
REMOVAL AND INSTALLATION


This illustration is based on RHD model



EXTEND CAB Model
Removal Steps

1. Interior trim panels

2. Sunvisor/Sunvisor holder

3. Spot light

4. Assist grip
5. Hole cover

6. Coat hook

7. Dome light

8. Headlining


Installation Steps
8. Headlining
7. Dome light
6. Coat hook
5. Hole cover
4. Assist grip
3. Spot light
2. Sunvisor/Sunvisor holder
1. Interior trim panels

10-40 CAB

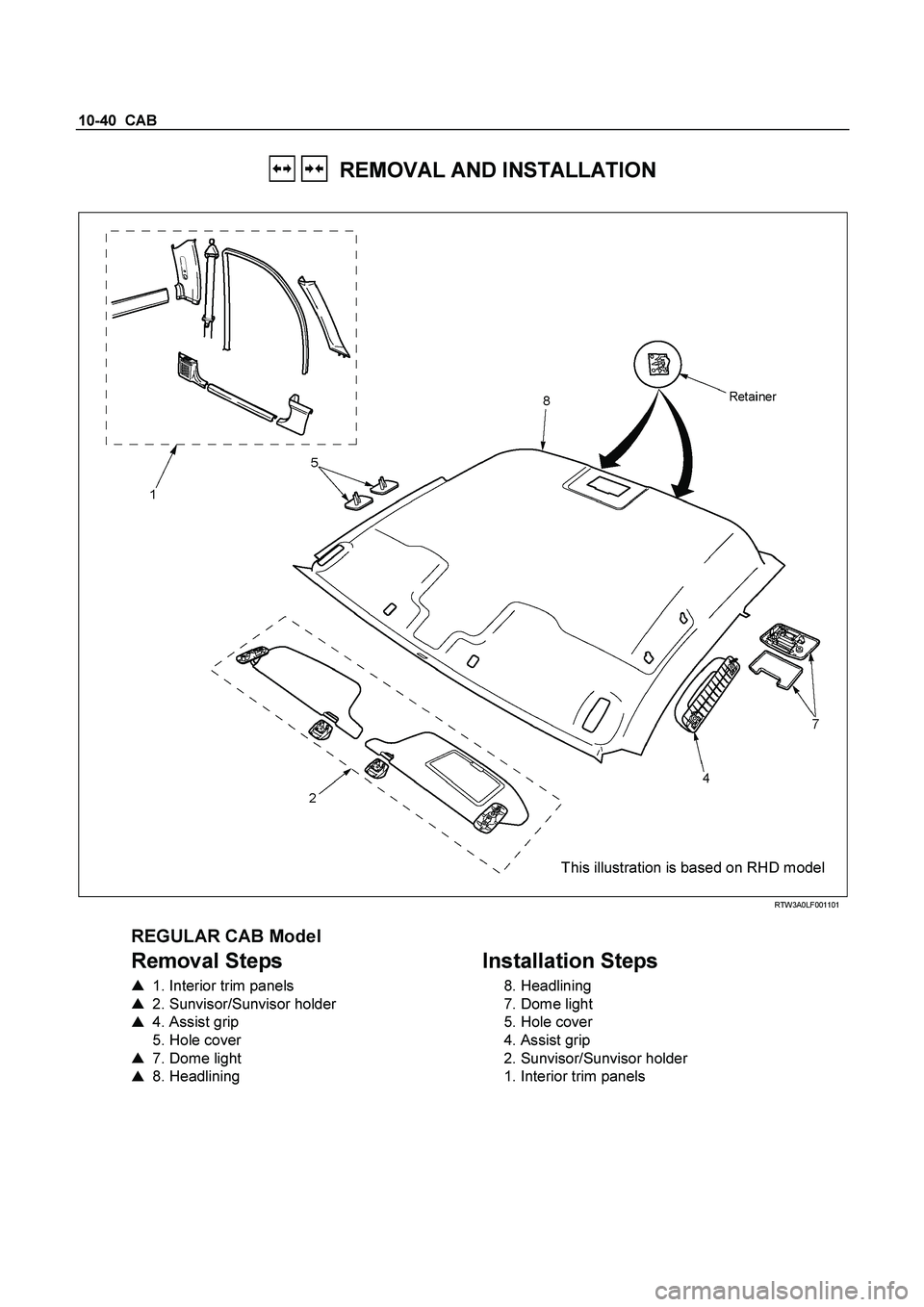

REMOVAL AND INSTALLATION



This illustration is based on RHD model
RTW3A0LF001101

REGULAR CAB Model
Removal Steps


1. Interior trim panels

2. Sunvisor/Sunvisor holder

4. Assist grip
5. Hole cover

7. Dome light

8. Headlining


Installation Steps
8. Headlining
7. Dome light
5. Hole cover
4. Assist grip
2. Sunvisor/Sunvisor holder
1. Interior trim panels

CAB 10-41

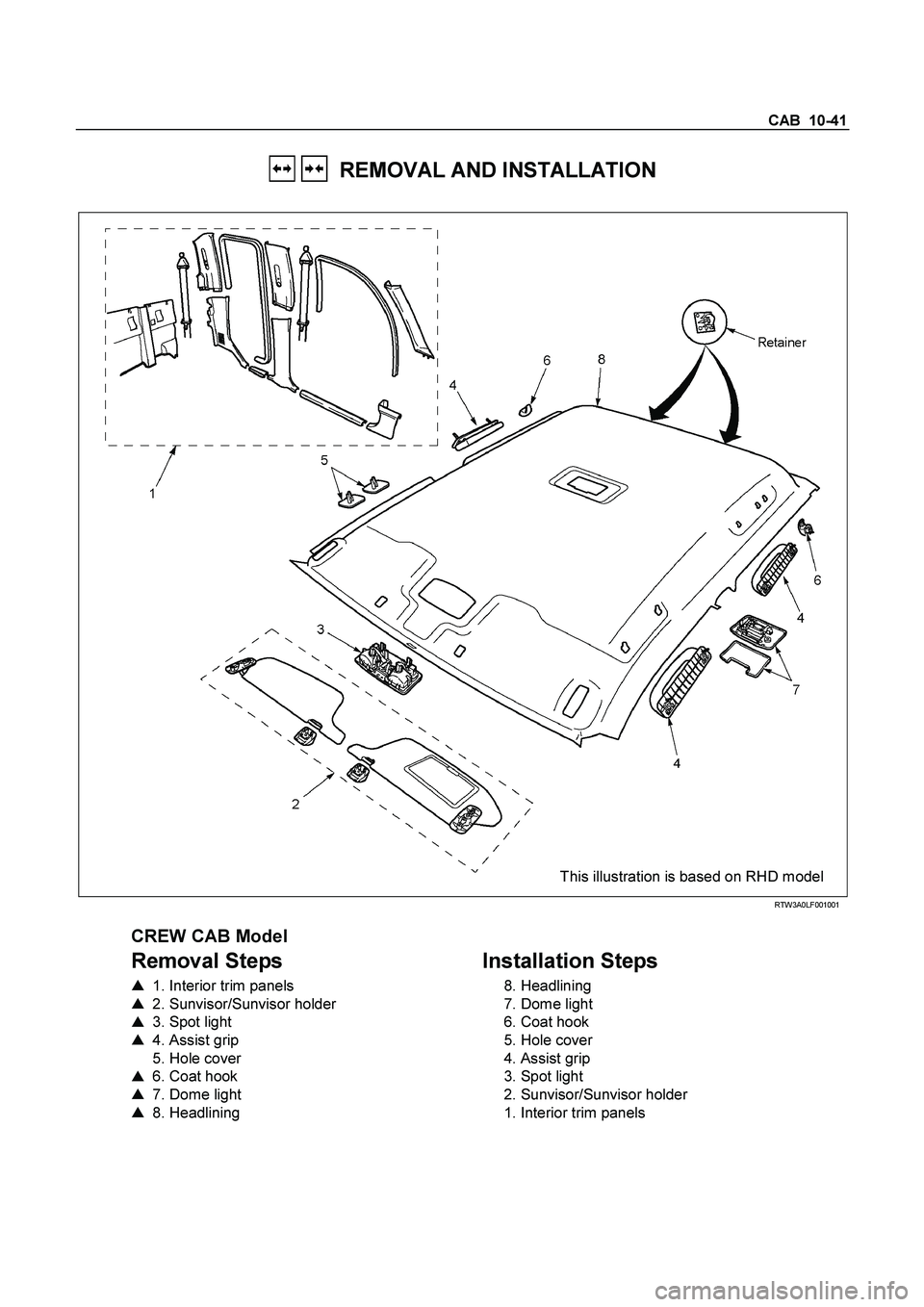

REMOVAL AND INSTALLATION



This illustration is based on RHD model
RTW3A0LF001001

CREW CAB Model
Removal Steps

1. Interior trim panels

2. Sunvisor/Sunvisor holder

3. Spot light

4. Assist grip
5. Hole cover

6. Coat hook

7. Dome light

8. Headlining


Installation Steps
8. Headlining
7. Dome light
6. Coat hook
5. Hole cover
4. Assist grip
3. Spot light
2. Sunvisor/Sunvisor holder
1. Interior trim panels

10-42 CAB

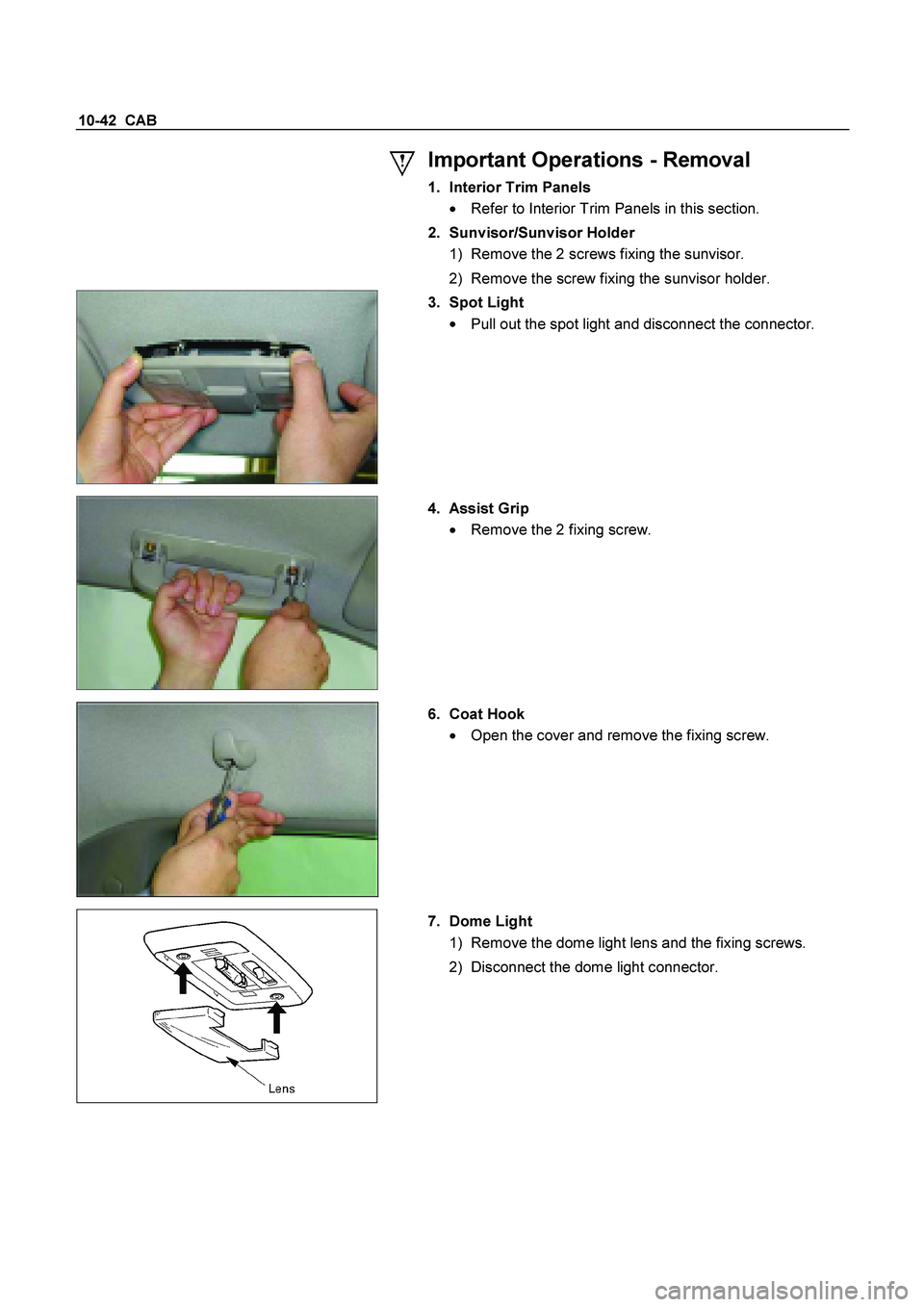

Important Operations - Removal
1. Interior Trim Panels


Refer to Interior Trim Panels in this section.



2. Sunvisor/Sunvisor Holder
1) Remove the 2 screws fixing the sunvisor.
2) Remove the screw fixing the sunvisor holder.


3. Spot Light


Pull out the spot light and disconnect the connector.


4. Assist Grip


Remove the 2 fixing screw.


6. Coat Hook

Open the cover and remove the fixing screw.



7. Dome Light
1) Remove the dome light lens and the fixing screws.
2) Disconnect the dome light connector.
