ISUZU TF SERIES 2004 Workshop Manual

CAB 10-43


8. Headlining

Pull out the headlining with the retainer from roof rea
r
header panel as direction of shown in the illustration.
Note :
Remove steps (2-7) can be removed from the headlining in
any order.

10-44 CAB
INTERIOR TRIM PANELS
REMOVAL AND INSTALLATION

RTW3A0MF001301

EXTEND CAB Model
Removal Steps
1. Sill plate
2. Dash side trim cover

3. Front pillar trim cover

4. Rear upper cushion
5. Jack cover

6. Rear end trim cover

7. Rear speaker grille/Rear speaker

8. Body side rear lower trim cover
9. Door finisher

10. Tongue side seat belt

11. Body side rear upper trim cover


Installation Steps
11. Body side rear upper trim cover

10. Torque side seat belt
9. Door finisher
8. Body side rear lower trim cover
7. Rear speaker grille/Rear speaker

6. Rear end trim cover
5. Jack cover
4. Rear upper cushion
3. Front pillar trim assembly
2. Dash side trim cover
1. Sill plate

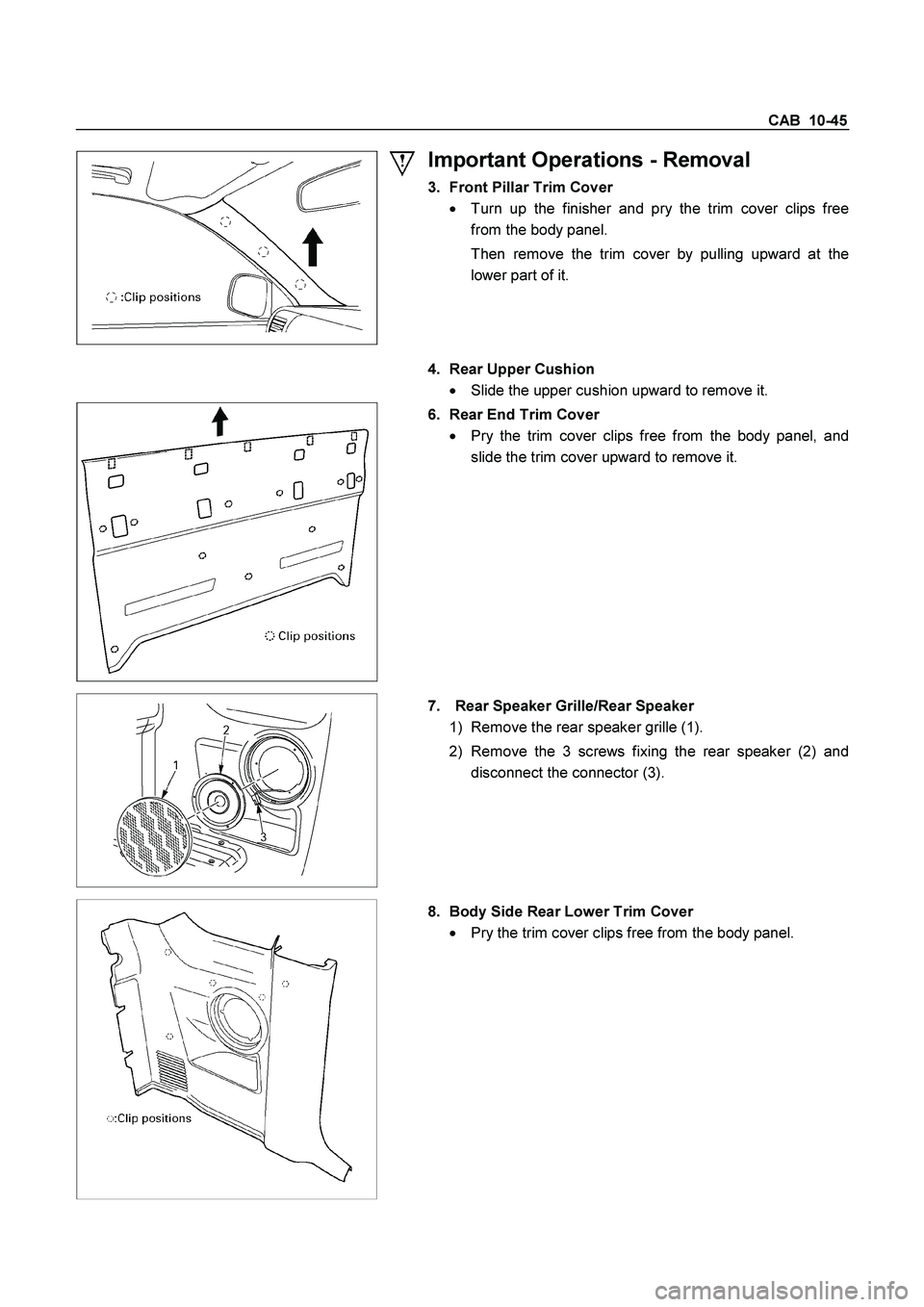

CAB 10-45


Important Operations - Removal
3. Front Pillar Trim Cover


Turn up the finisher and pry the trim cover clips free
from the body panel.
Then remove the trim cover by pulling upward at the
lower part of it.


4. Rear Upper Cushion


Slide the upper cushion upward to remove it.



6. Rear End Trim Cover

Pry the trim cover clips free from the body panel, and
slide the trim cover upward to remove it.


7. Rear Speaker Grille/Rear Speaker
1) Remove the rear speaker grille (1).
2) Remove the 3 screws fixing the rear speaker (2) and
disconnect the connector (3).



8. Body Side Rear Lower Trim Cover


Pry the trim cover clips free from the body panel.

10-46 CAB



10. Tongue Side Seat Belt
1) Pull out the adjuster knob.
RTW3A0SH000301

2) Open the through ring anchor cover and remove the
seat belt upper anchor bolt.



11. Body Side Rear Upper Trim Cover


Pry the trim cover clips free from the body panel.

CAB 10-47
Important Operations - Installation
10. Tongue Side Seat Belt


Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1/30)




6. Rear End Trim Cover


Insert the hooks on the back upper portion of trim cove
r
to the body panel.

10-48 CAB
REMOVAL AND INSTALLATION



RTW40MF000301

REGULAR CAB Model
Removal Steps
1. Sill plate
2. Dash side trim cover

3. Body side rear lower trim cover
4. Door finisher

5. Front pillar trim cover

6. Rear end trim cover

7. Tongue side seat belt

8. Body side rear upper trim cover


Installation Steps
8. Body side rear upper trim cover

7. Tongue side seat belt

6. Rear end trim cover
5. Front pillar trim cover
4. Door finisher
3. Body side rear lower trim cover
2. Dash side trim cover
1. Sill plate

CAB 10-49


Important Operations - Removal
3. Body Side Rear Lower Trim Cover


Pry the trim cover clips free from the body panel.



5. Front Pillar Trim Cover


Turn up the finisher and pry the trim cover clips free
from the body panel.
Then remove the trim cover by pulling upward at the
lower part of it.




6. Rear End Trim Cover


Pry the trim cover clips free from the body panel, and
slide the trim cover upward to remove it.



7.
Tongue Side Seat Belt
1) Pull out the adjuster knob.
RTW3A0SH000301

2) Open the through ring anchor cover and remove the
seat belt upper anchor bolt.

10-50 CAB



8. Body Side Rear Upper Trim Cover

Pry the trim cover clips free from the body panel.

Important Operations - Installation
7. Tongue Side Seat Belt


Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1/30)




6. Rear End Trim Cover


Insert the hooks on the back upper portion of trim cove
r
to the body panel.

CAB 10-51
REMOVAL AND INSTALLATION



RTW4A0MF000401

CREW CAB Model
Removal Steps

1. Front sill plate/Rear sill plate
2. Dash side trim cover

3. Front pillar trim cover

4. Center pillar lower trim cover
5. Front door finisher
6. Cover

7. Rear end trim cover

8. Body side rear lower trim cover
9. Rear door finisher

10. Front tongue side seat belt

11. Center pillar upper trim cover
12. Rear tongue side seat belt

13. Body side rear upper trim cover


Installation Steps
13. Body side rear upper trim cover

12. Rear tongue side seat belt
11. Center pillar upper trim cover

10. Front tongue side seat belt
9 Rear door finisher
8. Body side rear lower trim cover

7. Rear end trim cover
6. Cover
5. Front door finisher
4. Center pillar lower trim cover
3. Front pillar trim cover
2. Dash side trim cover
1. Front sill plate/Rear sill plate

10-52 CAB


Important Operations - Removal
1. Front Sill Plate/Rear Sill Plate



Pull out the 4 clip positions (Front).


Pull out the 2 clip positions (Rear).



3. Front Pillar Trim Cover


Turn up the finisher and pry the trim cover clips free
from the body panel.
Then remove the trim cover by pulling upward a the
lower part of it.


4. Center Pillar Lower Trim Cover


Pry the trim cover lips free from the body panel.


7. Rear End Trim Cover


Pry the trim cover clips free from the body panel, and
slide the trim cover upward to remove it.


8. Body Side Rear Lower Trim Cover


Pry the trim cover clips free from the body panel.



10. Front Tongue Side Seat Belt
