ISUZU TF SERIES 2004 Workshop Manual

CAB 10-63
INSTALLATION (REGULAR CAB RHD MODEL)

686R300017

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate

10-64 CAB
INSTALLATION (EXTEND CAB RHD MODEL)

686R300019

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate

CAB 10-65
INSTALLATION (CREW CAB RHD MODEL)

686R300013

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover


5. Center pillar lower trim cover
6. Rear sill plate
7. Front sill plate

10-66 CAB
INSTALLATION (REGULAR CAB LHD MODEL)



RTW4A0LF000401

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate

CAB 10-67
INSTALLATION (EXTEND CAB LHD MODEL)



RTW4A0LF000501

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate

10-68 CAB
INSTALLATION (CREW CAB LHD MODEL)



RTW4A0LF000601

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover


5. Center pillar lower trim cover
6. Rear sill plate
7. Front sill plate

CAB 10-69


Important Operation - Installation
1. Fuel Filler Lid Cable Assembly


Install the cable holder of cable assembly to the recess
and push the grommet in to the back panel. Fix the clips
to the pointed places.
Note:
To install, follow the removal steps in the reverse order,
noting the following points.





Do not make extreme curve on the cable.





Install the cable from inside of the cab.

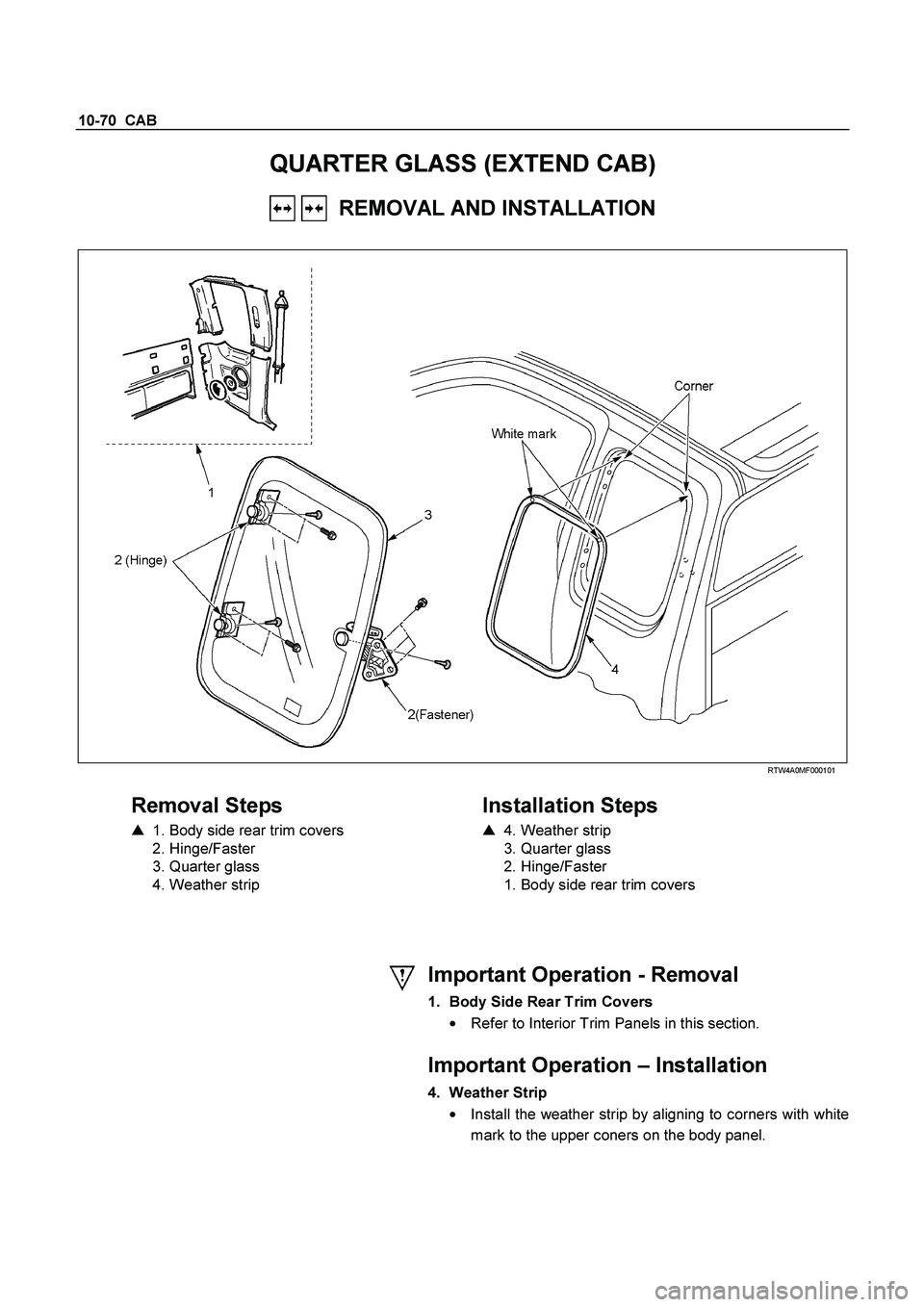

10-70 CAB
QUARTER GLASS (EXTEND CAB)
REMOVAL AND INSTALLATION



RTW4A0MF000101

Removal Steps

1. Body side rear trim covers
2. Hinge/Faster
3. Quarter glass
4. Weather strip

Installation Steps


4. Weather strip
3. Quarter glass
2. Hinge/Faster
1. Body side rear trim covers







Important Operation - Removal
1. Body Side Rear Trim Covers
Refer to Interior Trim Panels in this section.

Important Operation – Installation
4. Weather Strip
Install the weather strip by aligning to corners with white
mark to the upper coners on the body panel.

CAB 10-71
FRONT SEAT
REMOVAL AND INSTALLATION

RTW3A0MF000301

Removal Steps

1. Front cover
2. Rear cover
3. Bolt

4. Seat assembly

5. Side seat belt buckle/Pretensioner seat
belt/Center seat belt
6. Seat adjuster

Installation Steps
6. Seat adjuster

5. Side seat belt buckle/Pretensioner seat
belt/Center seat belt
4. Seat assembly

3. Bolt
2. Rear cover
1. Front cover

10-72 CAB


Important Operations - Removal
1. Front Cover


While pushing the cover downward, pull it.
4. Seat Assembly


Disconnect the seat belt warning harness connecto
r
(Driver’s side only).



5. Side Seat Belt Buckle/Pretensioner Seat Belt/Center
Seat Belt


Remove the seat belt fixing screw and the warning
harness connector clip (Bucket seat model).




RTW4A0SH000101-X



Remove the pretensioner seat belt fixing screw and the
warning harness connector (With pretensioner seat bel
t
model).



Remove the seat belt fixing screws and the warning
harness connector clip (Bench seat model).


Important Operations – Installation
5. Buckle Side Seat Belt/Pretensioner Seat Belt/Center
Seat Belt


Tighten the seat belt fixing screws to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
