3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-51

GENERAL DESCRIPTION FOR ECM AND
SENSORS
Engine Control Module (ECM)


1 2
(1) A Port
(2) B Port


The engine control module (ECM) is located on the
common chamber. The ECM controls the following.

Fuel metering system

Ignition timing

On-board diagnostics for powertrain functions.

The ECM constantly observes the information from
various sensors. The ECM controls the systems tha
t
affect vehicle performance. And it performs the
diagnostic function of the system.
The function can recognize operational problems, and
warn to the driver through the check engine lamp, and
store diagnostic trouble code (DTC). DTCs identify the
problem areas to aid the technician in marking repairs.

The input / output devices in the ECM include analog to
digital converts, signal buffers, counters and drivers.
The ECM controls most components with electronic
switches which complete a ground circuit when turned
on.

Inputs (Operating condition read):

Battery voltage

Electrical ignition

Exhaust oxygen content

Mass air flow

Intake air temperature

Engine coolant temperature

Crankshaft position

Camshaft position

Throttle position

Vehicle speed

Power steering pressure

Air conditioning request on or off

EGR valve position

Outputs (Systems controlled):

Ignition control

Fuel control

Idle air control

Fuel pump

EVAP canister purge

Air conditioning

Diagnostics functions

The vehicle with automatic transmission, the
interchange of data between the engine control module
(ECM) and the transmission control module (TCM) is
performed via a CAN-bus system.
The following signals are exchanged via the CAN-bus:

ECM to TCM:

ECM CAN signal status

Engine torque

Coolant temperature

Throttle position

Engine speed

A/C status

CAN valid counter

TCM to ECM:

Ignition timing retard request

Garage shift status

CAN valid counter

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-55
Vehicle Speed Sensor (VSS)



The VSS is a magnet rotated by the transmission output
shaft. The VSS uses a hall element. It interacts with the
magnetic field treated by the rotating magnet. It outputs
pulse signal. The 12 volts operating supply from the
meter fuse.
Heated Oxygen (O2) Sensor




1
(1) Bank 1 Heated Oxygen Sensor (RH)






1
(1) Bank 2 Heated Oxygen Sensor (LH)

Each oxygen sensor consists of a 4-wire low
temperature activated zirconia oxygen analyzer elemen
t
with heater for operating temperature of 315C, and
there is one mounted on each exhaust pipe.
A constant 450millivolt is supplied by the ECM between
the two supply terminals, and oxygen concentration in
the exhaust gas is reported to the ECM as returned
signal voltage.
The oxygen present in the exhaust gas reacts with the
sensor to produce a voltage output. This voltage should
constantly fluctuate from approximately 100mV to
1000mV and the ECM calculates the pulse width
commanded for the injectors to produce the prope
r
combustion chamber mixture.
Low oxygen sensor output voltage is a lean mixture
which will result in a rich commanded to compensate.
High oxygen sensor output voltage is a rich mixture
which result in a lean commanded to compensate.
When the engine is first started the system is in "Open
Loop" operation. In "Open Loop", the ECM ignores the
signal from the oxygen sensors. When various
conditions (ECT, time from start, engine speed &
oxygen sensor output) are met, the system enters
"Closed Loop" operation. In "Closed Loop", the ECM
calculates the air fuel ratio based on the signal from the
oxygen sensors.

Heated oxygen sensors are used to minimize the
amount of time required for closed loop fuel control to
begin operation and allow accurate catalyst monitoring.
The oxygen sensor heater greatly decreases the
amount of time required for fuel control sensors to
become active.
Oxygen sensor heaters are required by catalyst monito
r
and sensors to maintain a sufficiently high temperature
which allows accurate exhaust oxygen content readings
further away from the engine.

6E-66 3.5L ENGINE DRIVEABILITY AND EMISSIONS
 Does it rely on some mechanical/vacuum
device to operate?

Physical:
 Where are the circuit components (componen
t
locators and wire harness routing diagrams):

Are there areas where wires could be
chafed or pinched (brackets or frames)?

Are there areas subjected to extreme
temperatures?

Are there areas subjected to vibration or
movement (engine, transmission or
suspension)?

Are there areas exposed to moisture, road
salt or other corrosives (battery acid, oil o
r
other fluids)?

Are there common mounting areas with
other systems/components?
 Have previous repairs been performed to
wiring, connectors, components or mounting
areas (causing pinched wires between panels
and drivetrain or suspension components
without causing and immediate problem)?
 Does the vehicle have aftermarket or dealer-
installed equipment (radios, telephone, etc.)

Step 2: Isolate the problem
At this point, you should have a good idea of what could
cause the present condition, as well as could not cause
the condition. Actions to take include the following:

Divide (and separate, where possible) the system
or circuit into smaller sections

Confine the problem to a smaller area of the
vehicle (start with main harness connections while
removing panels and trim as necessary in order to
eliminate large vehicle sections from furthe
r
investigation)

For two or more circuits that do not share a
common power or ground, concentrate on areas
where harnesses are routed together o
r
connectors are shared (refer to the following hints)

Hints
Though the symptoms may vary, basic electrical failures
are generally caused by:

Loose connections:
 Open/high resistance in terminals, splices,
connectors or grounds

Incorrect connector/harness routing (usually in
new vehicles or after a repair has been made):

 Open/high resistance in terminals, splices,
connectors of grounds

Corrosion and wire damage:
 Open/high resistance in terminals, splices,
connectors of grounds

Component failure:
 Opens/short and high resistance in relays,
modules, switches or loads


Aftermarket equipment affecting normal operation
of other systems You may isolate circuits by:

Unplugging connectors or removing a fuse to
separate one part of the circuit from another part

Operating shared circuits and eliminating those
that function normally from the suspect circuit

If only one component fails to operate, begin
testing at the component

If a number of components do no operate, begin
tests at the area of commonality (such as powe
r
sources, ground circuits, switches or majo
r
connectors)
What resources you should use
Whenever appropriate, you should use the following
resources to assist in the diagnostic process:

Service manual

Technical equipment (for data analysis)

Experience

Technical Assistance

Circuit testing tools
5d. Intermittent Diagnosis
By definition, an intermittent problem is one that does
not occur continuously and will occur when certain
conditions are met. All these conditions, however, may
not be obvious or currently known. Generally,
intermittents are caused by:

Faulty electrical connections and wiring

Malfunctioning components (such as sticking
relays, solenoids, etc.)

EMI/RFI (Electromagnetic/radio frequency
interference)

Aftermarket equipment
Intermittent diagnosis requires careful analysis of
suspected systems to help prevent replacing good
parts. This may involve using creativity and ingenuity to
interpret customer complaints and simulating all
external and internal system conditions to duplicate the
problem.

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-71
Basic Knowledge of Tools Required
Lack of basic knowledge of this powertrain when
performing diagnostic procedures could result in an
incorrect diagnosis or damage to powertrain
components. Do not attempt to diagnose a powertrain
problem without this basic knowledge.
A basic understanding of hand tools is necessary to
effectively use this section of the Service Manual.
Serial Data Communications
Class II Serial Data Communications
This vehicle utilizes the “Class II" communication
system. Each bit of information can have one of two
lengths: long or short. This allows vehicle wiring to be
reduced by transmitting and receiving multiple signals
over a single wire. The messages carried on Class II
data streams are also prioritized. If two messages
attempt to establish communications on the data line at
the same time, only the message with higher priority will
continue. The device with the lower priority message
must wait. The most significant result of this regulation
is that it provides Tech 2 manufacturers with the
capability to access data from any make or model
vehicle that is sold.
The data displayed on the other Tech 2 will appear the
same, with some exceptions. Some scan tools will only
be able to display certain vehicle parameters as values
that are a coded representation of the true or actual
value. For more information on this system of coding,
refer to Decimal/Binary/Hexadecimal Conversions.On
this vehicle the Tech 2 displays the actual values fo
r
vehicle parameters. It will not be necessary to perform
any conversions from coded values to actual values.
On-Board Diagnostic (OBD)
On-Board Diagnostic Tests
A diagnostic test is a series of steps, the result of which
is a pass or fail reported to the diagnostic executive.
When a diagnostic test reports a pass result, the
diagnostic executive records the following data:

The diagnostic test has been completed since the
last ignition cycle.

The diagnostic test has passed during the curren
t
ignition cycle.

The fault identified by the diagnostic test is no
t
currently active.
When a diagnostic test reports a fail result, the
diagnostic executive records the following data:

The diagnostic test has been completed since the
last ignition cycle.

The fault identified by the diagnostic test is currently
active.

The fault has been active during this ignition cycle.

The operating conditions at the time of the failure.
Remember, a fuel trim DTC may be triggered by a list o
f
vehicle faults. Make use of all information available
(other DTCs stored, rich or lean condition, etc.) when
diagnosing a fuel trim fault.
Comprehensive Component Monitor
Diagnostic Operation
Input Components:
Input components are monitored for circuit continuity
and out-of-range values. This includes rationality
checking. Rationality checking refers to indicating a
fault when the signal from a sensor does not seem
reasonable, i.e.throttle position sensor that indicates
high throttle position at low engine loads. Inpu
t
components may include, but are not limited to the
following sensors:

Vehicle Speed Sensor (VSS)

Inlet Air Temperature (IAT) Sensor

Crankshaft Position (CKP) Sensor

Throttle Position Sensor (TPS)

Engine Coolant Temperature (ECT) Sensor

Camshaft Position (CMP) Sensor

Mass Air Flow (MAF) Sensor
In addition to the circuit continuity and rationality check
the ECT sensor is monitored for its ability to achieve a
steady state temperature to enable closed loop fuel
control.
Output Components:
Output components are diagnosed for proper response
to control module commands. Components where
functional monitoring is not feasible will be monitored fo
r
circuit continuity and out-of-range values if applicable.
Output components to be monitored include, but are no
t
limited to, the following circuit:

Idle Air Control (IAC) Valve

Control module controlled EVAP Canister Purge
Valve

Electronic Transmission controls

A/C relays

VSS output

MIL control
Refer to ECM and Sensors in General Descriptions.

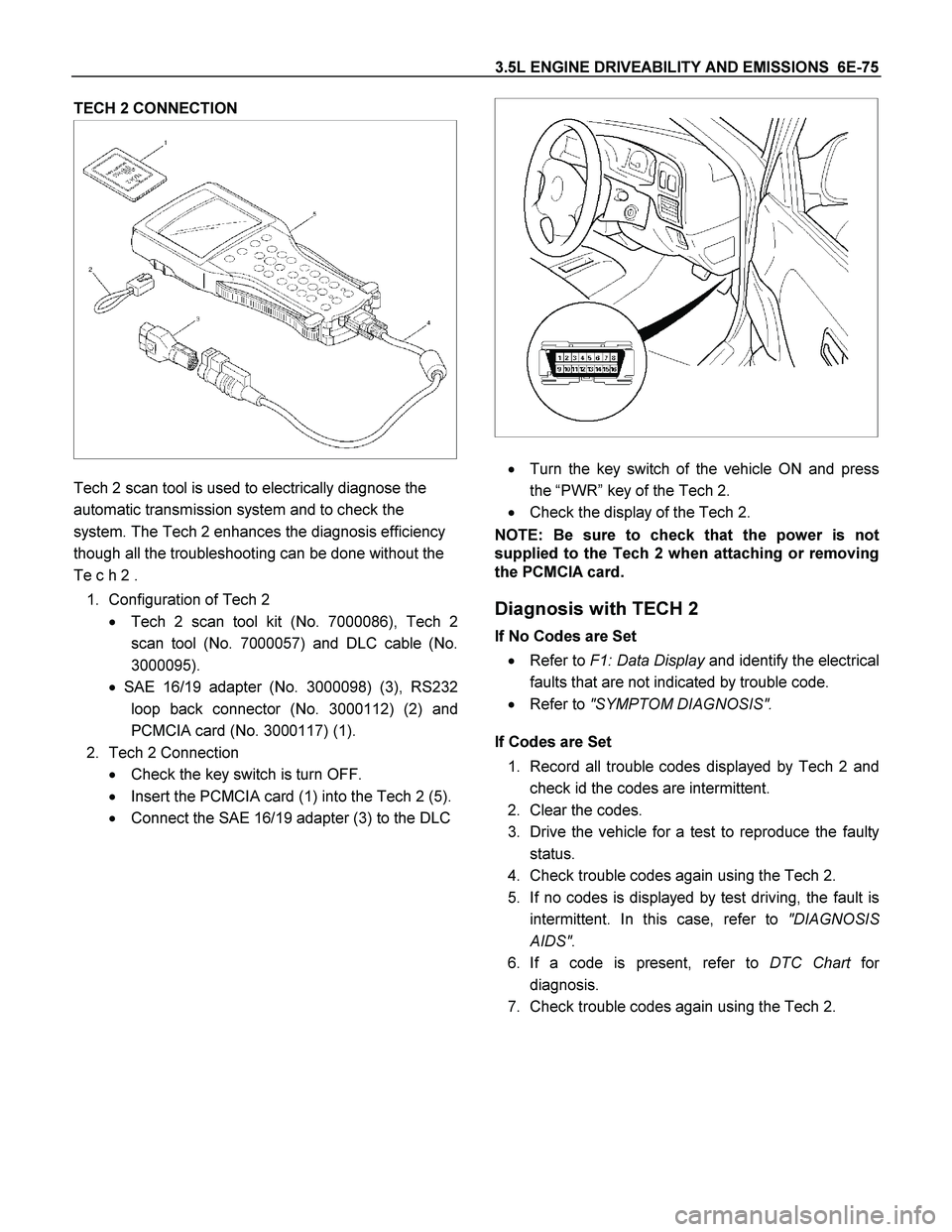

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-75
TECH 2 CONNECTION



Tech 2 scan tool is used to electrically diagnose the
automatic transmission system and to check the
system. The Tech 2 enhances the diagnosis efficiency
though all the troubleshooting can be done without the
Te c h 2 .
1. Configuration of Tech 2

Tech 2 scan tool kit (No. 7000086), Tech 2
scan tool (No. 7000057) and DLC cable (No.
3000095).

SAE 16/19 adapter (No. 3000098) (3), RS232
loop back connector (No. 3000112) (2) and
PCMCIA card (No. 3000117) (1).
2. Tech 2 Connection

Check the key switch is turn OFF.

Insert the PCMCIA card (1) into the Tech 2 (5).

Connect the SAE 16/19 adapter (3) to the DLC





Turn the key switch of the vehicle ON and press
the “PWR” key of the Tech 2.

Check the display of the Tech 2.
NOTE: Be sure to check that the power is not
supplied to the Tech 2 when attaching or removing
the PCMCIA card.
Diagnosis with TECH 2
If No Codes are Set

Refer to F1: Data Display and identify the electrical
faults that are not indicated by trouble code.

Refer to "SYMPTOM DIAGNOSIS".

If Codes are Set
1. Record all trouble codes displayed by Tech 2 and
check id the codes are intermittent.
2. Clear the codes.
3. Drive the vehicle for a test to reproduce the faulty
status.
4. Check trouble codes again using the Tech 2.
5. If no codes is displayed by test driving, the fault is
intermittent. In this case, refer to "DIAGNOSIS
AIDS".
6. If a code is present, refer to DTC Chartfo
r
diagnosis.
7. Check trouble codes again using the Tech 2.

6E-92 3.5L ENGINE DRIVEABILITY AND EMISSIONS

2.Demand of Data
1.
Connect Tech-2 to the vehicle. When activated b
y
turning on the power of Tech-2, push the "Enter"
switch.
2.
Turn on the ignition switch (without starting the
engine)
3.
In the main menu of Tech 2, push "F1: Service
Programming System (SPS)".
4.
Push "F0: Request Info" of Tech-2.

5.
Where vehicle data has been already saved in
Tech-2, the existing data come on display. In this
instance, as Tech-2 starts asking whether to keep
the data or to continue obtaining anew data from
the control unit, choose either of them.





6.
If you select “continue”, you have to select “Model
Year”, “Vehicle Type”.
7.
After that. then push button and turn Ignition switch
tuned on, off, on following Tech-2 display. Tech-2
will read information from controller after this
procedure.
8.
During obtaining information, Tech-2 is receiving
information from the control unit ECM and TCM
(A/T only) at the same time. With VIN not being
programmed into the new control unit at the time
of shipment, "obtaining information" is not
complete (because the vehicle model, engine
model and model year are specified from VIN). Fo
r
the procedure get additional information on
vehicles, instruction will be provided in dialog form,
when TIS2000 is in operation.
9.
Following instructions by Tech-2, push the "Exit"
switch of Tech-2, turn off the ignition of the vehicle
and turn off the power of Tech-2, thereby removing
from the vehicle.


3.Data Exchange
1.
Connect Tech-2 to P/C, turn on the power and
click the "Next" button of P/C.
2. Check VIN of the vehicle and choose "Next".
3. Select “System Type” for required control unit.


Engine (Programming for ECM or PCM)


Transmission (Programming for TCM)
4.
When a lack of data is asked from among the
following menu, enter accordingly.

Select following Menu


Model Year


Model


Engine type


Transmission type


Destination code (vehicles for general export)*1


Immobilizer
Etc.
* 1: How to read the destination code
"Destination code can be read from service ID Plate
affixed on vehicles, while on service ID plate the
destination code is described at the right-hand edge o
f
Body Type line. In the figure, the destination code can
be read as "RR3" (Australia).

6E-212 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0171 B O2 Sensor System Too
Lean (Bank 1) 44

P0174 B O2 Sensor System Too
Lean (Bank 2) 1. No DTC relating to MAF sensor, IAT sensor, ECT sensor,
TPS, CMP sensor, CKP sensor, VSS, injector control
circuit, ignition control circuit, O2 sensor circuit low voltage
& high voltage (bank 1 & 2) and O2 sensor circuit no
activity (bank 1 & 2).
2. Engine speed is more than 600rpm.
3. Intake air temperature is more than 50
C.
4. Engine coolant temperature is between 35
C and 120
C.
5. Engine load is more than 20%.
6. EVAP purge solenoid valve on-duty is below 100%.
7. Air-fuel ratio correction volume is more than 150%
for 20 seconds. No fail-safe function.




CIRCUIT DESCRIPTION
To provide the best possible combination of driveability,
fuel economy, and emission control, a “closed loop"
air/fuel metering system is used. While in “closed loop,"
the Engine Control Module (ECM) monitors the HO2S
signals and adjusts fuel delivery based upon the HO2S
signal voltages. A change made to fuel delivery will be
indicated by the long and short term fuel trim values
which can be monitored with a Tech 2. Ideal fuel trim
values are around 0%; if the HO2S signals are
indicating a lean condition the ECM will add fuel,
resulting in fuel trim values above 0%. If a rich condition
is detected, the fuel trim values will be below 0%,
indicating that the ECM is reducing the amount of fuel
delivered. If an excessively lean condition is detected,
the ECM will set DTC P0171 or P0174.
The ECM's maximum authority to control long term fuel
trim allows a range between –15% (automatic
transmission) or –12% (manual transmission) and
+20%. The ECM monitors fuel trim under various
engine speed/load fuel trim cells before determining the
status the fuel trim diagnostic.

DIAGNOSTIC AIDS
Check for the following conditions:
 Poor connection at ECM – Inspect harness
connectors for backed-out terminals, imprope
r
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connection.
 Damaged harness – Inspect the wiring harness fo
r
damage. If the harness appears to be OK, observe
the HO2S display on the Tech 2 while moving
connectors and wiring harnesses related to the
engine harness. A change in the display will indicate
the location of the fault.

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-217
Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0172 B O2 Sensor System Too
Rich (Bank 1) 45
P0175 B O2 Sensor System Too
Rich (Bank 2) 1. No DTC relating to MAF sensor, IAT sensor, ECT sensor,
TPS, CMP sensor, CKP sensor, VSS, injector control
circuit, ignition control circuit, O2 sensor circuit low voltage
& high voltage (bank 1 & 2) and O2 sensor circuit no
activity (bank 1 & 2).
2. Engine speed is more than 600rpm.
3. Intake air temperature is more than 50
C.
4. Engine coolant temperature is between 35
C and 120
C.
5. Engine load is more than 20%.
6. EVAP purge solenoid valve on-duty is below 100%.
7. Air-fuel ratio correction volume is below 50% for 20
seconds. No fail-safe function.


CIRCUIT DESCRIPTION
To provide the best possible combination of driveability,
fuel economy, and emission control, a “closed loop"
air/fuel metering system is used. While in “closed loop,"
the Engine Control Module (ECM) monitors the heated
oxygen sensors (HO2S) signals and adjusts fuel
delivery based upon the HO2S signal voltages.
A
change made to fuel delivery will be indicated by the
long and short term fuel trim values which can be
monitored with a Tech 2. Ideal fuel trim values are
around 0%; if the HO2S signals are indicating a lean
condition the ECM will add fuel, resulting in fuel trim
values above 0%. If a rich condition is detected, the fuel
trim values will be below 0%, indicating that the ECM is
reducing the amount of fuel delivered. If an excessively
rich condition is detected on Bank 1, the ECM will se
t
DTC P0172 or P0175.
The ECM's maximum authority to control long term fuel
trim allows a range between –15% (automatic
transmission) or –12 (manual transmission) and +20%.
The ECM's maximum authority to control short term fuel
trim allows a range between –11% and +20%. The ECM
monitors fuel trim under various engine speed/load fuel
trim cells before determining the status of the fuel trim
diagnostic.

DIAGNOSTIC AIDS
Check for the following conditions:
 Poor connection at ECM – Inspect harness
connectors for backed-out terminals, imprope
r
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connection.
 Damaged harness –Inspect the wiring harness fo
r
damage. If the harness appears to be OK, observe
the HO2S display on the Tech 2 while moving
connectors and wiring harnesses related to the
engine harness. A change in the display will indicate
the location of the fault.

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-279
DIAGNOSTIC TROUBLE CODE (DTC) P0500 (FLASH CODE 24) VEHICLE
SPEED SENSOR (VSS) CIRCUIT RANGE/PERFORMANCE



RTW46EMF000301

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
24 P0500 B Vehicle Speed Sensor
Circuit
Range/Performance 1. Engine speed is below 5000rpm.
2. Under fuel cut operation.
3. Vehicle speed sensor output is below 1km/h.
Above conditions are met for 4 seconds. The ECM use 10km/h condition as
substitute.


CIRCUIT DESCRIPTION
The vehicle speed sensor has a magnet rotated by the
transmission output shaft. Attached to the sensor is a
hall effect circuit the interacts with the magnetic field
treated by the rotating magnet. A 12-volt operating
supply for the speed sensor hall circuit is supplied from
the meter fuse. The VSS pulses to ground the 9-vol
t
signal sent from the Engine Control Module (ECM) on
the reference circuit. The ECM interprets vehicle speed
by the number of pulses to ground per second on the
reference circuit.

DIAGNOSTIC AIDS
An intermittent may be caused by a poor connection,
rubbed–through wire insulation or a wire broken inside
the insulation. Check for:
 Poor connection —Inspect the ECM harness and
connectors for improper mating, broken locks,
improperly formed or damaged terminals, and poo
r
terminal-to-wire connection.
 Damaged harness —Inspect the wiring harness fo
r
damage.

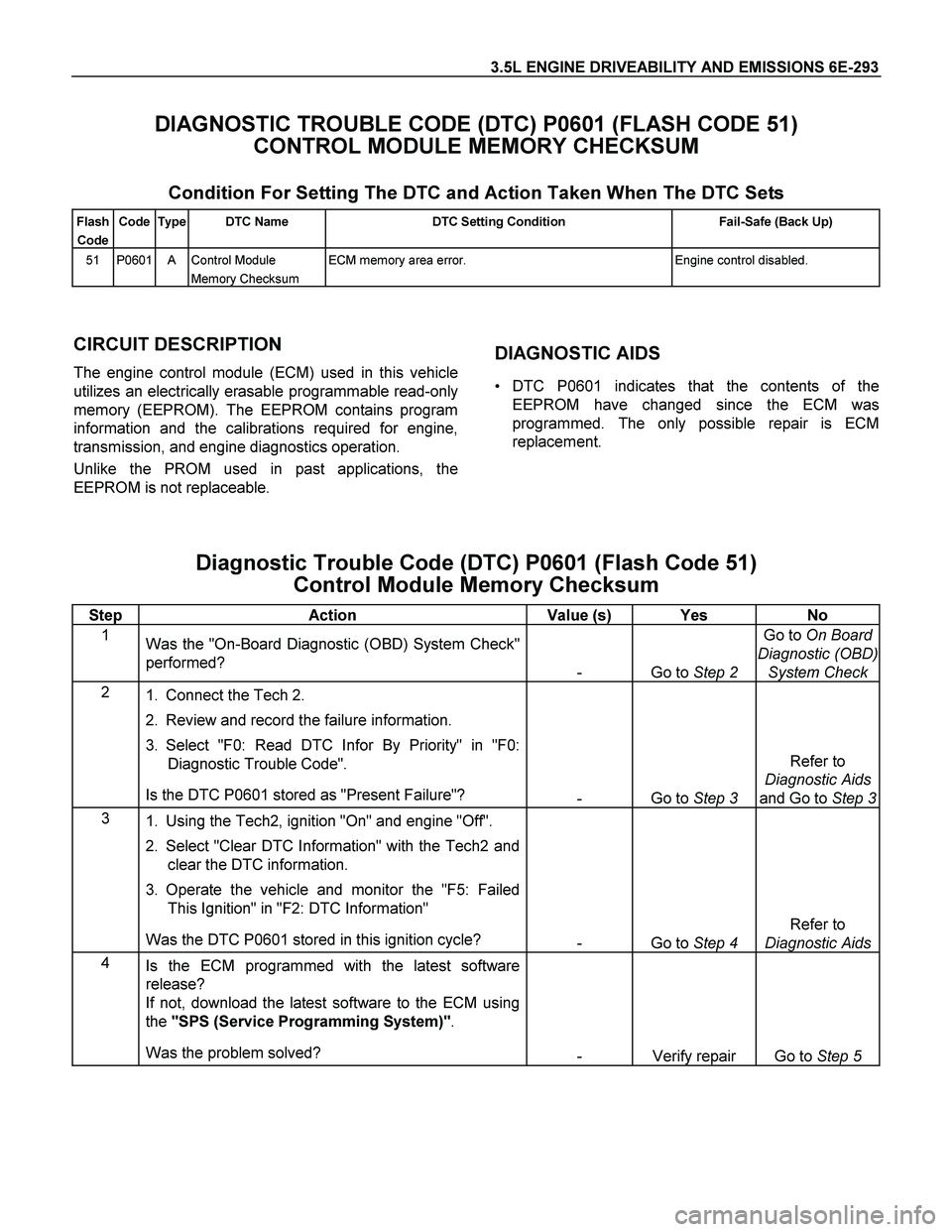

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-293
DIAGNOSTIC TROUBLE CODE (DTC) P0601 (FLASH CODE 51)
CONTROL MODULE MEMORY CHECKSUM

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
51 P0601 A Control Module
Memory Checksum ECM memory area error. Engine control disabled.


CIRCUIT DESCRIPTION
The engine control module (ECM) used in this vehicle
utilizes an electrically erasable programmable read-only
memory (EEPROM). The EEPROM contains program
information and the calibrations required for engine,
transmission, and engine diagnostics operation.
Unlike the PROM used in past applications, the
EEPROM is not replaceable.

DIAGNOSTIC AIDS
 DTC P0601 indicates that the contents of the
EEPROM have changed since the ECM was
programmed. The only possible repair is ECM
replacement.


Diagnostic Trouble Code (DTC) P0601 (Flash Code 51)
Control Module Memory Checksum
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Connect the Tech 2.
2. Review and record the failure information.
3. Select "F0: Read DTC Infor By Priority" in "F0:
Diagnostic Trouble Code".
Is the DTC P0601 stored as "Present Failure"?
- Go to Step 3 Refer to
Diagnostic Aids
and Go to Step 3
3
1. Using the Tech2, ignition "On" and engine "Off".
2. Select "Clear DTC Information" with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the "F5: Failed
This Ignition" in "F2: DTC Information"
Was the DTC P0601 stored in this ignition cycle?
- Go to Step 4 Refer to
Diagnostic Aids
4
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 5
