ISUZU TF SERIES 2004 Workshop Manual

ELECTRICAL-BODY AND CHASSIS 8A-153

HEADLIGHT LEVELING SWITCH
Incorrect beam angle due to load change can be corrected.
A four position switch, 0-3, can alter the beam angle through
1.7 degrees on the long wheel base model and 2.17 degrees
on the short wheel base model.
825R300049

Inspection
Check to see if there is any continuity between the terminals of
the leveling switch.
Replace the switch when the result of inspection is found
abnormal.



Removal
Preparation:
Disconnect the battery ground cable.
1. Ventilation grille
2. Harness connector
3. Headlight leveling switch
To remove the switch, push the lock from the back side of
the cluster assembly.



Installation
To install, follow the removal steps in the reverse noting the
following point.
1. Push in the switch with your fingers until it locks securely.

8A-154 ELECTRICAL-BODY AND CHASSIS
ILLUMINATION
PARTS LOCATION (RHD)




RTW38DMF016201 & RTW38DMF016301

ELECTRICAL-BODY AND CHASSIS 8A-155

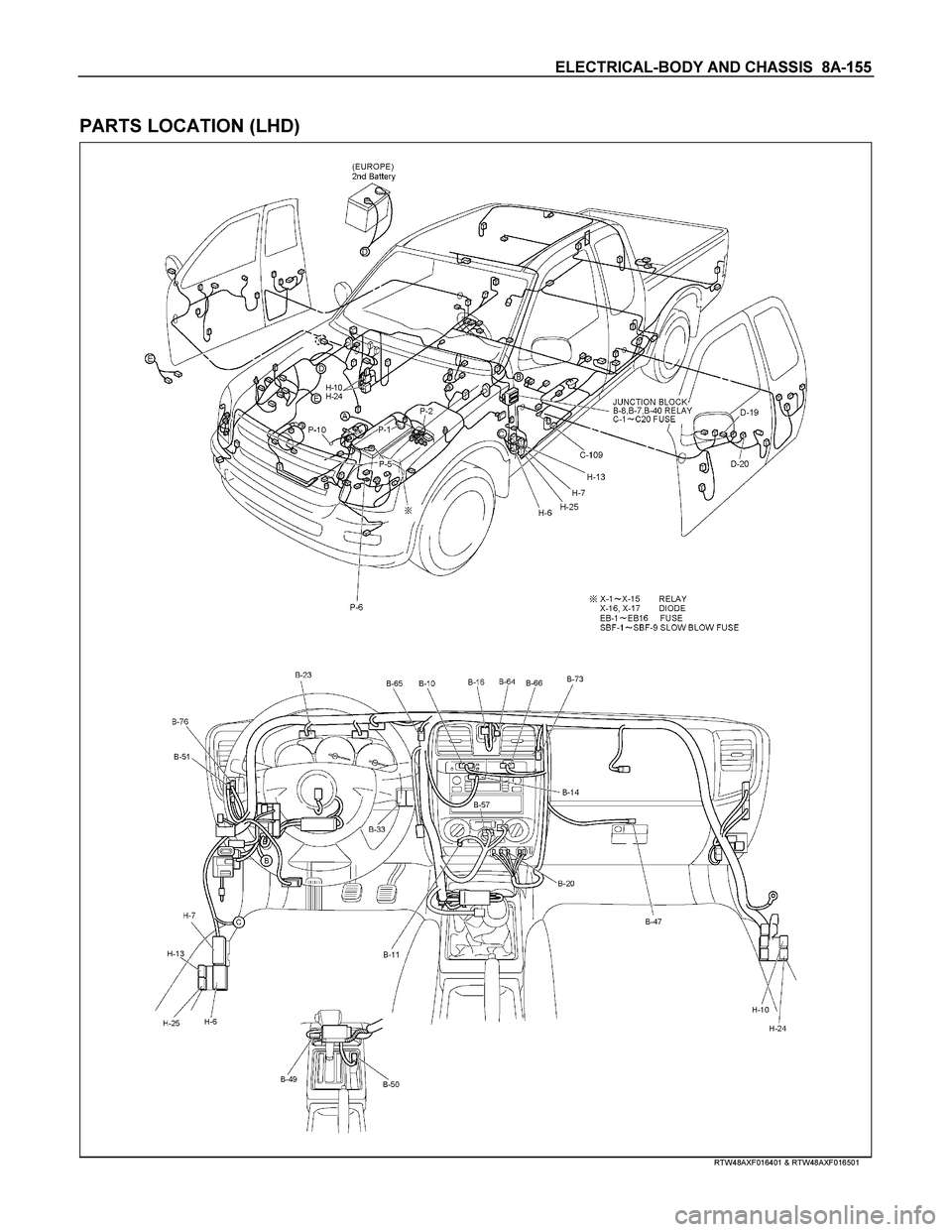

PARTS LOCATION (LHD)





RTW48AXF016401 & RTW48AXF016501

8A-156 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM (RHD) G.EXP





RTW48AXF011901

ELECTRICAL-BODY AND CHASSIS 8A-157

CIRCUIT DIAGRAM (RHD) EUROPE





RTW48AXF012001

8A-158 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM (LHD) G.EXP




RTW48AXF011801

ELECTRICAL-BODY AND CHASSIS 8A-159

CIRCUIT DIAGRAM (LHD) EUROPE







RTW48AXF012101

8A-160 ELECTRICAL-BODY AND CHASSIS


RTU4Z0SH000901
ILLUMINATION SWITCH




RTW48ASH000601

Inspection
Check to see if there is any continuity between the terminals of
the switch.
Replace the switch when the result of inspection is found
abnormal.




RTW48ASH000501

Removal
Preparation:
Disconnect the battery ground cable.
1. Instrument panel driver lower cover assembly
Refer to the removal steps Sec.10
2. Harness switch
3. Illumination control
To remove the switch, push the lock from the back side of
the cluster assembly.
4. Remove the bulb.

ELECTRICAL-BODY AND CHASSIS 8A-161
HAZARD WARNING FLASHER, TURN SIGNAL LIGHT, BACK UP
LIGHT, HORN AND STOP LIGHT
PARTS LOCATION (RHD)






RTW48AXF016601 & RTW48AXF016701

8A-162 ELECTRICAL-BODY AND CHASSIS

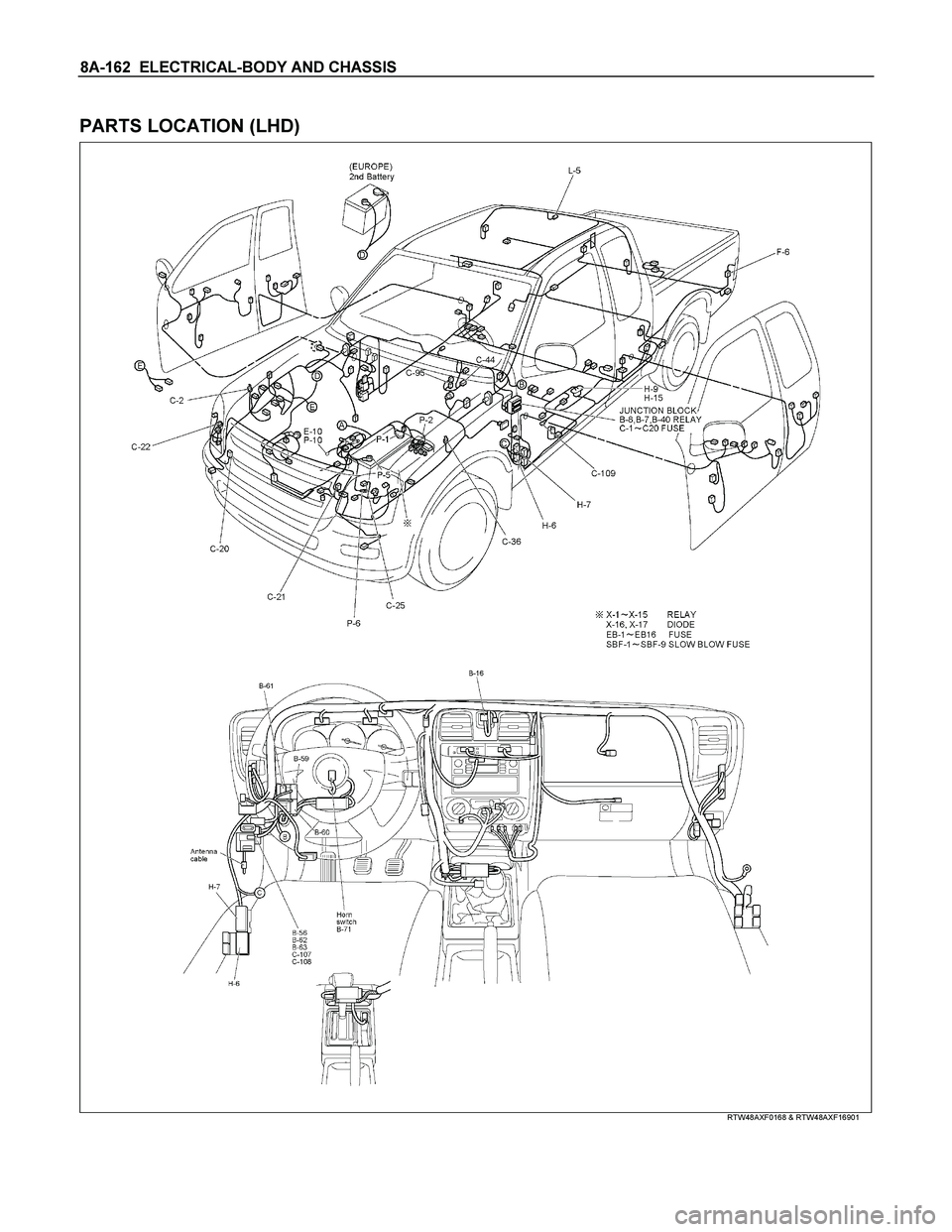

PARTS LOCATION (LHD)






RTW48AXF0168 & RTW48AXF16901
