ISUZU TF SERIES 2004 Workshop Manual

ELECTRICAL-BODY AND CHASSIS 8A-183

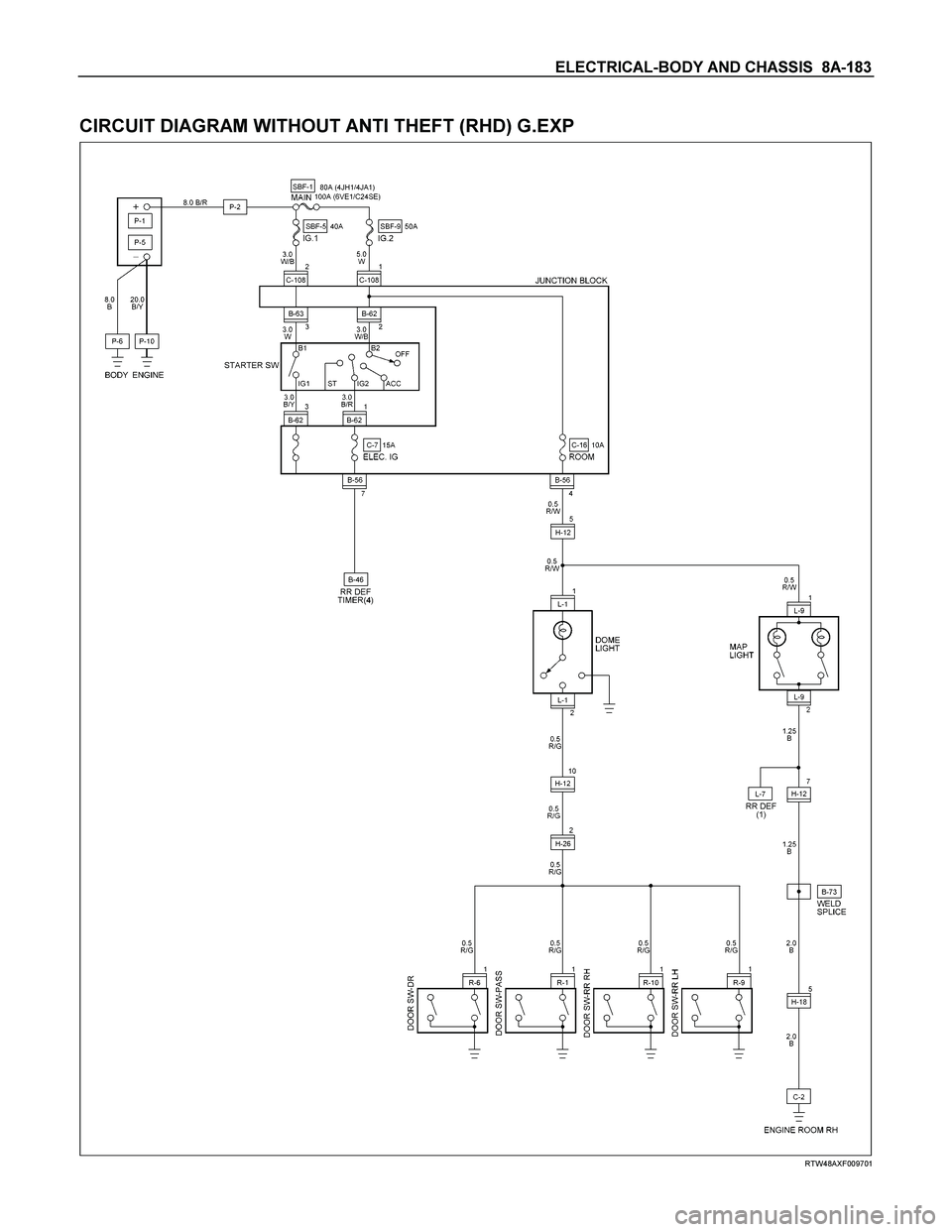

CIRCUIT DIAGRAM WITHOUT ANTI THEFT (RHD) G.EXP




RTW48AXF009701

8A-184 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM WITH ANTI THEFT (RHD) G.EXP




RTW48AXF009801

ELECTRICAL-BODY AND CHASSIS 8A-185

CIRCUIT DIAGRAM WITHOUT ANTI THEFT (RHD) EUROPE




RTW48AXF032001

8A-186 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM WITH ANTI THEFT (RHD) EUROPE




RTW48AXF010001

ELECTRICAL-BODY AND CHASSIS 8A-187

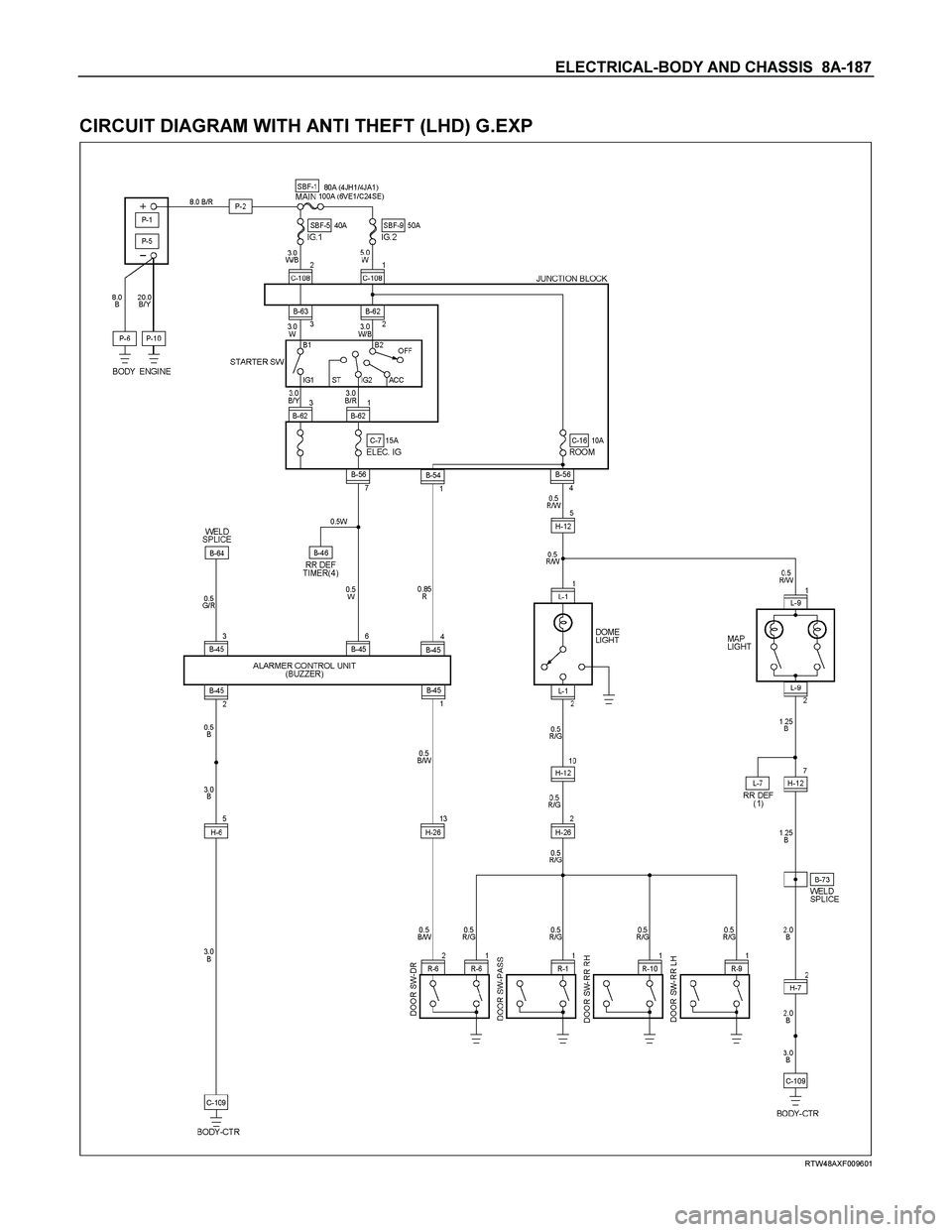

CIRCUIT DIAGRAM WITH ANTI THEFT (LHD) G.EXP




RTW48AXF009601

8A-188 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM WITH ANTI THEFT (LHD) G.EXP




RTW48AXF031901

ELECTRICAL-BODY AND CHASSIS 8A-189

CIRCUIT DIAGRAM WITHOUT ANTI THEFT (LHD) EUROPE




RTW48AXF009901

8A-190 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM WITH ANTI THEFT (LHD) EUROPE




RTW48AXF032101

ELECTRICAL-BODY AND CHASSIS 8A-191
TROUBLESHOOTING
1. Dome light dose not light

Checkpoint Trouble Cause Countermeasure


Replace the dome light bulb

Burned out the bulb
NG

Repair or replace the dome
light assembly

Dome light switch function

Switch malfunction


Repair open circuit or
connector contact

Continuity between
connector 5
H-12 - 1 L-1


Open circuit or poor connector
contact
NG NG OK
OK

Dome light bulb continuity




2. Dome light does not go out


Repair or replace the door
switch

Switch malfunction or foreign
material switch
NG

Repair short circuit or
connector contact
Continuity between
connector 2
L-1 -ground
when shutting the door
(Should be no continuity)
Short circuit
NG OK

Door switch function (Both
side)

8A-192 ELECTRICAL-BODY AND CHASSIS
REMOVAL AND INSTALLATION









DOME LIGHT
Removal
1. Remove the dome light lens 1 free.
2. Remove two dome light fixing screws.
3. Remove the wiring connector.
4. Remove the dome light.
5. Pull the bulb
2 to remove it.







Installation
Follow the removal procedure in the reverse order to install the
dome light.
Pay close attention to the important points mentioned in the
following paragraphs.



Bulb
Be absolutely sure that the dome light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.
