ISUZU TROOPER 1998 Service Repair Manual
Manufacturer: ISUZU, Model Year: 1998, Model line: TROOPER, Model: ISUZU TROOPER 1998Pages: 3573, PDF Size: 60.36 MB
Page 201 of 3573

AIR CONDITIONING 1BÐ75
FULL AUTO display
INTAKE indication
(LED)
(switching between
fresh and interior air)
MODE indication
(LED) (Blow port)
AC display (LED)
FAN indication (LED)
FAN KNOB
AUTO SET
REC FRESH SWITCH
TEMP LEVER
(temperature control)
MODE SWITCH
(blow port selection)
AC SWITCH
IN CAR SENSOR
AMBIENT SENSOR
SUN SENSOR
DUCT SENSOR
MIX ACTUATOR
POTENTIOMETER
MODE ACTUATOR
POTENTIOMETER
AIR MIX DOOR
MODE DOOR
INTAKE ACTUATOR
RECINTAKE DOOR
FAN MOTORPOWER
TRANSISTOR
AUTOMATIC HEATER/AIR CONDITIONER CONTROL UNIT (with the built-in micro-computer)
MAX HI RELAY
PRESSURE
SWITCHAIR CONDITIONER
THERMO RELAY
COMPRESSOR
SWITCH MAGNET
CLUTCH
PCM
PRESSURE
SWITCHAIR CONDITIONER
THERMO RELAYMAGNET
CLUTCH
(4JX1engine)
MIX FRESH
FULL AUTOMATIC AIR CONDITIONER BLOCK DIAGRAM
F01RY00009
Page 202 of 3573

1BÐ76 AIR CONDITIONING
10
71
1
5
6
12
13
11
2
3
4
8
9
852RY00001
Legend
(1) Liquid Line (High Pressure Pipe)
(2) Pressure Switch
(3) Ambient Sensor
(4) Receiver Drier
(5) Discharge Line (High Pressure Hose)
(6) Suction Line (Low Pressure Hose)(7) Compressor
(8) Condenser Assembly
(9) Drive Belt
(10) Compressor Bracket
(11) Drain Hose
(12) Evaporator Assembly
(13) O-ring
AIR CONDITIONING PARTS
6VE1 (RHD)
Page 203 of 3573

AIR CONDITIONING 1BÐ77
910
6
12
13
3
2
4
5
7
8 11
1
852RY00002
Legend
(1) Liquid Line (High-Pressure Pipe)
(2) O-ring
(3) Discharge Line (High-Pressure Hose)
(4) Pressure Switch
(5) Receiver Drier
(6) Ambient Sensor(7) Condenser Assembly
(8) Drive Belt
(9) Compressor
(10) Drain Hose
(11) Suction Line (Low-Pressure Hose)
(12) Evaporator Assembly
(13) A/C Switch
6VE1 (LHD)
Page 204 of 3573

1BÐ78 AIR CONDITIONING
107 13
65 12
14
1115
2 1
3
9 8
4
852RY00003
Legend
(1) Liquid Line (High-Pressure Pipe)
(2) Pressure Switch
(3) Receiver Drier
(4) Ambient Sensor
(5) Compressor Bracket
(6) Discharge Line (High-Pressure Hose)
(7) Suction Line (Low-Pressure Hose)(8) Compressor
(9) Condenser Assembly
(10) O-ring
(11) Insulator Pipe
(12) Suction Line (Low-Pressure Pipe)
(13) Drain Hose
(14) Evaporator Assembly
(15) A/C Switch
4JX1 (RHD)
Page 205 of 3573

AIR CONDITIONING 1BÐ79
852RY00004
107
65
12
2 1
3
9 8
11
4
Legend
(1) Liquid Line (High-Pressure Pipe)
(2) Pressure Switch
(3) Receiver Drier
(4) Ambient Sensor
(5) Compressor Bracket
(6) Discharge Line (High-Pressure Hose)(7) Suction Line (Low-Pressure Hose)
(8) Compressor
(9) Condenser Assembly
(10) Drain Hose
(11) Evaporator Assembly
(12) A/C Switch
4JX1 (LHD)
Page 206 of 3573

1BÐ80 AIR CONDITIONING
865RY00005
12
6 7 8345
Legend
(1) Auto Switch
(2) Mode Switch
(3) DEF/FOOT Switch
(4) DEF Switch(5) Intake Switch
(6) Fan Switch
(7) Air Conditioning Switch
(8) Temperature Control Knob
Control Panel Layout
Page 207 of 3573

AIR CONDITIONING 1BÐ81
C01RY00001
2
1
123
4
10
96 5
87
11
13
B
B
A
C
B
C
A
ABB
A
A
B
A
A
B
B
A
C
A
A
C
CC
B
AB
AABB
Vent DoorMode PositionDisplay of Intake StatusSet Temperature
ONFULL
COLDFULL
HOT 20~30Æ
™
BBAA™
Blue
VENT BI-LEVEL FOOT DEFRed
OFF
Foot Door
DEF Door
Intake Door
Air Mix Door
Sub Air Mix DoorWhite
C
C
B
DEF/FOOT
C
A
Legend
(1) Interior Air Intake
(2) Fresh Air Intake
(3) Pollen Filter
(4) Evaporator Core
(5) Air Mix Door
(6) DEF Door(7) Vent Door
(8) Foot Door
(9) Sub Air Mix Door
(10) Heater Unit
(11) Heater Core
(12) Evaporator Unit
(13) Blower Unit
Air Control Functions
Page 208 of 3573

1BÐ82 AIR CONDITIONING
OPERATION AND FUNCTIONS OF CONTROL PANEL SWITCHES
1. Auto Switch
(1) Pressing this switch turns on the automatic control mode. It resets all manual switches except that
for the fan control. However, when the Manual REC is selected for the intake or the Manual Open is
selected for the C/V, these modes are maintained.
(2) It causes the A/C (air conditioner) to the ON mode (this function, however, available only when the
fan is turned on and also the compressor is turned on because of the given outside air temperature
level).
¥ The AUTO LED comes on.
¥ Currently selected mode for the Mode and Intake are respectively indicated.
2. Mode Switch
(1) Pressing the VENT, B/L or FOOT switch selects the corresponding mode.
(2) When the Auto is selected for the Mode and Intake, pressing the mode switch fixes the Intake to the
immediately preceding status.
¥ Turns off the Auto LED.
¥ Currently selected blow port is indicated.
3. DEF Switch
Press this switch to select the DEF mode.
*1: When the manual REC is selected for the Intake, the manual REC is maintained.
*2: The ON mode is enabled only when the fun is turned on, and also the compressor is turned on
because of the given outside air temperature level.
¥ The Auto LED is turned off.
¥ DEF is indicated for the blow port, A/C LED comes on (only when the fan is turned on), and status
display is provided for the Intake.
Example 1:
4. Intake Switch
Pressing this switch sequentially selects a different intake port in the following order.
Example 1:
Example 2:PUSH
Auto RECFRESHRECPUSHPUSH
PUSHPUSHPUSHAuto REC
MIXRECFRESH
DEF SW:ON
(Selects the DEF
mode)A/C OFF
modeA/C ON
modeA/C ON mode is
maintained.
Mode switches for other than
the DEF mode: ON
(Resets the DEF mode)
Blow port Intake port A/C MIX
DEF Auto FRESH *1 ON mode *2 Auto
Page 209 of 3573

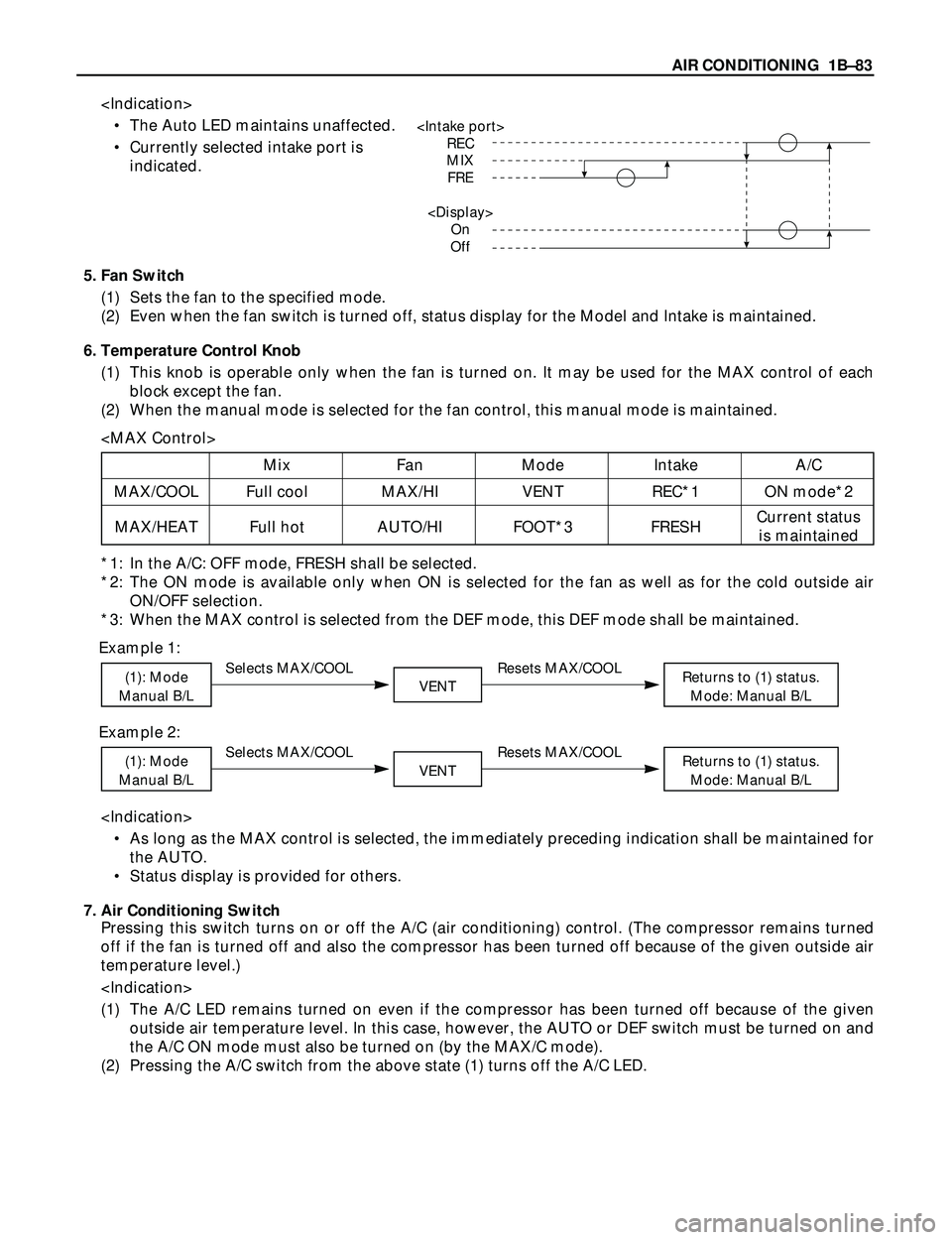

AIR CONDITIONING 1BÐ83
¥ The Auto LED maintains unaffected.
¥ Currently selected intake port is
indicated.
5. Fan Switch
(1) Sets the fan to the specified mode.
(2) Even when the fan switch is turned off, status display for the Model and Intake is maintained.
6. Temperature Control Knob
(1) This knob is operable only when the fan is turned on. It may be used for the MAX control of each
block except the fan.
(2) When the manual mode is selected for the fan control, this manual mode is maintained.
*1: In the A/C: OFF mode, FRESH shall be selected.
*2: The ON mode is available only when ON is selected for the fan as well as for the cold outside air
ON/OFF selection.
*3: When the MAX control is selected from the DEF mode, this DEF mode shall be maintained.
Example 1:
Example 2:
¥ As long as the MAX control is selected, the immediately preceding indication shall be maintained for
the AUTO.
¥ Status display is provided for others.
7. Air Conditioning Switch
Pressing this switch turns on or off the A/C (air conditioning) control. (The compressor remains turned
off if the fan is turned off and also the compressor has been turned off because of the given outside air
temperature level.)
(1) The A/C LED remains turned on even if the compressor has been turned off because of the given
outside air temperature level. In this case, however, the AUTO or DEF switch must be turned on and
the A/C ON mode must also be turned on (by the MAX/C mode).
(2) Pressing the A/C switch from the above state (1) turns off the A/C LED.
REC
MIX
FRE
On
Off
Selects MAX/COOL(1): Mode
Manual B/LVENT
Resets MAX/COOLReturns to (1) status.
Mode: Manual B/L
Selects MAX/COOL(1): Mode
Manual B/LVENT
Resets MAX/COOLReturns to (1) status.
Mode: Manual B/L
Mix Fan Mode Intake A/C
MAX/COOL Full cool MAX/HI VENT REC*1 ON mode*2
MAX/HEAT Full hot AUTO/HI FOOT*3 FRESHCurrent status
is maintained
Page 210 of 3573

1BÐ84 AIR CONDITIONING
OVERVIEW OF CONSTRUCTION,
MOVEMENT AND CONTROL OF MAJOR
PARTS OF FULL AUTOMATIC AIR
CONDITIONER SYSTEM
Automatic Heater/Air Conditioner Control Unit
Equipped with the built-in micro-computer, this
control unit operates on signals from sensors and
input signals from switches to offer total control of
the blower fan, and actuators used for the mode
door, intake door and air mix door.
Its self-diagnosis function enables quicker access to
a failed part and its more accurate troubleshooting.
In Car Sensor
It is a sensor used for detecting room temperature
of a vehicle. This sensor converts a given room
temperature into a resistance value before entering
the data to the automatic heater/air conditioner
control unit.
This in car sensor unites the power driven aspirator
and the motor fan so that a small amount of room
air may be constantly fed to the sensor.
This sensor is provided on the control panel.
Legend
(1) In Car Sensor
(2) Full Automatic Air Conditioner Control UnitAmbient Sensor
This sensor is used for detecting temperature
outside the vehicle. It converts a given outside air
temperature into a resistance value before entering
the data to the automatic heater/air conditioner
control unit.
Thermal effects from the condenser and radiator
during idling after a run can be measured and offset
the automatic amplifier.
This sensor is provided on the side plate situated at
upper right side of the condenser.
Legend
(1) Ambient Sensor
(2) Condenser Assembly
¥ Duct Sensor
The sensor is the sensor to detect temperature
change of the side of evaporator blower coming
by fresh recirculation of intake door or "on" "off"
of compressor.
The temperature is converted to resistant rate.
And it works as thermostat to control to prevent
freezing of evaporator.
This sensor is installed in the upper case of
evaporator.
; &
