ISUZU TROOPER 1998 Service Repair Manual

8F±66BODY STRUCTURE
6. Remove sash division (2).
651RS008
7. Remove door fixed glass.
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Apply soap and water to the fixed glass.
2. Apply soap and water to the door groove and insert
the glass run (3) to the frame from the corner in the
arrow-marked directions.
3. Be sure to install the glass run with its end pointed to
the inside of the vehicle.
A10RW019

8F±67 BODY STRUCTURE
Front Door Sash Moulding
Parts Location
645RS001
Legend
(1) Front Door Sash Moulding
Removal
1. Remove front door slash moulding.

To avoid the weatherstrip (1) and pry the door sash
moulding (2) out from the door panel.
645RS002
Installation
1. Install the front door sash moulding.

Assemble the edge portion (A portion) of the
moulding so that the clearance between the
moulding and the waist seal becomes 1 mm (0.04
in).

8F±68BODY STRUCTURE
Rear Door Moulding
Parts Location
645RS003
Legend
(1) Rear Door Side Moulding(2) Rear Door Corner Moulding
(3) Rear Door Upper Moulding
Removal
1. Disconnect the battery ground cable.
2. Remove rear door side moulding.
3. Remove rear door upper moulding.
4. Remove rear door corner moulding.

Avoiding the weatherstrip (3), pry the moulding (2)
out from the door frame (1).
645RS004
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Install each moulding with no clearance between
each piece of moulding.
2. Assemble the edge portion (A portion) of the
moulding so that the clearance between the rear side
moulding and the waist seal is 1 mm (0.04 in).

8F±69 BODY STRUCTURE
Front Door Waist Seal
Parts Location
631RS009
Legend
(1) Nylon Washer(2) Door Mirror
(3) Front Door Waist Seal
Removal
1. Disconnect the battery ground cable.
2. Remove door mirror.

Refer to Exterior / Interrior Trim in this section.
3. Remove front door waist seal.

Remove the fixing screw and pull out the waist seal
(1) from the door frame while prying it up.
631RS010
Installation
1. Install the front door waist seal.

Apply soap and water to the inside of the waist seal
and align the screw hole of the waist seal to the door
panel hole, and gently tap the seal with a rubber
hammer.
Be sure not to tap the seal hard. This may result in
deforming the seal.
2. Install the door mirror.

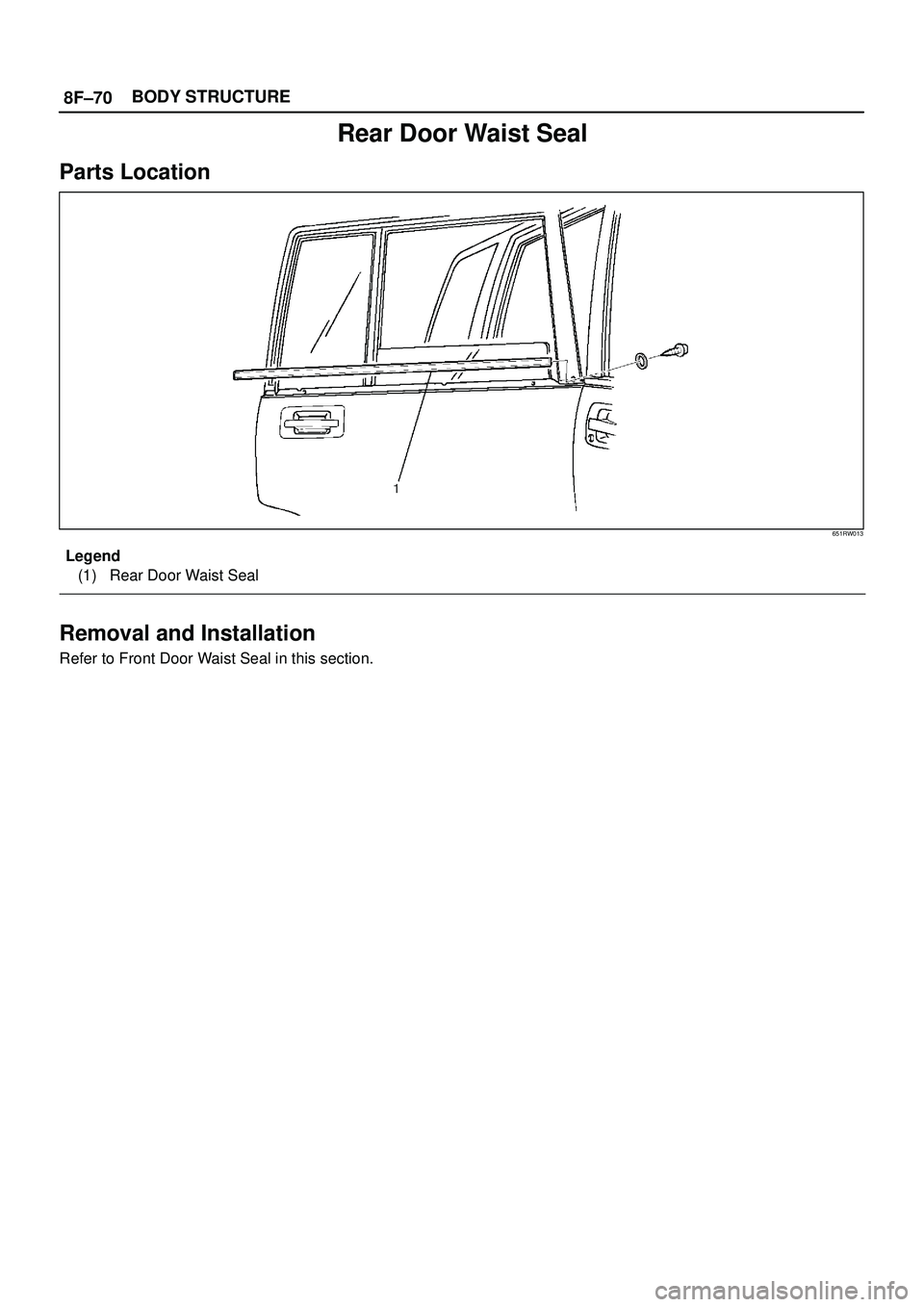

8F±70BODY STRUCTURE
Rear Door Waist Seal
Parts Location
651RW013
Legend
(1) Rear Door Waist Seal
Removal and Installation
Refer to Front Door Waist Seal in this section.

8F±71 BODY STRUCTURE
Front Door Weatherstrip
Parts Location
631RS008
Legend
(1) Check Arm Pin
(2) Bracket(3) Weather Strip
(4) Clip
Removal
1. Remove check arm pin.
2. Remove front door weatherstrip.

Pull the weatherstrip (1) out from the door frame.
631RS011

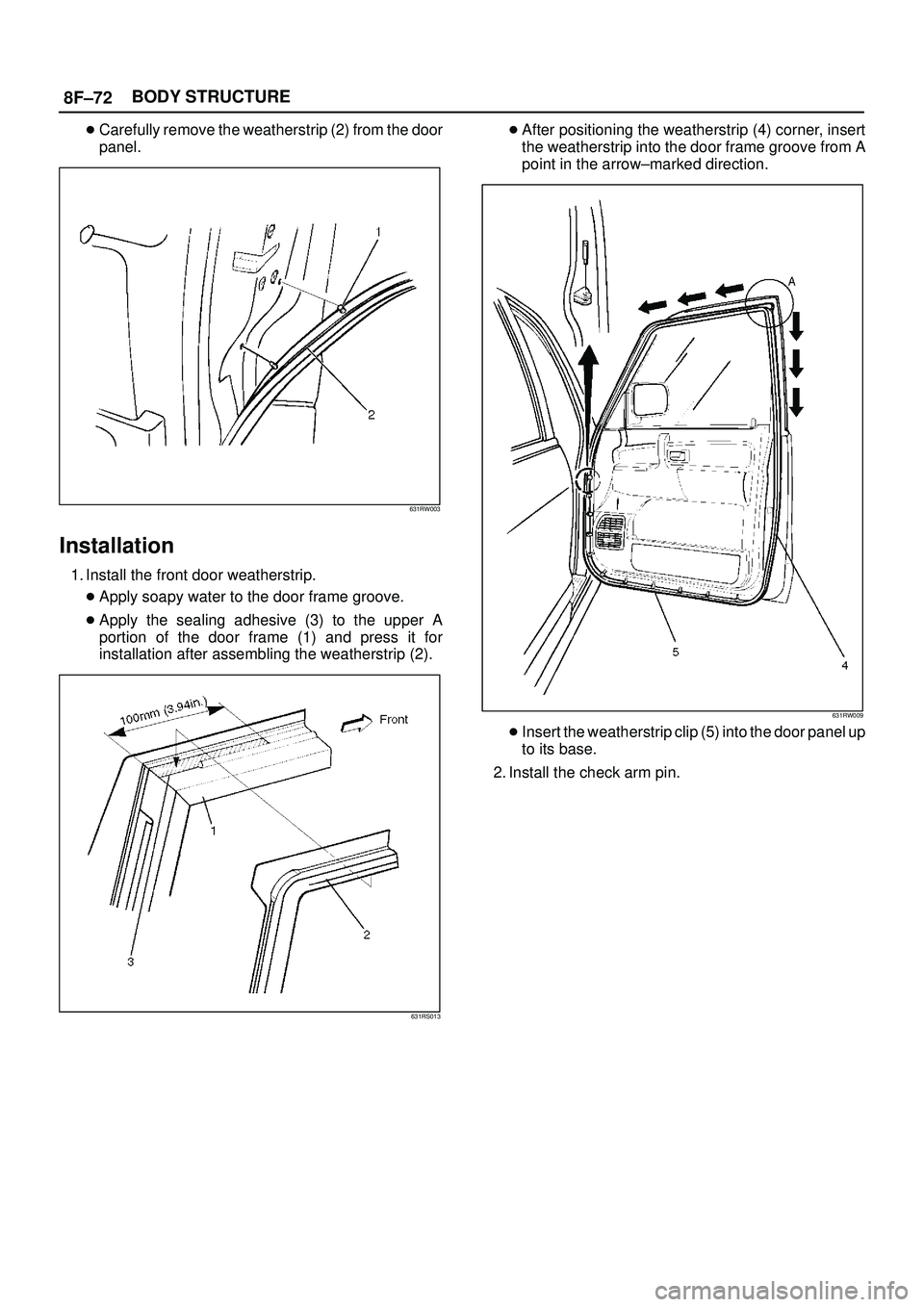

8F±72BODY STRUCTURE

Carefully remove the weatherstrip (2) from the door
panel.
631RW003
Installation
1. Install the front door weatherstrip.

Apply soapy water to the door frame groove.

Apply the sealing adhesive (3) to the upper A
portion of the door frame (1) and press it for
installation after assembling the weatherstrip (2).
631RS013

After positioning the weatherstrip (4) corner, insert
the weatherstrip into the door frame groove from A
point in the arrow±marked direction.
631RW009

Insert the weatherstrip clip (5) into the door panel up
to its base.
2. Install the check arm pin.

8F±73 BODY STRUCTURE
Rear Door Weatherstrip
Parts Location
655RW010
Legend
(1) Check Arm Pin(2) Rear Door Weather Strip
(3) Clip
Removal and Installation
Refer to Front Door Weatherstrip in this section.

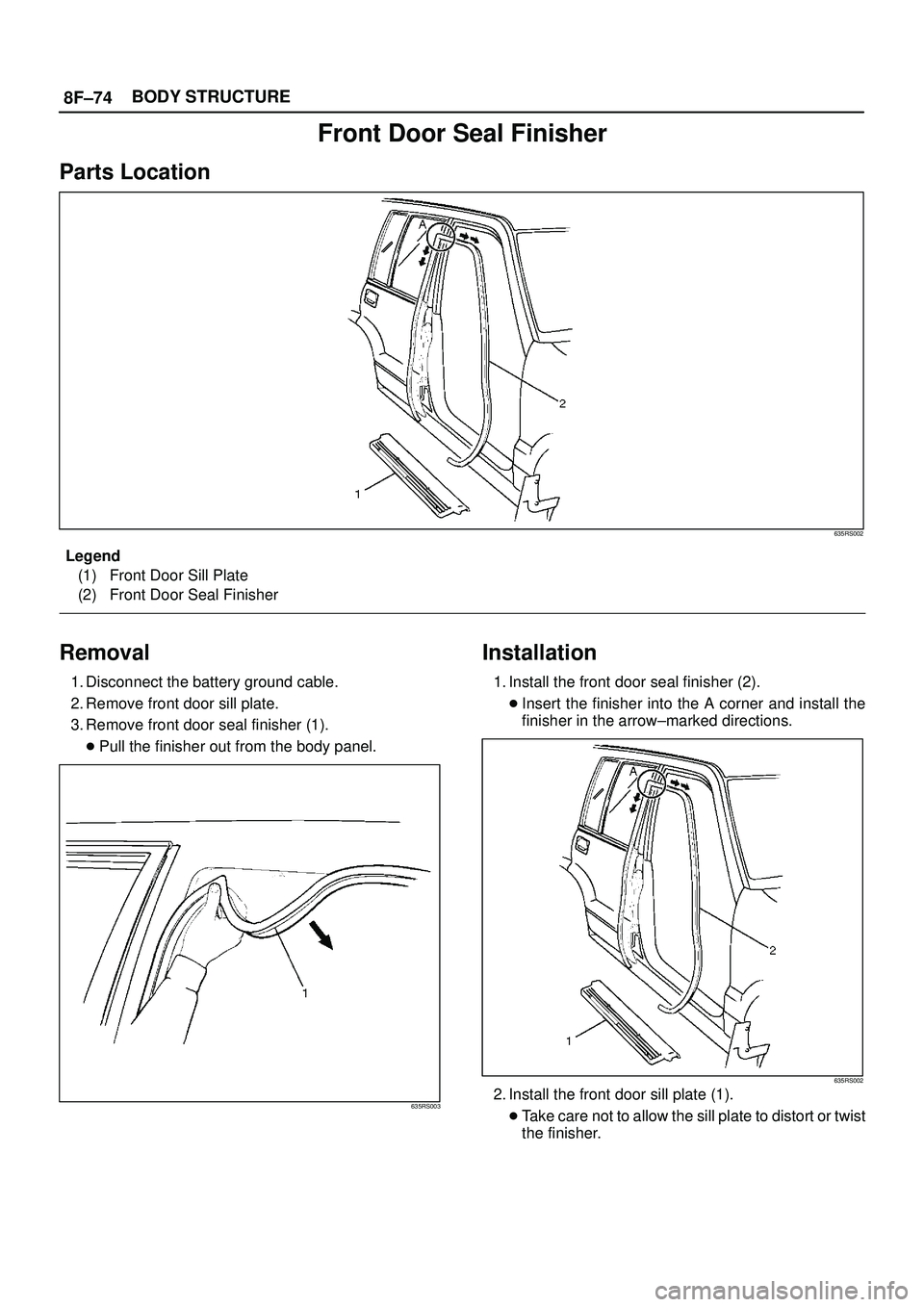

8F±74BODY STRUCTURE
Front Door Seal Finisher
Parts Location
635RS002
Legend
(1) Front Door Sill Plate
(2) Front Door Seal Finisher
Removal
1. Disconnect the battery ground cable.
2. Remove front door sill plate.
3. Remove front door seal finisher (1).

Pull the finisher out from the body panel.
635RS003
Installation
1. Install the front door seal finisher (2).

Insert the finisher into the A corner and install the
finisher in the arrow±marked directions.
635RS002
2. Install the front door sill plate (1).

Take care not to allow the sill plate to distort or twist
the finisher.

8F±75 BODY STRUCTURE
Rear Door Seal Finisher
Parts Location
655RS002
Legend
(1) Rear Door Sill Plate and Luggage Side Lower
Cover
(2) Rear Door Seal Finisher
Removal
1. Disconnect the battery ground cable.
2. Remove rear door sill plate and the luggage side
lower cover.
3. Remove rear door seal finisher (1).

Pull the rear door seal finisher (1) out from the body
panel.
635RS003
Installation
1. Install the rear door seal finisher (2).

Insert the rear door seal finisher (2) into the A corner
and install the finisher in the arrow-marked
directions.
655RS002
2. Install the rear door sill plate and luggage side lower
cover.

Be careful not to allow the sill plate and the cover to
distort or twist the finisher.
