ISUZU TROOPER 1998 Service Repair Manual

4A2A±14
DIFFERENTIAL (REAR 220mm)
4. Set the dial indicator to ª0º. Place it on the
mounting post of the gauging arbor with the
contact button touching the indicator pad. Force
the dial indicator downward until the needle has
made a half turn clockwise. Tighten down the dial
indicator in this position.
425RS020
Legend
(1) Dial Indicator
(2) Ganging Arbor
(3) Plunger
(4) Gauge Plate
5. Position the plunger on the gauge plate. Move the
gauging arbor slowly back and forth and locate
the position at which the dial indicator shows the
greatest defection. At this point, once again set
the dial indicator to ª0º.
Repeat the procedure to verify the ª0º setting.
425RS021
6. After the ZERO setting is obtained, rotate the
gauging arbor until the dial indicator rod does not
touch the gauging plate.Record the number the dial indicator needle
points to.
425RS022
Legend
(1) Example=Dial indicator reading of 0.085
7. Record the pinion depth code on the head of the
drive pinion.
The number indicates a necessary change in the
pinion mounting distance. A plus number indi-
cates the need for a greater mounting distance
(which can be achieved by decreasing the shim
thickness). A minus number indicates the need
for a smaller mounting distance (which can be
achieved by increasing the shim thickness). If ex-
amination reveals pinion depth code ª0º, the pin-
ion is ªnominalº.
425RS023
8. Select the shim using the chart;

DIFFERENTIAL (REAR 220mm)
4A2A±15
Pinion
marking
Dial
indicator
reading
(Inches)+10+8+6+4+20±2±4±6±8±10
0.0731.94
(0.0764)1.96
(0.0772)
0.0741.94
(0.0764)1.96
(0.0772)1.98
(0.0779)
0.0751.94
(0.0764)1.96
(0.0772)1.98
(0.0779)2.00
(0.0787)
0.0761.94
(0.0764)1.96
(0.0772)1.98
(0.0779)2.00
(0.0787)2.02
(0.0795)2.04
(0.0803)
0.0771.96
(0.0772)1.98
(0.0779)2.00
(0.0787)2.02
(0.0795)2.04
(0.0803)2.06
(0.0811)
0.0781.94
(0.0764)1.96
(0.0772)1.98
(0.0779)2.00
(0.0787)2.02
(0.0795)2.04
(0.0803)2.06
(0.0811)2.08
(0.0819)
0.0791.94
(0.0764)1.96
(0.0772)1.98
(0.0779)2.00
(0.0787)2.02
(0.0795)2.04
(0.0803)2.06
(0.0811)2.08
(0.0819)2.10
(0.0827)
0.0801.94
(0.0764)1.96
(0.0772)1.98
(0.0779)2.00
(0.0787)2.02
(0.0795)2.04
(0.0803)2.06
(0.0811)2.08
(0.0819)2.10
(0.0827)2.12
(0.0835)2.14
(0.0842)
0.0811.96
(0.0772)1.98
(0.0779)2.00
(0.0787)2.02
(0.0795)2.04
(0.0803)2.06
(0.0811)2.08
(0.0819)2.10
(0.0827)2.12
(0.0835)2.14
(0.0842)2.16
(0.0850)
0.0821.98
(0.0779)2.00
(0.0787)2.02
(0.0795)2.04
(0.0803)2.06
(0.0811)2.08
(0.0819)2.10
(0.0827)2.12
(0.0835)2.14
(0.0842)2.16
(0.0850)2.18
(0.0858)
0.0832.00
(0.0787)2.02
(0.0795)2.04
(0.0803)2.06
(0.0811)2.08
(0.0819)2.10
(0.0827)2.12
(0.0835)2.14
(0.0842)2.16
(0.0850)2.18
(0.0858)2.20
(0.0866)
0.0842.04
(0.0803)2.06
(0.0811)2.08
(0.0819)2.10
(0.0827)2.12
(0.0835)2.14
(0.0842)2.16
(0.0850)2.18
(0.0858)2.20
(0.0866)2.22
(0.0874)2.24
(0.0882)
0.0852.06
(0.0811)2.08
(0.0819)2.10
(0.0827)2.12
(0.0835)2.14
(0.0842)2.16
(0.0850)2.18
(0.0858)2.20
(0.0866)2.22
(0.0874)2.24
(0.0882)2.26
(0.0890)
0.0862.08
(0.0819)2.10
(0.0827)2.12
(0.0835)2.14
(0.0842)2.16
(0.0850)2.18
(0.0858)2.20
(0.0866)2.22
(0.0874)2.24
(0.0882)2.26
(0.0890)2.28
(0.0898)
0.0872.12
(0.0835)2.14
(0.0842)2.16
(0.0850)2.18
(0.0858)2.20
(0.0866)2.22
(0.0874)2.24
(0.0882)2.26
(0.0890)2.28
(0.0898)2.30
(0.0906)2.32
(0.0913)
0.0882.14
(0.0842)2.16
(0.0850)2.18
(0.0858)2.20
(0.0866)2.22
(0.0874)2.24
(0.0882)2.26
(0.0890)2.28
(0.0898)2.30
(0.0906)2.32
(0.0913)2.34
(0.0921)
0.0892.16
(0.0850)2.18
(0.0858)2.20
(0.0866)2.22
(0.0874)2.24
(0.0882)2.26
(0.0890)2.28
(0.0898)2.30
(0.0906)2.32
(0.0913)2.34
(0.0921)2.36
(0.0929)
0.0902.18
(0.0858)2.20
(0.0866)2.22
(0.0874)2.24
(0.0882)2.26
(0.0890)2.28
(0.0898)2.30
(0.0906)2.32
(0.0913)2.34
(0.0921)2.36
(0.0929)
0.0912.22
(0.0874)2.24
(0.0882)2.26
(0.0890)2.28
(0.0898)2.30
(0.0906)2.32
(0.0913)2.34
(0.0921)2.36
(0.0929)
0.0922.24
(0.0882)2.26
(0.0890)2.28
(0.0898)2.30
(0.0906)2.32
(0.0913)2.34
(0.0921)2.36
(0.0929)
0.0932.26
(0.0890)2.28
(0.0898)2.30
(0.0906)2.32
(0.0913)2.34
(0.0921)2.36
(0.0929)
0.0942.28
(0.0898)2.30
(0.0906)2.32
(0.0913)2.34
(0.0921)2.36
(0.0929)
0.0952.32
(0.0913)2.34
(0.0921)2.36
(0.0929)
0.0962.34
(0.0921)2.36
(0.0929)
0.0972.36
(0.0929)
NOTE: When ordering shims, find the part number in the
parts catalog by using the thickness of shims listed in the
above table.

4A2A±16
DIFFERENTIAL (REAR 220mm)

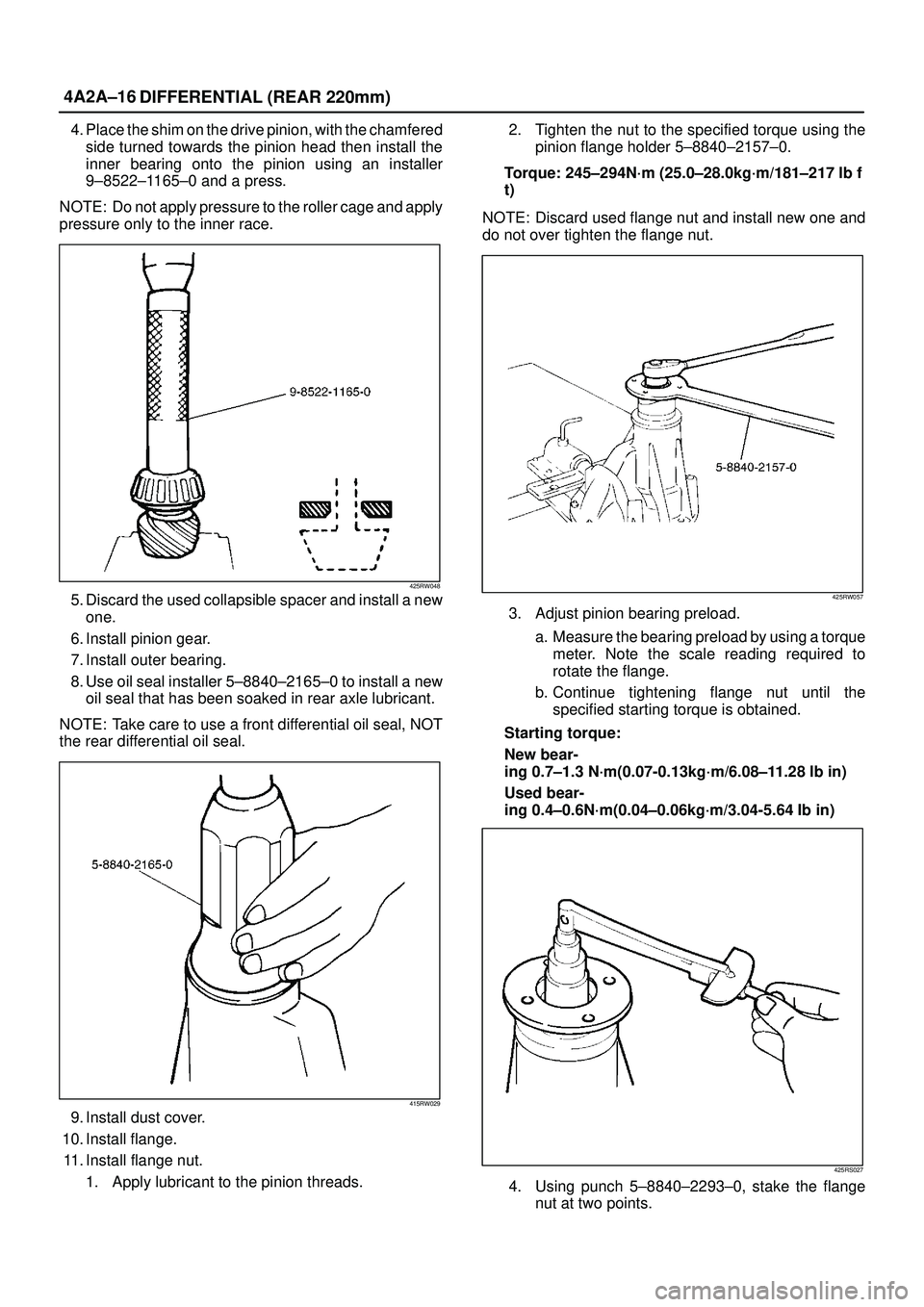

4. Place the shim on the drive pinion, with the chamfered
side turned towards the pinion head then install the
inner bearing onto the pinion using an installer
9±8522±1165±0 and a press.
NOTE: Do not apply pressure to the roller cage and apply
pressure only to the inner race.
425RW048
5. Discard the used collapsible spacer and install a new
one.
6. Install pinion gear.
7. Install outer bearing.
8. Use oil seal installer 5±8840±2165±0 to install a new
oil seal that has been soaked in rear axle lubricant.
NOTE: Take care to use a front differential oil seal, NOT
the rear differential oil seal.
415RW029
9. Install dust cover.
10. Install flange.
11. Install flange nut.
1. Apply lubricant to the pinion threads.2. Tighten the nut to the specified torque using the
pinion flange holder 5±8840±2157±0.
Torque: 245±294N´m (25.0±28.0kg´m/181±217 lb f
t)
NOTE: Discard used flange nut and install new one and
do not over tighten the flange nut.
425RW057
3. Adjust pinion bearing preload.
a. Measure the bearing preload by using a torque
meter. Note the scale reading required to
rotate the flange.
b. Continue tightening flange nut until the
specified starting torque is obtained.
Starting torque:
New bear-
ing 0.7±1.3 N´m(0.07-0.13kg´m/6.08±11.28 lb in)
Used bear-
ing 0.4±0.6N´m(0.04±0.06kg´m/3.04-5.64 Ib in)
425RS027
4. Using punch 5±8840±2293±0, stake the flange
nut at two points.

DIFFERENTIAL (REAR 220mm)
4A2A±17

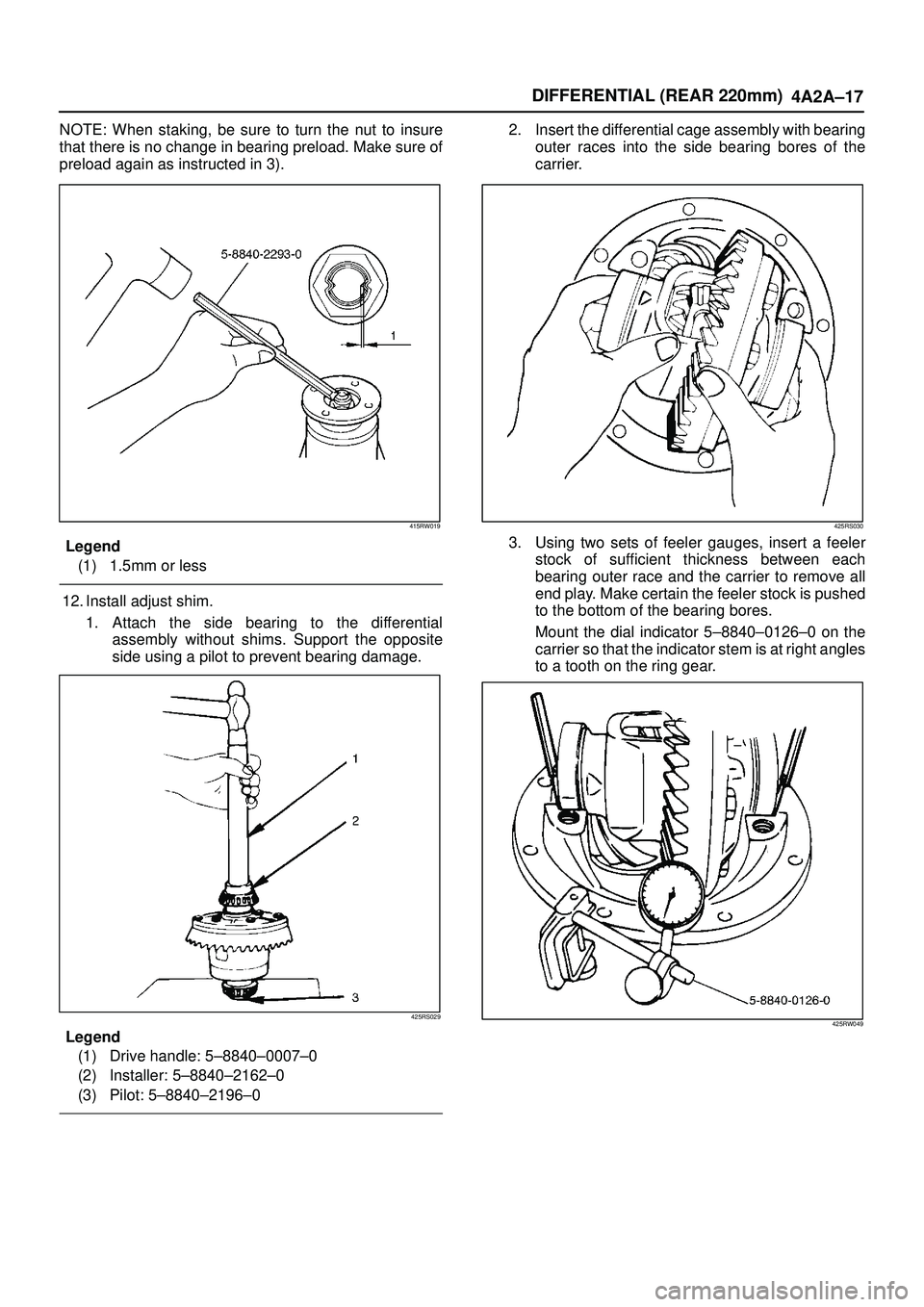

NOTE: When staking, be sure to turn the nut to insure
that there is no change in bearing preload. Make sure of
preload again as instructed in 3).
415RW019
Legend
(1) 1.5mm or less
12. Install adjust shim.
1. Attach the side bearing to the differential
assembly without shims. Support the opposite
side using a pilot to prevent bearing damage.
425RS029
Legend
(1) Drive handle: 5±8840±0007±0
(2) Installer: 5±8840±2162±0
(3) Pilot: 5±8840±2196±0
2. Insert the differential cage assembly with bearing
outer races into the side bearing bores of the
carrier.
425RS030
3. Using two sets of feeler gauges, insert a feeler
stock of sufficient thickness between each
bearing outer race and the carrier to remove all
end play. Make certain the feeler stock is pushed
to the bottom of the bearing bores.
Mount the dial indicator 5±8840±0126±0 on the
carrier so that the indicator stem is at right angles
to a tooth on the ring gear.
425RW049

4A2A±18
DIFFERENTIAL (REAR 220mm)

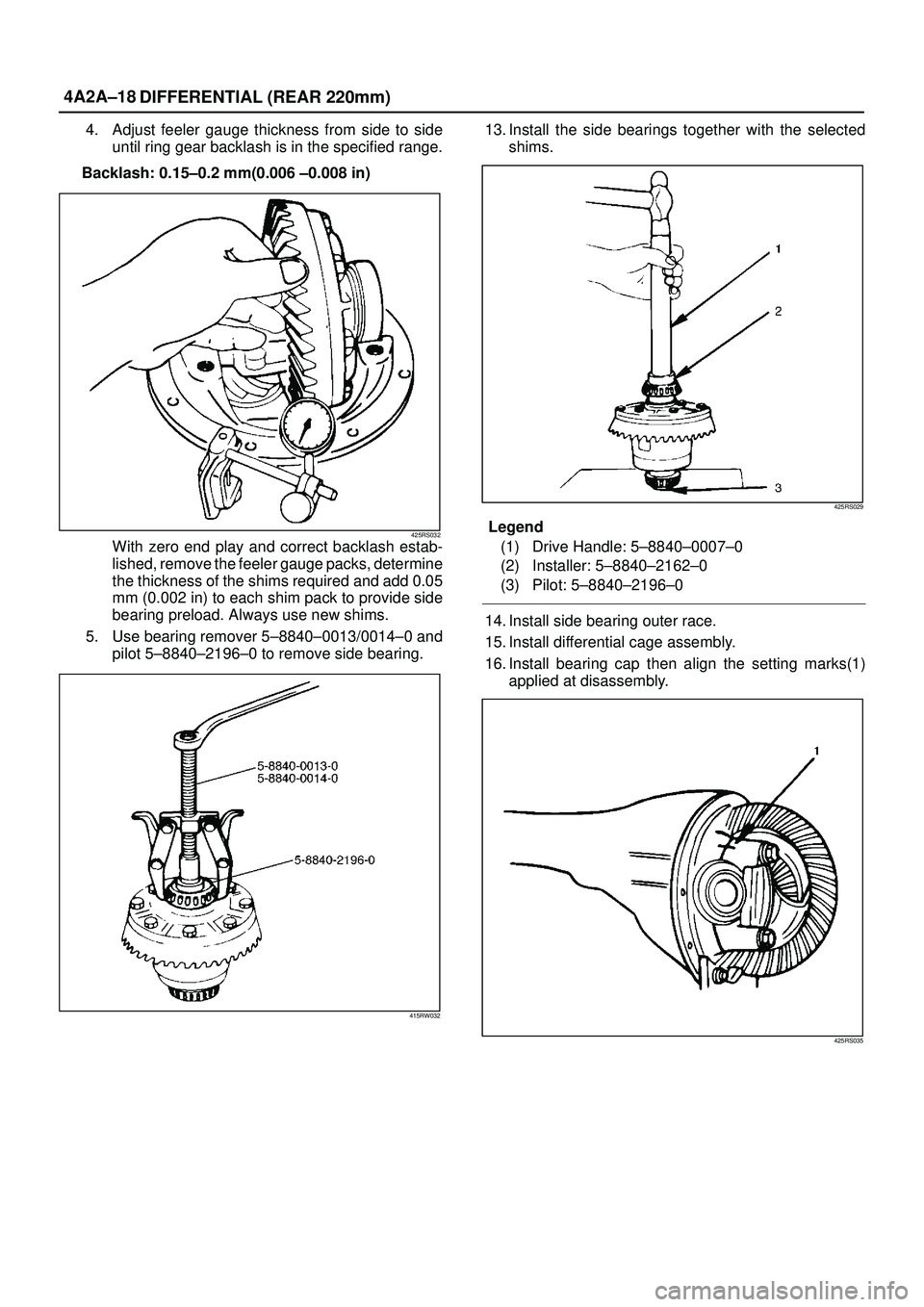

4. Adjust feeler gauge thickness from side to side
until ring gear backlash is in the specified range.
Backlash: 0.15±0.2 mm(0.006 ±0.008 in)
425RS032With zero end play and correct backlash estab-
lished, remove the feeler gauge packs, determine
the thickness of the shims required and add 0.05
mm (0.002 in) to each shim pack to provide side
bearing preload. Always use new shims.
5. Use bearing remover 5±8840±0013/0014±0 and
pilot 5±8840±2196±0 to remove side bearing.
415RW032
13. Install the side bearings together with the selected
shims.
425RS029
Legend
(1) Drive Handle: 5±8840±0007±0
(2) Installer: 5±8840±2162±0
(3) Pilot: 5±8840±2196±0
14. Install side bearing outer race.
15. Install differential cage assembly.
16. Install bearing cap then align the setting marks(1)
applied at disassembly.
425RS035

DIFFERENTIAL (REAR 220mm)
4A2A±19
17. Tighten the cap bolt to the specified torque.
Torque: 108 N´m (11.0kg´m/80 lb ft)
425RS036
1. Measure the amount of run±out of the ring gear at
its rear face.
Standard: 0.02 mm ( 0.001 in)
Limit: 0.05 mm ( 0.002 in)
425RS037

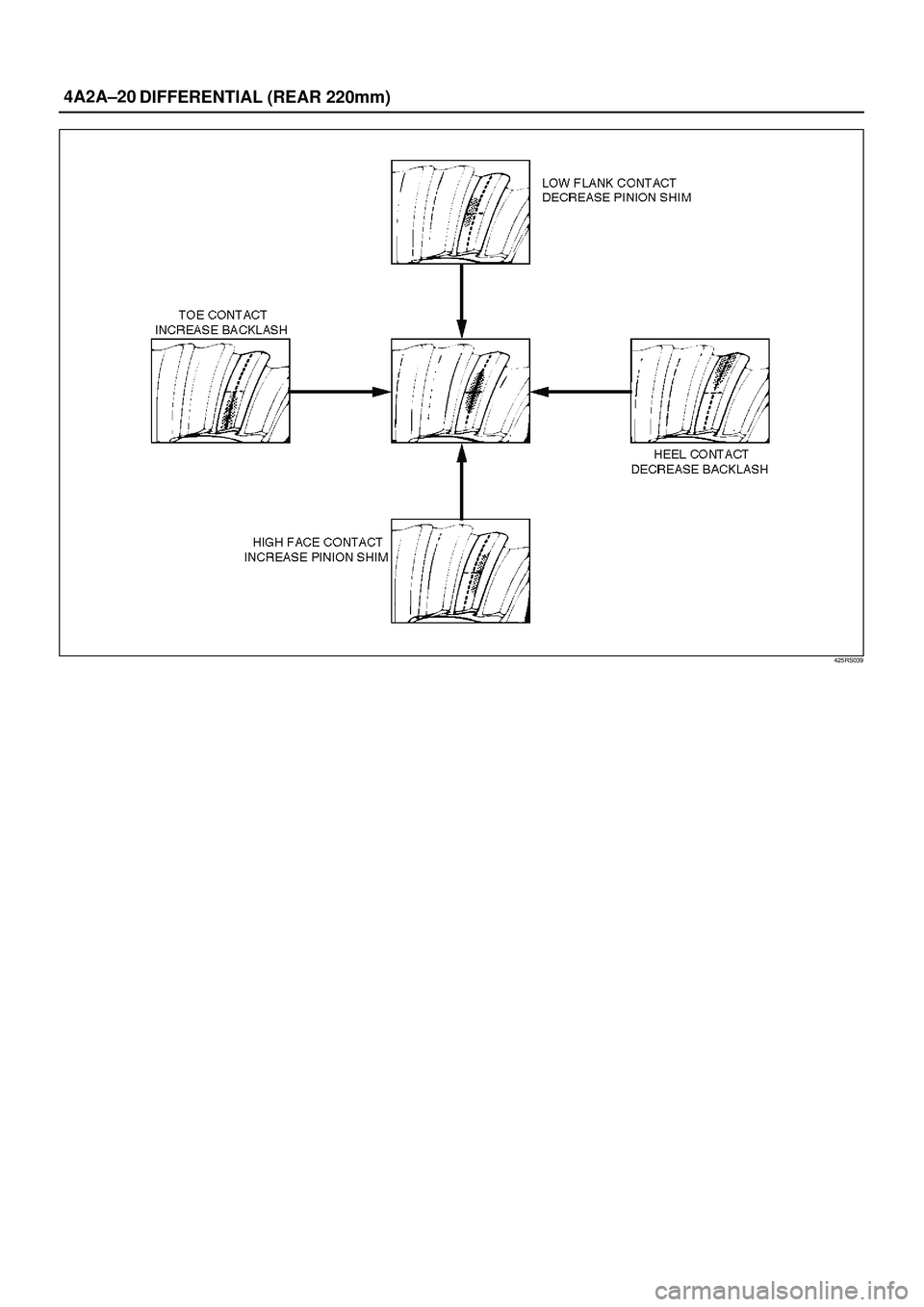

Gear Tooth Contact Pattern Check and Adjustment
1. Apply a thin coat of prussian blue or equivalent
to the faces of the 7±8 teeth of the ring gear.
Check the impression of contact on the ring
gear teeth and make necessary adjustment as
described in illustration if the contact is
abnormal.
425RS038
Legend
(1) Heel
(2) Toe
(3) Concave Side(Coast)
(4) Convex Side(Drive)

4A2A±20
DIFFERENTIAL (REAR 220mm)
425RS039

DIFFERENTIAL (REAR 220mm)
4A2A±21

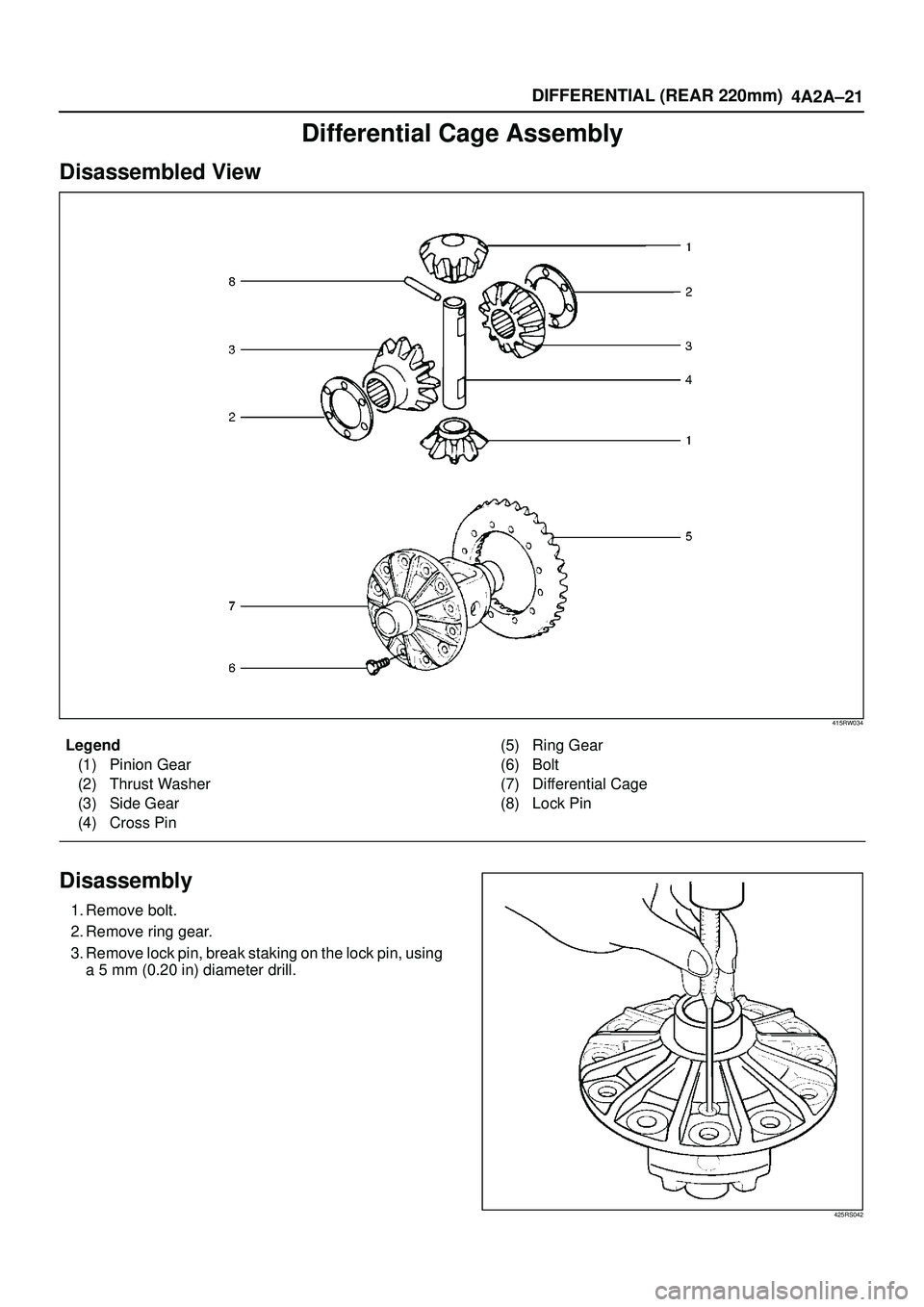

Differential Cage Assembly
Disassembled View
415RW034
Legend
(1) Pinion Gear
(2) Thrust Washer
(3) Side Gear
(4) Cross Pin(5) Ring Gear
(6) Bolt
(7) Differential Cage
(8) Lock Pin
Disassembly
1. Remove bolt.
2. Remove ring gear.
3. Remove lock pin, break staking on the lock pin, using
a 5 mm (0.20 in) diameter drill.
425RS042

4A2A±22
DIFFERENTIAL (REAR 220mm)

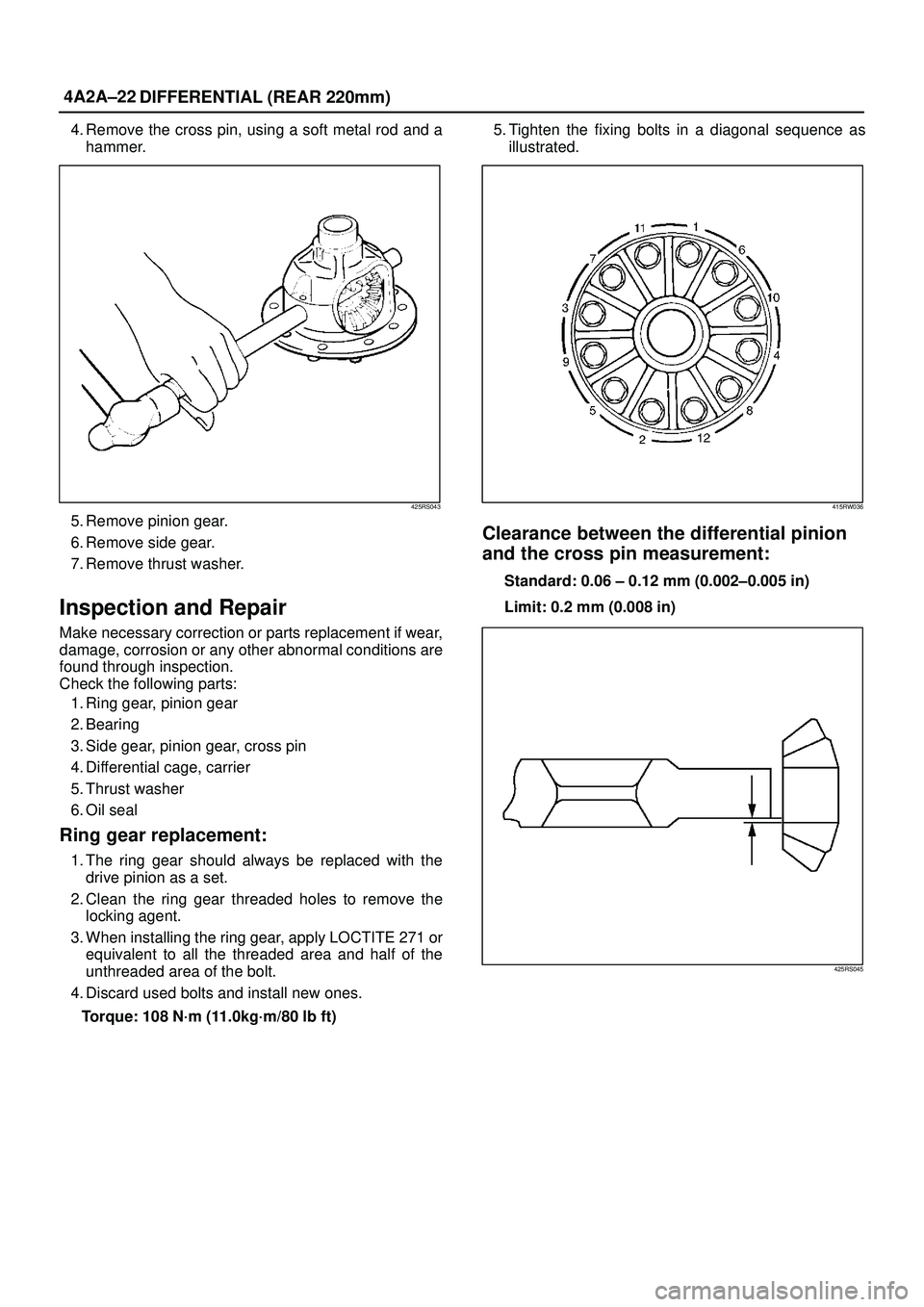

4. Remove the cross pin, using a soft metal rod and a
hammer.
425RS043
5. Remove pinion gear.
6. Remove side gear.
7. Remove thrust washer.
Inspection and Repair
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal conditions are
found through inspection.
Check the following parts:
1. Ring gear, pinion gear
2. Bearing
3. Side gear, pinion gear, cross pin
4. Differential cage, carrier
5. Thrust washer
6. Oil seal
Ring gear replacement:
1. The ring gear should always be replaced with the
drive pinion as a set.
2. Clean the ring gear threaded holes to remove the
locking agent.
3. When installing the ring gear, apply LOCTITE 271 or
equivalent to all the threaded area and half of the
unthreaded area of the bolt.
4. Discard used bolts and install new ones.
Torque: 108 N´m (11.0kg´m/80 lb ft)5. Tighten the fixing bolts in a diagonal sequence as
illustrated.
415RW036
Clearance between the differential pinion
and the cross pin measurement:
Standard: 0.06 ± 0.12 mm (0.002±0.005 in)
Limit: 0.2 mm (0.008 in)
425RS045

DIFFERENTIAL (REAR 220mm)
4A2A±23

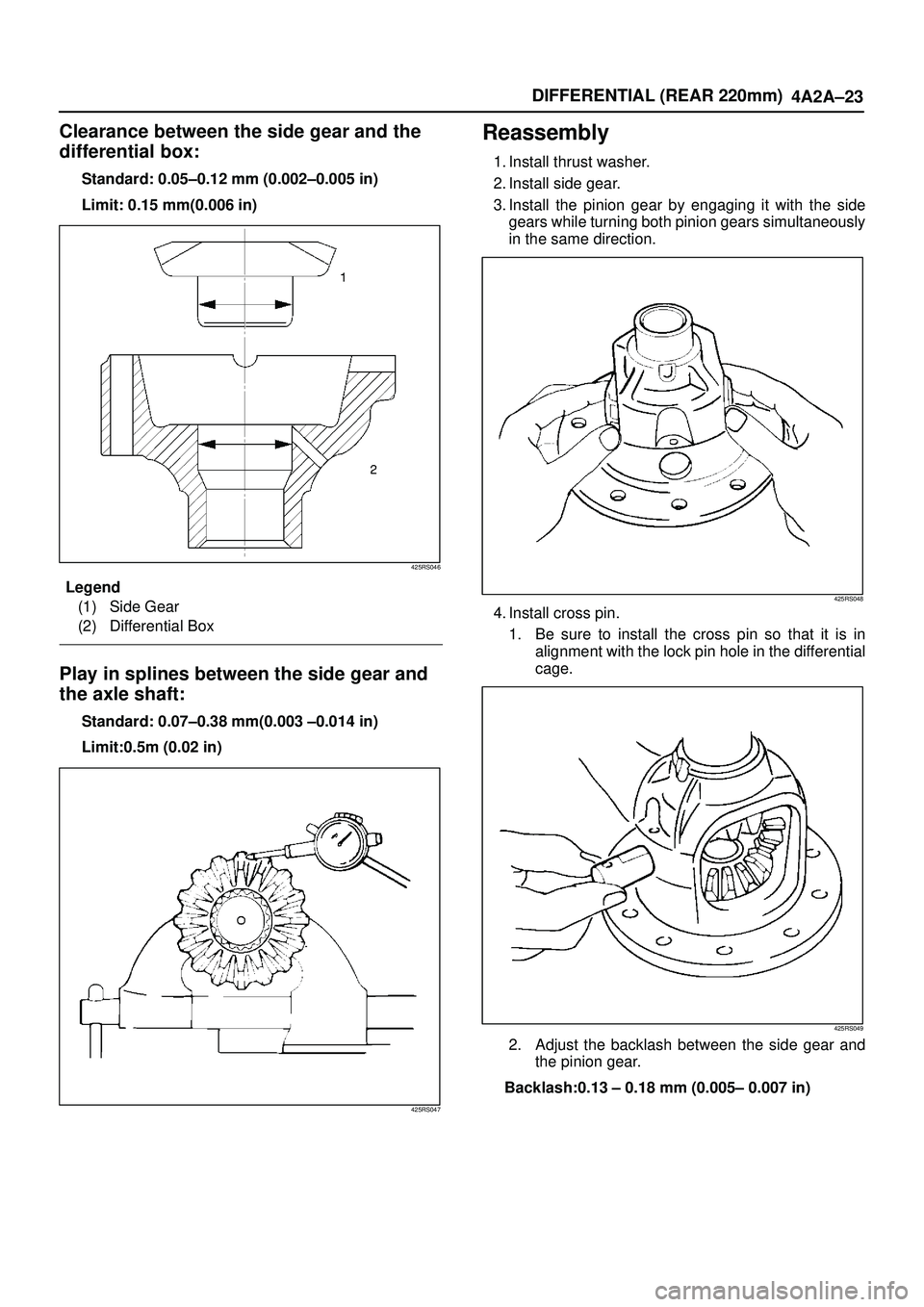

Clearance between the side gear and the
differential box:
Standard: 0.05±0.12 mm (0.002±0.005 in)
Limit: 0.15 mm(0.006 in)
425RS046
Legend
(1) Side Gear
(2) Differential Box
Play in splines between the side gear and
the axle shaft:
Standard: 0.07±0.38 mm(0.003 ±0.014 in)
Limit:0.5m (0.02 in)
425RS047
Reassembly
1. Install thrust washer.
2. Install side gear.
3. Install the pinion gear by engaging it with the side
gears while turning both pinion gears simultaneously
in the same direction.
425RS048
4. Install cross pin.
1. Be sure to install the cross pin so that it is in
alignment with the lock pin hole in the differential
cage.
425RS049
2. Adjust the backlash between the side gear and
the pinion gear.
Backlash:0.13 ± 0.18 mm (0.005± 0.007 in)
