ISUZU TROOPER 1998 Service Repair Manual

4C±55 DRIVE SHAFT SYSTEM
Main Data and Specifications
General Specifications
Engine6VE1 (3.5L)6VD1 (3.2L)4JX1 (3.0L)4JG2 (3.1L)
Transmission
M/TA/T
A/T
with
TOD
M/TA/T
A/T
with
TOD
M/TA/TM/TA/T
ConstructionHollow steel tube with yoke and spider type universal joint
LengthS
W
B
668mm (26.30in)Ð846mm
(33.31in)678mm
(26.69in)Ð604mm (23.78in)810mm
(31.89in)Ð
L
W
B
1093mm (43.03in)1075mm
(42.32in)1271mm
(50.04in)1103mm
(43.43in)1083mm
(42.64in)1029mm (40.51in)1236mm
(48.66in)1037mm
(40.83in)
Outside
diamterS
W
B
68.9mm (2.71in)Ð68.9mm (2.71in)Ð68.9mm (2.71in)Ð
LW
B68.9mm (2.71in)82.6mm
(3.25in)68.9mm (2.71in)82.6mm
(3.25in)68.9mm
(2.71in)
Torque Specifications
E04RW023

TRANSFER CASE (STANDARD TYPE)
4D1±1
DRIVELINE/AXLE
TRANSFER CASE (STANDARD TYPE)

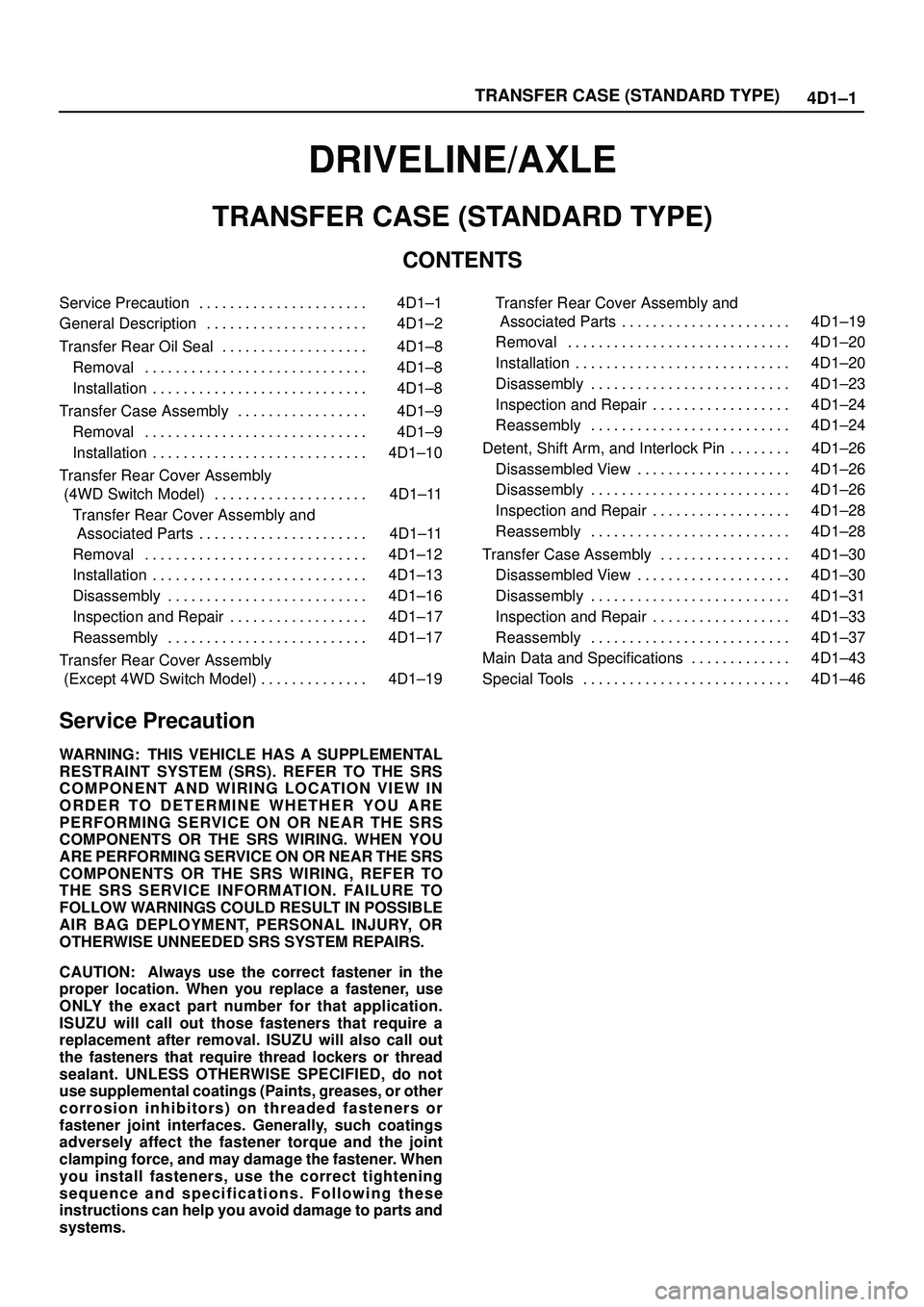

CONTENTS
Service Precaution 4D1±1. . . . . . . . . . . . . . . . . . . . . .
General Description 4D1±2. . . . . . . . . . . . . . . . . . . . .
Transfer Rear Oil Seal 4D1±8. . . . . . . . . . . . . . . . . . .
Removal 4D1±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4D1±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer Case Assembly 4D1±9. . . . . . . . . . . . . . . . .
Removal 4D1±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4D1±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer Rear Cover Assembly
(4WD Switch Model) 4D1±11. . . . . . . . . . . . . . . . . . . .
Transfer Rear Cover Assembly and
Associated Parts 4D1±11. . . . . . . . . . . . . . . . . . . . . .
Removal 4D1±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4D1±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 4D1±16. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 4D1±17. . . . . . . . . . . . . . . . . .
Reassembly 4D1±17. . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer Rear Cover Assembly
(Except 4WD Switch Model) 4D1±19. . . . . . . . . . . . . . Transfer Rear Cover Assembly and
Associated Parts 4D1±19. . . . . . . . . . . . . . . . . . . . . .
Removal 4D1±20. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4D1±20. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 4D1±23. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 4D1±24. . . . . . . . . . . . . . . . . .
Reassembly 4D1±24. . . . . . . . . . . . . . . . . . . . . . . . . .
Detent, Shift Arm, and Interlock Pin 4D1±26. . . . . . . .
Disassembled View 4D1±26. . . . . . . . . . . . . . . . . . . .
Disassembly 4D1±26. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 4D1±28. . . . . . . . . . . . . . . . . .
Reassembly 4D1±28. . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer Case Assembly 4D1±30. . . . . . . . . . . . . . . . .
Disassembled View 4D1±30. . . . . . . . . . . . . . . . . . . .
Disassembly 4D1±31. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 4D1±33. . . . . . . . . . . . . . . . . .
Reassembly 4D1±37. . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 4D1±43. . . . . . . . . . . . .
Special Tools 4D1±46. . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

4D1±2
TRANSFER CASE (STANDARD TYPE)
General Description

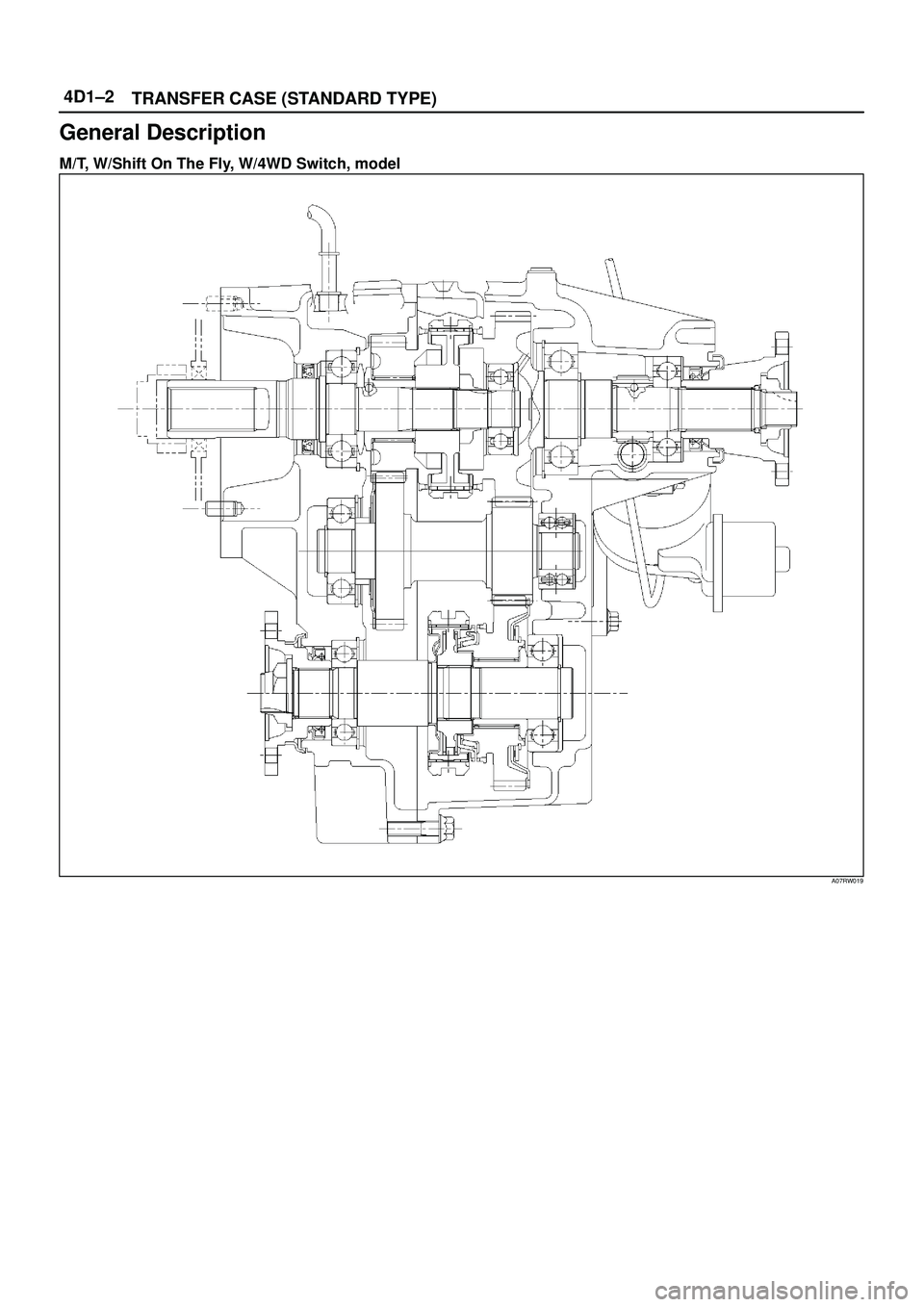

M/T, W/Shift On The Fly, W/4WD Switch, model
A07RW019

TRANSFER CASE (STANDARD TYPE)
4D1±3

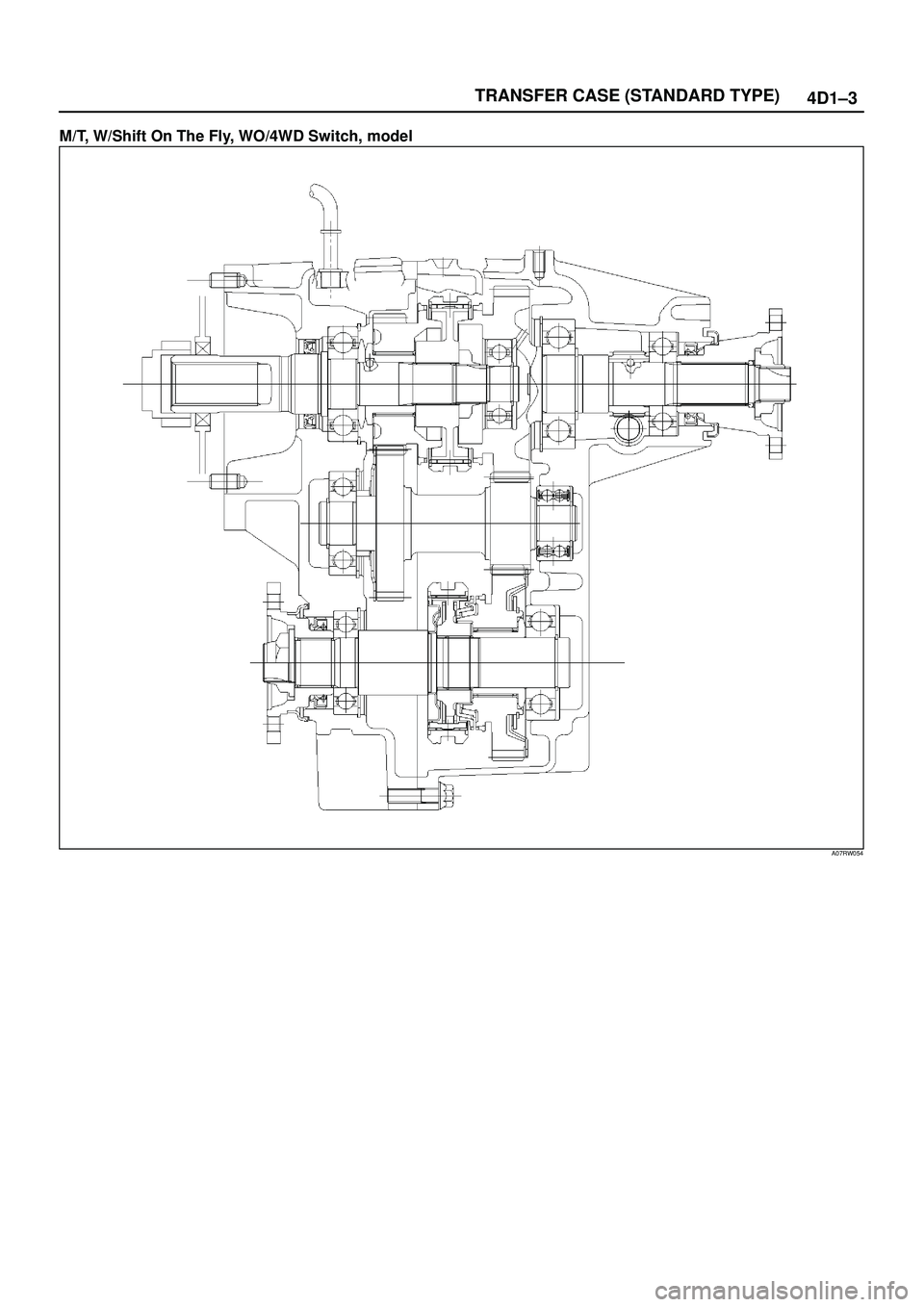

M/T, W/Shift On The Fly, WO/4WD Switch, model
A07RW054

4D1±4
TRANSFER CASE (STANDARD TYPE)

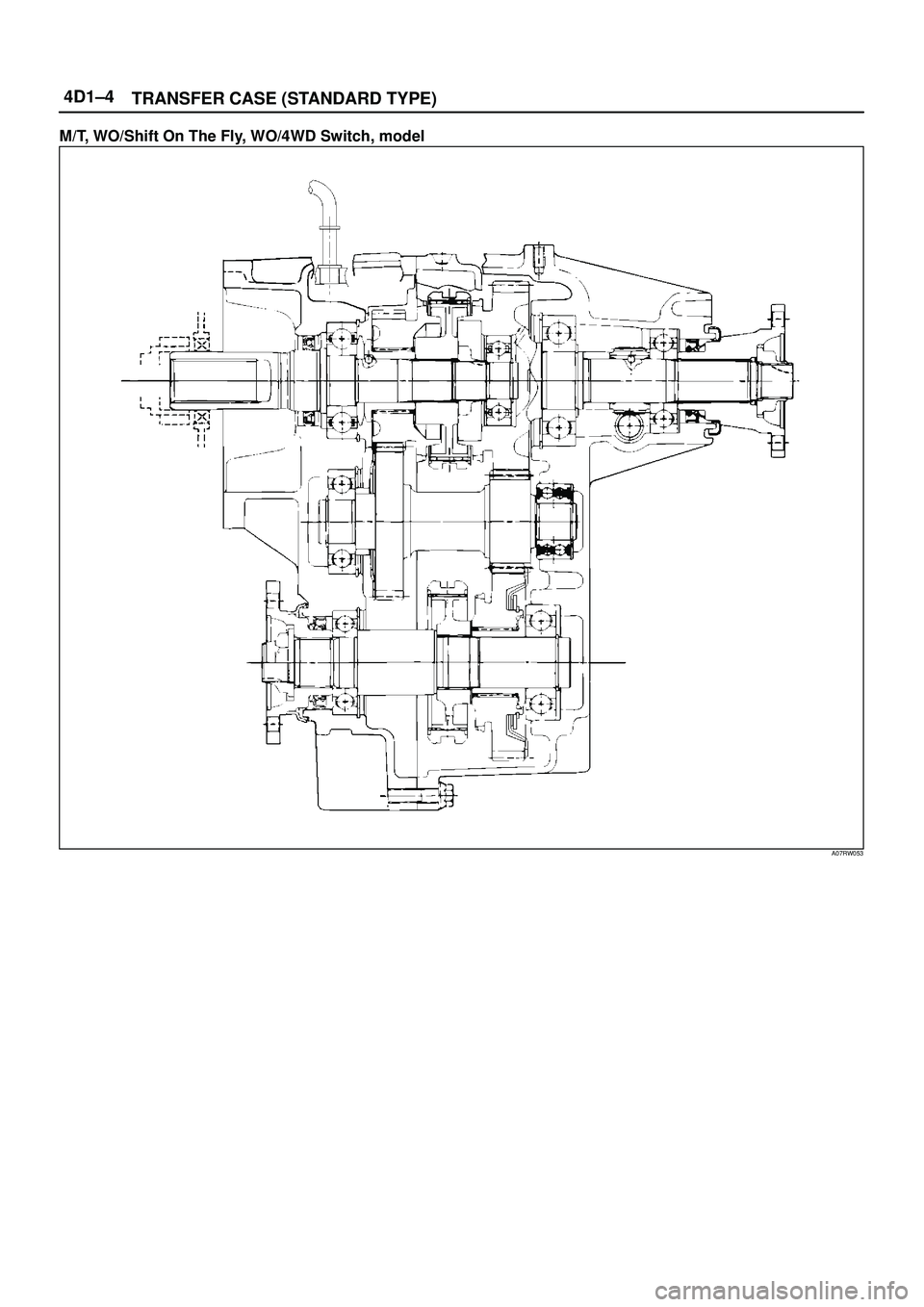

M/T, WO/Shift On The Fly, WO/4WD Switch, model
A07RW053

TRANSFER CASE (STANDARD TYPE)
4D1±5

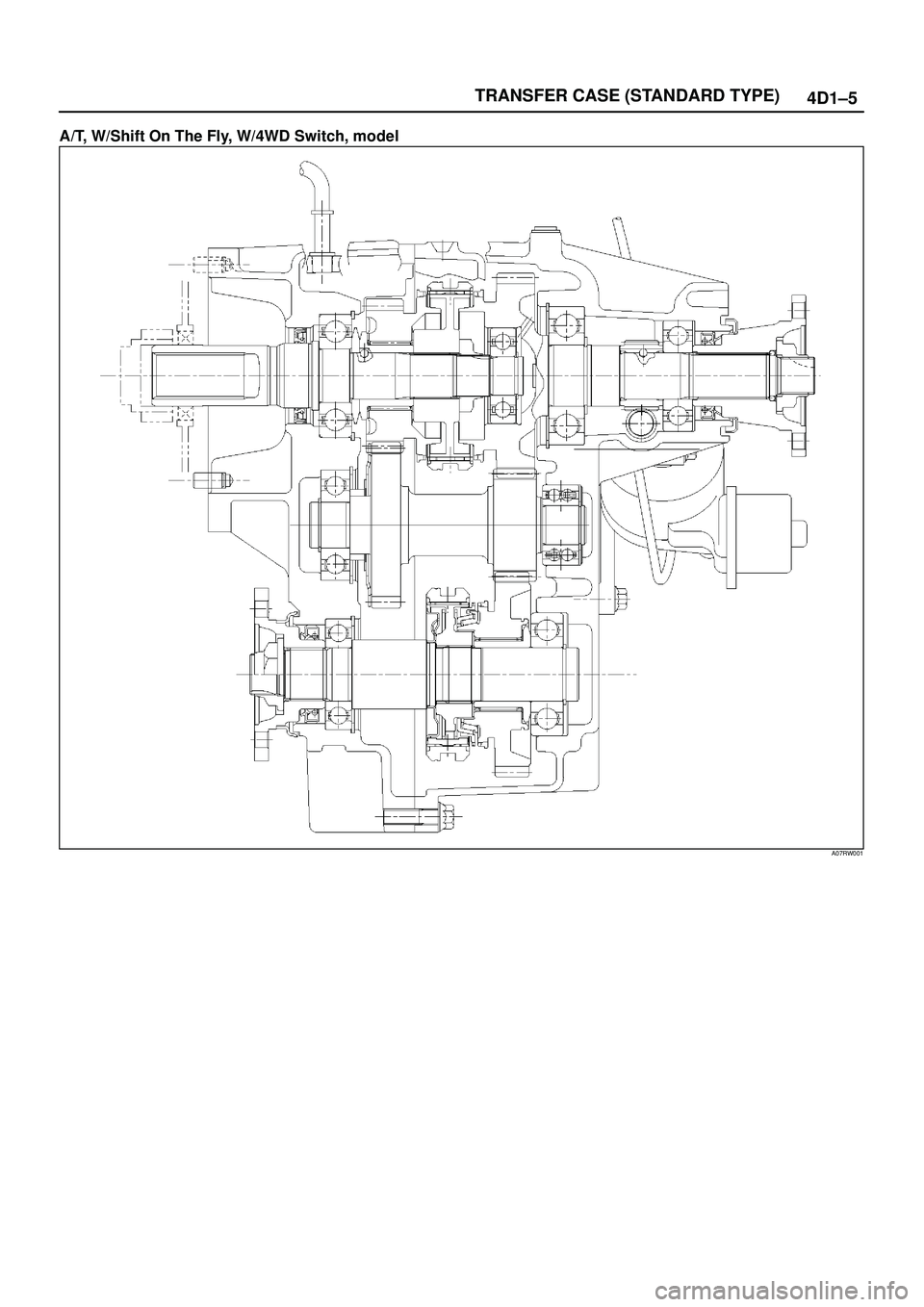

A/T, W/Shift On The Fly, W/4WD Switch, model
A07RW001

4D1±6
TRANSFER CASE (STANDARD TYPE)

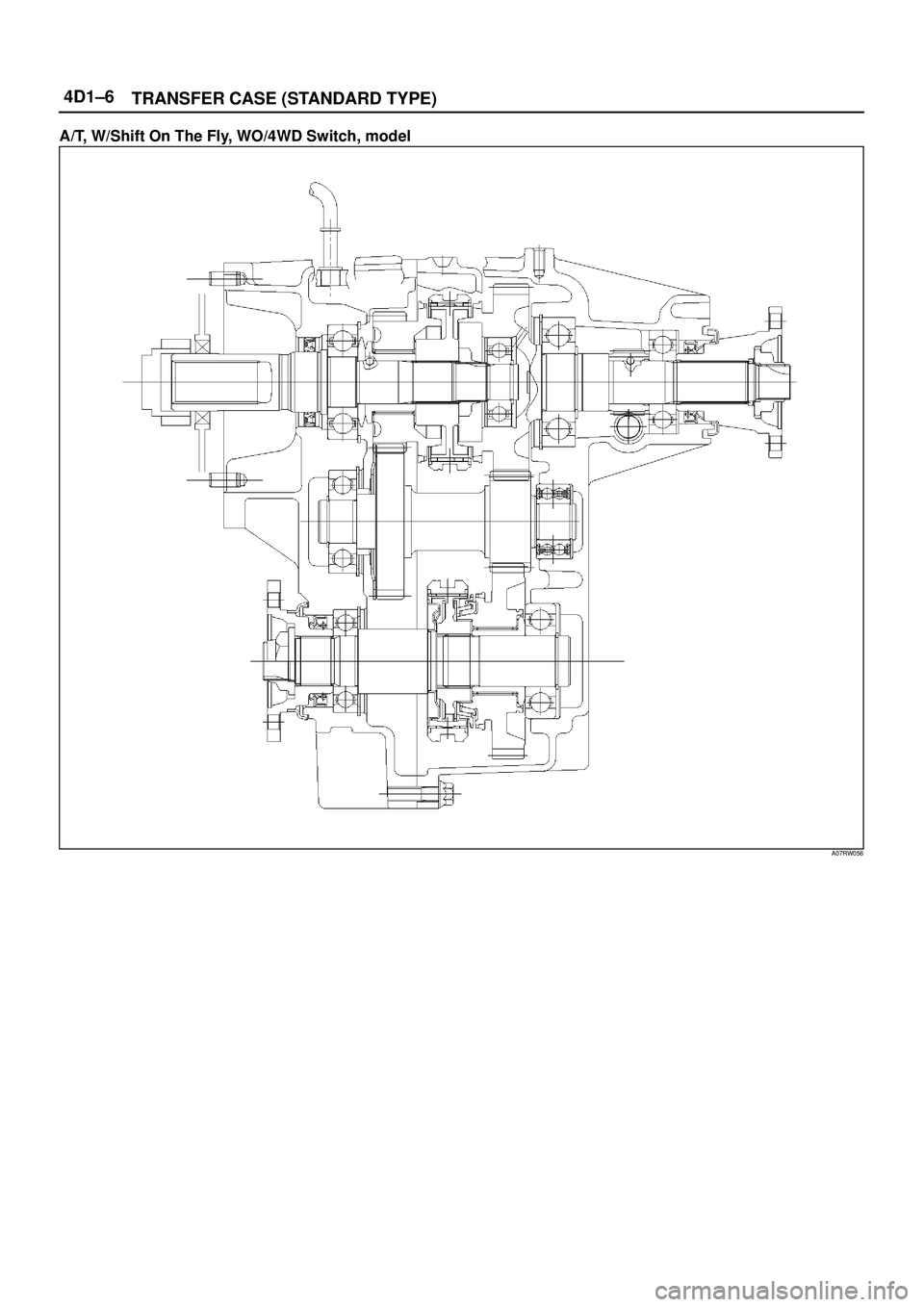

A/T, W/Shift On The Fly, WO/4WD Switch, model
A07RW056

TRANSFER CASE (STANDARD TYPE)
4D1±7
A/T, WO/Shift On The Fly, WO/4WD Switch, model
A07RW055
The transfer case is used to provide a means of providing
power flow to the front axle. The transfer case also
provides a means of disconnecting the front axle,
providing better fuel economy and quieter operation when
the vehicle is driven on improved roads where four wheel
drive is not required. In addition, the transfer case
provides an additional gear reduction when placed in low
range, which is useful when difficult off±road conditions
are encountered.
A floor mounted shift lever is used to select the high±low
range. When four wheel drive switch has been turned on,
the four wheel drive indicator light is designed to come on
when the front axle has been engaged.

4D1±8
TRANSFER CASE (STANDARD TYPE)
Transfer Rear Oil Seal
Removal

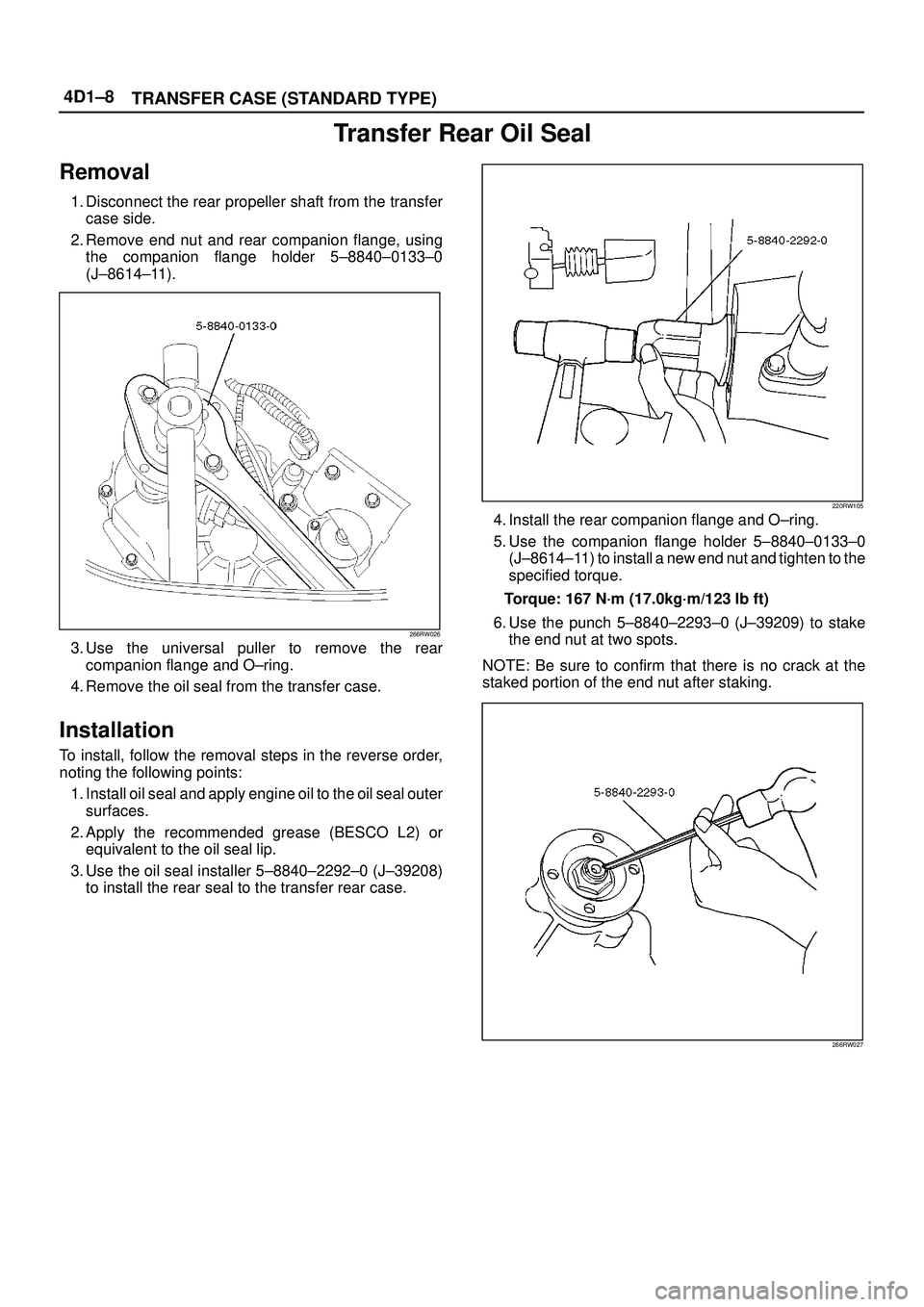

1. Disconnect the rear propeller shaft from the transfer
case side.
2. Remove end nut and rear companion flange, using
the companion flange holder 5±8840±0133±0
(J±8614±11).
266RW026
3. Use the universal puller to remove the rear
companion flange and O±ring.
4. Remove the oil seal from the transfer case.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Install oil seal and apply engine oil to the oil seal outer
surfaces.
2. Apply the recommended grease (BESCO L2) or
equivalent to the oil seal lip.
3. Use the oil seal installer 5±8840±2292±0 (J±39208)
to install the rear seal to the transfer rear case.
220RW105
4. Install the rear companion flange and O±ring.
5. Use the companion flange holder 5±8840±0133±0
(J±8614±11) to install a new end nut and tighten to the
specified torque.
Torque: 167 N´m (17.0kg´m/123 lb ft)
6. Use the punch 5±8840±2293±0 (J±39209) to stake
the end nut at two spots.
NOTE: Be sure to confirm that there is no crack at the
staked portion of the end nut after staking.
266RW027

TRANSFER CASE (STANDARD TYPE)
4D1±9
266RW002

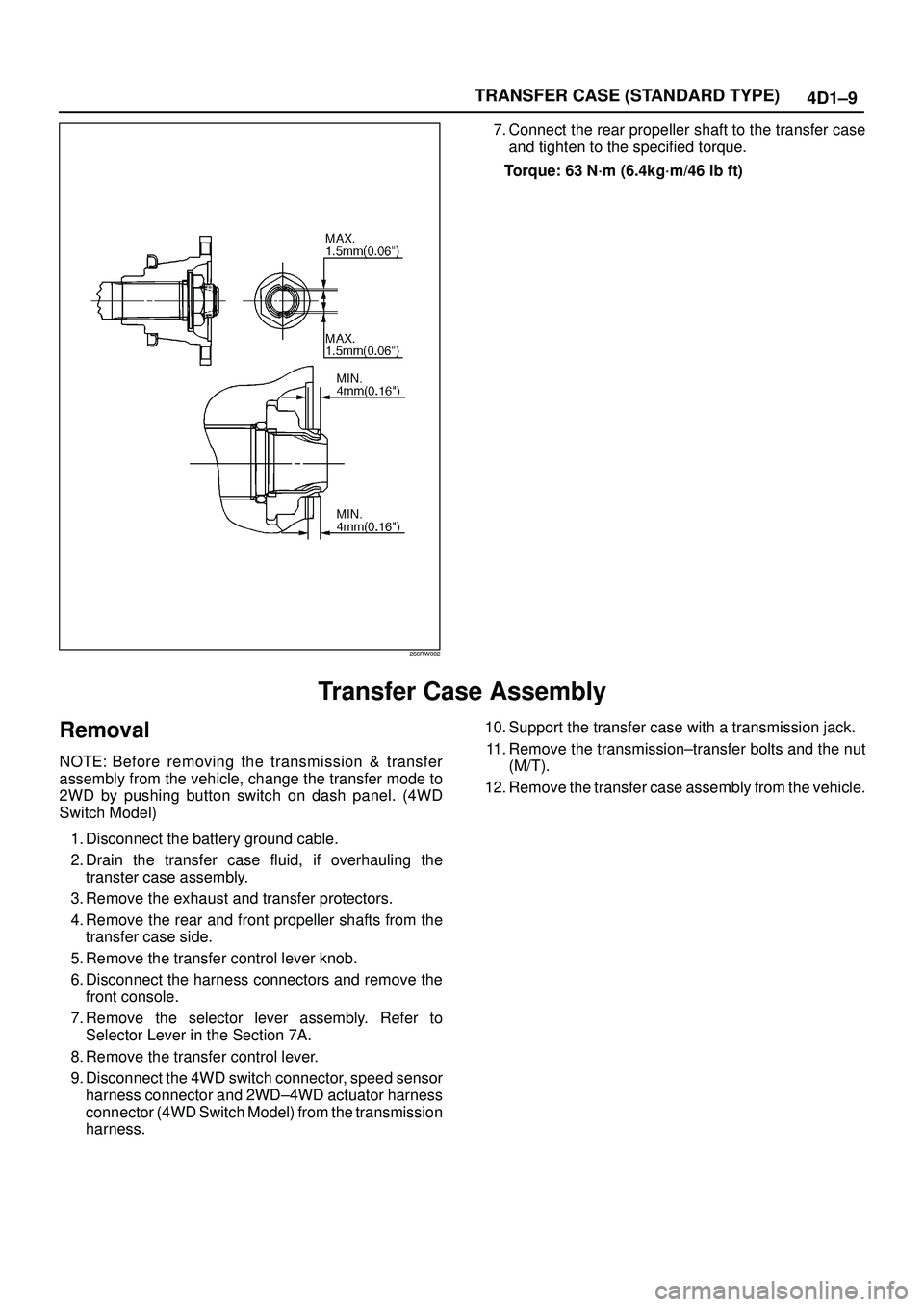

7. Connect the rear propeller shaft to the transfer case
and tighten to the specified torque.
Torque: 63 N´m (6.4kg´m/46 lb ft)
Transfer Case Assembly
Removal
NOTE: Before removing the transmission & transfer
assembly from the vehicle, change the transfer mode to
2WD by pushing button switch on dash panel. (4WD
Switch Model)
1. Disconnect the battery ground cable.
2. Drain the transfer case fluid, if overhauling the
transter case assembly.
3. Remove the exhaust and transfer protectors.
4. Remove the rear and front propeller shafts from the
transfer case side.
5. Remove the transfer control lever knob.
6. Disconnect the harness connectors and remove the
front console.
7. Remove the selector lever assembly. Refer to
Selector Lever in the Section 7A.
8. Remove the transfer control lever.
9. Disconnect the 4WD switch connector, speed sensor
harness connector and 2WD±4WD actuator harness
connector (4WD Switch Model) from the transmission
harness.10. Support the transfer case with a transmission jack.
11. Remove the transmission±transfer bolts and the nut
(M/T).
12. Remove the transfer case assembly from the vehicle.
