Page 831 of 3573

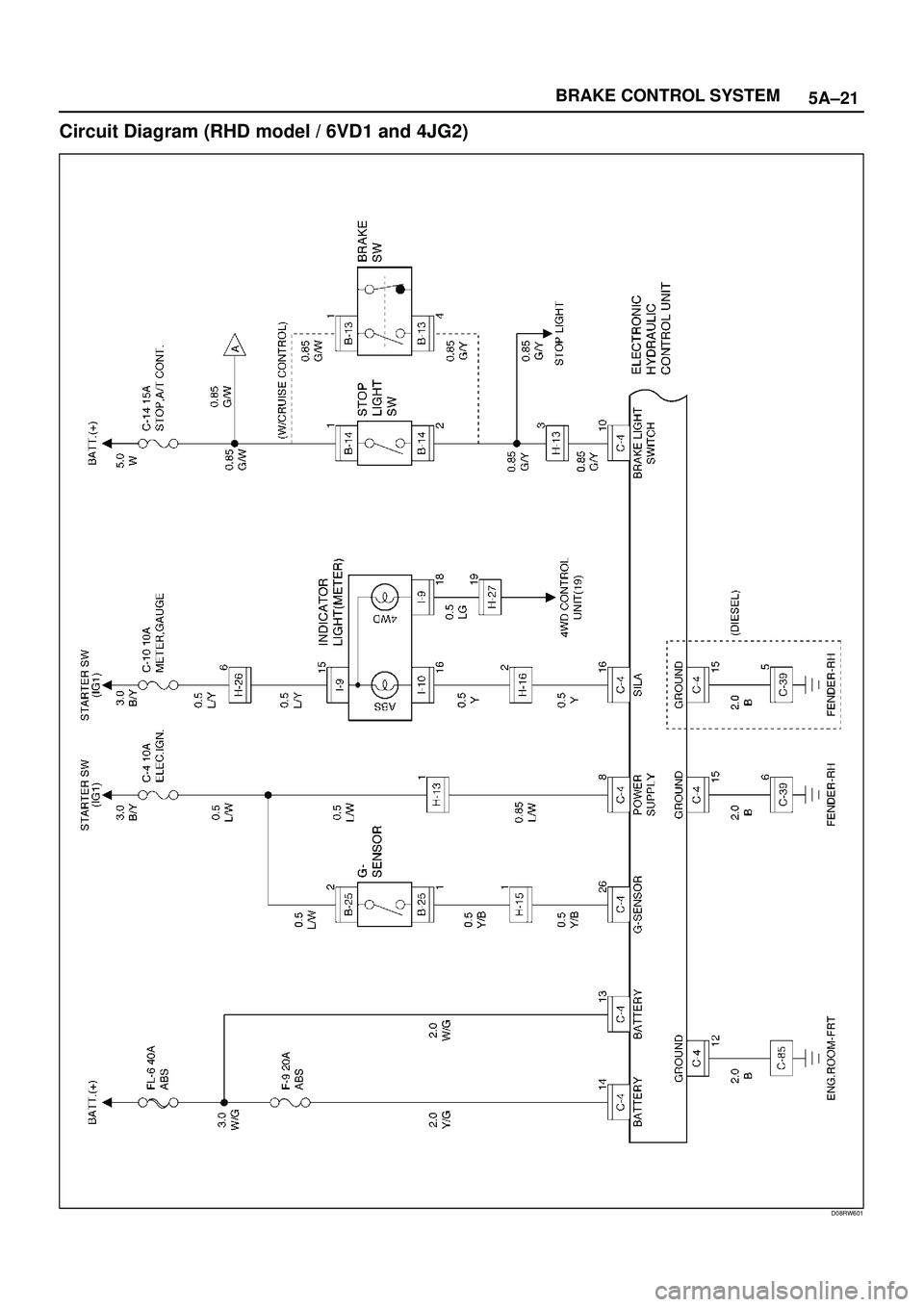

ISUZU TROOPER 1998 Service Repair Manual 5A±21 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 6VD1 and 4JG2) D08RW601

Page 832 of 3573

ISUZU TROOPER 1998 Service Repair Manual 5A±22 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 4JG2) D08RW788

Page 833 of 3573

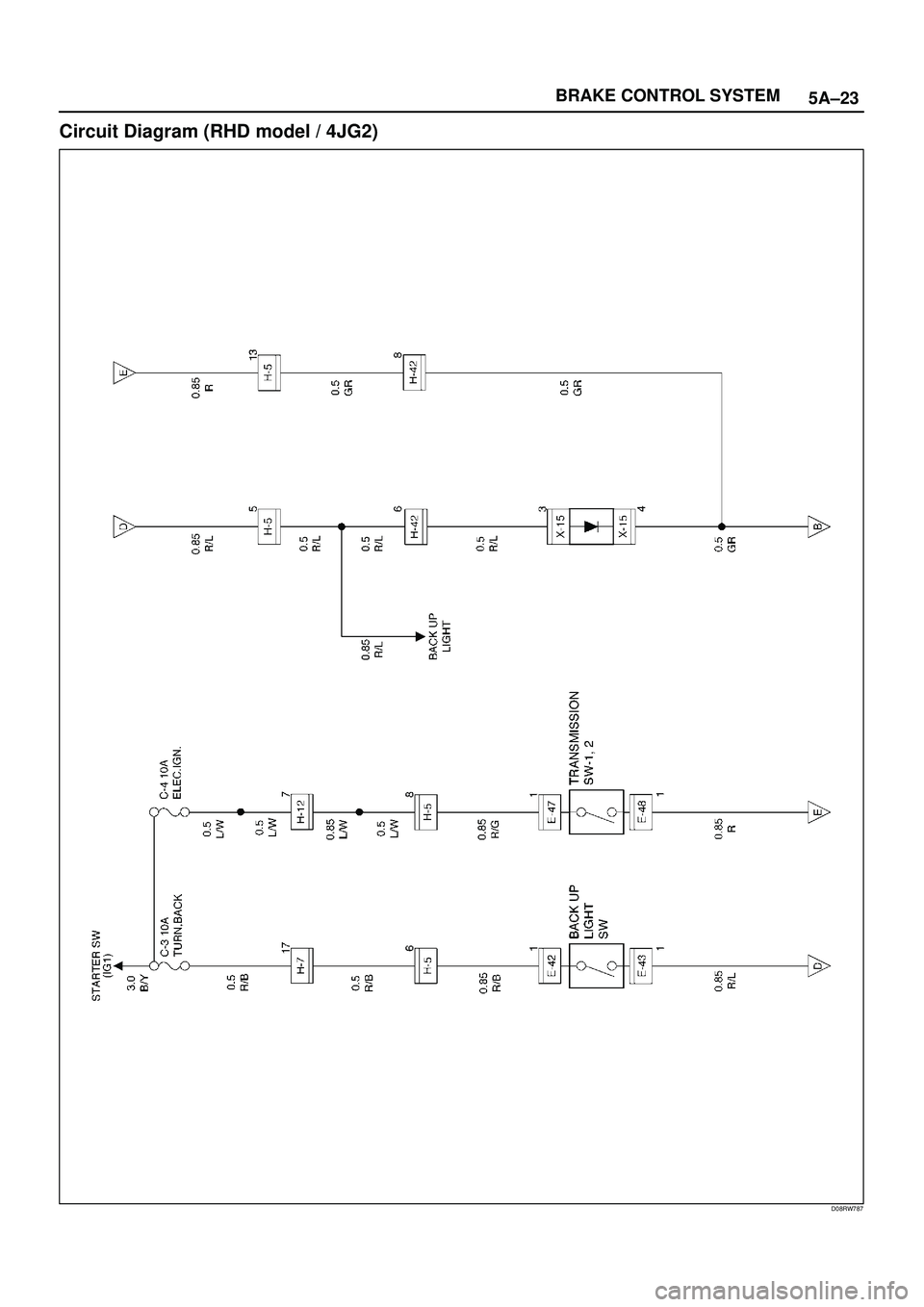

ISUZU TROOPER 1998 Service Repair Manual 5A±23 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 4JG2) D08RW787

Page 834 of 3573

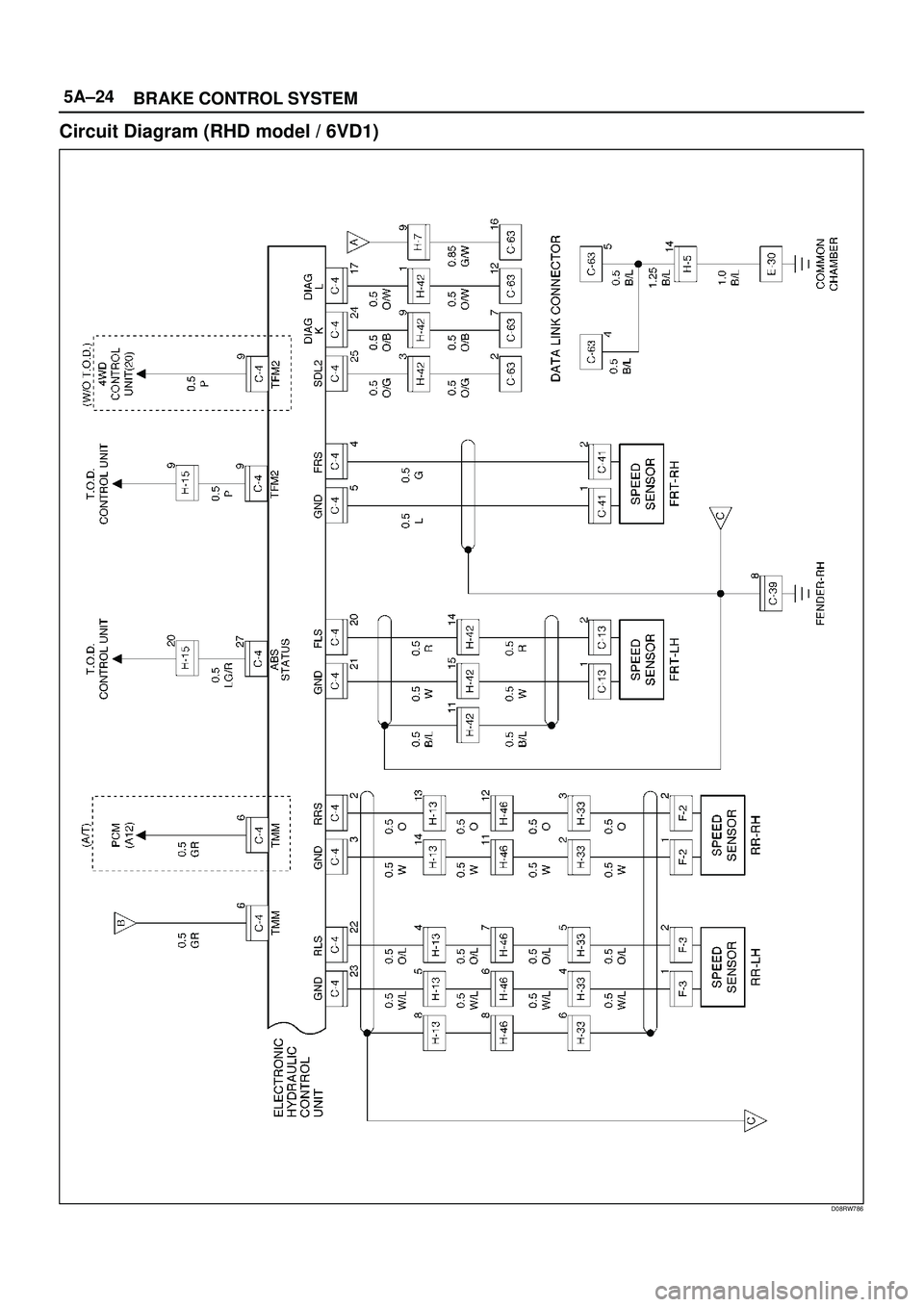

ISUZU TROOPER 1998 Service Repair Manual 5A±24 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 6VD1) D08RW786

Page 835 of 3573

ISUZU TROOPER 1998 Service Repair Manual 5A±25 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 6VD1) D08RW827

Page 836 of 3573

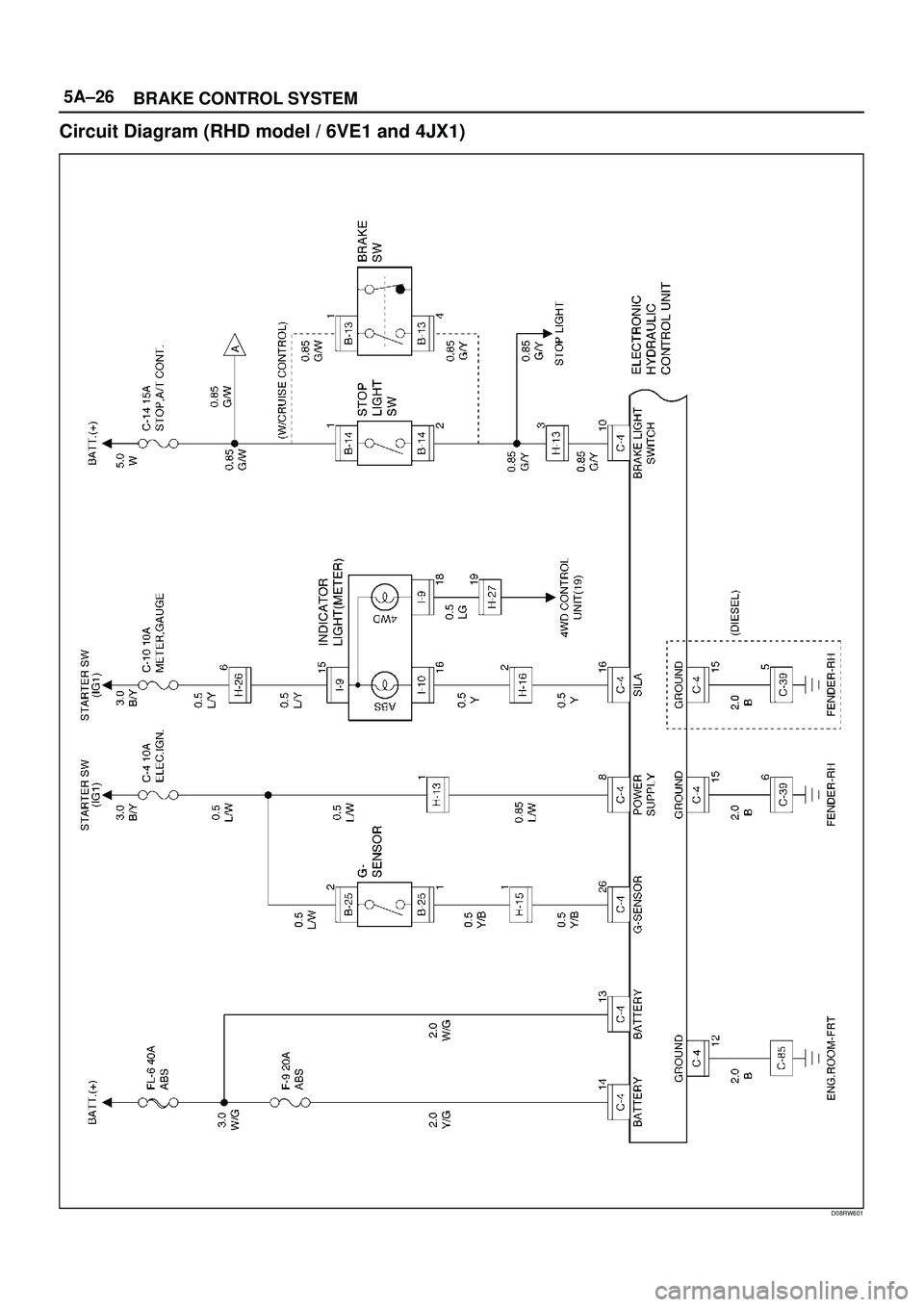

ISUZU TROOPER 1998 Service Repair Manual 5A±26 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 6VE1 and 4JX1) D08RW601

Page 837 of 3573

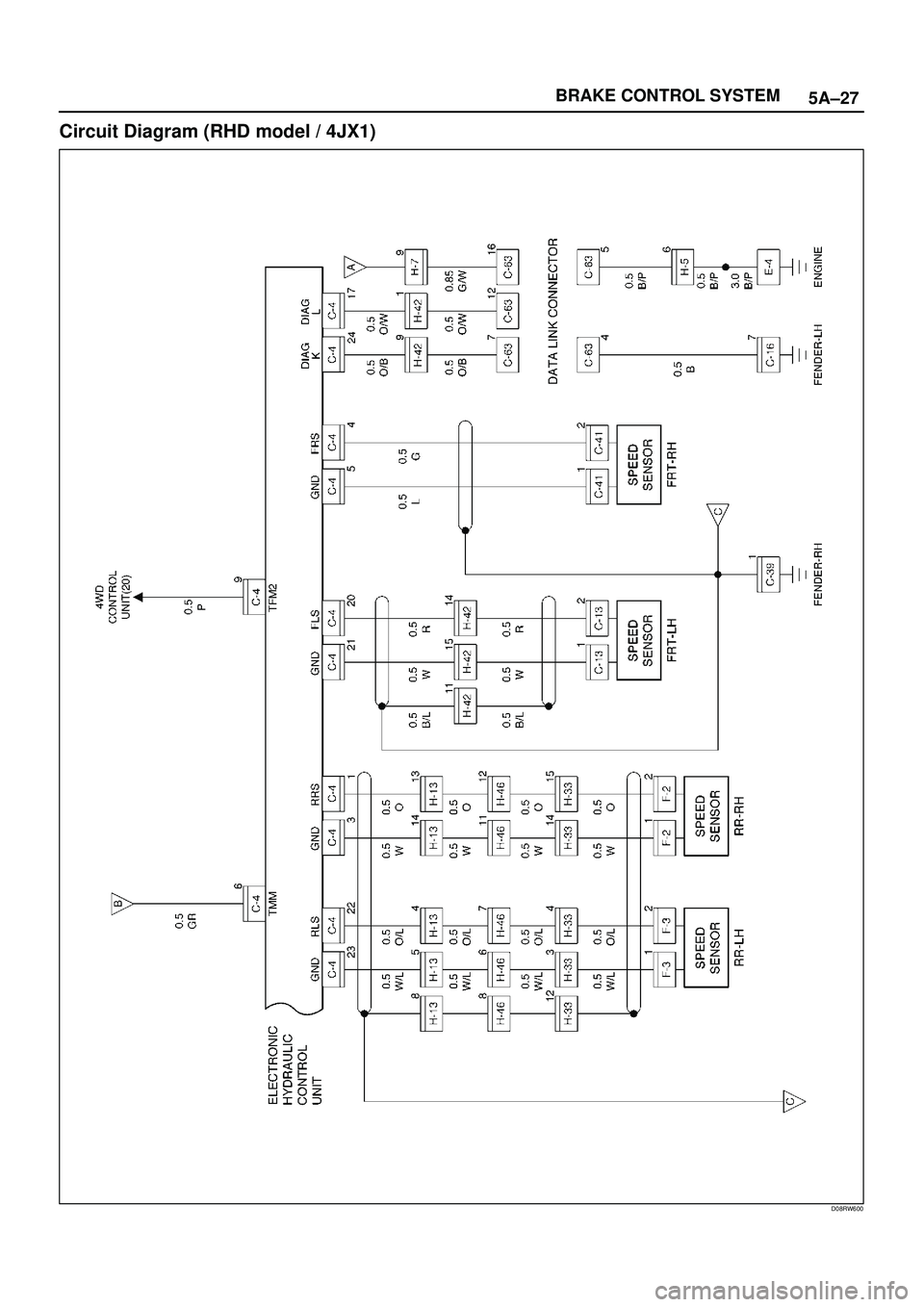

ISUZU TROOPER 1998 Service Repair Manual 5A±27 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 4JX1) D08RW600

Page 838 of 3573

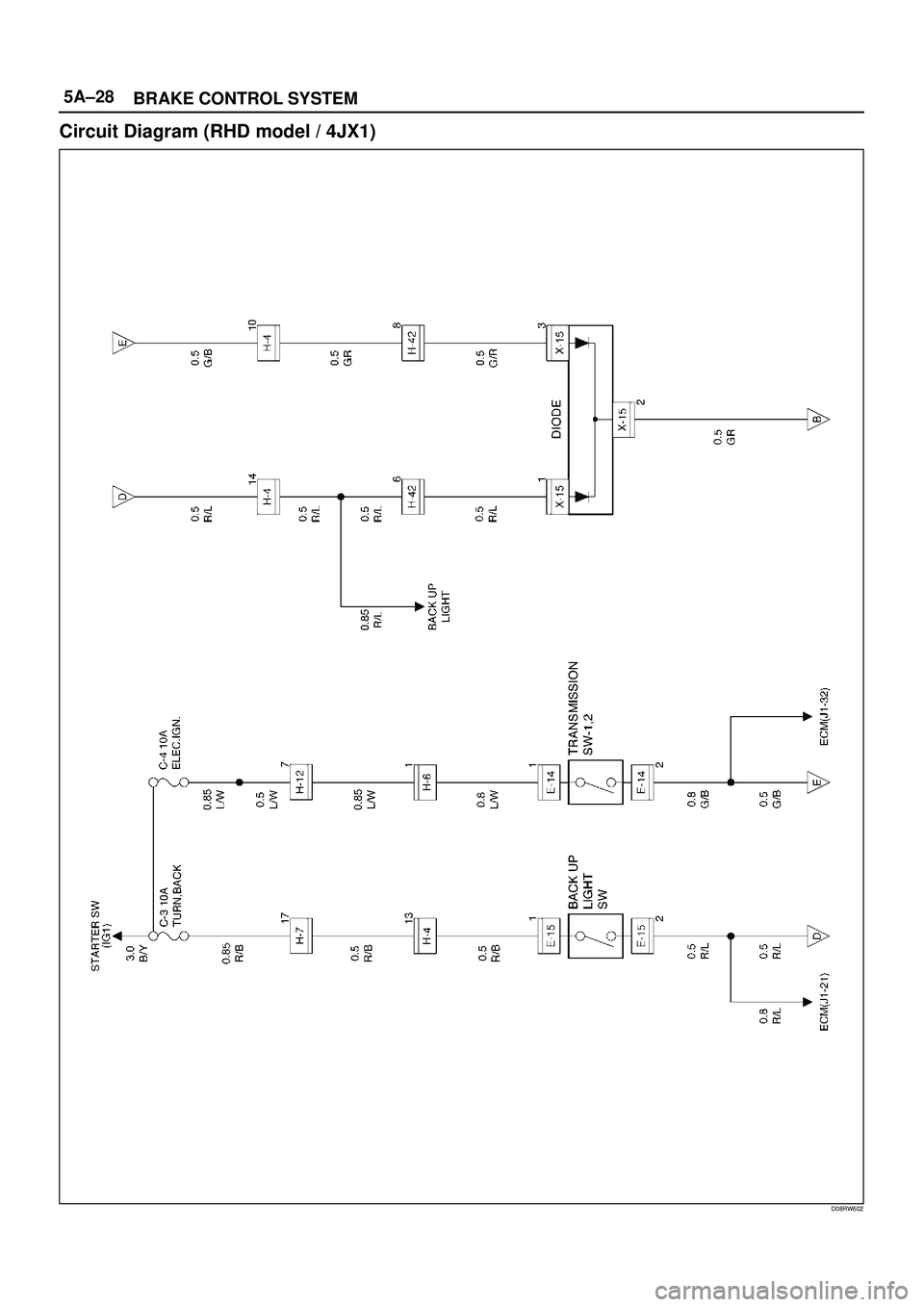

ISUZU TROOPER 1998 Service Repair Manual 5A±28 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 4JX1) D08RW602

Page 839 of 3573

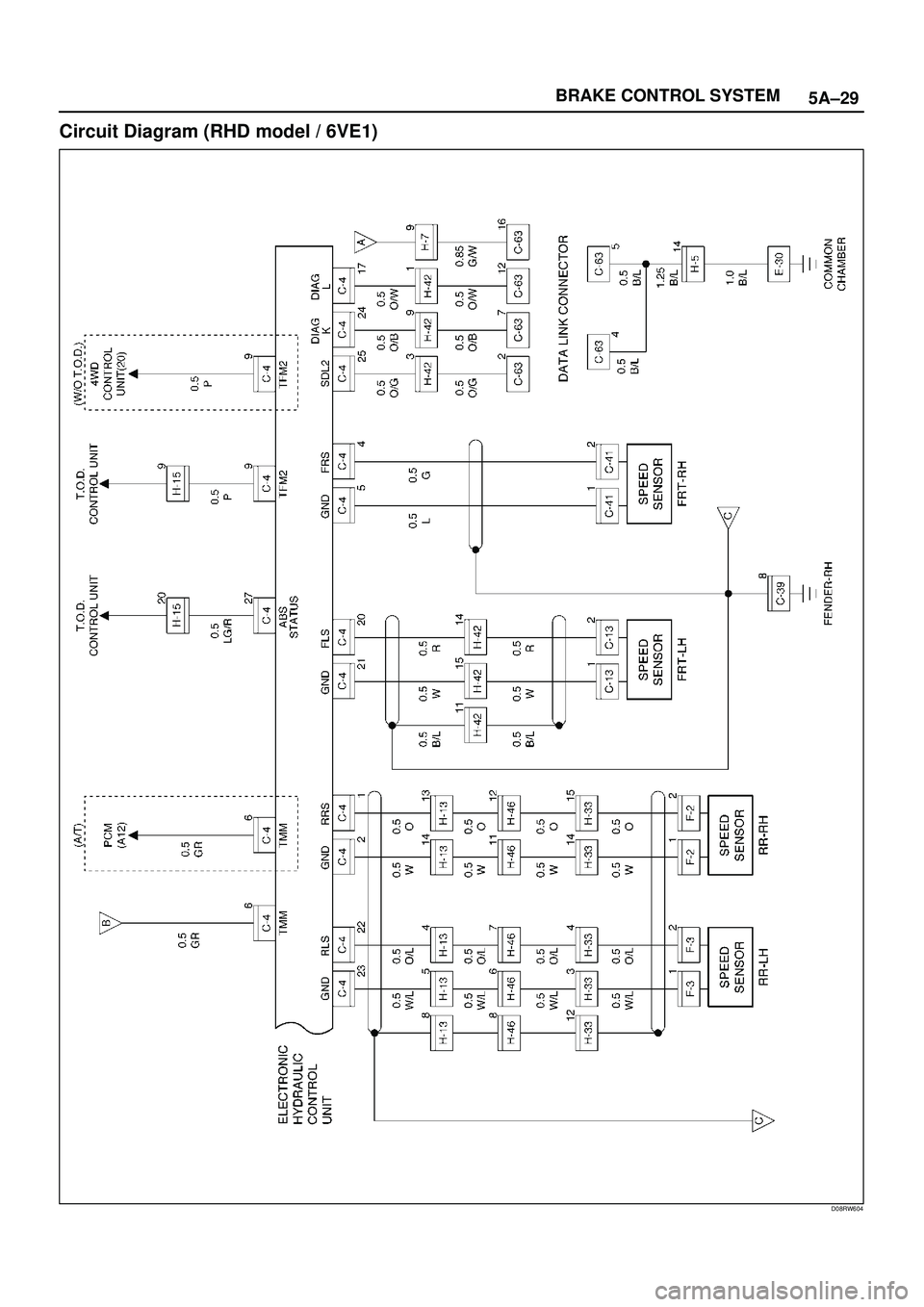

ISUZU TROOPER 1998 Service Repair Manual 5A±29 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 6VE1) D08RW604

Page 840 of 3573

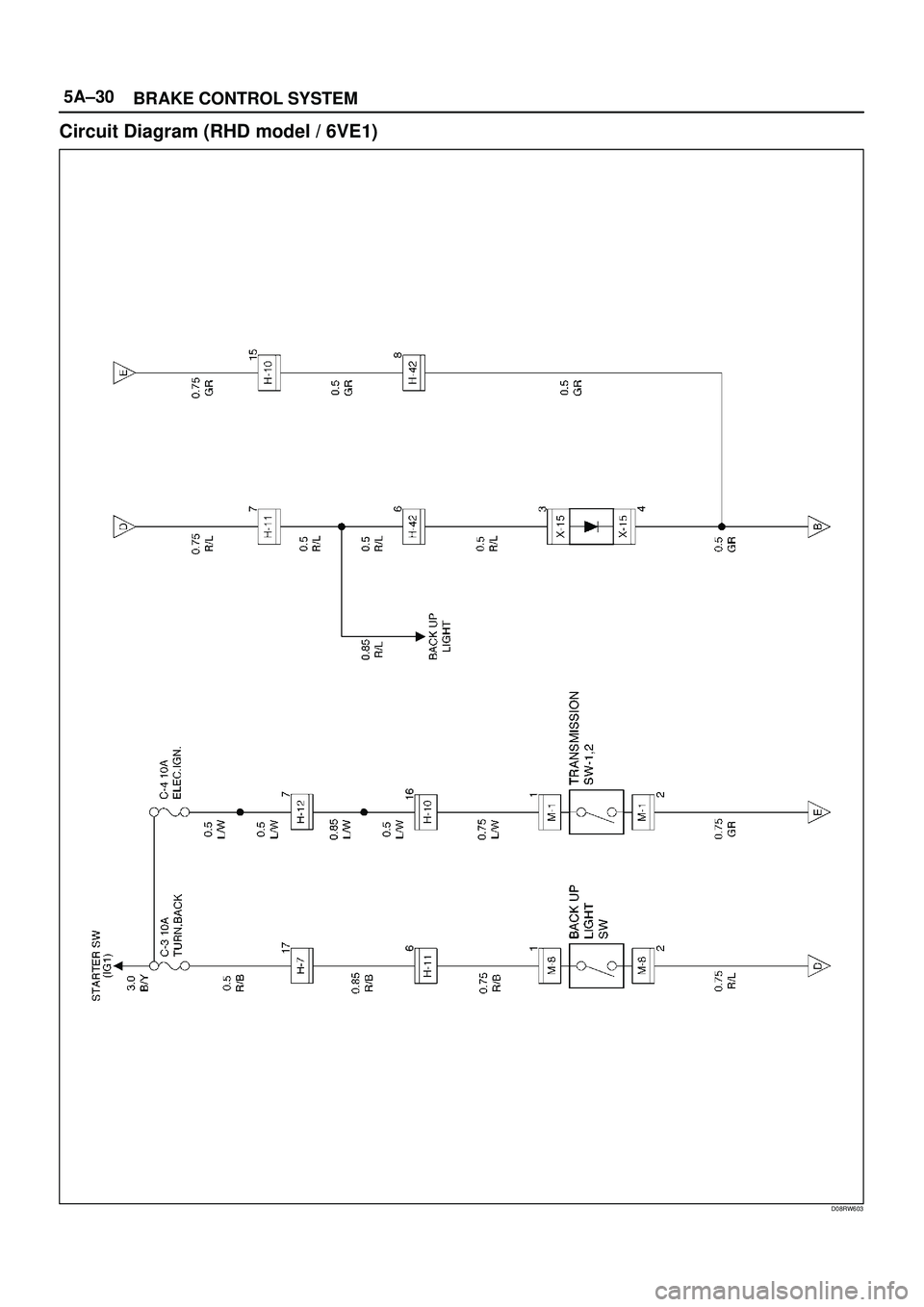

ISUZU TROOPER 1998 Service Repair Manual 5A±30 BRAKE CONTROL SYSTEM Circuit Diagram (RHD model / 6VE1) D08RW603
