ISUZU TROOPER 1998 Service Repair Manual

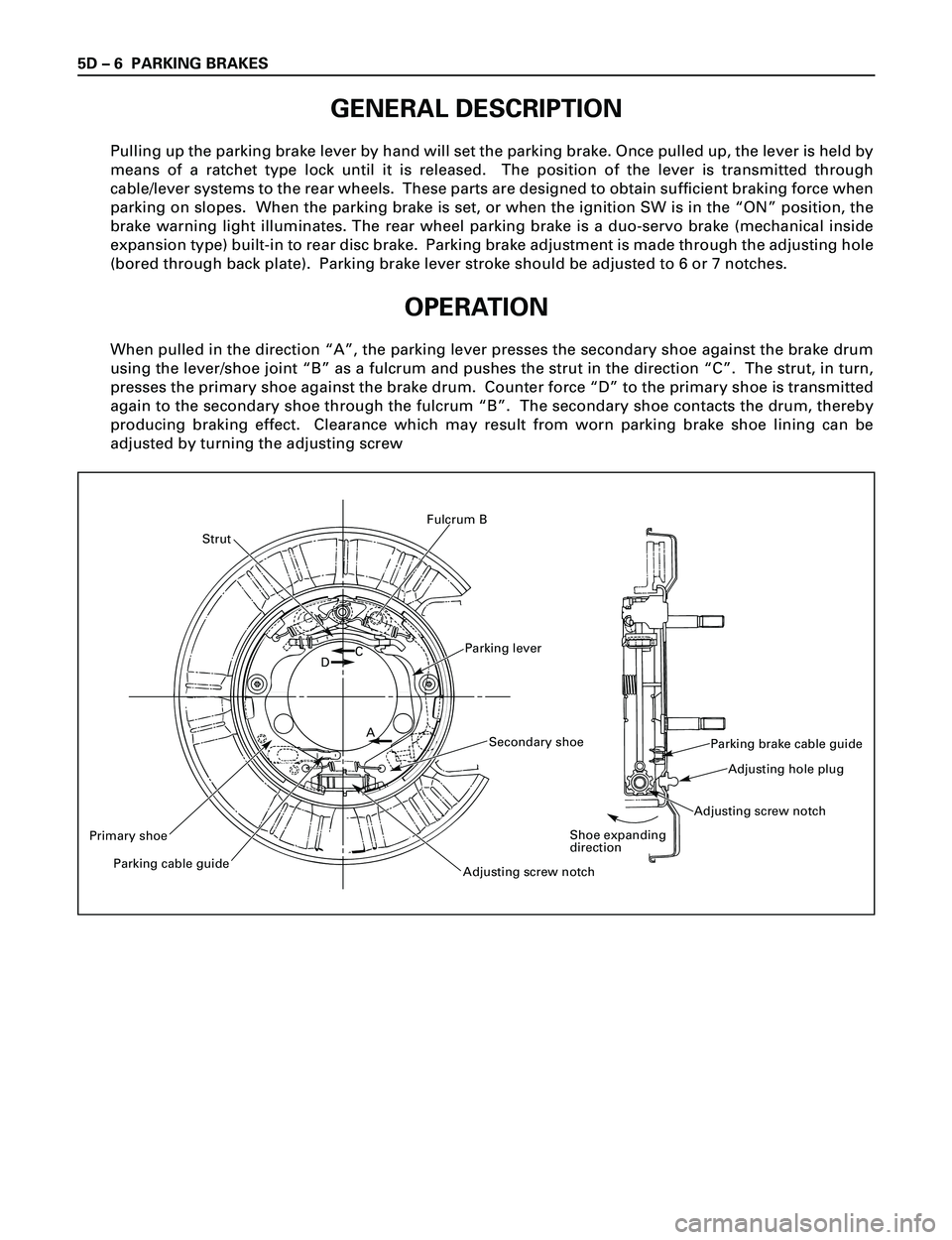

5D Ð 6 PARKING BRAKES
GENERAL DESCRIPTION
Pulling up the parking brake lever by hand will set the parking brake. Once pulled up, the lever is held by
means of a ratchet type lock until it is released. The position of the lever is transmitted through
cable/lever systems to the rear wheels. These parts are designed to obtain sufficient braking force when
parking on slopes. When the parking brake is set, or when the ignition SW is in the ÒONÓ position, the
brake warning light illuminates. The rear wheel parking brake is a duo-servo brake (mechanical inside
expansion type) built-in to rear disc brake. Parking brake adjustment is made through the adjusting hole
(bored through back plate). Parking brake lever stroke should be adjusted to 6 or 7 notches.
OPERATION
When pulled in the direction ÒAÓ, the parking lever presses the secondary shoe against the brake drum
using the lever/shoe joint ÒBÓ as a fulcrum and pushes the strut in the direction ÒCÓ. The strut, in turn,
presses the primary shoe against the brake drum. Counter force ÒDÓ to the primary shoe is transmitted
again to the secondary shoe through the fulcrum ÒBÓ. The secondary shoe contacts the drum, thereby
producing braking effect. Clearance which may result from worn parking brake shoe lining can be
adjusted by turning the adjusting screw
Parking lever
Strut
Primary shoe
Parking cable guide
Adjusting screw notch
Secondary shoe
DC
A
Fulcrum B
Parking brake cable guide
Adjusting hole plug
Adjusting screw notch
Shoe expanding
direction

PARKING BRAKES 5D Ð 7
Adjusting nut
Equalizer
ON-VEHICLE SERVICE
PARKING BRAKE LEVER REPLACEMENT
3 5
1
2
4
6
Removal Steps
1. Ajusting nut
2. Equalizer
3. Bolt
4. Switch connector
5. Parking brake lever
6. Parking brake front cable
Installation Steps
To install, follow the removal steps in the
reverse order.
REMOVAL
1. Ajusting Nut
2. Equalizer
3. Bolt
Remove the center console as described in Body
and Accessories section.
Then remove the fixing bolt.
4. Switch Connector
5. Parking Brake Lever
6. Parking Brake Front Cable
331RW007
331RW008

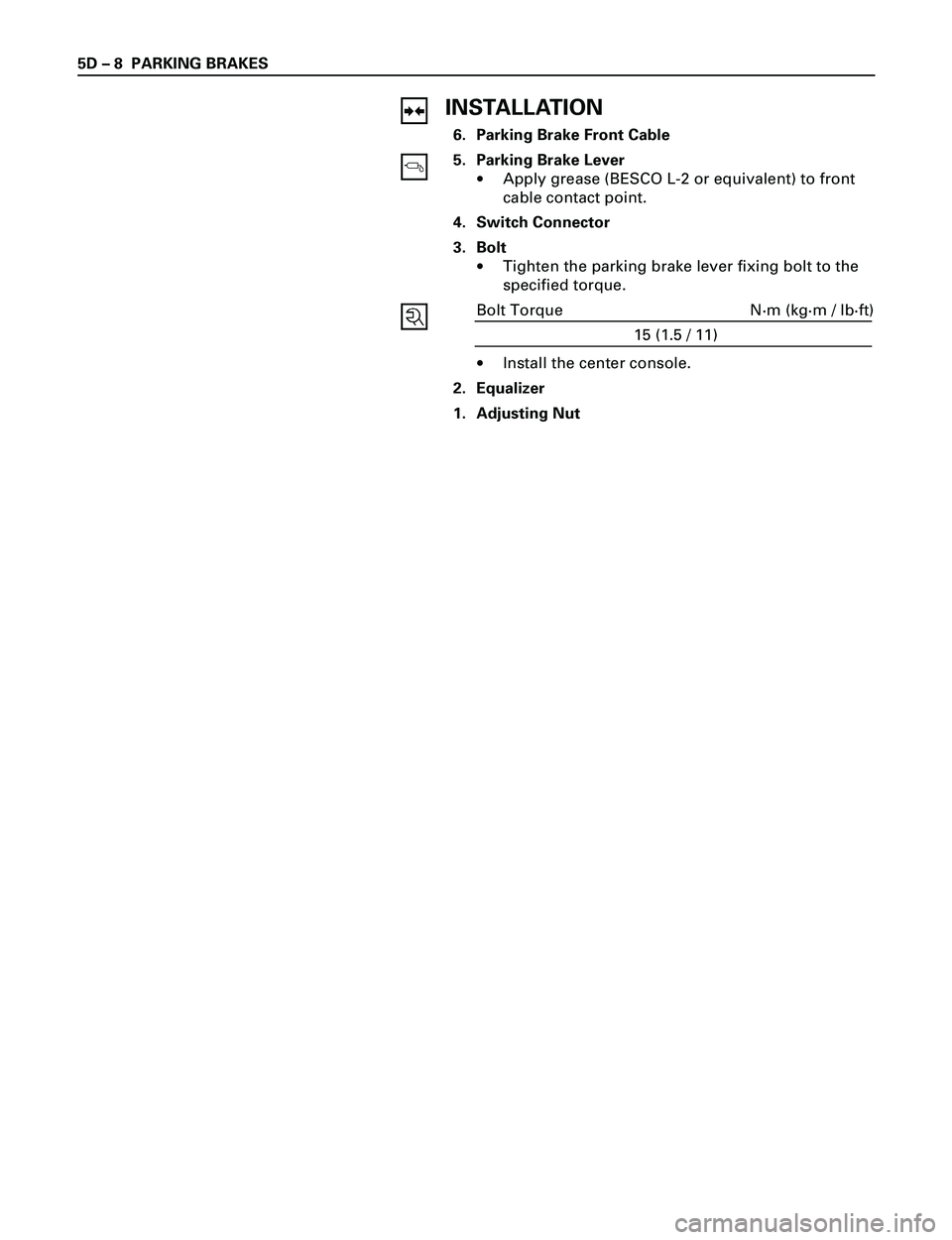

5D Ð 8 PARKING BRAKES
INSTALLATION
6. Parking Brake Front Cable
5. Parking Brake Lever
·Apply grease (BESCO L-2 or equivalent) to front
cable contact point.
4. Switch Connector
3. Bolt
·Tighten the parking brake lever fixing bolt to the
specified torque.
Bolt Torque Nám (kgám / lbáft)
15 (1.5 / 11)
·Install the center console.
2. Equalizer
1. Adjusting Nut

PARKING BRAKES 5D Ð 9

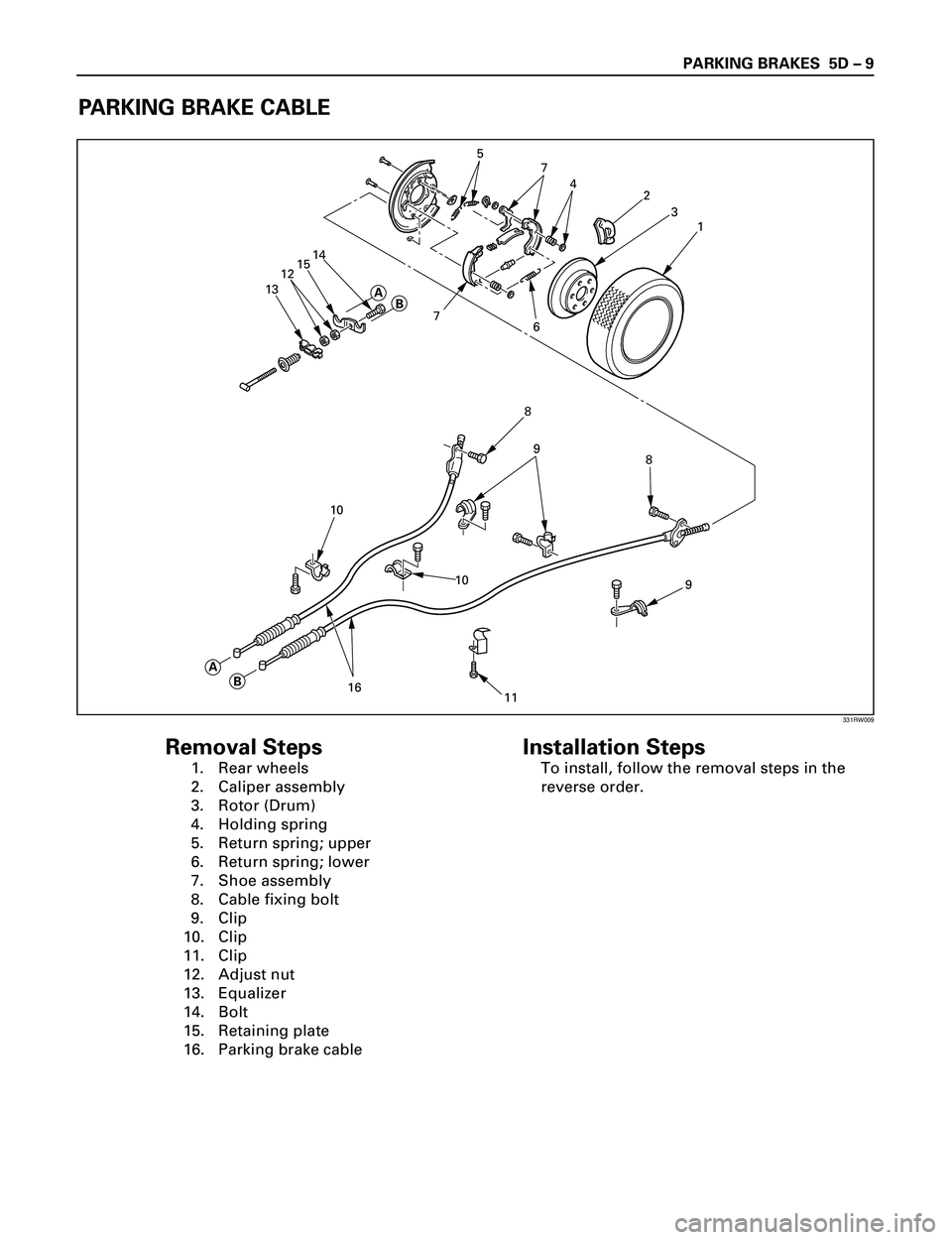

PARKING BRAKE CABLE
5
7
4
2
3
1
6 7
1215
1314
AB
108
9
10
11 169 8
AB
Removal Steps
1. Rear wheels
2. Caliper assembly
3. Rotor (Drum)
4. Holding spring
5. Return spring; upper
6. Return spring; lower
7. Shoe assembly
8. Cable fixing bolt
9. Clip
10. Clip
11. Clip
12. Adjust nut
13. Equalizer
14. Bolt
15. Retaining plate
16. Parking brake cable
Installation Steps
To install, follow the removal steps in the
reverse order.
331RW009

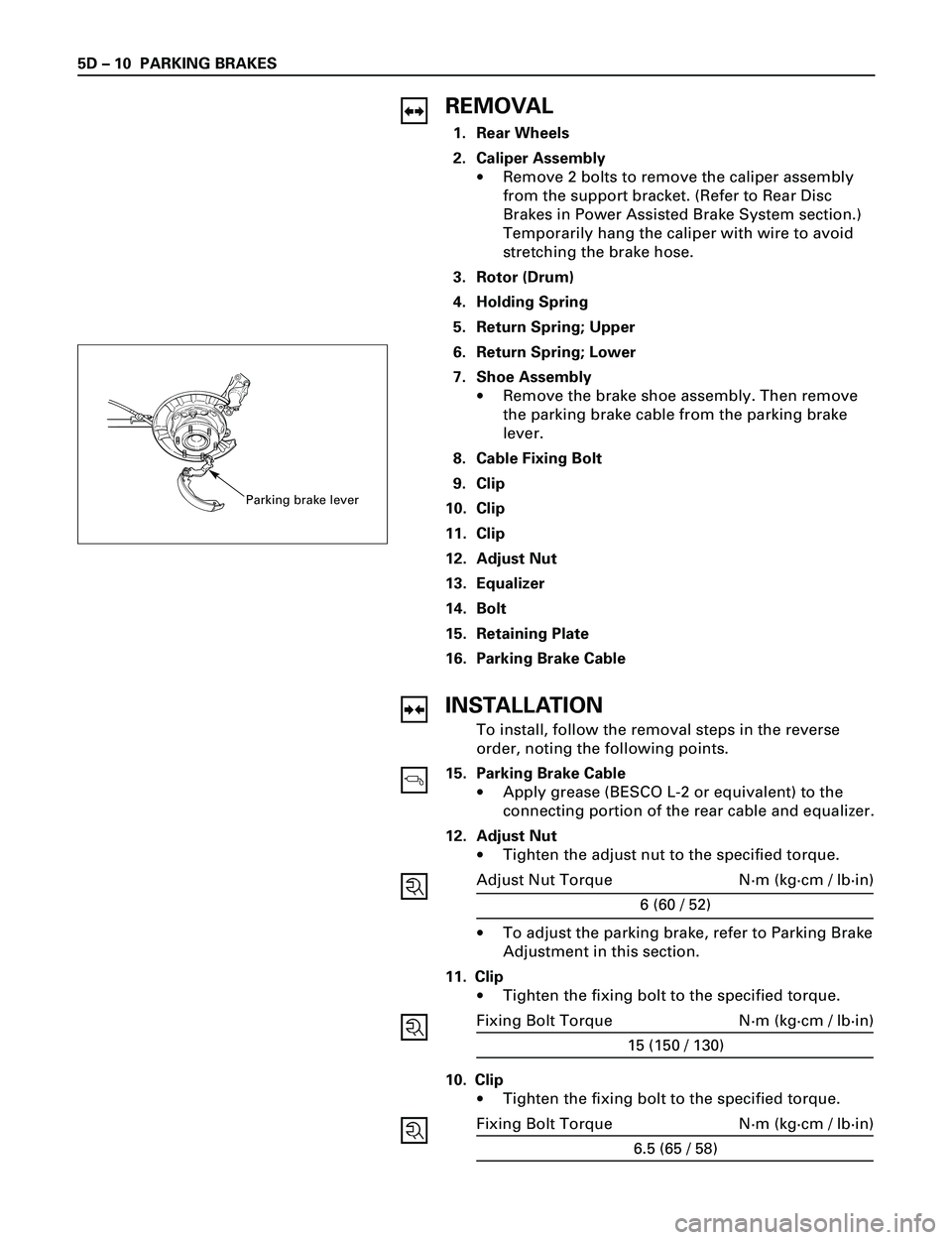

5D Ð 10 PARKING BRAKES
INSTALLATION
To install, follow the removal steps in the reverse
order, noting the following points.
15. Parking Brake Cable
·Apply grease (BESCO L-2 or equivalent) to the
connecting portion of the rear cable and equalizer.
12. Adjust Nut
·Tighten the adjust nut to the specified torque.
Adjust Nut Torque Nám (kgácm / lbáin)
6 (60 / 52)
·To adjust the parking brake, refer to Parking Brake
Adjustment in this section.
11. Clip
·Tighten the fixing bolt to the specified torque.
Fixing Bolt Torque Nám (kgácm / lbáin)
15 (150 / 130)
10. Clip
·Tighten the fixing bolt to the specified torque.
Fixing Bolt Torque Nám (kgácm / lbáin)
6.5 (65 / 58)
REMOVAL
1. Rear Wheels
2. Caliper Assembly
·Remove 2 bolts to remove the caliper assembly
from the support bracket. (Refer to Rear Disc
Brakes in Power Assisted Brake System section.)
Temporarily hang the caliper with wire to avoid
stretching the brake hose.
3. Rotor (Drum)
4. Holding Spring
5. Return Spring; Upper
6. Return Spring; Lower
7. Shoe Assembly
·Remove the brake shoe assembly. Then remove
the parking brake cable from the parking brake
lever.
8. Cable Fixing Bolt
9. Clip
10. Clip
11. Clip
12. Adjust Nut
13. Equalizer
14. Bolt
15. Retaining Plate
16. Parking Brake Cable
Parking brake lever

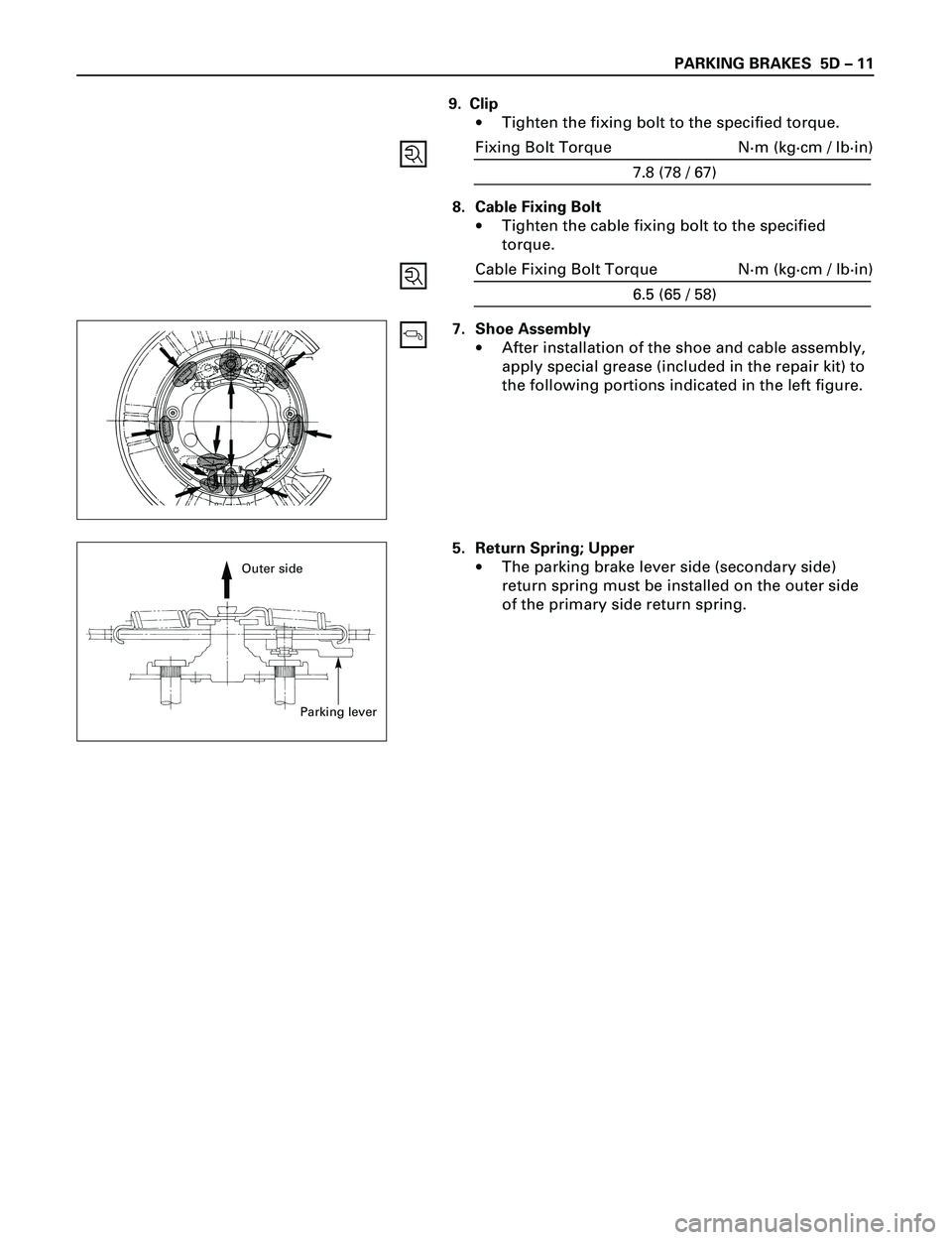

PARKING BRAKES 5D Ð 11
9. Clip
·Tighten the fixing bolt to the specified torque.
Fixing Bolt Torque Nám (kgácm / lbáin)
7.8 (78 / 67)
8. Cable Fixing Bolt
·Tighten the cable fixing bolt to the specified
torque.
Cable Fixing Bolt Torque Nám (kgácm / lbáin)
6.5 (65 / 58)
7. Shoe Assembly
·After installation of the shoe and cable assembly,
apply special grease (included in the repair kit) to
the following portions indicated in the left figure.
5. Return Spring; Upper
·The parking brake lever side (secondary side)
return spring must be installed on the outer side
of the primary side return spring.
Outer side
Parking lever

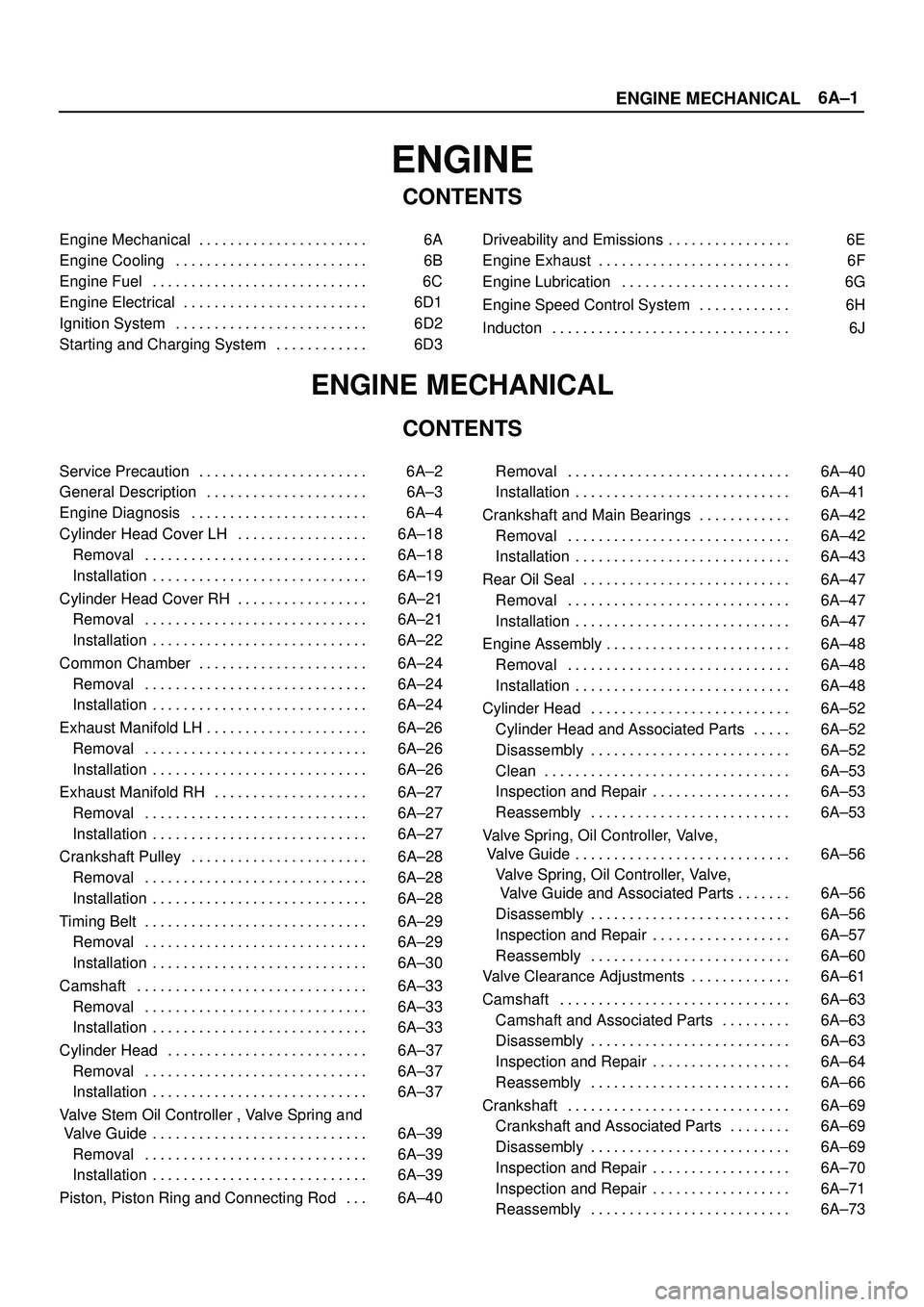

6A±1
ENGINE MECHANICAL
ENGINE
CONTENTS
Engine Mechanical 6A. . . . . . . . . . . . . . . . . . . . . .
Engine Cooling 6B. . . . . . . . . . . . . . . . . . . . . . . . .
Engine Fuel 6C. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Electrical 6D1. . . . . . . . . . . . . . . . . . . . . . . .
Ignition System 6D2. . . . . . . . . . . . . . . . . . . . . . . . .
Starting and Charging System 6D3. . . . . . . . . . . . Driveability and Emissions 6E. . . . . . . . . . . . . . . .
Engine Exhaust 6F. . . . . . . . . . . . . . . . . . . . . . . . .
Engine Lubrication 6G. . . . . . . . . . . . . . . . . . . . . .
Engine Speed Control System 6H. . . . . . . . . . . .
Inducton 6J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ENGINE MECHANICAL
CONTENTS
Service Precaution 6A±2. . . . . . . . . . . . . . . . . . . . . .
General Description 6A±3. . . . . . . . . . . . . . . . . . . . .
Engine Diagnosis 6A±4. . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head Cover LH 6A±18. . . . . . . . . . . . . . . . .
Removal 6A±18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head Cover RH 6A±21. . . . . . . . . . . . . . . . .
Removal 6A±21. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±22. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Common Chamber 6A±24. . . . . . . . . . . . . . . . . . . . . .
Removal 6A±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±24. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Manifold LH 6A±26. . . . . . . . . . . . . . . . . . . . .
Removal 6A±26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±26. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Manifold RH 6A±27. . . . . . . . . . . . . . . . . . . .
Removal 6A±27. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±27. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankshaft Pulley 6A±28. . . . . . . . . . . . . . . . . . . . . . .
Removal 6A±28. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±28. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timing Belt 6A±29. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 6A±29. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±30. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Camshaft 6A±33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 6A±33. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±33. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head 6A±37. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 6A±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±37. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valve Stem Oil Controller , Valve Spring and
Valve Guide 6A±39. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 6A±39. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±39. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Piston, Piston Ring and Connecting Rod 6A±40. . . Removal 6A±40. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±41. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankshaft and Main Bearings 6A±42. . . . . . . . . . . .
Removal 6A±42. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±43. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Oil Seal 6A±47. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 6A±47. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±47. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Assembly 6A±48. . . . . . . . . . . . . . . . . . . . . . . .
Removal 6A±48. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6A±48. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head 6A±52. . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head and Associated Parts 6A±52. . . . .
Disassembly 6A±52. . . . . . . . . . . . . . . . . . . . . . . . . .
Clean 6A±53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 6A±53. . . . . . . . . . . . . . . . . .
Reassembly 6A±53. . . . . . . . . . . . . . . . . . . . . . . . . .
Valve Spring, Oil Controller, Valve,
Valve Guide 6A±56. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valve Spring, Oil Controller, Valve,
Valve Guide and Associated Parts 6A±56. . . . . . .
Disassembly 6A±56. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 6A±57. . . . . . . . . . . . . . . . . .
Reassembly 6A±60. . . . . . . . . . . . . . . . . . . . . . . . . .
Valve Clearance Adjustments 6A±61. . . . . . . . . . . . .
Camshaft 6A±63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Camshaft and Associated Parts 6A±63. . . . . . . . .
Disassembly 6A±63. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 6A±64. . . . . . . . . . . . . . . . . .
Reassembly 6A±66. . . . . . . . . . . . . . . . . . . . . . . . . .
Crankshaft 6A±69. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankshaft and Associated Parts 6A±69. . . . . . . .
Disassembly 6A±69. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 6A±70. . . . . . . . . . . . . . . . . .
Inspection and Repair 6A±71. . . . . . . . . . . . . . . . . .
Reassembly 6A±73. . . . . . . . . . . . . . . . . . . . . . . . . .

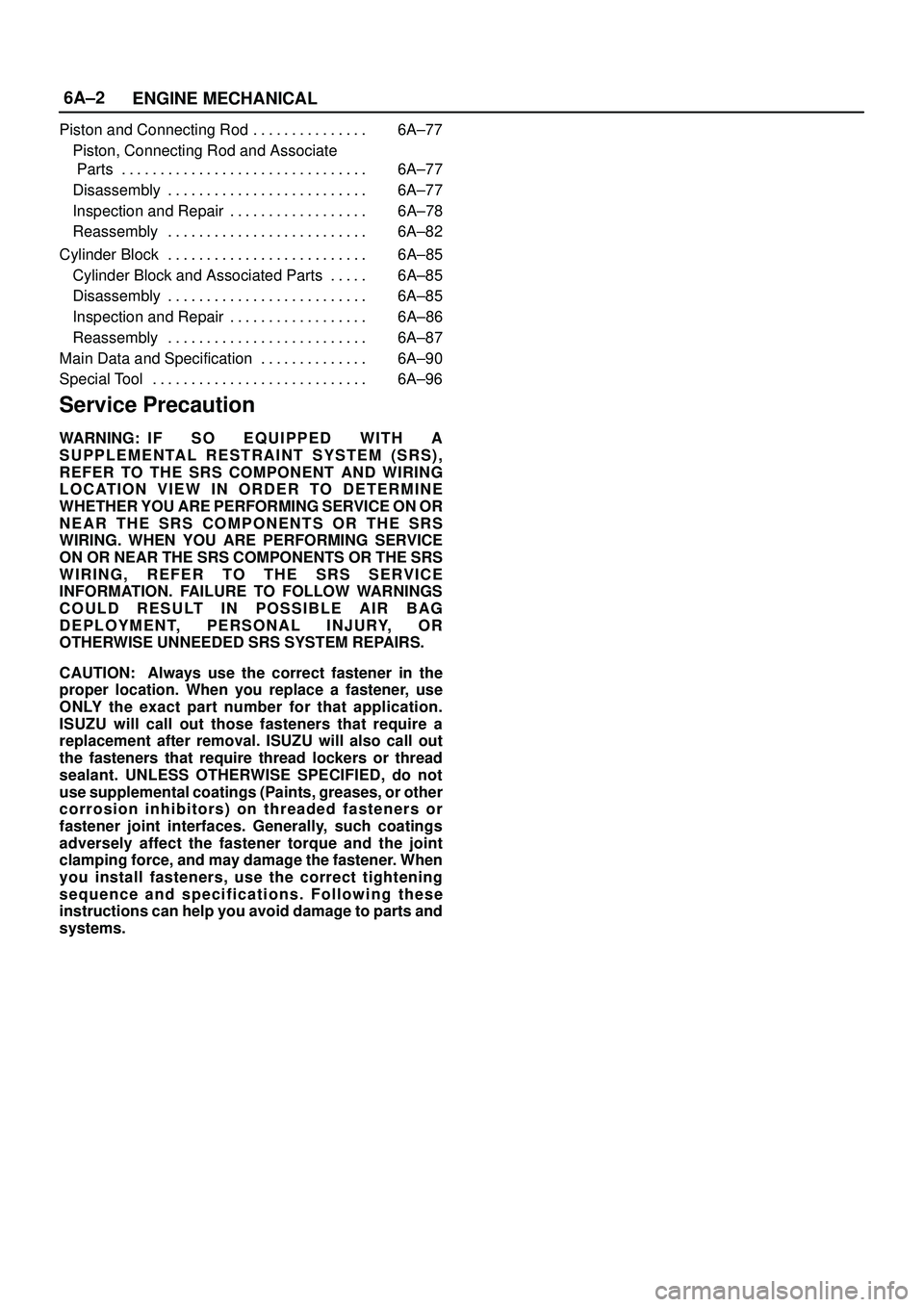

6A±2
ENGINE MECHANICAL
Piston and Connecting Rod 6A±77. . . . . . . . . . . . . . .
Piston, Connecting Rod and Associate
Parts 6A±77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 6A±77. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 6A±78. . . . . . . . . . . . . . . . . .
Reassembly 6A±82. . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Block 6A±85. . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Block and Associated Parts 6A±85. . . . .
Disassembly 6A±85. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection and Repair 6A±86. . . . . . . . . . . . . . . . . .
Reassembly 6A±87. . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specification 6A±90. . . . . . . . . . . . . .
Special Tool 6A±96. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

6A±3
ENGINE MECHANICAL
General Description
Engine Cleanliness And Care
An automobile engine is a combination of many
machined, honed, polished and lapped surfaces with
tolerances that are measured in the thousandths of a
millimeter (ten thousandths of an inch). Accordingly,
when any internal engine parts are serviced, care and
cleanliness are important. Throughout this section, it
should be understood that proper cleaning and protection
of machined surfaces and friction areas is part of the
repair procedure. This is considered standard shop
practice even if not specifically stated.

A liberal coating of engine oil should be applied to all
friction areas during assembly to protect and lubricate
the surfaces on initial operation.

Whenever valve train components, pistons, piston
rings, connecting rods, rod bearings, and crankshaft
journal bearings are removed for service, they should
be retained in order.

At the time of installation, they should be installed in
the same locations and with the same mating
surfaces as when removed.

Battery cables should be disconnected before any
major work is performed on the engine. Failure to
disconnect cables may result in damage to wire
harness or other electrical parts.

The six cylinders of this engine are identified by
numbers; Right side cylinders 1, 3 and 5, Left side
cylinders 2, 4 and 6, as counted from crankshaft
pulley side to flywheel side.
General Information on Engine Service
The following information on engine service should be
noted carefully, as it is important in preventing damage
and contributing to reliable engine performance:

When raising or supporting the engine for any reason,
do not use a jack under the oil pan. Due to the small
clearance between the oil pan and the oil pump
strainer, jacking against the oil pan may cause
damage to the oil pick±up unit.

The 12±volt electrical system is capable of damaging
circuits. When performing any work where electrical
terminals could possibly be grounded, the ground
cable of the battery should be disconnected at the
battery.

Any time the intake air duct or air cleaner is removed,
the intake opening should be covered. This will
protect against accidental entrance of foreign
material into the cylinder which could cause extensive
damage when the engine is started.
Cylinder Block
The cylinder block is made of aluminum die±cast casting
for 75
V±type six cylinders. It has a rear plate integrated
structure and employs a deep skint. The cylinder liner is
cast and the liner inner diameter and crankshaft journal
diameter are classified into grades. The crankshaft is
supported by four bearings of which width of No.3 bearing
on the body side is different in order to support the thrust
bearing. The bearing cap is made of nodular cast iron and
each bearing cap uses four bolts and two side bolts.
Cylinder Head
The cylinder head, made of aluminum alloy casting
employs a pent±roof type combustion chamber with a
spark plug in the center. The intake and exhaust valves
are placed in V±type design. The ports are cross±flow
type.
Valve Train
Intake and exhaust camshaft on the both side of banks
are driven through an camshaft drive gear by timing belt.
The valves are operated by the camshaft and the valve
clearance is adjusted to select suitable thickness shim.
Intake Manifold
The intake manifold system is composed of the aluminum
cast common chamber and intake manifold attached with
six fuel injectors.
Exhaust Manifold
The exhaust manifold is made of nodular cast iron.
Pistons and Connecting Rods
Aluminum pistons are used after selecting the grade that
meets the cylinder bore diameter. Each piston has two
compression rings and one oil ring. The piston pin is made
of chromium steel is offset 1mm toward the thrust side,
and the thrust pressure of piston to the cylinder wall varies
gradually as the piston travels. The connecting rods are
made of forged steel. The connecting rod bearings are
graded for correct seze selection.
Crankshaft and Bearings
The crankshaft is made of Ductile cast±iron. Pins and
journals are graded for correct size selection for their
bearing.
Engine Lubrication
The oil discharged by a trochoid±type oil pump driven by
the crankshaft is fed through full±flow oil filter and to the oil
gallery provided under the crankshaft bearing cap. The oil
is then led to the crankshaft journals and cylinder head.
The crank pins are lubricated with oil from crankshaft
journals through oil holes. Also, an oil jet is fed to each
cylinder from crankshaft juornals on the connecting rod
for piston cleaning. The oil pan flange is dealed with liquid
packing only; do not deform or damage the flange surface
during removal or installation.

6A±4
ENGINE MECHANICAL
Engine Diagnosis
Hard Starting
1. Starting Motor Does Not Turn Over
Troubleshooting Procedure
Turn on headlights and starter switch.
Condition
Possible causeCorrection
Headlights go out or dim
considerably
Battery run down or under chargedRecharge or replace battery
considerablyTerminals poorly connectedClean battery posts and terminals
and connect properly
Starting motor coil circuit shortedOverhaul or replace
Starting motor defectiveOverhaul or replace
2. Ignition Trouble Ð Starting Motor Turns Over But Engine Does Not Start
Spark Test
Disconnect an igniton coil from any spark plug. Connect
the spark plug tester 5±8840±0607±0, start the engine,
and check if a spark is generated in the spark plug tester.
Before starting the engine, make sure that the spark plugtester is properly grounded. To avoid electrical shock, do
not touch the part where insulation of the igniton coil is
broken while the engine is running.
Condition
Possible causeCorrection
Spark jumps across gapSpark plug defectiveClean, adjust spark gap or replace
Ignition timing incorrectRefer to Ignition System
Fuel not reaching fuel injector(s) or
engineRefer to item 3 (Trouble in fuel
system)
Valve timing incorrectAdjust
Engine lacks compressionRefer to item 4 (Engine lacks
compression)
No sparking takes placeIgnition coil disconnected or brokenConnect properly or replace
Electronic Ignition System with
moduleReplace
Poor connections in engine harnessCorrect
Powertrain Control Module cable
disconnected or defectiveCorrect or replace
3. Trouble In Fuel System
Condition
Possible causeCorrection
Starting motor turns over and spark
occurs but engine does not start
Fuel tank emptyFill
occurs but engine does not start.Water in fuel systemClean
Fuel filter cloggedReplace filter
Fuel pipe cloggedClean or replace
Fuel pump defectiveReplace
Fuel pump circuit openCorrect or replace
Evaporative Emission Control
System circuit cloggedCorrect or replace
Multiport Fuel Injection System faultyRefer to ªElectronic Fuel Injectionº
section
