Exterior Lighting174
Exterior LightingExterior Lighting
COMPONENT LOCATION1Front height sensor
2 Headlamp leveling module
3 Rain/light sensor
4 Rear height sensor
5 Light switch - Left-hand (LH) steering column
multifunction switch
6 Auxiliary lighting switch
7 Side marker lamp (NAS only) (2 off)
8 Front turn signal indicator (2 off)
9 Halogen or xenon headlamp projector module (2
off)
10 Cornering/Static bending lamp (where fitted) (2 off)
11 Headlamp telescopic power washer (2 off) 12
Front side lamp (2 off)
13 High beam only halogen lamp (2 off)
14 High Mounted Stop Lamp (HMSL) Light emitting
diode (LED)'s
15 License plate lamps (2 off)
16 Rear fog lamp (2 off)
17 Rear turn signal indicator (2 off)
18 Reverse lamp (2 off)
19 Side lamp/stop lamp Light emitting diode (LED)'s (2
off)
20 Side marker Light emitting diode (LED)'s (All
markets) (2 off)
21 Side repeater lamp (2 off)

Exterior Lighting
175

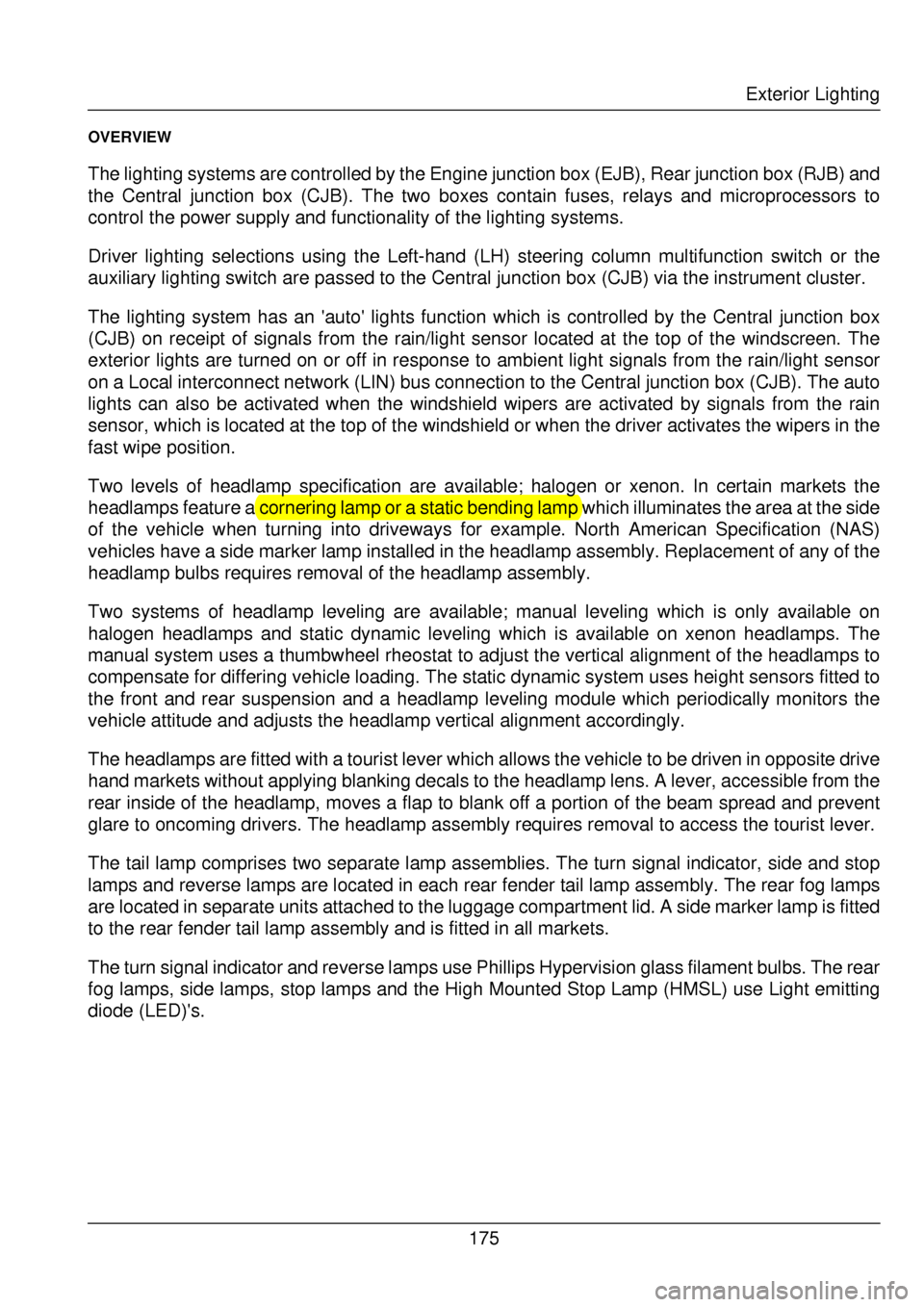

OVERVIEW
The lighting systems are cont rolled by the Engine junction box (E JB), Rear junction box (RJB) and
the Central junction box (CJB). The two boxes contain fuses, relays and microprocessors to
control the power supply and functionality of the lighting systems.
Driver lighting sele ctions using the Left-hand (LH) steering column multifunction switch or the
auxiliary lighting switch are pass ed to the Central junction box (C JB) via the instrument cluster.
The lighting system has an 'auto' lights function which is controlled by the Central junction box
(CJB) on receipt of signals from the rain/light sensor located at the top of the windscreen. The
exterior lights are turned on or off in response to ambient light signals from the rain/light sensor
on a Local interconnect network (LIN) bus connectio n to the Central junction box (CJB). The auto
lights can also be activated wh en the windshield wipers are acti vated by signals from the rain
sensor, which is located at the t op of the windshield or when the dr iver activates the wipers in the
fast wipe position.
Two levels of headlamp specification are availa ble; halogen or xenon. In certain markets the
headlamps feature a cornering lamp or a static bend ing lamp which illuminates the area at the side
of the vehicle when turning into driveways fo r example. North American Specification (NAS)
vehicles have a side marker lamp installed in the headlamp assembly. Replacement of any of the
headlamp bulbs requires removal of the headlamp assembly.
Two systems of headlamp leveling ar e available; manual leveling which is only available on
halogen headlamps and static dy namic leveling which is available on xenon headlamps. The
manual system uses a thumbwheel rheostat to adjust the vertical alignment of the headlamps to
compensate for differing vehicle loading. The static dynamic system uses height sensors fitted to
the front and rear suspension and a headlamp leveling module wh ich periodically monitors the
vehicle attitude and adjusts the headlamp vertical alignment accordingly.
The headlamps are fitted with a tourist lever which allows the vehicle to be driven in opposite drive
hand markets without applying blanking decals to the headlamp lens. A lever, accessible from the
rear inside of the headlamp, moves a flap to blan k off a portion of the beam spread and prevent
glare to oncoming drivers. The headlamp assembly requires removal to access the tourist lever.
The tail lamp comprises two separate lamp asse mblies. The turn signal indicator, side and stop
lamps and reverse lamps are located in each rear fender tail lamp assembly. The rear fog lamps
are located in separate units atta ched to the luggage compartment lid. A side marker lamp is fitted
to the rear fender tail lamp assembly and is fitted in all markets.
The turn signal indicator and re verse lamps use Phillips Hypervisi on glass filament bulbs. The rear
fog lamps, side lamps, stop lamps and the Hi gh Mounted Stop Lamp (HMSL) use Light emitting
diode (LED)'s.

Exterior Lighting176

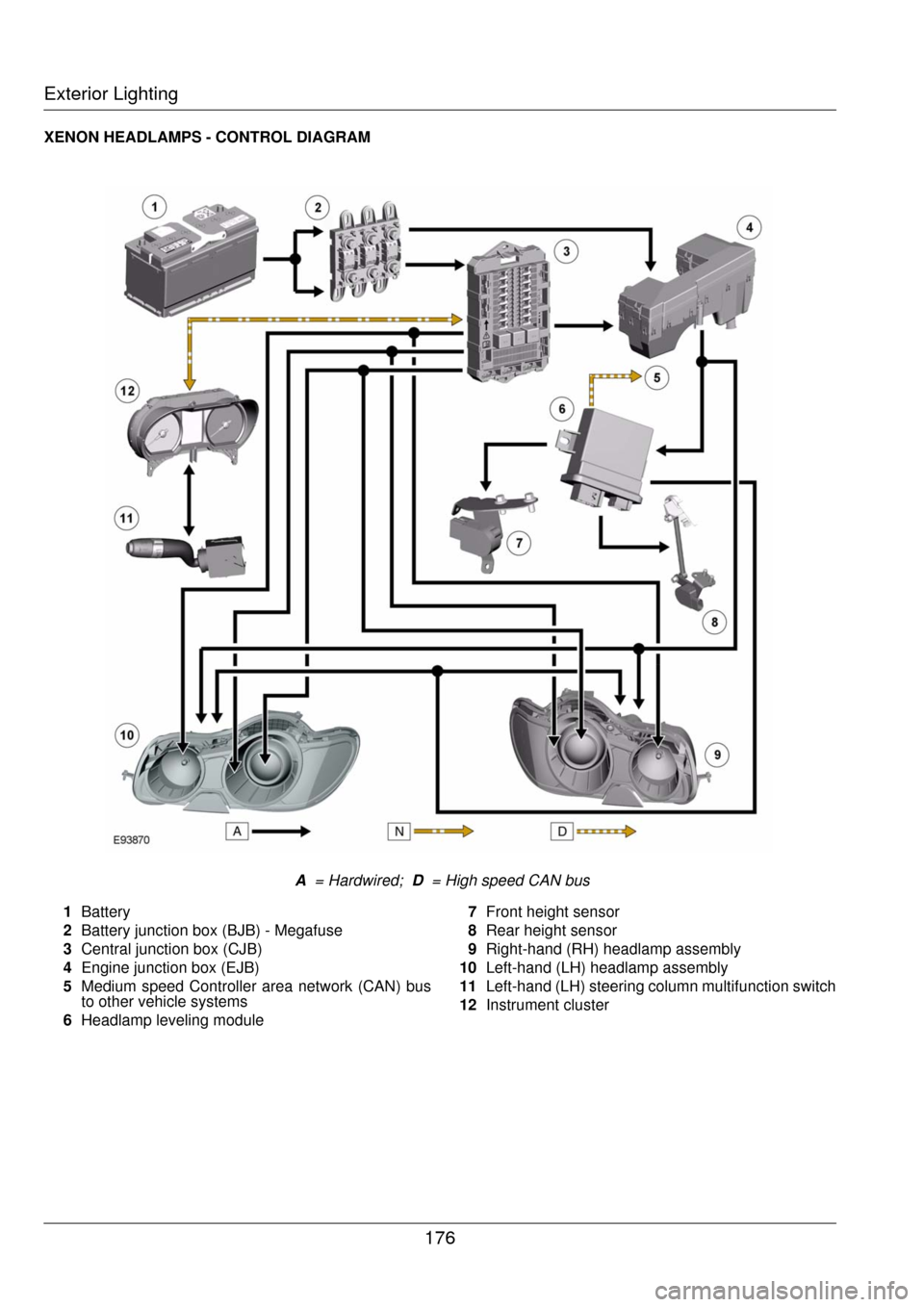

XENON HEADLAMPS - CONTROL DIAGRAM A = Hardwired; D = High speed CAN bus
1 Battery
2 Battery junction box (BJB) - Megafuse
3 Central junction box (CJB)
4 Engine junction box (EJB)
5 Medium speed Controller area network (CAN) bus
to other vehicle systems
6 Headlamp leveling module 7
Front height sensor
8 Rear height sensor
9 Right-hand (RH) headlamp assembly
10 Left-hand (LH) headlamp assembly
11 Left-hand (LH) steering column multifunction switch
12 Instrument cluster

Exterior Lighting
177

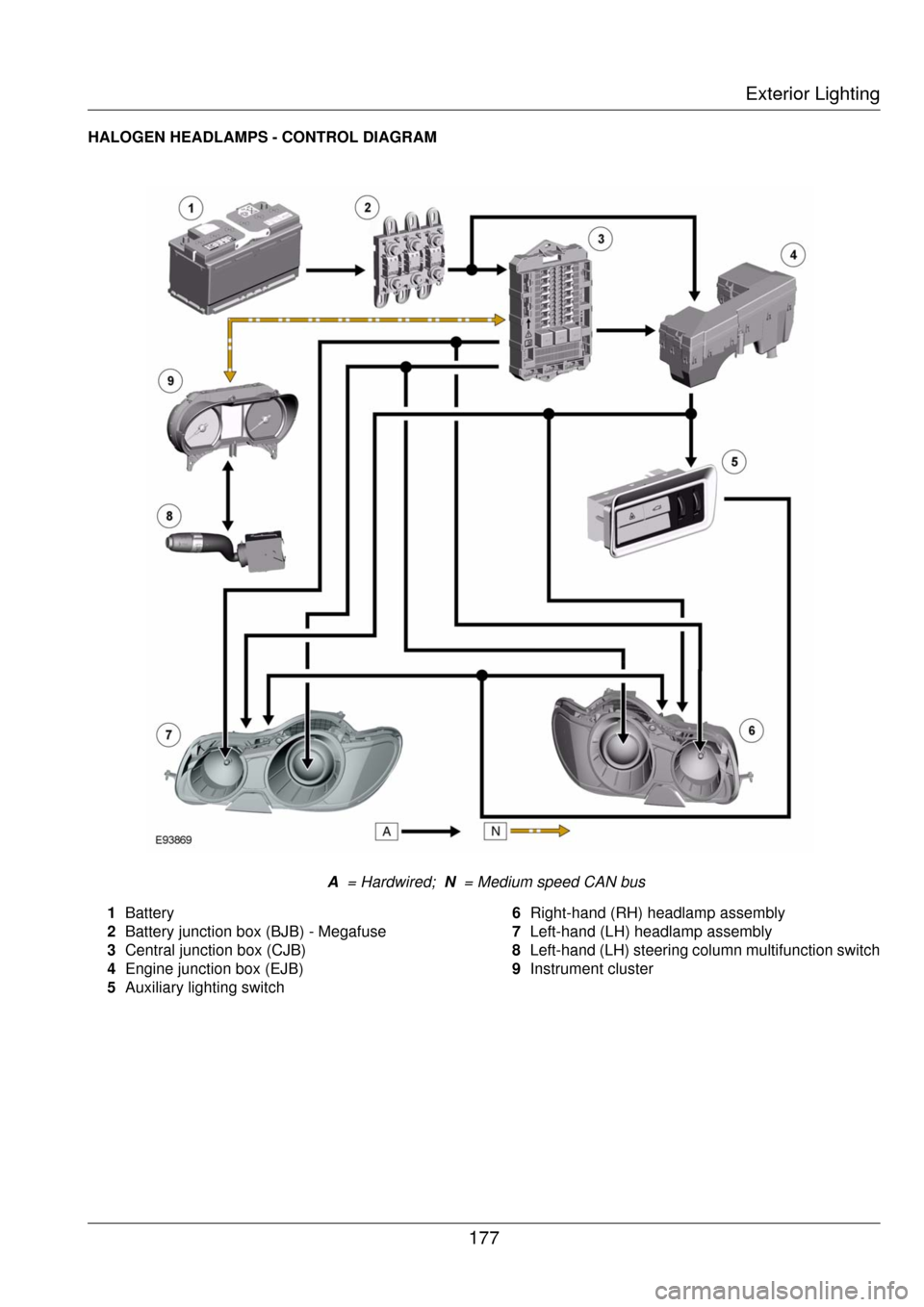

HALOGEN HEADLAMPS - CONTROL DIAGRAM A = Hardwired; N = Medium speed CAN bus
1 Battery
2 Battery junction box (BJB) - Megafuse
3 Central junction box (CJB)
4 Engine junction box (EJB)
5 Auxiliary lighting switch 6
Right-hand (RH) headlamp assembly
7 Left-hand (LH) headlamp assembly
8 Left-hand (LH) steering column multifunction switch
9 Instrument cluster

Exterior Lighting178

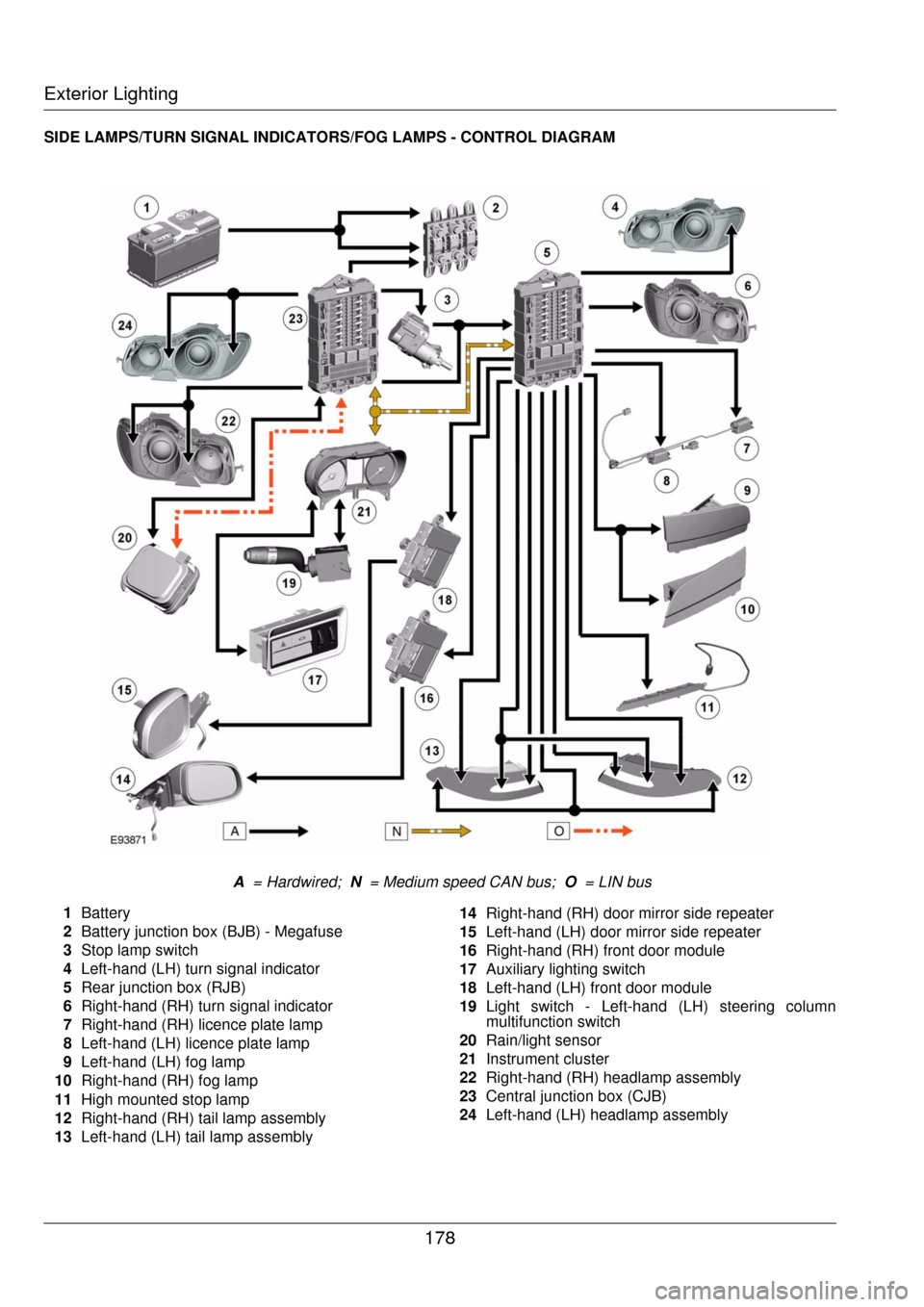

SIDE LAMPS/TURN SIGNAL INDICATORS/FOG LAMPS - CONTROL DIAGRAM
A = Hardwired; N = Medium speed CAN bus; O = LIN bus
1 Battery
2 Battery junction box (BJB) - Megafuse
3 Stop lamp switch
4 Left-hand (LH) turn signal indicator
5 Rear junction box (RJB)
6 Right-hand (RH) turn signal indicator
7 Right-hand (RH) licence plate lamp
8 Left-hand (LH) licence plate lamp
9 Left-hand (LH) fog lamp
10 Right-hand (RH) fog lamp
11 High mounted stop lamp
12 Right-hand (RH) tail lamp assembly
13 Left-hand (LH) tail lamp assembly 14
Right-hand (RH) door mirror side repeater
15 Left-hand (LH) door mirror side repeater
16 Right-hand (RH) front door module
17 Auxiliary lighting switch
18 Left-hand (LH) front door module
19 Light switch - Left-hand (LH) steering column
multifunction switch
20 Rain/light sensor
21 Instrument cluster
22 Right-hand (RH) headlamp assembly
23 Central junction box (CJB)
24 Left-hand (LH) headlamp assembly
