JAGUAR XF 2009 1.G Lighting In Detail Manual

Published: 11-May-2011Exterior Lighting - Exterior Lighting - System Operation and Component Description Description and Operation
Control Diagram XENON HEADLAMPS - CONTROL DIAGRAM

ItemDescription A = Hardwired; D = High speed CAN bus; N = Medium speed CAN bus
Battery
BJB (battery junction box)
CJB (central junction box)
EJB (engine junction box)
Medium speed CAN (controller area network) bus to other vehicle systems
Headlamp leveling module
Front height sensor
Rear height sensor
RH (right-hand) headlamp assembly
LH (left-hand) headlamp assembly
Lighting control switch - LH steering column multifunction switch
Instrument cluster
HALOGEN HEADLAMPS - CONTROL DIAGRAM
1
2
3
4
5
6
7
8
9
10
11
12
Page 1 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

ItemDescription A = Hardwired; N = Medium speed CAN bus
Battery
BJB
CJB
EJB
Auxiliary lighting switch
RH headlamp assembly
LH headlamp assembly
Lighting control switch - LH steering column multifunction switch
Instrument cluster
SIDE LAMPS/TURN SIGNAL INDICATORS/FOG LAMPS - CONTROL DIAGRAM
1
2
3
4
5
6
7
8
9
Page 2 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

ItemDescription A = Hardwired; N = Medium speed CAN bus; O = LIN bus
Battery
BJB - Megafuse
Stop lamp switch
LH turn signal indicator
RJB (rear junction box)
RH turn signal indicator
RH licence plate lamp
LH licence plate lamp
LH fog lamp
RH fog lamp
High mounted stop lamp
RH tail lamp assembly
LH tail lamp assembly
RH door mirror side repeater
LH door mirror side repeater
RH front door module
Auxiliary lighting switch
LH front door module
Lighting control switch - LH steering column multifunction switch
Rain/light sensor
Instrument cluster
RH headlamp assembly - side lamp and side marker lamp (if fitted)
CJB
LH headlamp assembly - side lamp and side marker lamp (if fitted)
System Operation
CENTRAL JUNCTION BOX (CJB) AND REAR JUNCTION BOX (RJB)
The CJB is an integrated unit which controls body functions and power distribution. The CJB is located on the RH 'A' pillar.
The RJB also controls body functions and power distribution and is located in the RH
side of the luggage compartment.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Page 3 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

Central Junction Box
The CJB receives inputs from the following switches via the instrument cluster and the medium speed CAN bus:
LH Steering column multifunction switch
- Side lamp position
- Headlamp position
- Automatic (AUTO) position
- Timer delay positions
- Turn signal indicators
- Headlamp flash and main beam positions.
The CJB receives direct inputs from the following components:
Stop lamp switch Rain/light sensor.
The CJB provides power supplies to the following lamps:
LH and RH front side lamps LH and RH front side marker lamps (if fitted) LH and RH static bending lamp (if fitted) LH and RH low beam headlamp LH and RH high beam headlamp.
Rear Junction Box
The RJB provides power supplies to the following lamps:
LH and RH tail lamps LH and RH stop lamps LH and RH front turn signal indicators LH and RH rear turn signal indicators LH and RH licence plate lamps LH and RH side marker lamps High mounted stop lamp Rear fog lamps Reverse lamps.
The RJB also provides a power supply to the LH and RH door modules. The door modules use the power supply to activate the turn signal indicator side repeater lamps located in the door
mirrors, on receipt of a medium speed CAN bus message from the RJB.
Circuit Protection
The CJB and the RJB provide circuit protection for their respective lighting circuits. The exterior lighting circuits are protected by Field Effect Transistors (FET's). The FET's can detect
overloads and short circuits and respond to heat generated by increased current flow caused by a short circuit.
On a normal conventionally protected circuit this would cause a fuse to blow. The FET's respond to the heat increase and disconnect the power supply to the affected circuit. When the fault
is rectified or the FET has cooled, the FET will reset and operate the circuit normally. If the fault persists the FET will cycle, disconnecting and reconnecting the power supply.
The CJB and the RJB store fault codes which can be retrieved using a Jaguar approved diagnostic system. The fault code will identify that there is a fault on a particular output circuit which
will assist with fault diagnosis and detection.
Alarm Indications
The exterior lighting system is used for alarm arm and disarm requests to show alarm system status.
When the driver locks and arms the vehicle, a visual indication of a successful lock and arm request is displayed to the driver by a single flash of the hazard flashers. If the vehicle is
superlocked, then the hazard flashers will flash a second time (200 ms off and 200 ms on) to confirm the superlock request.
If the alarm is activated, the hazard flashers are operated for 10, 30 second cycles of 200 ms on and 200 ms off, with a 10 second delay between each cycle.
• NOTE: On North American Specification (NAS) vehicles, the delay between the cycle when the alarm is activated is 60 seconds.
Lights on Warning
When the ignition is in the off power mode 0 or accessory power mode 4 and the lighting control switch is in the side lamp or headlamp position, a warning chime will sound if the driver's
door is opened. This indicates to the driver that the exterior lights have been left switched on.
The chime is generated from the instrument cluster sounder on receipt of a lights on signal, a driver's door open signal and an ignition off power mode 0 or accessory power mode 4 signal
via a medium speed CAN bus signal from the CJB.
Headlamp Timer
The RJB controls the headlamp timer function which allows the headlamps to remain on for a period of time after leaving the vehicle. This is a driver convenience feature which illuminates
the driveway after leaving the vehicle.
To operate the timer function the lighting control switch must be in one of the three headlamp timer positions when the ignition status is changed from ignition on power mode 6 to the off
power mode 0. The timer function will then be initiated and the low beam headlamps will be illuminated for the selected timer period.
• NOTE: If the lighting switch is in the AUTO position, the headlamp timer will not function when the ignition is changed to off power mode 0.
When the lighting control switch is in the autolamp exit delay position, the lighting control switch reference voltage flows through 4 of the resistors. The returned signal voltage is detected
by the instrument cluster which outputs a message on the medium speed CAN bus to the RJB that autolamps has been selected.
Depending on the selected exit delay position, the reference voltage to the autolamp exit delay switch is routed through 3, 2 or 1 resistors which is detected by the instrument cluster. The
cluster outputs a message on the medium speed CAN bus to the RJB that autolamp exit delay period has been selected at 30, 60 or 120 seconds respectively.
Crash Signal Activation
Page 4 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

When a crash signal is transmitted from the RCM (restraints control module), the RJB activates the hazard flashers. The hazard flashers continue to operate until the ignition is in the off
power mode 0 or accessory power mode 6. Once this ignition state has occurred, the RCM will cease to transmit the crash signal.
LIGHTING CONTROL SWITCH
The instrument cluster outputs 2 reference voltages to the rotary lighting control switch; one feed being supplied to the light selection function of the switch and the second feed being
supplied to the auto headlamp exit delay function. The switch position is determined by instrument cluster by the change in returned signal voltage which is routed through up to 4
resistors in series depending on the selection made.
OFF - When the lighting control switch is in the off position, the reference voltage flows through 1 of the resistors. The returned signal voltage is detected by the instrument cluster which
outputs a message on the medium speed CAN bus to the CJB that no lighting selection is made. The reference voltage to the auto headlamp exit delay switch is routed through 4 resistors
which is detected by the instrument cluster which outputs a message on the medium speed CAN bus to the CJB that auto headlamp or exit delay has not been selected.
SIDE LAMPS - When the lighting control switch is in the side lamp position, the reference voltage flows through 2 of the resistors. The returned signal voltage is detected by the instrument
cluster which outputs a message on the medium speed CAN bus to the CJB to activate the side lamps. The reference voltage to the autolamp exit delay switch is routed through 4 resistors
which is detected by the instrument cluster which outputs a message on the medium speed CAN bus to the CJB that auto headlamp or exit delay has not been selected.
HEADLAMPS - When the lighting control switch is in the headlamp position, the reference voltage flows through 3 of the resistors. The returned signal voltage is detected by the instrument
cluster which outputs a message on the medium speed CAN bus to the CJB to activate the headlamps. The reference voltage to the auto headlamp exit delay switch is routed through 4
resistors which is detected by the instrument cluster which outputs a message on the medium speed CAN bus to the CJB that auto headlamp or exit delay has not been selected.
AUTOLAMPS - When the lighting control switch is in the auto headlamp position, the reference voltage flows through 4 of the resistors. The returned signal voltage is detected by the
instrument cluster which outputs a message on the medium speed CAN bus to the CJB to activate the autolamp function. The reference voltage to the autolamp exit delay switch is routed
through 4 resistors which is detected by the instrument cluster which outputs a message on the medium speed CAN bus to the CJB that auto headlamp has been selected.
AUXILIARY LIGHTING SWITCH
Headlamp Leveling Rotary Thumbwheel (Halogen headlamps only)
A power supply is passed to the headlamp leveling thumbwheel from the ignition relay in the EJB. Depending on the position of the thumbwheel, the voltage passes through 1, 2 or 3
resistors connected in series. The voltage through the resistors is passed to the headlamp leveling motor controller in each headlamp. The received voltage is determined as a request for
the appropriate level position and the controller powers the headlamp level motors to the applicable position for each headlamp.
Rear Fog Lamp Switch
The instrument cluster supplies a reference voltage and return to the rear fog lamp switch. The fog lamp switch is a non-latching, momentary switch.
When the fog lamp switch is off the reference voltage is passed through a 1Kohm resistor. The voltage through the resistor is returned to the instrument cluster that determines that no
request for fog lamp operation has been made.
When the driver presses the fog lamp switch, the reference voltage is passed through a 330 ohm resistor. The change is return voltage is sensed by the instrument cluster which
determines fog lamp operation has been requested. The instrument cluster transmits a medium speed CAN bus signal to the RJB providing the lighting control switch is in the correct
position. The RJB reacts to the message and provides a power supply to the 3 LED (light emitting diode)'s in each rear fog lamp. A fog lamp warning lamp in the instrument cluster will also
be illuminated when the fog lamps are operating.
The RJB will only activate the rear fog lamps if the headlamps are selected on or are active with auto headlamp activation. When the headlamps are turned off the fog lamps are also
turned off. When the headlamps are next switched on, the fog lamps will not be activated until the driver requests fog lamp operation.
• NOTE: The fog lamps do operate when DRL (daytime running lamps) are active.
HEADLAMP LEVELING
Manual Headlamp Leveling - Halogen headlamps only
A power supply is passed to the headlamp leveling motor in each headlamp from the ignition relay in the EJB. When a signal voltage is received from the headlamp leveling rotary
thumbwheel, the headlamp leveling motor controller in each headlamp uses the power supply to operate the motors and move the headlamp to the requested position.
Static Dynamic Headlamp Leveling - Xenon headlamps only
The headlamp leveling module receives a power supply from the ignition relay in the EJB. The same power supply is also supplied to the headlamp leveling motor in each headlamp
assembly. The front and rear height sensors are connected to the headlamp leveling module and receive a power and ground from the module. Each sensor has a signal line to the
headlamp leveling module to return height information to the module. The module uses the height signals from the sensors to calculate the vehicle attitude and supplies a signal to each
motor to power the headlamp to the required position.
Component Description
EXTERIOR BULB TYPE/RATING
The following table shows the bulbs used for the exterior lighting system and their type and specification.
• NOTE: The tail lamps, side marker lamps, stop lamps, high mounted stop lamp and rear fog lamps are illuminated by LED's and are non-serviceable components.
LIGHTING CONTROL SWITCH
BulbTypeRatingHalogen headlamp - Projector module low/high beam - Not NASH755WHalogen headlamp - Projector module low/high beam - NAS onlyH1160WXenon headlamp - Projector module low/high beam - All marketsD1S35WHigh beam only (halogen) - High/low beam (xenon) - All marketsH755WFront side lamps - all marketsW5W Halogen cool blue (HCB)5WFront turn signal indicators - Not NASPY21W21WFront turn signal indicators - NAS only3457AK27WRear turn signal indicators - All marketsPSY19W19WTurn signal indicator side repeaters - All marketsWY5W5WReverse lamps - All marketsPS19W19WLicence plate lamps - All marketsW5W5W
Page 5 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

ItemDescription Off position
Side lamp position
High beam position
RH turn signal indicator
Headlamp flash/high beam off position
LH turn signal indicator
Headlamp position
AUTO headlamp position
Headlamp timer 120 second delay position
Headlamp timer 60 second delay position
Headlamp timer 30 second timer delay position
The lighting control switch is located on the LH steering column multifunction switch. The lighting control switch is a rotary control with positions for the following lighting functions:
Off Side lamps Headlamps AUTO headlamps Headlamp timer (3 time period selections).
The LH steering column multifunction switch also provides for the following functions:
Low beam headlamps High beam headlamps Headlamp flash LH and RH turn signal indicators Trip computer function button.
Refer to: Information and Message Center (413-08 Information and Message Center, Description and Operation).
The switch has a turn signal indicator lane change function. If the switch is gently pushed to either turn signal indicator position and then released, the applicable turn signal indicators will
flash 3 times and then will be automatically cancelled. If a turn signal indicator bulb fails, the green turn signal warning indicator in the instrument cluster will flash at twice the normal rate
and the audible ticking from the instrument cluster sounder will also be at twice the normal rate.
AUXILIARY LIGHTING SWITCH
• NOTE: RHD (right-hand drive) switch shown
1
2
3
4
5
6
7
8
9
10
11
Page 6 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

ItemDescription Headlamp leveling rotary thumbwheel (halogen headlamps only)
Instrument panel illumination dimmer thumbwheel
Luggage compartment lid release switch
Forward alert switch (if fitted)
Rear fog lamp switch

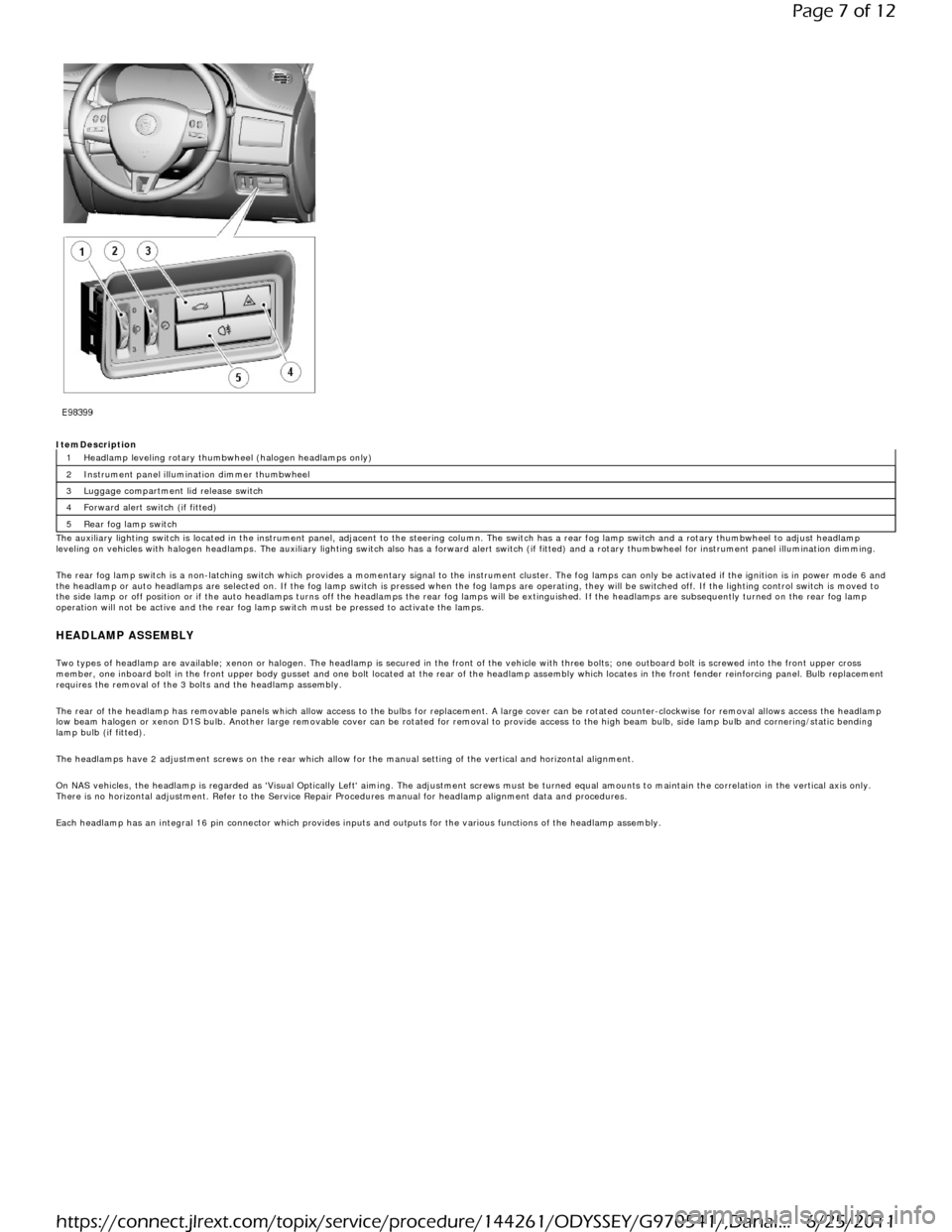

The auxiliary lighting switch is located in the instrument panel, adjacent to the steering column. The switch has a rear fog lamp switch and a rotary thumbwheel to adjust headlamp
leveling on vehicles with halogen headlamps. The auxiliary lighting switch also has a forward alert switch (if fitted) and a rotary thumbwheel for instrument panel illumination dimming.
The rear fog lamp switch is a non-latching switch which provides a momentary signal to the instrument cluster. The fog lamps can only be activated if the ignition is in power mode 6 and
the headlamp or auto headlamps are selected on. If the fog lamp switch is pressed when the fog lamps are operating, they will be switched off. If the lighting control switch is moved to
the side lamp or off position or if the auto headlamps turns off the headlamps the rear fog lamps will be extinguished. If the headlamps are subsequently turned on the rear fog lamp
operation will not be active and the rear fog lamp switch must be pressed to activate the lamps.
HEADLAMP ASSEMBLY
Two types of headlamp are available; xenon or halogen. The headlamp is secured in the front of the vehicle with three bolts; one outboard bolt is screwed into the front upper cross
member, one inboard bolt in the front upper body gusset and one bolt located at the rear of the headlamp assembly which locates in the front fender reinforcing panel. Bulb replacement
requires the removal of the 3 bolts and the headlamp assembly.
The rear of the headlamp has removable panels which allow access to the bulbs for replacement. A large cover can be rotated counter-clockwise for removal allows access the headlamp
low beam halogen or xenon D1S bulb. Another large removable cover can be rotated for removal to provide access to the high beam bulb, side lamp bulb and cornering/static bending
lamp bulb (if fitted).
The headlamps have 2 adjustment screws on the rear which allow for the manual setting of the vertical and horizontal alignment.
On NAS vehicles, the headlamp is regarded as 'Visual Optically Left' aiming. The adjustment screws must be turned equal amounts to maintain the correlation in the vertical axis only.
There is no horizontal adjustment. Refer to the Service Repair Procedures manual for headlamp alignment data and procedures.
Each headlamp has an integral 16 pin connector which provides inputs and outputs for the various functions of the headlamp assembly.
1
2
3
4
5
Page 7 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

ItemDescription Xenon control module (not fitted on halogen low beam headlamps)
Turn signal indicator
Side marker lamp (NAS only)
Projector module - Low beam headlamp(Halogen) – Low/High beam headlamp (xenon)
Cornering/static bending lamp (if fitted)
Side lamp
High beam headlamp
Power wash jets trim cover
Headlamp powerwash
Side marker lamp bulb (NAS only)
Turn signal indicator bulb
Headlamp adjuster screw (2 off)
Cover - Low beam headlamp projector module bulb
Mounting collar
Xenon igniter unit and bulb
Xenon igniter electrical connector
Cornering/static bending lamp bulb (if fitted)
Side lamp bulb
High beam headlamp bulb
Cover - Side lamp, cornering/static bending lamp (if fitted) and high beam headlamp bulbs
Electrical connector
Bi-Xenon Headlamp
The bi-xenon headlamp uses a projector lens, similar to the halogen headlamp. The projector module comprises an ellipsoidal lens and a reflector. The projector reflector collects the light
produced by the halogen bulb and projects the light into a focal plane containing a shield. The contour of the shield is projected onto the road by the lens. A complex surface reflector is
used for the halogen fill in high beam lamp. This type of reflector is divided into separate parabolic segments, with each segment having a different focal length. The low and high beam
bulbs are quartz halogen H7, with a rating of 55W. The bulbs are retained in the headlamp unit with conventional wire retaining clips.
A tourist lever mechanism is located on the right hand side of the projector module. This mechanism moves a flap to blank off a portion of the beam spread to enable the vehicle to be
driven in opposite drive hand markets without applying blanking decals to the headlamp lens. The beam is changed by removing the access cover at the rear of the lamp assembly and
moving a small lever located near the bulb holder, at the side of the projector.
• NOTE: The tourist lever is not fitted to NAS vehicles.
WARNING: The Xenon system generates up to 30000 volts and contact with this voltage could lead to fatality. Make sure that the headlamps are switched off before working on the
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Page 8 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

system.
The following safety precautions must be adhered to when working on the xenon low beam headlamp system:
DO NOT attempt any procedures on the xenon headlamps when the lights are switched on. Handling of the D1S xenon bulb must be performed using suitable protective equipment; for example gloves and goggles. The glass part of the bulb must not be touched. Xenon bulbs must be disposed of as hazardous waste. Only operate the bulb in a mounted condition in the projector module installed in the headlamp.
The xenon headlamp is known as 'bi-xenon' because it operates as both a low and high beam headlamp unit. The xenon lamp, or High Intensity Discharge (HID) lamp as they are
sometimes referred to, comprises an ellipsoidal lens with a solenoid controlled shutter to change the beam output from low to high beam.
• NOTE: If the lighting control switch is in the 'off' position, both the xenon lamp and the halogen high beam lamp will operate when the high beam 'flash' function is operated.
The xenon headlamp system is controlled by the CJB using a control module for each headlamp and an igniter. The control modules and the igniters provide the regulated power supply
required to illuminate the bulbs through their start-up phases of operation.
The xenon headlamp is a self contained unit located within the headlamp assembly. The unit comprises a reflector, an adaptor ring, the lens, a shutter controller and the xenon bulb, which
together forms an assembly known as the projector module. The reflector is curved and provides the mounting point for the xenon bulb. The bulb locates in a keyway to ensure the correct
alignment in the reflector and is secured by a plastic mounting ring. The bulb is an integral component of the igniter and is electrically connected by a connector located in the igniter unit.
The shutter controller is a solenoid which operates the shutter mechanism via a lever. The shutter is used to change the beam projection from low beam to high beam and vice versa.
The xenon bulbs illuminate when an arc of electrical current is established between 2 electrodes within the bulb. The xenon gas sealed in the bulb reacts to the electrical excitation and the
heat generated by the current flow to produce the characteristic blue/white light.
To operate at full efficiency, the xenon bulb goes through 3 full stages of operation before full output for continuous operation is achieved. The 3 phases are; start-up phase, warm-up
phase and continuous phase.
In the start-up phase, the bulb requires an initial high voltage starting pulse of up to 30000 volts to establish the arc. This is produced by the igniter. The warm-up phase begins once the
arc is established. The xenon control module regulates the supply to the bulb to 2.6A which gives a lamp output of 75W. During this phase, the xenon gas begins to illuminate brightly and
the environment within the bulb stabilizes, ensuring a continual current flow between the electrodes. When the warm-up phase is complete, the xenon control module changes to
continuous phase. The supply voltage to the bulb is reduced and the operating power required for continual operation is reduced to 35W. The process from start-up to continuous phase is
completed in a very short time.
The xenon control modules (one per headlamp) receive an operating voltage from the CJB when the headlamps are switched on. The modules regulate the power supply required through
the phases of start-up.
The igniters (one per headlamp) generate the initial high voltage required to establish the arc. The igniters have integral coils which generate high voltage pulses required for start-up.
Once the xenon bulbs are operating, the igniters provide a closed circuit for the regulated power supply from the control modules.
Halogen Low/high Beam Headlamp
The halogen low/high beam headlamp uses a projector lens, similar to the xenon headlamp. The projector module comprises an ellipsoidal lens and a reflector. The projector reflector
collects the light produced by the halogen bulb and projects the light into a focal plane containing a shield. The contour of the shield is projected onto the road by the lens. The low/high
beam bulbs are quartz halogen and are retained in the headlamp unit with conventional wire retaining clips.
A tourist lever mechanism is located on the right hand side of the projector module. This mechanism moves a flap to blank off a portion of the beam spread to enable the vehicle to be
driven in opposite drive hand markets without applying blanking decals to the headlamp lens. The beam is changed by removing the access cover at the rear of the lamp assembly and
moving a small lever located near the bulb holder, at the side of the projector.
Halogen High Beam Headlamp - Xenon and Halogen
The xenon and halogen headlamps use a complex surface reflector for the halogen fill in high beam lamp only lighting unit, which is of the same design on both headlamp types. This type
of reflector has the reflector divided into separate parabolic segments, with each segment having a different focal length.
The high beam headlamp bulbs are quartz halogen and are retained in the headlamp unit with conventional wire retaining clips.
Cornering Lamps
• NOTE: The cornering lamps are not fitted to NAS vehicles.
The cornering lamps are an optional feature designed to illuminate the direction of travel when cornering at low speeds. The design of the lens projects a spread of light from the vehicle at
approximately 45 degrees to the vehicle axis. The cornering lamp is incorporated into the headlamp assembly and shares the same housing as the low beam headlamp. The cornering lamp uses a 35W Halogen H8 bulb which is permanently located in an integral holder which is connected on the headlamp housing. The holder is located in an aperture in the headlamp housing
and rotated to lock. The bulb is accessible via a removable cover on the base of the headlamp housing.
The cornering lamps are controlled by the LH steering column multifunction switch with the lighting control switch in the headlamp position and the ignition in power mode 6. The cornering
lamps are supplied power via the ignition circuit to ensure that they do not function with the headlamp delay feature. The cornering lamps are deactivated if the vehicle speed exceeds 25
mph (40 km/h). Only one cornering lamp will illuminate at any one time. If the left hand turn signal indicators are selected on, the left hand cornering lamp will be illuminated and vice
versa, providing the vehicle speed and lighting control switch positions are correct.
Static Bending Lamps
• NOTE: The static bending lamps are not fitted to NAS vehicles.
The static bending lamps are designed to illuminate the direction of travel when cornering at low speeds. The static bending lamp functionality, which is controlled by the CJB and the
headlamp leveling module, operates using inputs from the steering angle sensor and vehicle speed information from the ABS (anti-lock brake system) module. The static bending lamp is
incorporated into the headlamp assembly and shares the same housing as the low beam headlamp. The design of the lens projects a spread of light from the vehicle at approximately 45
degrees to the vehicle axis. The static bending lamp uses a 35W Halogen H8 bulb which locates in a holder which is connected via wires to the main connector on the headlamp housing.
The holder is located in an aperture in the headlamp housing and rotated to lock. The bulb is accessible via a removable cover at the rear of the headlamp housing.
The static bending lamps operate with a steering angle sensor CAN bus signal which is received by the CJB. The CJB monitors this signal and vehicle speed and activates the static bending
lamp bulb. When the operation parameters of the lamp are reached, the CJB fades the static bending lamp bulb on using a PWM (pulse width modulation) voltage over a period of
approximately 2 seconds. When the lamp is switched off, the CJB fades the bulb off by decreasing the PWM voltage in a linear manner depending on steering angle and vehicle speed. The
cornering lamps can only be active for a maximum of 3 minutes.
• NOTE: Static bending lamps only operate when the transmission is in DRIVE or in SPORT.
Turn Signal Indicators
Page 9 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...

The turn signal indicator lamp is incorporated into the outer part of the headlamp assembly. The turn signal indicator lamp uses a PY21W bayonet orange colored bulb in ROW markets, a
S8W 27/7W wedge bulb is used in NAS markets. The bulb is fitted into a holder which connects with contacts in the headlamp housing. The holder is fitted into an aperture in the
headlamp housing and rotated to lock into position.
When active, the turn signal indicator lamps will flash at a frequency cycle of 380ms on and 380ms off. If a bulb fails, the remaining turn signal lamps bulbs continue to flash at normal
speed. The turn signal indicators in the instrument cluster will flash at double speed to indicate the bulb failure to the driver.
Side Lamps
The side lamp is located between the headlamp projector module and the high bean headlamp. The side lamp uses a W5W wedge fitting bulb which locates in a holder which connected via
wires to the main connector on the headlamp housing. The holder is a push fit into a receptacle in the headlamp housing. The bulb is accessible by removal of the inner cover on the rear
of the headlamp housing. Access to the bulb requires removal of the headlamp from the vehicle. The side lamps are operated by selecting side lamps or headlamps on the lighting control
switch. The side lamps are functional at all times and are dependant on a particular ignition mode status. The side lamps will also be illuminated when the lighting control switch is in the
AUTO position and a 'lights on' signal is received by the CJB from the rain/light sensor
Side Marker Lamps (NAS only)
The side marker lamp is located in the outer part of the headlamp assembly. The side marker lamp uses a W5W wedge fitting bulb. The bulb is fitted into a holder which connects with
contacts in the headlamp housing. The holder is fitted into an aperture which connects with contacts in the headlamp housing. The side marker lamp is active at all times when the side
lamps are active.
AUTOMATIC HEADLAMP OPERATION
The automatic headlamp function is a driver assistance system. The driver can override the system operation by selection of side lamp or headlamp on if the ambient light conditions
require front and rear lighting to be active. The automatic headlamp system uses a light sensor and the CJB, which are connected via a LIN (local interconnect network) bus to control the
headlamp functionality. The light sensor is incorporated in the rain/light sensor located on the inside of the windshield, below the rear view mirror. The wiper system also uses the
rain/light sensor for automatic wiper operation.
The light sensor measures the ambient light around the vehicle in a vertical direction and also the angular light level from the front of the vehicle. The rain/light sensor uses vehicle speed
signals, wiper switch position and the park position of the front wipers to control the system. The automatic headlamp operation uses ambient light levels which are monitored by
photodiode incorporated in the rain/light sensor. The rain/light sensor sends a lights on/off request to the CJB on the LIN bus, which responds by switching on the low beam headlamps,
front side lamps and rear tail lamps. The automatic headlamps are activated under the following conditions:
Twilight Darkness Rain Snow Tunnels Underground or multistoried car parks.
Operation of the automatic headlamps requires the ignition to be in ignition mode 6, the lighting control switch to be in the 'AUTO' position and a lights on request signal from the light
sensor. If the rain sensor signal activates the fast speed wipers, the low beam headlamps are activated, providing the lighting control switch is in the 'AUTO' position.
HEADLAMP LEVELING
Headlamp leveling provides for the adjustment of the vertical aim of the headlamps. The leveling system is primarily required to minimise glare to other road users when a heavy load is in
the rear of the vehicle. Two systems of headlamp leveling are available; manual and static dynamic.
Manual Headlamp Leveling
The manual system uses a thumbwheel rheostat to adjust the vertical alignment of the headlamps to compensate for differing vehicle loading. The rotary thumbwheel is located on the
auxiliary lighting switch, adjacent to the illumination dimmer thumbwheel. Three positions are available to adjust the headlamps to a position to prevent glare to other road users.
Static Dynamic Headlamp Leveling
The static dynamic headlamp leveling system uses the following components:
Front and rear vehicle height sensors Two headlamp leveling, vertical adjustment motors Headlamp leveling module Ignition in mode 6 Vehicle speed information from ABS module.
The static dynamic system uses height sensors fitted to the front and rear suspension and a headlamp leveling module which periodically monitors the vehicle attitude and adjusts the
headlamp vertical alignment accordingly.
Static dynamic headlamp leveling is controlled by a headlamp leveling module located in the lower instrument panel, behind the glovebox.
The height sensors are both located on the RH side of the vehicle. The front sensor is attached to the front suspension lower arm with a strap and to the front sub frame with a bracket and
2 bolts. The rear sensor is attached to the rear suspension upper control arm with a cable tied clip and to the rear sub frame with a bracket and 2 bolts. Each sensor has 3 connections to
the headlamp leveling module; power, ground and signal.
DAYTIME RUNNING LAMPS (DRL)
Refer to DRL section for details.
Refer to: Daytime Running Lamps (DRL) (417-04 Daytime Running Lamps (DRL), Description and Operation).
REAR LAMP ASSEMBLY
The rear lamp assembly is a 2 piece unit, with one part located in the rear quarter panel and the second part attached to the luggage compartment lid. The outer rear lamp assembly is
located in a recess in the vehicle body. The lamp is secured with 2 studs inboard studs on the lamp body which are secured to the vehicle body with 2 nuts. A third outboard stud and nut
secures a clip to the vehicle body. To remove the lamp assembly, only the 2 inboard nuts require removal. The outboard nut retains a sliding clip in position on the vehicle body. To
remove the rear lamp assembly, remove the 2 inboard nuts and slide the lamp rearwards to release the outboard clip.
The inner rear lamp is located in a recess in the luggage compartment lip and secured with a clip.
Page 10 of 12
6/25/2011 https://connect.jlrext.com/topix/service/procedure/144261/ODYSSEY/G970541/,DanaI...
