Page 622 of 3039

10.
11.
Repeat the above procedure on the opposite side.
Installation
1. WARNING: Do not use compressed air to clean brake components.
Dust from friction materials can be harmful if inhaled.
CAUTION: As the piston is pushed back into the caliper housing,
the brake fluid level in the reservoir will rise. Do not allow the reservoir
to overflow.
Press the piston into the caliper housing.
2.
Page 626 of 3039

Published: 11-May-2011
Front Disc Brake - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Brake Disc Shield Vehicles With: High Performance Brakes
Removal and Installation
Removal
1. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2. Remove the front brake disc.
For additional information, refer to: Brake Disc - Vehicles With: High Performance Brakes (206-03A Front Disc Brake - V6 3.0L Petrol, Removal and Installation).
3. Remove the brake disc shield.
Remove the 2 rivets.
Installation
1. To install, reverse the removal procedure.
Install the rivets.
Page 632 of 3039

BRAKE CALIPERS System Operation
When hydraulic pressure is supplied to the caliper, the pistons extend to force the inner pad against the brake disc. The caliper
reacts and slides along two guide pins to bring the outer pad into contact with the brake disc.
BRAKE PAD WEAR SENSORS
When a brake pad incorporating a brake pad wear sensor is approximately 75% worn, the sensor wire within the pad material
is worn through and the brake pad wear sensor goes open circuit. When the instrument cluster detects the open circuit, it
illuminates the amber LED (light emitting diode) in the brake warning indicator, displays an appropriate warning in the
message center and sounds a warning chime.
Refer to: Instrument Cluster (413-01 Instrument Cluster, Description and Operation).
NOTE: A new pad wear sensor lead must be fitted whenever the brake pads are changed, irrespective of the brake pad
warning sensor being triggered.
BRAKE CALIPERS Component Description
Each caliper is mounted within a fixed carrier that is secured to the rear wheel knuckle with two bolts. Each outboard brake pad
is installed with a wire anti-rattle spring.
The brake calipers on SC (supercharger) vehicles are painted and also include a logo badge, secured with two screws, which
must be removed in order to change the brake pads.
The inboard brake pad of the RH (right-hand) brake incorporates a wear sensor.
BRAKE PAD WEAR SENSORS
The brake pad wear sensor is wired in series with a wear sensor on the LH (left-hand) front brake and the instrument cluster. If
the thickness of one of the brake pads connected to a wear sensor decreases to a predetermined limit, the instrument cluster
illuminates the brake warning indicator.
Page 633 of 3039

Published: 02-Oct-2012
Rear Disc Brake - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Brake
Caliper Vehicles With: High Performance Brakes
Removal and Installation
Removal
WARNING: Failure to release the tension and calibrate the electric parking brake during rear parking brake related service
procedures, could cause the parking brake to function incorrectly or become inoperative.
CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area
with water.
NOTE: Removal steps in this procedure may contain installation details.
1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).
3. Refer to: Parking Brake Cable Tension Release (206-05 Parking Brake and Actuation, General Procedures).
4.
Page 636 of 3039

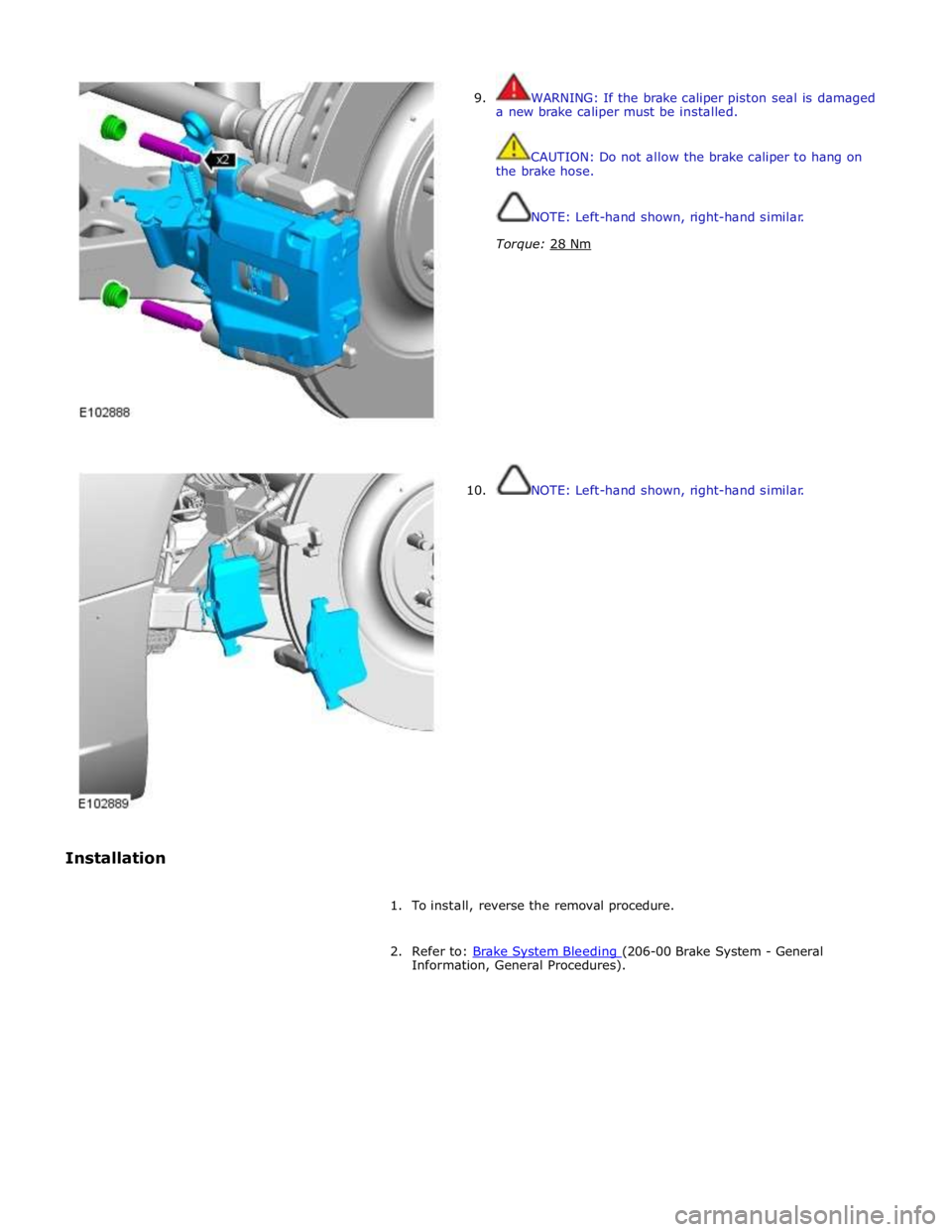

Installation
9.
10.
WARNING: If the brake caliper piston seal is damaged
a new brake caliper must be installed.
CAUTION: Do not allow the brake caliper to hang on
the brake hose.
NOTE: Left-hand shown, right-hand similar.
Torque: 28 Nm
NOTE: Left-hand shown, right-hand similar.
1. To install, reverse the removal procedure.
2. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).
Page 637 of 3039

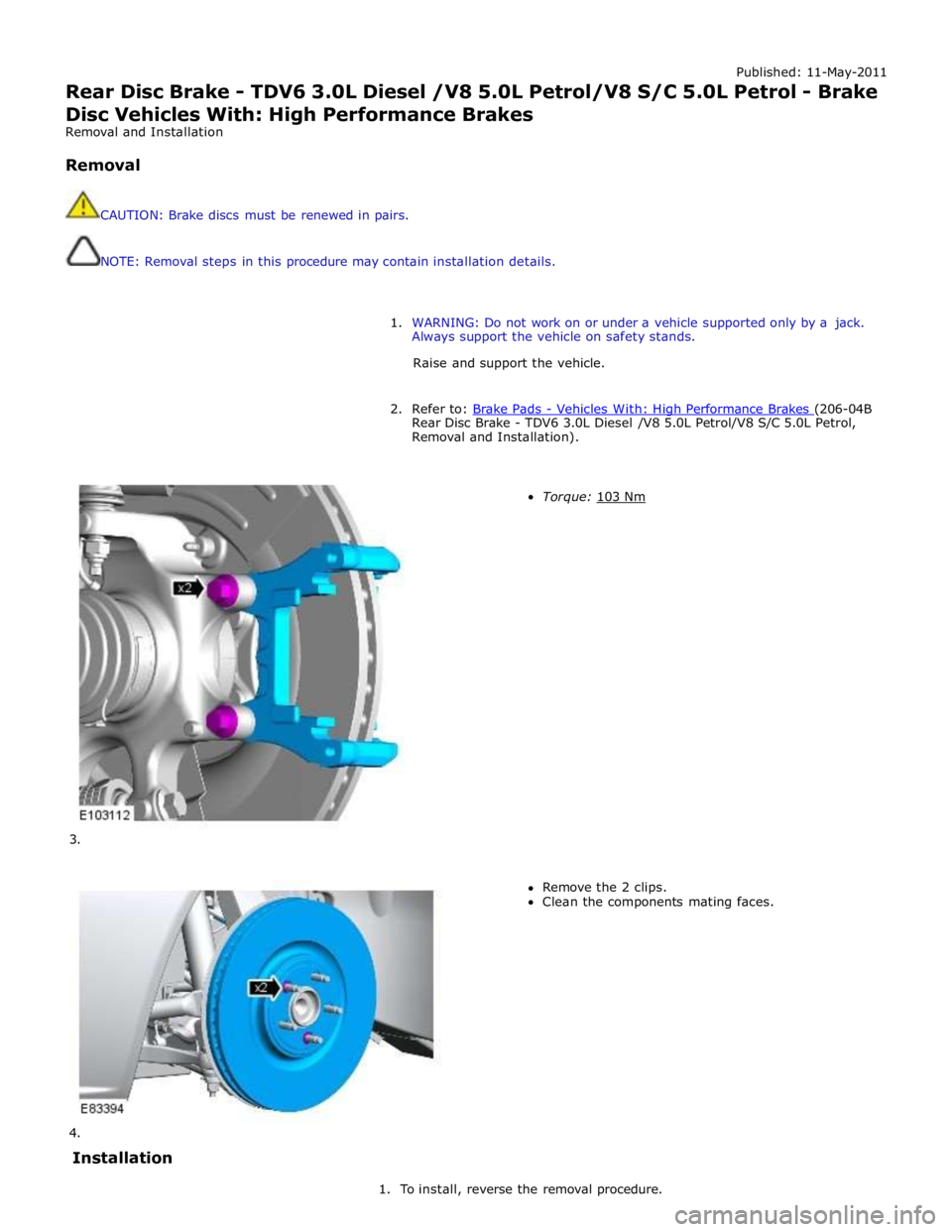

Published: 11-May-2011
Rear Disc Brake - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Brake
Disc Vehicles With: High Performance Brakes
Removal and Installation
Removal
CAUTION: Brake discs must be renewed in pairs.
NOTE: Removal steps in this procedure may contain installation details.
1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
2. Refer to: Brake Pads - Vehicles With: High Performance Brakes (206-04B Rear Disc Brake - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol,
Removal and Installation).
3.
4.
Installation
Torque: 103 Nm
Remove the 2 clips.
Clean the components mating faces.
1.Toinstall,reversetheremovalprocedure.
Page 638 of 3039

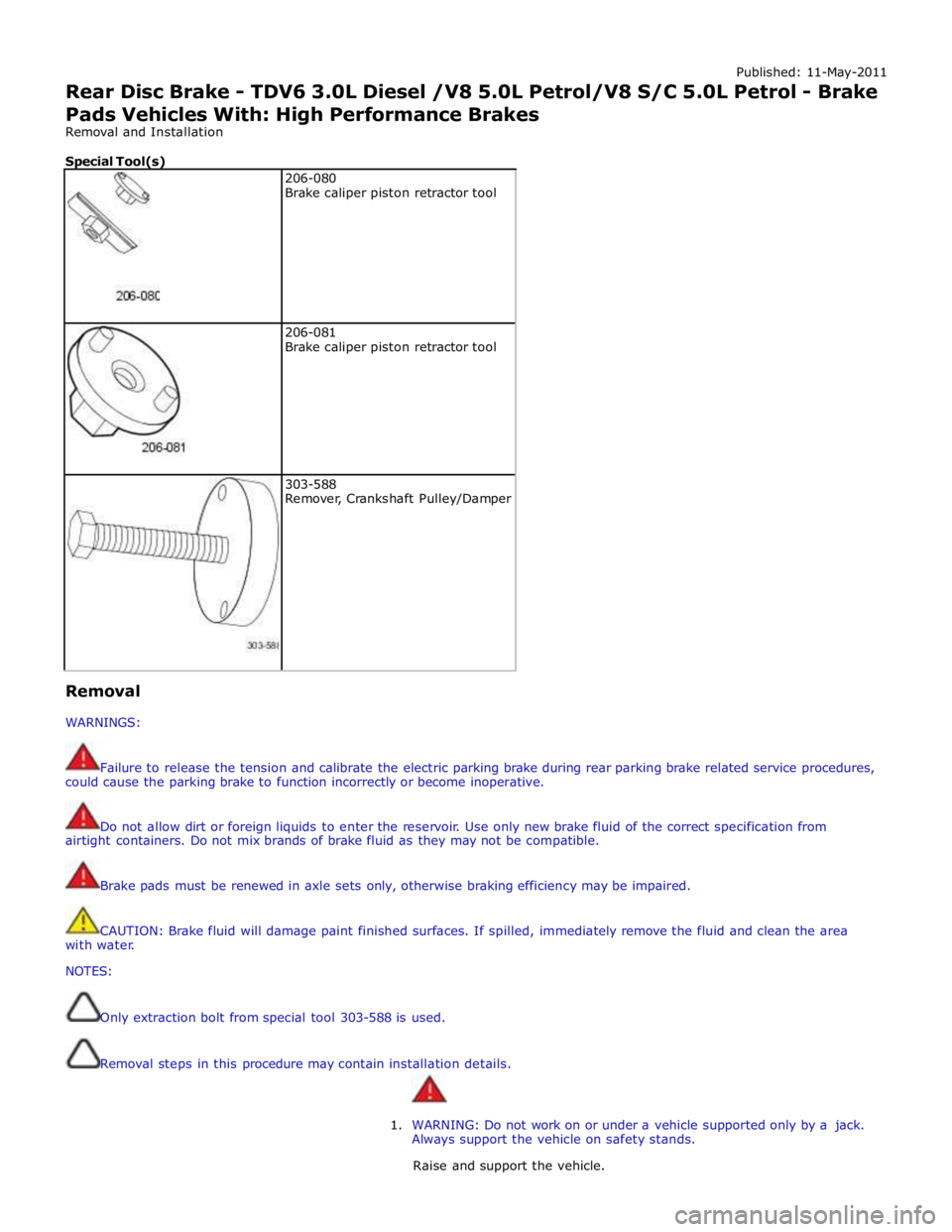

Published: 11-May-2011
Rear Disc Brake - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Brake
Pads Vehicles With: High Performance Brakes
Removal and Installation
Special Tool(s)
206-080
Brake caliper piston retractor tool
206-081
Brake caliper piston retractor tool
303-588
Remover, Crankshaft Pulley/Damper Removal
WARNINGS:
Failure to release the tension and calibrate the electric parking brake during rear parking brake related service procedures,
could cause the parking brake to function incorrectly or become inoperative.
Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from
airtight containers. Do not mix brands of brake fluid as they may not be compatible.
Brake pads must be renewed in axle sets only, otherwise braking efficiency may be impaired.
CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area
with water.
NOTES:
Only extraction bolt from special tool 303-588 is used.
Removal steps in this procedure may contain installation details.
1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Page 641 of 3039

8. WARNING: If the brake caliper piston seal is damaged a
new brake caliper must be installed.
CAUTION: Do not allow the brake caliper to hang on
the brake hose.
NOTE: Left-hand shown, right-hand similar.
Torque: 28 Nm
9. NOTE: Left-hand shown, right-hand similar.
Page 643 of 3039

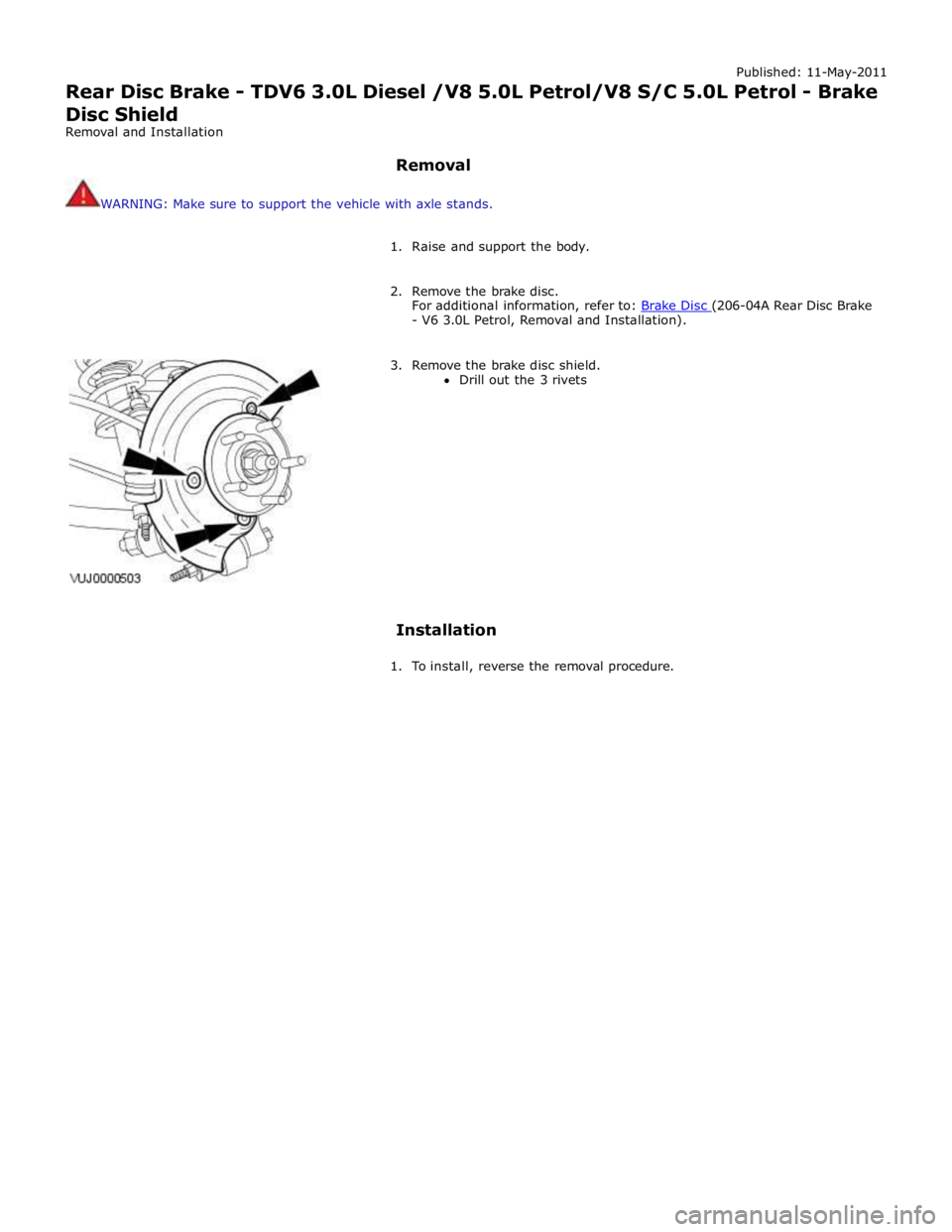

Published: 11-May-2011
Rear Disc Brake - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Brake
Disc Shield
Removal and Installation
Removal
WARNING: Make sure to support the vehicle with axle stands.
1. Raise and support the body.
2. Remove the brake disc.
For additional information, refer to: Brake Disc (206-04A Rear Disc Brake - V6 3.0L Petrol, Removal and Installation).
3. Remove the brake disc shield.
Drill out the 3 rivets
Installation
1. To install, reverse the removal procedure.
Page 645 of 3039

Published: 11-May-2011
Parking Brake and Actuation - Parking Brake - Component Location
Description and Operation
Component Location
Item Description 1 Parking brake switch 2 EPB (electronic parking brake) module 3 Parking brake actuator 4 Caliper and disc assemblies (2 off) 5 Stoplamp switch 6 Brake warning indicator - NAS vehicles 7 Brake warning indicator (all except NAS (North American Specification) vehicles) www.JagDocs.com
