Page 1535 of 3039

JAGUAR XFR 2010 1.G Owners Guide Published: 11-May-2011

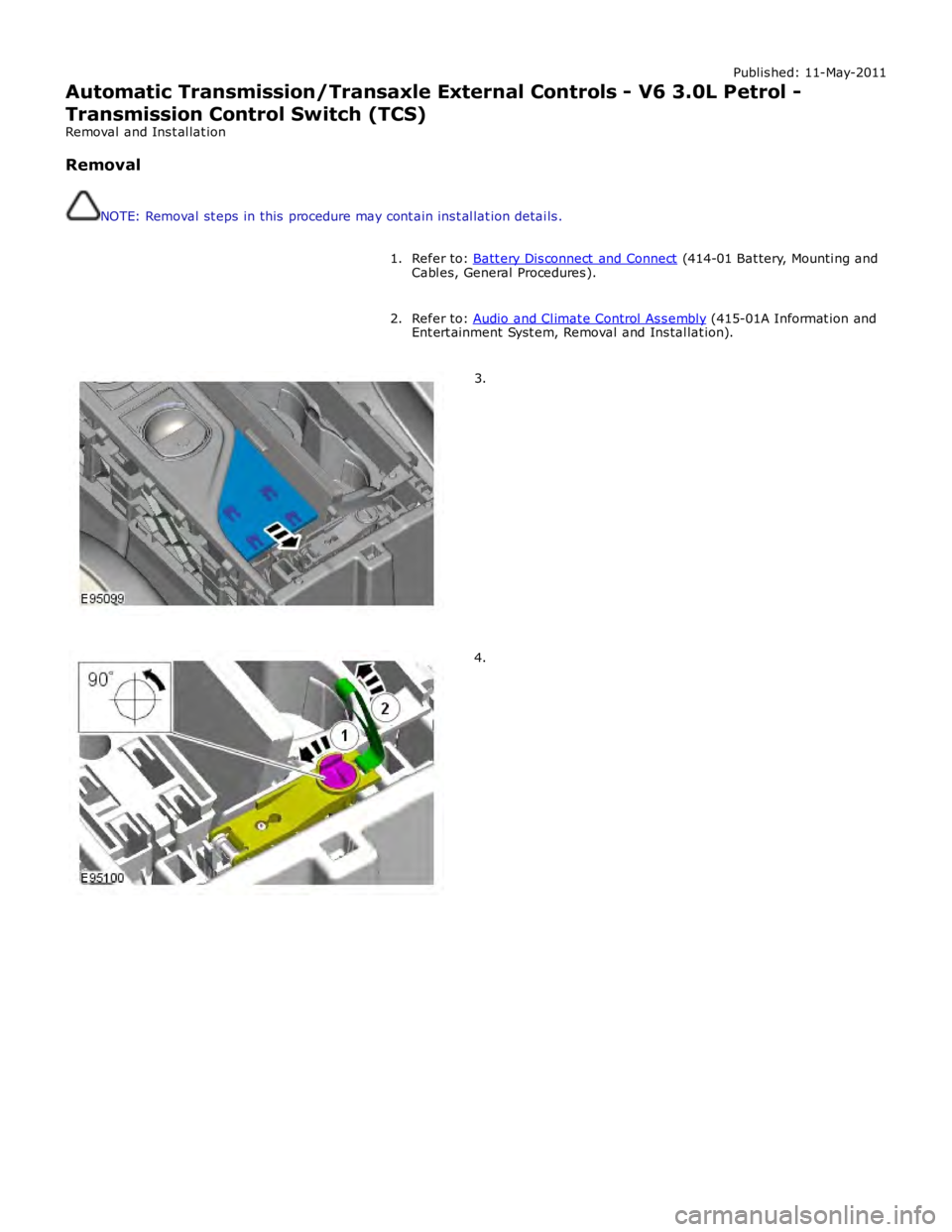

Automatic Transmission/Transaxle External Controls - V6 3.0L Petrol -
Transmission Control Switch (TCS)
Removal and Installation
Removal
NOTE: Removal steps in this procedure

Page 1640 of 3039

JAGUAR XFR 2010 1.G Owners Guide Published: 29-Sep-2011
Speed Control - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Speed Control - System
Operation and Component Description
Description and Operation

Control Diagram

NOTE: A = Hardw

Page 1817 of 3039

JAGUAR XFR 2010 1.G Owners Guide Description and Operation).

2. Refer to: Steering Wheel Audio Controls (415-01A Information and Entertainment System, Removal and Installation).

        3.
4. www.JagDocs.com

Page 1843 of 3039

JAGUAR XFR 2010 1.G Owners Guide 1 Battery 2 Megafuses 3 RJB (rear junction box) 4 Entertainment system control module 5 Integrated audio module 6 Audio amplifier 7 Audio system speakers

Page 1845 of 3039

JAGUAR XFR 2010 1.G Owners Guide 3 RJB 4 Entertainment system control module 5 Touch Screen Display (TSD) 6 Parking aid camera


PARKING AID System Operation

Two levels of parking aid system can be fitted; a rear only system o

Page 1846 of 3039

JAGUAR XFR 2010 1.G Owners Guide signal to a digital signal by the sensor. The digital signal is passed to the parking aid module and compared with
pre-programmed data stored in an EEPROM (electrically erasable programmable read onl

Page 1848 of 3039

JAGUAR XFR 2010 1.G Owners Guide information from other systems:

ABS (anti-lock brake system) module - Road speed signal
TCM (transmission control module) - Reverse gear engaged signal
Trailer module - Trailer attached to vehicl

Page 1850 of 3039

JAGUAR XFR 2010 1.G Owners Guide
Parking Aid - Parking Aid
Diagnosis and Testing

Principles of Operation Published: 24-Feb-2014

For a detailed description of the parking aid system, characteristics and limitations refer to t

Page 1851 of 3039

JAGUAR XFR 2010 1.G Owners Guide
Mechanical Electrical  Parking aid control module
Parking aid sounder
Audio system
4. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before pro

Page 1853 of 3039

JAGUAR XFR 2010 1.G Owners Guide A3: SENSORS VIBRATING WITH PARKING AID FAULT  1 Check parking aid sensors correctly mounted. Parking aid sensor holder correctly mounted. Parking aid sensor decoupler ring fitted or fitted correctly.
