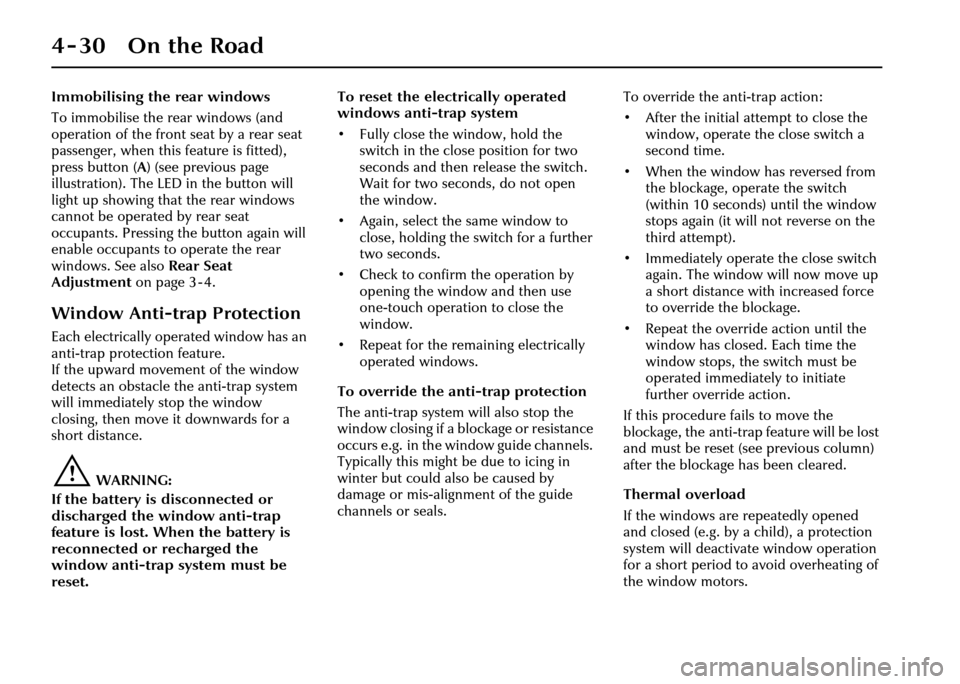

4-30 On the Road
Immobilising the rear windows
To immobilise the rear windows (and
operation of the front seat by a rear seat
passenger, when this feature is fitted),
press button (A) (see previous page
illustration). The LED in the button will
light up showing that the rear windows
cannot be operated by rear seat
occupants. Pressing the button again will
enable occupants to operate the rear
windows. See also Rear Seat
Adjustment on page 3 - 4.
Window Anti-trap Protection
Each electrically operated window has an
anti-trap protection feature.
If the upward movement of the window
detects an obstacle the anti-trap system
will immediately stop the window
closing, then move it downwards for a
short distance.
!WARNING:
If the battery is disconnected or
discharged the window anti-trap
feature is lost. When the battery is
reconnected or recharged the
window anti-trap system must be
reset. To reset the electrically operated
windows anti-trap system
• Fully close the window, hold the
switch in the close position for two
seconds and then release the switch.
Wait for two seconds, do not open
the window.
• Again, select the same window to close, holding the sw itch for a further
two seconds.
• Check to confirm the operation by opening the window and then use
one-touch operation to close the
window.
• Repeat for the remaining electrically operated windows.
To override the anti-trap protection
The anti-trap system will also stop the
window closing if a bl ockage or resistance
occurs e.g. in the wi ndow guide channels.
Typically this might be due to icing in
winter but could also be caused by
damage or mis-alignment of the guide
channels or seals. To override the anti-trap action:
• After the initial attempt to close the
window, operate the close switch a
second time.
• When the window has reversed from the blockage, operate the switch
(within 10 seconds) until the window
stops again (it will not reverse on the
third attempt).
• Immediately operate the close switch again. The window will now move up
a short distance with increased force
to override the blockage.
• Repeat the override action until the window has closed. Each time the
window stops, the switch must be
operated immediately to initiate
further override action.
If this procedure fails to move the
blockage, the anti-trap feature will be lost
and must be reset (see previous column)
after the blockage has been cleared.
Thermal overload
If the windows are repeatedly opened
and closed (e.g. by a child), a protection
system will deactivate window operation
for a short period to avoid overheating of
the window motors.

On the Road 4 - 31

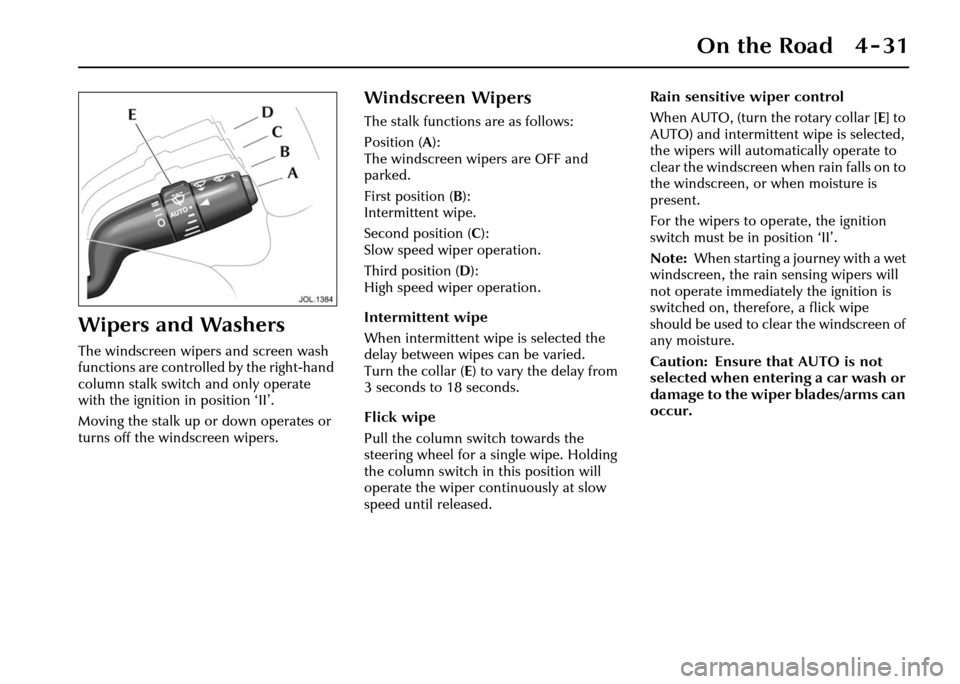

Wipers and Washers
The windscreen wipers and screen wash
functions are controlled by the right-hand
column stalk switch and only operate
with the ignition in position ‘II’.
Moving the stalk up or down operates or
turns off the windscreen wipers.
Windscreen Wipers
The stalk functions are as follows:
Position (A):
The windscreen wipers are OFF and
parked.
First position ( B):
Intermittent wipe.
Second position (C ):
Slow speed wiper operation.
Third position ( D):
High speed wiper operation.
Intermittent wipe
When intermittent w ipe is selected the
delay between wipes can be varied.
Turn the collar ( E) to vary the delay from
3 seconds to 18 seconds.
Flick wipe
Pull the column switch towards the
steering wheel for a single wipe. Holding
the column switch in this position will
operate the wiper continuously at slow
speed until released. Rain sensitive wiper control
When AUTO, (turn the rotary collar [
E] to
AUTO) and intermittent wipe is selected,
the wipers will automatically operate to
clear the windscreen when rain falls on to
the windscreen, or when moisture is
present.
For the wipers to operate, the ignition
switch must be in position ‘II’.
Note: When starting a journey with a wet
windscreen, the rain sensing wipers will
not operate immediately the ignition is
switched on, therefore, a flick wipe
should be used to clear the windscreen of
any moisture.
Caution: Ensure that AUTO is not
selected when entering a car wash or
damage to the wiper blades/arms can
occur.

4-32 On the Road

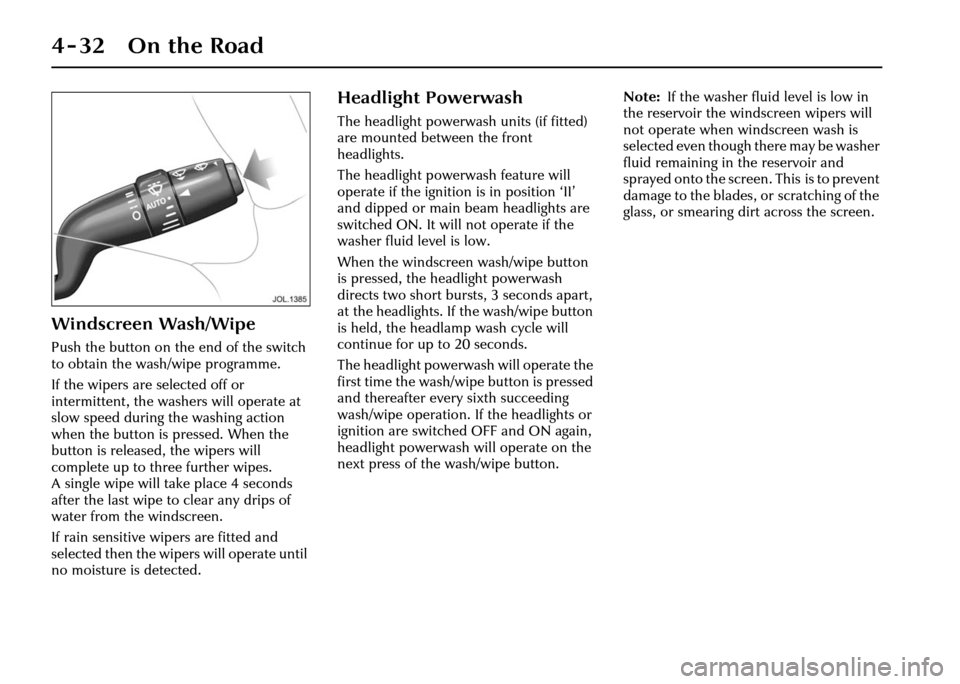

Windscreen Wash/Wipe
Push the button on the end of the switch
to obtain the wash/wipe programme.
If the wipers are selected off or
intermittent, the washers will operate at
slow speed during the washing action
when the button is pressed. When the
button is released, the wipers will
complete up to three further wipes.
A single wipe will take place 4 seconds
after the last wipe to clear any drips of
water from the windscreen.
If rain sensitive wipers are fitted and
selected then the wipers will operate until
no moisture is detected.
Headlight Powerwash
The headlight powerwash units (if fitted)
are mounted betw een the front
headlights.
The headlight powerwash feature will
operate if the ignition is in position ‘II’
and dipped or main beam headlights are
switched ON. It will not operate if the
washer fluid level is low.
When the windscreen wash/wipe button
is pressed, the headlight powerwash
directs two short burs ts, 3 seconds apart,
at the headlights. If the wash/wipe button
is held, the headlamp wash cycle will
continue for up to 20 seconds.
The headlight powerwash will operate the
first time the wash/w ipe button is pressed
and thereafter every sixth succeeding
wash/wipe operation. If the headlights or
ignition are switched OFF and ON again,
headlight powerwash will operate on the
next press of the wash/wipe button. Note:
If the washer fluid level is low in
the reservoir the windscreen wipers will
not operate when windscreen wash is
selected even though there may be washer
fluid remaining in the reservoir and
sprayed onto the screen. This is to prevent
damage to the blades , or scratching of the
glass, or smearing dirt across the screen.

On the Road 4 - 33

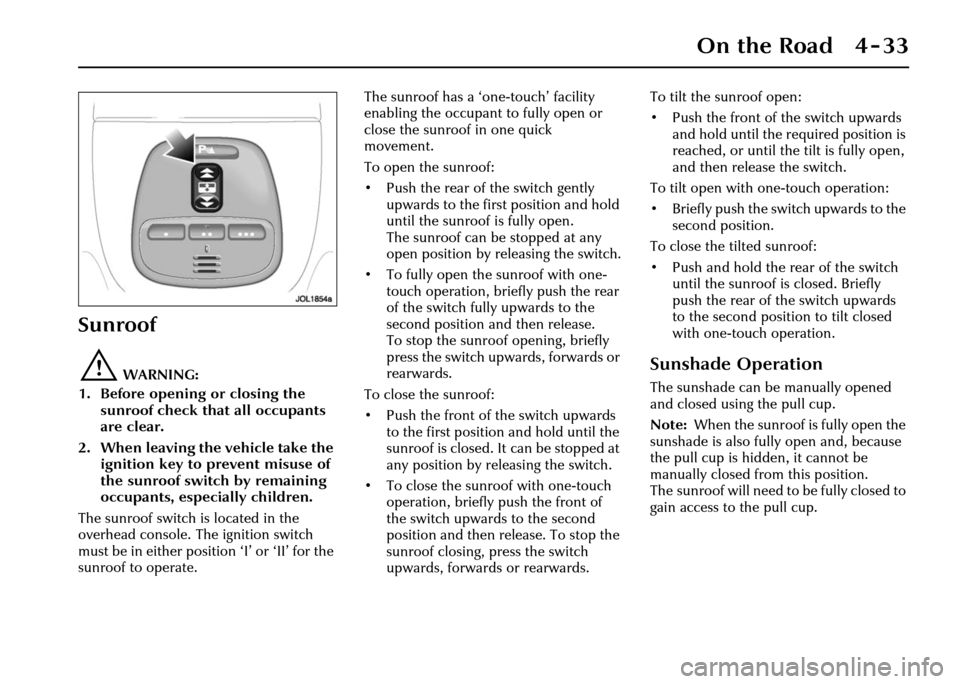

Sunroof
!WARNING:
1. Before opening or closing the sunroof check that all occupants
are clear.
2. When leaving the vehicle take the ignition key to prevent misuse of
the sunroof switch by remaining
occupants, especially children.
The sunroof switch is located in the
overhead console. The ignition switch
must be in either position ‘I’ or ‘II’ for the
sunroof to operate. The sunroof has a ‘one-touch’ facility
enabling the occupant to fully open or
close the sunroof in one quick
movement.
To open the sunroof:
• Push the rear of the switch gently
upwards to the first position and hold
until the sunroof is fully open.
The sunroof can be stopped at any
open position by releasing the switch.
• To fully open the sunroof with one- touch operation, briefly push the rear
of the switch fully upwards to the
second position and then release.
To stop the sunroof opening, briefly
press the switch upwards, forwards or
rearwards.
To close the sunroof:
• Push the front of the switch upwards to the first position and hold until the
sunroof is closed. It can be stopped at
any position by re leasing the switch.
• To close the sunroof with one-touch operation, briefly push the front of
the switch upwards to the second
position and then release. To stop the
sunroof closing, press the switch
upwards, forwards or rearwards. To tilt the sunroof open:
• Push the front of the switch upwards
and hold until the required position is
reached, or until the tilt is fully open,
and then release the switch.
To tilt open with one-touch operation:
• Briefly push the switch upwards to the second position.
To close the tilted sunroof:
• Push and hold the rear of the switch until the sunroof is closed. Briefly
push the rear of the switch upwards
to the second position to tilt closed
with one-touch operation.Sunshade Operation
The sunshade can be manually opened
and closed using the pull cup.
Note: When the sunroof is fully open the
sunshade is also fully open and, because
the pull cup is hidden, it cannot be
manually closed from this position.
The sunroof will need to be fully closed to
gain access to the pull cup.

4-34 On the Road

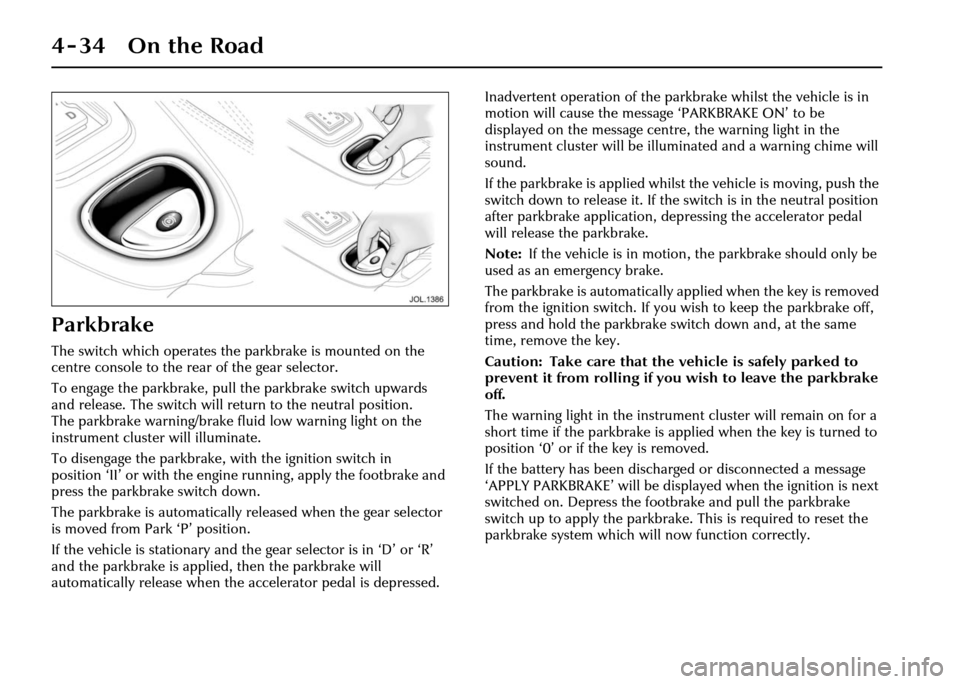

Parkbrake
The switch which operates the parkbrake is mounted on the
centre console to the rear of the gear selector.
To engage the parkbrake, pull the parkbrake switch upwards
and release. The switch will return to the neutral position.
The parkbrake warning/brake fluid low warning light on the
instrument cluster will illuminate.
To disengage the parkbrake, with the ignition switch in
position ‘II’ or with the engine running, apply the footbrake and
press the parkbrake switch down.
The parkbrake is automatically released when the gear selector
is moved from Park ‘P’ position.
If the vehicle is stationary and the gear selector is in ‘D’ or ‘R’
and the parkbrake is applied, then the parkbrake will
automatically release when the accelerator pedal is depressed. Inadvertent operation of the parkbrake whilst the vehicle is in
motion will cause the message ‘PARKBRAKE ON’ to be
displayed on the message centre, the warning light in the
instrument cluster will be illuminated and a warning chime will
sound.
If the parkbrake is applied whilst
the vehicle is moving, push the
switch down to release it. If the switch is in the neutral position
after parkbrake application, depressing the accelerator pedal
will release the parkbrake.
Note: If the vehicle is in motion, the parkbrake should only be
used as an emergency brake.
The parkbrake is auto matically applied when the key is removed
from the ignition switch. If you wi sh to keep the parkbrake off,
press and hold the parkbrake switch down and, at the same
time, remove the key.
Caution: Take care that the vehicle is safely parked to
prevent it from rolling if you wish to leave the parkbrake
off.
The warning light in the instrument cluster will remain on for a
short time if the parkbrake is applied when the key is turned to
position ‘0’ or if the key is removed.
If the battery has been discharged or disconnected a message
‘APPLY PARKBRAKE’ will be displa yed when the ignition is next
switched on. Depress the footbrake and pull the parkbrake
switch up to apply the parkbrake. This is required to reset the
parkbrake system which will now function correctly.

On the Road 4 - 35

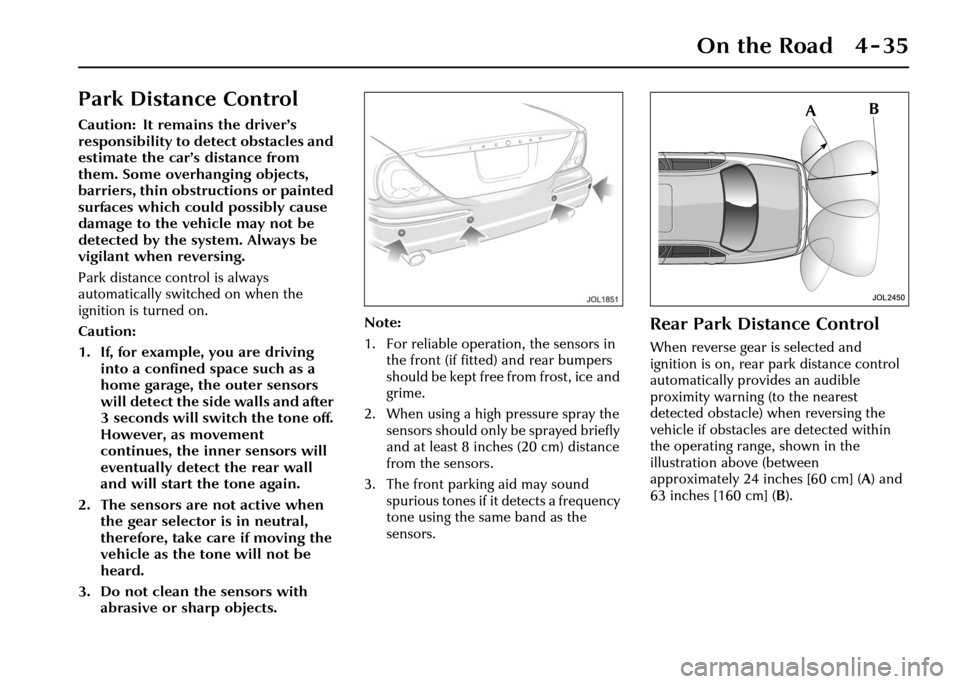

Park Distance Control
Caution: It remains the driver’s
responsibility to detect obstacles and
estimate the car’s distance from
them. Some overhanging objects,
barriers, thin obstructions or painted
surfaces which could possibly cause
damage to the vehicle may not be
detected by the system. Always be
vigilant when reversing.
Park distance control is always
automatically switched on when the
ignition is turned on.
Caution:
1. If, for example, you are driving into a confined space such as a
home garage, the outer sensors
will detect the side walls and after
3 seconds will switch the tone off.
However, as movement
continues, the inner sensors will
eventually detect the rear wall
and will start the tone again.
2. The sensors are not active when the gear selector is in neutral,
therefore, take care if moving the
vehicle as the tone will not be
heard.
3. Do not clean the sensors with abrasive or sharp objects. Note:
1. For reliable operation, the sensors in
the front (if fitted) and rear bumpers
should be kept free from frost, ice and
grime.
2. When using a high pressure spray the sensors should only be sprayed briefly
and at least 8 inches (20 cm) distance
from the sensors.
3. The front parking aid may sound spurious tones if it detects a frequency
tone using the same band as the
sensors.
Rear Park Distance Control
When reverse gear is selected and
ignition is on, rear park distance control
automatically provides an audible
proximity warning (to the nearest
detected obstacle) when reversing the
vehicle if obstacles are detected within
the operating range, shown in the
illustration above (between
approximately 24 inches [60 cm] ( A) and
63 inches [160 cm] ( B).

4-36 On the Road

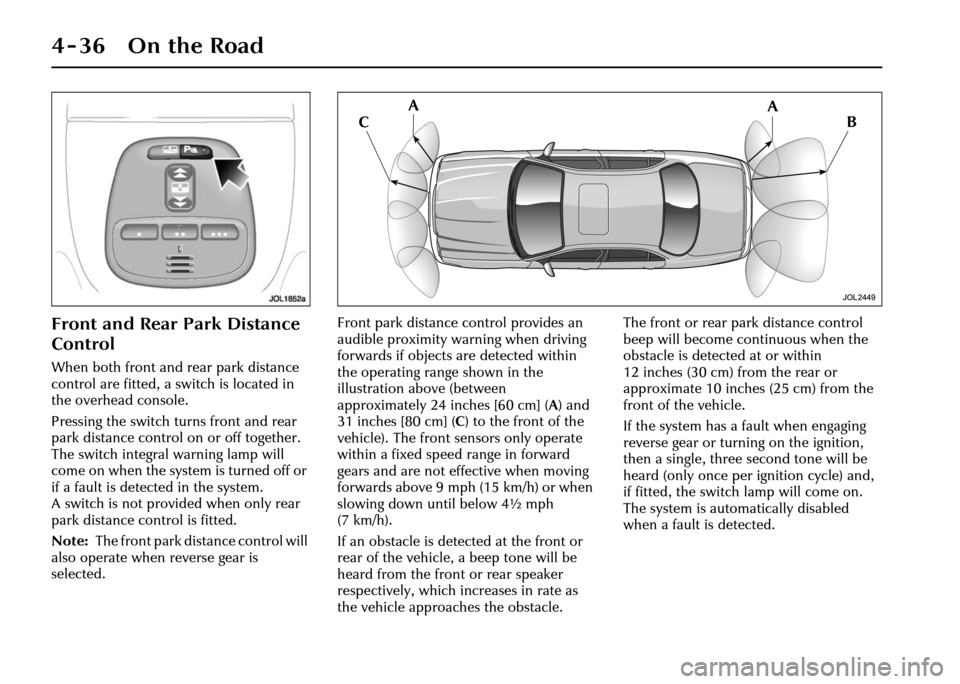

Front and Rear Park Distance
Control
When both front and rear park distance
control are fitted, a switch is located in
the overhead console.
Pressing the switch turns front and rear
park distance control on or off together.
The switch integral warning lamp will
come on when the system is turned off or
if a fault is detected in the system.
A switch is not provided when only rear
park distance control is fitted.
Note: The front park distance control will
also operate when reverse gear is
selected. Front park distance control provides an
audible proximity warning when driving
forwards if objects are detected within
the operating range shown in the
illustration above (between
approximately 24 inches [60 cm] (
A) and
31 inches [80 cm] (C ) to the front of the
vehicle). The front sensors only operate
within a fixed speed range in forward
gears and are not effective when moving
forwards above 9mph (15km/h) or when
slowing down until below 4½ mph
(7 km/h).
If an obstacle is detected at the front or
rear of the vehicle, a beep tone will be
heard from the front or rear speaker
respectively, which increases in rate as
the vehicle approaches the obstacle. The front or rear park distance control
beep will become co
ntinuous when the
obstacle is detected at or within
12 inches (30 cm) from the rear or
approximate 10 inches (25 cm) from the
front of the vehicle.
If the system has a fault when engaging
reverse gear or turning on the ignition,
then a single, three second tone will be
heard (only once per ignition cycle) and,
if fitted, the switch lamp will come on.
The system is automatically disabled
when a fault is detected.

On the Road 4 - 37

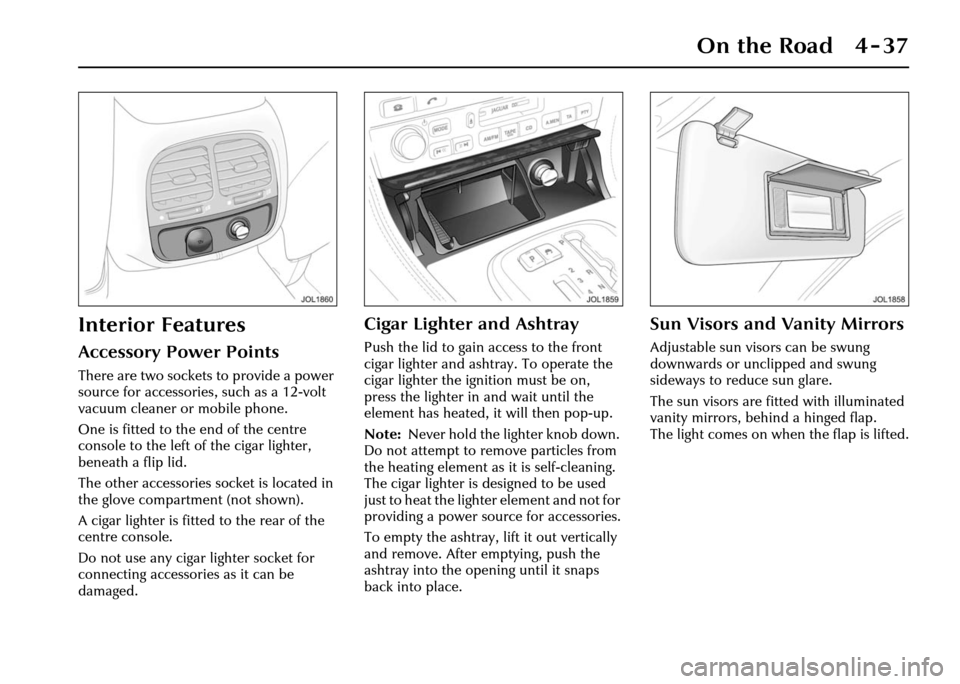

Interior Features
Accessory Power Points
There are two sockets to provide a power
source for accessories, such as a 12-volt
vacuum cleaner or mobile phone.
One is fitted to the end of the centre
console to the left of the cigar lighter,
beneath a flip lid.
The other accessories socket is located in
the glove compartment (not shown).
A cigar lighter is fitted to the rear of the
centre console.
Do not use any cigar lighter socket for
connecting accessories as it can be
damaged.
Cigar Lighter and Ashtray
Push the lid to gain access to the front
cigar lighter and ashtray. To operate the
cigar lighter the ignition must be on,
press the lighter in and wait until the
element has heated, it will then pop-up.
Note:Never hold the lighter knob down.
Do not attempt to remove particles from
the heating element as it is self-cleaning.
The cigar lighter is designed to be used
just to heat the lighter element and not for
providing a power source for accessories.
To empty the ashtray, lift it out vertically
and remove. After emptying, push the
ashtray into the opening until it snaps
back into place.
Sun Visors and Vanity Mirrors
Adjustable sun visors can be swung
downwards or unclipped and swung
sideways to reduce sun glare.
The sun visors are fitted with illuminated
vanity mirrors, behind a hinged flap.
The light comes on when the flap is lifted.

4-38 On the Road

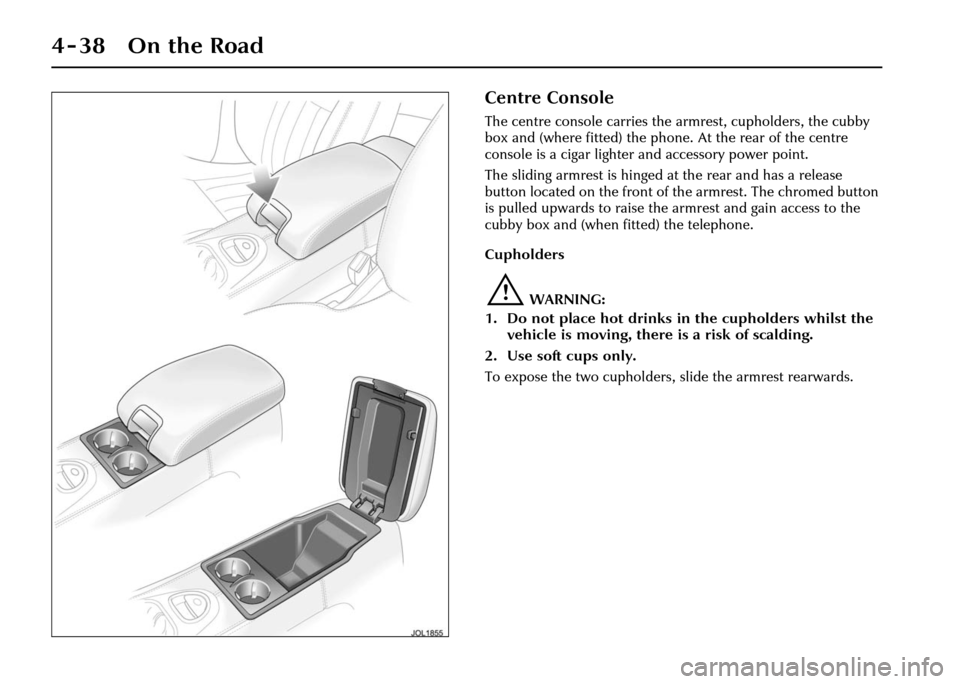

Centre Console
The centre console carries the armrest, cupholders, the cubby
box and (where fitted) the phone. At the rear of the centre
console is a cigar lighter and accessory power point.
The sliding armrest is hinged at the rear and has a release
button located on the front of the armrest. The chromed button
is pulled upwards to raise the armrest and gain access to the
cubby box and (when fitted) the telephone.
Cupholders
!WARNING:
1. Do not place hot drinks in the cupholders whilst the vehicle is moving, there is a risk of scalding.
2. Use soft cups only.
To expose the two cupholders, slide the armrest rearwards.

On the Road 4 - 39

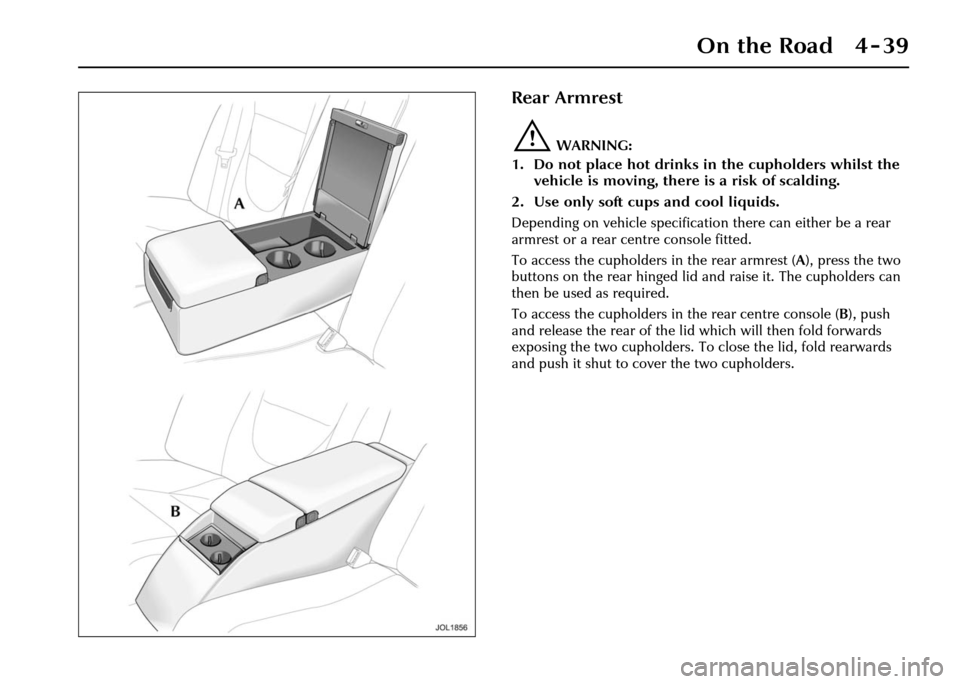

Rear Armrest
!WARNING:
1. Do not place hot drinks in the cupholders whilst the vehicle is moving, there is a risk of scalding.
2. Use only soft cups and cool liquids.
Depending on vehicle specificatio n there can either be a rear
armrest or a rear centre console fitted.
To access the cupholders in the rear armrest ( A), press the two
buttons on the rear hinged lid and raise it. The cupholders can
then be used as required.
To access the cupholders in the rear centre console ( B), push
and release the rear of the lid which will then fold forwards
exposing the two cupholders. To close the lid, fold rearwards
and push it shut to cover the two cupholders.
