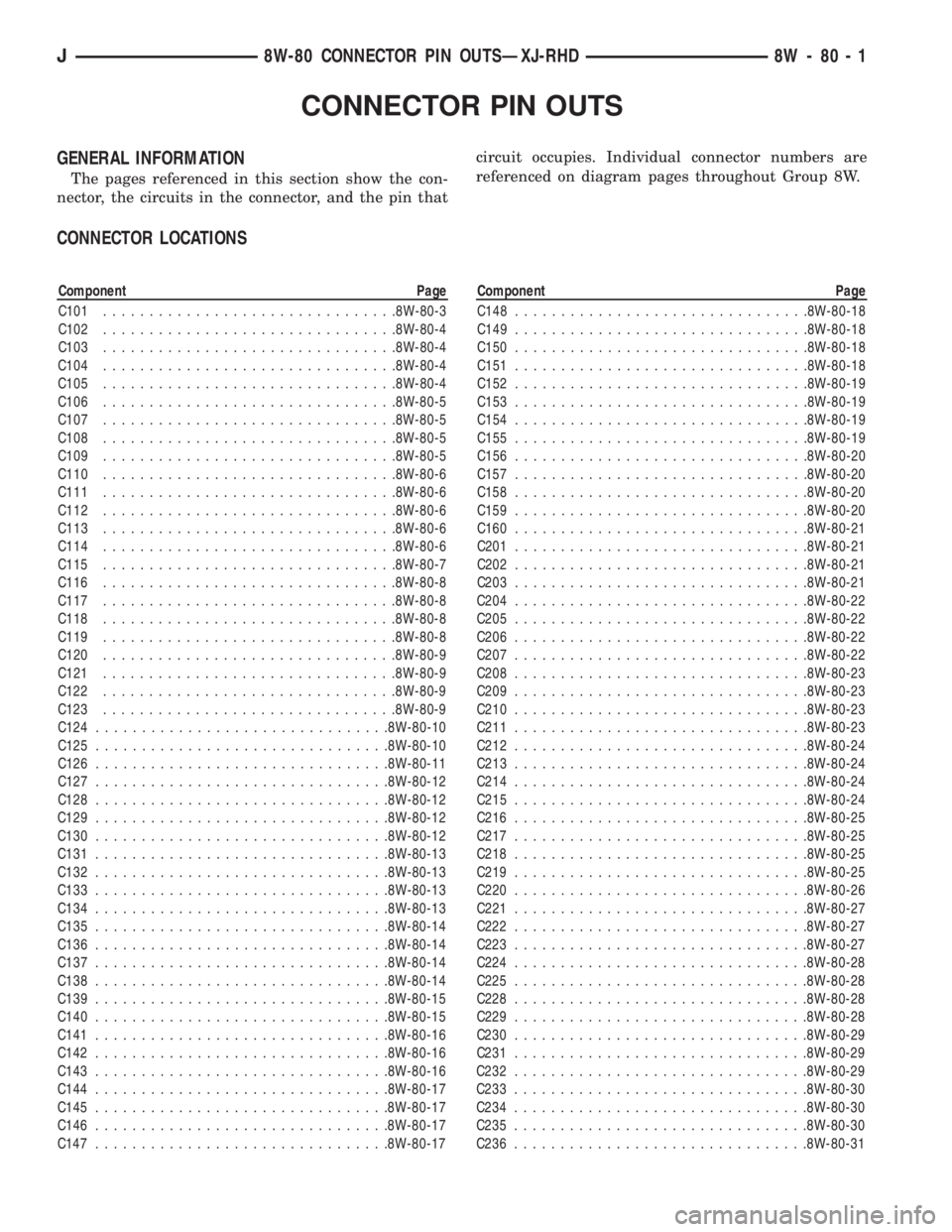

CONNECTOR PIN OUTS
GENERAL INFORMATION
The pages referenced in this section show the con-
nector, the circuits in the connector, and the pin thatcircuit occupies. Individual connector numbers are
referenced on diagram pages throughout Group 8W.
CONNECTOR LOCATIONS
Component Page

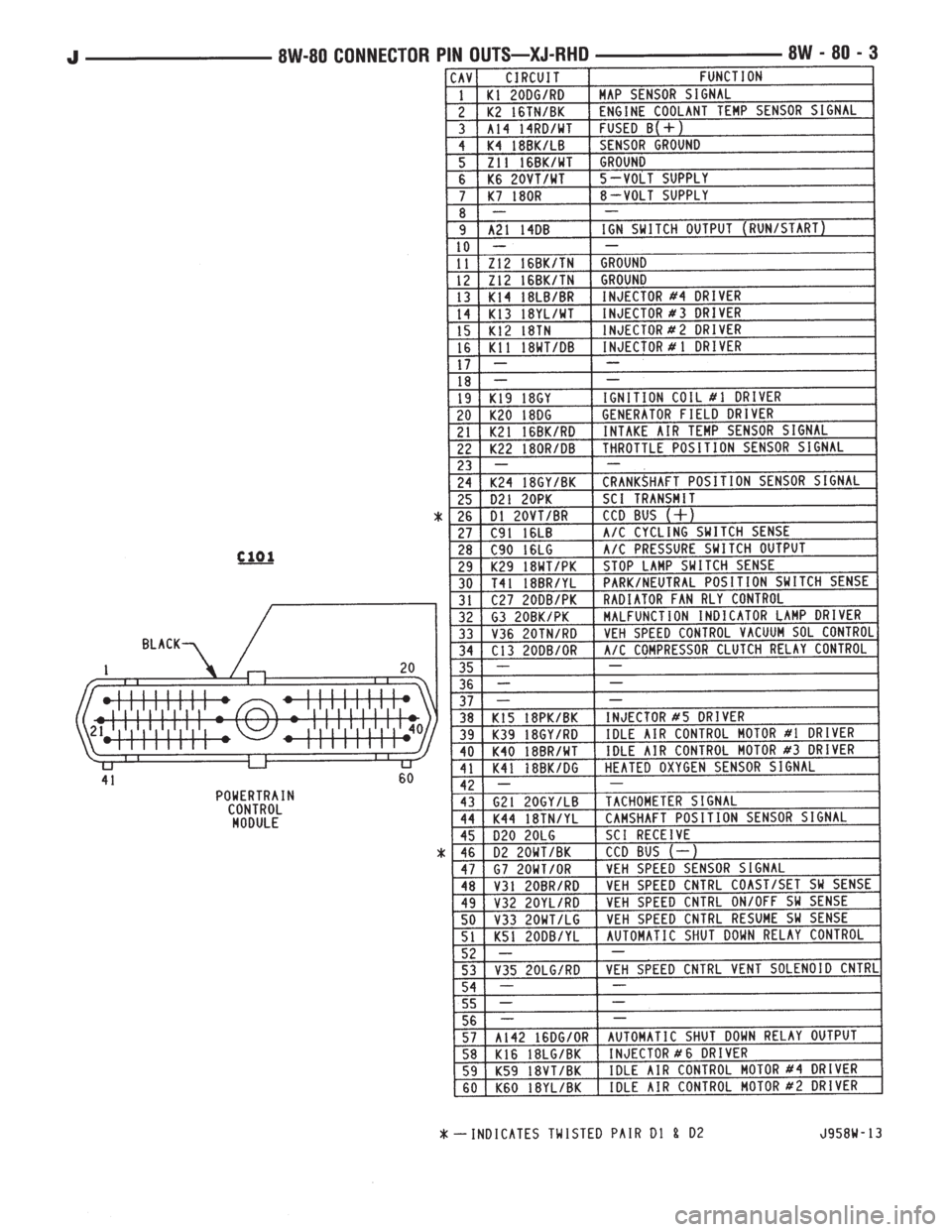

C101................................8W-80-3
C102................................8W-80-4
C103................................8W-80-4
C104................................8W-80-4
C105................................8W-80-4
C106................................8W-80-5
C107................................8W-80-5
C108................................8W-80-5
C109................................8W-80-5
C110................................8W-80-6
C111................................8W-80-6
C112................................8W-80-6
C113................................8W-80-6
C114................................8W-80-6
C115................................8W-80-7
C116................................8W-80-8
C117................................8W-80-8
C118................................8W-80-8
C119................................8W-80-8
C120................................8W-80-9
C121................................8W-80-9
C122................................8W-80-9
C123................................8W-80-9
C124................................8W-80-10
C125................................8W-80-10
C126................................8W-80-11
C127................................8W-80-12
C128................................8W-80-12
C129................................8W-80-12
C130................................8W-80-12
C131................................8W-80-13
C132................................8W-80-13
C133................................8W-80-13
C134................................8W-80-13
C135................................8W-80-14
C136................................8W-80-14
C137................................8W-80-14
C138................................8W-80-14
C139................................8W-80-15
C140................................8W-80-15
C141................................8W-80-16
C142................................8W-80-16
C143................................8W-80-16
C144................................8W-80-17
C145................................8W-80-17
C146................................8W-80-17
C147................................8W-80-17Component Page
C148................................8W-80-18
C149................................8W-80-18
C150................................8W-80-18
C151................................8W-80-18
C152................................8W-80-19
C153................................8W-80-19
C154................................8W-80-19
C155................................8W-80-19
C156................................8W-80-20
C157................................8W-80-20
C158................................8W-80-20
C159................................8W-80-20
C160................................8W-80-21
C201................................8W-80-21
C202................................8W-80-21
C203................................8W-80-21
C204................................8W-80-22
C205................................8W-80-22
C206................................8W-80-22
C207................................8W-80-22
C208................................8W-80-23
C209................................8W-80-23
C210................................8W-80-23
C211................................8W-80-23
C212................................8W-80-24
C213................................8W-80-24
C214................................8W-80-24
C215................................8W-80-24
C216................................8W-80-25
C217................................8W-80-25
C218................................8W-80-25
C219................................8W-80-25
C220................................8W-80-26
C221................................8W-80-27
C222................................8W-80-27
C223................................8W-80-27
C224................................8W-80-28
C225................................8W-80-28
C228................................8W-80-28
C229................................8W-80-28
C230................................8W-80-29
C231................................8W-80-29
C232................................8W-80-29
C233................................8W-80-30
C234................................8W-80-30
C235................................8W-80-30
C236................................8W-80-31
J8W-80 CONNECTOR PIN OUTSÐXJ-RHD 8W - 80 - 1
Page 1009 of 2198

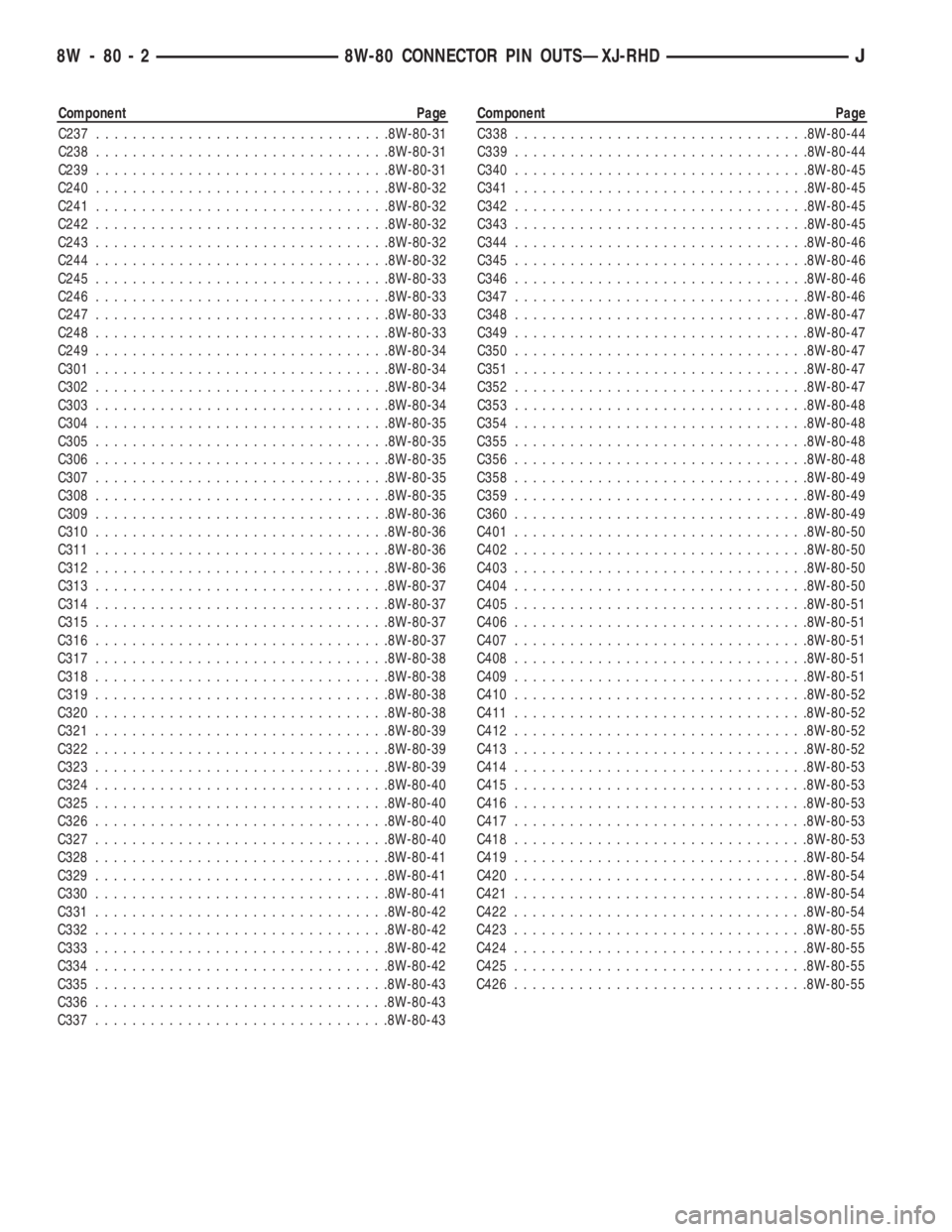

Component Page
C237................................8W-80-31
C238................................8W-80-31
C239................................8W-80-31
C240................................8W-80-32
C241................................8W-80-32
C242................................8W-80-32
C243................................8W-80-32
C244................................8W-80-32
C245................................8W-80-33
C246................................8W-80-33
C247................................8W-80-33
C248................................8W-80-33
C249................................8W-80-34
C301................................8W-80-34
C302................................8W-80-34
C303................................8W-80-34
C304................................8W-80-35
C305................................8W-80-35
C306................................8W-80-35
C307................................8W-80-35
C308................................8W-80-35
C309................................8W-80-36
C310................................8W-80-36
C311................................8W-80-36
C312................................8W-80-36
C313................................8W-80-37
C314................................8W-80-37
C315................................8W-80-37
C316................................8W-80-37
C317................................8W-80-38
C318................................8W-80-38
C319................................8W-80-38
C320................................8W-80-38
C321................................8W-80-39
C322................................8W-80-39
C323................................8W-80-39
C324................................8W-80-40
C325................................8W-80-40
C326................................8W-80-40
C327................................8W-80-40
C328................................8W-80-41
C329................................8W-80-41
C330................................8W-80-41
C331................................8W-80-42
C332................................8W-80-42
C333................................8W-80-42
C334................................8W-80-42
C335................................8W-80-43
C336................................8W-80-43
C337................................8W-80-43Component Page
C338................................8W-80-44
C339................................8W-80-44
C340................................8W-80-45
C341................................8W-80-45
C342................................8W-80-45
C343................................8W-80-45
C344................................8W-80-46
C345................................8W-80-46
C346................................8W-80-46
C347................................8W-80-46
C348................................8W-80-47
C349................................8W-80-47
C350................................8W-80-47
C351................................8W-80-47
C352................................8W-80-47
C353................................8W-80-48
C354................................8W-80-48
C355................................8W-80-48
C356................................8W-80-48
C358................................8W-80-49
C359................................8W-80-49
C360................................8W-80-49
C401................................8W-80-50
C402................................8W-80-50
C403................................8W-80-50
C404................................8W-80-50
C405................................8W-80-51
C406................................8W-80-51
C407................................8W-80-51
C408................................8W-80-51
C409................................8W-80-51
C410................................8W-80-52
C411................................8W-80-52
C412................................8W-80-52
C413................................8W-80-52
C414................................8W-80-53
C415................................8W-80-53
C416................................8W-80-53
C417................................8W-80-53
C418................................8W-80-53
C419................................8W-80-54
C420................................8W-80-54
C421................................8W-80-54
C422................................8W-80-54
C423................................8W-80-55
C424................................8W-80-55
C425................................8W-80-55
C426................................8W-80-55
