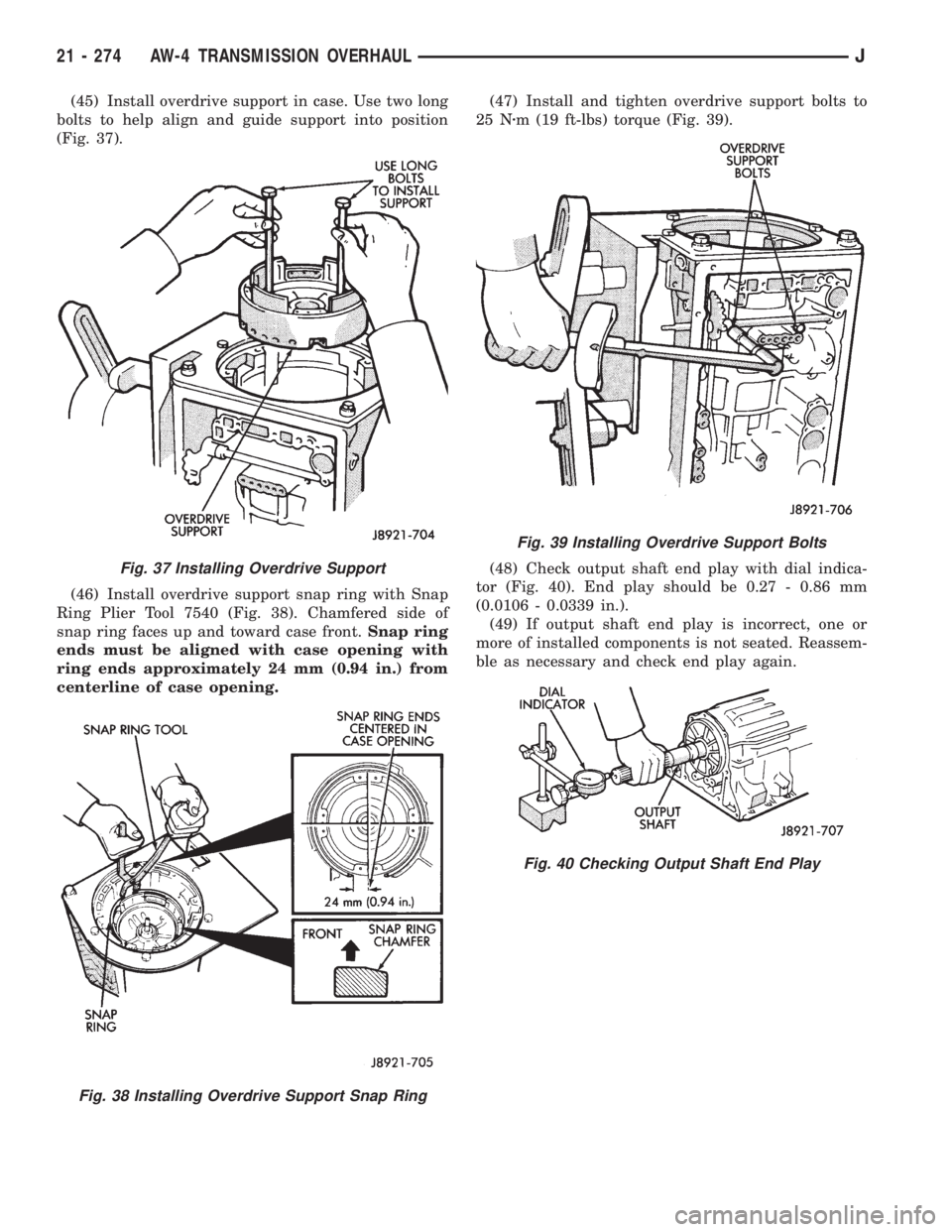

(45) Install overdrive support in case. Use two long
bolts to help align and guide support into position
(Fig. 37).
(46) Install overdrive support snap ring with Snap
Ring Plier Tool 7540 (Fig. 38). Chamfered side of
snap ring faces up and toward case front.Snap ring
ends must be aligned with case opening with
ring ends approximately 24 mm (0.94 in.) from
centerline of case opening.(47) Install and tighten overdrive support bolts to
25 Nzm (19 ft-lbs) torque (Fig. 39).
(48) Check output shaft end play with dial indica-
tor (Fig. 40). End play should be 0.27 - 0.86 mm
(0.0106 - 0.0339 in.).
(49) If output shaft end play is incorrect, one or
more of installed components is not seated. Reassem-
ble as necessary and check end play again.
Fig. 37 Installing Overdrive Support
Fig. 38 Installing Overdrive Support Snap Ring
Fig. 39 Installing Overdrive Support Bolts
Fig. 40 Checking Output Shaft End Play
21 - 274 AW-4 TRANSMISSION OVERHAULJ

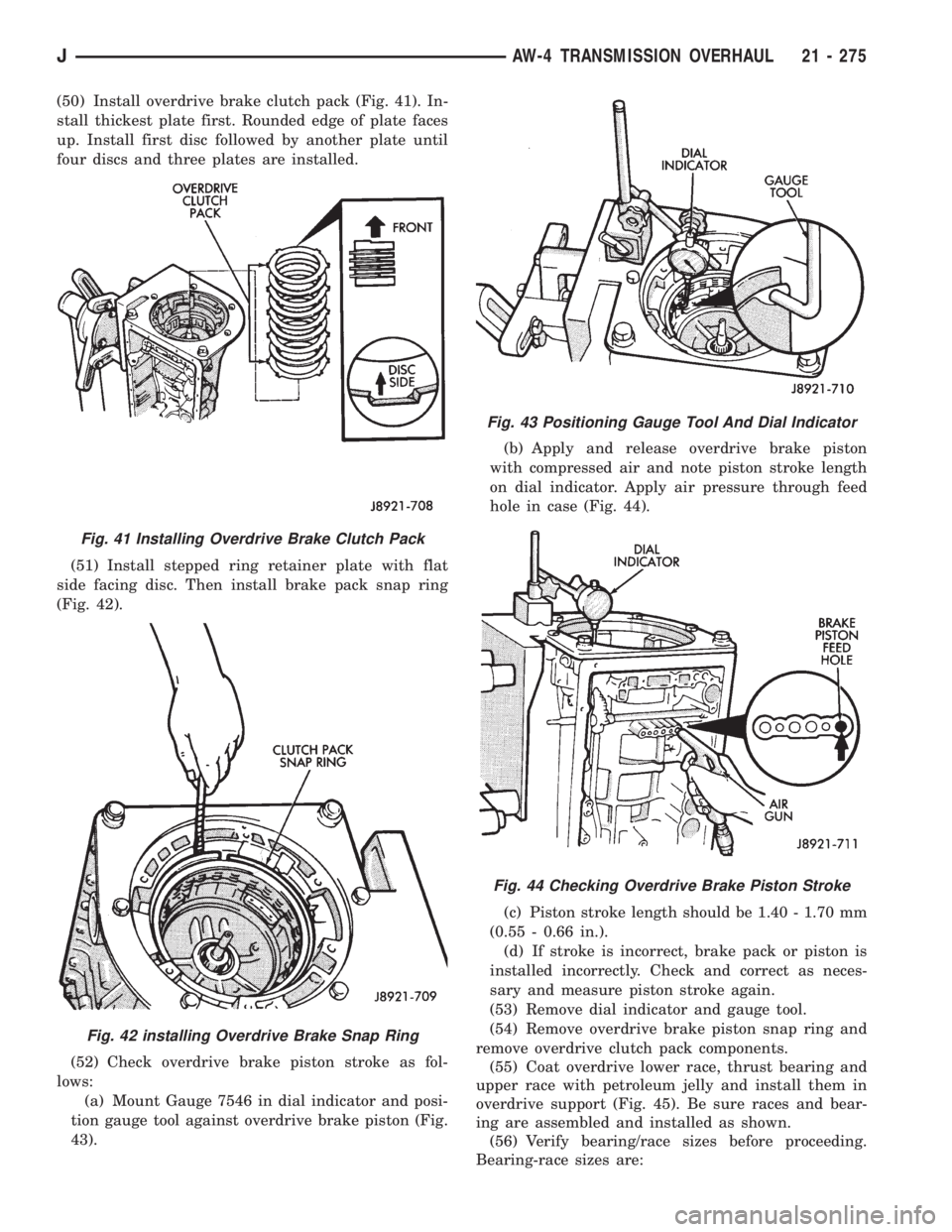

(50) Install overdrive brake clutch pack (Fig. 41). In-
stall thickest plate first. Rounded edge of plate faces
up. Install first disc followed by another plate until
four discs and three plates are installed.
(51) Install stepped ring retainer plate with flat
side facing disc. Then install brake pack snap ring
(Fig. 42).
(52) Check overdrive brake piston stroke as fol-
lows:
(a) Mount Gauge 7546 in dial indicator and posi-
tion gauge tool against overdrive brake piston (Fig.
43).(b) Apply and release overdrive brake piston
with compressed air and note piston stroke length
on dial indicator. Apply air pressure through feed
hole in case (Fig. 44).
(c) Piston stroke length should be 1.40 - 1.70 mm
(0.55 - 0.66 in.).
(d) If stroke is incorrect, brake pack or piston is
installed incorrectly. Check and correct as neces-
sary and measure piston stroke again.
(53) Remove dial indicator and gauge tool.
(54) Remove overdrive brake piston snap ring and
remove overdrive clutch pack components.
(55) Coat overdrive lower race, thrust bearing and
upper race with petroleum jelly and install them in
overdrive support (Fig. 45). Be sure races and bear-
ing are assembled and installed as shown.
(56) Verify bearing/race sizes before proceeding.
Bearing-race sizes are:
Fig. 41 Installing Overdrive Brake Clutch Pack
Fig. 42 installing Overdrive Brake Snap Ring
Fig. 43 Positioning Gauge Tool And Dial Indicator
Fig. 44 Checking Overdrive Brake Piston Stroke
JAW-4 TRANSMISSION OVERHAUL 21 - 275

²Outer diameter of lower race is 47.8 mm (1.882
in.) and inside diameter is 34.3 mm (1.350 in.).
²Outer diameter of bearing is 47.7 mm (1.878 in.)
and inside diameter is 32.7 mm (1.287 in.).
²Outer diameter of upper race is 47.8 mm (1.882
in.) and inside diameter is 30.7 mm (1.209 in.).
(57) Install overdrive planetary ring gear in sup-
port (Fig. 46).
(58) Coat ring gear thrust race and thrust bearing
assembly with petroleum jelly and install them in
gear (Fig. 47).
(59) Verify bearing/race size before proceeding.²Outer diameter of ring gear race-bearing is 47.8
mm (1.882 in.) and inside diameter is 24.2 mm (0.953
in.).
²Outer diameter of bearing is 46.8 mm (1.844 in.)
and inside diameter is 26.0 mm (1.024 in.).
(60) Coat tabbed thrust race with petroleum jelly
and install it on planetary gear (Fig. 48). Race outer
diameter is 41.8 mm (1.646 in.) and inside diameter
is 27.1 mm (1.067 in.).
(61) Install assembled overdrive planetary gear
and clutch (Fig. 49).
(62) Coat thrust bearing and race assembly with
petroleum jelly and install it on clutch input shaft
(Fig. 50). Bearing and race outer diameter is 50.2
mm (1.976 in.) and inside diameter is 28.9 mm (1.138
in.).
(63) Install overdrive brake pack as follows:
Fig. 45 Installing Overdrive Support Thrust Bearing
And Races
Fig. 46 Installing Overdrive Planetary Ring Gear
Fig. 47 Installing Ring Gear Thrust Bearing And
Race
Fig. 48 Installing Planetary thrust Race
21 - 276 AW-4 TRANSMISSION OVERHAULJ

(a) Install 4.0 mm (0.157 in.) thick plate first.
Rounded edge of plate must face upward.
(b) Install a disc followed by a plate until the re-
quired number of discs and plates are installed. Be
sure to install the stepped plate last with the flat
side of the plate facing the disc (Fig. 51).
(c) Confirm that four discs and three plates have
been installed.
(64) Install clutch pack snap ring (Fig. 52).(65) Coat thrust bearing race with petroleum jelly
and install it in oil pump (Fig. 53). Bearing race
outer diameter is 47.2 mm (1.858 in.) and inside di-
ameter is 28.1 mm (1.106 in.).
(66) Lubricate and install replacement O-ring on
oil pump body.
(67) Install oil pump in case. Align pump and case
bolt holes and carefully ease pump into place (Fig.
54).
CAUTION: Do not use force to seat the pump. The
seal rings on the stator shaft could be damaged if
they bind or stick to the direct clutch drum.
(68) Tighten oil pump bolts to 22 Nzm (16 ft. lbs.)
torque.
Fig. 49 Installing Overdrive Planetary And Clutch
Assembly
Fig. 50 Installing Input Shaft Thrust Bearing And
Race Assembly
Fig. 51 Installing Overdrive Clutch Pack
Fig. 52 Installing Clutch Pack Snap Ring
JAW-4 TRANSMISSION OVERHAUL 21 - 277

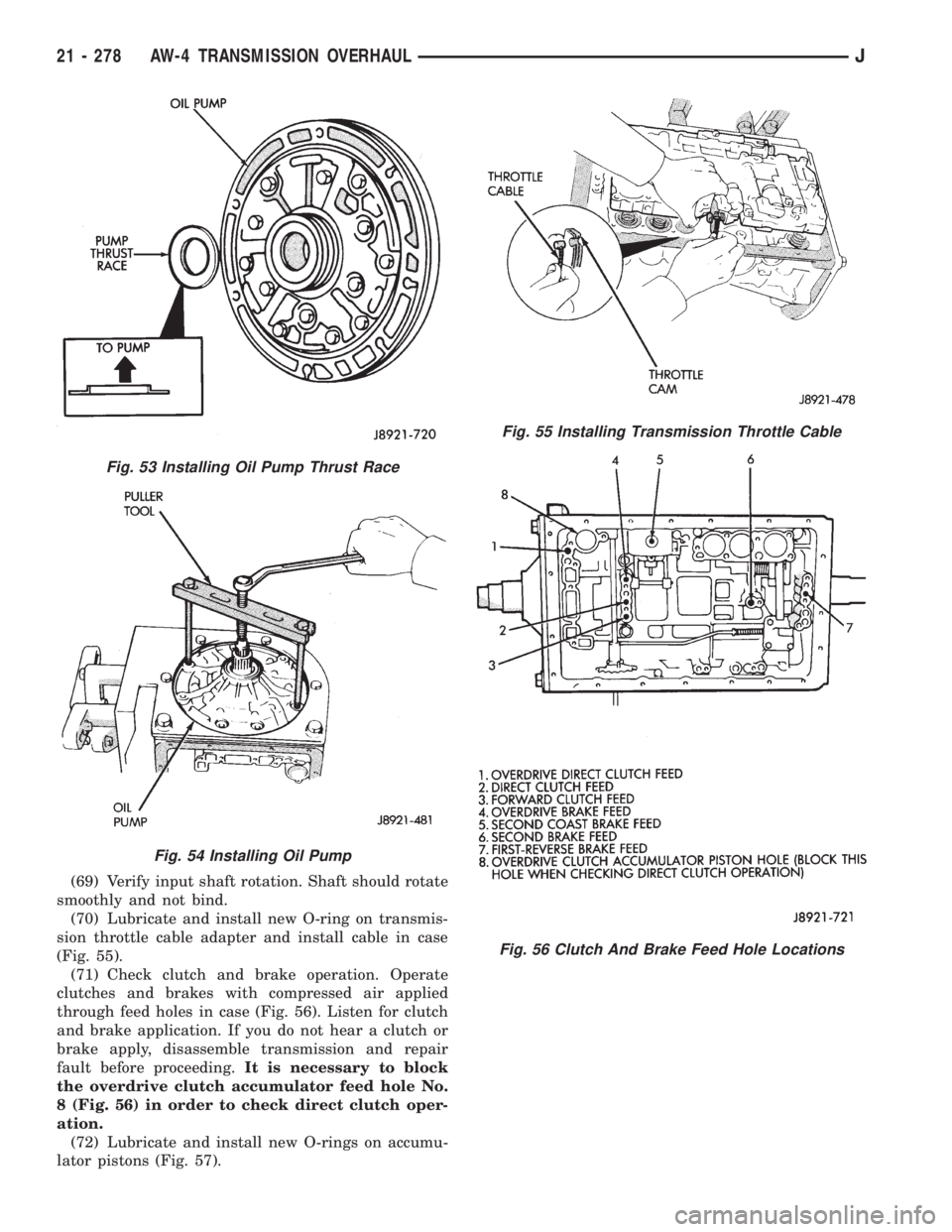

(69) Verify input shaft rotation. Shaft should rotate
smoothly and not bind.
(70) Lubricate and install new O-ring on transmis-
sion throttle cable adapter and install cable in case
(Fig. 55).
(71) Check clutch and brake operation. Operate
clutches and brakes with compressed air applied
through feed holes in case (Fig. 56). Listen for clutch
and brake application. If you do not hear a clutch or
brake apply, disassemble transmission and repair
fault before proceeding.It is necessary to block
the overdrive clutch accumulator feed hole No.
8 (Fig. 56) in order to check direct clutch oper-
ation.
(72) Lubricate and install new O-rings on accumu-
lator pistons (Fig. 57).
Fig. 53 Installing Oil Pump Thrust Race
Fig. 54 Installing Oil Pump
Fig. 55 Installing Transmission Throttle Cable
Fig. 56 Clutch And Brake Feed Hole Locations
21 - 278 AW-4 TRANSMISSION OVERHAULJ

(73) Assemble and install accumulator pistons and
springs (Fig. 57).
(74) Install new check ball body and spring (Fig.
58).
(75) Position valve body on case (Fig. 59).(76) Install detent spring (Fig. 59).
(77) Align manual valve, detent spring and shift
sector (Fig. 59).
(78) Connect transmission throttle cable to throttle
valve cam (Fig. 60).
(79) Install and tighten valve body-to-case bolts to
10 Nzm (7 ft. lbs.) torque.
(80) Connect valve body solenoid wires to solenoids
(Fig. 61).
(81) Install new O-ring on solenoid harness
adapter and secure adapter to case.
(82) Install valve body oil tubes (Fig. 62). Tap
tubes into place with a plastic mallet. Be sure the
flanged tube ends and straight tube ends are in-
stalled as shown.
Fig. 57 Accumulator Piston And Spring Installation
Fig. 58 Installing Check Ball Body And Spring
Fig. 59 Aligning Manual Valve, Shift Sector And
Detent Spring
Fig. 60 Connecting Transmission Throttle Cable
JAW-4 TRANSMISSION OVERHAUL 21 - 279

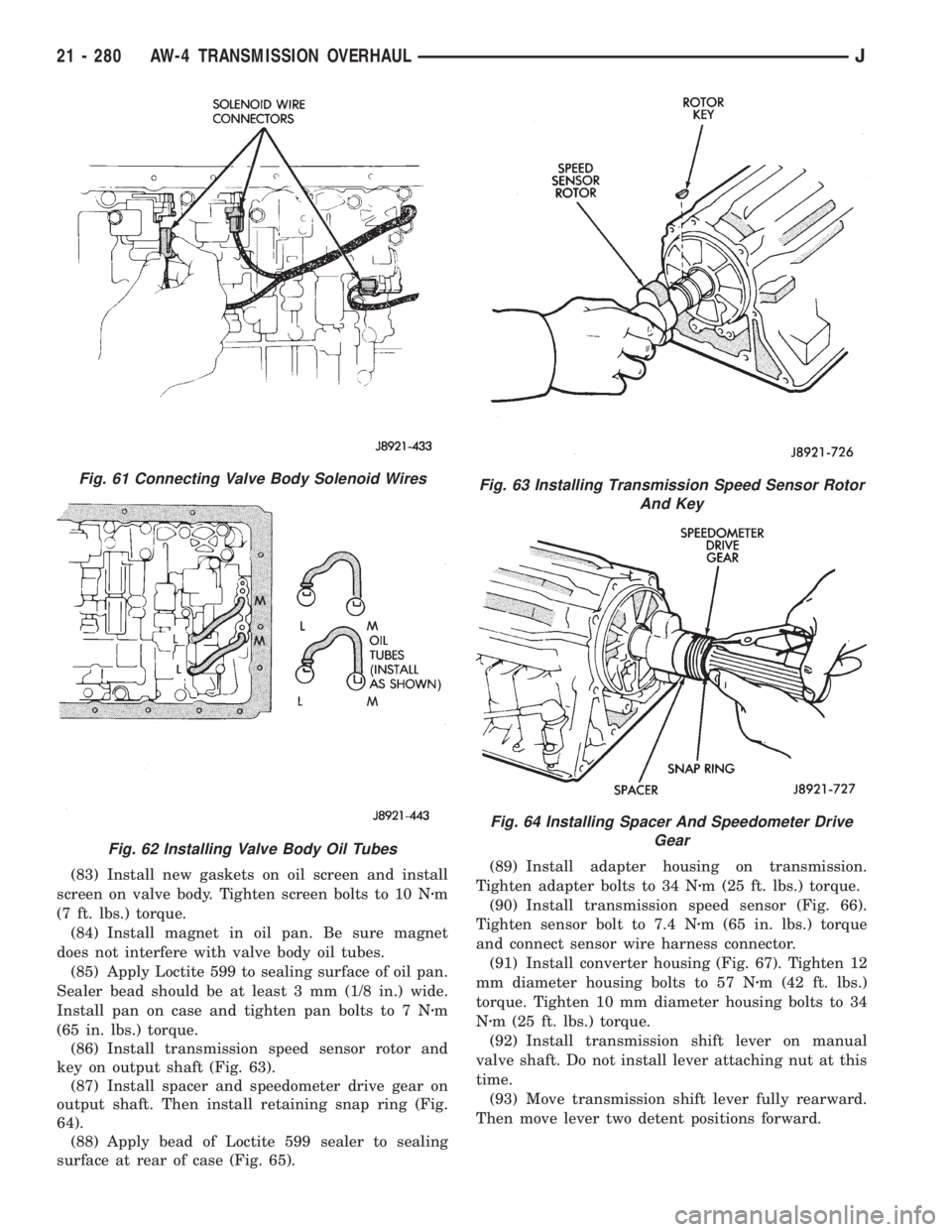

(83) Install new gaskets on oil screen and install
screen on valve body. Tighten screen bolts to 10 Nzm
(7 ft. lbs.) torque.
(84) Install magnet in oil pan. Be sure magnet
does not interfere with valve body oil tubes.
(85) Apply Loctite 599 to sealing surface of oil pan.
Sealer bead should be at least 3 mm (1/8 in.) wide.
Install pan on case and tighten pan bolts to 7 Nzm
(65 in. lbs.) torque.
(86) Install transmission speed sensor rotor and
key on output shaft (Fig. 63).
(87) Install spacer and speedometer drive gear on
output shaft. Then install retaining snap ring (Fig.
64).
(88) Apply bead of Loctite 599 sealer to sealing
surface at rear of case (Fig. 65).(89) Install adapter housing on transmission.
Tighten adapter bolts to 34 Nzm (25 ft. lbs.) torque.
(90) Install transmission speed sensor (Fig. 66).
Tighten sensor bolt to 7.4 Nzm (65 in. lbs.) torque
and connect sensor wire harness connector.
(91) Install converter housing (Fig. 67). Tighten 12
mm diameter housing bolts to 57 Nzm (42 ft. lbs.)
torque. Tighten 10 mm diameter housing bolts to 34
Nzm (25 ft. lbs.) torque.
(92) Install transmission shift lever on manual
valve shaft. Do not install lever attaching nut at this
time.
(93) Move transmission shift lever fully rearward.
Then move lever two detent positions forward.
Fig. 61 Connecting Valve Body Solenoid Wires
Fig. 62 Installing Valve Body Oil Tubes
Fig. 63 Installing Transmission Speed Sensor Rotor
And Key
Fig. 64 Installing Spacer And Speedometer Drive
Gear
21 - 280 AW-4 TRANSMISSION OVERHAULJ

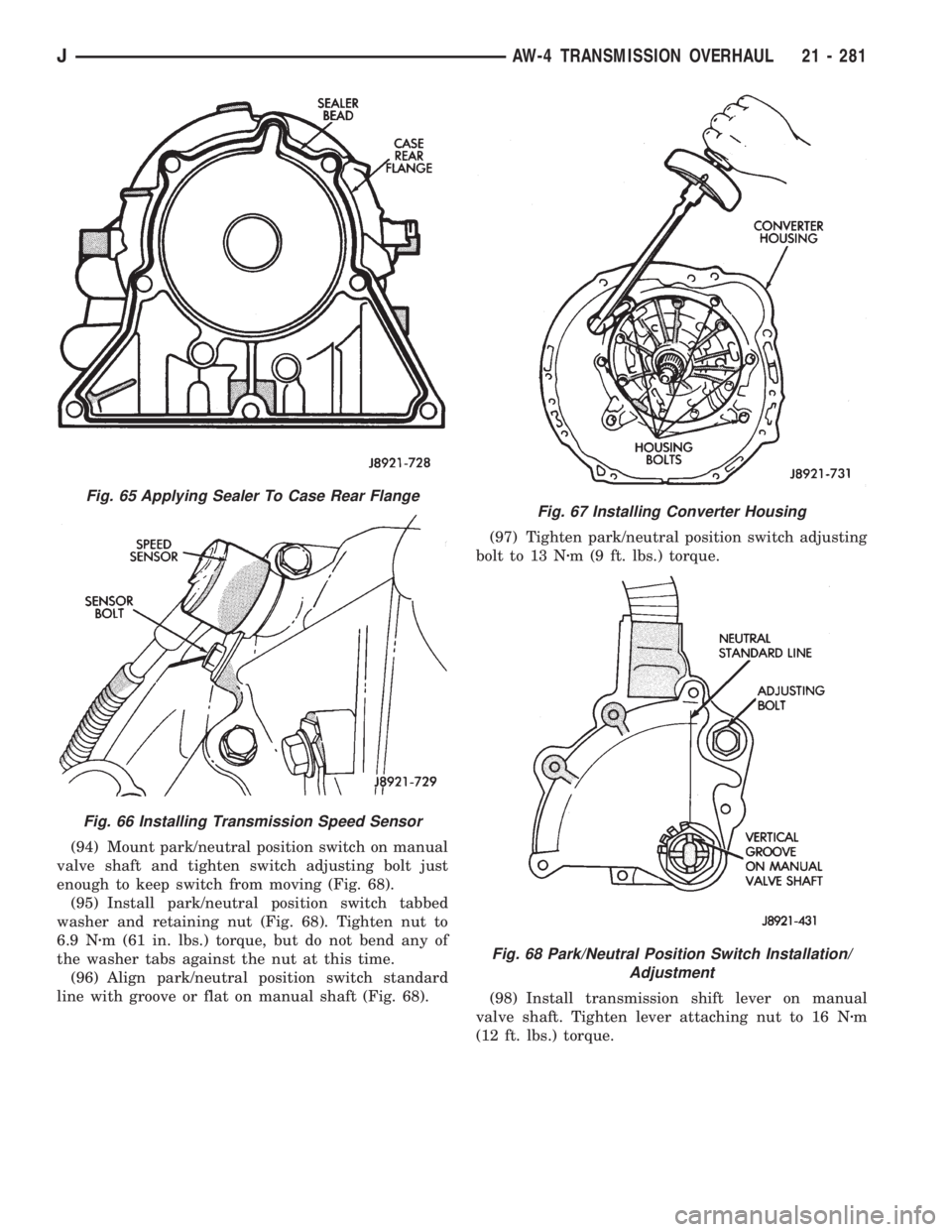

(94) Mount park/neutral position switch on manual
valve shaft and tighten switch adjusting bolt just
enough to keep switch from moving (Fig. 68).
(95) Install park/neutral position switch tabbed
washer and retaining nut (Fig. 68). Tighten nut to
6.9 Nzm (61 in. lbs.) torque, but do not bend any of
the washer tabs against the nut at this time.
(96) Align park/neutral position switch standard
line with groove or flat on manual shaft (Fig. 68).(97) Tighten park/neutral position switch adjusting
bolt to 13 Nzm (9 ft. lbs.) torque.
(98) Install transmission shift lever on manual
valve shaft. Tighten lever attaching nut to 16 Nzm
(12 ft. lbs.) torque.
Fig. 65 Applying Sealer To Case Rear Flange
Fig. 66 Installing Transmission Speed Sensor
Fig. 67 Installing Converter Housing
Fig. 68 Park/Neutral Position Switch Installation/
Adjustment
JAW-4 TRANSMISSION OVERHAUL 21 - 281

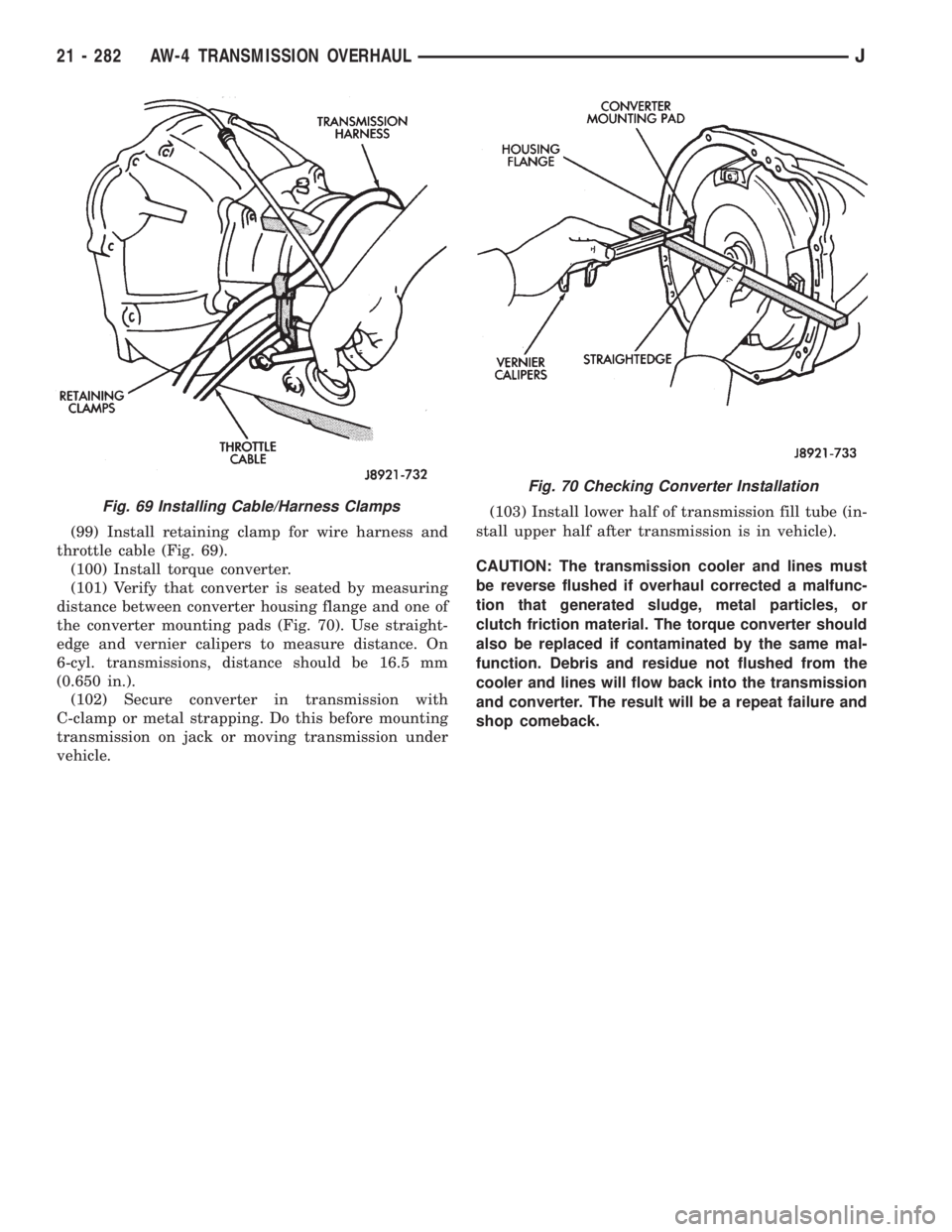

(99) Install retaining clamp for wire harness and
throttle cable (Fig. 69).
(100) Install torque converter.
(101) Verify that converter is seated by measuring
distance between converter housing flange and one of
the converter mounting pads (Fig. 70). Use straight-
edge and vernier calipers to measure distance. On
6-cyl. transmissions, distance should be 16.5 mm
(0.650 in.).
(102) Secure converter in transmission with
C-clamp or metal strapping. Do this before mounting
transmission on jack or moving transmission under
vehicle.(103) Install lower half of transmission fill tube (in-
stall upper half after transmission is in vehicle).
CAUTION: The transmission cooler and lines must
be reverse flushed if overhaul corrected a malfunc-
tion that generated sludge, metal particles, or
clutch friction material. The torque converter should
also be replaced if contaminated by the same mal-
function. Debris and residue not flushed from the
cooler and lines will flow back into the transmission
and converter. The result will be a repeat failure and
shop comeback.
Fig. 69 Installing Cable/Harness Clamps
Fig. 70 Checking Converter Installation
21 - 282 AW-4 TRANSMISSION OVERHAULJ

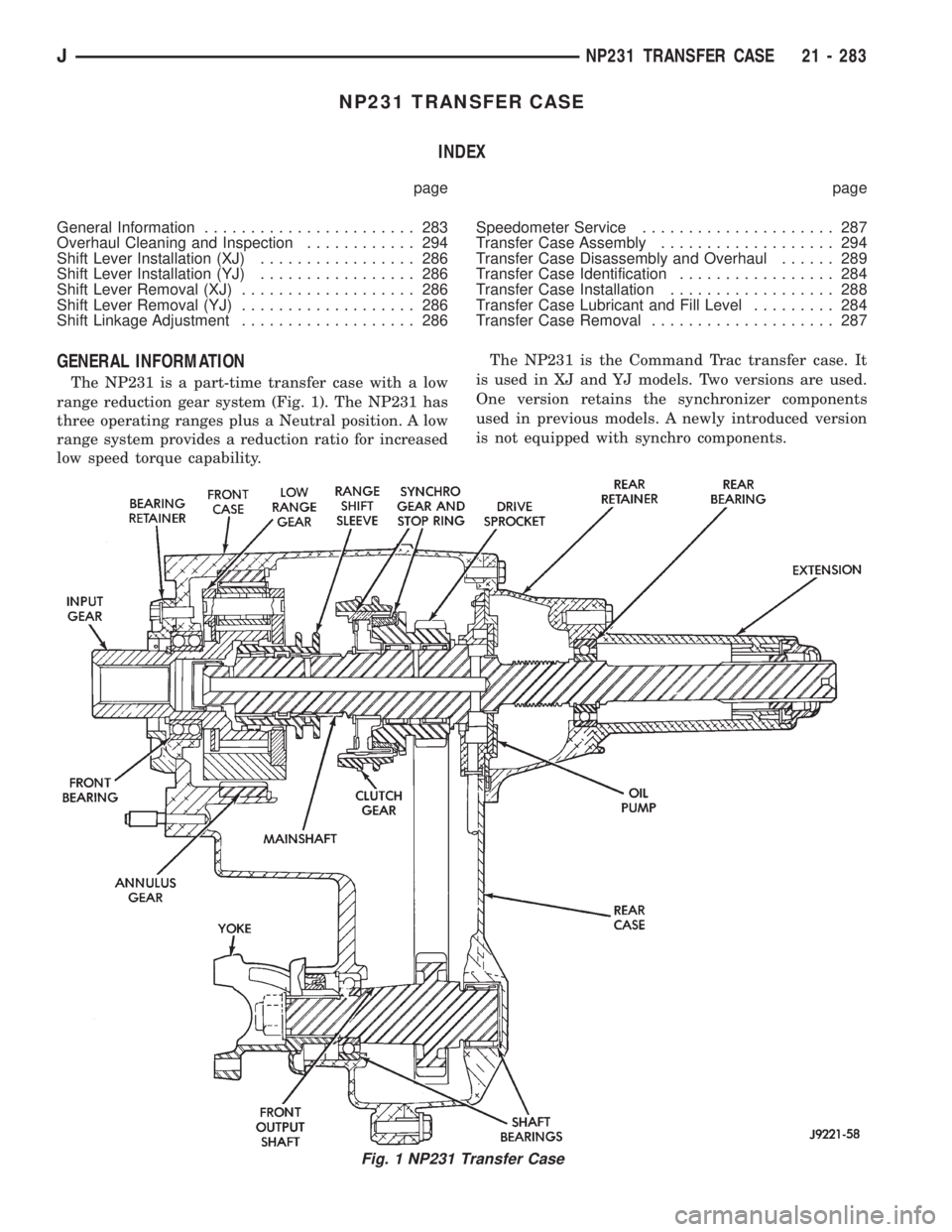

NP231 TRANSFER CASE
INDEX
page page
General Information....................... 283
Overhaul Cleaning and Inspection............ 294
Shift Lever Installation (XJ)................. 286
Shift Lever Installation (YJ)................. 286
Shift Lever Removal (XJ)................... 286
Shift Lever Removal (YJ)................... 286
Shift Linkage Adjustment................... 286Speedometer Service..................... 287
Transfer Case Assembly................... 294
Transfer Case Disassembly and Overhaul...... 289
Transfer Case Identification................. 284
Transfer Case Installation.................. 288
Transfer Case Lubricant and Fill Level......... 284
Transfer Case Removal.................... 287
GENERAL INFORMATION
The NP231 is a part-time transfer case with a low
range reduction gear system (Fig. 1). The NP231 has
three operating ranges plus a Neutral position. A low
range system provides a reduction ratio for increased
low speed torque capability.The NP231 is the Command Trac transfer case. It
is used in XJ and YJ models. Two versions are used.
One version retains the synchronizer components
used in previous models. A newly introduced version
is not equipped with synchro components.
Fig. 1 NP231 Transfer Case
JNP231 TRANSFER CASE 21 - 283
