JEEP CHEROKEE 2018 Owner handbook (in English)

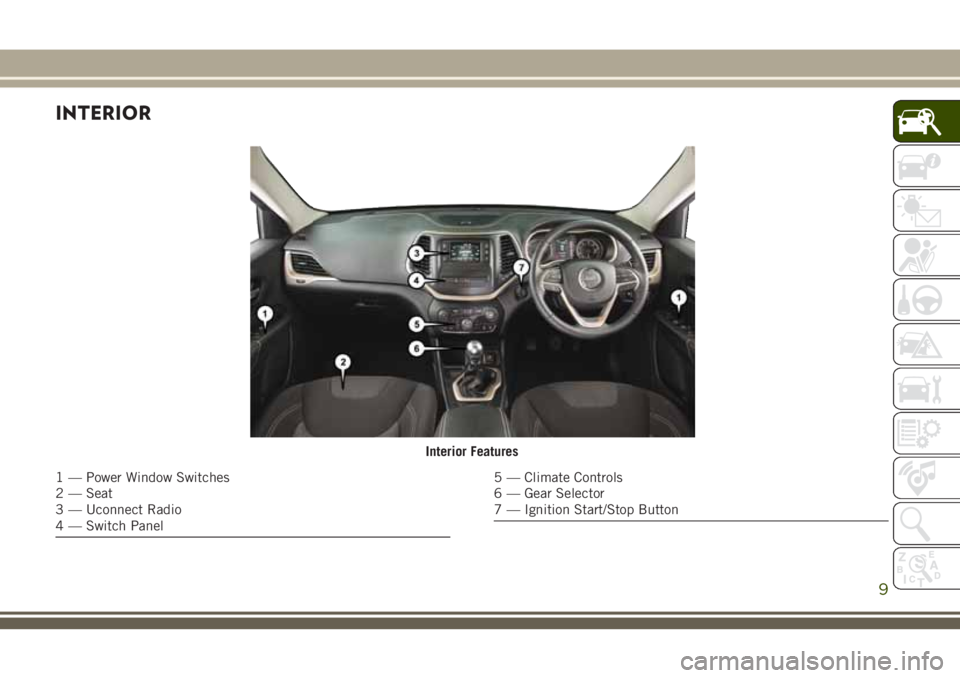

INTERIOR
Interior Features
1 — Power Window Switches
2 — Seat
3 — Uconnect Radio
4 — Switch Panel5 — Climate Controls
6 — Gear Selector
7 — Ignition Start/Stop Button
9

10

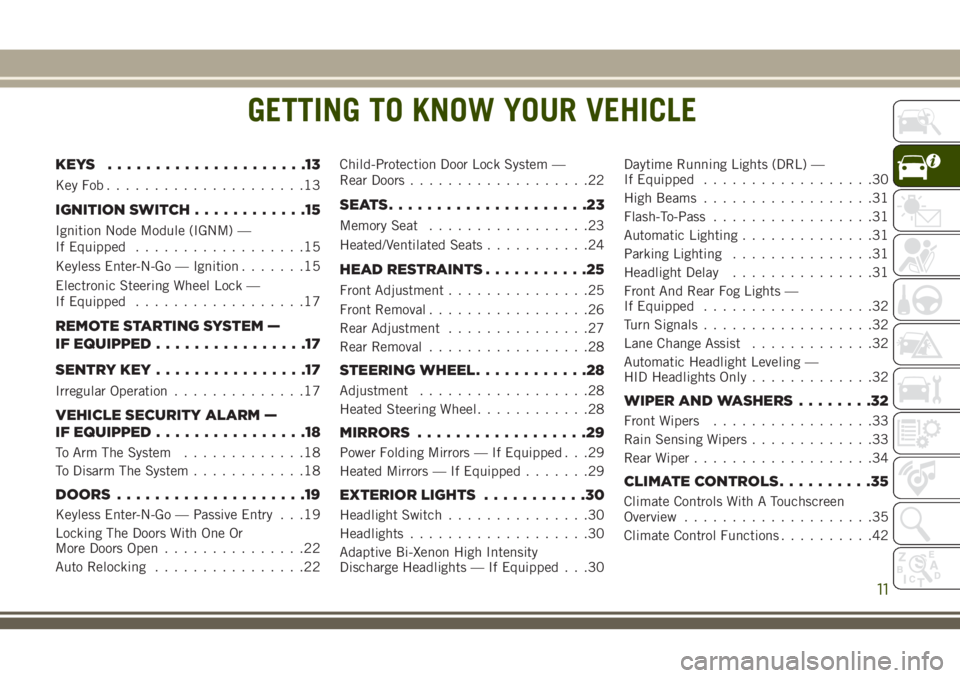

GETTING TO KNOW YOUR VEHICLE
KEYS .....................13
KeyFob.....................13
IGNITION SWITCH............15
Ignition Node Module (IGNM) —
If Equipped..................15
Keyless Enter-N-Go — Ignition .......15
Electronic Steering Wheel Lock —
If Equipped ..................17
REMOTE STARTING SYSTEM —
IF EQUIPPED ................17
SENTRY KEY ................17
Irregular Operation ..............17
VEHICLE SECURITY ALARM —
IF EQUIPPED................18
To Arm The System .............18
To Disarm The System ............18
DOORS....................19
Keyless Enter-N-Go — Passive Entry . . .19
Locking The Doors With One Or
More Doors Open ...............22
Auto Relocking ................22 Child-Protection Door Lock System —
Rear Doors
...................22
SEATS.....................23
Memory Seat .................23
Heated/Ventilated Seats ...........24
HEAD RESTRAINTS...........25
Front Adjustment...............25
Front Removal .................26
Rear Adjustment ...............27
Rear Removal .................28
STEERING WHEEL ............28
Adjustment..................28
Heated Steering Wheel ............28
MIRRORS..................29
Power Folding Mirrors — If Equipped . . .29
Heated Mirrors — If Equipped .......29
EXTERIOR LIGHTS...........30
Headlight Switch...............30
Headlights ...................30
Adaptive Bi-Xenon High Intensity
Discharge Headlights — If Equipped . . .30 Daytime Running Lights (DRL) —
If Equipped
..................30
High Beams ..................31
Flash-To-Pass .................31
Automatic Lighting ..............31
Parking Lighting ...............31
Headlight Delay ...............31
Front And Rear Fog Lights —
If Equipped ..................32
Turn Signals ..................32
Lane Change Assist .............32
Automatic Headlight Leveling —
HID Headlights Only .............32
WIPER AND WASHERS ........32
Front Wipers.................33
Rain Sensing Wipers .............33
Rear Wiper ...................34
CLIMATE CONTROLS ..........35
Climate Controls With A Touchscreen
Overview....................35
Climate Control Functions ..........42
GETTING TO KNOW YOUR VEHICLE
11

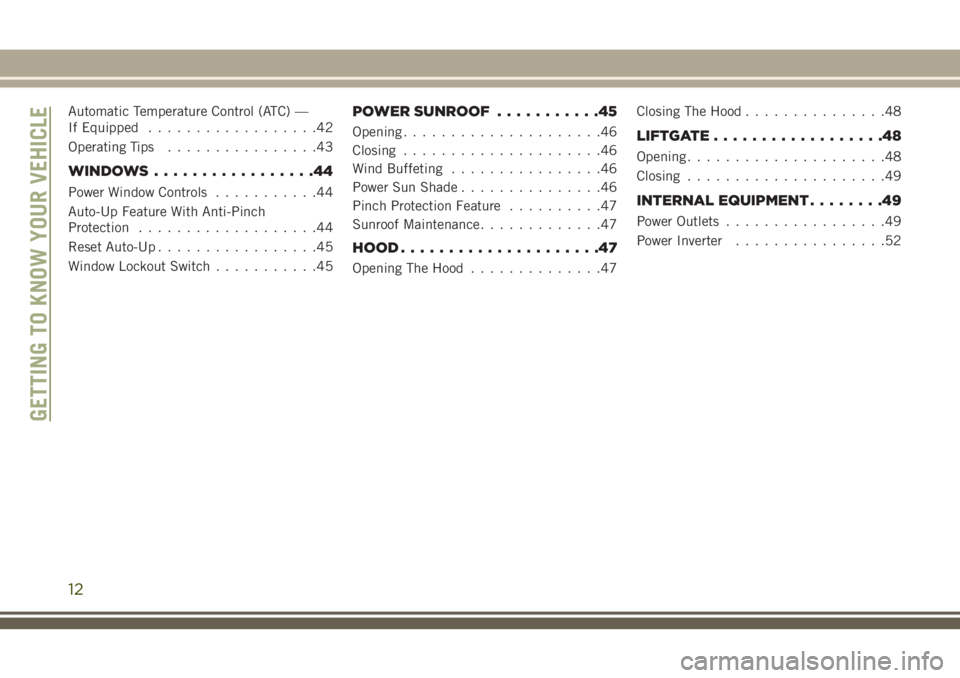

Automatic Temperature Control (ATC) —
If Equipped..................42
Operating Tips ................43
WINDOWS.................44
Power Window Controls ...........44
Auto-Up Feature With Anti-Pinch
Protection ...................44
Reset Auto-Up .................45
Window Lockout Switch ...........45
POWER SUNROOF...........45
Opening.....................46
Closing .....................46
Wind Buffeting ................46
Power Sun Shade ...............46
Pinch Protection Feature ..........47
Sunroof Maintenance .............47
HOOD.....................47
Opening The Hood ..............47 Closing The Hood
...............48
LIFTGATE..................48
Opening.....................48
Closing .....................49
INTERNAL EQUIPMENT ........49
Power Outlets.................49
Power Inverter ................52
GETTING TO KNOW YOUR VEHICLE
12

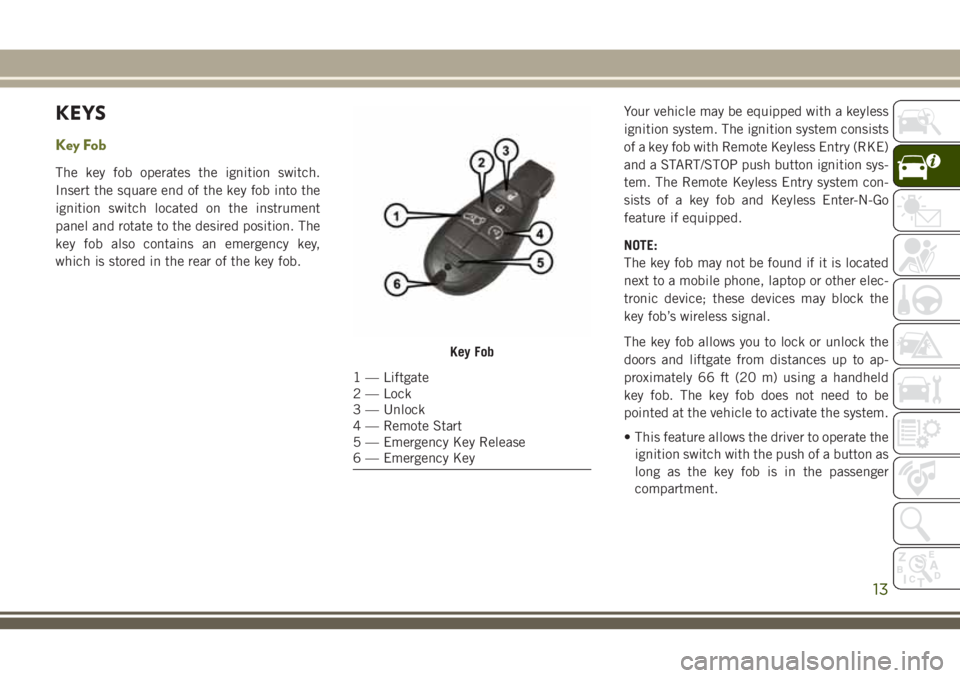

KEYS
Key Fob
The key fob operates the ignition switch.
Insert the square end of the key fob into the
ignition switch located on the instrument
panel and rotate to the desired position. The
key fob also contains an emergency key,
which is stored in the rear of the key fob.Your vehicle may be equipped with a keyless
ignition system. The ignition system consists
of a key fob with Remote Keyless Entry (RKE)
and a START/STOP push button ignition sys-
tem. The Remote Keyless Entry system con-
sists of a key fob and Keyless Enter-N-Go
feature if equipped.
NOTE:
The key fob may not be found if it is located
next to a mobile phone, laptop or other elec-
tronic device; these devices may block the
key fob’s wireless signal.
The key fob allows you to lock or unlock the
doors and liftgate from distances up to ap-
proximately 66 ft (20 m) using a handheld
key fob. The key fob does not need to be
pointed at the vehicle to activate the system.
• This feature allows the driver to operate the
ignition switch with the push of a button as
long as the key fob is in the passenger
compartment.
Key Fob
1 — Liftgate
2 — Lock
3 — Unlock
4 — Remote Start
5 — Emergency Key Release
6 — Emergency Key
13

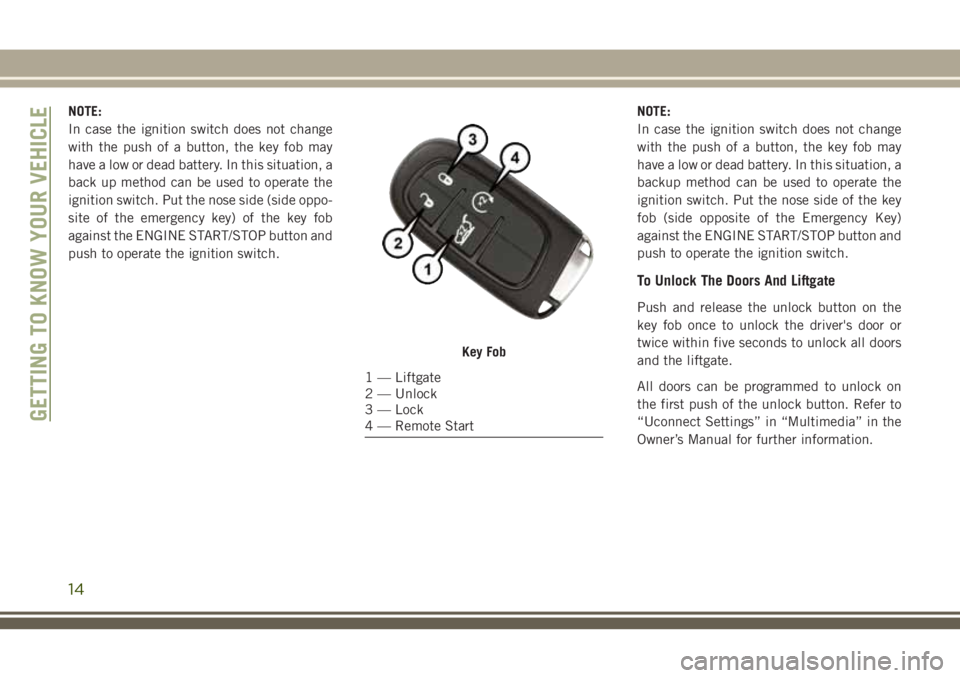

NOTE:
In case the ignition switch does not change
with the push of a button, the key fob may
have a low or dead battery. In this situation, a
back up method can be used to operate the
ignition switch. Put the nose side (side oppo-
site of the emergency key) of the key fob
against the ENGINE START/STOP button and
push to operate the ignition switch.NOTE:
In case the ignition switch does not change
with the push of a button, the key fob may
have a low or dead battery. In this situation, a
backup method can be used to operate the
ignition switch. Put the nose side of the key
fob (side opposite of the Emergency Key)
against the ENGINE START/STOP button and
push to operate the ignition switch.
To Unlock The Doors And Liftgate
Push and release the unlock button on the
key fob once to unlock the driver's door or
twice within five seconds to unlock all doors
and the liftgate.
All doors can be programmed to unlock on
the first push of the unlock button. Refer to
“Uconnect Settings” in “Multimedia” in the
Owner’s Manual for further information.
Key Fob
1 — Liftgate
2 — Unlock
3 — Lock
4 — Remote Start
GETTING TO KNOW YOUR VEHICLE
14

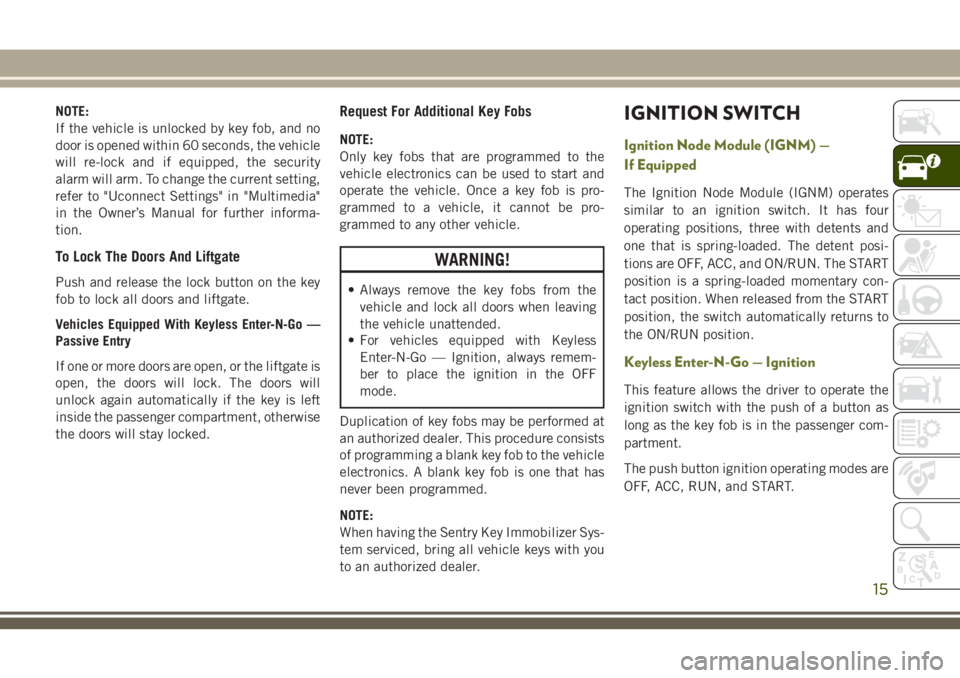

NOTE:
If the vehicle is unlocked by key fob, and no
door is opened within 60 seconds, the vehicle
will re-lock and if equipped, the security
alarm will arm. To change the current setting,
refer to "Uconnect Settings" in "Multimedia"
in the Owner’s Manual for further informa-
tion.
To Lock The Doors And Liftgate
Push and release the lock button on the key
fob to lock all doors and liftgate.
Vehicles Equipped With Keyless Enter-N-Go —
Passive Entry
If one or more doors are open, or the liftgate is
open, the doors will lock. The doors will
unlock again automatically if the key is left
inside the passenger compartment, otherwise
the doors will stay locked.
Request For Additional Key Fobs
NOTE:
Only key fobs that are programmed to the
vehicle electronics can be used to start and
operate the vehicle. Once a key fob is pro-
grammed to a vehicle, it cannot be pro-
grammed to any other vehicle.
WARNING!
• Always remove the key fobs from thevehicle and lock all doors when leaving
the vehicle unattended.
• For vehicles equipped with Keyless
Enter-N-Go — Ignition, always remem-
ber to place the ignition in the OFF
mode.
Duplication of key fobs may be performed at
an authorized dealer. This procedure consists
of programming a blank key fob to the vehicle
electronics. A blank key fob is one that has
never been programmed.
NOTE:
When having the Sentry Key Immobilizer Sys-
tem serviced, bring all vehicle keys with you
to an authorized dealer.
IGNITION SWITCH
Ignition Node Module (IGNM) —
If Equipped
The Ignition Node Module (IGNM) operates
similar to an ignition switch. It has four
operating positions, three with detents and
one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START
position is a spring-loaded momentary con-
tact position. When released from the START
position, the switch automatically returns to
the ON/RUN position.
Keyless Enter-N-Go — Ignition
This feature allows the driver to operate the
ignition switch with the push of a button as
long as the key fob is in the passenger com-
partment.
The push button ignition operating modes are
OFF, ACC, RUN, and START.
15

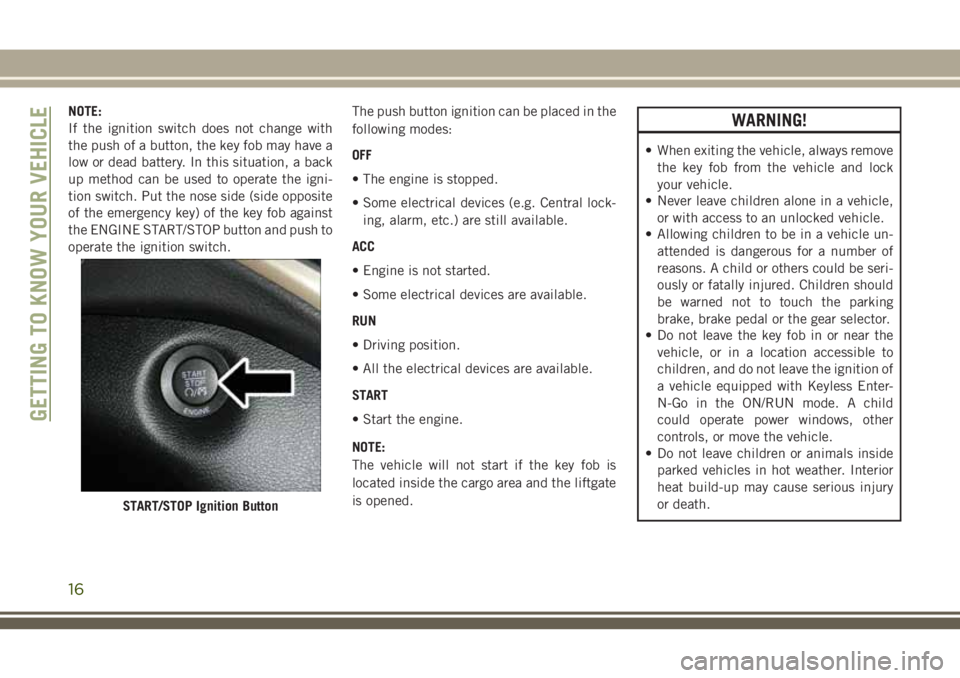

NOTE:
If the ignition switch does not change with
the push of a button, the key fob may have a
low or dead battery. In this situation, a back
up method can be used to operate the igni-
tion switch. Put the nose side (side opposite
of the emergency key) of the key fob against
the ENGINE START/STOP button and push to
operate the ignition switch.The push button ignition can be placed in the
following modes:
OFF
• The engine is stopped.
• Some electrical devices (e.g. Central lock-
ing, alarm, etc.) are still available.
ACC
• Engine is not started.
• Some electrical devices are available.
RUN
• Driving position.
• All the electrical devices are available.
START
• Start the engine.
NOTE:
The vehicle will not start if the key fob is
located inside the cargo area and the liftgate
is opened.WARNING!
• When exiting the vehicle, always remove the key fob from the vehicle and lock
your vehicle.
• Never leave children alone in a vehicle,
or with access to an unlocked vehicle.
• Allowing children to be in a vehicle un-
attended is dangerous for a number of
reasons. A child or others could be seri-
ously or fatally injured. Children should
be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the key fob in or near the
vehicle, or in a location accessible to
children, and do not leave the ignition of
a vehicle equipped with Keyless Enter-
N-Go in the ON/RUN mode. A child
could operate power windows, other
controls, or move the vehicle.
• Do not leave children or animals inside
parked vehicles in hot weather. Interior
heat build-up may cause serious injury
or death.
START/STOP Ignition Button
GETTING TO KNOW YOUR VEHICLE
16

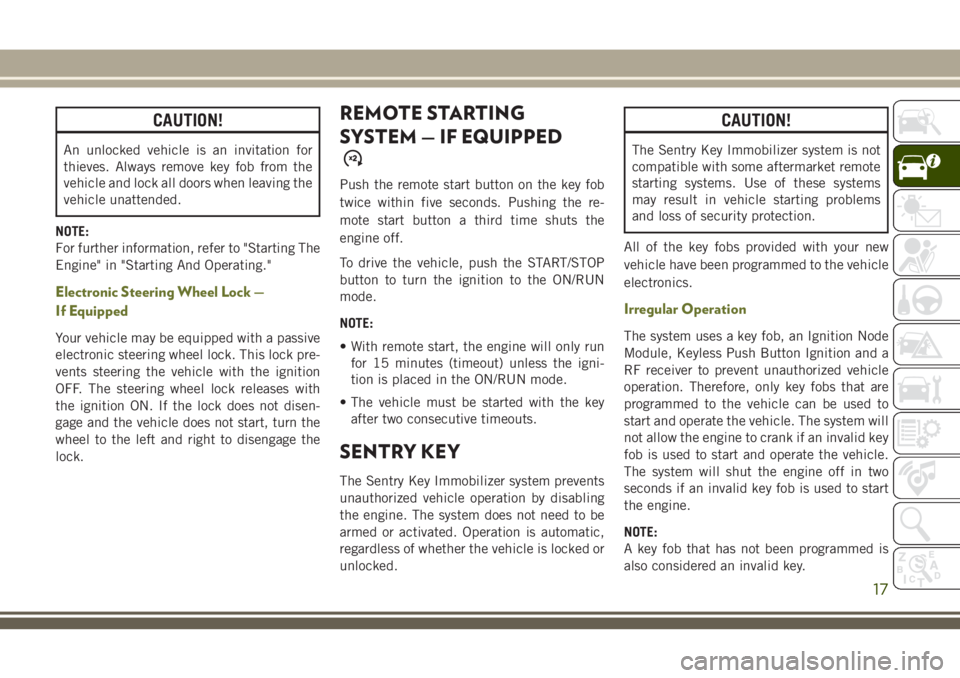

CAUTION!
An unlocked vehicle is an invitation for
thieves. Always remove key fob from the
vehicle and lock all doors when leaving the
vehicle unattended.
NOTE:
For further information, refer to "Starting The
Engine" in "Starting And Operating."
Electronic Steering Wheel Lock —
If Equipped
Your vehicle may be equipped with a passive
electronic steering wheel lock. This lock pre-
vents steering the vehicle with the ignition
OFF. The steering wheel lock releases with
the ignition ON. If the lock does not disen-
gage and the vehicle does not start, turn the
wheel to the left and right to disengage the
lock.
REMOTE STARTING
SYSTEM — IF EQUIPPED
Push the remote start button on the key fob
twice within five seconds. Pushing the re-
mote start button a third time shuts the
engine off.
To drive the vehicle, push the START/STOP
button to turn the ignition to the ON/RUN
mode.
NOTE:
• With remote start, the engine will only run for 15 minutes (timeout) unless the igni-
tion is placed in the ON/RUN mode.
• The vehicle must be started with the key after two consecutive timeouts.
SENTRY KEY
The Sentry Key Immobilizer system prevents
unauthorized vehicle operation by disabling
the engine. The system does not need to be
armed or activated. Operation is automatic,
regardless of whether the vehicle is locked or
unlocked.
CAUTION!
The Sentry Key Immobilizer system is not
compatible with some aftermarket remote
starting systems. Use of these systems
may result in vehicle starting problems
and loss of security protection.
All of the key fobs provided with your new
vehicle have been programmed to the vehicle
electronics.
Irregular Operation
The system uses a key fob, an Ignition Node
Module, Keyless Push Button Ignition and a
RF receiver to prevent unauthorized vehicle
operation. Therefore, only key fobs that are
programmed to the vehicle can be used to
start and operate the vehicle. The system will
not allow the engine to crank if an invalid key
fob is used to start and operate the vehicle.
The system will shut the engine off in two
seconds if an invalid key fob is used to start
the engine.
NOTE:
A key fob that has not been programmed is
also considered an invalid key.
17

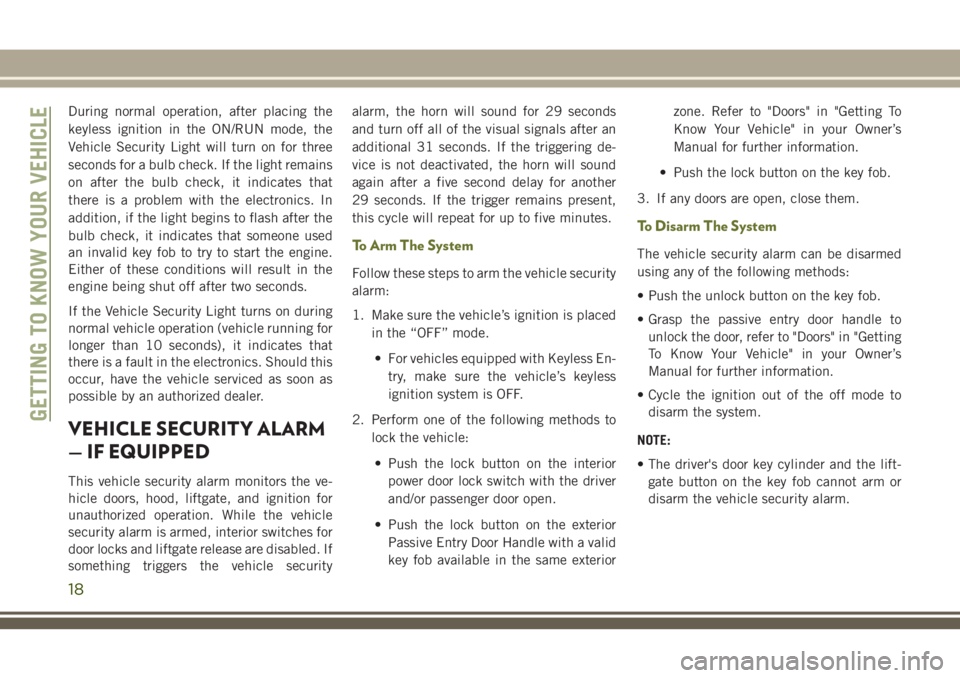

During normal operation, after placing the
keyless ignition in the ON/RUN mode, the
Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains
on after the bulb check, it indicates that
there is a problem with the electronics. In
addition, if the light begins to flash after the
bulb check, it indicates that someone used
an invalid key fob to try to start the engine.
Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during
normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that
there is a fault in the electronics. Should this
occur, have the vehicle serviced as soon as
possible by an authorized dealer.
VEHICLE SECURITY ALARM
— IF EQUIPPED
This vehicle security alarm monitors the ve-
hicle doors, hood, liftgate, and ignition for
unauthorized operation. While the vehicle
security alarm is armed, interior switches for
door locks and liftgate release are disabled. If
something triggers the vehicle securityalarm, the horn will sound for 29 seconds
and turn off all of the visual signals after an
additional 31 seconds. If the triggering de-
vice is not deactivated, the horn will sound
again after a five second delay for another
29 seconds. If the trigger remains present,
this cycle will repeat for up to five minutes.
To Arm The System
Follow these steps to arm the vehicle security
alarm:
1. Make sure the vehicle’s ignition is placed
in the “OFF” mode.
• For vehicles equipped with Keyless En- try, make sure the vehicle’s keyless
ignition system is OFF.
2. Perform one of the following methods to lock the vehicle:
• Push the lock button on the interior power door lock switch with the driver
and/or passenger door open.
• Push the lock button on the exterior Passive Entry Door Handle with a valid
key fob available in the same exterior zone. Refer to "Doors" in "Getting To
Know Your Vehicle" in your Owner’s
Manual for further information.
• Push the lock button on the key fob.
3. If any doors are open, close them.
To Disarm The System
The vehicle security alarm can be disarmed
using any of the following methods:
• Push the unlock button on the key fob.
• Grasp the passive entry door handle to unlock the door, refer to "Doors" in "Getting
To Know Your Vehicle" in your Owner’s
Manual for further information.
• Cycle the ignition out of the off mode to disarm the system.
NOTE:
• The driver's door key cylinder and the lift- gate button on the key fob cannot arm or
disarm the vehicle security alarm.
GETTING TO KNOW YOUR VEHICLE
18
