engine JEEP CHEROKEE 2019 Owner handbook (in English)

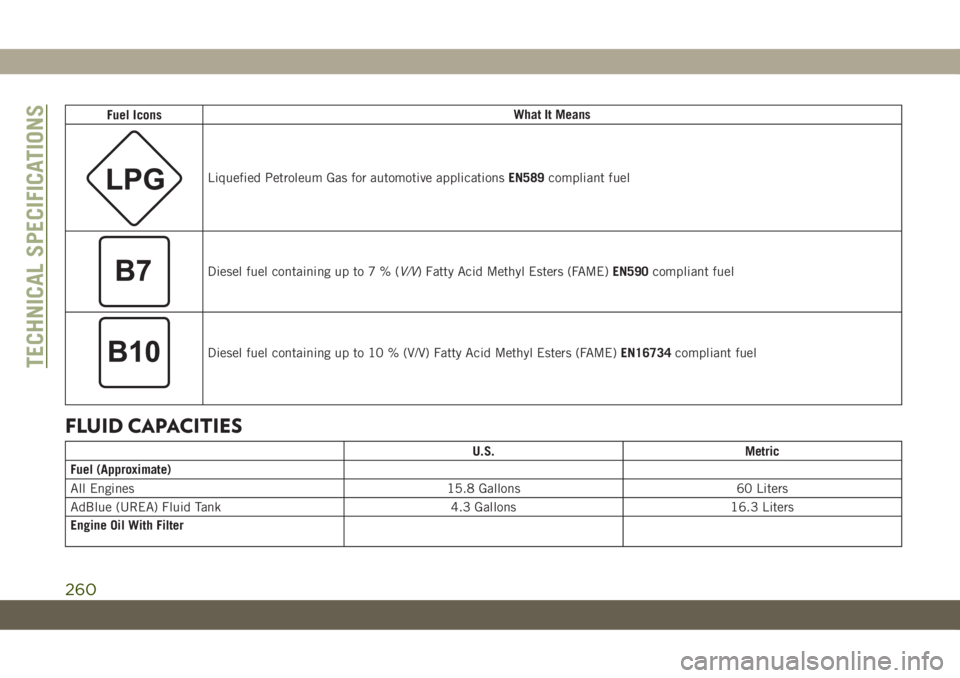

Fuel IconsWhat It Means
Liquefied Petroleum Gas for automotive applicationsEN589compliant fuel
Diesel fuel containing up to7%(V/V) Fatty Acid Methyl Esters (FAME)EN590compliant fuel
Diesel fuel containing up to 10 % (V/V) Fatty Acid Methyl Esters (FAME)EN16734compliant fuel
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
All Engines 15.8 Gallons 60 Liters
AdBlue (UREA) Fluid Tank 4.3 Gallons 16.3 Liters
Engine Oil With Filter
TECHNICAL SPECIFICATIONS
260

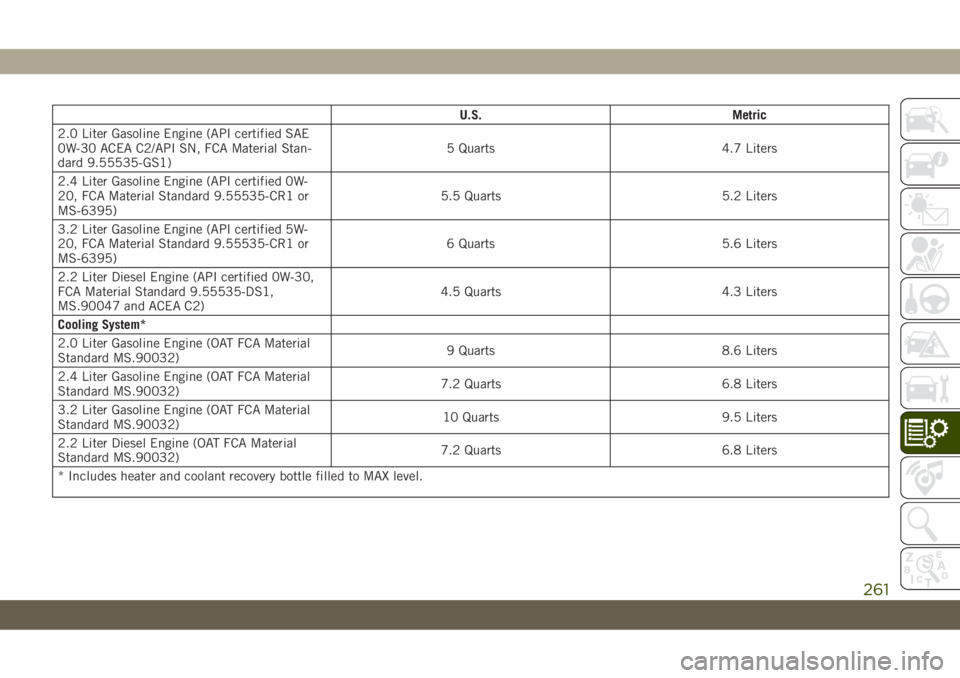

U.S. Metric
2.0 Liter Gasoline Engine (API certified SAE
0W-30 ACEA C2/API SN, FCA Material Stan-
dard 9.55535-GS1)5 Quarts 4.7 Liters
2.4 Liter Gasoline Engine (API certified 0W-
20, FCA Material Standard 9.55535-CR1 or
MS-6395)5.5 Quarts 5.2 Liters
3.2 Liter Gasoline Engine (API certified 5W-
20, FCA Material Standard 9.55535-CR1 or
MS-6395)6 Quarts 5.6 Liters
2.2 Liter Diesel Engine (API certified 0W-30,
FCA Material Standard 9.55535-DS1,
MS.90047 and ACEA C2)4.5 Quarts 4.3 Liters
Cooling System*
2.0 Liter Gasoline Engine (OAT FCA Material
Standard MS.90032)9 Quarts 8.6 Liters
2.4 Liter Gasoline Engine (OAT FCA Material
Standard MS.90032)7.2 Quarts 6.8 Liters
3.2 Liter Gasoline Engine (OAT FCA Material
Standard MS.90032)10 Quarts 9.5 Liters
2.2 Liter Diesel Engine (OAT FCA Material
Standard MS.90032)7.2 Quarts 6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
261

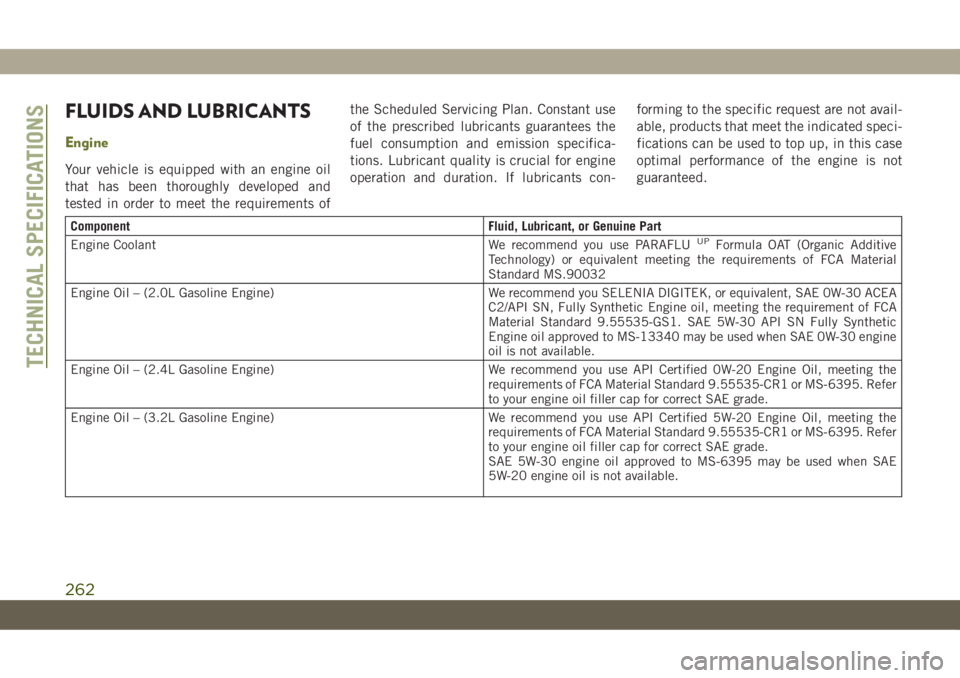

FLUIDS AND LUBRICANTS
Engine
Your vehicle is equipped with an engine oil
that has been thoroughly developed and
tested in order to meet the requirements ofthe Scheduled Servicing Plan. Constant use
of the prescribed lubricants guarantees the
fuel consumption and emission specifica-
tions. Lubricant quality is crucial for engine
operation and duration. If lubricants con-forming to the specific request are not avail-
able, products that meet the indicated speci-
fications can be used to top up, in this case
optimal performance of the engine is not
guaranteed.
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use PARAFLUUPFormula OAT (Organic Additive
Technology) or equivalent meeting the requirements of FCA Material
Standard MS.90032
Engine Oil – (2.0L Gasoline Engine) We recommend you SELENIA DIGITEK, or equivalent, SAE 0W-30 ACEA
C2/API SN, Fully Synthetic Engine oil, meeting the requirement of FCA
Material Standard 9.55535-GS1. SAE 5W-30 API SN Fully Synthetic
Engine oil approved to MS-13340 may be used when SAE 0W-30 engine
oil is not available.
Engine Oil – (2.4L Gasoline Engine) We recommend you use API Certified 0W-20 Engine Oil, meeting the
requirements of FCA Material Standard 9.55535-CR1 or MS-6395. Refer
to your engine oil filler cap for correct SAE grade.
Engine Oil – (3.2L Gasoline Engine) We recommend you use API Certified 5W-20 Engine Oil, meeting the
requirements of FCA Material Standard 9.55535-CR1 or MS-6395. Refer
to your engine oil filler cap for correct SAE grade.
SAE 5W-30 engine oil approved to MS-6395 may be used when SAE
5W-20 engine oil is not available.
TECHNICAL SPECIFICATIONS
262

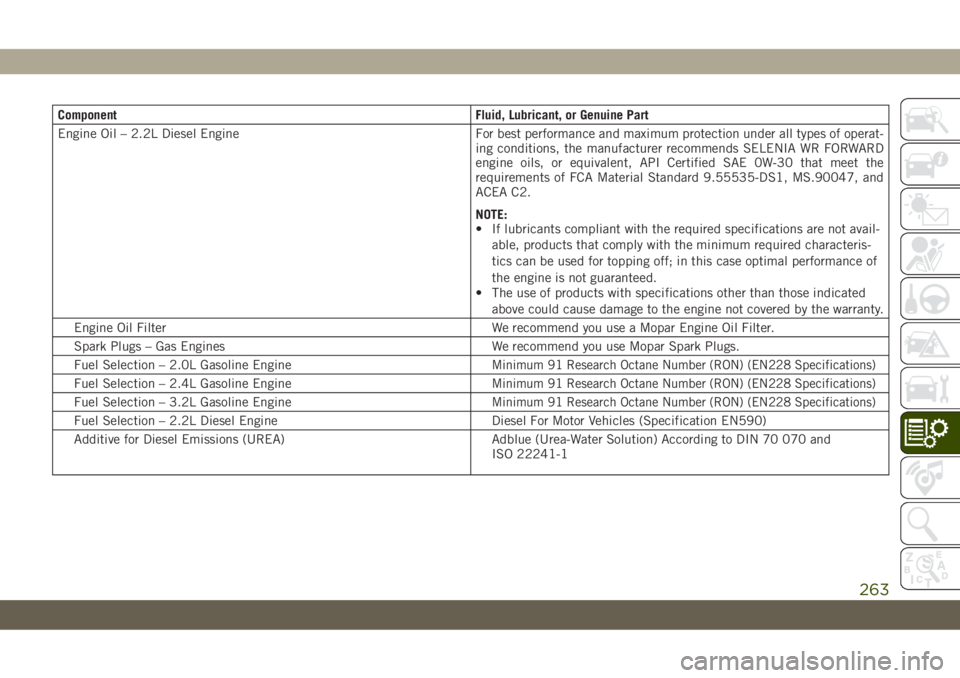

Component Fluid, Lubricant, or Genuine Part
Engine Oil – 2.2L Diesel Engine For best performance and maximum protection under all types of operat-
ing conditions, the manufacturer recommends SELENIA WR FORWARD
engine oils, or equivalent, API Certified SAE 0W-30 that meet the
requirements of FCA Material Standard 9.55535-DS1, MS.90047, and
ACEA C2.
NOTE:
• If lubricants compliant with the required specifications are not avail-
able, products that comply with the minimum required characteris-
tics can be used for topping off; in this case optimal performance of
the engine is not guaranteed.
• The use of products with specifications other than those indicated
above could cause damage to the engine not covered by the warranty.
Engine Oil Filter We recommend you use a Mopar Engine Oil Filter.
Spark Plugs – Gas Engines We recommend you use Mopar Spark Plugs.
Fuel Selection – 2.0L Gasoline Engine
Minimum 91 Research Octane Number (RON) (EN228 Specifications)
Fuel Selection – 2.4L Gasoline EngineMinimum 91 Research Octane Number (RON) (EN228 Specifications)
Fuel Selection – 3.2L Gasoline EngineMinimum 91 Research Octane Number (RON) (EN228 Specifications)
Fuel Selection – 2.2L Diesel Engine Diesel For Motor Vehicles (Specification EN590)
Additive for Diesel Emissions (UREA) Adblue (Urea-Water Solution) According to DIN 70 070 and
ISO 22241-1
263

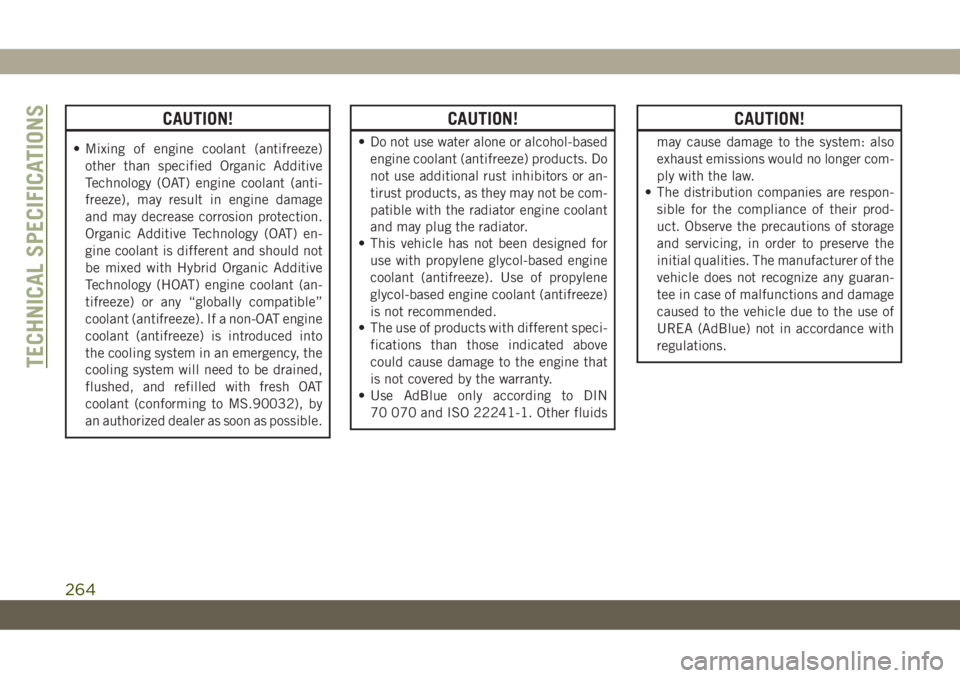

CAUTION!
• Mixing of engine coolant (antifreeze)
other than specified Organic Additive
Technology (OAT) engine coolant (anti-
freeze), may result in engine damage
and may decrease corrosion protection.
Organic Additive Technology (OAT) en-
gine coolant is different and should not
be mixed with Hybrid Organic Additive
Technology (HOAT) engine coolant (an-
tifreeze) or any “globally compatible”
coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into
the cooling system in an emergency, the
cooling system will need to be drained,
flushed, and refilled with fresh OAT
coolant (conforming to MS.90032), by
an authorized dealer as soon as possible.
CAUTION!
• Do not use water alone or alcohol-based
engine coolant (antifreeze) products. Do
not use additional rust inhibitors or an-
tirust products, as they may not be com-
patible with the radiator engine coolant
and may plug the radiator.
• This vehicle has not been designed for
use with propylene glycol-based engine
coolant (antifreeze). Use of propylene
glycol-based engine coolant (antifreeze)
is not recommended.
• The use of products with different speci-
fications than those indicated above
could cause damage to the engine that
is not covered by the warranty.
• Use AdBlue only according to DIN
70 070 and ISO 22241-1. Other fluids
CAUTION!
may cause damage to the system: also
exhaust emissions would no longer com-
ply with the law.
• The distribution companies are respon-
sible for the compliance of their prod-
uct. Observe the precautions of storage
and servicing, in order to preserve the
initial qualities. The manufacturer of the
vehicle does not recognize any guaran-
tee in case of malfunctions and damage
caused to the vehicle due to the use of
UREA (AdBlue) not in accordance with
regulations.
TECHNICAL SPECIFICATIONS
264

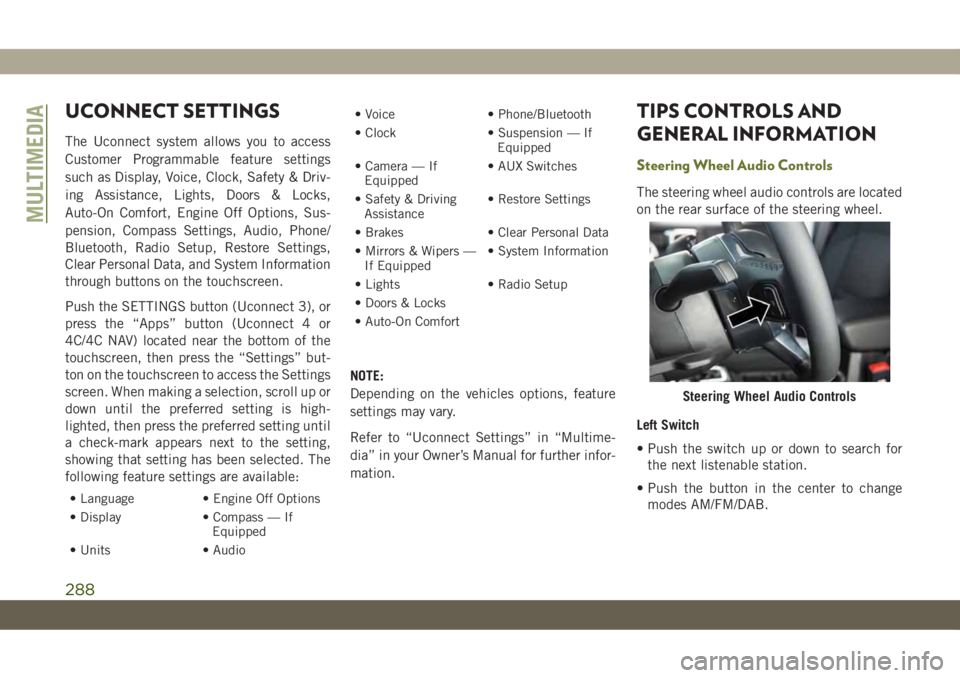

UCONNECT SETTINGS
The Uconnect system allows you to access
Customer Programmable feature settings
such as Display, Voice, Clock, Safety & Driv-
ing Assistance, Lights, Doors & Locks,
Auto-On Comfort, Engine Off Options, Sus-
pension, Compass Settings, Audio, Phone/
Bluetooth, Radio Setup, Restore Settings,
Clear Personal Data, and System Information
through buttons on the touchscreen.
Push the SETTINGS button (Uconnect 3), or
press the “Apps” button (Uconnect 4 or
4C/4C NAV) located near the bottom of the
touchscreen, then press the “Settings” but-
ton on the touchscreen to access the Settings
screen. When making a selection, scroll up or
down until the preferred setting is high-
lighted, then press the preferred setting until
a check-mark appears next to the setting,
showing that setting has been selected. The
following feature settings are available:
• Language • Engine Off Options
• Display • Compass — If
Equipped
• Units • Audio• Voice • Phone/Bluetooth
• Clock • Suspension — If
Equipped
• Camera — If
Equipped• AUX Switches
• Safety & Driving
Assistance• Restore Settings
• Brakes • Clear Personal Data
• Mirrors & Wipers —
If Equipped• System Information
• Lights • Radio Setup
• Doors & Locks
• Auto-On Comfort
NOTE:
Depending on the vehicles options, feature
settings may vary.
Refer to “Uconnect Settings” in “Multime-
dia” in your Owner’s Manual for further infor-
mation.
TIPS CONTROLS AND
GENERAL INFORMATION
Steering Wheel Audio Controls
The steering wheel audio controls are located
on the rear surface of the steering wheel.
Left Switch
• Push the switch up or down to search for
the next listenable station.
• Push the button in the center to change
modes AM/FM/DAB.
Steering Wheel Audio Controls
MULTIMEDIA
288

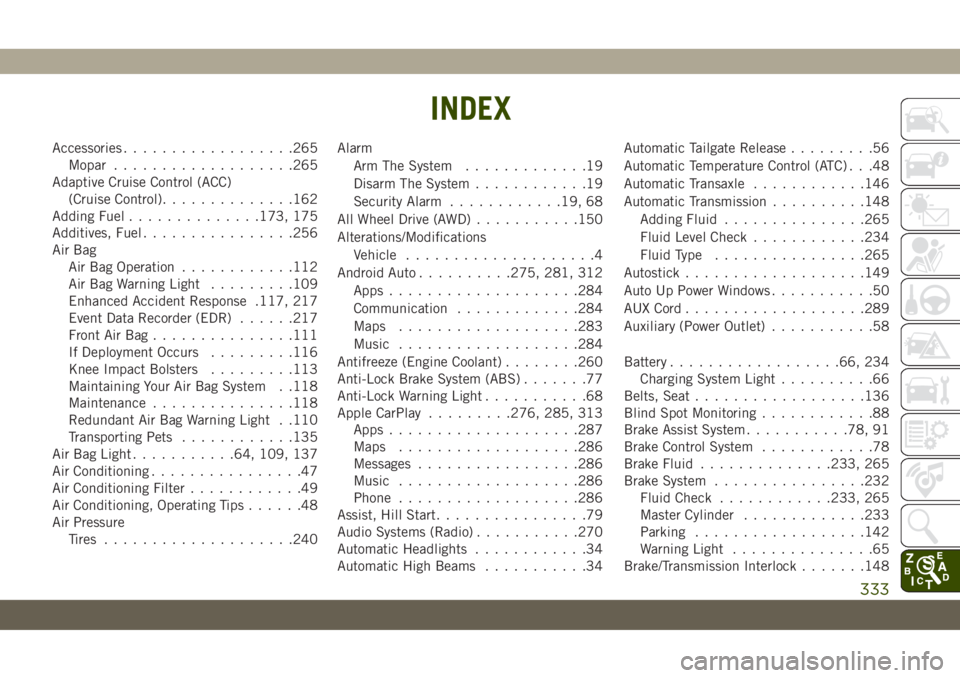

Accessories..................265
Mopar...................265
Adaptive Cruise Control (ACC)
(Cruise Control)..............162
Adding Fuel..............173, 175
Additives, Fuel................256
Air Bag
Air Bag Operation............112
Air Bag Warning Light.........109
Enhanced Accident Response .117, 217
Event Data Recorder (EDR)......217
Front Air Bag...............111
If Deployment Occurs.........116
Knee Impact Bolsters.........113
Maintaining Your Air Bag System . .118
Maintenance...............118
Redundant Air Bag Warning Light . .110
Transporting Pets............135
Air Bag Light...........64, 109, 137
Air Conditioning................47
Air Conditioning Filter............49
Air Conditioning, Operating Tips......48
Air Pressure
Tires....................240Alarm
Arm The System.............19
Disarm The System............19
Security Alarm............19, 68
All Wheel Drive (AWD)...........150
Alterations/Modifications
Vehicle....................4
Android Auto..........275, 281, 312
Apps....................284
Communication.............284
Maps...................283
Music...................284
Antifreeze (Engine Coolant)........260
Anti-Lock Brake System (ABS).......77
Anti-Lock Warning Light...........68
Apple CarPlay.........276, 285, 313
Apps....................287
Maps...................286
Messages
.................286
Music...................286
Phone...................286
Assist, Hill Start................79
Audio Systems (Radio)...........270
Automatic Headlights............34
Automatic High Beams...........34Automatic Tailgate Release.........56
Automatic Temperature Control (ATC) . . .48
Automatic Transaxle............146
Automatic Transmission..........148
Adding Fluid...............265
Fluid Level Check............234
Fluid Type................265
Autostick...................149
Auto Up Power Windows...........50
AUX Cord...................289
Auxiliary (Power Outlet)...........58
Battery..................66, 234
Charging System Light..........66
Belts, Seat..................136
Blind Spot Monitoring............88
Brake Assist System...........78, 91
Brake Control System............78
Brake Fluid..............233, 265
Brake System................232
Fluid Check............233, 265
Master Cylinder.............233
Parking..................142
Warning Light...............65
Brake/Transmission Interlock.......148
INDEX
333

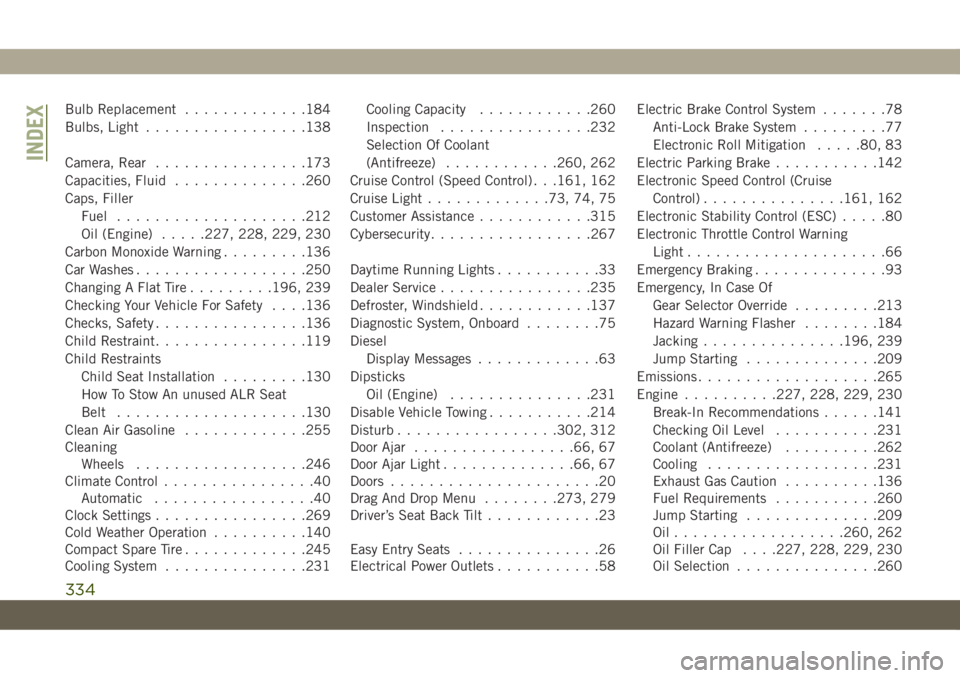

Bulb Replacement.............184
Bulbs, Light.................138
Camera, Rear................173
Capacities, Fluid..............260
Caps, Filler
Fuel....................212
Oil (Engine).....227, 228, 229, 230
Carbon Monoxide Warning.........136
Car Washes..................250
Changing A Flat Tire.........196, 239
Checking Your Vehicle For Safety. . . .136
Checks, Safety................136
Child Restraint................119
Child Restraints
Child Seat Installation.........130
How To Stow An unused ALR Seat
Belt....................130
Clean Air Gasoline.............255
Cleaning
Wheels..................246
Climate Control................40
Automatic.................40
Clock Settings................269
Cold Weather Operation..........140
Compact Spare Tire.............245
Cooling System...............231Cooling Capacity............260
Inspection................232
Selection Of Coolant
(Antifreeze)............260, 262
Cruise Control (Speed Control) . . .161, 162
Cruise Light.............73, 74, 75
Customer Assistance............315
Cybersecurity.................267
Daytime Running Lights...........33
Dealer Service................235
Defroster, Windshield............137
Diagnostic System, Onboard........75
Diesel
Display Messages.............63
Dipsticks
Oil (Engine)
...............231
Disable Vehicle Towing...........214
Disturb.................302, 312
Door Ajar.................66, 67
Door Ajar Light..............66, 67
Doors......................20
Drag And Drop Menu........273, 279
Driver’s Seat Back Tilt............23
Easy Entry Seats...............26
Electrical Power Outlets...........58Electric Brake Control System.......78
Anti-Lock Brake System.........77
Electronic Roll Mitigation.....80, 83
Electric Parking Brake...........142
Electronic Speed Control (Cruise
Control)...............161, 162
Electronic Stability Control (ESC).....80
Electronic Throttle Control Warning
Light.....................66
Emergency Braking..............93
Emergency, In Case Of
Gear Selector Override.........213
Hazard Warning Flasher........184
Jacking...............196, 239
Jump Starting..............209
Emissions...................265
Engine..........227, 228, 229, 230
Break-In Recommendations......141
Checking Oil Level...........231
Coolant (Antifreeze)..........262
Cooling..................231
Exhaust Gas Caution..........136
Fuel Requirements...........260
Jump Starting..............209
Oil..................260, 262
Oil Filler Cap. . . .227, 228, 229, 230
Oil Selection...............260

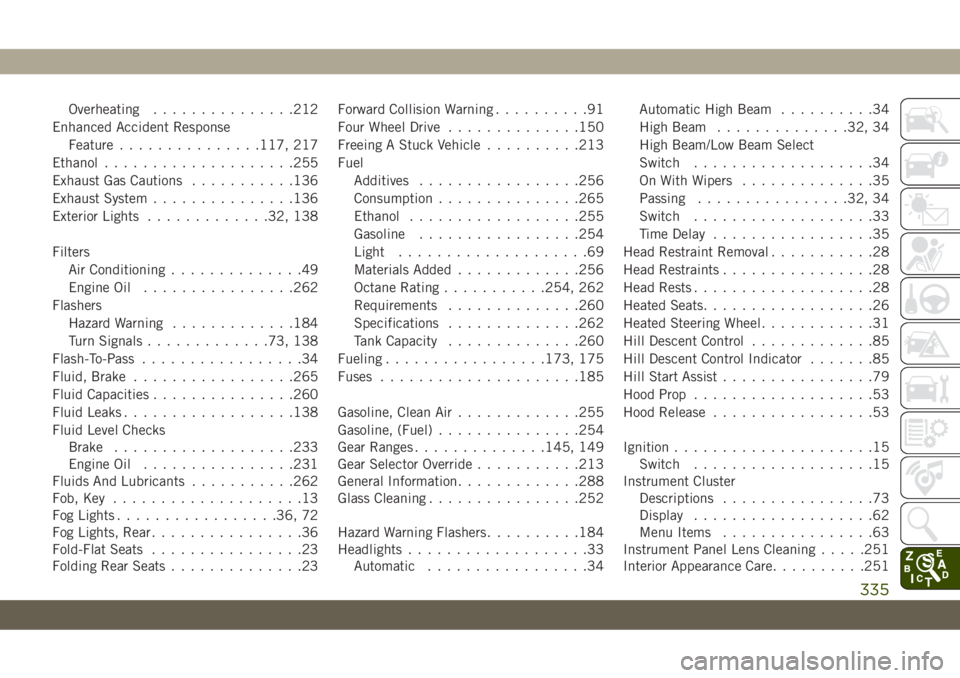

INDEX
334

Overheating...............212
Enhanced Accident Response
Feature...............117, 217
Ethanol....................255
Exhaust Gas Cautions...........136
Exhaust System...............136
Exterior Lights.............32, 138
Filters
Air Conditioning..............49
Engine Oil................262
Flashers
Hazard Warning.............184
Turn Signals.............73, 138
Flash-To-Pass.................34
Fluid, Brake.................265
Fluid Capacities...............260
Fluid Leaks..................138
Fluid Level Checks
Brake...................233
Engine Oil................231
Fluids And Lubricants...........262
Fob, Key....................13
Fog Lights.................36, 72
Fog Lights, Rear................36
Fold-Flat Seats................23
Folding Rear Seats..............23Forward Collision Warning..........91
Four Wheel Drive..............150
Freeing A Stuck Vehicle..........213
Fuel
Additives.................256
Consumption...............265
Ethanol..................255
Gasoline.................254
Light....................69
Materials Added.............256
Octane Rating...........254, 262
Requirements..............260
Specifications..............262
Tank Capacity.............
.260
Fueling.................173, 175
Fuses.....................185
Gasoline, Clean Air.............255
Gasoline, (Fuel)...............254
Gear Ranges..............145, 149
Gear Selector Override...........213
General Information.............288
Glass Cleaning................252
Hazard Warning Flashers..........184
Headlights...................33
Automatic.................34Automatic High Beam..........34
High Beam..............32, 34
High Beam/Low Beam Select
Switch...................34
On With Wipers..............35
Passing................32, 34
Switch...................33
Time Delay.................35
Head Restraint Removal...........28
Head Restraints................28
Head Rests...................28
Heated Seats..................26
Heated Steering Wheel............31
Hill Descent Control.............85
Hill Descent Control Indicator.......85
Hill Start Assist................79
Hood Prop...................53
Hood Release.................53
Ignition.....................15
Switch...................15
Instrument Cluster
Descriptions................73
Display...................62
Menu Items................63
Instrument Panel Lens Cleaning.....251
Interior Appearance Care..........251
335

Introduction...................1
Inverter
Power....................60
Jacking And Tire Changing........196
Jack Location................196
Jack Operation............196, 239
Jump Starting................209
Key Fob
Arm The System.............19
Disarm The System............19
Keyless Enter-N-Go..............20
Passive Entry...............20
Keys.......................13
Replacement...............15
LaneSense..................170
Lap/Shoulder Belts.............101
Latches....................138
Hood....................53
Leaks, Fluid.................138
Life Of Tires.................242
Liftgate.....................54
Closing...................56
Hands-Free................56
Opening..................54Light Bulbs..................138
Lights.....................138
AirBag ............64, 109, 137
Automatic Headlights..........34
Automatic High Beam..........34
Brake Assist Warning...........83
Brake Warning...............65
Bulb Replacement...........184
Cruise...............73, 74, 75
Daytime Running.............33
Engine Temperature Warning......66
Exterior..................138
Fog ...................36, 72
High Beam..............32, 34
High Beam/Low Beam Select......34
Hill Descent Control Indicator.....85
Lights On Reminder...........35
Low Fuel..................69
Malfunction Indicator
(Check Engine)..............69
Park
..................34, 73
Passing...................34
Seat Belt Reminder...........64
Security Alarm..............68
Service..................184
Tire Pressure Monitoring (TPMS)....94
Traction Control..............83Turn Signals..........36, 73, 138
Warning Instrument Cluster
Descriptions.............66, 73
Low Tire Pressure System..........94
Luggage Carrier................60
Lug Nuts...................253
Maintenance Free Battery.........234
Maintenance Schedule...........218
Malfunction Indicator Light
(Check Engine)...............69
Manual Transmission........144, 233
Fluid Level Check............233
Lubricant Selection...........265
Shift Speeds...............145
Media Hub..................289
Memory Feature (Memory Seats) . . .23, 25
Memory Seat..................23
Memory Seats And Radio..........23
Methanol...................255
Methanol Fuel................255
Mirrors.....................32
Modifications/Alterations
Vehicle....................4
Monitor, Tire Pressure System.......94
Mopar Accessories.............265
MP3 Control.................289
INDEX
336
