SERIES SERVICE
MANUAL

Dl
of packing are at top. Drive in a new shedder with

a
suitable punch. Stake the shedder in at least three places to secure it in position. Size the pack-
FIG.
Dl-39—INSTALLATION
OF
TIMING

CHAIN
AND
SPROCKET

1—
Camshaft
Sprocket 3—Timing
Chain

2—
Crankshaft
Sprocket 4—Timing
Marks

FIG.
Dl-40—FUEL
PUMP
ECCENTRIC
AND
DISTRIBUTOR
DRIVE GEAR
1—
Fuel
Pump
Eccentric
3—Camshaft
2—
Oil
Groove 4—Distributor Drive
Gear
ing by rotating a hammer handle, or similar smooth
tool, around it, as necessary, to obtain clearance
for the crankshaft vibration damper hub.

Dl-86.
Install
Timing
Chain
Cover

Note:
There
are five
bolts
which attach the timing

chain
cover directly to the cylinder block, and seven
bolts
which attach both the timing chain
cover and water pump to the cylinder block.

a.
If oil pump has not been removed from timing

chain
cover, remove fine slotted attaching screws,

oil
pump cover, gasket from timing chain cover. Completely pack the space around the oil pump gears with petroleum jelly.
There
must be no air
space left inside the pump. Secure oil pump cover

and
a new gasket to timing chain cover with five slotted attaching screws. Torque screws, alternately
and
evenly, 8 to 12 lb-ft [1,10 a 1,66 kg-m.].

Note:
Unless oil pump gears are packed with petro­
leum jelly, pump may not prime itself when
engine

is started.

b.
The gasket surfaces of the cylinder block and
timing chain cover must be smooth and clean. In­
stall
a new timing chain cover gasket and position

it
correctly on the cylinder block.

Note:
Two different timing chain cover gaskets
have been installed in production on V-6 engines.

At
any time the timing chain cover gasket is
replaced,
make sure the correct gasket is installed.

c.
Position timing chain cover to cylinder block.

Use
timing cover aligner and oil seal remover tool J-22248. Be certain that dowel pins
engage
dowel

pin
holes
before installing bolts.

d.
Lubricate
bolt threads before installation.
Install

the mounting
bolts
and torque 25 to 33 lb-ft. [3,5
a
4,6 kg-m.].

Note:
Some timing chain covers have two additional
bolts, one in each upper corner. If the timing chain
cover being installed on a crankcase with
these
two
holes
does
not have matching holes, the
holes

in
the crankcase must be plugged with two hex
socket screw plugs. The plug should be driven past
the face of the case to prevent interference with the timing chain cover. These
bolts
are not shown

in
Fig. Dl-41.

D1-87.
Install
Oil Pump

a.
Pack
•
oil pump gear pocket of timing chain
cover with petroleum jelly. Do not use chassis
lubricant.

b.
Install
gears so that petroleum jelly is forced
into every cavity of gear pocket and
between
the

teeth
of the gears.
Install
a new oil pump cover gasket.

Note:
Unless the pump is packed with petroleum

jelly,
it may not prime itself when the
engine
is

started.

c.
Mount oil pump cover on timing gear cover

with
five slotted attaching screws. Torque screws 101

Dl
DAUNTLESS
V-6
ENGINE

FIG.
Dl-41—WATER
PUMP
AND
TIMING CHAIN COVER BOLT LOCATION
Cover
Bolts

alternately and evenly 8 to 12 lb-ft. [1,10 a 1,66

kg-m.].

Dl-88.
Install
Crankshaft
Vibration
Damper

a.
Lubricate
the vibration damper hub
before
in­
stallation to prevent
damage
to the crankshaft
front oil seal during installation and when the

engine
is first started.
b.
Install
the vibration damper on the crankshaft.
Secure it with its attaching flat washer and screw.

Torque
the screw to a minimum of 140 lb-ft.
[19,35
kg-m.].

Dl-89.
Install
Crankshaft Pulley
Secure the crankshaft pulley to the crankshaft

vibration
damper with six screws. Torque screws 18 to 25 lb-ft. [2,5 a 3,4 kg-m.].

Dl-90.
Install
Oil
Level
Dipstick

Insert
oil level dipstick
into
the dipstick tube.

Dl-91.
Install
Oil
Pressure Sending Unit

Install
oil pressure sending unit in cylinder block.
Connect electrical wiring harness to unit.

Dl-92.
Install Starting Motor

Secure starting motor and
solenoid
assembly to
the flywheel housing and cylinder block with two attaching screws. Torque screw, which attaches this
assembly to the flywheel housing, 30 to 40 lb-ft. [4,1 a 5,5 kg-m.]. Torque screw, which attaches

bracket
to cylinder block, 10 to 12 lb-ft. [1,4 a 1,7 kg-m.].
Dl-93.
Install
Oil
Filter

Install
a new oil filter
element
at oil filter nipple,
at
left
side
of timing chain cover. Torque 10 to 15 lb-ft. [1,38 a 2,07 kg-m.].

D1-94. Install Water Pump
Be
certain that mating surfaces of the water pump

and
timing chain cover are clean.
Install
a new
gasket
on the pump flange. Secure the pump and
alternator adjustment bracket to the cover with
nine attaching bolts. Torque
bolts
6 to 8 lb-ft. [0,83 a 1,10 kg-m.]. Refer to Fig. Dl-41.

D1-9S.
Install
Cooling Fan
Secure the cooling fan, fan hub, and fan drive
pulley to the water pump shaft
flange
with four
attaching screws. Torque screws 17 to 23 lb-ft. [2,35 a 3,18 kg-m.].

Dl-96.
Install
Alternator
and Fan
Belt

Mount the alternator and bracket assembly on
right
cylinder head with two attaching screws.

Torque
screws 30 to 40 lb-ft. [4,1 a 5,5 kg-m.].

Fasten
the alternator
loosely
to its adjustment
bracket
with attaching flat washer and nut.
Install

the fan
belt
on its pulleys. Pivot the alternator
outward,
away from cylinder block, to apply fan

belt
tension. Adjust fan
belt
tension to 80 lb. [36,2 kg.];
tighten
alternator-to-adjustment bracket
nut to secure adjustment
setting.
Connect wiring
harness to alternator.

Dl-97.
Install
Fuel Pump

Install
two mounting
bolts
and new
gasket
on

flange
of fuel pump. Secure pump to timing chain cover with screws; torque screws 17 to 23 lb-ft. [2,35 a 3,8 kg-m.]. Connect
output
fuel line to
pump.

Dl-98.
Install Exhaust Manifold

Secure each of two exhaust manifolds to corre­
sponding cylinder head with five attaching screws,
and
one nut. Torque screws and nut 15 to 20 lb-ft. [2,07 a 2,8 kg-m.]. See Fig. Dl-42.

Dl-99.
Install Distributor

Insert
distributor drive gear
into
distributor mount-
FIG.
Dl-42—EXHAUST
MANIFOLD INSTALLATION

1—Torque
Bolts—15
to 20
lb-ft.
[2,07 a 2,8
kg-m.]

102

'Jeep1
UNIVERSAL
SERIES
SERVICE
MANUAL

Dl

FIG.
D1-43—INTAKE
MANIFOLD
SEAL
INSTALLATION

1—Seal 2—Cylinder Head ing
hole
at left side of timing chain cover. If timing

chain
and sprockets have not been removed from
engine, install distributor with rotor in position
noted during distributor removal. Fasten distributor
to timing chain cover with retaining bracket and
mounting screws. If distributor is aligned, torque
screw
18 to 20 lb-ft. [2,5 a 2,8 kg-m.].

Dl-100.
Install Spark Plugs

Install
spark
plugs in cylinder heads. Torque 25
to 33 lb-ft. [3,5 a 4,6 kg-m.].
Install
spark
plug cable retainers on brackets welded to rocker arm
covers. Fit cables into retainers and connect to
spark
plugs, as indicated by cable numbers molded
into distributor cap and by
spark
plug firing order
pressed into each rocker arm cover.

Dl-101.
Install Intake Manifold
and
Carburetor
Assembly

a.
Install
a new rubber intake manifold seal at
front and
rear
rails
of cylinder block. Be sure
pointed ends of seals fit snugly against block and
cylinder
heads. See Fig. Dl-43.

b.
Set intake manifold in place on cylinder block

between
cylinder heads.
Thread
two cap
bolts
through manifold into each cylinder head as guide
bolts.
Lift
the manifold slightly and insert each
of two gaskets into position
between
manifold
and
corresponding cylinder head. Be certain that
the gasket is installed with its three apertures
FIG.
Dl-44—INTAKE
MANIFOLD

GASKET
INSTALLATION

1—Gasket
2—Guides Bolts aligned with ports of the head and manifold. One
gasket should be installed in position on the left
side, as shown in Fig. Dl-44, and its counterpart

reversed
for right side installation.

c.
Install
manifold attaching bolt in open bolt

hole
at right side of intake manifold. See
Fig.
Dl-46.
Open
bolt
hole
is held to
close
tolerances, so that
the bolt in this location serves to locate the mani­
fold front and
rear.

d.
Install
remaining manifold-to-cylinder head bolts, with longer
bolts
at forward location. Begin­
ning
with the number 1 and 2 bolts, see
Fig.
Dl-45,
tighten gradually and equally until both
bolts
are
snug.
This
will
prevent the manifold from shifting due to
full
torque being applied to only one bolt.

Then
continue in the sequence illustrated in Fig.

Dl-45
until the rest of the
bolts
are also snug.

Finally,
using the same sequence, torque all
bolts
to 45 to 55 lb-ft. [6,2 a 7,6 kg-m.].
12750

FIG.
Dl-45—INTAKE
MANIFOLD
BOLT
TIGHTENING
SEQUENCE

103

Dl

DAUNTLESS
V-6
ENGINE
e.
Connect electrical wiring harness to coolant
temperature sending unit. Connect two distributor leads to ignition coil. Connect fuel line
between

fuel pump and carburetor, vacuum
hose
between
distributor and carburetor, and crankcase vent
hose

to intake manifold
below
rear
of carburetor.
FIG.
D1-46—-INTAKE
MANIFOLD
INSTALLATION

1—Long Bolt 2—Open Bolt Hole
Dl-102.
ENGINE INSTALLATION

Install
the
engine
in the vehicle in the following
procedure listed
below:

a.
Attach suitable sling to
engine
lifting
eyes
and,
using a hoist, lift the
engine
from blocks or
engine
stand.
b. When
engine
is free of the stand lower it slowly

into
the
engine
compartment of the vehicle.

Note:
The
engine
and transmission must be lined
up to
engage
the main shaft and clutch plate spline
while sliding the
engine
rearward
into
the mounting
position.
c.
Install
and tighten up
bolts
securing
engine
to
flywheel housing.

d.
Install
and tighten front
engine
mounting bolts.

e.
Remove sling from the
engine.

I.
Connect exhaust pipes to right and
left
engine
manifolds.
g. Connect choke cable support bracket to
car­

buretor.

h.
Connect
engine
fuel
hoses
and fuel lines at right
frame
rail.

I.
Connect fuel lines.

j.
Mount
engine
starter motor assembly to
engine.
k.
Connect battery cable and wiring to
engine

starter
motor.

I.
Connect
engine
wiring harnesses to connectors
located on
engine
firewall.

Note:
On
engines
equipped with exhaust emission
control, replace the air pump, air distributor mani­
fold, and anti-backfire (gulp) valve. See Section F2.
m. Replace radiator, and secure with bolts,
n.
Replace and tighten right and
left
radiator sup­
port rods.
0. Connect upper and lower radiator
hoses
to the

engine.
p. Connect alternator wiring harness from connec­
tor at regulator,
q.
Replace air cleaner.
r.
Connect battery ground cable from the battery
to the
engine
and the
engine
ground strap,

s.
Replace the hood.

After
the
engine
is installed in the vehicle,
fill
radiator
with coolant and
engine
with oil (Refer to
Lubrication
Section B), then perform an
engine

Tune-up
and road
test
(Refer to Tune-up Sec­
tion C).

Dl-103.
FINAL IN-VEHICLE ADJUSTMENTS

a.
Clean
battery terminals and check battery.
b.
Check
ignition wires and connections.
c. Service carburetor air cleaner.

d.
Service positive crankcase ventilation valve.
e.
Check
fuel lines.
f. Gap and install new
spark
plugs.
g.
Check
distributor
points
and capacitor; replace
if
necessary.

h.
Check
ignition (distributor) timing; reset if
necessary. 1.
Check
carburetor adjustments; reset if necessary,

j.
With
engine
fully warmed up, tighten cylinder
head and manifold
bolts
and nuts to specified
torque.
Check
cylinder head
gaskets
and
bolts
for
air
or coolant leaks.

Note:
Tightness of cylinder head
bolts
should be
checked and corrected after 500 miles [800 km.]
of normal operation and again at 1000 miles [1600

km.].
k.
Check
fan belt tension; adjust if necessary.
I.
Check
for and correct any oil leak, fuel leak or
coolant leak. 104

Dl

DAUNTLESS
V-6
ENGINE
E-105.
DAUNTLESS V-6 ENGINE SPECIFICATIONS

ENGINE:
Type

Number
of Cylinders Valve Arrangement
Bore
Stroke

Piston
Displacement

Firing
Order Compression Ratio

Number
of
Mounting
Points:

Front.

Horsepower
(SAE)

Horsepower
(max. brake) Torque (max.
2400
rpm.)
Cylinder
Numbers,
Front to Rear:
Right Bank

Left
Bank
Cylinder Block Material
Cylinder Head Material English

90°
V-6 6

In
head
3.750"
3.400"

225 cu. in.
1.6.5.4.3.2

*9.0:1

2

33.748

160 @
4200
rpm. 235
lb-ft.

2, 4, 6 1, 3, 5

Cast
Iron
Cast
Iron Metric

9,525
cm.

8,636
cm. 3,69 ltr.

32,49
kg-m.

PISTONS:
Material
Description Clearance Limits:
Top
Land
Skirt
Top

Skirt
Bottom

Ring Groove Depth*. No. 1
No. 2, 3
Cylinder Bore: Out-of-Round (max.). Taper (max.)
Cast
Aluminum Alloy

Cam
Ground, Tin Plated

.0125"
to
.0295" .0005"
to
.0011"

.0005"
to
.0011"

.1880"
to
.1995"
.1905"
to
.1980"

.003"
.005" 0,318 a
0,749
mm.

0,0127
a
0,0279
mm.

0,0127
a
0,0279
mm.

4,775
a
5,067
mm.
4,839
a
5,029
mm.

0,076
mm. 0,127 mm.

PISTON
RINGS:
Function: No. 1 and No. 2 Ring.. No. 3 Ring
Location
Material: No. 1...
No. 2 No. 3.

Oil
Ring Type
Oil
Ring Expander
Width: No. 1
No. 2. .
No. 3

Gap:
No. 1 and No. 2
No. 3

Side
Clearance in Groove: No. 1
No. 2
No. 3 Compression

Oil
Control

Above
Piston
Pin

Iron,
Chrome Plated
Iron,
Pre lubricated
Steel

Dual
Rail,
With Spacer Humped Ring

.0785"
to
.0790" .0770"
to
.0780"
.181" to .187"
.010" to .020"
.015" to .035"
.002" to
.0035"
.003" to .005"

.0015"
to
.0085"
1,993 a
2,007
mm.
1,956 a 1,981 mm. 4,60 a 4,75 mm.
0,25 a 0,51 mm.
0,38 a 0,89 mm.
0,051 a
0,089
mm.
0,076
a 0,127 mm.

0,038
a
0,220
mm.

PISTON
PINS:
Material
Length

Diameter

Type Clearance in
Piston

Clearance in
Connecting
Rod.

Distance
Offset
Toward High-Thrust
Side
of Piston.
Steel,
SAE 1018, SAE 1118

3.060"

.9394"
to
.9397"

Pressed in
Connecting
Rod
.0004"
to
.0007" .0007"
to
.0017"

.040"
7,772
cm.

23,861
a
23,868
mm.

0,0102
a
0,0178
mm.
0,0178
a
0,0431
mm.
1,016 mm.
*State
of California Exhaust Emission Control Engine 7.4 Compression Ratio.
106

E

FUEL
SYSTEM
taching screws and valve housing from the fuel
pump body.

c.
Remove the two screws in the valve housing
and
separate the filter cover and air
dome
dia­
phragm.

d.
Remove the cam lever return spring, plug,
cam
lever pin, and cam lever from the pump body.

Tap
the cam lever pin out of body, using a drift
inserted through the small
hole
in the pump body.
e. Remove diaphragm from pump body.
f. Under normal service, the pump may be cleaned without further disassembly.

Note:
The oil seal (at top of spring in diaphragm
assembly) seals the spring side of the fuel
dia­
phragm
from the crankcase. Any deposit, in
excess

of a few drops, of oil on the diaphragm indicates leakage past the oil seal. Be sure the seat for the

seal
in the pump body is clean and smooth.

E-63.
Fuel
Pump Cleaning and Inspection

Caution:
Do not immerse valves or diaphragm
in
cleaning solvent; wipe clean.

Clean
all metal parts of the fuel pump in solvent.
Brush
with a stiff-bristled
brush.
Dry with com­
pressed
air.
Check
all parts to see that they are not
cracked
or broken and that the screw threads are
not damaged.

E-64.
Fuel
Pump Reassembly
•
Refer to Fig. E-32.

a.
Assemble the valve housing and filter cover, using a new air
dome
diaphragm. The opening

in
the air
dome
diaphragm is located over the
intake
valve. The filter cover is positioned cor­
rectly
when the inlet passage in the cover aligns

with
the inlet valve. Tighten the attaching screws
alternately and securely.

b.
Lubricate
diaphragm assembly shaft, around

oil
seal, with
engine
oil. Position diaphragm as­ sembly on valve housing and thread all the attach­ ing screws through diaphragm.
(This
helps avoid
damage to the screw
holes
in diaphragm.)

c.
Place diaphragm assembly and valve housing
in
position on pump body (align marks made
before disassembly).
First
start all screws one

or
two threads; then tighten the screws alternately

and
securely.

d.
Lubricate
forked end of cam lever, pin bore
of body, and corresponding
hole
in lever, and the
pin
itself with
engine
oil.

Note:
Forked
end of lever
goes
around diaphragm
shaft. Be sure
loose
bumper washer on diaphragm shaft is on top of lever and
between
lever and fixed
washer
on shaft.
e.
Install
lever and pin. To install pin, use a drift
and
tap pin into the
hole
in the body until it hits
the
stop
on the
bottom
of the hole;
move
the lever while tapping, to align
hole
in lever with the pin;
then install plug.
Install
lever return spring.
f.
Install
a new filter bowl gasket in filter cover.
Place
bail
assembly in ears on cover and swing
to one side.
Install
spring and new filter element in
bowl and install bowl on pump. Position
bail
as­
sembly under bowl; tighten retainer screw.

Caution:
Do not overtighten screw.

E-65.
Fuel
Pump Installation

a.
Make certain mating surfaces of fuel pump and

engine
cylinder case are clean. Cement a new gasket to mounting flange of fuel pump.

b.
Position fuel pump on cylinder block, so that

cam
lever of pump rests on fuel pump cam of cam­
shaft. Secure pump to block with two cap screws
and
lock washers. Torque
bolts
13 to 17 lb-ft. [1,8
a
2,3 kg-m.].

c.
Connect intake and
outlet
fuel lines to fuel
pump.

E-66.
Fuel
Pump Testing

Whenever
the fuel pump is to be checked for pres­

sure
or volume, follow the procedure outline in

Par.
C-23 of this manual.
Fuel
pump pressure is
important
for low pressure
will
seriously affect en­

gine
operation and high pressure can cause exces­
sive fuel consumption and flooding of the carbure­
tor.
Should there be any doubt of normal opera­
tion, check the procedure as outlined in Par. C-23.
In
addition to proper fuel pressure, volume of the
pump is also important. When testing for proper
pump pressure, be certain to also
test
for volume
as the pump may build up sufficient pressure, but
fail
to produce sufficient volume.

E-67. FUEL
PUMP
—
DAUNTLESS
V-6
ENGINE

Jeep vehicles equipped with the Dauntless V6-225

engine
have a special fuel pump which has a metering
outlet
for a vapor return system. Any

vapor
which forms is returned to the fuel tank
along with hot fuel through a separate line along­
side the fuel supply line.
This
greatly reduces any
FIG.
E-33—FUEL PUMP—DAUNTLESS V-6 ENGINE
1
—Fuel
Outlet 2—Vapor
Return
3—Fuel
Inlet

130

F

EXHAUST
SYSTEM
12844

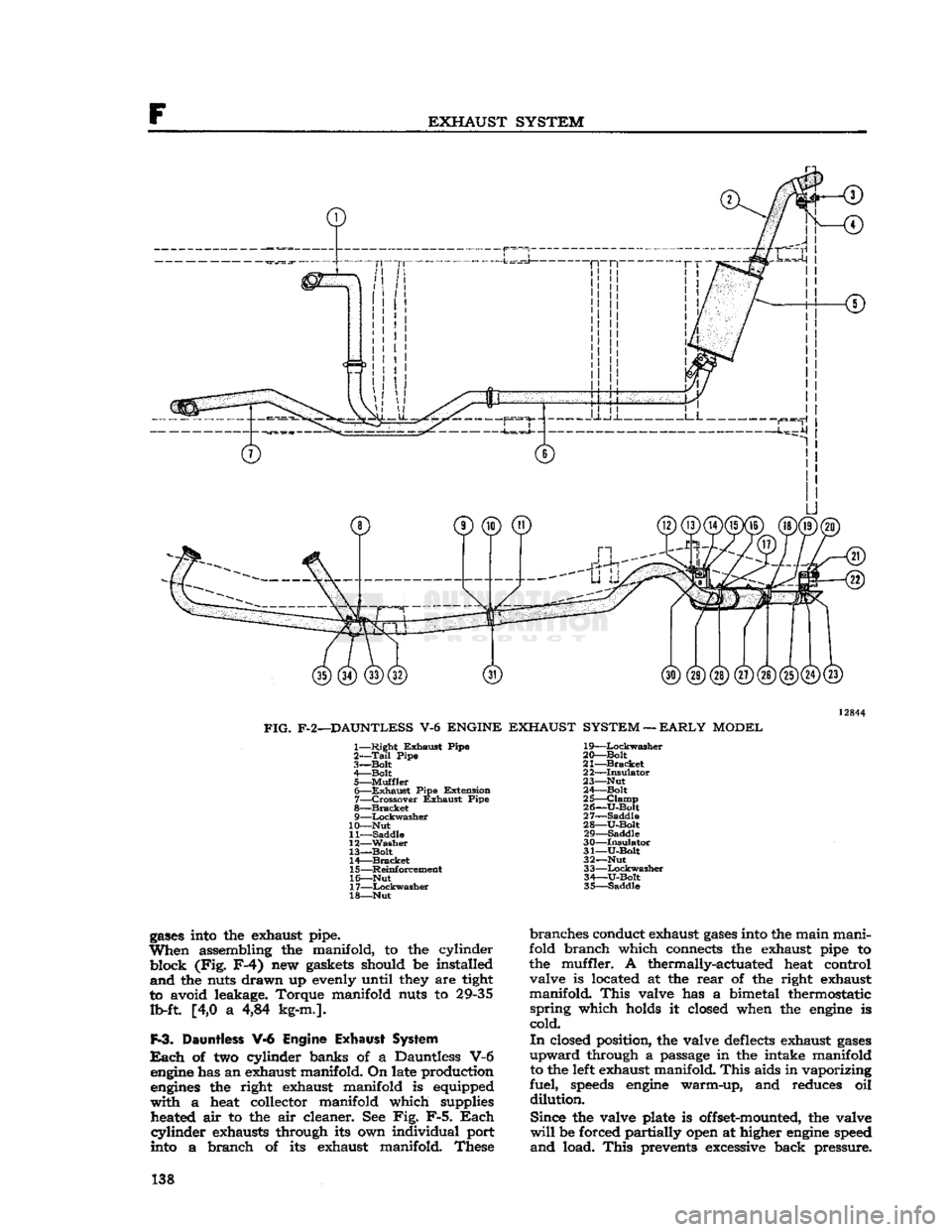

FIG.
F-2—DAUNTLESS
V-6
ENGINE
EXHAUST
SYSTEM
—
EARLY
MODEL
1—
Right
Exhaust
Pipe
19—Lockwasher

2—Tall
Pipe 20—Bolt

3—
Bolt
21—Bracket

4—
Bolt
22—Insulator

5—
Muffler
23—Nut 6—
Exhaust
Pipe
Extension
24—Bolt
7—
Crossover
Exhaust
Pipe
25—Clamp

8—
Bracket
26—U-Bolt 9—
Lockwasher
27—Saddle

10—
Nut
28—U-Bolt
11—
Saddle
29—Saddle

12—
Washer
30—Insulator

13—Bolt
31—U-Bolt
14—
Bracket
32—Nut

15—
Reinforcement
3
3—Lockwasher

16—
Nut
34—U-Bolt

17—
Lockwasher
35—Saddle

18—
Nut

gases
into the exhaust pipe.

When

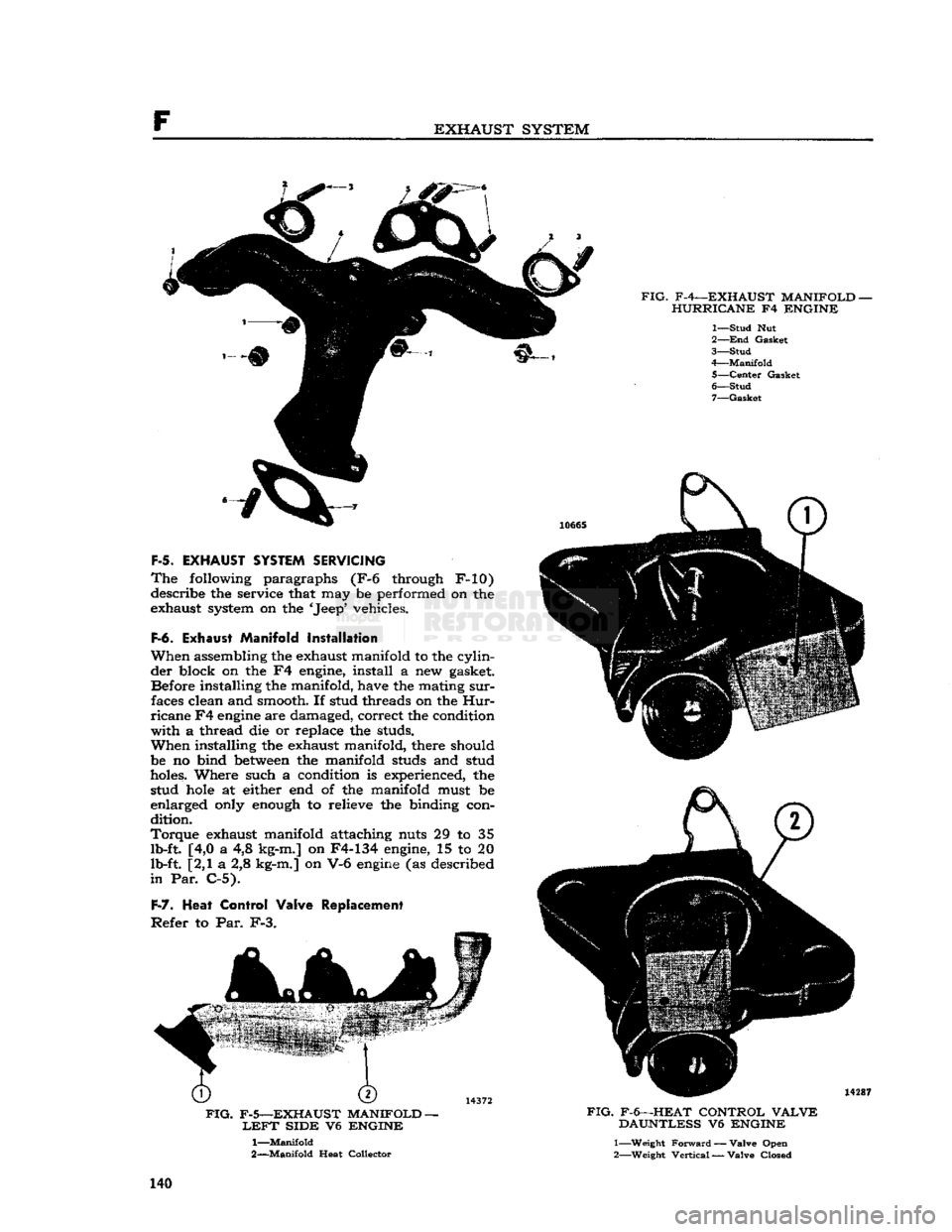

assembling the manifold, to the cylinder
block
(Fig.
F-4)
new gaskets should be installed
and
the nuts drawn up evenly until they are tight
to avoid leakage. Torque manifold nuts to 29-35 lb-ft [4,0 a 4,84 kg-m.].

F-3.
Dauntless
¥-6
Engine
Exhaust System

Each
of two cylinder banks of a Dauntless V-6 engine has an exhaust manifold. On late production engines the right exhaust manifold is equipped

with
a heat collector manifold which supplies heated air to the air cleaner. See Fig. F-5.
Each
cylinder
exhausts through its own individual port
into a branch of its exhaust manifold. These
branches
conduct exhaust
gases
into the main mani­
fold branch which connects the exhaust pipe to
the muffler. A thermally-actuated heat control valve is located at the
rear
of the right exhaust

manifold.
This
valve has a bimetal thermostatic
spring
which holds it closed when the engine is

cold.

In
closed position, the valve deflects exhaust
gases

upward
through a passage in the intake manifold to the left exhaust manifold.
This
aids in vaporizing

fuel,
speeds
engine warm-up, and reduces oil
dilution.

Since
the valve plate is offset-mounted, the valve

will
be forced partially open at higher engine speed
and
load.
This
prevents excessive back pressure. 138

'Jeep'
UNIVERSAL
SERIES
SERVICE
MANUAL

©

1

1

©-
IT

T"

I

FIG.
F-3—EXHAUST SYSTEM —
LATE
MODEL

A—Hurricane
F4 Engine B—Dauntless V6 Engine
1—
Exhaust
Pipe F4 Engine

2—
Exhaust
Pipe
Extension
— F4 Engine

3—
Muffler

4—
Tail
Pipe
5—
Right
Exhaust
Pipe V6 Engine

As
the
engine
increasingly warms up the thermo­ static spring tension decreases until it allows the
valve to open completely.
That
restores usual ex­ haust operation.

As
part of regular tune-up procedure the valve operation should be checked. Valve plate should
move
freely, without binding or excessive play.
If
necessary to replace the heat control valve (Fig.

F-6),
disconnect exhaust pipe from valve. Remove
two attaching
bolts
and valve from exhaust mani­
fold. Fasten replacement valve to manifold with two bolts. Torque
bolts
15 to 20 lb-ft [2,1 a 2,8

kg-m.].
No gasket is required
between
valve and manifold. Connect exhaust pipe to valve.

To
remove the exhaust manifolds, disconnect the heat riser
tubes
and the exhaust pipe or the heat
control valve from the manifold. Remove the cap screws that secure the manifold to the cylinder
head; remove the manifold. 6—
Left
Exhaust
Pipe V6 Engine
7—
Exhaust
Pipe
Clamp

8—
Front
and
Rear
Muffler
Clamp

9—
Tail
Pipe
Clamp

Install
the exhaust manifold(s) and torque cap
screws 15 to 20 lb-ft. [2,07 a 2,8 kg-m.]. Refer
to Fig. Dl-42.
F-4.
MAINTENANCE REQUIREMENTS

The
exhaust system must be free of exhaust gas leaks and vibration. The system should be checked periodically and all
loose
or broken hanger supports
should be tightened or replaced. In addition, check
for
dents
or restrictions in the tail pipe, exhaust pipe, or muffler as such restrictions can cause faulty

engine
performance. Exhaust gas leaks in the sys­
tem are dangerous as well as being noisy.
Occasionally,
vibrations may be the result of mis­
aligned hanger supports. These vibrations can be
eliminated by loosening the clamps and changing position so that the exhaust pipe, muffler, and tail
pipe
will
be in proper alignment, free of contact

with
the frame or body. 139

F
EXHAUST SYSTEM

FIG.
F-4—EXHAUST MANIFOLD-HURRICANE
F4
ENGINE

1—
Stud
Nut
2—
End
Gasket
3—
Stud

4—
Manifold
5—
Center
Gasket
6—
Stud

7—
Gasket

F-5.
EXHAUST SYSTEM SERVICING
The
following paragraphs (F-6 through F-10)
describe the service that may be performed on the
exhaust system on the 'Jeep' vehicles.

F-6.
Exhaust Manifold Installation

When
assembling the exhaust manifold to the cylin­ der block on the F4 engine, install a new gasket. Before installing the manifold, have the mating
sur­

faces clean and smooth. If stud threads on the
Hur­

ricane
F4
engine
are damaged, correct the condition

with
a thread die or replace the studs.

When
installing the exhaust manifold, there should
be no bind
between
the manifold studs and stud
holes. Where such a condition is experienced, the stud
hole
at either end of the manifold must be
enlarged only enough to relieve the binding con­
dition.

Torque
exhaust manifold attaching nuts 29 to 35 lb-ft. [4,0 a 4,8 kg-m.] on F4-134 engine, 15 to 20
lb-ft. [2,1 a 2,8 kg-m.] on V-6
engine
(as described

in
Par. C-5).
F-7.
Heat
Control Valve Replacement

Refer
to Par. F-3.

FIG.
F-5—EXHAUST MANIFOLD
-
LEFT
SIDE
V6
ENGINE
1—
Manifold

2—
Manifold
Heat Collector
J666S

14287

FIG.
F-6—HEAT CONTROL
VALVE
DAUNTLESS
V6
ENGINE
1— Weight
Forward
— Valve Open
2— Weight
Vertical
— Valve Closed 140

'Jeep'
UNIVERSAL
SERIES SERVICE
MANUAL

Fl
b. Connect tachometer to
engine.

c.
Warm
up
engine
and stabilize temperatures.

d.
Adjust
engine
idle to
speed
desired, using throt­
tle idle
speed
adjusting screw.

e.
Carburetors without Idle
Limiter
Cap turn idle mixture screws out (counterclockwise) until a
loss

of
engine
speed
is indicated; then, slowly turn mix­
ture screw in (clockwise-leaner) until maximum

speed
(RPM) is reached. Continue turning in (clockwise) until
speed
begins
to drop; turn mixture
adjustment back out (counterclockwise-richer) un­

til
maximum
speed
is just regained at a "lean as
possible" mixture adjustment.

Fl-14.
Distributor

Check
the distributor number for proper appli­
cation.
Check
the distributor cam dwell angle and
point condition and adjust to specifications or re­ place as required. (Specifications listed at the end
of this section)
Check
ignition timing and set at

0°
or
TDC.

Fl-15.
Anti-iackfire
Diverter Valve

The
anti-backfire valve remains closed
except
when
the throttle is closed rapidly from an
open
position.

To
check the valve for proper operation, accelerate
the
engine
in neutral, allowing the throttle to
close

rapidly.
The valve is operating satisfactorily when
no exhaust system backfire occurs. A further check
to determine whether the valve is functioning can be made by removing from the anti-backfire valve
the large
hose
Which
connects to the check valve.
Accelerate the
engine
to allow the throttle to
close

rapidly.
The valve is operating satisfactorily if a
momentary interruption of rushing air is audible.

Fl-16.
Check Valve

The
check valve prevents the reverse flow of ex­
haust
gases
to the pump in the
event
the pump
should, for any reason,
become
inoperative or should exhaust pressure ever
exceed
pump pressure.

To
check this valve for proper operation, remove the air supply
hose
from the pump at the
distri­

bution manifold.
With
the
engine
running, listen for exhaust leakage at the check valve which is
connected to the distribution manifold.

Fl-17.
Air
Pump

Check
for proper drive belt tension with belt tension
gauge
W-283. The belt strand tension should be

50-60
pounds on a belt with previous service, meas­

ured
on the
longest
accessible span
between
two pulleys. When installing a new belt, adjust the
tension to
60-80
pounds tension. DO NOT PRY
ON
THE DIE
CAST
PUMP
HOUSING.

To
check the pump for proper operation, remove the air
outlet
hose
at the pump.
With
the
engine

running,
air discharge should be
felt
at the pump

outlet
opening. The pump
outlet
air pressure, as determined by the relief valve, is preset and is not
adjustable.

The
air pump
rear
cover assembly, housing the pressed in inlet and discharge tubes, and the pres­
sure relief valve are the only pump
components

recommended for service replacement. These parts
are
to be replaced only when damaged as a result
of handling or in the
event
the relief valve was
tampered with.

Fl-18.
Carburetor
Air
Cleaner

Every
6000
miles
[9,600
km.] clean the inside
sur­

face at the sump and
refill
to indicated oil level with
SAE
40 or 50
engine
oil
above
32 F; SAE 20

below
32 F. Wash filter
element
in kerosene and

drain.
Reassemble the air cleaner.

More
frequent cleaning and replacement is advis­ able when the car is operated in dusty areas or on
unpaved roads. Accumulated dirt restricts air flow,
reducing fuel
economy
and performance.

Fl-19.
REMOVAL
PROCEDURES

The
following paragraphs
give
the procedures for removing the major units of the Exhaust Emission

Control
System and the required equipment
needed.

Fl-20.
Air
Pump

Loosen
the air pump adjusting strap to facilitate

drive
belt removal. Remove the air pump air dis­
charge hose(s) and air filter attachment. Separate
the air pump from its mounting bracket. At time of installation, torque tighten the air pump mount­ing
bolts
to
30-40
lbs-ft. [4,15 a 5,53 kg-m.]. Adjust
the belt strand tension to
50-60
pounds on a belt
with previous service and
60-80
pounds on a new
belt.

Fl-21.
Anti-Backfire
Diverter Valve

The
anti-backfire diverter valve removal requires disconnecting the
hoses
and bracket to
engine
at­
taching screws.

Fl-22.
Air
Distribution
Manifold
and
Injection Tubes

In
order to remove the air distribution manifold
without bending the tubing, which could result in
fractures
or leakage, it is necessary to remove the
exhaust manifold as an assembly from the
engine.

After
the exhaust manifold assembly is removed
from
the
engine,
place the manifold in a vise and

loosen
the air distribution manifold
tube
retaining nuts at each cylinder exhaust port. Tap the injec­
tion
tubes
lightly to allow the air distribution mani­
fold to be pulled away partially from the exhaust manifold. The stainless steel injection
tubes
in the
exhaust manifold may have
become
partially fused
to the air distribution manifold and, therefore, may
require
application of heat to the joint in order to
separate. While applying heat to the joint, rotate
the injection
tubes
with pliers being careful not to
damage the
tubes
by applying excessive force.

At
time of installation, the air injection
tubes
must
be positioned into the exhaust manifold prior to
placing the exhaust manifold assembly on the en­ gine.

Note:
Two different length injection
tubes
are used.

The
shorter length injection
tubes
must be inserted into cylinders 1 and 4. 145
