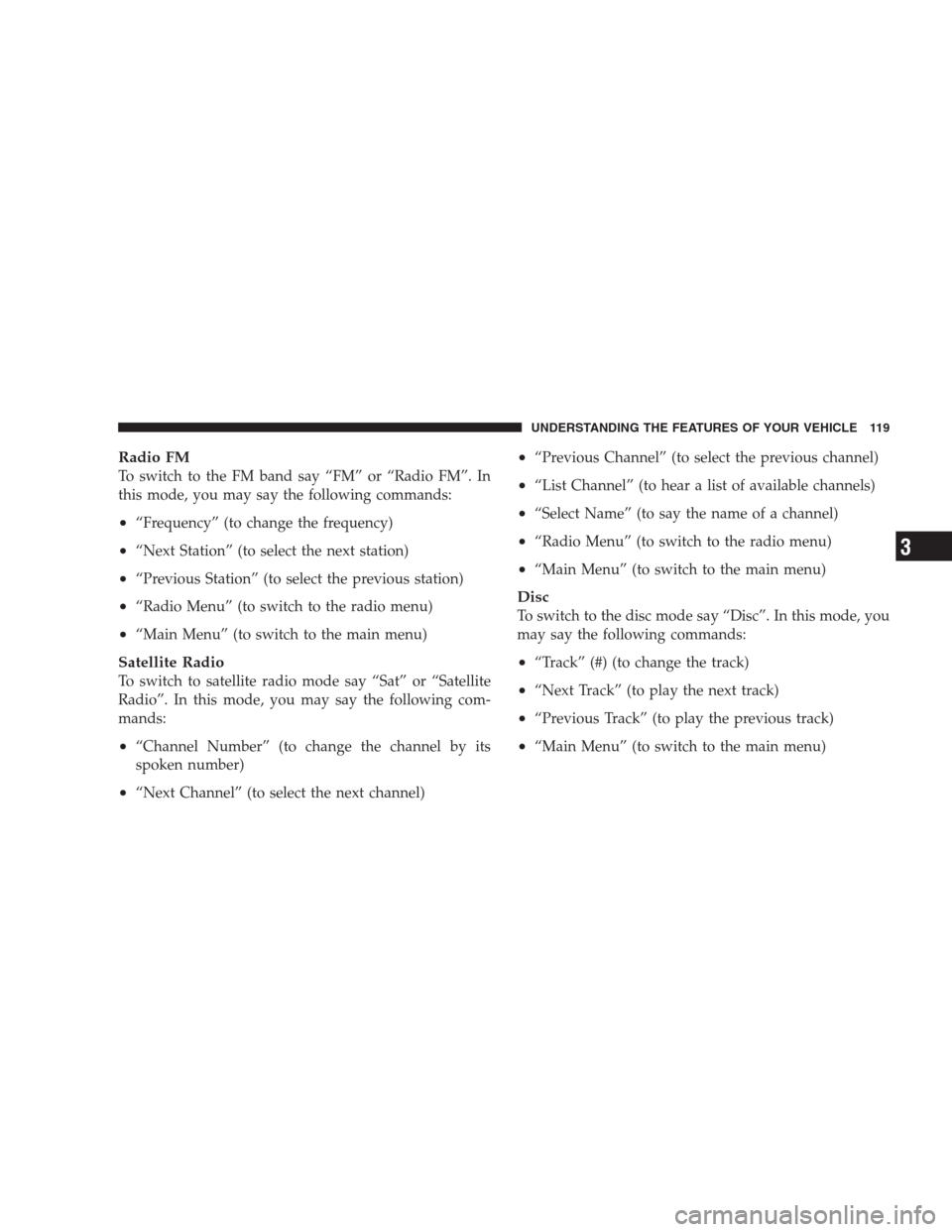

Radio FM
To switch to the FM band say “FM” or “Radio FM”. In
this mode, you may say the following commands:
•“Frequency” (to change the frequency)
•“Next Station” (to select the next station)
•“Previous Station” (to select the previous station)
•“Radio Menu” (to switch to the radio menu)
•“Main Menu” (to switch to the main menu)
Satellite Radio
To switch to satellite radio mode say “Sat” or “Satellite
Radio”. In this mode, you may say the following com-
mands:
•“Channel Number” (to change the channel by its
spoken number)
•“Next Channel” (to select the next channel)
•“Previous Channel” (to select the previous channel)
•“List Channel” (to hear a list of available channels)
•“Select Name” (to say the name of a channel)
•“Radio Menu” (to switch to the radio menu)
•“Main Menu” (to switch to the main menu)
Disc
To switch to the disc mode say “Disc”. In this mode, you
may say the following commands:
•“Track” (#) (to change the track)
•“Next Track” (to play the next track)
•“Previous Track” (to play the previous track)
•“Main Menu” (to switch to the main menu)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

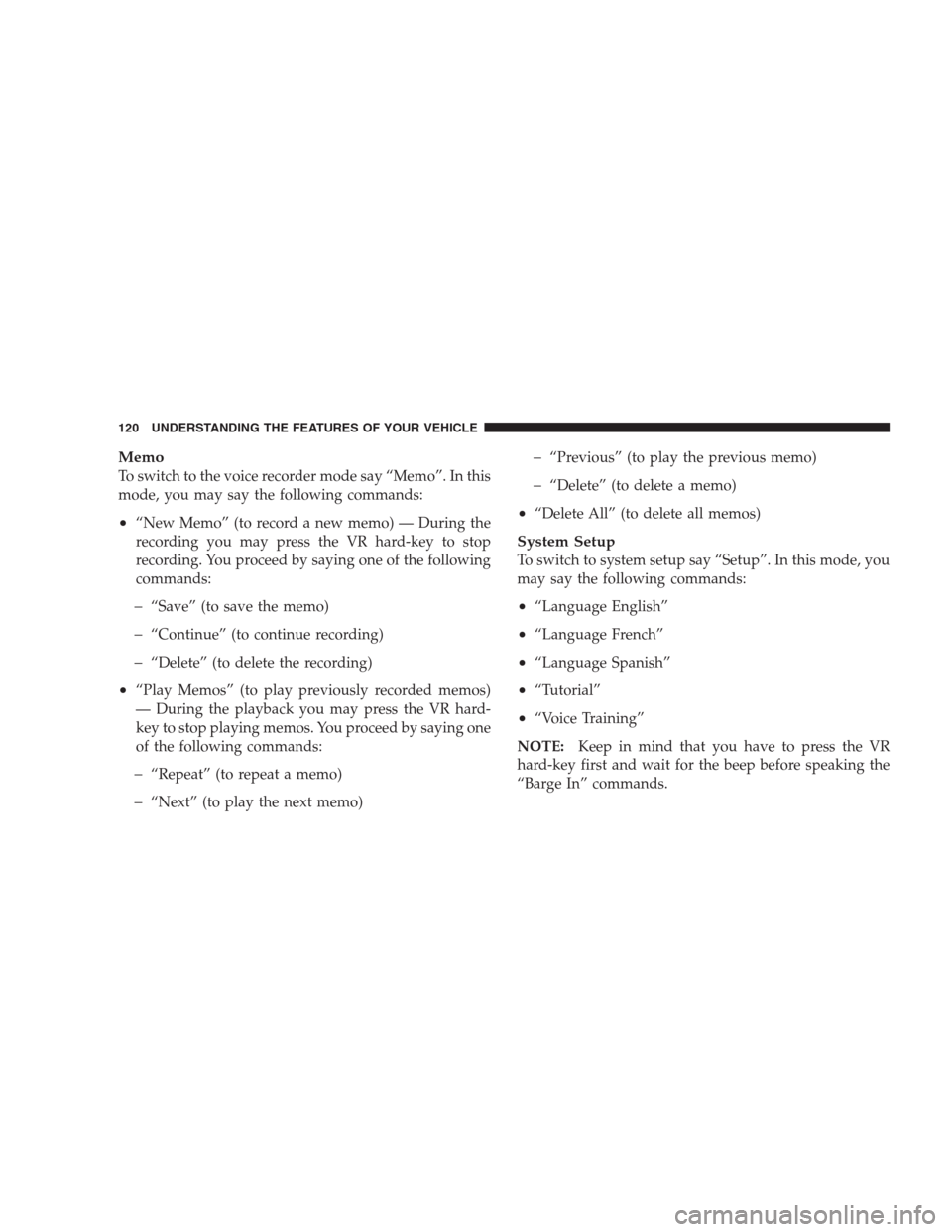

Memo
To switch to the voice recorder mode say “Memo”. In this
mode, you may say the following commands:
•“New Memo” (to record a new memo) — During the
recording you may press the VR hard-key to stop
recording. You proceed by saying one of the following
commands:
“Save” (to save the memo)
“Continue” (to continue recording)
“Delete” (to delete the recording)
•“Play Memos” (to play previously recorded memos)
— During the playback you may press the VR hard-
key to stop playing memos. You proceed by saying one
of the following commands:
“Repeat” (to repeat a memo)
“Next” (to play the next memo)
“Previous” (to play the previous memo)
“Delete” (to delete a memo)
•“Delete All” (to delete all memos)
System Setup
To switch to system setup say “Setup”. In this mode, you
may say the following commands:
•“Language English”
•“Language French”
•“Language Spanish”
•“Tutorial”
•“Voice Training”
NOTE:Keep in mind that you have to press the VR
hard-key first and wait for the beep before speaking the
“Barge In” commands.
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

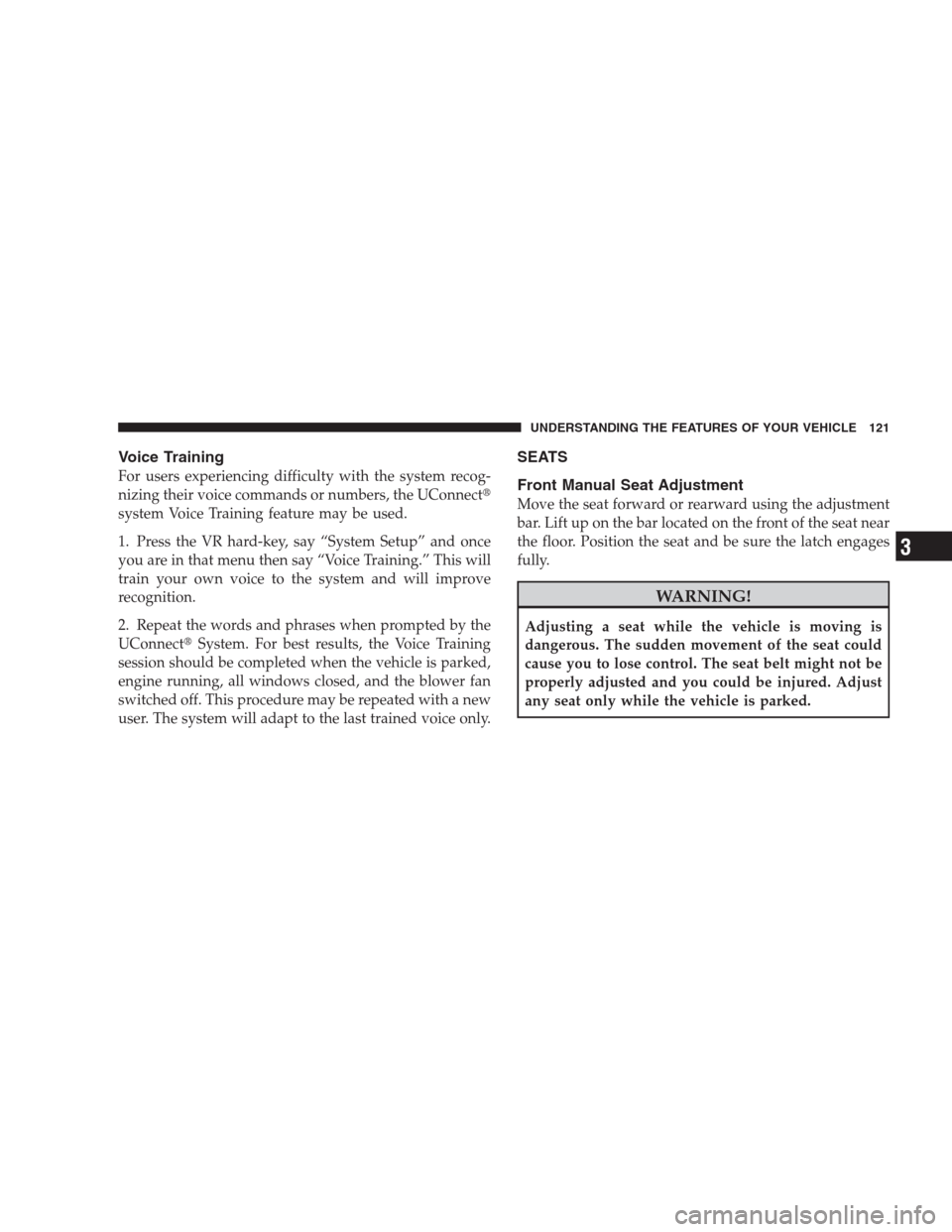

Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, the UConnect
system Voice Training feature may be used.
1. Press the VR hard-key, say “System Setup” and once
you are in that menu then say “Voice Training.” This will
train your own voice to the system and will improve
recognition.
2. Repeat the words and phrases when prompted by the
UConnectSystem. For best results, the Voice Training
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.
SEATS
Front Manual Seat Adjustment
Move the seat forward or rearward using the adjustment
bar. Lift up on the bar located on the front of the seat near
the floor. Position the seat and be sure the latch engages
fully.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

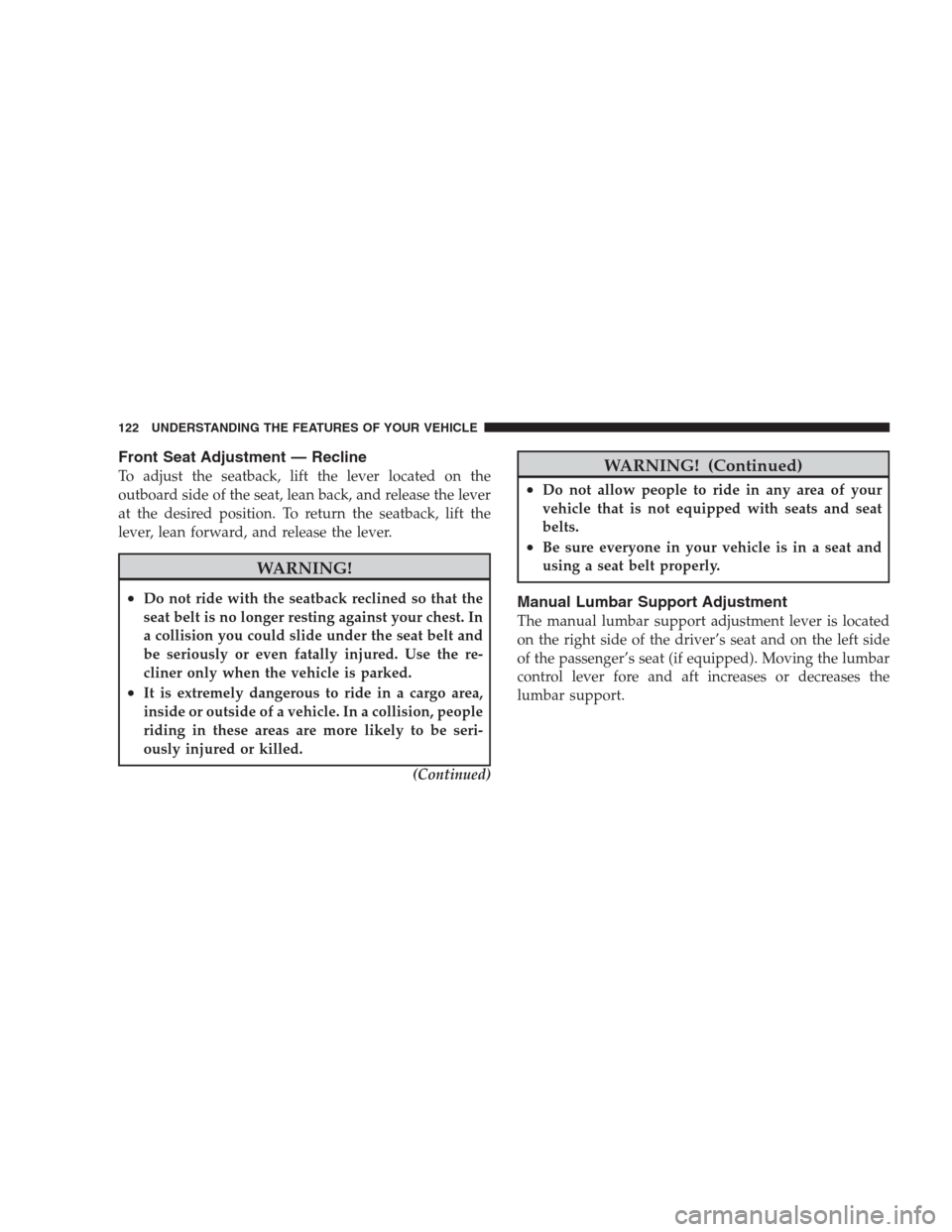

Front Seat Adjustment — Recline
To adjust the seatback, lift the lever located on the
outboard side of the seat, lean back, and release the lever
at the desired position. To return the seatback, lift the
lever, lean forward, and release the lever.
WARNING!
•Do not ride with the seatback reclined so that the
seat belt is no longer resting against your chest. In
a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the re-
cliner only when the vehicle is parked.
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
(Continued)
WARNING! (Continued)
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Lumbar Support Adjustment
The manual lumbar support adjustment lever is located
on the right side of the driver’s seat and on the left side
of the passenger’s seat (if equipped). Moving the lumbar
control lever fore and aft increases or decreases the
lumbar support.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

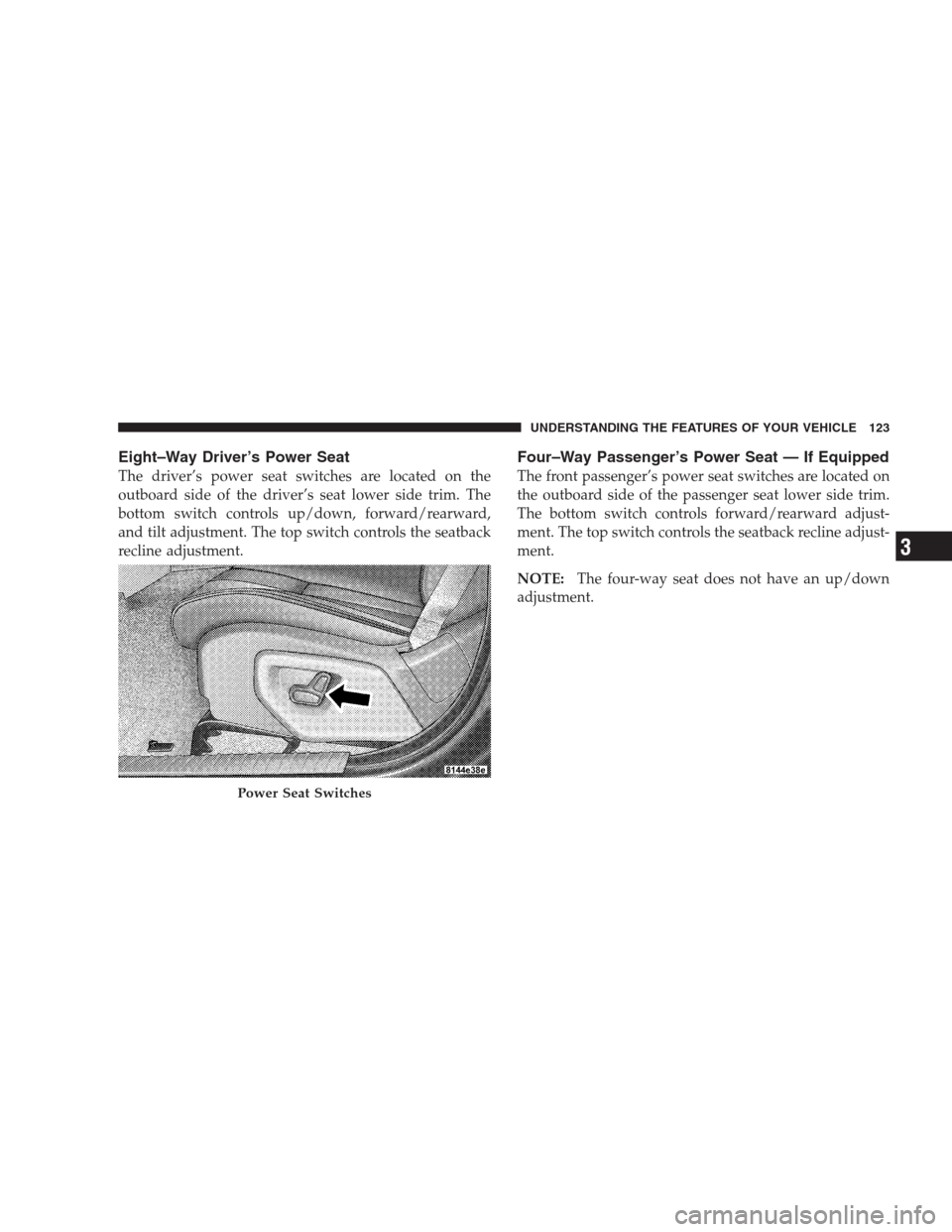

Eight–Way Driver’s Power Seat
The driver’s power seat switches are located on the
outboard side of the driver’s seat lower side trim. The
bottom switch controls up/down, forward/rearward,
and tilt adjustment. The top switch controls the seatback
recline adjustment.
Four–Way Passenger’s Power Seat — If Equipped
The front passenger’s power seat switches are located on
the outboard side of the passenger seat lower side trim.
The bottom switch controls forward/rearward adjust-
ment. The top switch controls the seatback recline adjust-
ment.
NOTE:The four-way seat does not have an up/down
adjustment.
Power Seat Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

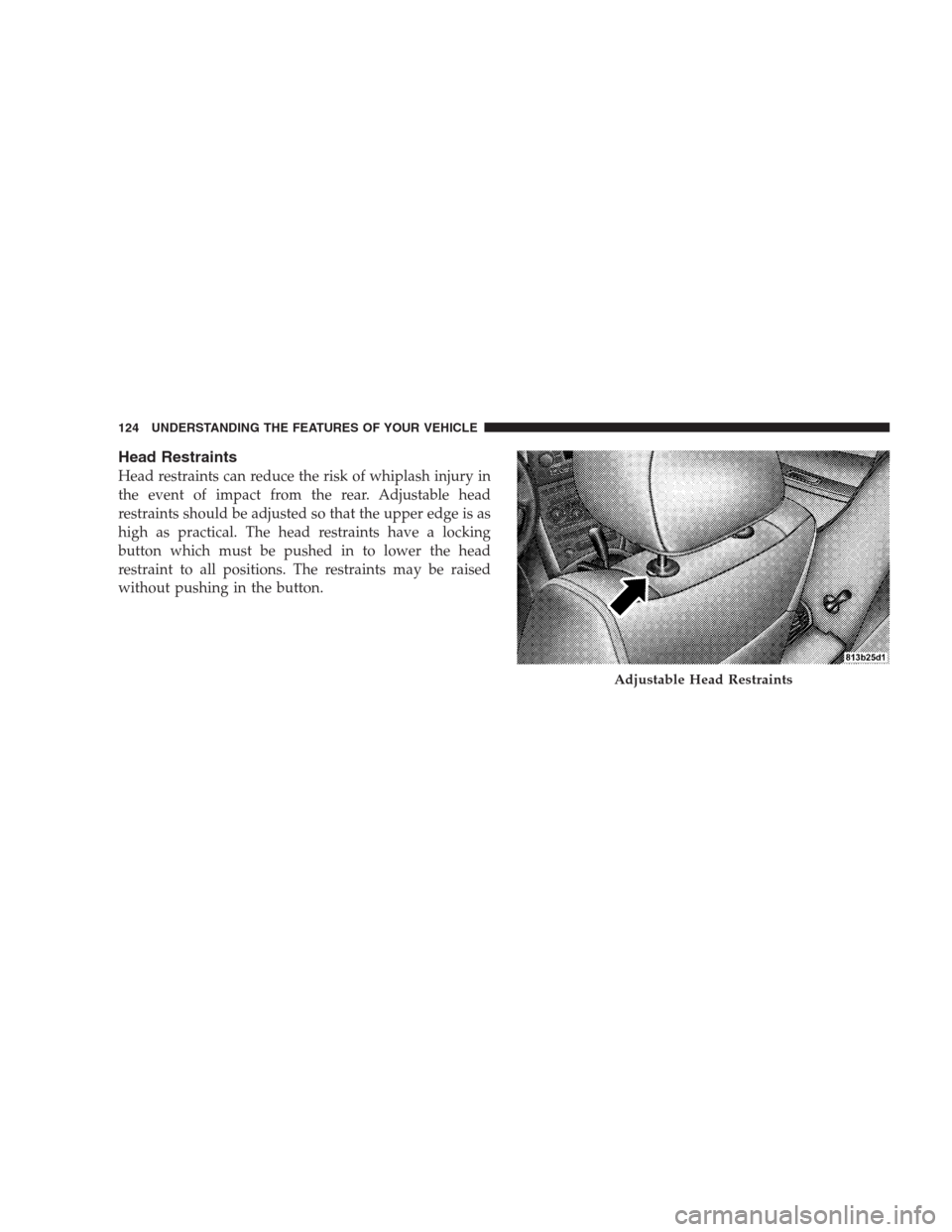

Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Adjustable head
restraints should be adjusted so that the upper edge is as
high as practical. The head restraints have a locking
button which must be pushed in to lower the head
restraint to all positions. The restraints may be raised
without pushing in the button.
Adjustable Head Restraints
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

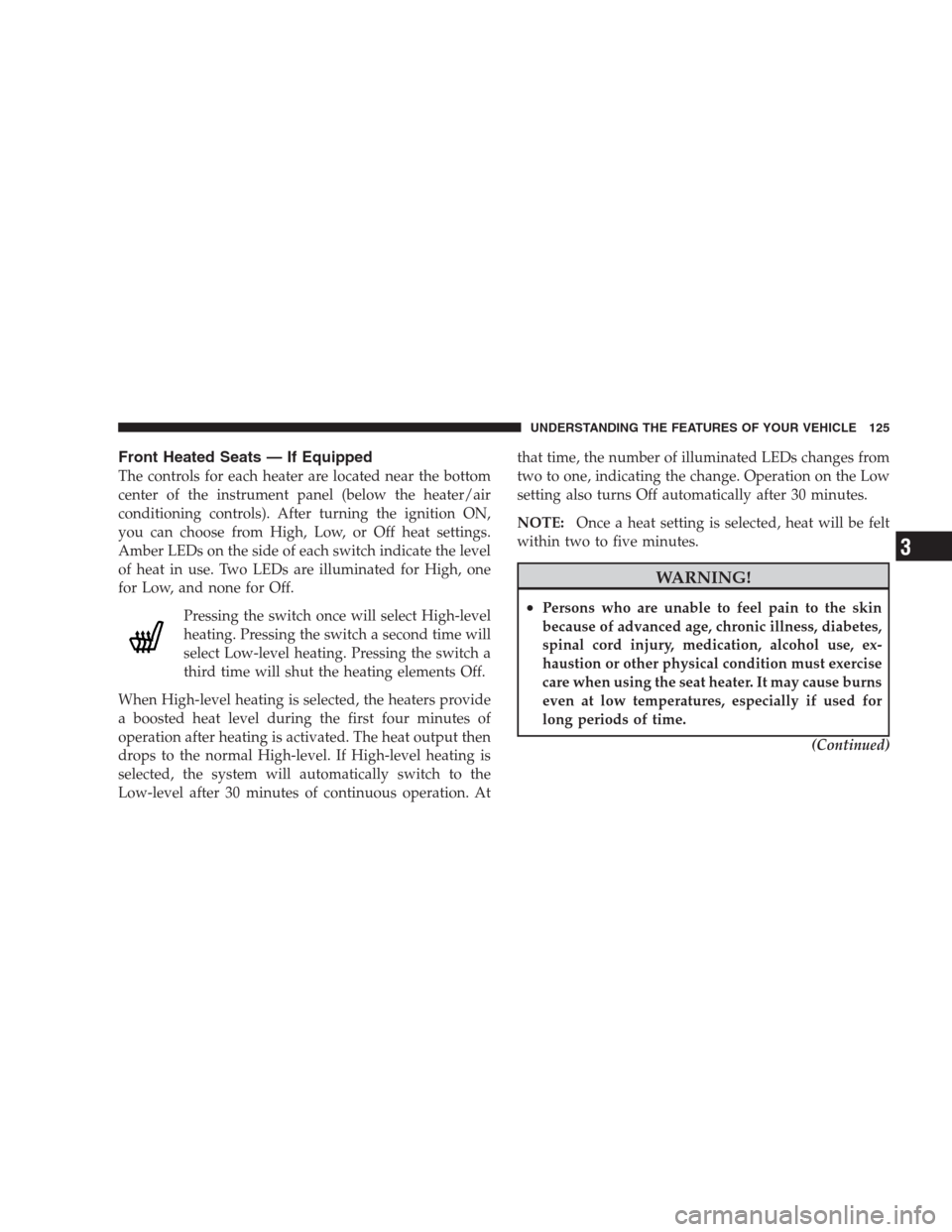

Front Heated Seats — If Equipped
The controls for each heater are located near the bottom
center of the instrument panel (below the heater/air
conditioning controls). After turning the ignition ON,
you can choose from High, Low, or Off heat settings.
Amber LEDs on the side of each switch indicate the level
of heat in use. Two LEDs are illuminated for High, one
for Low, and none for Off.
Pressing the switch once will select High-level
heating. Pressing the switch a second time will
select Low-level heating. Pressing the switch a
third time will shut the heating elements Off.
When High-level heating is selected, the heaters provide
a boosted heat level during the first four minutes of
operation after heating is activated. The heat output then
drops to the normal High-level. If High-level heating is
selected, the system will automatically switch to the
Low-level after 30 minutes of continuous operation. Atthat time, the number of illuminated LEDs changes from
two to one, indicating the change. Operation on the Low
setting also turns Off automatically after 30 minutes.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
(Continued)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

WARNING! (Continued)
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact and poten-
tial seat overheating, ALWAYS ensure that the seat
heater is in the off position (amber lights indicate
High/Low/Off) before placing any of the seats into
a folded flat position (if equipped).

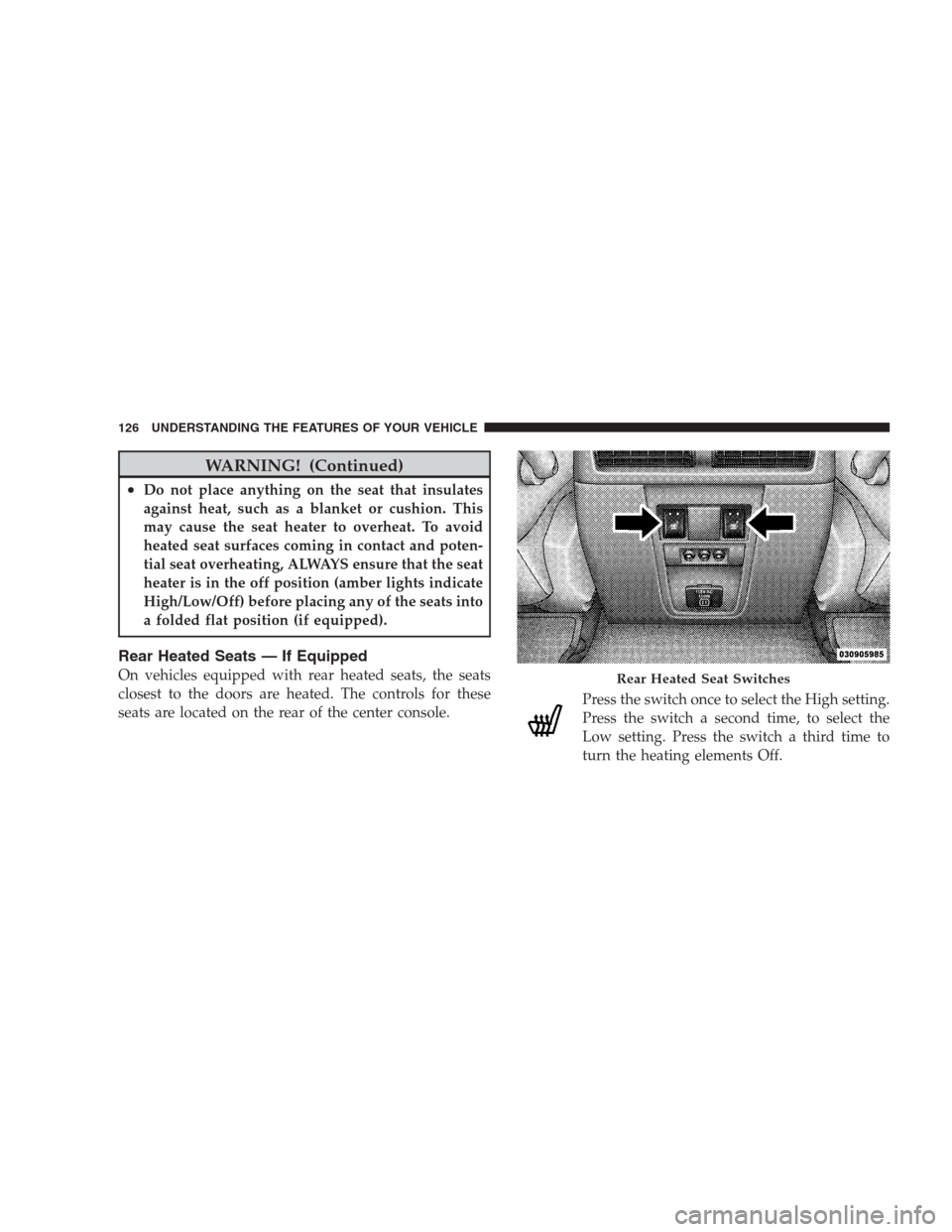

Rear Heated Seats — If Equipped
On vehicles equipped with rear heated seats, the seats
closest to the doors are heated. The controls for these
seats are located on the rear of the center console.Press the switch once to select the High setting.
Press the switch a second time, to select the
Low setting. Press the switch a third time to
turn the heating elements Off.Rear Heated Seat Switches
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

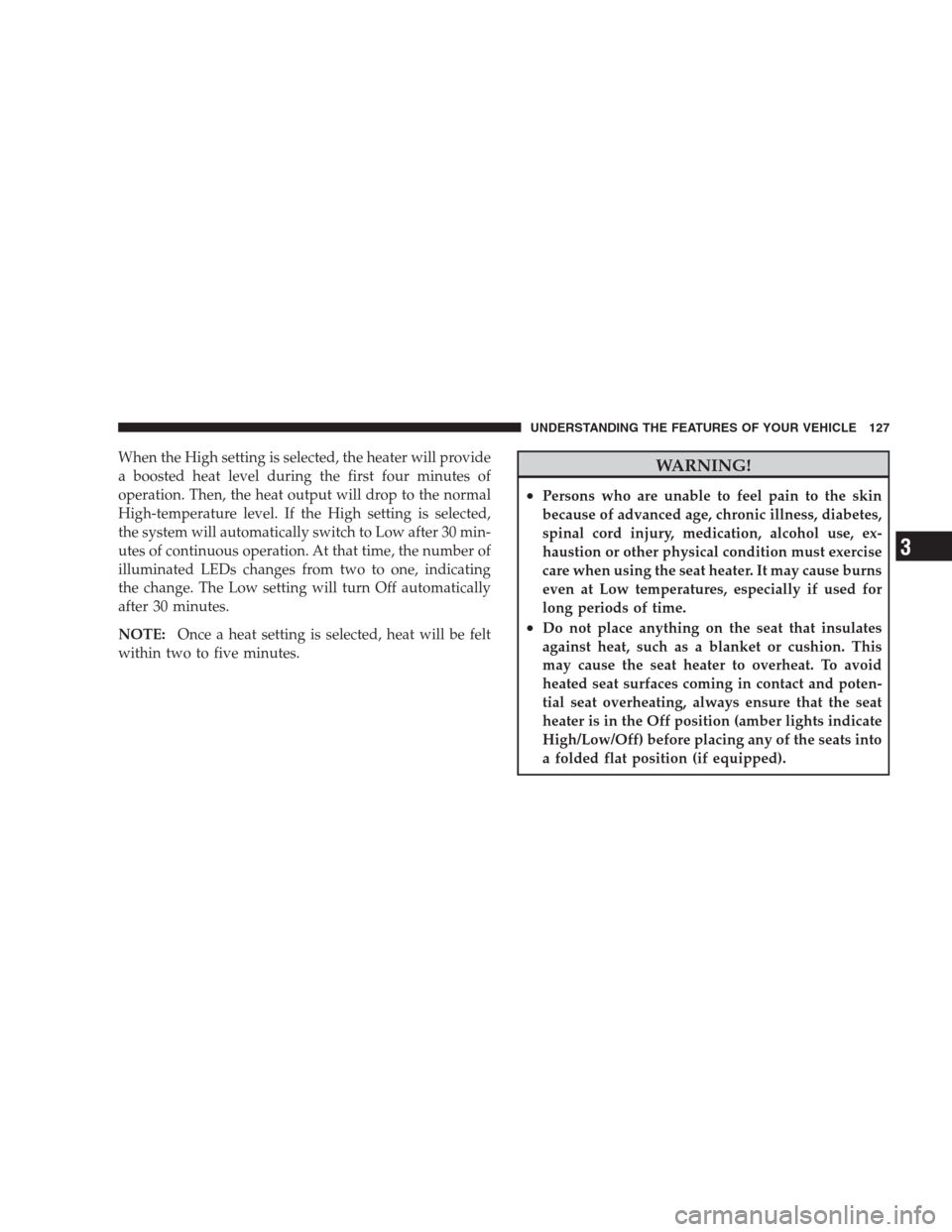

When the High setting is selected, the heater will provide
a boosted heat level during the first four minutes of
operation. Then, the heat output will drop to the normal
High-temperature level. If the High setting is selected,
the system will automatically switch to Low after 30 min-
utes of continuous operation. At that time, the number of
illuminated LEDs changes from two to one, indicating
the change. The Low setting will turn Off automatically
after 30 minutes.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at Low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact and poten-
tial seat overheating, always ensure that the seat
heater is in the Off position (amber lights indicate
High/Low/Off) before placing any of the seats into
a folded flat position (if equipped).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

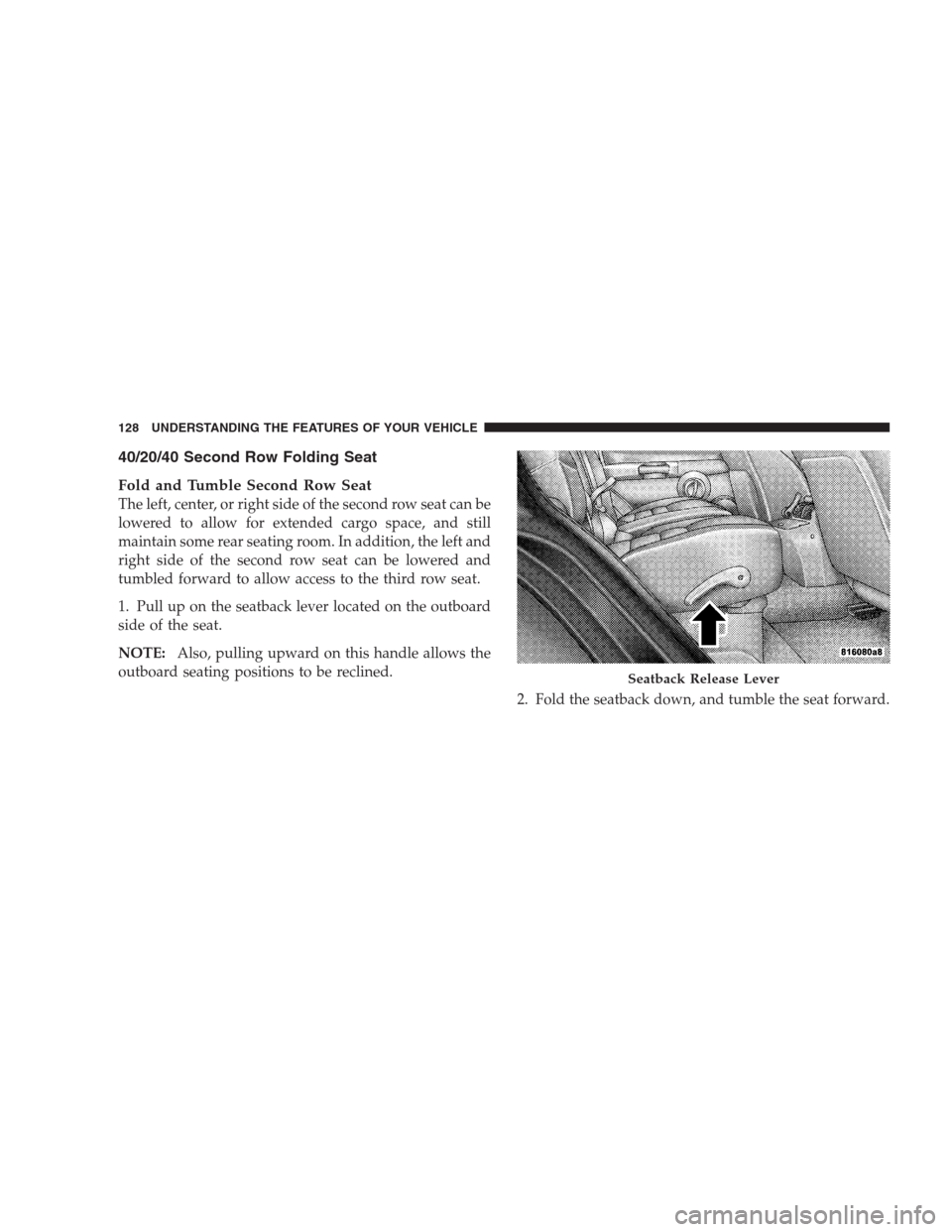

40/20/40 Second Row Folding Seat
Fold and Tumble Second Row Seat
The left, center, or right side of the second row seat can be
lowered to allow for extended cargo space, and still
maintain some rear seating room. In addition, the left and
right side of the second row seat can be lowered and
tumbled forward to allow access to the third row seat.
1. Pull up on the seatback lever located on the outboard
side of the seat.
NOTE:Also, pulling upward on this handle allows the
outboard seating positions to be reclined.
2. Fold the seatback down, and tumble the seat forward.
Seatback Release Lever
