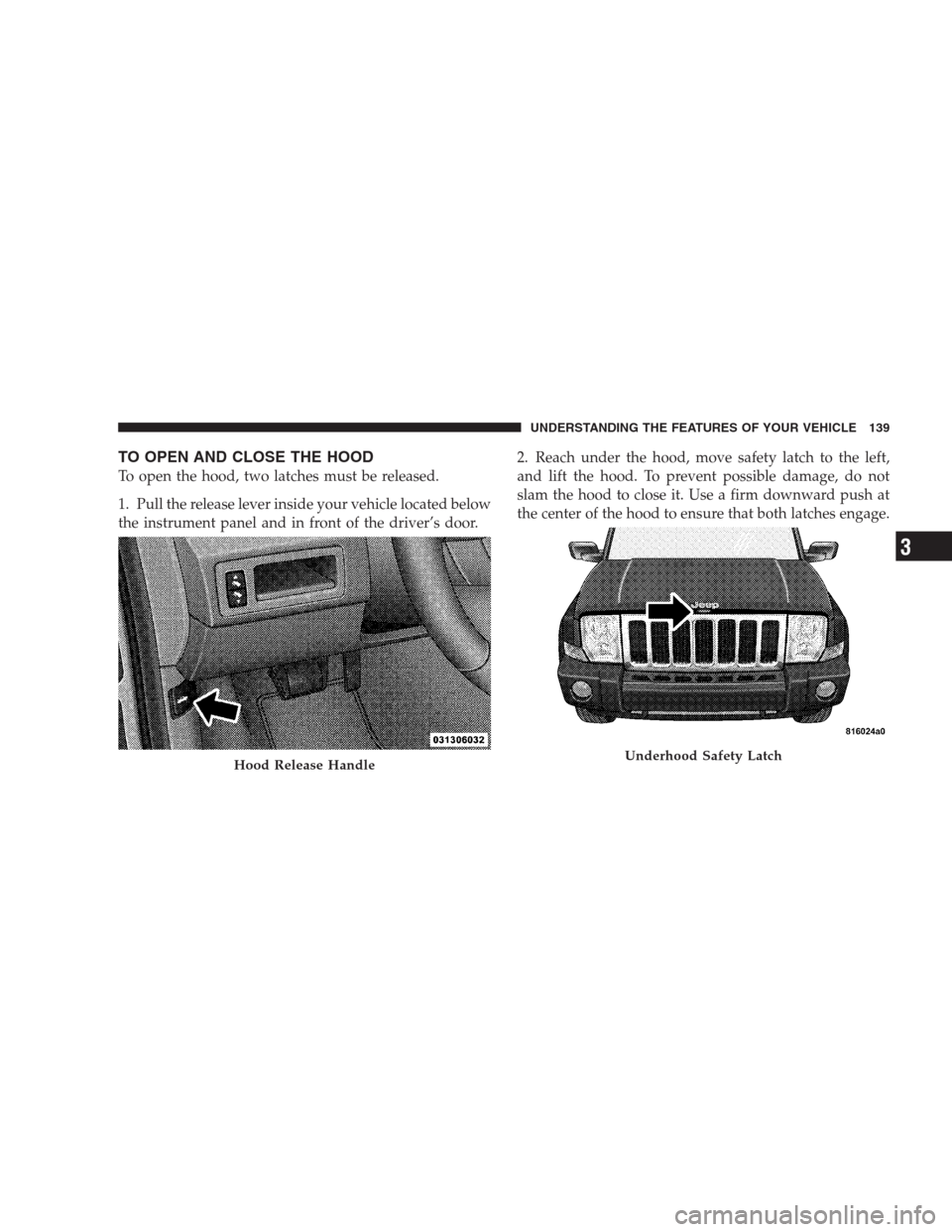

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the release lever inside your vehicle located below
the instrument panel and in front of the driver’s door.2. Reach under the hood, move safety latch to the left,
and lift the hood. To prevent possible damage, do not
slam the hood to close it. Use a firm downward push at
the center of the hood to ensure that both latches engage.
Underhood Safety LatchHood Release Handle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3

WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.

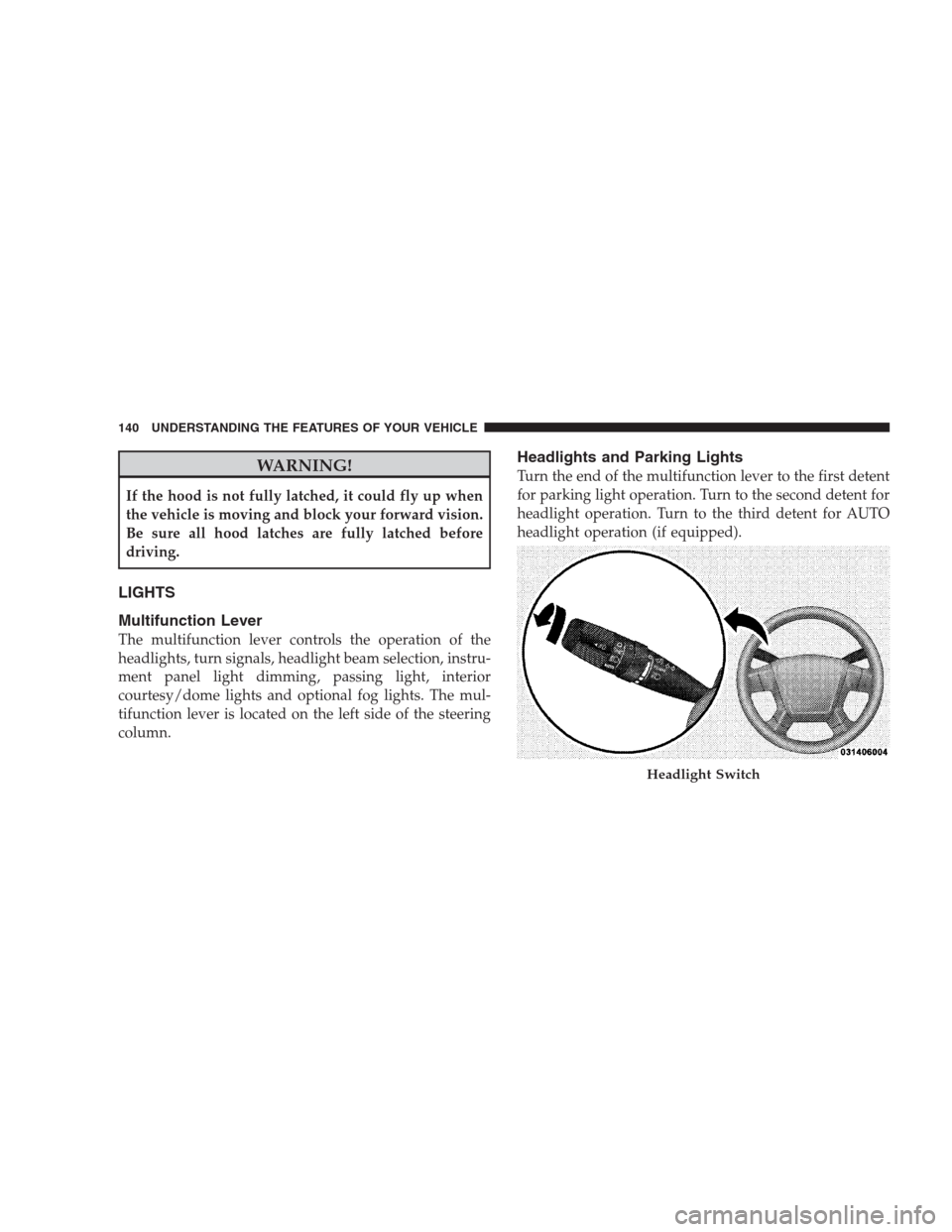

LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, turn signals, headlight beam selection, instru-
ment panel light dimming, passing light, interior
courtesy/dome lights and optional fog lights. The mul-
tifunction lever is located on the left side of the steering
column.
Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation. Turn to the third detent for AUTO
headlight operation (if equipped).
Headlight Switch
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

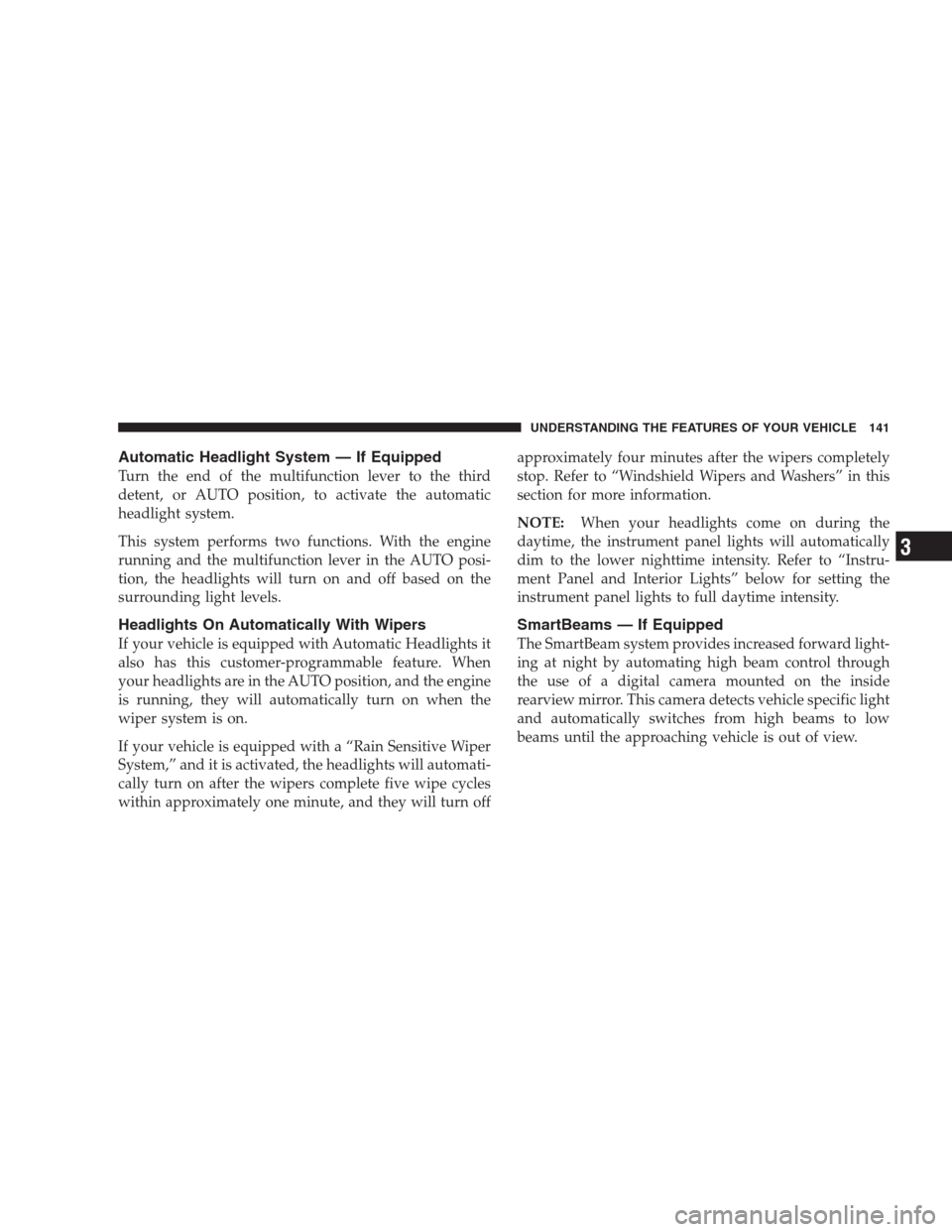

Automatic Headlight System — If Equipped
Turn the end of the multifunction lever to the third
detent, or AUTO position, to activate the automatic
headlight system.
This system performs two functions. With the engine
running and the multifunction lever in the AUTO posi-
tion, the headlights will turn on and off based on the
surrounding light levels.
Headlights On Automatically With Wipers
If your vehicle is equipped with Automatic Headlights it
also has this customer-programmable feature. When
your headlights are in the AUTO position, and the engine
is running, they will automatically turn on when the
wiper system is on.
If your vehicle is equipped with a “Rain Sensitive Wiper
System,” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn offapproximately four minutes after the wipers completely
stop. Refer to “Windshield Wipers and Washers” in this
section for more information.
NOTE:When your headlights come on during the
daytime, the instrument panel lights will automatically
dim to the lower nighttime intensity. Refer to “Instru-
ment Panel and Interior Lights” below for setting the
instrument panel lights to full daytime intensity.
SmartBeams — If Equipped
The SmartBeam system provides increased forward light-
ing at night by automating high beam control through
the use of a digital camera mounted on the inside
rearview mirror. This camera detects vehicle specific light
and automatically switches from high beams to low
beams until the approaching vehicle is out of view.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

NOTE:If the windshield or SmartBeam mirror is re-
placed, the SmartBeam mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.
To Activate
1. Select “Auto Headlamp Low/High Beams? — Low/
High Beam.” Refer to “Electronic Vehicle Information
Center (EVIC) — Customer Programmable Features” in
Section 4 of this manual.
2. Turn the end of the multifunction lever to the AUTO
headlight position.
3. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
NOTE:This system will not activate until the vehicle is
at or above 20 mph (32 km/h).
To Deactivate
1. Pull back on the multifunction lever to manually
deactivate the system (normal operation of high beams).
2. Pull back on the multifunction lever once again to
reactivate the system.
NOTE:Broken, muddy, or obstructed headlights and
taillights of vehicles in the field of view will cause
headlights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions (sticker, toll box,
etc.) on the windshield or camera lens will cause the
system to function improperly.
Automatic Headlight Leveling — HID Headlights
Only
This feature prevents the headlights from interfering
with the vision of oncoming drivers. Headlight leveling
automatically adjusts the height of the headlight beam in
reaction to changes in vehicle pitch.
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

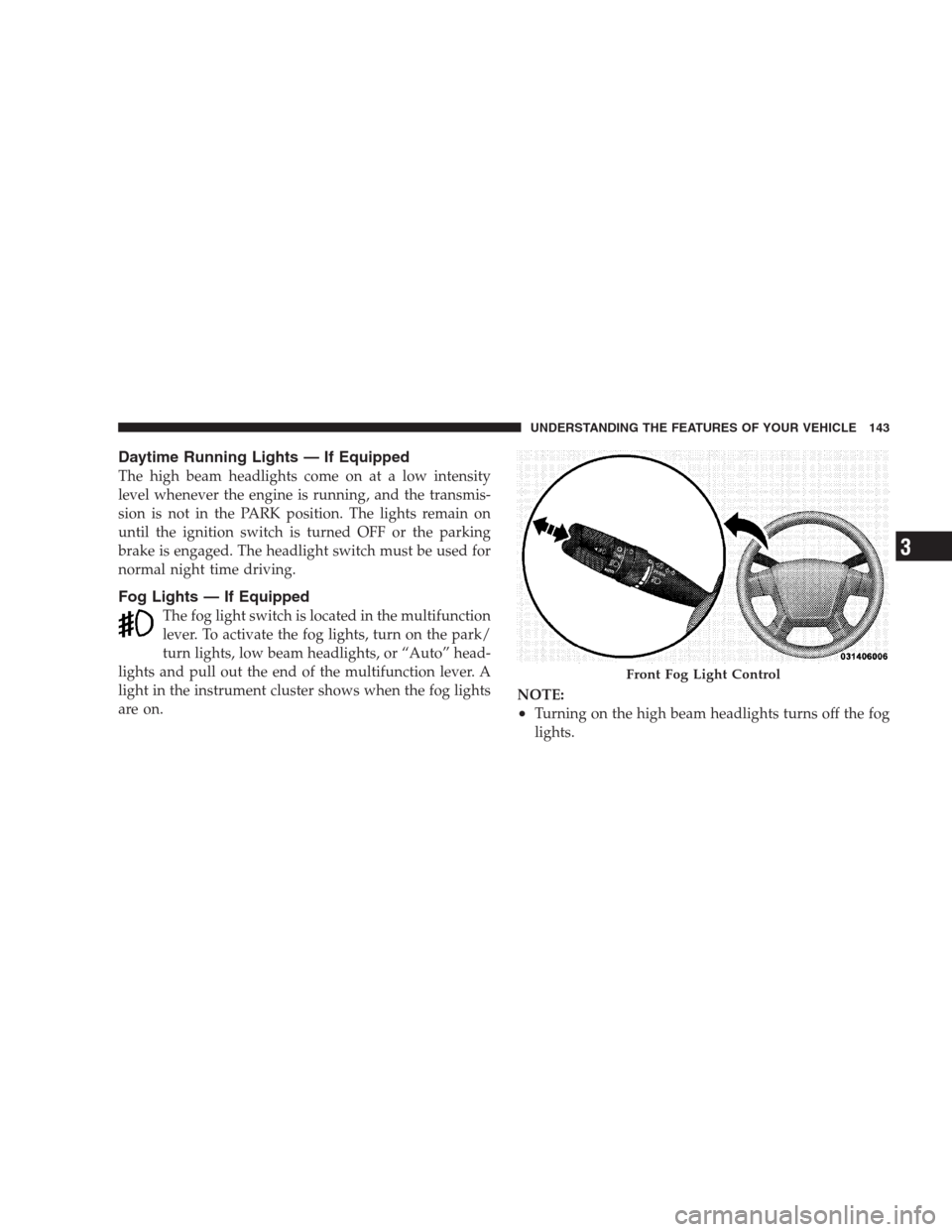

Daytime Running Lights — If Equipped
The high beam headlights come on at a low intensity
level whenever the engine is running, and the transmis-
sion is not in the PARK position. The lights remain on
until the ignition switch is turned OFF or the parking
brake is engaged. The headlight switch must be used for
normal night time driving.
Fog Lights — If Equipped
The fog light switch is located in the multifunction
lever. To activate the fog lights, turn on the park/
turn lights, low beam headlights, or “Auto” head-
lights and pull out the end of the multifunction lever. A
light in the instrument cluster shows when the fog lights
are on.NOTE:
•Turning on the high beam headlights turns off the fog
lights.
Front Fog Light Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

•A front fog light is a lighting device providing illumina-
tion forward of the vehicle under conditions of fog, rain,
snow, or dust. Principally, the front fog light supplements
the lower beam of a standard headlight system.
•Proper aim and adjustments of the front fog lights should
be made to prevent excessive glare for other drivers.

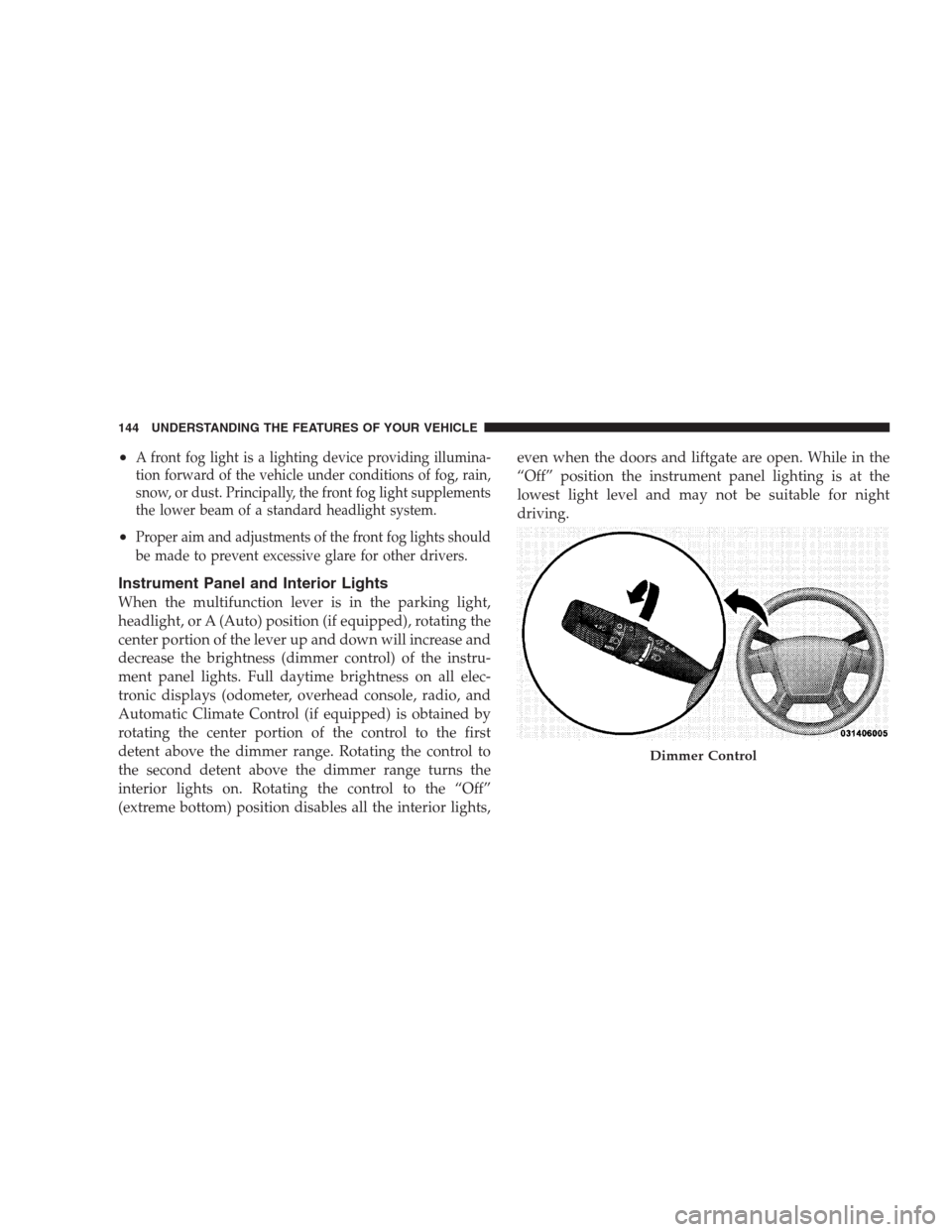

Instrument Panel and Interior Lights
When the multifunction lever is in the parking light,
headlight, or A (Auto) position (if equipped), rotating the
center portion of the lever up and down will increase and
decrease the brightness (dimmer control) of the instru-
ment panel lights. Full daytime brightness on all elec-
tronic displays (odometer, overhead console, radio, and
Automatic Climate Control (if equipped) is obtained by
rotating the center portion of the control to the first
detent above the dimmer range. Rotating the control to
the second detent above the dimmer range turns the
interior lights on. Rotating the control to the “Off”
(extreme bottom) position disables all the interior lights,even when the doors and liftgate are open. While in the
“Off” position the instrument panel lighting is at the
lowest light level and may not be suitable for night
driving.
Dimmer Control
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Battery Saver Feature — Exterior/Interior Lights
If the multifunction lever is left in the interior light
position, parking light position, or the headlight position
when the ignition switch is moved to the OFF position,
the battery saver feature will automatically turn off the
exterior and interior lights after eight minutes. Normal
operation will resume when the ignition is turned ON or
when the headlight switch is turned to another position.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.

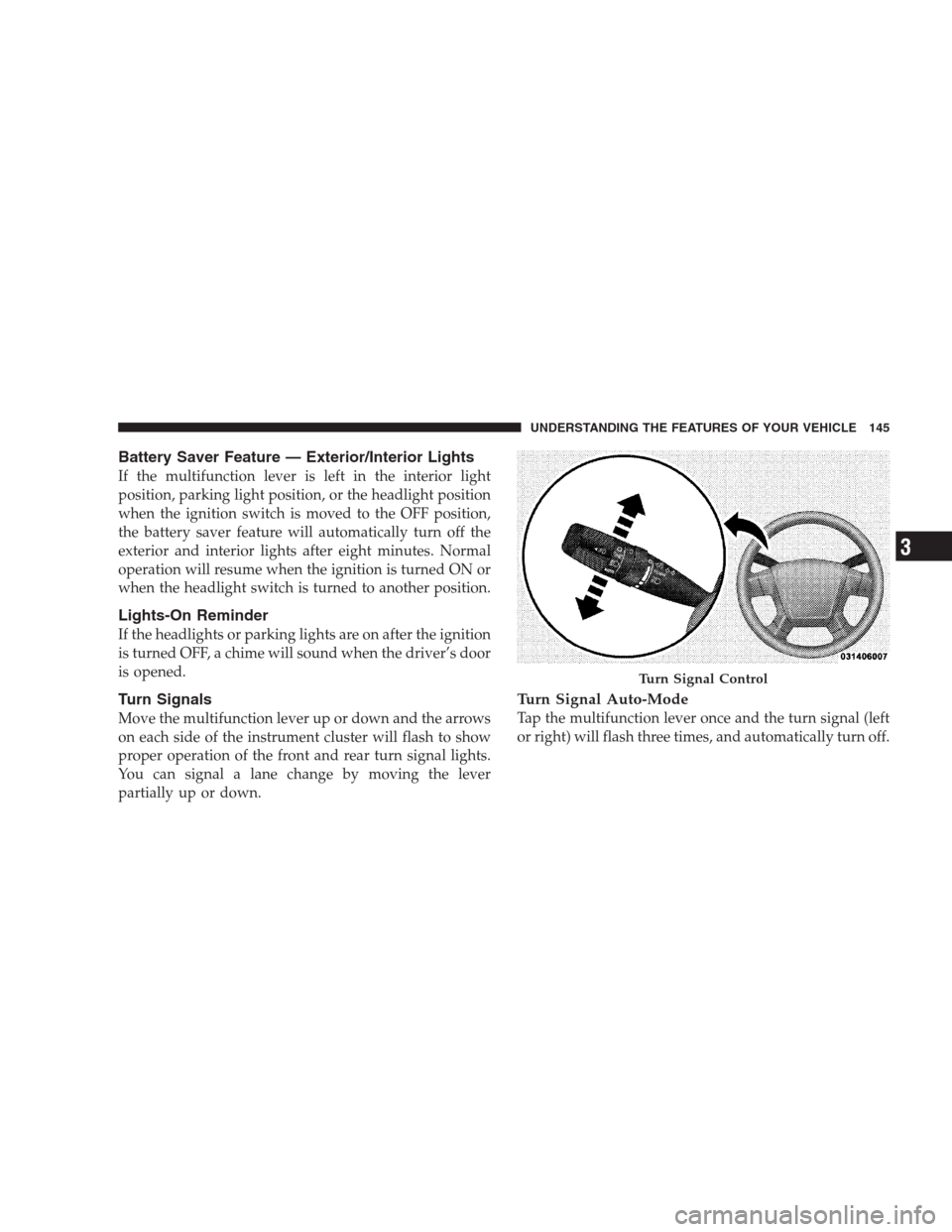

Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster will flash to show
proper operation of the front and rear turn signal lights.
You can signal a lane change by moving the lever
partially up or down.
Turn Signal Auto-Mode
Tap the multifunction lever once and the turn signal (left
or right) will flash three times, and automatically turn off.
Turn Signal Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

High Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever towards you
to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will cause the headlights to turn on at
high beam and remain on until the lever is released.
Headlight Time Delay
There is also a feature that delays turning off the vehicle
lights for 30, 60, or 90 seconds after the ignition switch is
turned OFF. To activate the headlight delay, the multi-
function lever must be rotated to the “Off” position after
the ignition switch is turned OFF. Only the headlights
will illuminate during this time. Refer to “EVIC- Cus-
tomer Programmable Features” in Section 4 to turn this
feature “On/Off” or set the time interval.
High Beam/Low Beam Select
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

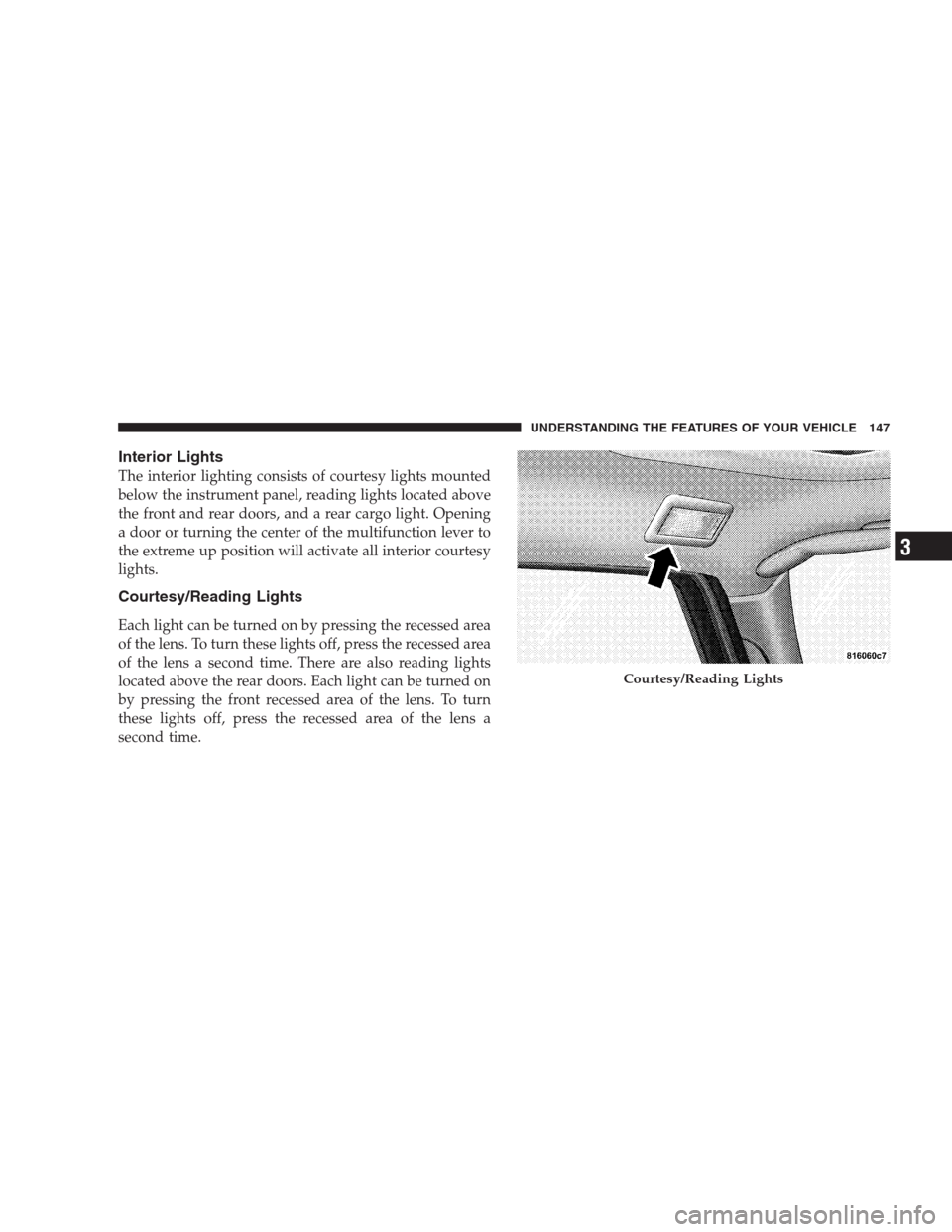

Interior Lights
The interior lighting consists of courtesy lights mounted
below the instrument panel, reading lights located above
the front and rear doors, and a rear cargo light. Opening
a door or turning the center of the multifunction lever to
the extreme up position will activate all interior courtesy
lights.
Courtesy/Reading Lights
Each light can be turned on by pressing the recessed area
of the lens. To turn these lights off, press the recessed area
of the lens a second time. There are also reading lights
located above the rear doors. Each light can be turned on
by pressing the front recessed area of the lens. To turn
these lights off, press the recessed area of the lens a
second time.
Courtesy/Reading Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

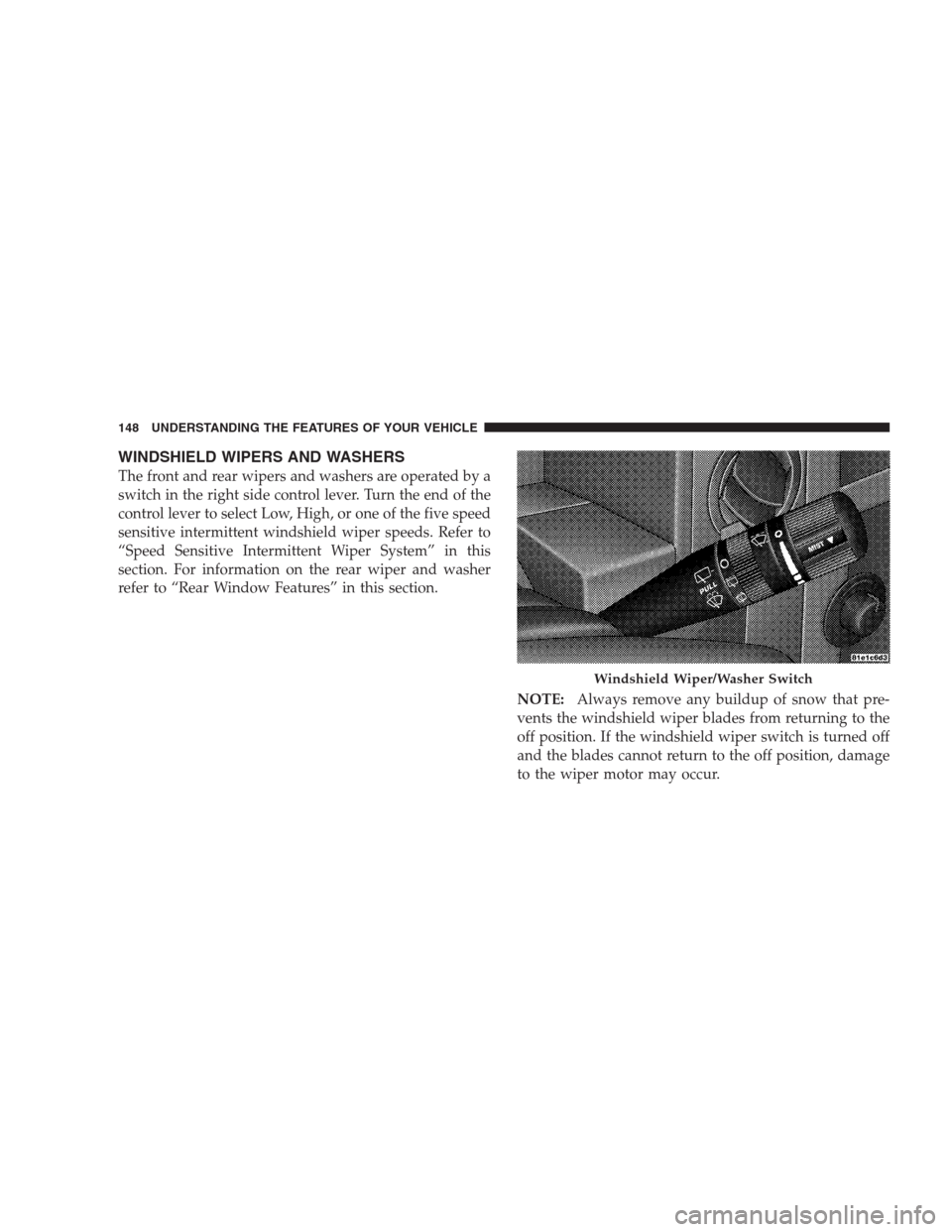

WINDSHIELD WIPERS AND WASHERS
The front and rear wipers and washers are operated by a
switch in the right side control lever. Turn the end of the
control lever to select Low, High, or one of the five speed
sensitive intermittent windshield wiper speeds. Refer to
“Speed Sensitive Intermittent Wiper System” in this
section. For information on the rear wiper and washer
refer to “Rear Window Features” in this section.
NOTE:Always remove any buildup of snow that pre-
vents the windshield wiper blades from returning to the
off position. If the windshield wiper switch is turned off
and the blades cannot return to the off position, damage
to the wiper motor may occur.
Windshield Wiper/Washer Switch
