JEEP COMMANDER 2009 1.G Owners Manual

WARNING!
Do not drive the vehicle with the outer second row
seats in the tumbled position. The outer second row
seats are only intended to be tumbled for entry and
exit to the third row seat. Failure to follow these
instructions could result in personal injury.

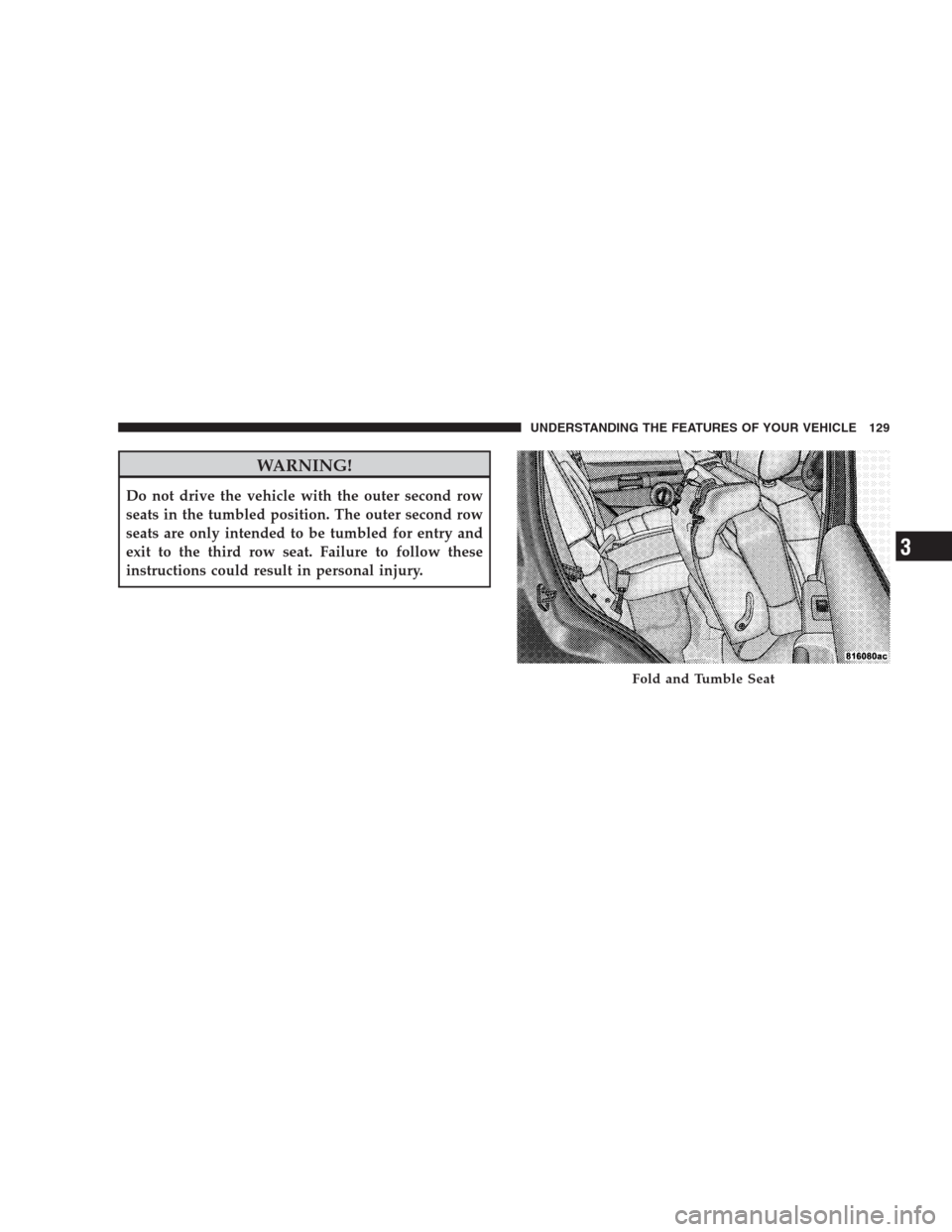

Fold and Tumble Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

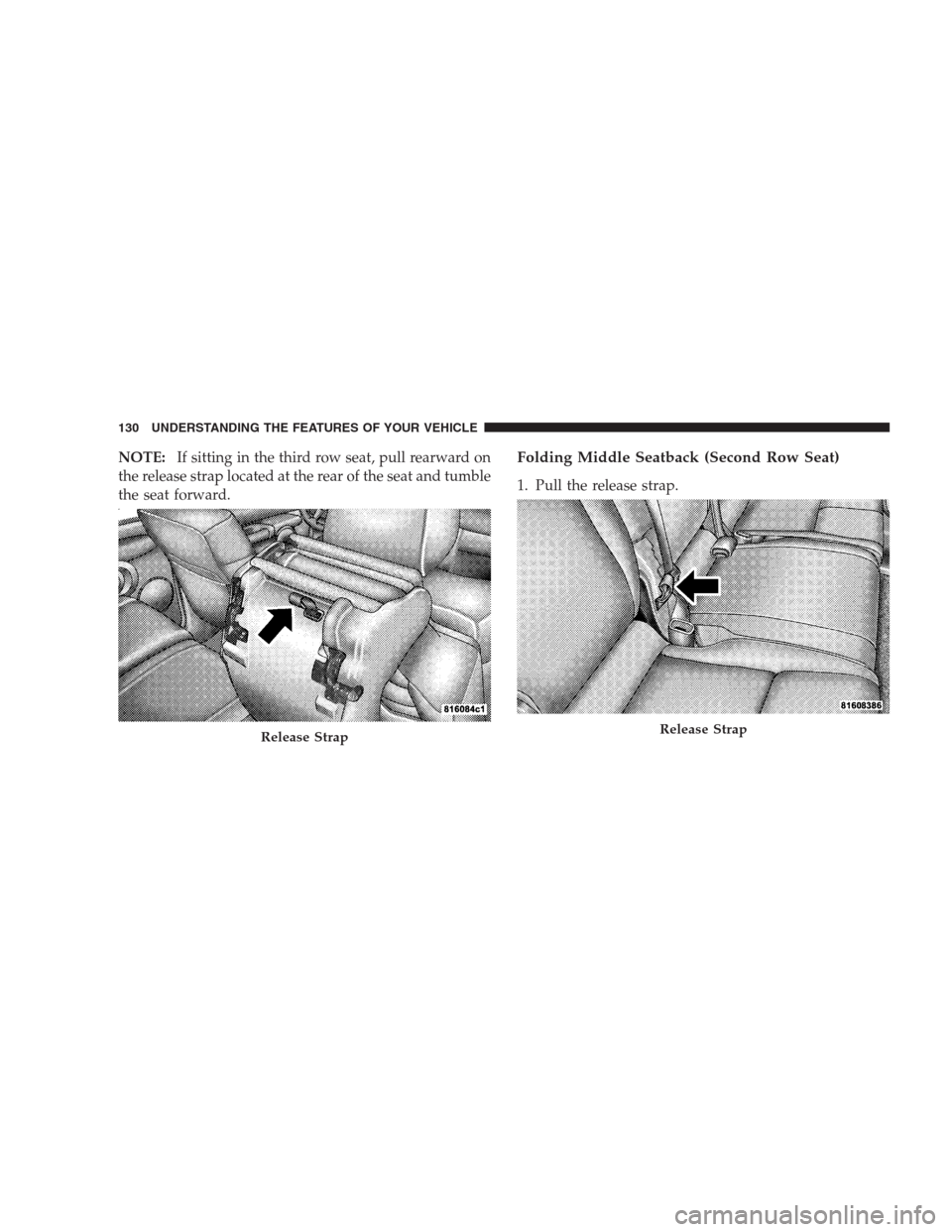

NOTE:If sitting in the third row seat, pull rearward on
the release strap located at the rear of the seat and tumble
the seat forward.Folding Middle Seatback (Second Row Seat)
1. Pull the release strap.
Release StrapRelease Strap
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

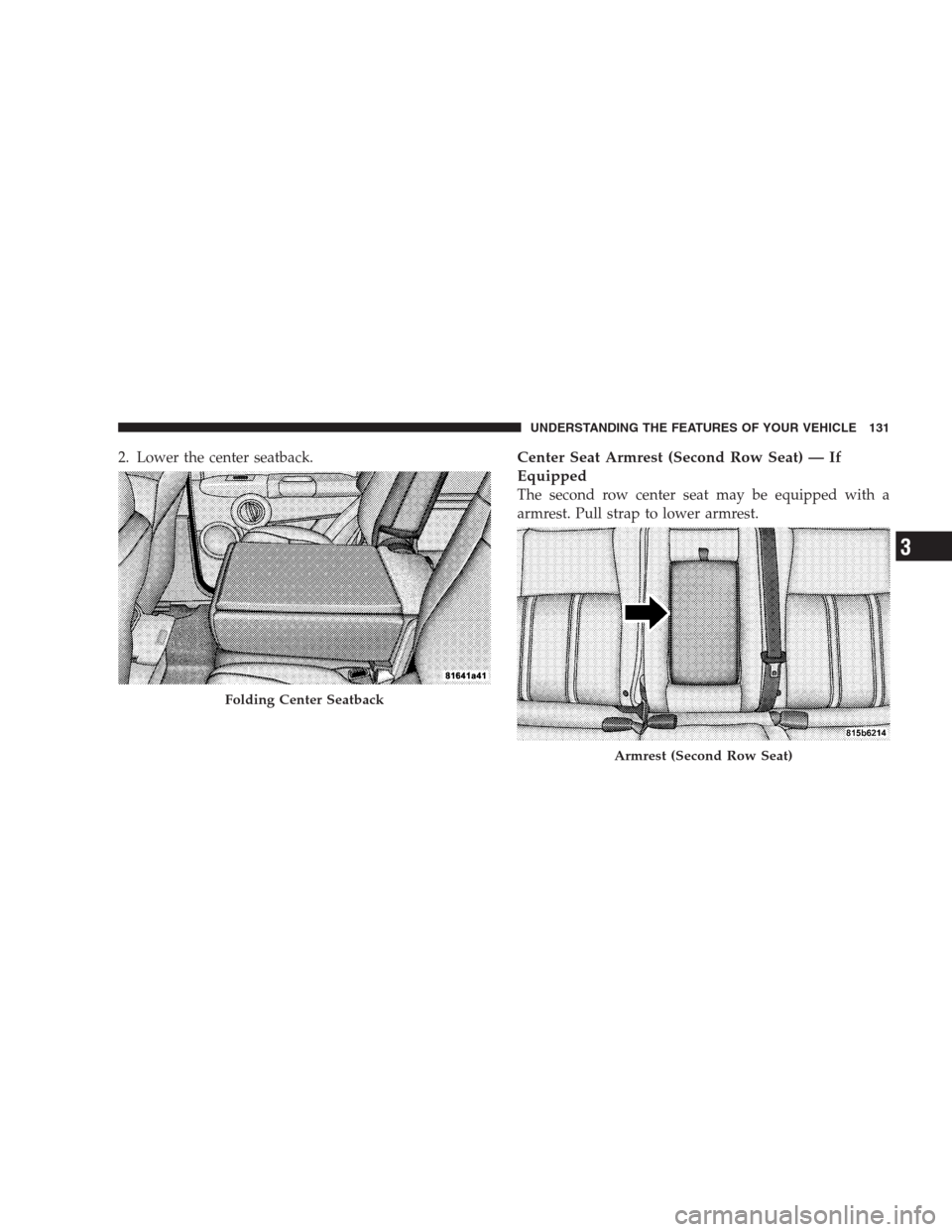

2. Lower the center seatback.Center Seat Armrest (Second Row Seat) — If
Equipped
The second row center seat may be equipped with a
armrest. Pull strap to lower armrest.
Folding Center Seatback
Armrest (Second Row Seat)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

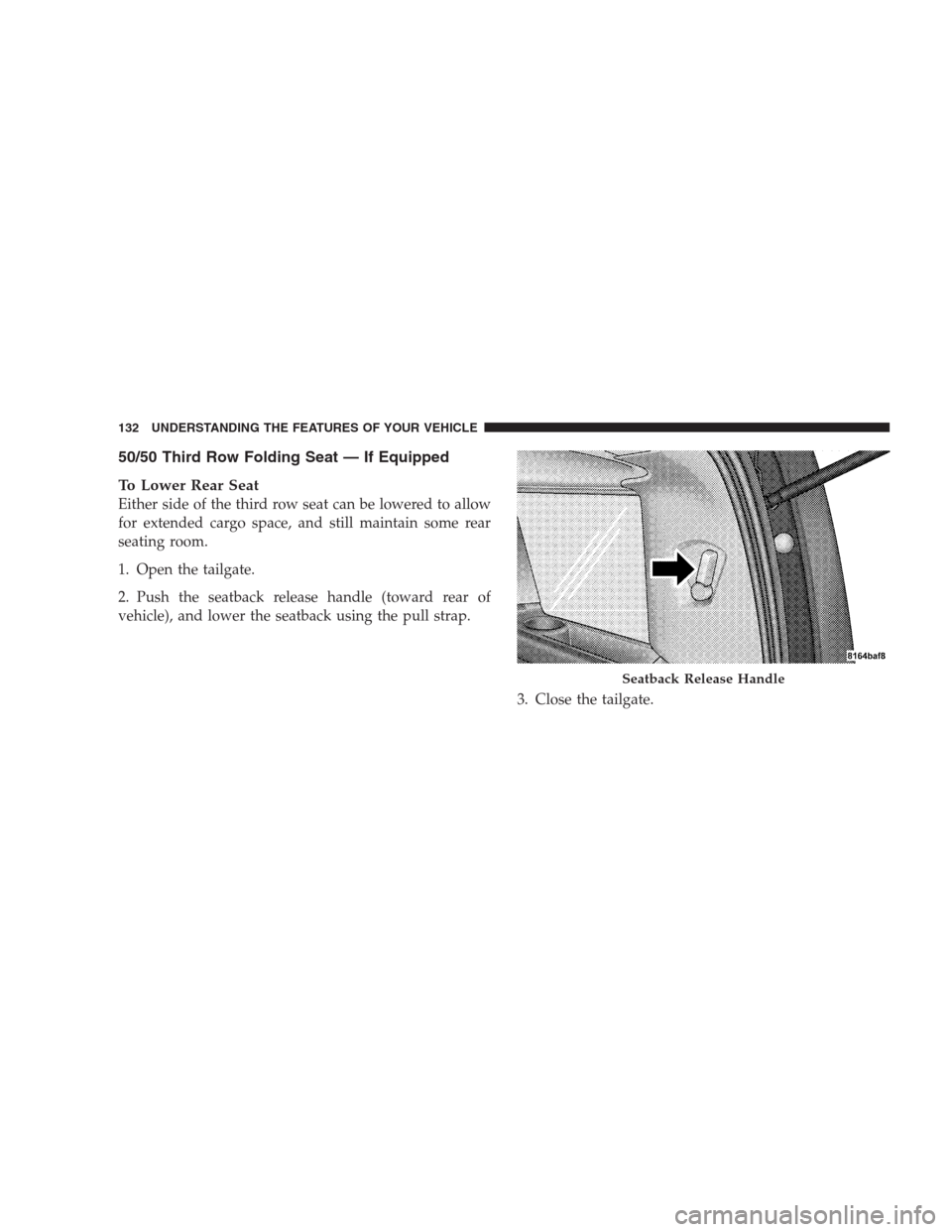

50/50 Third Row Folding Seat — If Equipped
To Lower Rear Seat
Either side of the third row seat can be lowered to allow
for extended cargo space, and still maintain some rear
seating room.
1. Open the tailgate.
2. Push the seatback release handle (toward rear of
vehicle), and lower the seatback using the pull strap.
3. Close the tailgate.
Seatback Release Handle
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

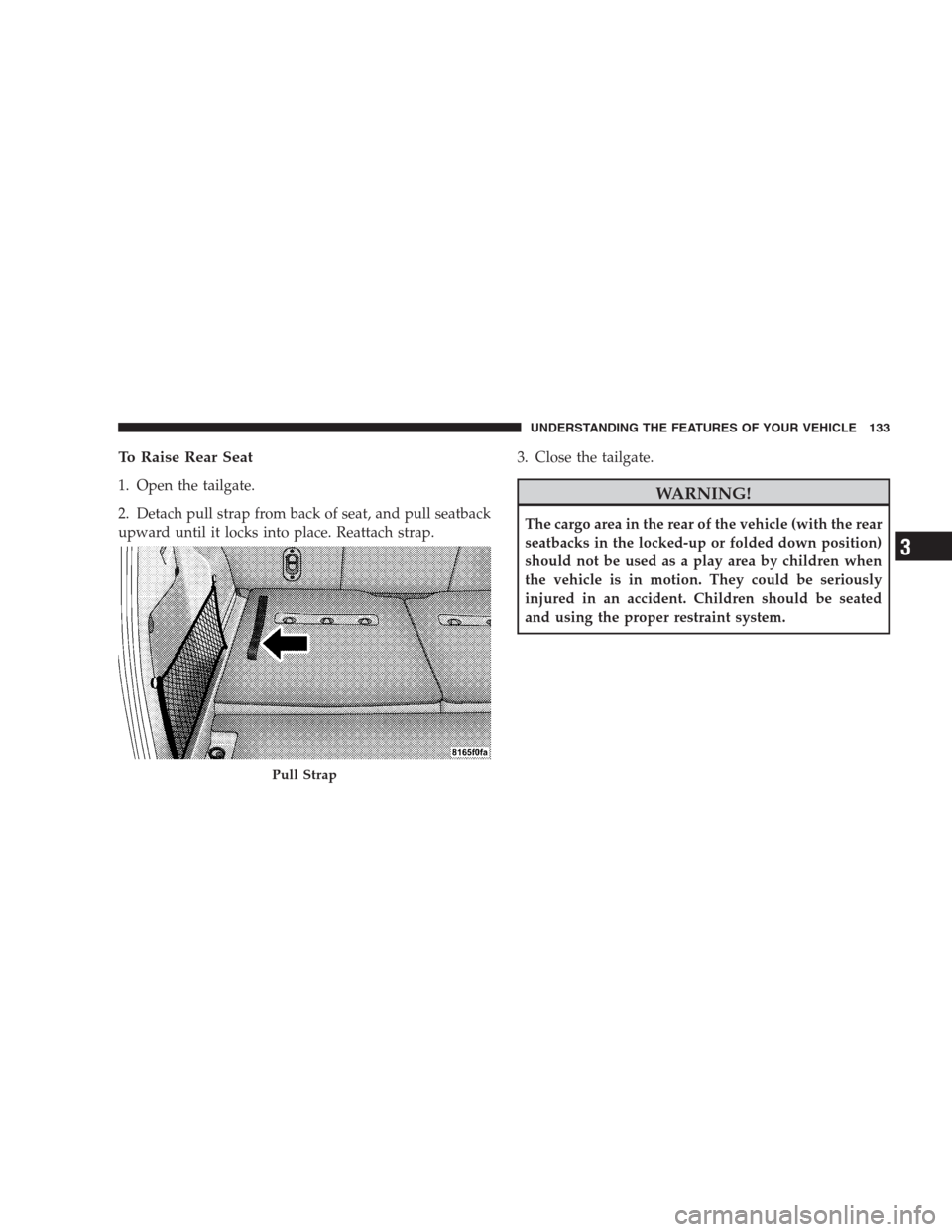

To Raise Rear Seat
1. Open the tailgate.
2. Detach pull strap from back of seat, and pull seatback
upward until it locks into place. Reattach strap.3. Close the tailgate.WARNING!
The cargo area in the rear of the vehicle (with the rear
seatbacks in the locked-up or folded down position)
should not be used as a play area by children when
the vehicle is in motion. They could be seriously
injured in an accident. Children should be seated
and using the proper restraint system.
Pull Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

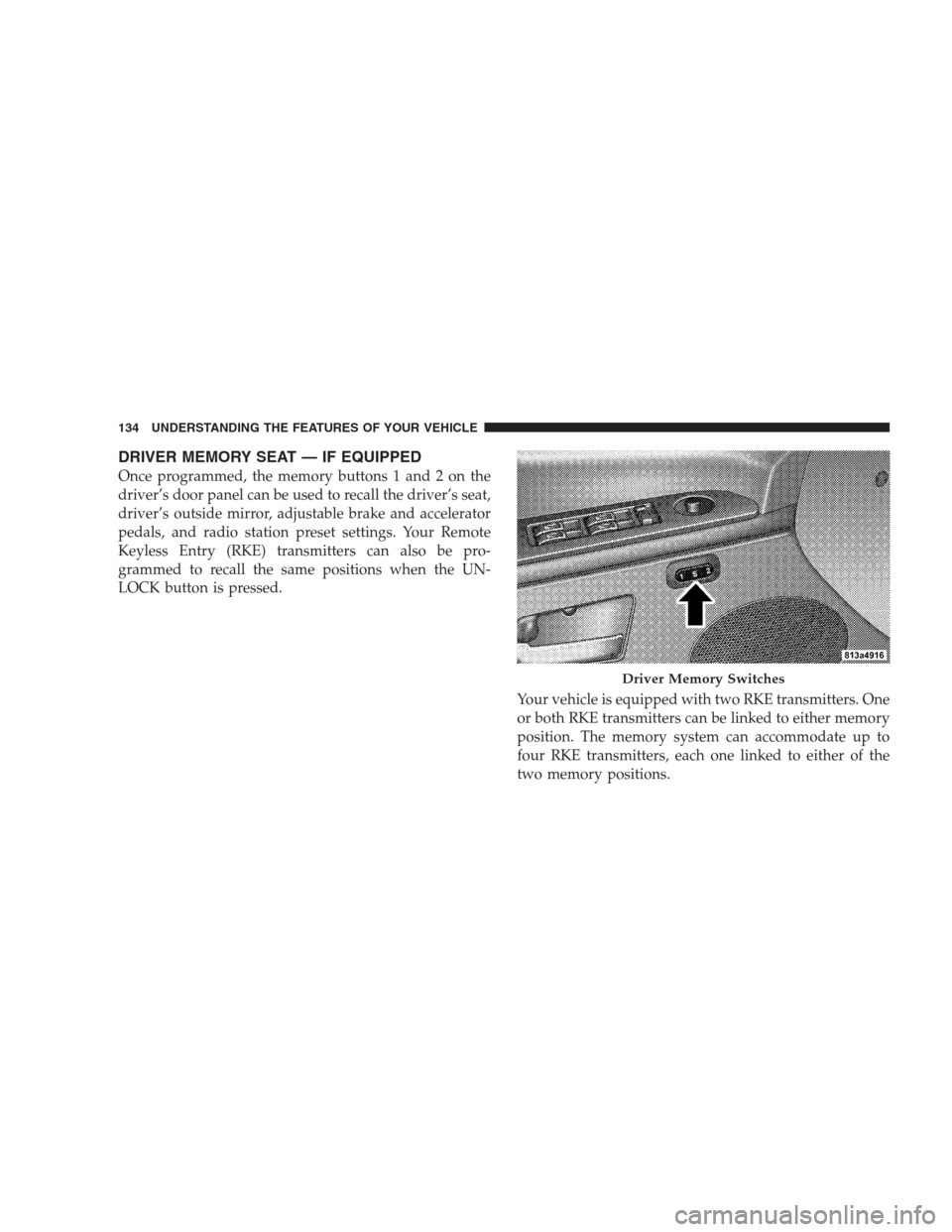

DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and accelerator
pedals, and radio station preset settings. Your Remote
Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
Your vehicle is equipped with two RKE transmitters. One
or both RKE transmitters can be linked to either memory
position. The memory system can accommodate up to
four RKE transmitters, each one linked to either of the
two memory positions.
Driver Memory Switches
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

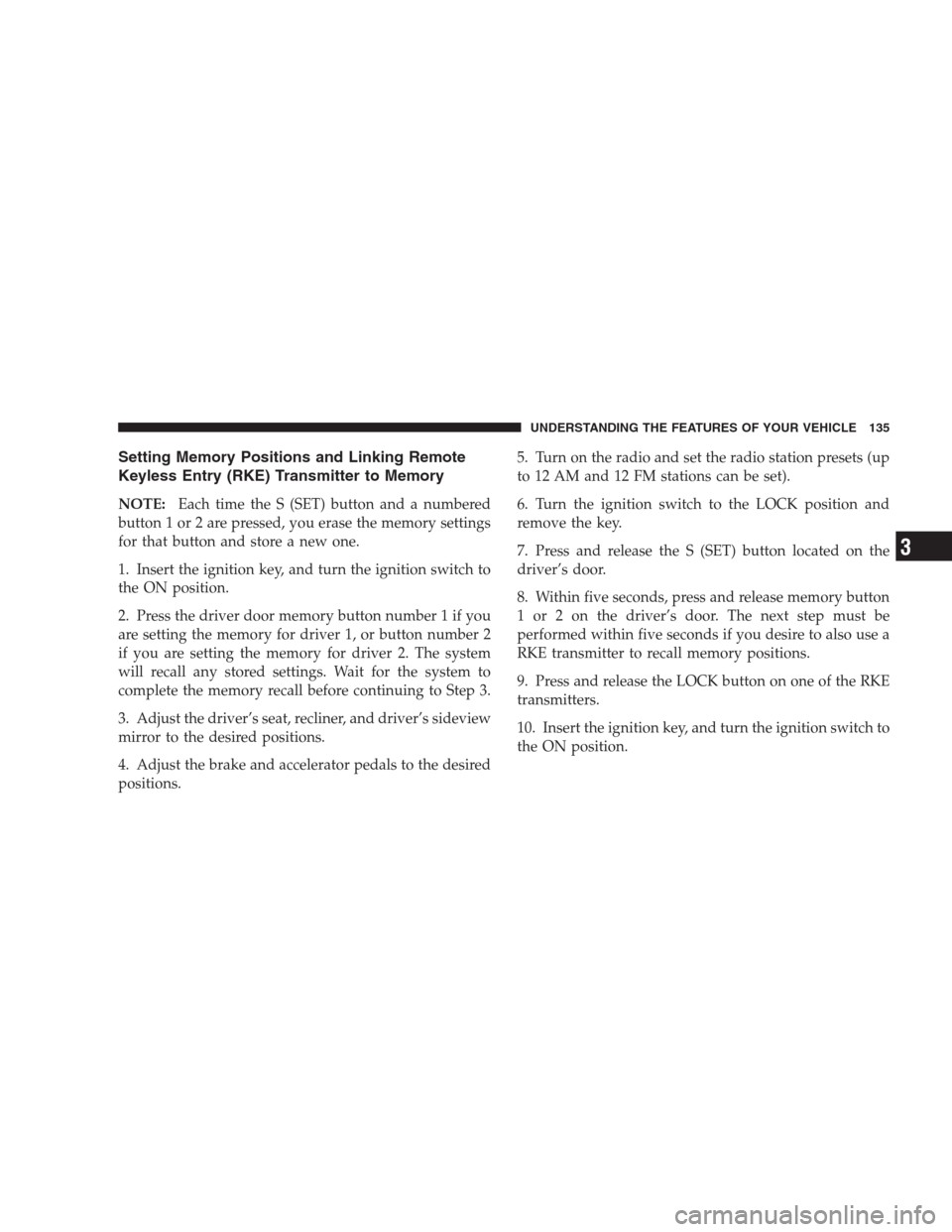

Setting Memory Positions and Linking Remote
Keyless Entry (RKE) Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button 1 or 2 are pressed, you erase the memory settings
for that button and store a new one.
1. Insert the ignition key, and turn the ignition switch to
the ON position.
2. Press the driver door memory button number 1 if you
are setting the memory for driver 1, or button number 2
if you are setting the memory for driver 2. The system
will recall any stored settings. Wait for the system to
complete the memory recall before continuing to Step 3.
3. Adjust the driver’s seat, recliner, and driver’s sideview
mirror to the desired positions.
4. Adjust the brake and accelerator pedals to the desired
positions.5. Turn on the radio and set the radio station presets (up
to 12 AM and 12 FM stations can be set).
6. Turn the ignition switch to the LOCK position and
remove the key.
7. Press and release the S (SET) button located on the
driver’s door.
8. Within five seconds, press and release memory button
1 or 2 on the driver’s door. The next step must be
performed within five seconds if you desire to also use a
RKE transmitter to recall memory positions.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Insert the ignition key, and turn the ignition switch to
the ON position.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

11. SelectRemote Linked to Memoryin the Electronic
Vehicle Information Center (EVIC) and enterYe s. Refer
to “Electronic Vehicle Information Center (EVIC) —
Customer-Programmable Features” in Section 4 for more
information.
12. Repeat the above steps to set the next memory
position, using the other numbered memory button, or to
link another RKE transmitter to memory.
Memory Position Recall
NOTE:The vehicle must be in PARK to recall memory
positions. If a recall is attempted when the vehicle is not
in PARK, a message will be displayed in the Electronic
Vehicle Information Center (EVIC).To recall the memory settings for driver one, press
memory button number 1 on the driver’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 2.
A recall can be cancelled by pressing any of the memory
buttons on the drivers door during a recall (S, 1, or 2).
When a recall is cancelled, the driver’s seat, driver’s
mirror, and the pedals stop moving. A delay of one
second will occur before another recall can be selected.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

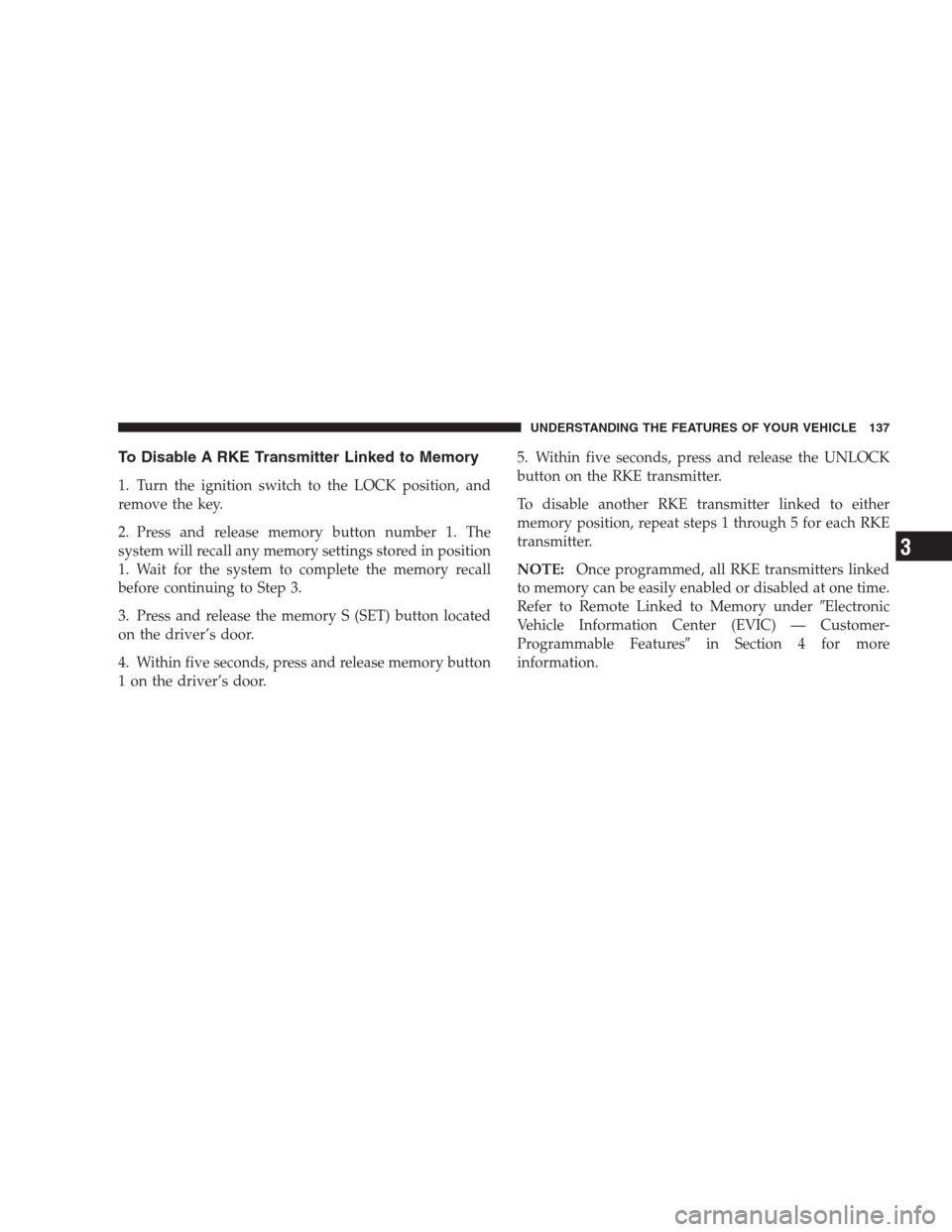

To Disable A RKE Transmitter Linked to Memory
1. Turn the ignition switch to the LOCK position, and
remove the key.
2. Press and release memory button number 1. The
system will recall any memory settings stored in position
1. Wait for the system to complete the memory recall
before continuing to Step 3.
3. Press and release the memory S (SET) button located
on the driver’s door.
4. Within five seconds, press and release memory button
1 on the driver’s door.5. Within five seconds, press and release the UNLOCK
button on the RKE transmitter.
To disable another RKE transmitter linked to either
memory position, repeat steps 1 through 5 for each RKE
transmitter.
NOTE:Once programmed, all RKE transmitters linked
to memory can be easily enabled or disabled at one time.
Refer to Remote Linked to Memory underElectronic
Vehicle Information Center (EVIC) — Customer-
Programmable Featuresin Section 4 for more
information.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

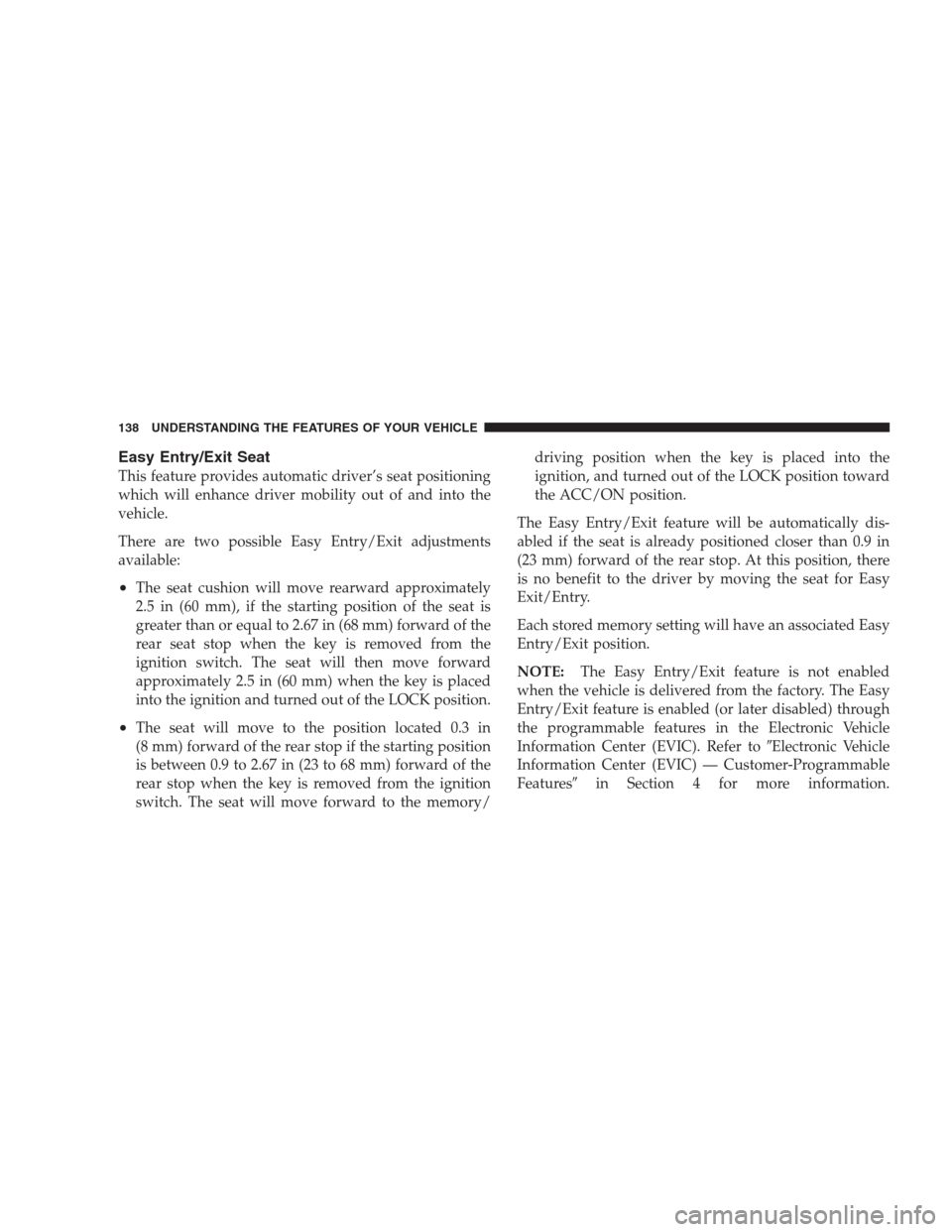

Easy Entry/Exit Seat
This feature provides automatic driver’s seat positioning
which will enhance driver mobility out of and into the
vehicle.
There are two possible Easy Entry/Exit adjustments
available:
•The seat cushion will move rearward approximately
2.5 in (60 mm), if the starting position of the seat is
greater than or equal to 2.67 in (68 mm) forward of the
rear seat stop when the key is removed from the
ignition switch. The seat will then move forward
approximately 2.5 in (60 mm) when the key is placed
into the ignition and turned out of the LOCK position.
•The seat will move to the position located 0.3 in
(8 mm) forward of the rear stop if the starting position
is between 0.9 to 2.67 in (23 to 68 mm) forward of the
rear stop when the key is removed from the ignition
switch. The seat will move forward to the memory/driving position when the key is placed into the
ignition, and turned out of the LOCK position toward
the ACC/ON position.
The Easy Entry/Exit feature will be automatically dis-
abled if the seat is already positioned closer than 0.9 in
(23 mm) forward of the rear stop. At this position, there
is no benefit to the driver by moving the seat for Easy
Exit/Entry.
Each stored memory setting will have an associated Easy
Entry/Exit position.
NOTE:The Easy Entry/Exit feature is not enabled
when the vehicle is delivered from the factory. The Easy
Entry/Exit feature is enabled (or later disabled) through
the programmable features in the Electronic Vehicle
Information Center (EVIC). Refer toElectronic Vehicle
Information Center (EVIC) — Customer-Programmable
Featuresin Section 4 for more information.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
