EVENT DATA RECORDER (EDR)
• This vehicle is equipped with an event data recorder (EDR). The main
purpose of an EDR is to record, in certain crash or near crash-like
situations, such as an air bag deployment or hitting a road obstacle, data
that will assist in understanding how a vehicle’s systems performed. The
EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less. The EDR
in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or
brake pedal; and,
• How fast the vehicle was traveling.
• These data can help provide a better understanding of the circumstances
in which crashes and injuries occur.
NOTE:EDR data are recorded by your vehicle only if a non-trivial crash
situation occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g. name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could
combine the EDR data with the type of personally identifying data routinely
acquired during a crash investigation.
• To read data recorded by an EDR, special equipment is required, and
access to the vehicle or the EDR is needed. In addition to the vehicle
manufacturer, other parties such as law enforcement, that have the
special equipment, can read the information if they have access to the
vehicle or the EDR.
WHAT TO DO IN EMERGENCIES
79

OPENING THE HOOD
• Pull the release lever located
below the instrument panel and in
front of the driver’s door.
• Raise the hood and locate the
safety latch, in the middle of the
hood opening.
• Move the safety latch while lifting
the hood at the same time.
• Insert the support rod into the slot
on the hood.
• To close the hood, remove the
support rod and place it in the
retaining clip, then lower the hood
slowly.
WARNING!
Be sure the hood is fully latched before driving your vehicle. If the
hood is not fully latched, it could open when the vehicle is in motion
and block your vision. Failure to follow this warning could result in
serious injury or death.
MAINTAINING YOUR VEHICLE
80

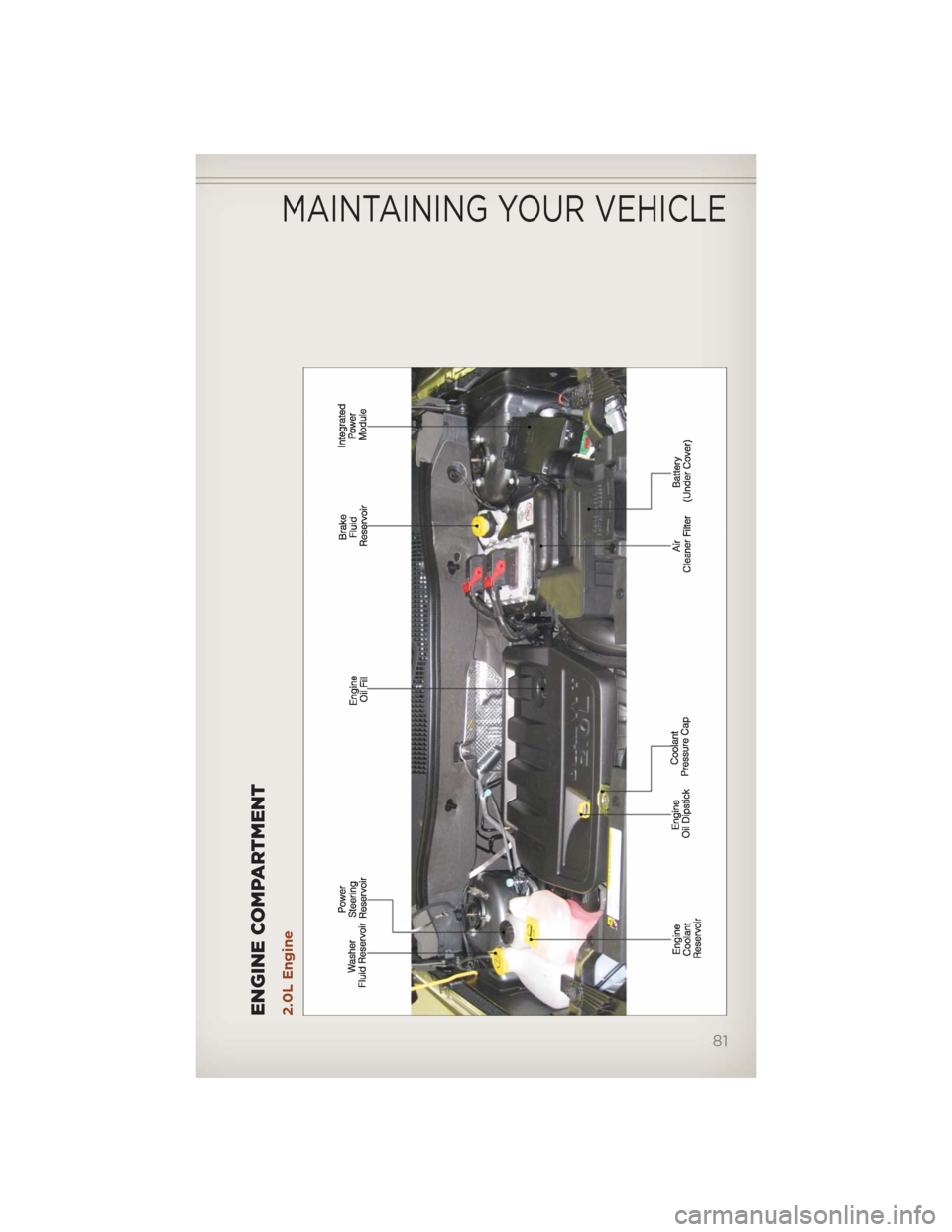

ENGINE COMPARTMENT2.0L Engine
MAINTAINING YOUR VEHICLE
81

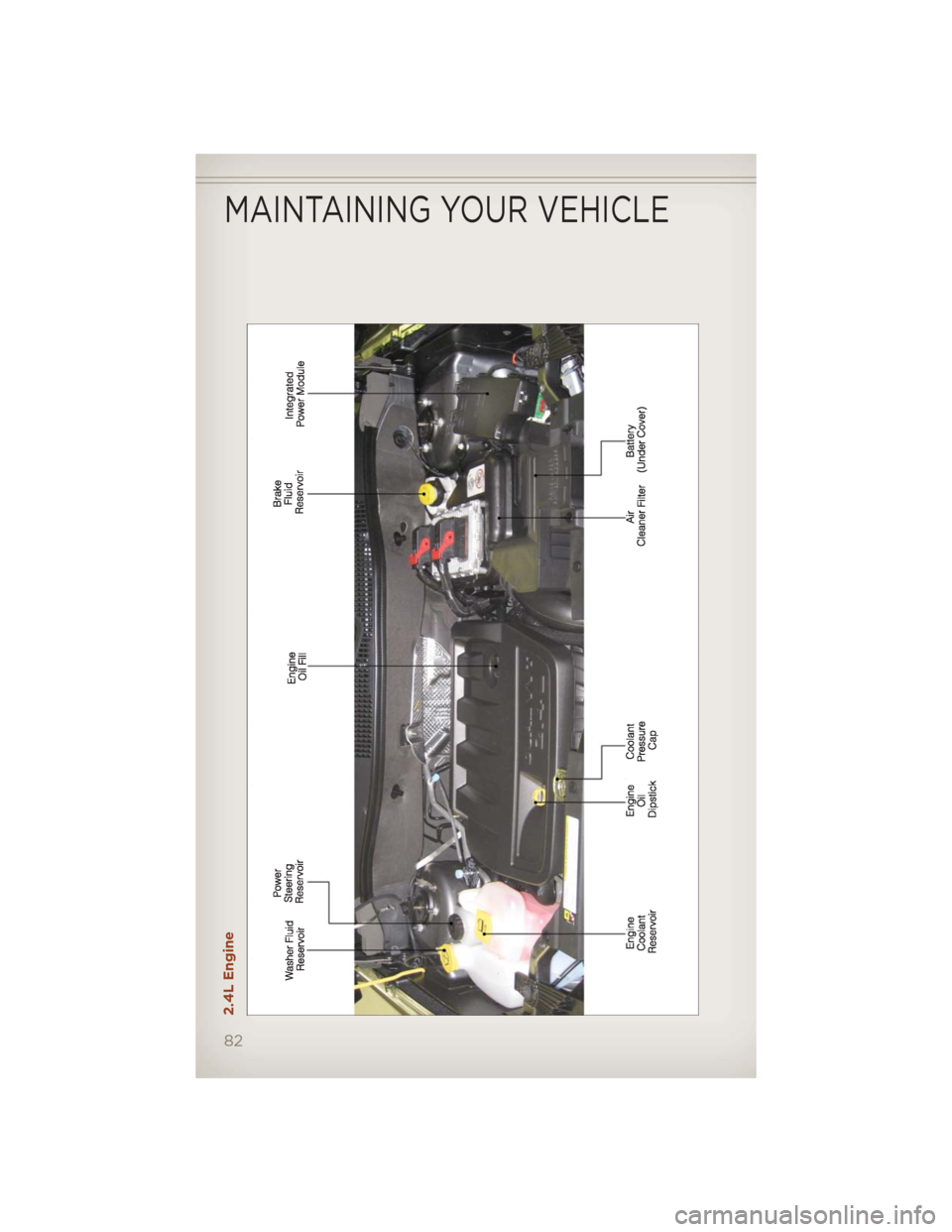

2.4L Engine
MAINTAINING YOUR VEHICLE
82

FLUIDS AND CAPACITIES
ComponentFluid, Lubricant, or Genuine PartCapacities
Engine Coolant
2.0L, 2.4LMOPAR® Antifreeze/Coolant
Five Year/100,000 Mile Formula
HOAT (Hybrid Organic Additive
Technology) or equivalent.7.2 Quarts
(6.8 Liters) Includes
heater and coolant
recovery bottle
filled to MAX level.
Engine Oil with
Filter 2.0L, 2.4LAPI Certified SAE 5W-20 engine
oil, meeting the requirements of
Chrysler Material Standard
MS-6395. Refer to the engine oil
filler cap for correct SAE grade.4.5 Quarts
(4.26 Liters)
Fuel Selection 2.0L,
2.4L87 Octane 13.6 Gallons
(51.5 Liters)
(Approximate)
Engine Oil Filter
2.0L, 2.4LMOPAR® Engine Oil Filter or
equivalent.—
Spark Plugs 2.0L,
2.4LZFR5F-11 (Gap 0.043 in
[1.11 mm])—
Automatic
Transmission (CVT)MOPAR® CVTF + 4®
Continuously Variable
Transmission Fluid.—
Manual
TransmissionMOPAR® ATF+4® Automatic
Transmission Fluid or equivalent
licensed ATF+4® product.—
Rear Drive
Assembly (RDA)MOPAR® Gear & Axle Lubricant
SAE 80W-90 API GL 5 or
equivalent non-synthetic
product.—
Power Transfer Unit
(PTU)MOPAR® Gear & Axle Lubricant
SAE 80W-90 API GL 5 or
equivalent non-synthetic
product.—
Brake Master
CylinderMOPAR® DOT 3 and SAE J1703
should be used or equivalent. If
DOT 3 is not available, then DOT
4 is acceptable. Use only
recommended brake fluids or
equivalent.—
Power Steering
ReservoirMOPAR® Power Steering Fluid
+4 or MOPAR® ATF+4®
Automatic Transmission Fluid or
equivalent licensed ATF+4®
product.—
MAINTAINING YOUR VEHICLE
83

MAINTENANCE CHART
Miles:
8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000
104,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000
169,000
Change the engine oil and engine oil filter.XXXXXXXXXXXXX
Rotate the tires, rotate at the first sign of ir-
regular wear, even if it occurs before scheduled
maintenance.XXXXXXXXXXXXX
If using your vehicle for any of the following:
dusty or off-road conditions. Inspect the en-
gine air cleaner filter; replace if necessary.XXX
Inspect the brake linings; replace if necessary. X XXXXX
Replace the air conditioning filter. X XXXXX
InspecttheCVjoints. XXXX
Inspectexhaustsystem. XXXXX
Inspect the front suspension, tie rod ends and
boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play;
replace if necessary.XXXXXX
Replace the engine air cleaner filter. X X X
Replace the air conditioning filter X X X X X X
Adjust the parking brake on vehicles equipped
with four-wheel disc brakes.XXX
Change the manual transmission fluid if using
your vehicle for any of the following: trailer
towing, snow plowing, heavy loading, taxi, po-
lice, delivery service (commercial service), off
road, desert operation or more than 50% of
your driving is at sustained speeds during hot
weather, above 90°F (32°C).XX
Replace the spark plugs. X X X
MAINTAINING YOUR VEHICLE
84

Miles:
8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000
104,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000
169,000
Change the automatic transmission fluid & fil-
ter if using your vehicle for any of the follow-
ing: police, taxi, fleet, or frequent trailer tow-
ing.X
Replace rear drive assembly (RDA) fluid. X
Replace power transfer unit (PTU) fluid. X
Inspect and replace PCV valve if necessary.X
Flush and replace the engine coolant at
60 months or 104,000 miles (169,000 km)
whichever comes first.X
Flush and replace the engine coolant at
104,000 miles (169,000 km) or 60 months
whichever comes first.X• Refer to the Owner's Manual on the DVD for the complete maintenance schedule.
MAINTAINING YOUR VEHICLE
85

Maintenance Record
Odometer Date Signature, Authorized Service Center
8,000 Miles
(13,000 km) or
6 Months
16,000 Miles
(26,000 km) or
12 Months
24,000 Miles
(39,000 km) or
18 Months
32,000 Miles
(52,000 km) or
24 Months
40,000 Miles
(65,000 km) or
30 Months
48,000 Miles
(78,000 km) or
36 Months
56,000 Miles
(91,000 km) or
42 Months
64,000 Miles
(104,000 km) or
48 Months
72,000 Miles
(117,000 km) or
54 Months
80,000 Miles
(130,000 km) or
60 Months
88,000 Miles
(143,000 km) or
66 Months
96,000 Miles
(156,000 km) or
72 Months
104,000 Miles
(169,000 km) or
78 Months
MAINTAINING YOUR VEHICLE
86

FUSES
Integrated Power Module (fuses)
• The Integrated Power Module (fuses) is located in the engine
compartment near the air cleaner assembly. This center contains
cartridge fuses and mini-fuses.
CavityCartridge
FuseMini-Fuse Description
1 Empty Empty
2 15 Amp Lt
BlueAWD/4WD ECU Feed
3 10 Amp Red CHMSL Brake Switch Feed
4 10 Amp Red Ignition Switch Feed/OCM
5 20 Amp
YellowTrailer Tow
6 10 Amp Red IOD Sw/Pwr Mir/Steering Cntrl
Sdar/Hands-Free Phone
7 30 Amp
GreenIOD Sense1
8 30 Amp
GreenIOD Sense2
9 40 Amp
GreenPower Seats
10 20 Amp
YellowCCN Power Locks/Interior
Lighting
11 15 Amp Lt
BluePower Outlet
12 20 Amp
YellowIgn Run/Acc Inverter
13 20 Amp
YellowPwr Run/Acc Outlet RR/Dome
Lamp/Cigar Lighter
14 10 Amp Red IOD CCN
MAINTAINING YOUR VEHICLE
87

CavityCartridge
FuseMini-Fuse Description
15 40 Amp
GreenRAD Fan Relay Battery Feed
16 15 Amp Lt
BlueIGN Run/ACC Dome
Lamp/Sunroof/Rear Wiper
Motor/ACC Inverter
17 10 Amp Red IOD Feed Mod-Wcm
18 40 Amp
GreenASD Relay Contact PWR Feed
19 20 Amp
YellowPWR Amp 1 & Amp 2 Feed
20 15 Amp Lt
BlueIOD Feed Radio
21 10 Amp Red IOD Feed Intrus Mod/Siren (If
Equipped)
22 10 Amp Red IGN RUN Heat/AC/Compass
Sensor
23 15 Amp Lt
BlueENG ASD Relay Feed 3
24 15 Amp Lt
BluePower Sunroof Feed
25 10 Amp Red Heated Mirror (If Equipped)
26 15 Amp Lt
BlueENG ASD Relay Feed 2
27 10 Amp Red IGN RUN Only ORC Feed
28 10 Amp Red IGN RUN ORC/OCM Feed
29 Hot Car (No Fuse Required)
30 20 Amp
YellowHeated Seat (If Equipped)
31 10 Amp Red Headlamp Washer Relay
Control (If Equipped)
32 30 Amp Pink ENG ASD Control Feed 1
33 10 Amp Red ABS MOD/J1962 Conn/PCM
34 30 Amp Pink ABS Valve Feed
35 40 Amp
GreenABS Pump Feed
36 30 Amp Pink Headlamp/Washer
Control/Smart Glass (If
Equipped)
37 25 Amp
NaturalDiesel Fuel Heater (If
Equipped)
