STARTING AND OPERATING

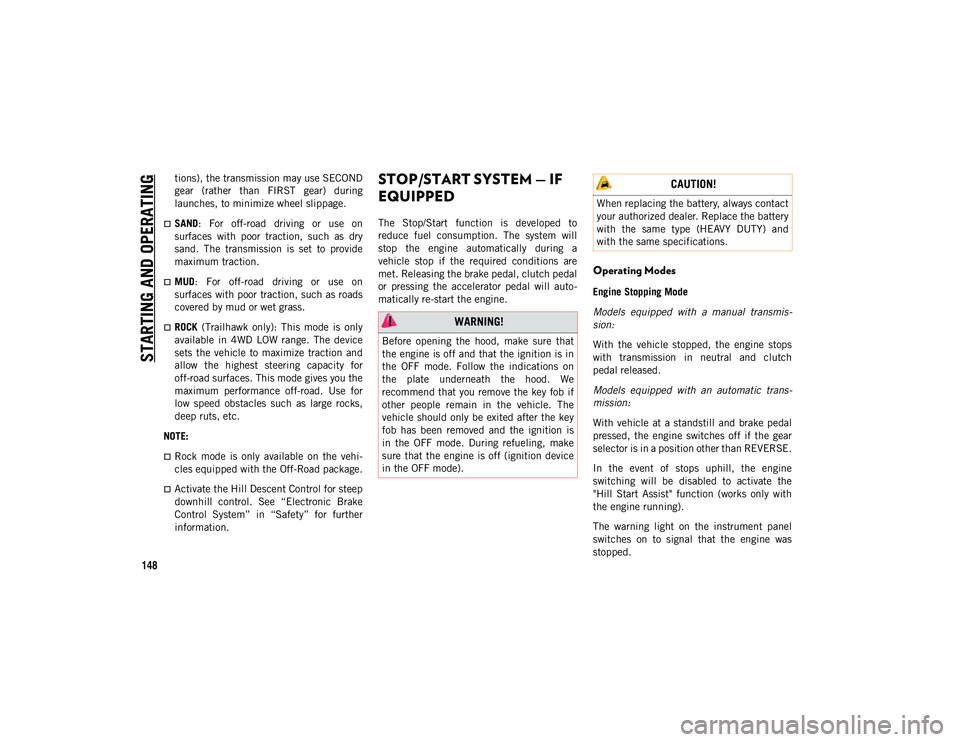

148
tions), the transmission may use SECOND
gear (rather than FIRST gear) during
launches, to minimize wheel slippage.
SAND: For off-road driving or use on
surfaces with poor traction, such as dry
sand. The transmission is set to provide
maximum traction.
MUD: For off-road driving or use on
surfaces with poor traction, such as roads
covered by mud or wet grass.
ROCK (Trailhawk only): This mode is only
available in 4WD LOW range. The device
sets the vehicle to maximize traction and
allow the highest steering capacity for
off-road surfaces. This mode gives you the
maximum performance off-road. Use for
low speed obstacles such as large rocks,
deep ruts, etc.
NOTE:
Rock mode is only available on the vehi -
cles equipped with the Off-Road package.
Activate the Hill Descent Control for steep
downhill control. See “Electronic Brake
Control System” in “Safety” for further
information.
STOP/START SYSTEM — IF
EQUIPPED
The Stop/Start function is developed to
reduce fuel consumption. The system will
stop the engine automatically during a
vehicle stop if the required conditions are
met. Releasing the brake pedal, clutch pedal
or pressing the accelerator pedal will auto -
matically re-start the engine.
Operating Modes
Engine Stopping Mode
Models equipped with a manual transmis -
sion:
With the vehicle stopped, the engine stops
with transmission in neutral and clutch
pedal released.
Models equipped with an automatic trans -
mission:
With vehicle at a standstill and brake pedal
pressed, the engine switches off if the gear
selector is in a position other than REVERSE.
In the event of stops uphill, the engine
switching will be disabled to activate the
"Hill Start Assist" function (works only with
the engine running).
The warning light on the instrument panel
switches on to signal that the engine was
stopped.
WARNING!
Before opening the hood, make sure that
the engine is off and that the ignition is in
the OFF mode. Follow the indications on
the plate underneath the hood. We
recommend that you remove the key fob if
other people remain in the vehicle. The
vehicle should only be exited after the key
fob has been removed and the ignition is
in the OFF mode. During refueling, make
sure that the engine is off (ignition device
in the OFF mode).
CAUTION!
When replacing the battery, always contact
your authorized dealer. Replace the battery
with the same type (HEAVY DUTY) and
with the same specifications.
2020_JEEP_M6_UG_UK.book Page 148

STARTING AND OPERATING

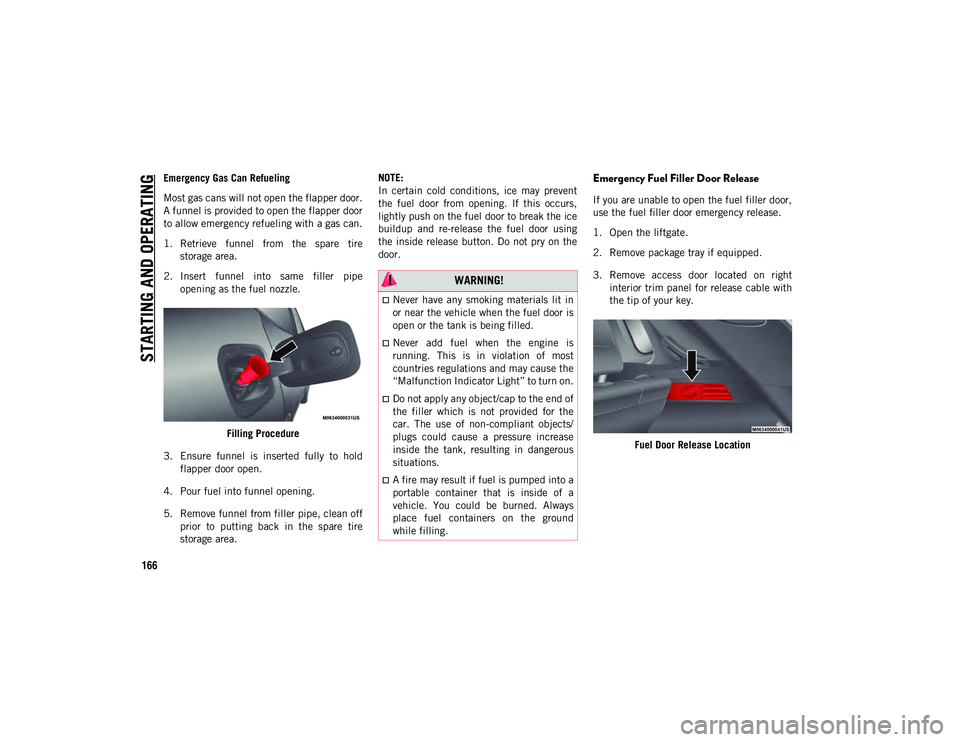

166
Emergency Gas Can Refueling
Most gas cans will not open the flapper door.
A funnel is provided to open the flapper door
to allow emergency refueling with a gas can.
1. Retrieve funnel from the spare tirestorage area.
2. Insert funnel into same filler pipe opening as the fuel nozzle.
Filling Procedure
3. Ensure funnel is inserted fully to hold flapper door open.
4. Pour fuel into funnel opening.
5. Remove funnel from filler pipe, clean off prior to putting back in the spare tire
storage area. NOTE:
In certain cold conditions, ice may prevent
the fuel door from opening. If this occurs,
lightly push on the fuel door to break the ice
buildup and re-release the fuel door using
the inside release button. Do not pry on the
door.Emergency Fuel Filler Door Release
If you are unable to open the fuel filler door,
use the fuel filler door emergency release.
1. Open the liftgate.
2. Remove package tray if equipped.
3. Remove access door located on right
interior trim panel for release cable with
the tip of your key.
Fuel Door Release Location
WARNING!
Never have any smoking materials lit in
or near the vehicle when the fuel door is
open or the tank is being filled.
Never add fuel when the engine is
running. This is in violation of most
countries regulations and may cause the
“Malfunction Indicator Light” to turn on.
Do not apply any object/cap to the end of
the filler which is not provided for the
car. The use of non-compliant objects/
plugs could cause a pressure increase
inside the tank, resulting in dangerous
situations.
A fire may result if fuel is pumped into a
portable container that is inside of a
vehicle. You could be burned. Always
place fuel containers on the ground
while filling.
2020_JEEP_M6_UG_UK.book Page 166

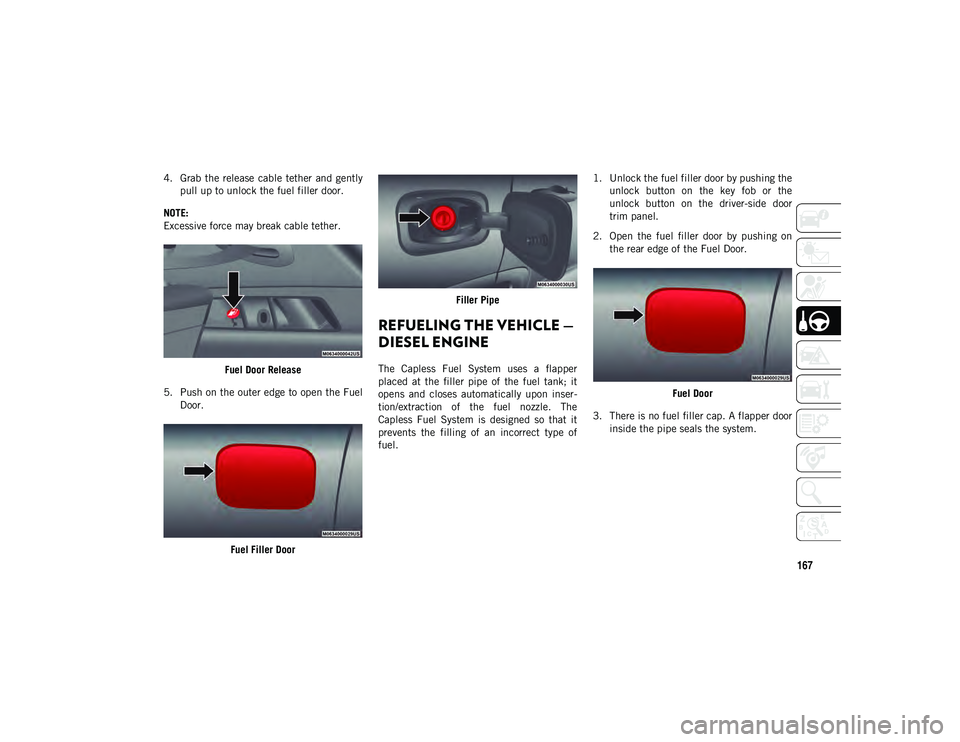

167
4. Grab the release cable tether and gentlypull up to unlock the fuel filler door.
NOTE:
Excessive force may break cable tether.
Fuel Door Release
5. Push on the outer edge to open the Fuel Door.
Fuel Filler Door Filler Pipe
REFUELING THE VEHICLE —
DIESEL ENGINE
The Capless Fuel System uses a flapper
placed at the filler pipe of the fuel tank; it
opens and closes automatically upon inser
-
tion/extraction of the fuel nozzle. The
Capless Fuel System is designed so that it
prevents the filling of an incorrect type of
fuel. 1. Unlock the fuel filler door by pushing the
unlock button on the key fob or the
unlock button on the driver-side door
trim panel.
2. Open the fuel filler door by pushing on the rear edge of the Fuel Door.
Fuel Door
3. There is no fuel filler cap. A flapper door inside the pipe seals the system.
2020_JEEP_M6_UG_UK.book Page 167

319
Exhaust System ......................... 128, 228
Exterior Lighting .................................. 31
Exterior Lights ............................. 31 , 130
F
Filters Air Conditioning ....................... 44 , 228
Engine Oil ..................................... 255
Flashers Hazard Warning ............................. 177Turn Signals ................. 31 , 33 , 69 , 130
Flash-To-Pass ................................ 31 , 32
Fluid Capacities................................. 254
Fluid Leaks ....................................... 130
Fluid Level Checks Brake ............................................ 230
Engine Oil ..................................... 225
Fluid, Brake ...................................... 259
Fluids And Lubricants ........................ 255
Fog Lights ................................31 , 33 , 68
Fog Lights, Rear .................................. 33
Fold-Flat Seats .................................... 24
Folding Rear Seats ............................... 24
Forward Collision Warning .................... 84
Freeing A Stuck Vehicle ..................... 206
Fuel ......................................... 250 , 252
Additives ....................................... 250
Consumption ................................. 260 Ethanol ......................................... 250
Filler Cap (Gas Cap) ....................... 165
Gasoline........................................ 250
Light............................................... 63
Materials Added............................. 250
Methanol....................................... 250
Octane Rating................. 250
, 252 , 255
Specifications................................ 255
Tank Capacity................................ 254
Fueling ............................................. 167
Fuses ............................................... 182
G
Gas Cap (Fuel Filler Cap) ................... 165
Gasoline, (Fuel) ................................. 250
Gear Ranges ..............................137 , 141
Gear Selector Override ....................... 205
Glass Cleaning .................................. 243
Gross Axle Weight Rating ................... 171
Gross Vehicle Weight Rating ............... 171
H
Hazard Warning Flashers .................... 177
Head Restraints .................................. 28
Head Rests ......................................... 28
Headlights .......................................... 31 Automatic ....................................... 32
Delay .............................................. 32 High Beam/Low Beam Select
Switch ................................... 31 , 32
Leveling...........................................34 Lights On Reminder .................... 31 , 33
Passing...................................... 31 , 32
Switch .............................................31 Time Delay................................. 31 , 32
High Beam/Low Beam Select (Dimmer)
Switch ................................................32
Hill Descent Control .............................77
Hill Descent Control Indicator ...............77
Hill Start Assist....................................78
Hood Prop ...........................................49
Hood Release ......................................49
I
Ignition ...............................................14 Switch .............................................14
Instrument Cluster ...............................56 Descriptions .....................................69
Display ............................................55Menu Items .....................................56
Instrument Panel Lens Cleaning ..........243
Interior Appearance Care ....................242
Interior Fuses ....................................186
Introduction ..........................................1
Inverter Power ..............................................53
2020_JEEP_M6_UG_UK.book Page 319

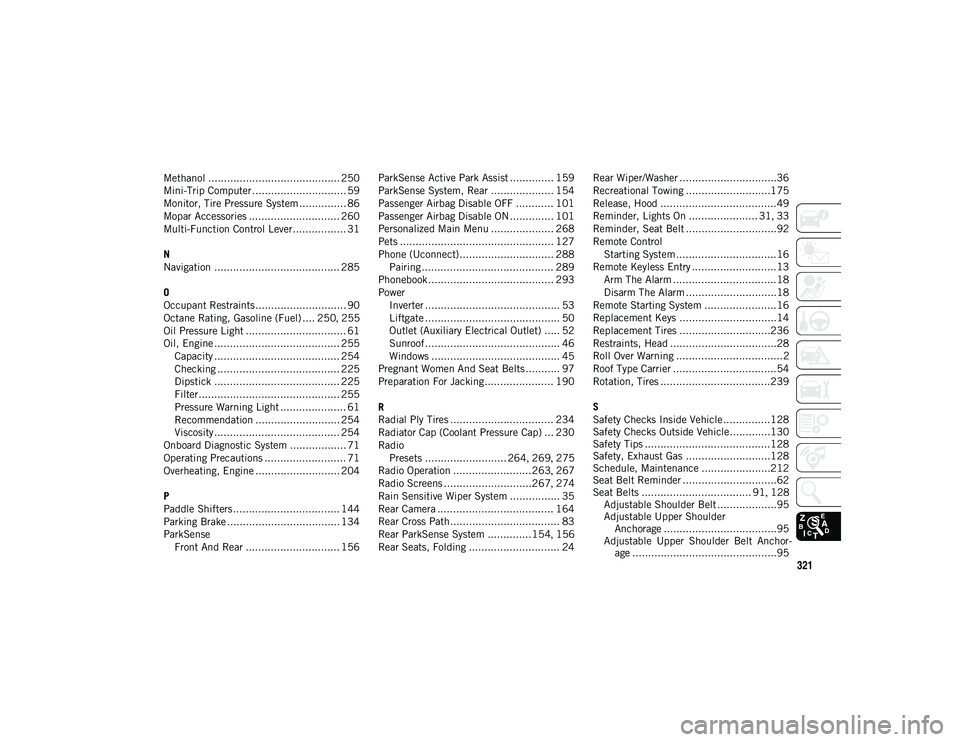

321
Methanol .......................................... 250
Mini-Trip Computer .............................. 59
Monitor, Tire Pressure System ............... 86
Mopar Accessories ............................. 260
Multi-Function Control Lever................. 31
N
Navigation ........................................ 285
O
Occupant Restraints............................. 90
Octane Rating, Gasoline (Fuel) .... 250, 255
Oil Pressure Light ................................ 61
Oil, Engine ........................................ 255 Capacity ........................................ 254
Checking ....................................... 225
Dipstick ........................................ 225
Filter............................................. 255
Pressure Warning Light ..................... 61
Recommendation ........................... 254Viscosity ........................................ 254
Onboard Diagnostic System .................. 71
Operating Precautions .......................... 71
Overheating, Engine ........................... 204
P
Paddle Shifters .................................. 144
Parking Brake .................................... 134
ParkSense Front And Rear .............................. 156 ParkSense Active Park Assist .............. 159
ParkSense System, Rear .................... 154
Passenger Airbag Disable OFF ............ 101
Passenger Airbag Disable ON.............. 101
Personalized Main Menu .................... 268
Pets ................................................. 127
Phone (Uconnect).............................. 288
Pairing .......................................... 289
Phonebook ........................................ 293
Power Inverter ........................................... 53
Liftgate ........................................... 50
Outlet (Auxiliary Electrical Outlet) ..... 52
Sunroof........................................... 46
Windows ......................................... 45
Pregnant Women And Seat Belts........... 97
Preparation For Jacking...................... 190
R
Radial Ply Tires ................................. 234
Radiator Cap (Coolant Pressure Cap) ... 230
Radio Presets .......................... 264 , 269 , 275
Radio Operation .........................263 , 267
Radio Screens ............................267 , 274
Rain Sensitive Wiper System ................ 35
Rear Camera ..................................... 164
Rear Cross Path................................... 83
Rear ParkSense System ..............154 , 156
Rear Seats, Folding ............................. 24 Rear Wiper/Washer ...............................36
Recreational Towing ...........................175
Release, Hood .....................................49
Reminder, Lights On ...................... 31
, 33
Reminder, Seat Belt .............................92
Remote Control Starting System ................................16
Remote Keyless Entry ...........................13 Arm The Alarm .................................18
Disarm The Alarm .............................18
Remote Starting System .......................16
Replacement Keys ...............................14
Replacement Tires .............................236
Restraints, Head ..................................28
Roll Over Warning ..................................2
Roof Type Carrier .................................54
Rotation, Tires ...................................239
S
Safety Checks Inside Vehicle ...............128
Safety Checks Outside Vehicle.............130
Safety Tips ........................................128
Safety, Exhaust Gas ...........................128
Schedule, Maintenance ......................212
Seat Belt Reminder ..............................62
Seat Belts ................................... 91 , 128
Adjustable Shoulder Belt ...................95
Adjustable Upper Shoulder Anchorage ....................................95
Adjustable Upper Shoulder Belt Anchor -
age ..............................................95
2020_JEEP_M6_UG_UK.book Page 321
