JEEP GRAND CHEROKEE 2010 Owner handbook (in English)

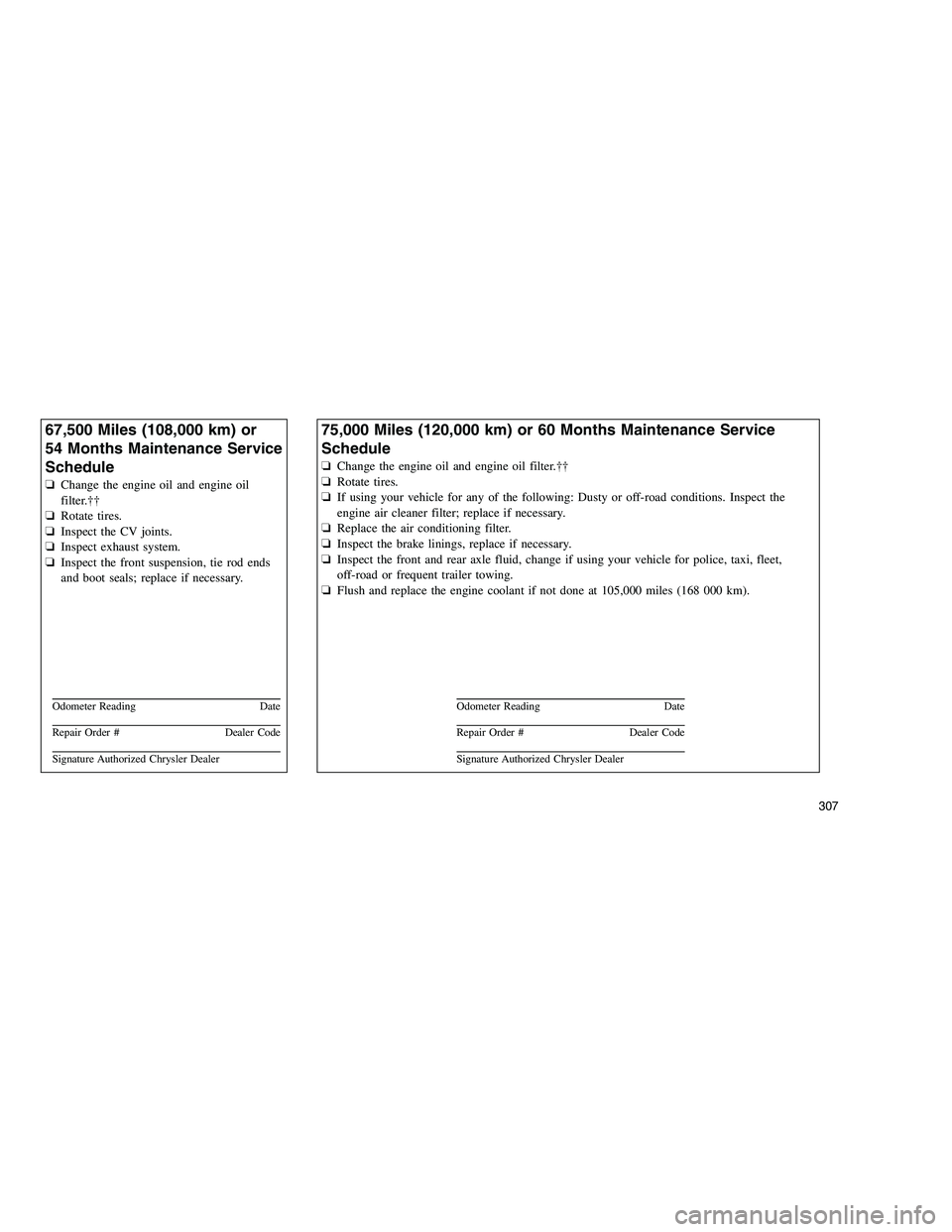

67,500 Miles (108,000 km) or
54 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends
and boot seals; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
75,000 Miles (120,000 km) or 60 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Flush and replace the engine coolant if not done at 105,000 miles (168 000 km).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
307

82,500 Miles (132,000 km) or
66 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
90,000 Miles (144,000 km) or 72 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Replace the spark plugs (3.6L and 5.7L Engine).
❏ Inspect and replace PCV valve if necessary. †
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
❏ Inspect the transfer case fluid.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
308

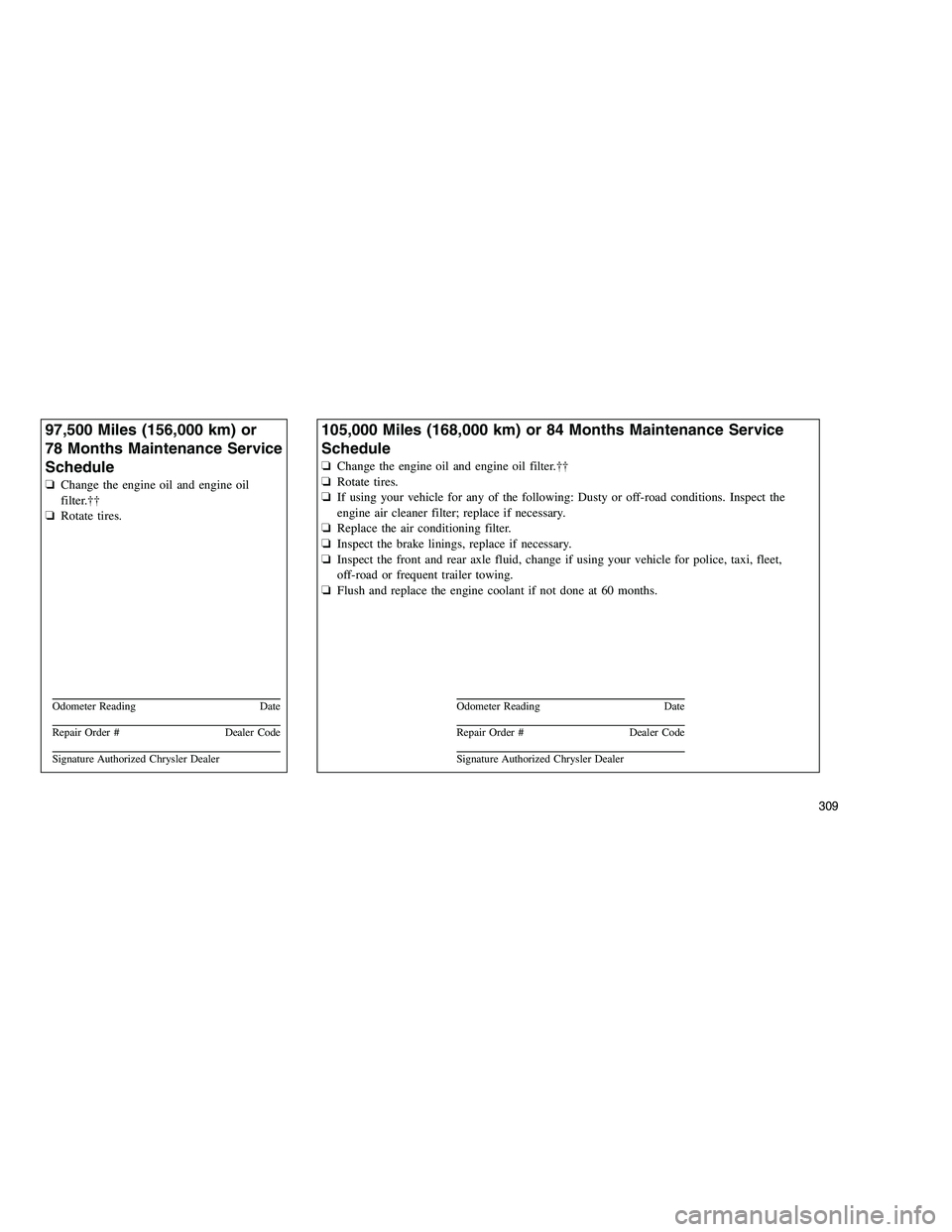

97,500 Miles (156,000 km) or
78 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
105,000 Miles (168,000 km) or 84 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Flush and replace the engine coolant if not done at 60 months.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
309

112,500 Miles (180,000 km) or
90 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends
and boot seals; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
120,000 Miles (192,000 km) or 96 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Replace the spark plugs (5.7L Engine).
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Change the automatic transmission fluid and filter(s).
❏ Change the transfer case fluid.
❏ Replace the accessory drive belt(s).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
310

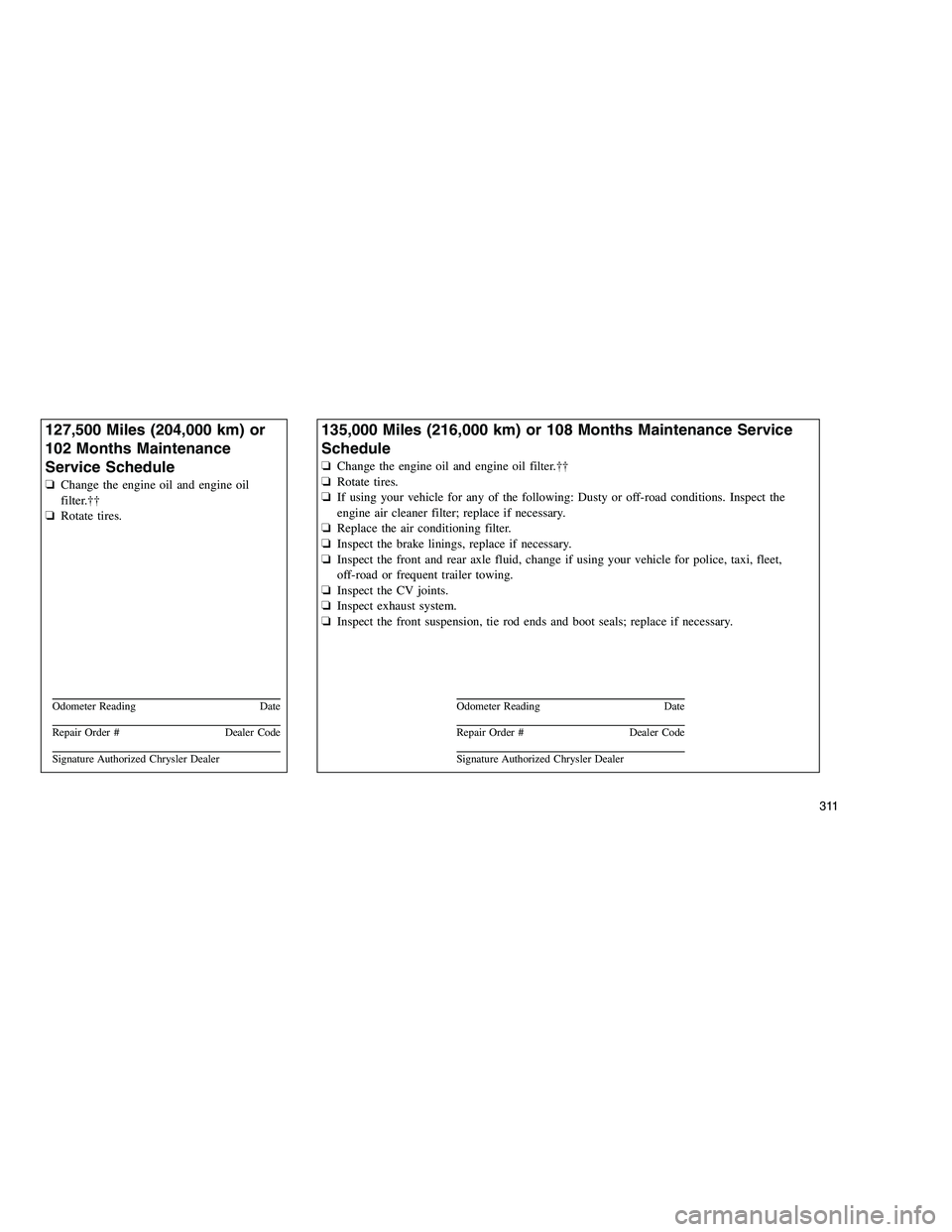

127,500 Miles (204,000 km) or
102 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
135,000 Miles (216,000 km) or 108 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
311

142,500 Miles (228,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
150,000 Miles (240,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Replace the spark plugs (5.7L Engine).
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Inspect the transfer case fluid.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
312

† This maintenance is recommended by the
manufacturer to the owner, but is not required
to maintain emissions warranty.
WARNING!
You can be badly injured working on or around
a motor vehicle. Do only that service work for
which you have the knowledge and the right
equipment. If you have any doubt about your
ability to perform a service job, take your
vehicle to a competent mechanic.
Maintenance Schedule – Diesel
Engine
To help you have the best driving experience
possible, the manufacturer has identified the
specific vehicle maintenance service intervals
that are required to keep your vehicle operating
properly and safely.
The manufacturer recommends that these
maintenance intervals be performed at your
selling dealer. The technicians at your dealer-
ship know your vehicle best, and have access
to factory trained information, genuine MO-PA R
parts, and specially designed electronic
and mechanical tools that can help prevent
future costly repairs.
The maintenance intervals shown should be
performed as indicated in this section.
NOTE:
Under no circumstances should oil change
intervals exceed 12,500 miles (20 000 km) or
12 months, whichever comes first.
At Each Stop for Fuel
• Check the engine oil level about 15 minutes
after a fully warmed engine is shut off.
Checking the oil level while the vehicle is on
level ground will improve the accuracy of the
oil level reading. Add oil only when the level
is at or below the ADD or MIN mark.
• Check the windshield washer solvent and
add if required.
Once a Month
• Check tire pressure and look for unusual
wear or damage.
• Inspect the battery and clean and tighten the
terminals as required. •
Check the fluid levels of the coolant reser-
voir, brake master cylinder, and power steer-
ing and add as needed.
• Check all lights and other electrical items for
correct operation.
At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.
• Inspect for the presence of water in the fuel
filter/water separator unit.
CAUTION!
Failure to perform the required maintenance
items may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the
following pages for the required maintenance
intervals.
313

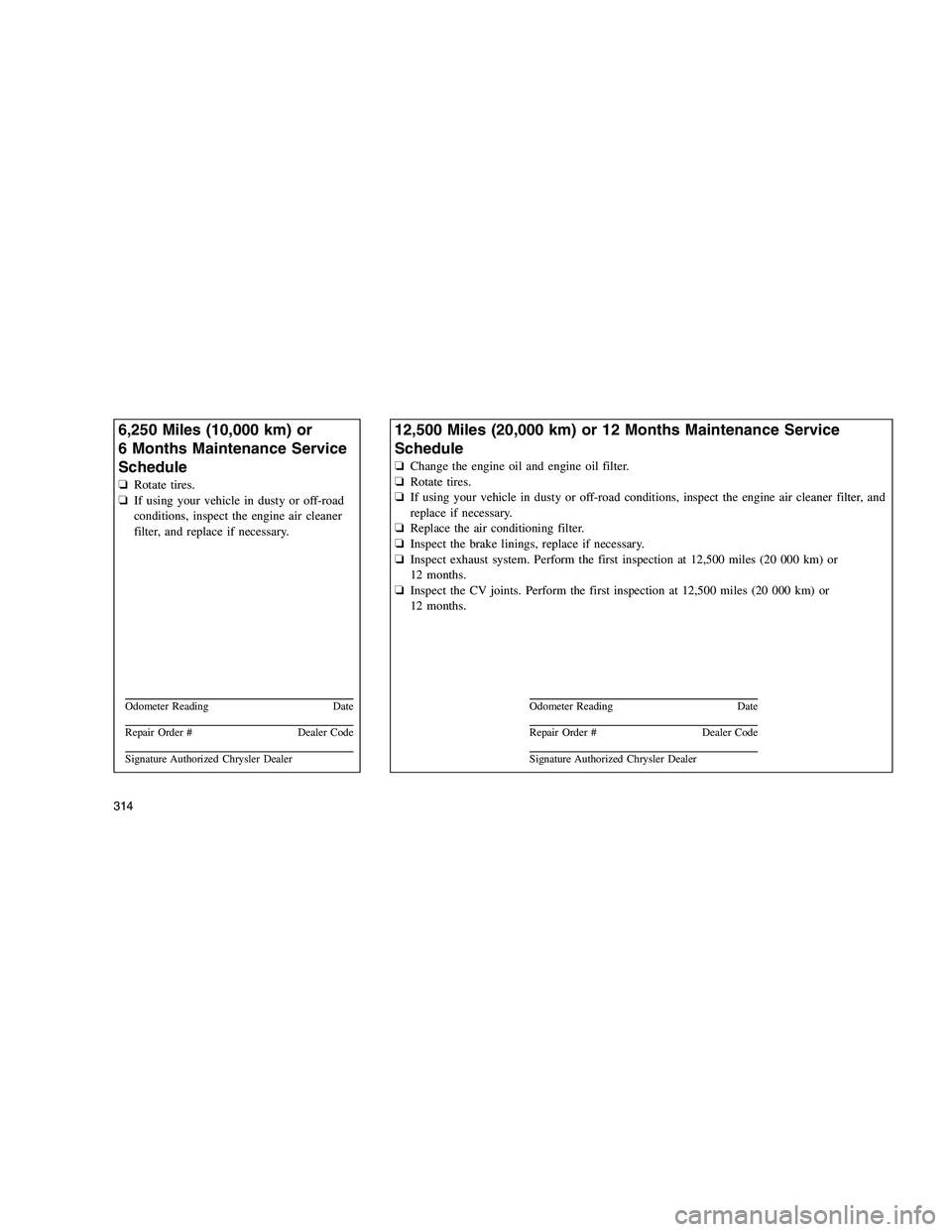

6,250 Miles (10,000 km) or
6 Months Maintenance Service
Schedule
❏Rotate tires.
❏ If using your vehicle in dusty or off-road
conditions, inspect the engine air cleaner
filter, and replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
12,500 Miles (20,000 km) or 12 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ If using your vehicle in dusty or off-road conditions, inspect the engine air cleaner filter, and
replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect exhaust system. Perform the first inspection at 12,500 miles (20 000 km) or
12 months.
❏ Inspect the CV joints. Perform the first inspection at 12,500 miles (20 000 km) or
12 months.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
314

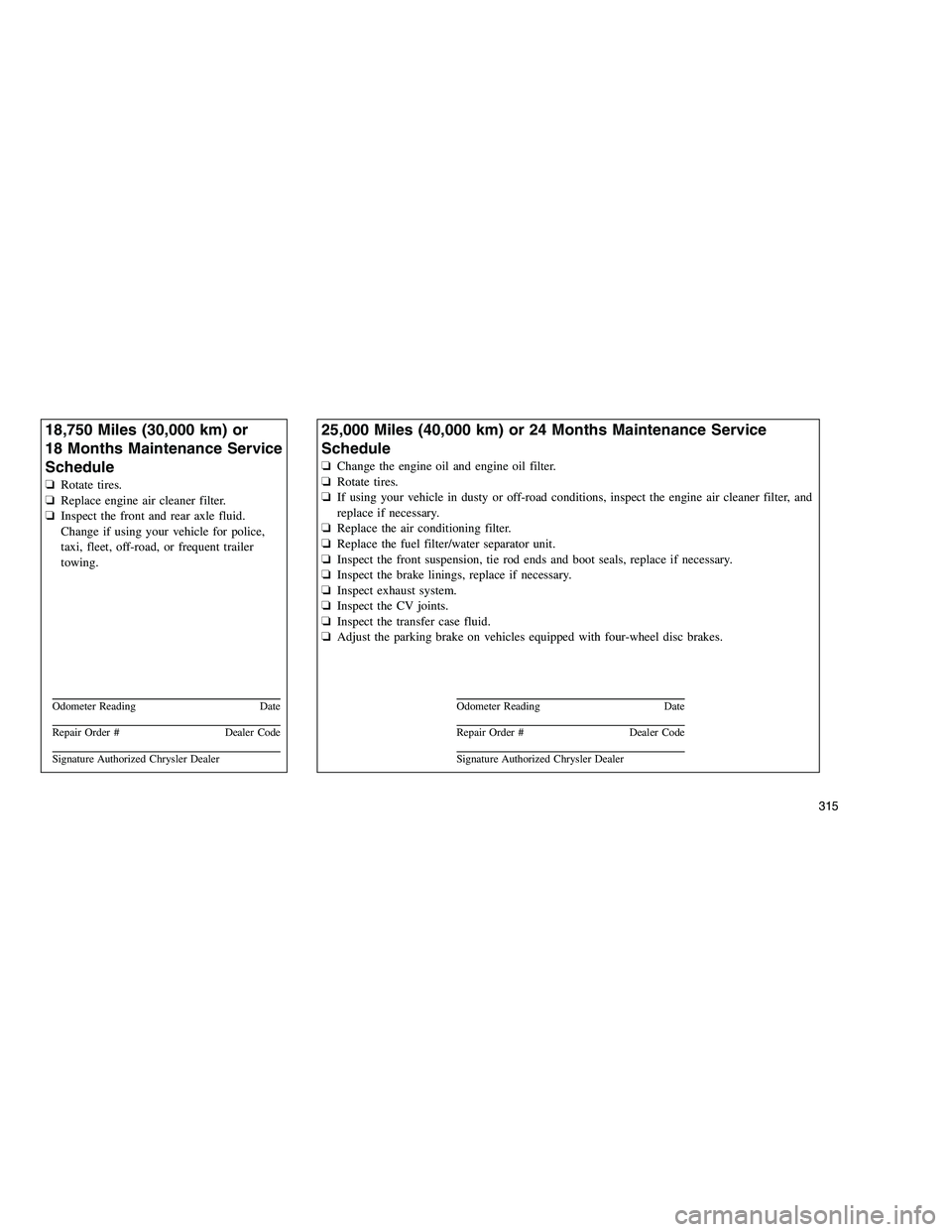

18,750 Miles (30,000 km) or
18 Months Maintenance Service
Schedule
❏Rotate tires.
❏ Replace engine air cleaner filter.
❏ Inspect the front and rear axle fluid.
Change if using your vehicle for police,
taxi, fleet, off-road, or frequent trailer
towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
25,000 Miles (40,000 km) or 24 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ If using your vehicle in dusty or off-road conditions, inspect the engine air cleaner filter, and
replace if necessary.
❏ Replace the air conditioning filter.
❏ Replace the fuel filter/water separator unit.
❏ Inspect the front suspension, tie rod ends and boot seals, replace if necessary.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect exhaust system.
❏ Inspect the CV joints.
❏ Inspect the transfer case fluid.
❏ Adjust the parking brake on vehicles equipped with four-wheel disc brakes.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
315

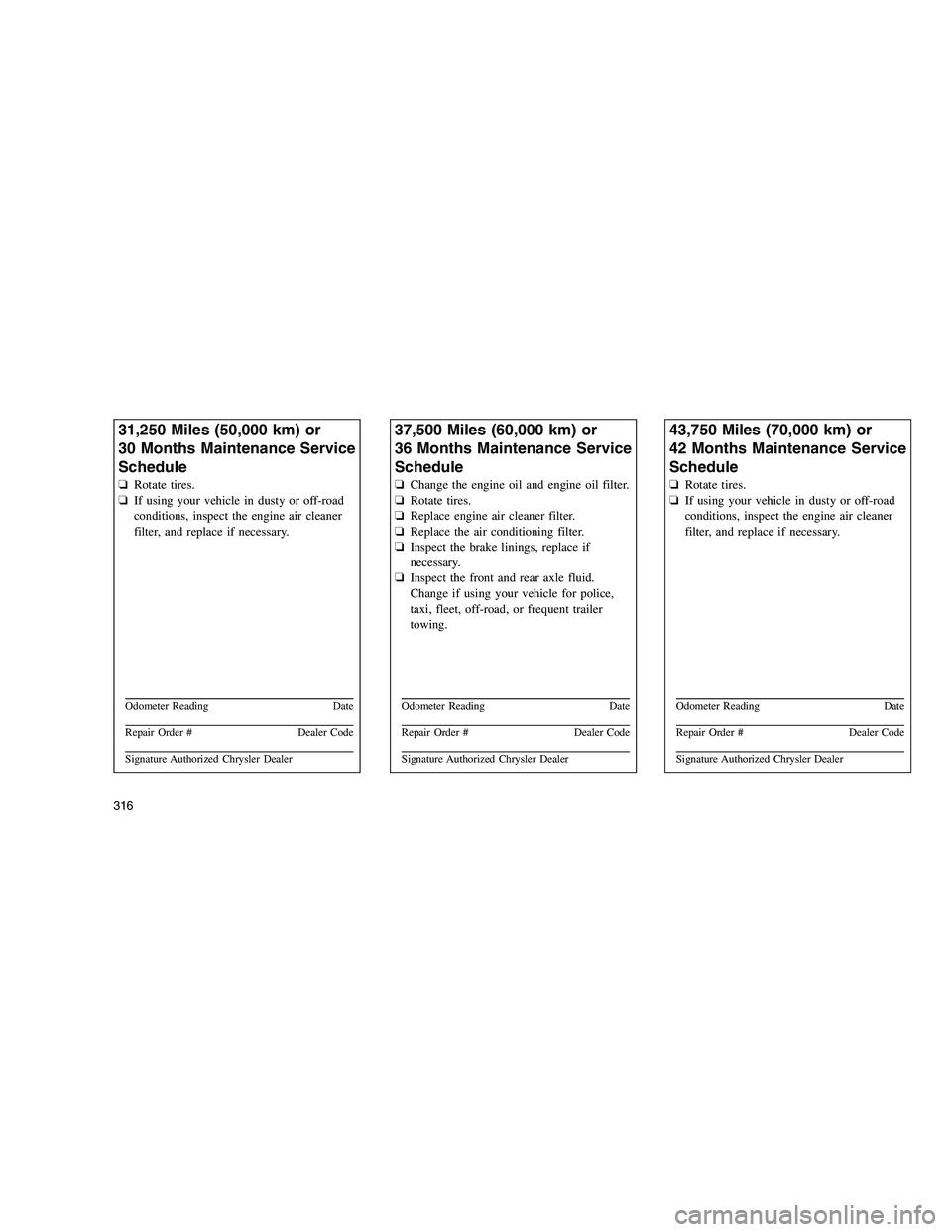

31,250 Miles (50,000 km) or
30 Months Maintenance Service
Schedule
❏Rotate tires.
❏ If using your vehicle in dusty or off-road
conditions, inspect the engine air cleaner
filter, and replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
37,500 Miles (60,000 km) or
36 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if
necessary.
❏ Inspect the front and rear axle fluid.
Change if using your vehicle for police,
taxi, fleet, off-road, or frequent trailer
towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
43,750 Miles (70,000 km) or
42 Months Maintenance Service
Schedule
❏ Rotate tires.
❏ If using your vehicle in dusty or off-road
conditions, inspect the engine air cleaner
filter, and replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
316
