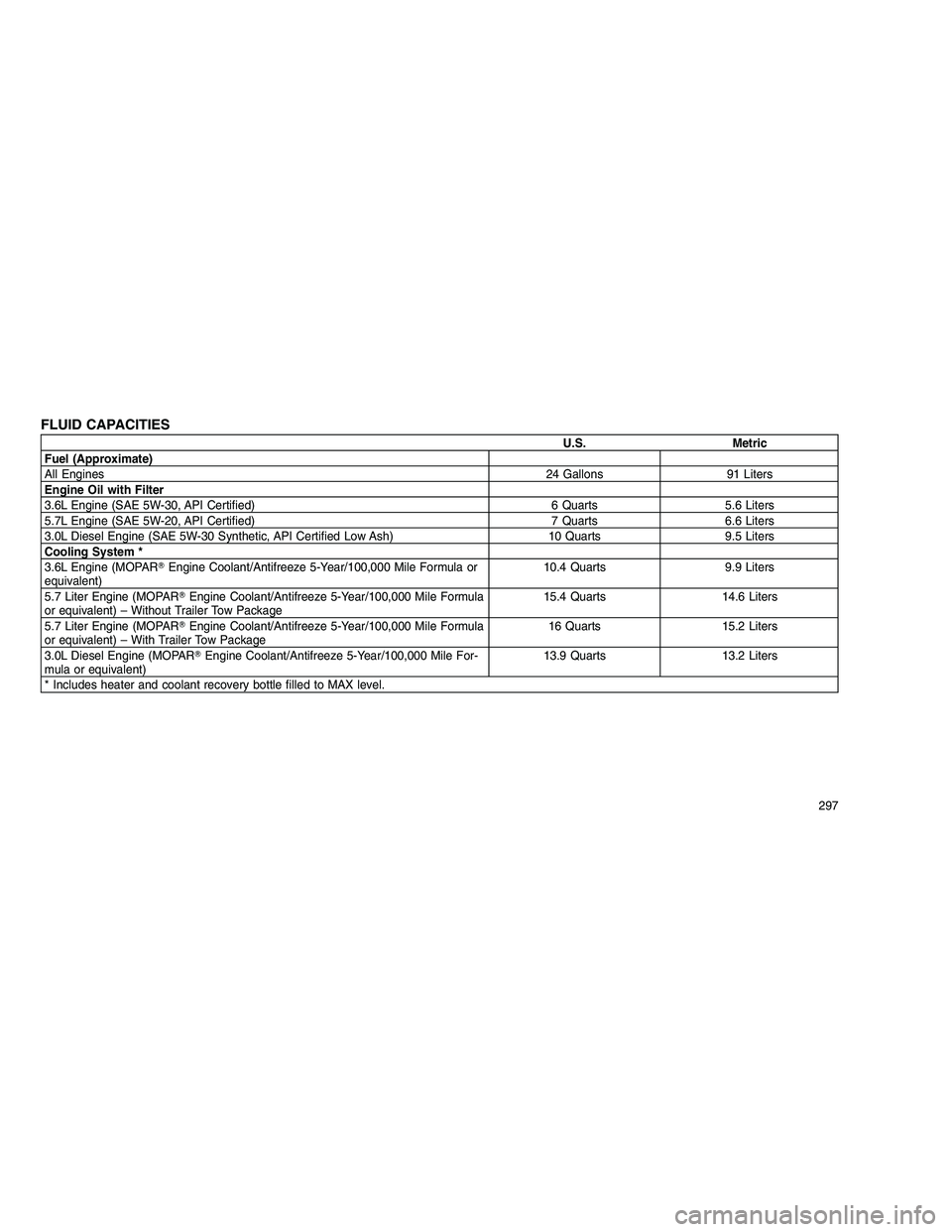

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
All Engines 24 Gallons 91 Liters
Engine Oil with Filter
3.6L Engine (SAE 5W-30, API Certified) 6 Quarts 5.6 Liters
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts 6.6 Liters
3.0L Diesel Engine (SAE 5W-30 Synthetic, API Certified Low Ash) 10 Quarts 9.5 Liters
Cooling System *
3.6L Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile Formula or
equivalent) 10.4 Quarts 9.9 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile Formula
or equivalent) – Without Trailer Tow Package 15.4 Quarts 14.6 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile Formula
or equivalent) – With Trailer Tow Package 16 Quarts 15.2 Liters
3.0L Diesel Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile For-
mula or equivalent) 13.9 Quarts 13.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
297

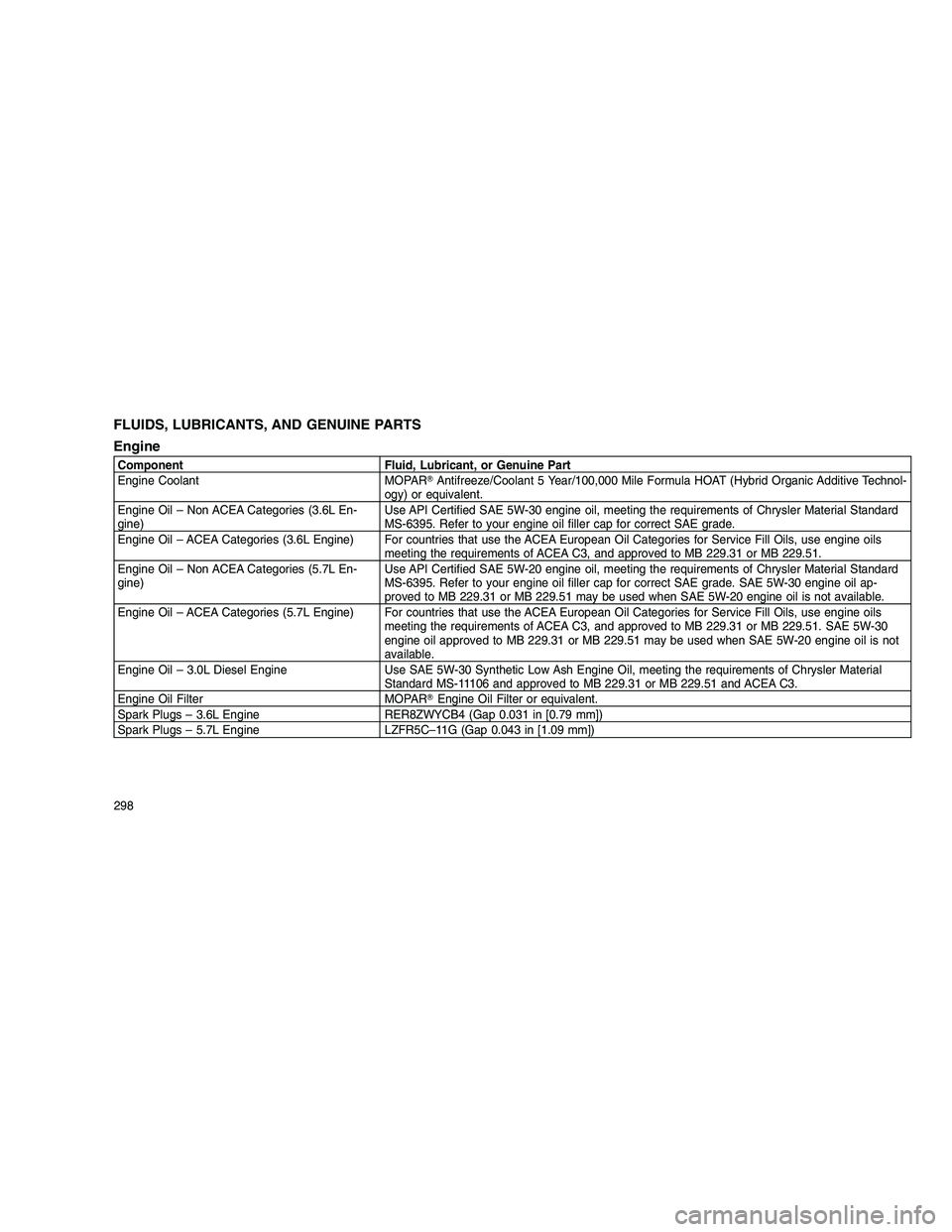

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technol-
ogy) or equivalent.
Engine Oil – Non ACEA Categories (3.6L En-
gine) Use API Certified SAE 5W-30 engine oil, meeting the requirements of Chrysler Material Standard
MS-6395. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – ACEA Categories (3.6L Engine) For countries that use the ACEA European Oil Categories for Service Fill Oils, use engine oils meeting the requirements of ACEA C3, and approved to MB 229.31 or MB 229.51.
Engine Oil – Non ACEA Categories (5.7L En-
gine) Use API Certified SAE 5W-20 engine oil, meeting the requirements of Chrysler Material Standard
MS-6395. Refer to your engine oil filler cap for correct SAE grade. SAE 5W-30 engine oil ap-
proved to MB 229.31 or MB 229.51 may be used when SAE 5W-20 engine oil is not available.
Engine Oil – ACEA Categories (5.7L Engine) For countries that use the ACEA European Oil Categories for Service Fill Oils, use engine oils meeting the requirements of ACEA C3, and approved to MB 229.31 or MB 229.51. SAE 5W-30
engine oil approved to MB 229.31 or MB 229.51 may be used when SAE 5W-20 engine oil is not
available.
Engine Oil – 3.0L Diesel Engine Use SAE 5W-30 Synthetic Low Ash Engine Oil, meeting the requirements of Chrysler Material Standard MS-11106 and approved to MB 229.31 or MB 229.51 and ACEA C3.
Engine Oil Filter MOPAR Engine Oil Filter or equivalent.
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 0.031 in [0.79 mm])
Spark Plugs – 5.7L Engine LZFR5C–11G (Gap 0.043 in [1.09 mm])
298

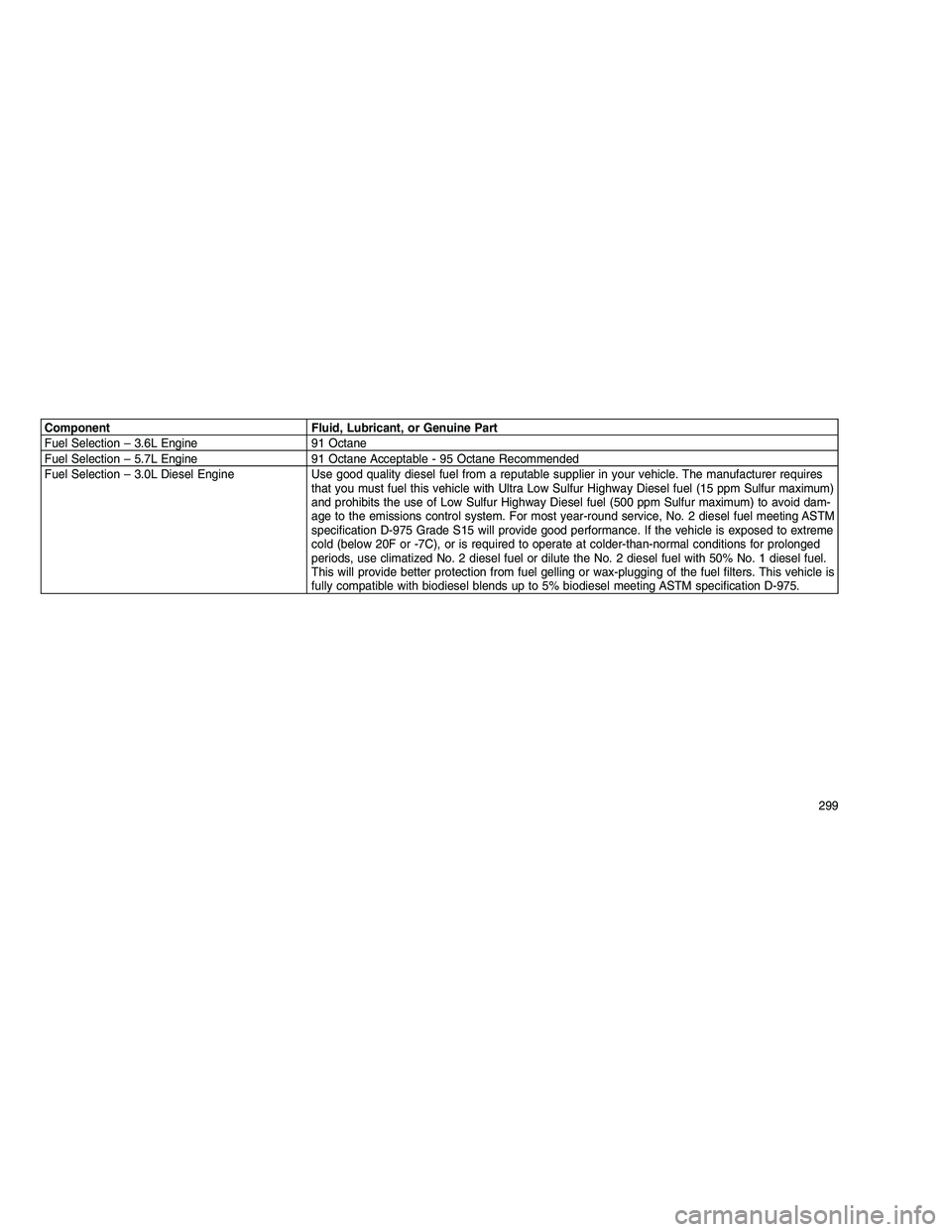

Component Fluid, Lubricant, or Genuine Part
Fuel Selection – 3.6L Engine 91 Octane
Fuel Selection – 5.7L Engine 91 Octane Acceptable - 95 Octane Recommended
Fuel Selection – 3.0L Diesel Engine Use good quality diesel fuel from a reputable supplier in your vehicle. The manufacturer requiresthat you must fuel this vehicle with Ultra Low Sulfur Highway Diesel fuel (15 ppm Sulfur maximum)
and prohibits the use of Low Sulfur Highway Diesel fuel (500 ppm Sulfur maximum) to avoid dam-
age to the emissions control system. For most year-round service, No. 2 diesel fuel meeting ASTM
specification D-975 Grade S15 will provide good performance. If the vehicle is exposed to extreme
cold (below 20F or -7C), or is required to operate at colder-than-normal conditions for prolonged
periods, use climatized No. 2 diesel fuel or dilute the No. 2 diesel fuel with 50% No. 1 diesel fuel.
This will provide better protection from fuel gelling or wax-plugging of the fuel filters. This vehicle is
fully compatible with biodiesel blends up to 5% biodiesel meeting ASTM specification D-975.
299

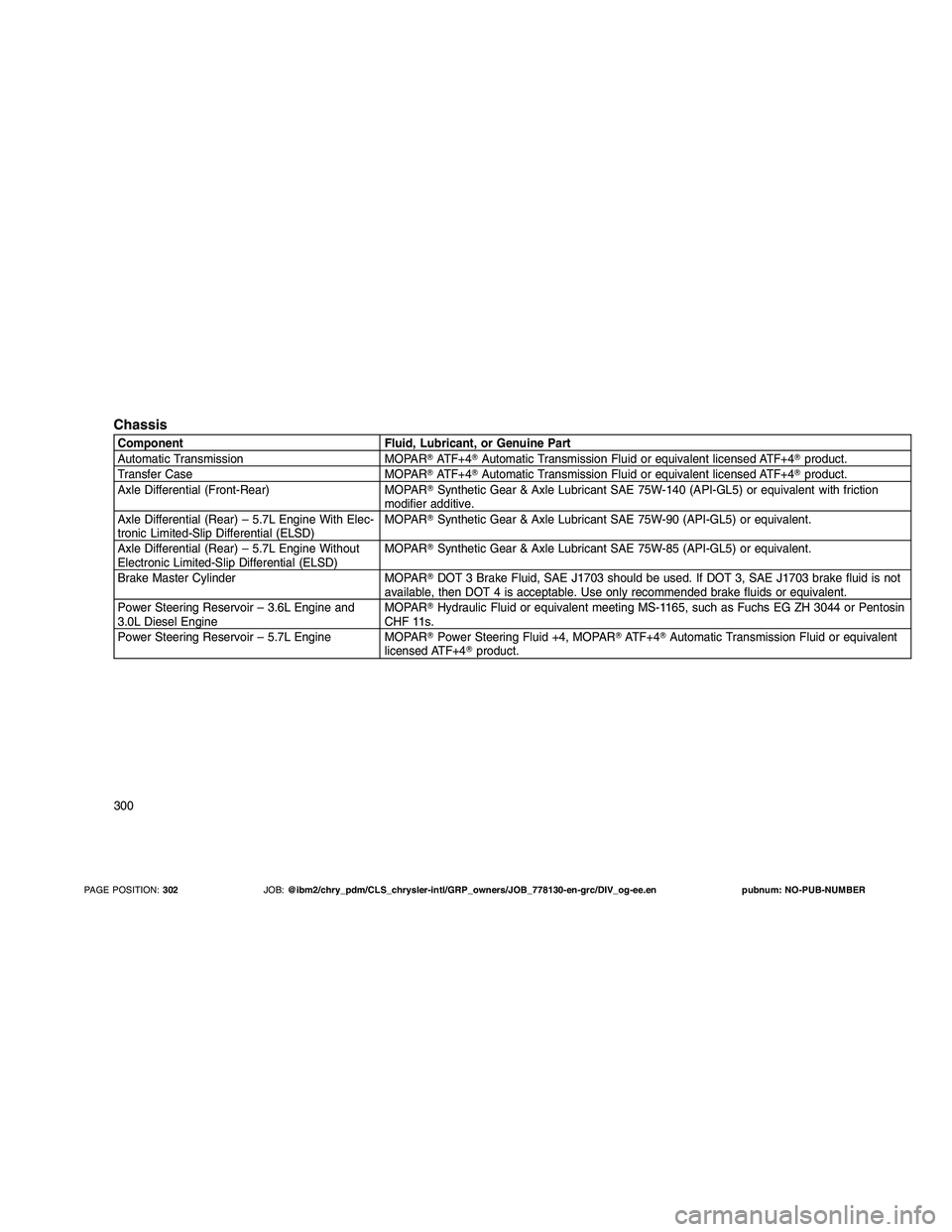

Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product.
Transfer Case MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product.
Axle Differential (Front-Rear) MOPAR Synthetic Gear & Axle Lubricant SAE 75W-140 (API-GL5) or equivalent with friction
modifier additive.
Axle Differential (Rear) – 5.7L Engine With Elec-
tronic Limited-Slip Differential (ELSD) MOPAR
Synthetic Gear & Axle Lubricant SAE 75W-90 (API-GL5) or equivalent.
Axle Differential (Rear) – 5.7L Engine Without
Electronic Limited-Slip Differential (ELSD) MOPAR
Synthetic Gear & Axle Lubricant SAE 75W-85 (API-GL5) or equivalent.
Brake Master Cylinder MOPAR DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE J1703 brake fluid is not
available, then DOT 4 is acceptable. Use only recommended brake fluids or equivalent.
Power Steering Reservoir – 3.6L Engine and
3.0L Diesel Engine MOPAR
Hydraulic Fluid or equivalent meeting MS-1165, such as Fuchs EG ZH 3044 or Pentosin
CHF 11s.
Power Steering Reservoir – 5.7L Engine MOPAR Power Steering Fluid +4, MOPAR ATF+4 Automatic Transmission Fluid or equivalent
licensed ATF+4 product.
300
PAGE POSITION: 302 JOB:@ibm2/chry_pdm/CLS_chrysler-intl/GRP_owners/JOB_778130-en-grc/DIV_og-ee.\
en pubnum: NO-PUB-NUMBER

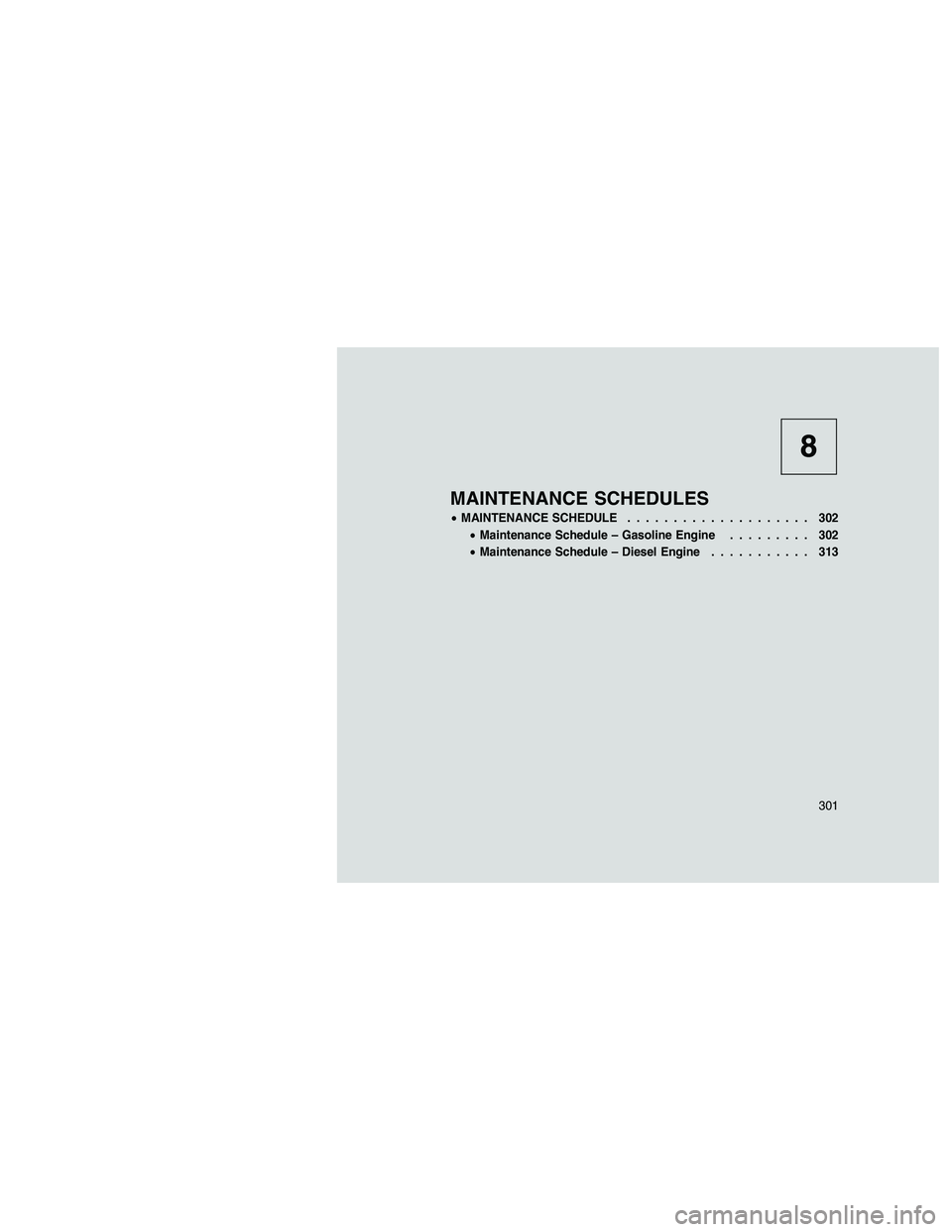

8
MAINTENANCE SCHEDULES
•MAINTENANCE SCHEDULE .................... 302
• Maintenance Schedule – Gasoline Engine ......... 302
• Maintenance Schedule – Diesel Engine ........... 313
301

MAINTENANCE SCHEDULE
Maintenance Schedule – Gasoline
Engine
The oil change indicator system will remind you
that it is time to take your vehicle in for sched-
uled maintenance.
On Electronic Vehicle Information Center
(EVIC) equipped vehicles “Oil Change Re-
quired” will be displayed in the EVIC and a
single chime will sound, indicating that an oil
change is necessary.
The oil change indicator message will illumi-
nate approximately 7,000 miles (11 200 km)
after the most recent oil change was per-
formed. Have your vehicle serviced as soon as
possible, within 500 miles (800 km).
NOTE:
•The oil change indicator message will not
monitor the time since the last oil change.
Change your vehicles oil if it has been
6 months since your last oil change even
if the oil change indicator message is
NOT illuminated. •
Change your engine oil more often if you
drive your vehicle off-road for an ex-
tended period of time.
• Under no circumstances should oil
change intervals exceed 7,500 miles
(12 000 km) or 6 months, whichever
comes first.
Your authorized dealer will reset the oil change
indicator message after completing the sched-
uled oil change. If this scheduled oil change is
performed by someone other than your autho-
rized dealer the message can be reset by
referring to the steps described under ”Elec-
tronic Vehicle Information Center” in “Under-
standing Your Instrument Panel” for further in-
formation.
At Each Stop for Fuel
• Check the engine oil level about 5 minutes
after a fully warmed engine is shut off.
Checking the oil level while the vehicle is on
level ground will improve the accuracy of the
oil level reading. Add oil only when the level
is at or below the ADD or MIN mark.
• Check the windshield washer solvent and
add if required. Once a Month
•
Check tire pressure and look for unusual
wear or damage.
• Inspect the battery and clean and tighten the
terminals as required.
• Check the fluid levels of the coolant reser-
voir, brake master cylinder, power steering
and transmission (5.7L only) and add as
needed.
• Check all lights and other electrical items for
correct operation.
At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance
items may result in damage to the vehicle.
302

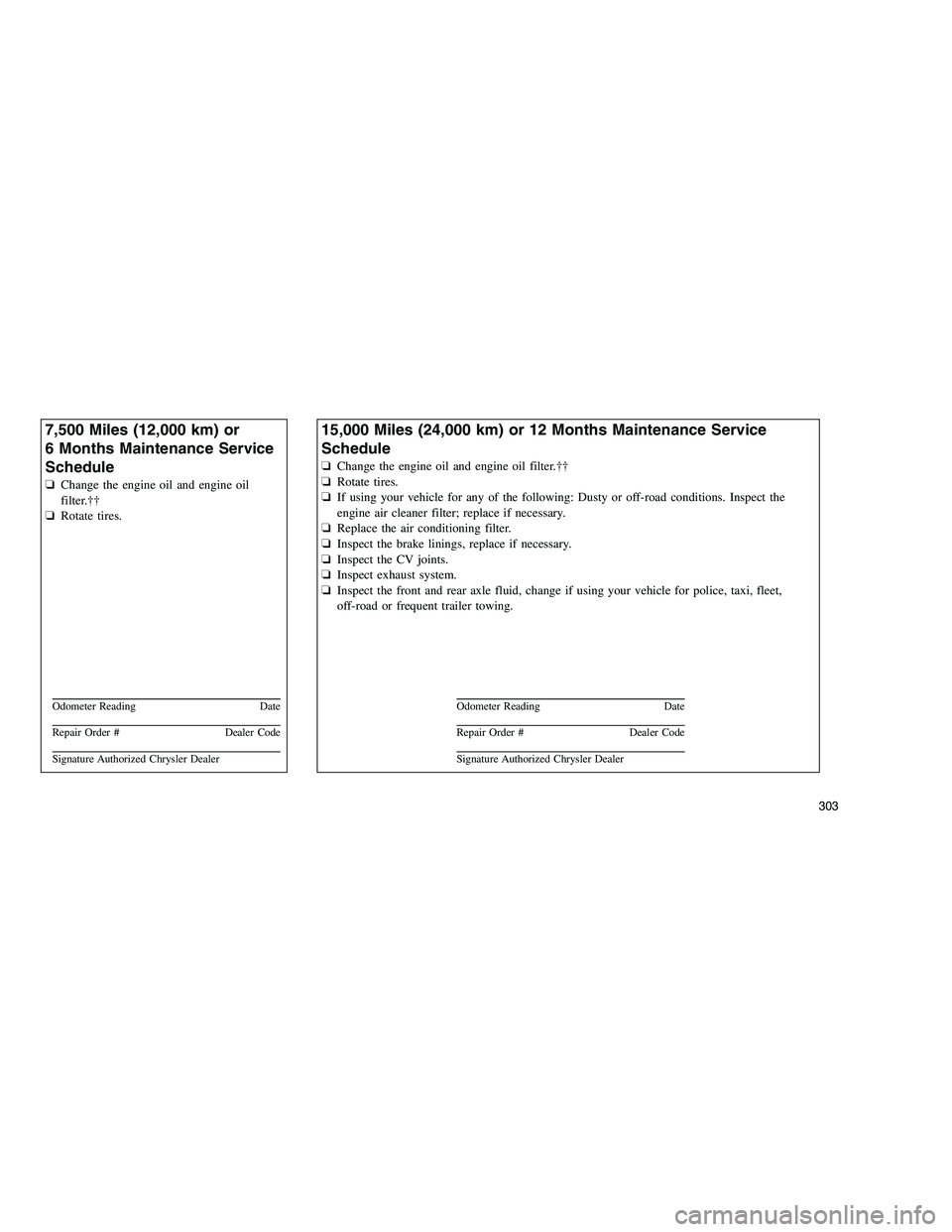

7,500 Miles (12,000 km) or
6 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
15,000 Miles (24,000 km) or 12 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
303

22,500 Miles (36,000 km) or
18 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends
and boot seals; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
30,000 Miles (48,000 km) or 24 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Replace the spark plugs (5.7L Engine).
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Inspect the transfer case fluid.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
304

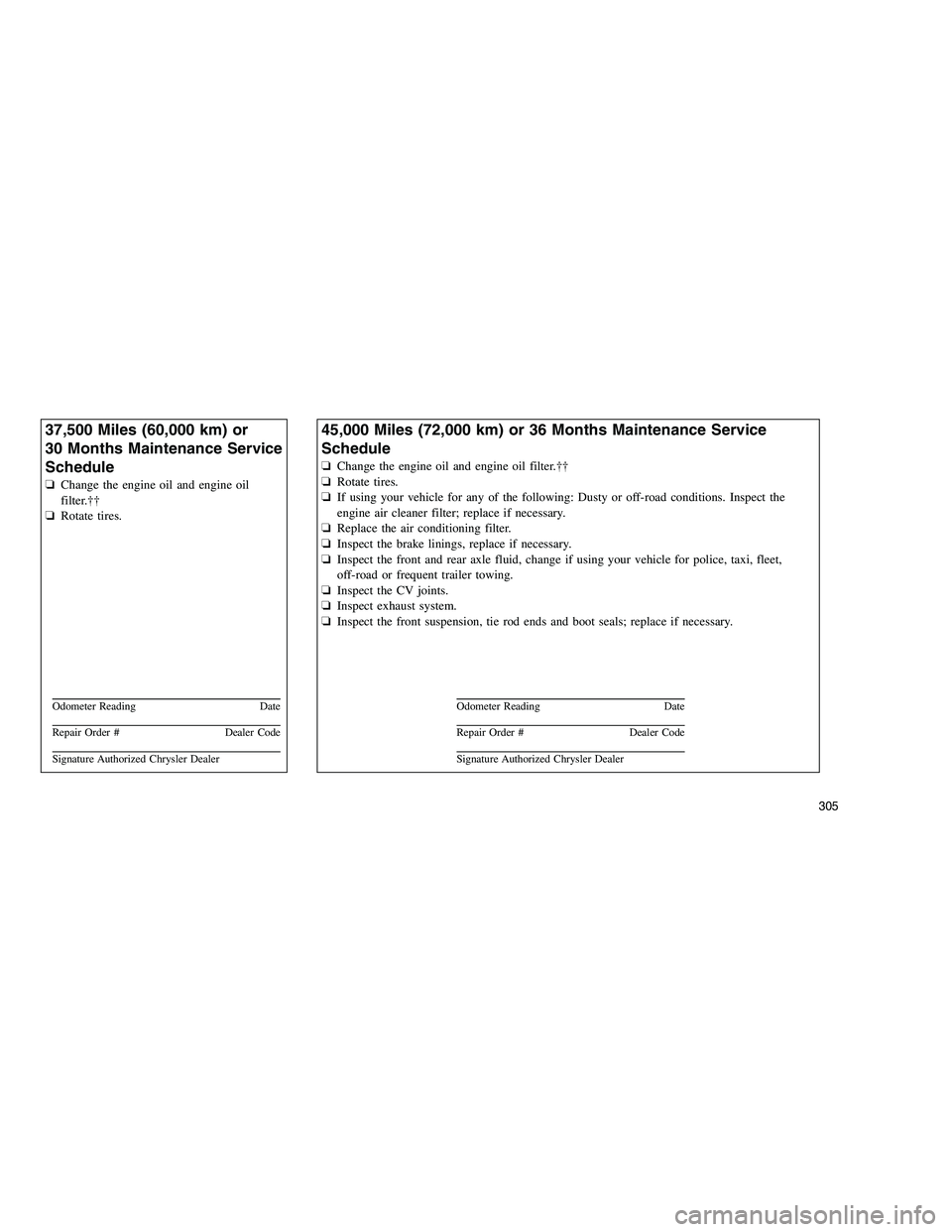

37,500 Miles (60,000 km) or
30 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
45,000 Miles (72,000 km) or 36 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
305

52,500 Miles (84,000 km) or
42 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
60,000 Miles (96,000 km) or 48 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Replace the spark plugs (5.7L Engine).
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Change the automatic transmission fluid and filter(s) if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏ Change the transfer case fluid if using your vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
306
