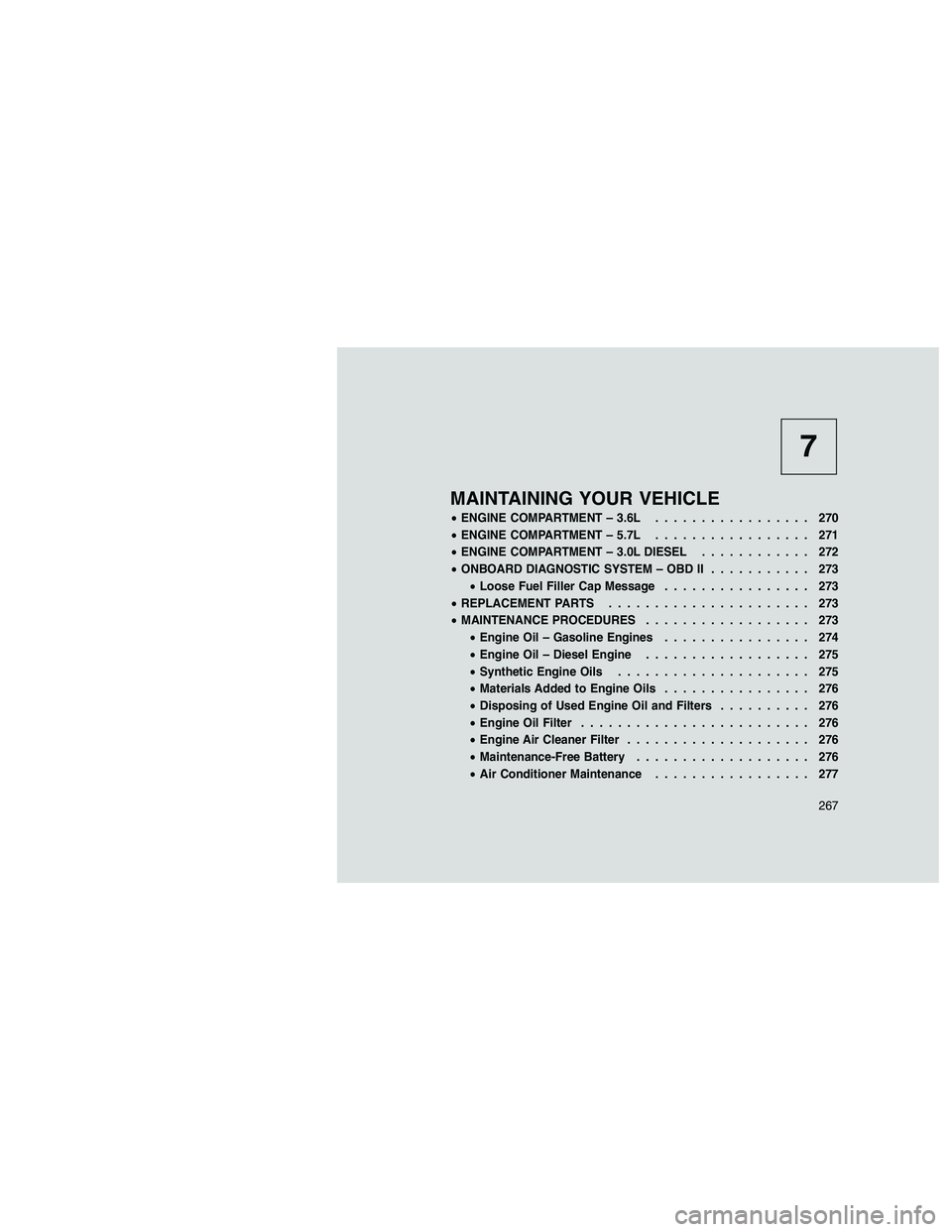

MAINTAINING YOUR VEHICLE
•ENGINE COMPARTMENT – 3.6L ................. 270
• ENGINE COMPARTMENT – 5.7L ................. 271
• ENGINE COMPARTMENT – 3.0L DIESEL ............ 272
• ONBOARD DIAGNOSTIC SYSTEM – OBD II ........... 273
• Loose Fuel Filler Cap Message ................ 273
• REPLACEMENT PARTS ...................... 273
• MAINTENANCE PROCEDURES .................. 273
• Engine Oil – Gasoline Engines ................ 274
• Engine Oil – Diesel Engine .................. 275
• Synthetic Engine Oils ..................... 275
• Materials Added to Engine Oils ................ 276
• Disposing of Used Engine Oil and Filters .......... 276
• Engine Oil Filter ......................... 276
• Engine Air Cleaner Filter .................... 276
• Maintenance-Free Battery ................... 276
• Air Conditioner Maintenance ................. 277
267

•Body Lubrication ........................ 277
• Windshield Wiper Blades ................... 278
• Adding Washer Fluid ...................... 278
• Exhaust System ......................... 278
• Cooling System ......................... 280
• Brake System .......................... 283
• Front/Rear Axle Fluid ...................... 284
• Transfer Case .......................... 284
• Automatic Transmission .................... 285
• Appearance Care and Protection from Corrosion ..... 287
• FUSES ................................ 290
• Totally Integrated Power Module ............... 290
• VEHICLE STORAGE ........................ 292
• REPLACEMENT BULBS ...................... 293
• BULB REPLACEMENT ....................... 293
• High Intensity Discharge Headlamps
(HID) – If Equipped ....................... 293
• Halogen Headlamps – If Equipped .............. 294
• Front Turn Signal ........................ 294
• Front Fog Lamps ........................ 294
• Rear Tail, Stop, and Turn Signal Lamps ........... 295
• Rear Liftgate Mounted Tail Lamp ............... 295
268

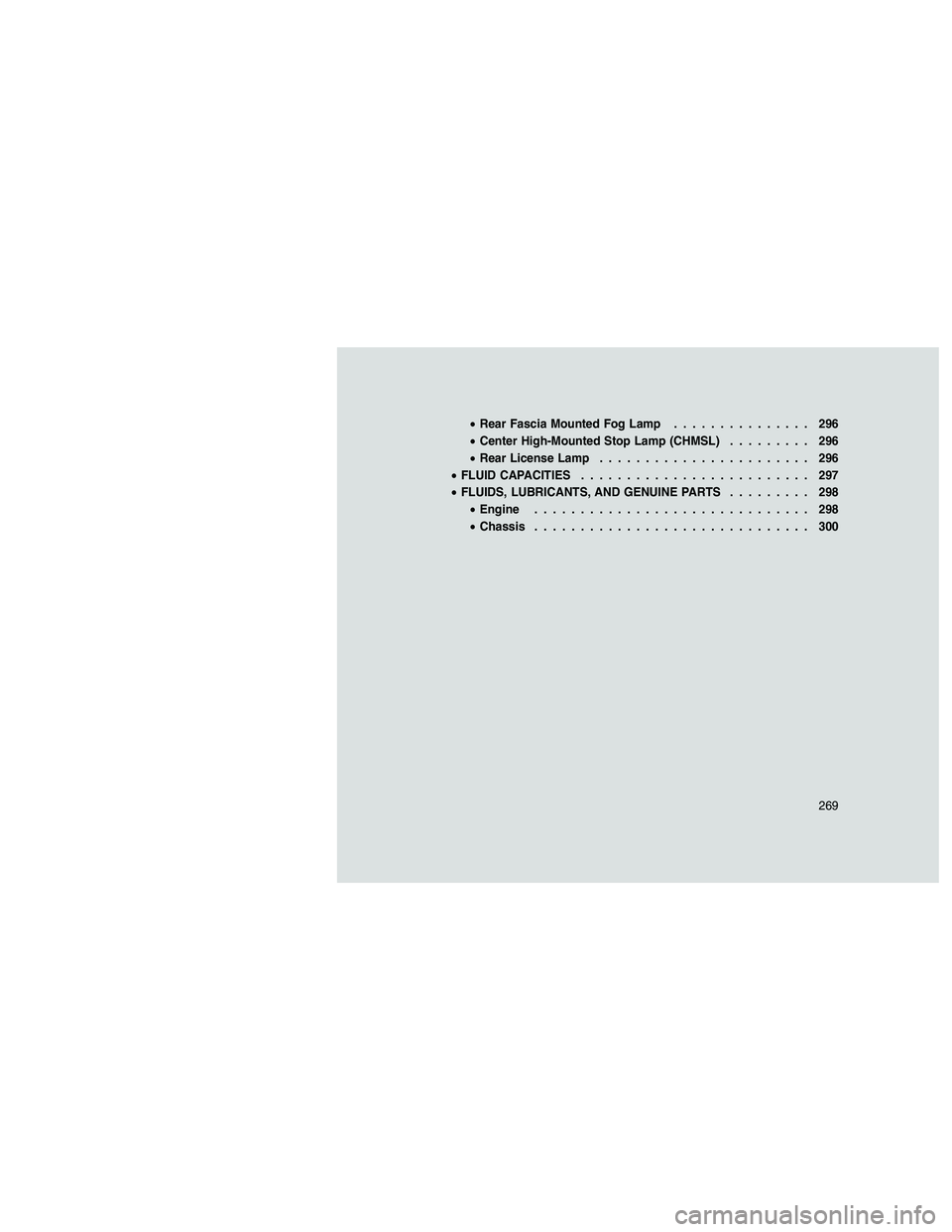

•Rear Fascia Mounted Fog Lamp ............... 296
• Center High-Mounted Stop Lamp (CHMSL) ......... 296
• Rear License Lamp ....................... 296
• FLUID CAPACITIES ......................... 297
• FLUIDS, LUBRICANTS, AND GENUINE PARTS ......... 298
• Engine .............................. 298
• Chassis .............................. 300
269

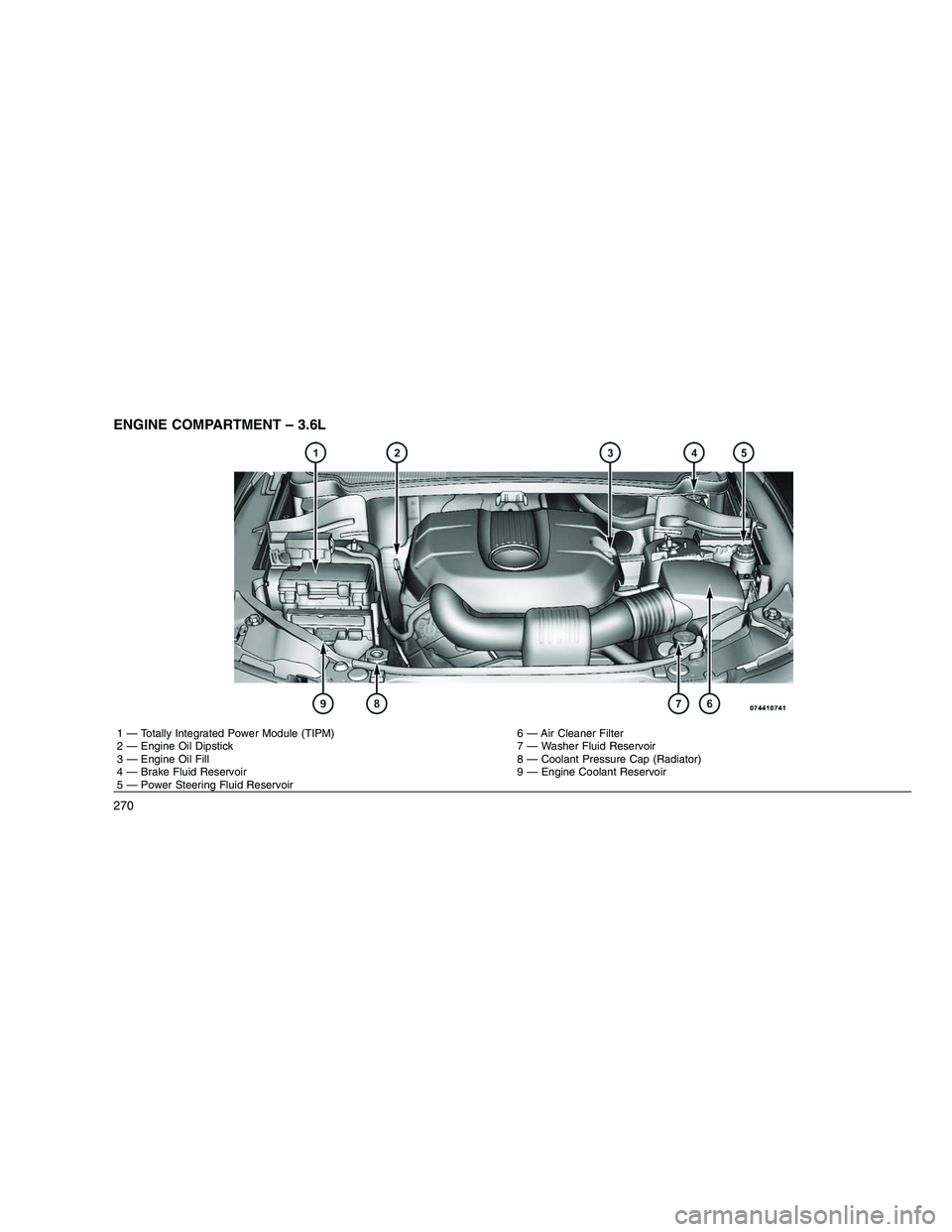

ENGINE COMPARTMENT – 3.6L
1 — Totally Integrated Power Module (TIPM) 6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Washer Fluid Reservoir
3 — Engine Oil Fill 8 — Coolant Pressure Cap (Radiator)
4 — Brake Fluid Reservoir 9 — Engine Coolant Reservoir
5 — Power Steering Fluid Reservoir
270

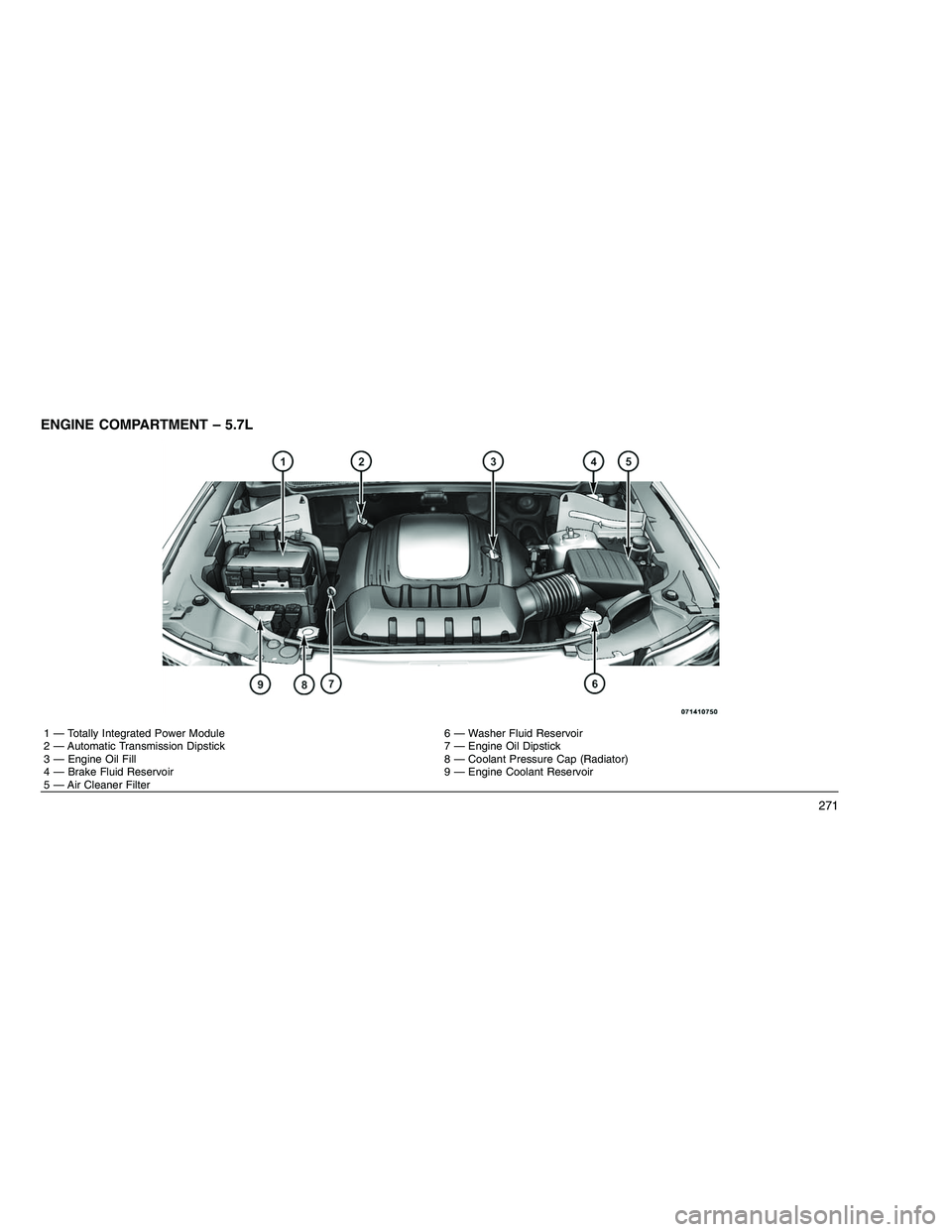

ENGINE COMPARTMENT – 5.7L
1 — Totally Integrated Power Module 6 — Washer Fluid Reservoir
2 — Automatic Transmission Dipstick 7 — Engine Oil Dipstick
3 — Engine Oil Fill 8 — Coolant Pressure Cap (Radiator)
4 — Brake Fluid Reservoir 9 — Engine Coolant Reservoir
5 — Air Cleaner Filter
271

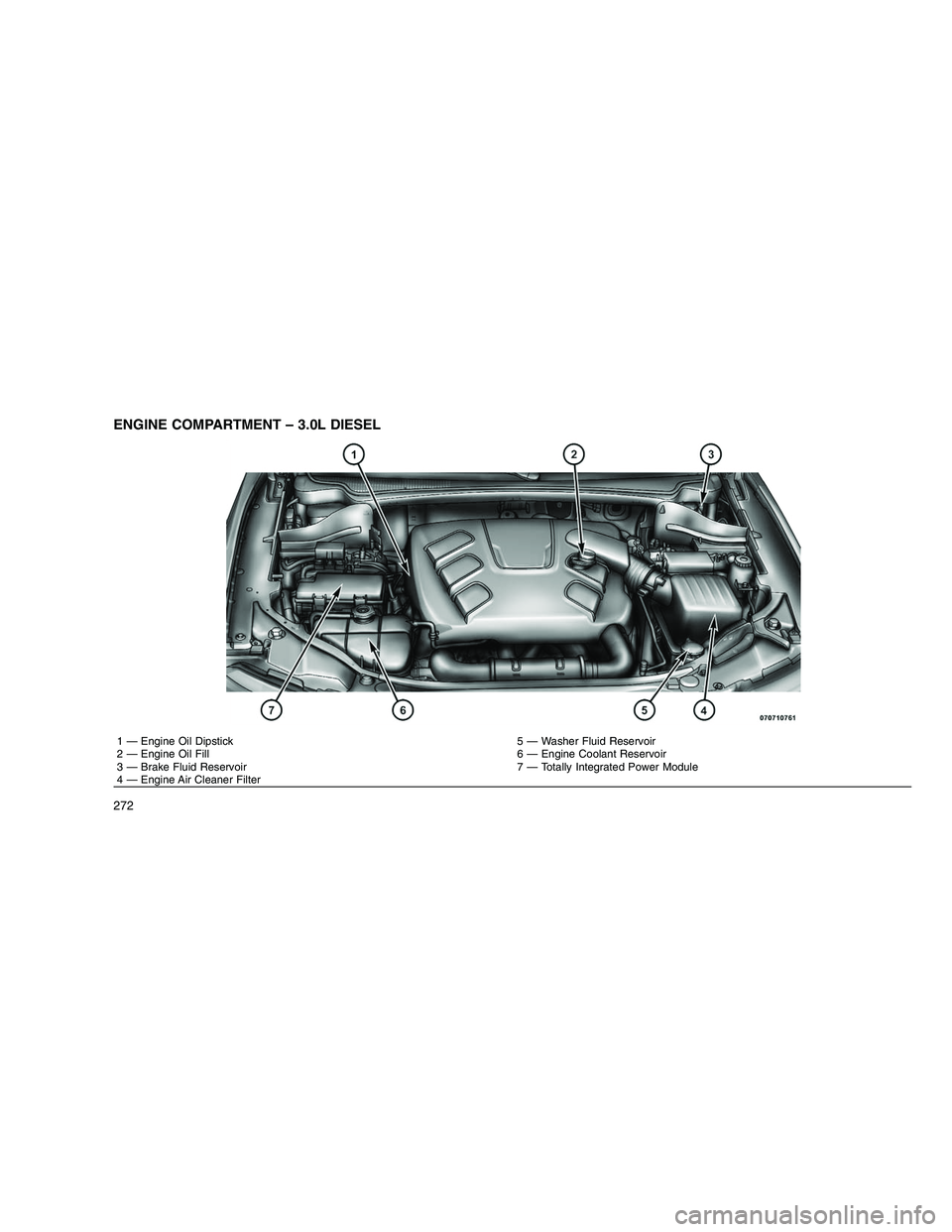

ENGINE COMPARTMENT – 3.0L DIESEL
1 — Engine Oil Dipstick 5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Engine Coolant Reservoir
3 — Brake Fluid Reservoir 7 — Totally Integrated Power Module
4 — Engine Air Cleaner Filter
272

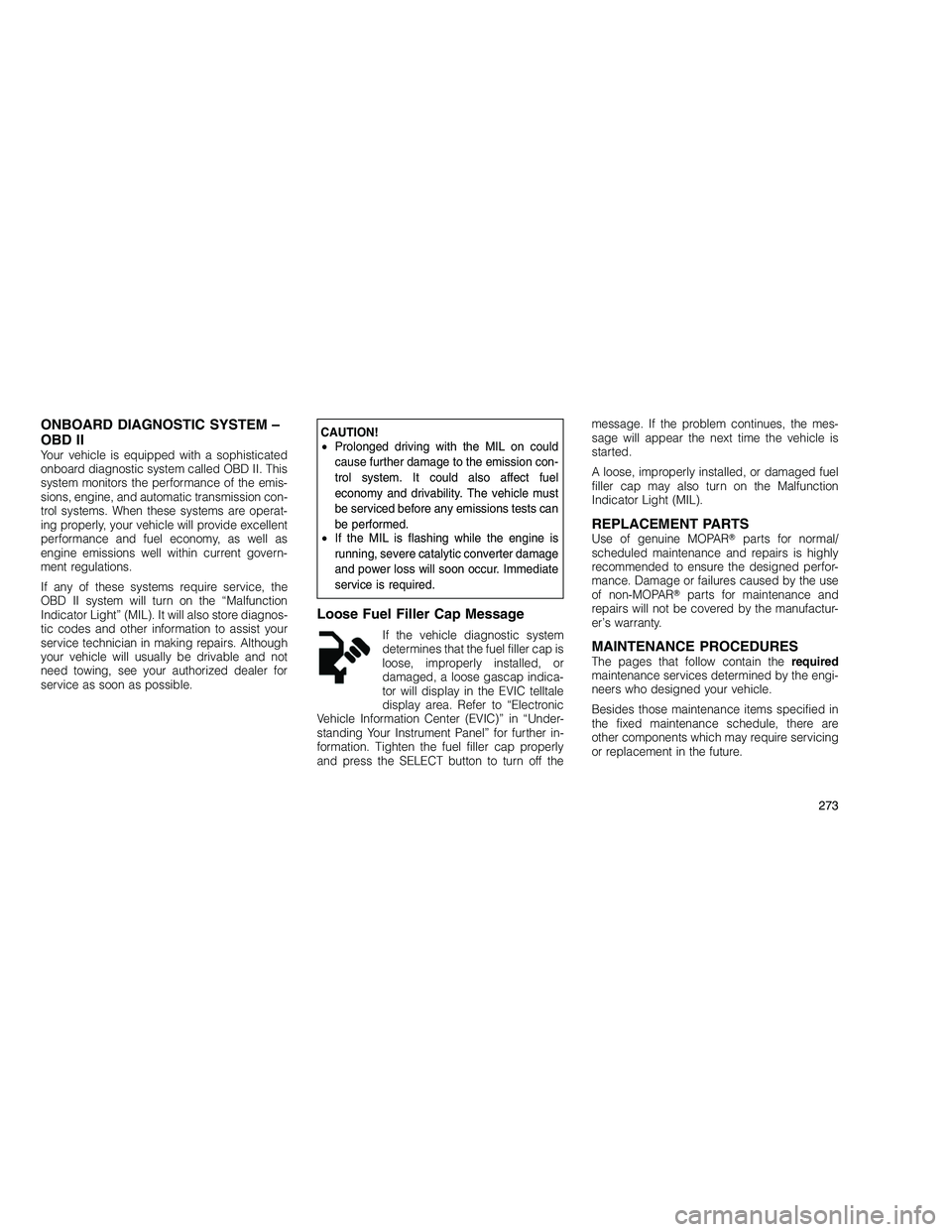

ONBOARD DIAGNOSTIC SYSTEM –
OBD II
Your vehicle is equipped with a sophisticated
onboard diagnostic system called OBD II. This
system monitors the performance of the emis-
sions, engine, and automatic transmission con-
trol systems. When these systems are operat-
ing properly, your vehicle will provide excellent
performance and fuel economy, as well as
engine emissions well within current govern-
ment regulations.
If any of these systems require service, the
OBD II system will turn on the “Malfunction
Indicator Light” (MIL). It will also store diagnos-
tic codes and other information to assist your
service technician in making repairs. Although
your vehicle will usually be drivable and not
need towing, see your authorized dealer for
service as soon as possible.
CAUTION!
•Prolonged driving with the MIL on could
cause further damage to the emission con-
trol system. It could also affect fuel
economy and drivability. The vehicle must
be serviced before any emissions tests can
be performed.
• If the MIL is flashing while the engine is
running, severe catalytic converter damage
and power loss will soon occur. Immediate
service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system
determines that the fuel filler cap is
loose, improperly installed, or
damaged, a loose gascap indica-
tor will display in the EVIC telltale
display area. Refer to “Electronic
Vehicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further in-
formation. Tighten the fuel filler cap properly
and press the SELECT button to turn off the message. If the problem continues, the mes-
sage will appear the next time the vehicle is
started.
A loose, improperly installed, or damaged fuel
filler cap may also turn on the Malfunction
Indicator Light (MIL).
REPLACEMENT PARTSUse of genuine MOPAR
parts for normal/
scheduled maintenance and repairs is highly
recommended to ensure the designed perfor-
mance. Damage or failures caused by the use
of non-MOPAR parts for maintenance and
repairs will not be covered by the manufactur-
er’s warranty.
MAINTENANCE PROCEDURESThe pages that follow contain the required
maintenance services determined by the engi-
neers who designed your vehicle.
Besides those maintenance items specified in
the fixed maintenance schedule, there are
other components which may require servicing
or replacement in the future.
273

CAUTION!
•Failure to properly maintain your vehicle or
perform repairs and service when neces-
sary could result in more costly repairs,
damage to other components or negatively
impact vehicle performance. Immediately
have potential malfunctions examined by
an authorized dealership or qualified repair
center.
• Your vehicle has been built with improved
fluids that protect the performance and
durability of your vehicle and also allow
extended maintenance intervals. Do not
use chemical flushes in these components
as the chemicals can damage your engine,
transmission, power steering or air condi-
tioning. Such damage is not covered by the
New Vehicle Limited Warranty. If a flush is
needed because of component malfunc-
tion, use only the specified fluid for the

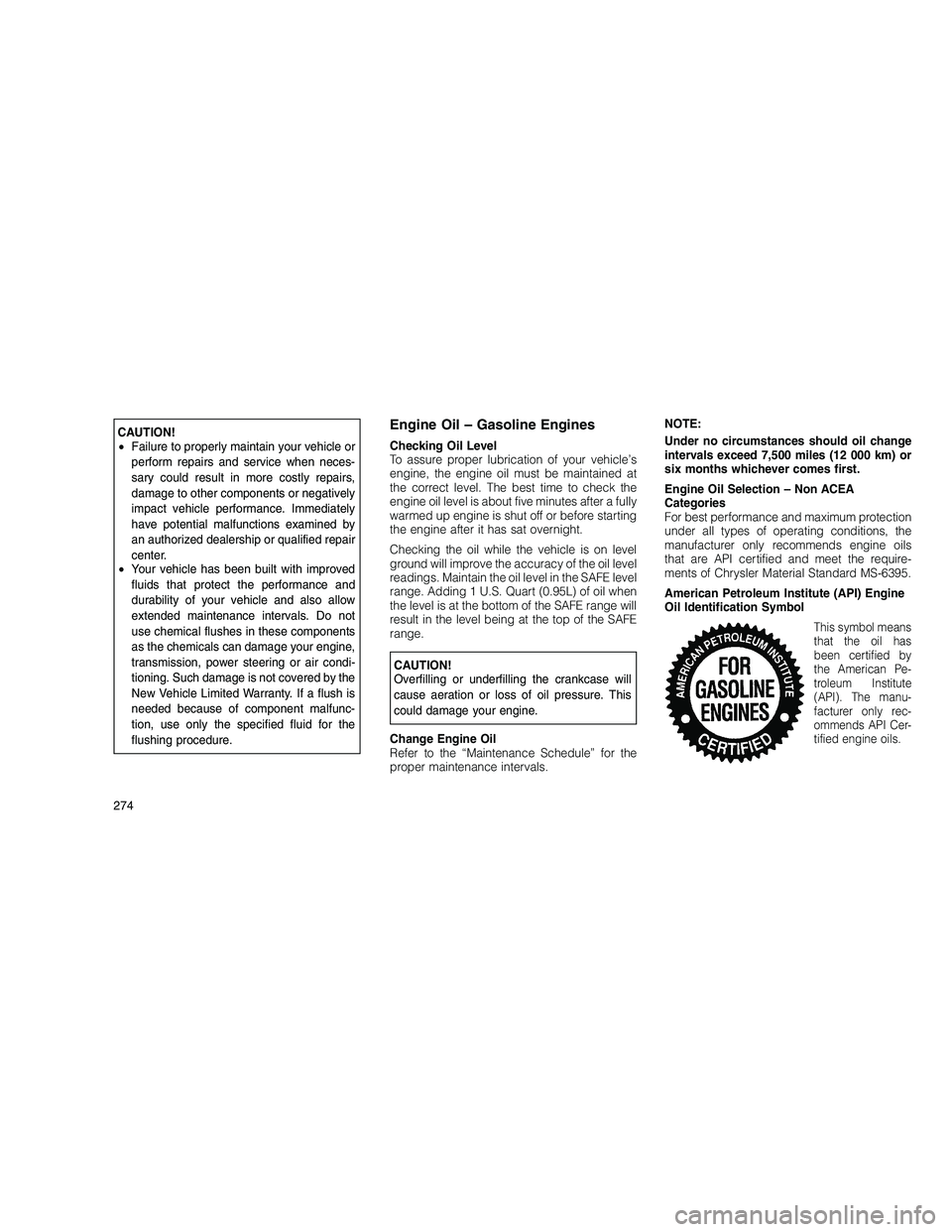

flushing procedure.Engine Oil – Gasoline Engines
Checking Oil Level
To assure proper lubrication of your vehicle’s
engine, the engine oil must be maintained at
the correct level. The best time to check the
engine oil level is about five minutes after a fully
warmed up engine is shut off or before starting
the engine after it has sat overnight.
Checking the oil while the vehicle is on level
ground will improve the accuracy of the oil level
readings. Maintain the oil level in the SAFE level
range. Adding 1 U.S. Quart (0.95L) of oil when
the level is at the bottom of the SAFE range will
result in the level being at the top of the SAFE
range.
CAUTION!
Overfilling or underfilling the crankcase will
cause aeration or loss of oil pressure. This
could damage your engine.
Change Engine Oil
Refer to the “Maintenance Schedule” for the
proper maintenance intervals. NOTE:
Under no circumstances should oil change
intervals exceed 7,500 miles (12 000 km) or
six months whichever comes first.
Engine Oil Selection – Non ACEA
Categories
For best performance and maximum protection
under all types of operating conditions, the
manufacturer only recommends engine oils
that are API certified and meet the require-
ments of Chrysler Material Standard MS-6395.
American Petroleum Institute (API) Engine
Oil Identification Symbol
This symbol means
that the oil has
been certified by
the American Pe-
troleum Institute
(API). The manu-
facturer only rec-
ommends API Cer-
tified engine oils.
274

CAUTION!
Do not use chemical flushes in your engine oil
as the chemicals can damage your engine.
Such damage is not covered by the New
Vehicle Limited Warranty.

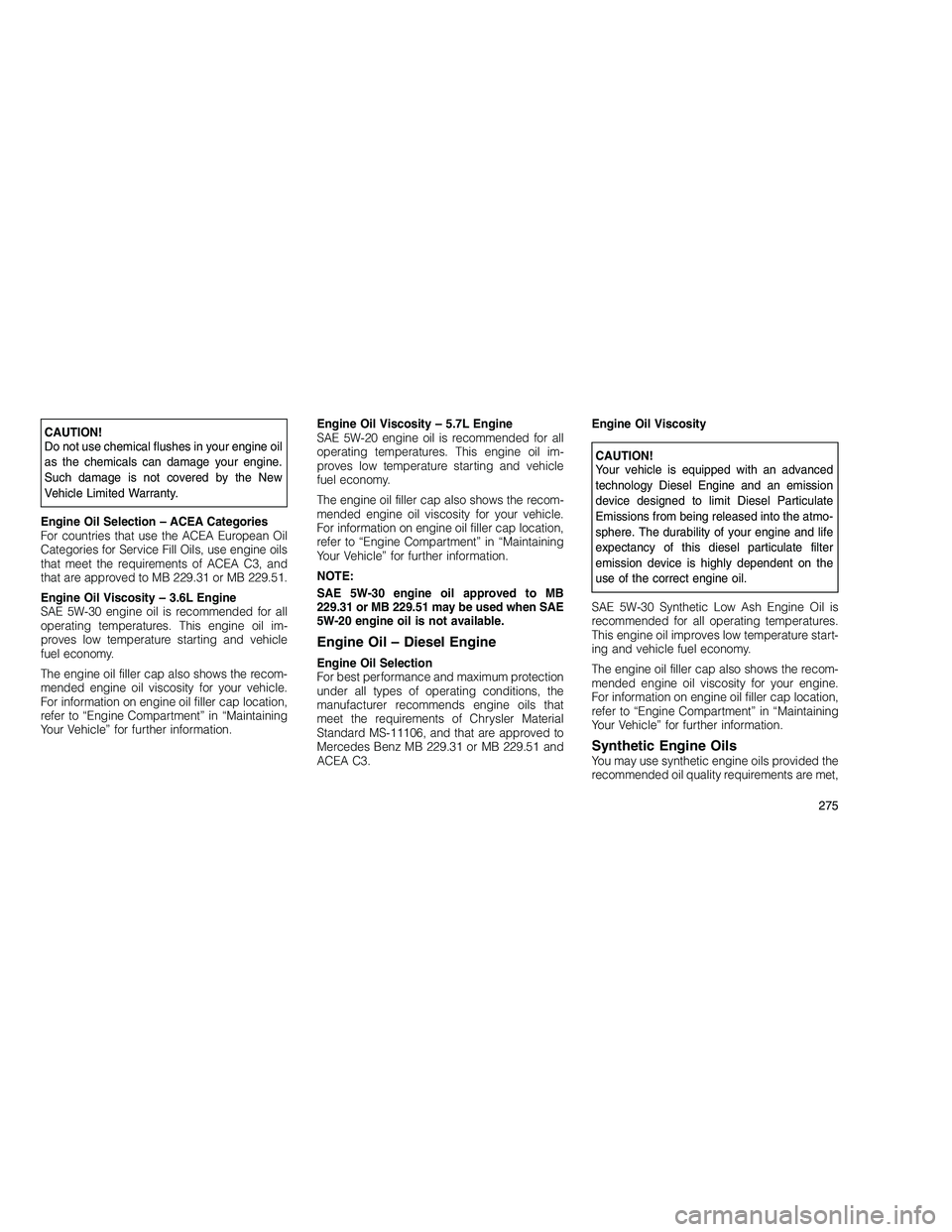

Engine Oil Selection – ACEA Categories
For countries that use the ACEA European Oil
Categories for Service Fill Oils, use engine oils
that meet the requirements of ACEA C3, and
that are approved to MB 229.31 or MB 229.51.
Engine Oil Viscosity – 3.6L Engine
SAE 5W-30 engine oil is recommended for all
operating temperatures. This engine oil im-
proves low temperature starting and vehicle
fuel economy.
The engine oil filler cap also shows the recom-
mended engine oil viscosity for your vehicle.
For information on engine oil filler cap location,
refer to “Engine Compartment” in “Maintaining
Your Vehicle” for further information. Engine Oil Viscosity – 5.7L Engine
SAE 5W-20 engine oil is recommended for all
operating temperatures. This engine oil im-
proves low temperature starting and vehicle
fuel economy.
The engine oil filler cap also shows the recom-
mended engine oil viscosity for your vehicle.
For information on engine oil filler cap location,
refer to “Engine Compartment” in “Maintaining
Your Vehicle” for further information.
NOTE:
SAE 5W-30 engine oil approved to MB
229.31 or MB 229.51 may be used when SAE
5W-20 engine oil is not available.
Engine Oil – Diesel Engine
Engine Oil Selection
For best performance and maximum protection
under all types of operating conditions, the
manufacturer recommends engine oils that
meet the requirements of Chrysler Material
Standard MS-11106, and that are approved to
Mercedes Benz MB 229.31 or MB 229.51 and
ACEA C3.Engine Oil Viscosity
CAUTION!
Your vehicle is equipped with an advanced
technology Diesel Engine and an emission
device designed to limit Diesel Particulate
Emissions from being released into the atmo-
sphere. The durability of your engine and life
expectancy of this diesel particulate filter
emission device is highly dependent on the
use of the correct engine oil.
SAE 5W-30 Synthetic Low Ash Engine Oil is
recommended for all operating temperatures.
This engine oil improves low temperature start-
ing and vehicle fuel economy.
The engine oil filler cap also shows the recom-
mended engine oil viscosity for your engine.
For information on engine oil filler cap location,
refer to “Engine Compartment” in “Maintaining
Your Vehicle” for further information.
Synthetic Engine OilsYou may use synthetic engine oils provided the
recommended oil quality requirements are met,
275

and the recommended maintenance intervals
for oil and filter changes are followed.

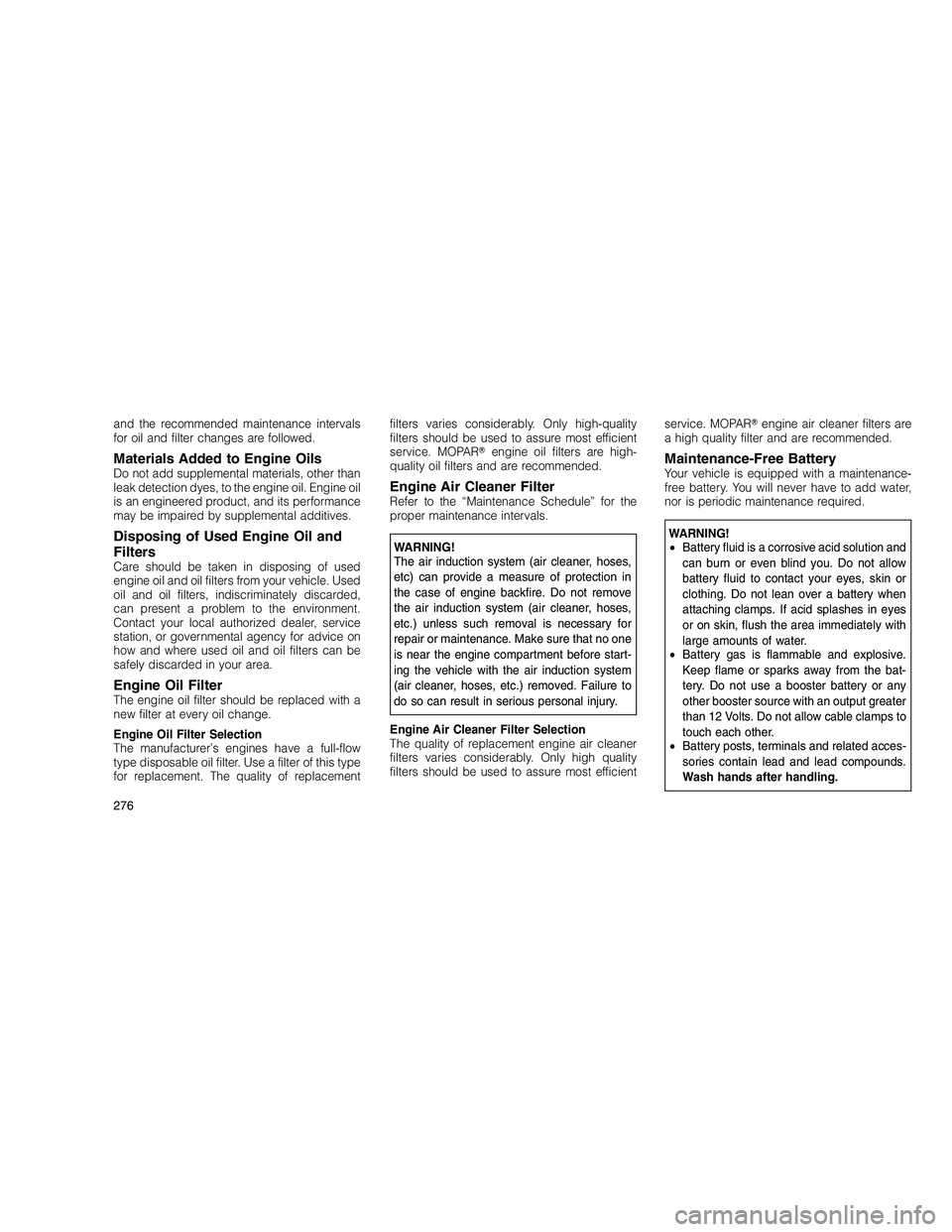

Materials Added to Engine OilsDo not add supplemental materials, other than
leak detection dyes, to the engine oil. Engine oil
is an engineered product, and its performance
may be impaired by supplemental additives.
Disposing of Used Engine Oil and
Filters
Care should be taken in disposing of used
engine oil and oil filters from your vehicle. Used
oil and oil filters, indiscriminately discarded,
can present a problem to the environment.
Contact your local authorized dealer, service
station, or governmental agency for advice on
how and where used oil and oil filters can be
safely discarded in your area.
Engine Oil FilterThe engine oil filter should be replaced with a
new filter at every oil change.
Engine Oil Filter Selection
The manufacturer’s engines have a full-flow
type disposable oil filter. Use a filter of this type
for replacement. The quality of replacementfilters varies considerably. Only high-quality
filters should be used to assure most efficient
service. MOPAR
engine oil filters are high-
quality oil filters and are recommended.
Engine Air Cleaner FilterRefer to the “Maintenance Schedule” for the
proper maintenance intervals.
WARNING!
The air induction system (air cleaner, hoses,
etc) can provide a measure of protection in
the case of engine backfire. Do not remove
the air induction system (air cleaner, hoses,
etc.) unless such removal is necessary for
repair or maintenance. Make sure that no one
is near the engine compartment before start-
ing the vehicle with the air induction system
(air cleaner, hoses, etc.) removed. Failure to
do so can result in serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner
filters varies considerably. Only high quality
filters should be used to assure most efficient service. MOPAR
engine air cleaner filters are
a high quality filter and are recommended.
Maintenance-Free BatteryYour vehicle is equipped with a maintenance-
free battery. You will never have to add water,
nor is periodic maintenance required.
WARNING!
• Battery fluid is a corrosive acid solution and
can burn or even blind you. Do not allow
battery fluid to contact your eyes, skin or
clothing. Do not lean over a battery when
attaching clamps. If acid splashes in eyes
or on skin, flush the area immediately with
large amounts of water.
• Battery gas is flammable and explosive.
Keep flame or sparks away from the bat-
tery. Do not use a booster battery or any
other booster source with an output greater
than 12 Volts. Do not allow cable clamps to
touch each other.
• Battery posts, terminals and related acces-
sories contain lead and lead compounds.
Wash hands after handling.
276
