run flat JEEP GRAND CHEROKEE 2012 Owner handbook (in English)

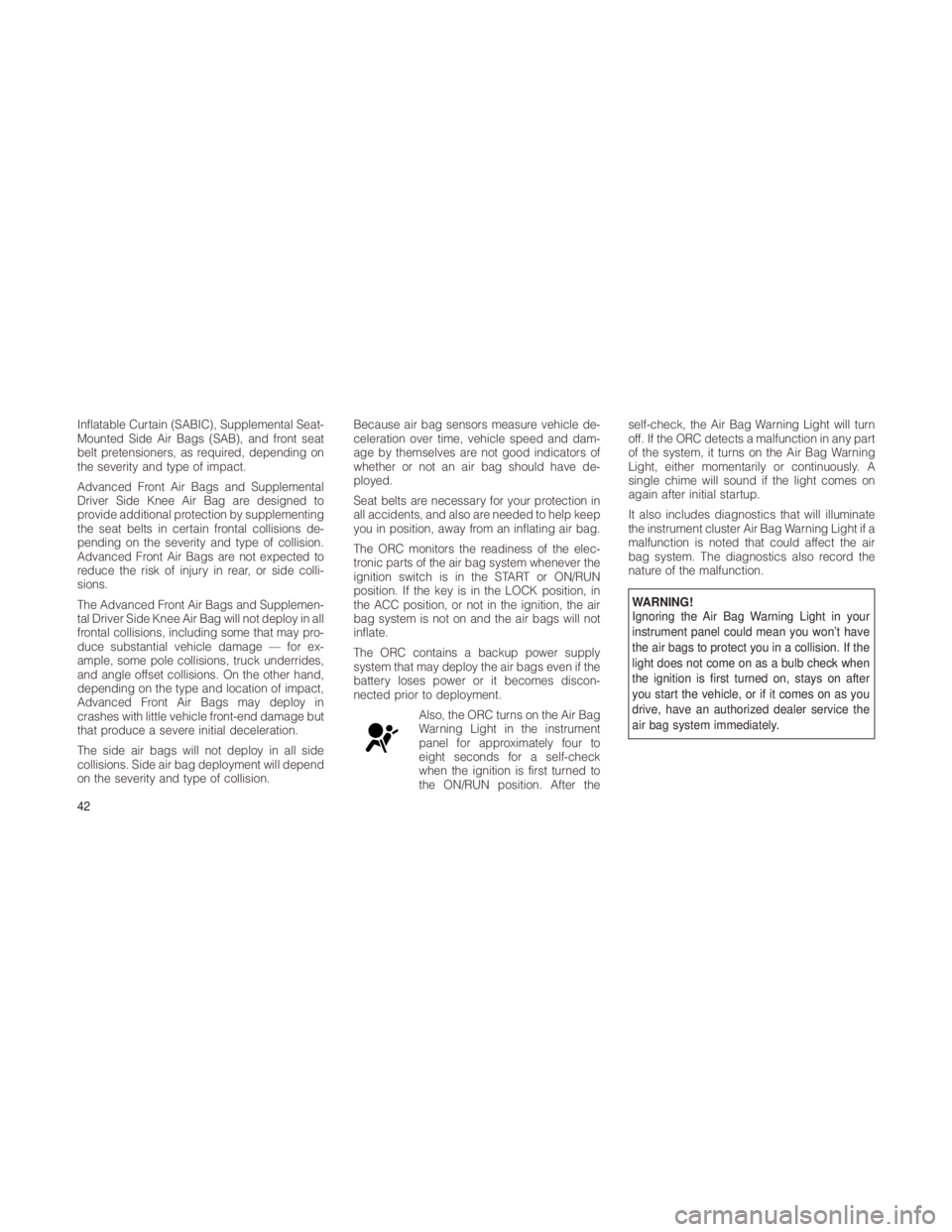

Inflatable Curtain (SABIC), Supplemental Seat-
Mounted Side Air Bags (SAB), and front seat
belt pretensioners, as required, depending on
the severity and type of impact.
Advanced Front Air Bags and Supplemental
Driver Side Knee Air Bag are designed to
provide additional protection by supplementing
the seat belts in certain frontal collisions de-
pending on the severity and type of collision.
Advanced Front Air Bags are not expected to
reduce the risk of injury in rear, or side colli-
sions.
The Advanced Front Air Bags and Supplemen-
tal Driver Side Knee Air Bag will not deploy in all
frontal collisions, including some that may pro-
duce substantial vehicle damage — for ex-
ample, some pole collisions, truck underrides,
and angle offset collisions. On the other hand,
depending on the type and location of impact,
Advanced Front Air Bags may deploy in
crashes with little vehicle front-end damage but
that produce a severe initial deceleration.
The side air bags will not deploy in all side
collisions. Side air bag deployment will depend
on the severity and type of collision.Because air bag sensors measure vehicle de-
celeration over time, vehicle speed and dam-
age by themselves are not good indicators of
whether or not an air bag should have de-
ployed.
Seat belts are necessary for your protection in
all accidents, and also are needed to help keep
you in position, away from an inflating air bag.
The ORC monitors the readiness of the elec-
tronic parts of the air bag system whenever the
ignition switch is in the START or ON/RUN
position. If the key is in the LOCK position, in
the ACC position, or not in the ignition, the air
bag system is not on and the air bags will not
inflate.
The ORC contains a backup power supply
system that may deploy the air bags even if the
battery loses power or it becomes discon-
nected prior to deployment.
Also, the ORC turns on the Air Bag
Warning Light in the instrument
panel for approximately four to
eight seconds for a self-check
when the ignition is first turned to
the ON/RUN position. After the self-check, the Air Bag Warning Light will turn
off. If the ORC detects a malfunction in any part
of the system, it turns on the Air Bag Warning
Light, either momentarily or continuously. A
single chime will sound if the light comes on
again after initial startup.
It also includes diagnostics that will illuminate
the instrument cluster Air Bag Warning Light if a
malfunction is noted that could affect the air
bag system. The diagnostics also record the
nature of the malfunction.
WARNING!
Ignoring the Air Bag Warning Light in your
instrument panel could mean you won’t have
the air bags to protect you in a collision. If the
light does not come on as a bulb check when
the ignition is first turned on, stays on after
you start the vehicle, or if it comes on as you
drive, have an authorized dealer service the
air bag system immediately.
42

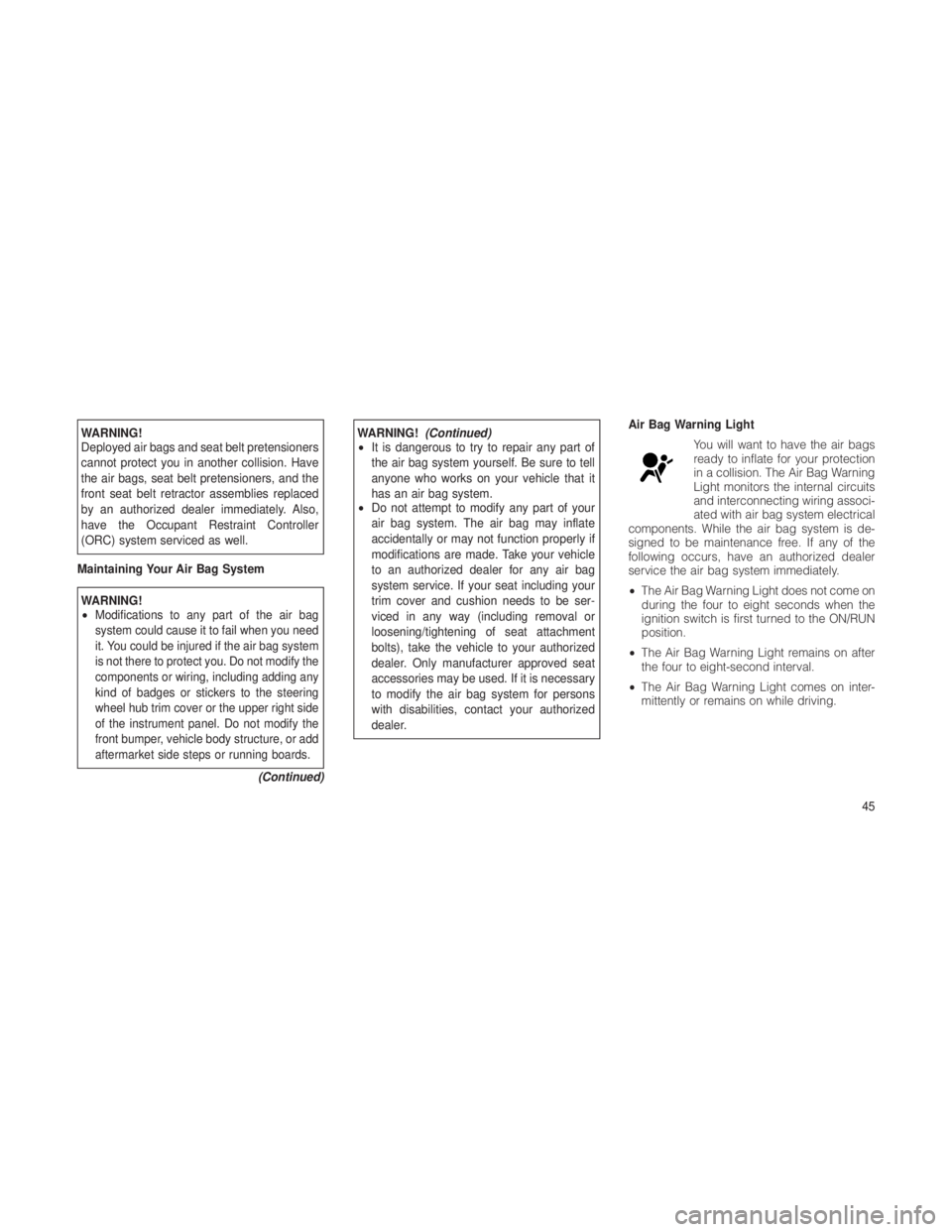

WARNING!
Deployed air bags and seat belt pretensioners
cannot protect you in another collision. Have
the air bags, seat belt pretensioners, and the
front seat belt retractor assemblies replaced
by an authorized dealer immediately. Also,
have the Occupant Restraint Controller
(ORC) system serviced as well.
Maintaining Your Air Bag System
WARNING!
•Modifications to any part of the air bag
system could cause it to fail when you need
it. You could be injured if the air bag system
is not there to protect you. Do not modify the
components or wiring, including adding any
kind of badges or stickers to the steering
wheel hub trim cover or the upper right side
of the instrument panel. Do not modify the
front bumper, vehicle body structure, or add
aftermarket side steps or running boards.
(Continued)
WARNING! (Continued)
• It is dangerous to try to repair any part of
the air bag system yourself. Be sure to tell
anyone who works on your vehicle that it
has an air bag system.
• Do not attempt to modify any part of your
air bag system. The air bag may inflate
accidentally or may not function properly if
modifications are made. Take your vehicle
to an authorized dealer for any air bag
system service. If your seat including your
trim cover and cushion needs to be ser-
viced in any way (including removal or
loosening/tightening of seat attachment
bolts), take the vehicle to your authorized
dealer. Only manufacturer approved seat
accessories may be used. If it is necessary
to modify the air bag system for persons
with disabilities, contact your authorized
dealer. Air Bag Warning Light
You will want to have the air bags
ready to inflate for your protection
in a collision. The Air Bag Warning
Light monitors the internal circuits
and interconnecting wiring associ-
ated with air bag system electrical
components. While the air bag system is de-
signed to be maintenance free. If any of the
following occurs, have an authorized dealer
service the air bag system immediately.
• The Air Bag Warning Light does not come on
during the four to eight seconds when the
ignition switch is first turned to the ON/RUN
position.
• The Air Bag Warning Light remains on after
the four to eight-second interval.
• The Air Bag Warning Light comes on inter-
mittently or remains on while driving.
45

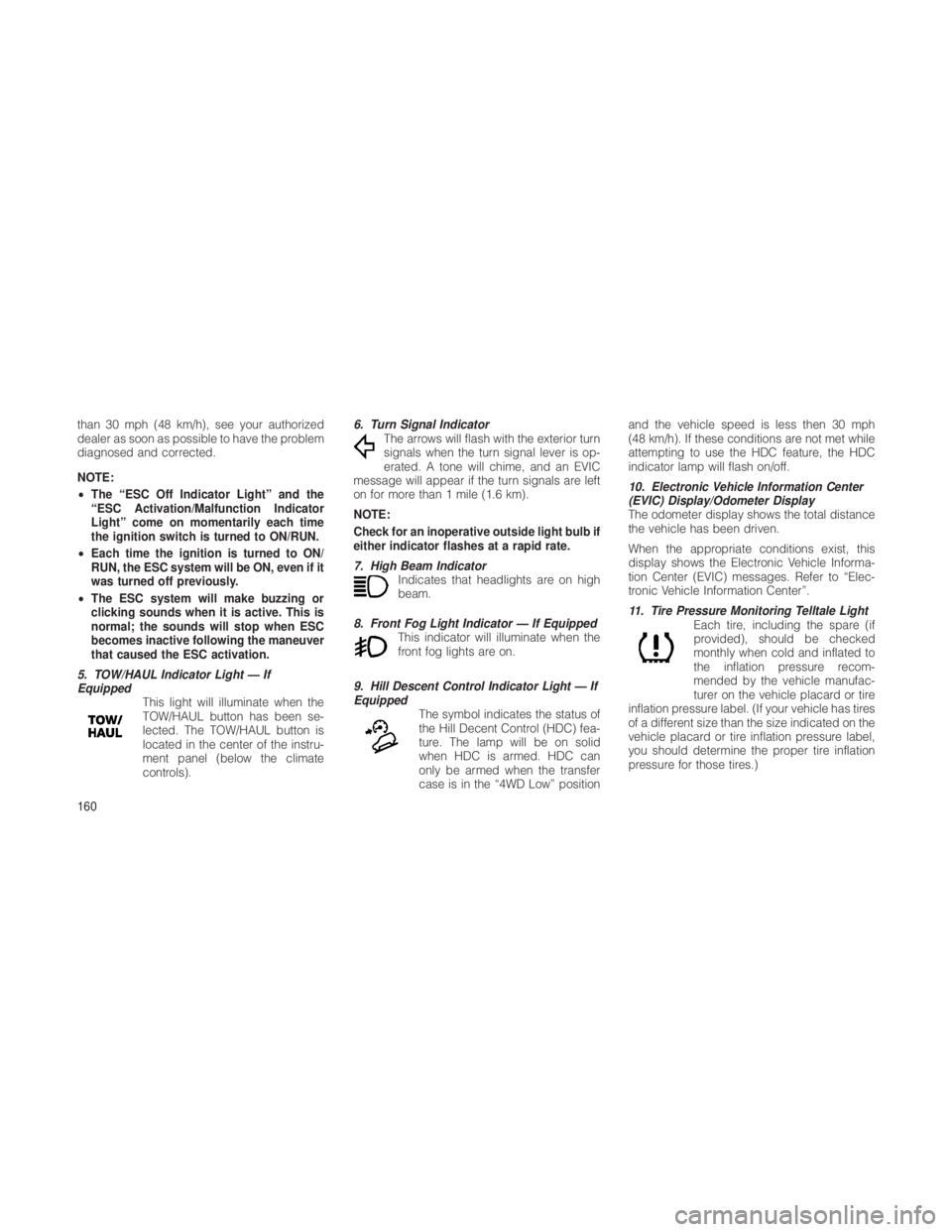

than 30 mph (48 km/h), see your authorized
dealer as soon as possible to have the problem
diagnosed and corrected.
NOTE:
•The “ESC Off Indicator Light” and the
“ESC Activation/Malfunction Indicator
Light” come on momentarily each time
the ignition switch is turned to ON/RUN.
• Each time the ignition is turned to ON/
RUN, the ESC system will be ON, even if it
was turned off previously.
• The ESC system will make buzzing or
clicking sounds when it is active. This is
normal; the sounds will stop when ESC
becomes inactive following the maneuver
that caused the ESC activation.
5. TOW/HAUL Indicator Light — If
Equipped This light will illuminate when the
TOW/HAUL button has been se-
lected. The TOW/HAUL button is
located in the center of the instru-
ment panel (below the climate
controls). 6. Turn Signal Indicator
The arrows will flash with the exterior turn
signals when the turn signal lever is op-
erated. A tone will chime, and an EVIC
message will appear if the turn signals are left
on for more than 1 mile (1.6 km).
NOTE:
Check for an inoperative outside light bulb if
either indicator flashes at a rapid rate.
7. High Beam Indicator Indicates that headlights are on high
beam.
8. Front Fog Light Indicator — If Equipped This indicator will illuminate when the
front fog lights are on.
9. Hill Descent Control Indicator Light — If
Equipped The symbol indicates the status of
the Hill Decent Control (HDC) fea-
ture. The lamp will be on solid
when HDC is armed. HDC can
only be armed when the transfer
case is in the “4WD Low” position and the vehicle speed is less then 30 mph
(48 km/h). If these conditions are not met while
attempting to use the HDC feature, the HDC
indicator lamp will flash on/off.
10. Electronic Vehicle Information Center
(EVIC) Display/Odometer Display
The odometer display shows the total distance
the vehicle has been driven.
When the appropriate conditions exist, this
display shows the Electronic Vehicle Informa-
tion Center (EVIC) messages. Refer to “Elec-
tronic Vehicle Information Center”.
11. Tire Pressure Monitoring Telltale Light
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recom-
mended by the vehicle manufac-
turer on the vehicle placard or tire
inflation pressure label. (If your vehicle has tires
of a different size than the size indicated on the
vehicle placard or tire inflation pressure label,
you should determine the proper tire inflation
pressure for those tires.)
160

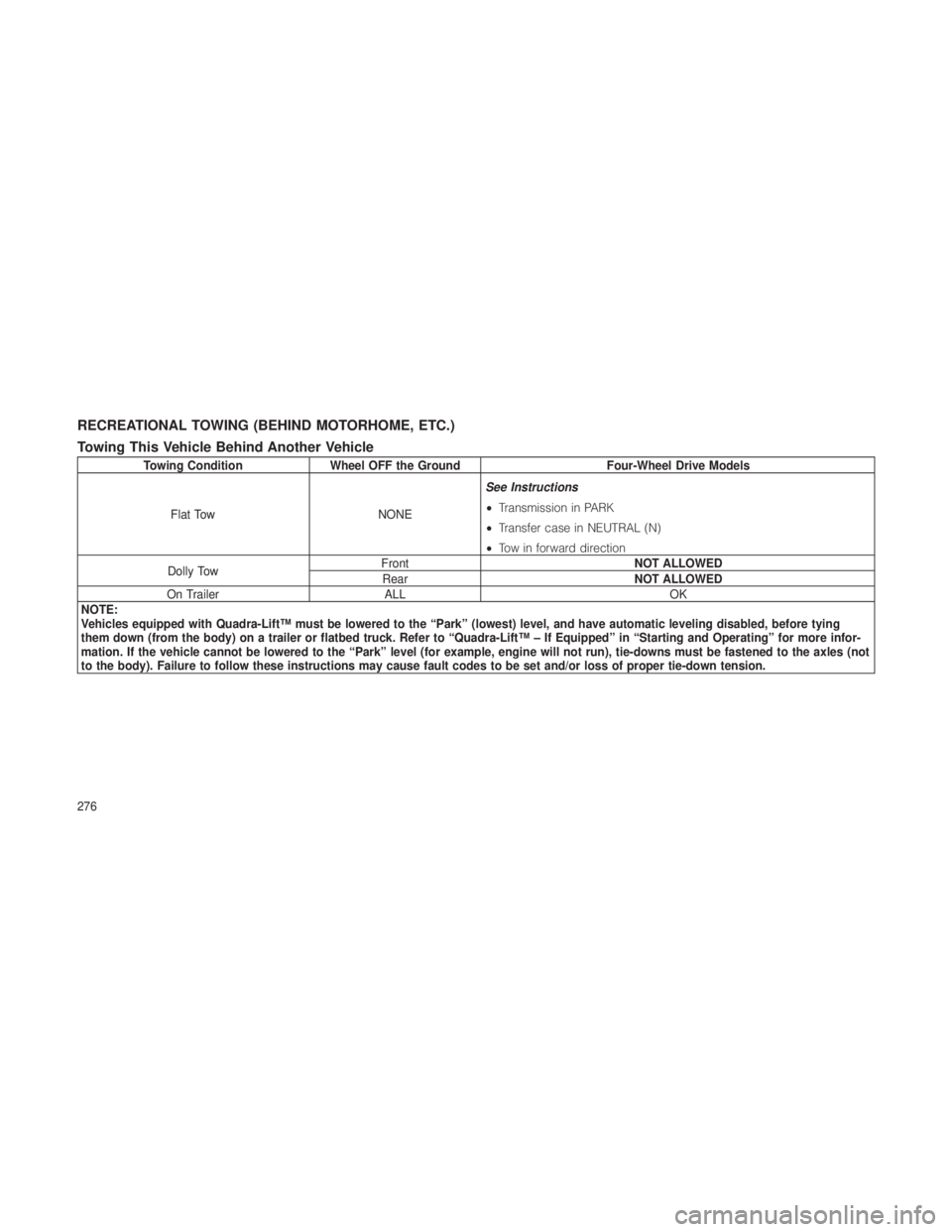

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle
Towing ConditionWheel OFF the Ground Four-Wheel Drive Models
Flat Tow NONESee Instructions
•
Transmission in PARK
• Transfer case in NEUTRAL (N)
• Tow in forward direction
Dolly Tow Front
NOT ALLOWED
Rear NOT ALLOWED
On Trailer ALL OK
NOTE:
Vehicles equipped with Quadra-Lift™ must be lowered to the “Park” (lowest) level, and have automatic leveling disabled, before tying
them down (from the body) on a trailer or flatbed truck. Refer to “Quadra-Lift™ – If Equipped” in “Starting and Operating” for more infor-
mation. If the vehicle cannot be lowered to the “Park” level (for example, engine will not run), tie-downs must be fastened to the axles (not
to the body). Failure to follow these instructions may cause fault codes to be set and/or loss of proper tie-down tension.
276

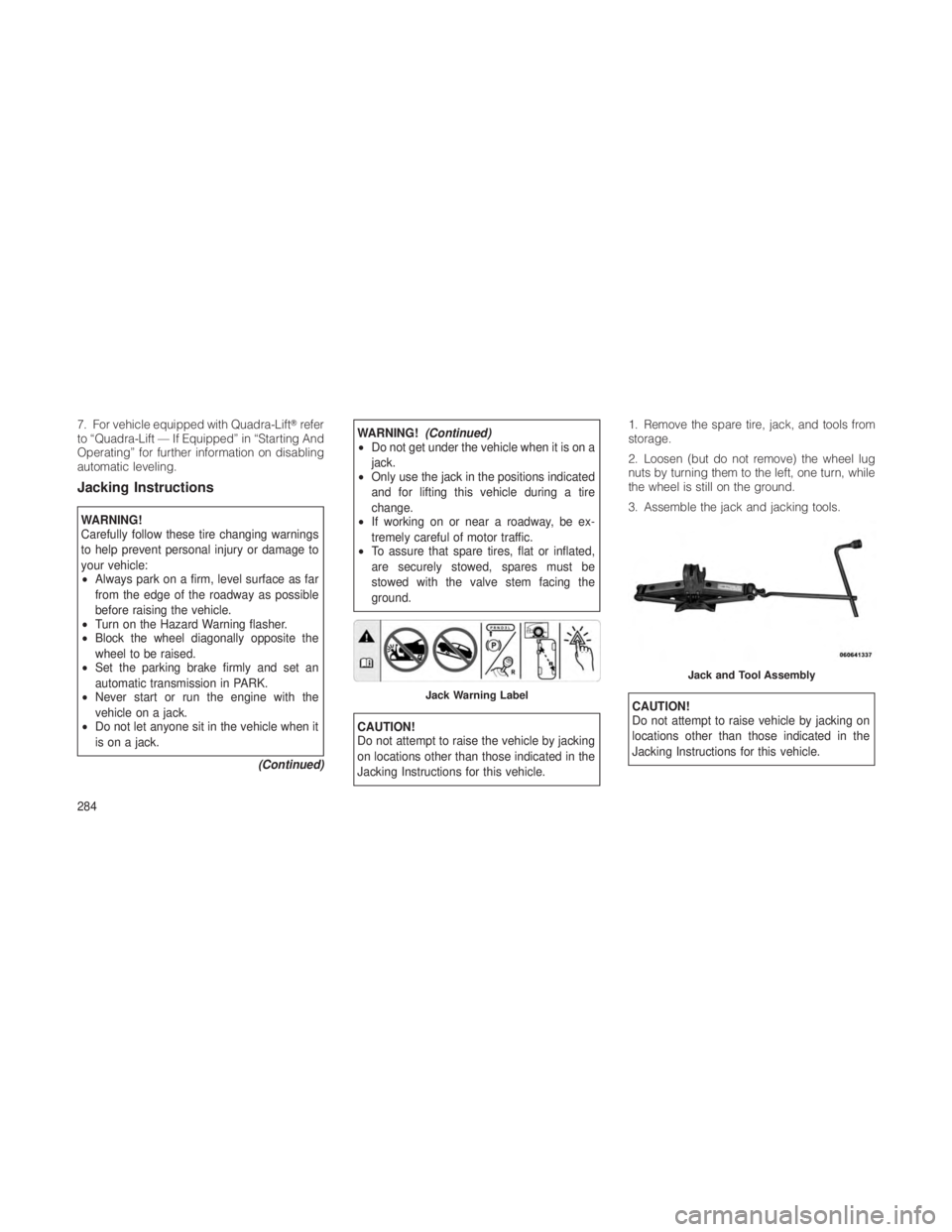

7. For vehicle equipped with Quadra-Liftrefer
to “Quadra-Lift — If Equipped” in “Starting And
Operating” for further information on disabling
automatic leveling.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings
to help prevent personal injury or damage to
your vehicle:
• Always park on a firm, level surface as far
from the edge of the roadway as possible
before raising the vehicle.
• Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the
wheel to be raised.
• Set the parking brake firmly and set an
automatic transmission in PARK.
• Never start or run the engine with the
vehicle on a jack.
• Do not let anyone sit in the vehicle when it
is on a jack.
(Continued)
WARNING!(Continued)
• Do not get under the vehicle when it is on a
jack.
• Only use the jack in the positions indicated
and for lifting this vehicle during a tire
change.
• If working on or near a roadway, be ex-
tremely careful of motor traffic.
• To assure that spare tires, flat or inflated,
are securely stowed, spares must be
stowed with the valve stem facing the
ground.
CAUTION!
Do not attempt to raise the vehicle by jacking
on locations other than those indicated in the
Jacking Instructions for this vehicle. 1. Remove the spare tire, jack, and tools from
storage.
2. Loosen (but do not remove) the wheel lug
nuts by turning them to the left, one turn, while
the wheel is still on the ground.
3. Assemble the jack and jacking tools.
CAUTION!
Do not attempt to raise vehicle by jacking on
locations other than those indicated in the
Jacking Instructions for this vehicle.Jack Warning Label
Jack and Tool Assembly
284

5. Press and maintain firm pressure on the
brake pedal.6. Using the screwdriver or similar tool, press
and hold the shift lock lever down.
7. Move the shift lever to the NEUTRAL posi-
tion.
8. The vehicle may then be started in NEU-
TRAL.
9. Reinstall the shift lever override access
cover and install the rubber liner into the cup-
holder.
TOWING A DISABLED VEHICLEThis section describes procedures for towing a
disabled vehicle using a commercial wrecker
service. If the transmission and drivetrain are
operable, disabled vehicles may also be towedas described under “Recreational Towing” in
the “Starting And Operating” section.
NOTE:
Vehicles equipped with Quadra-Lift™ must
be lowered to the Park (lowest) level, and
have automatic leveling disabled, before ty-
ing them down (from the body) on a trailer or
flatbed truck. Refer to the section on
Quadra-Lift™ for more information. If the
vehicle cannot be lowered to the Park level
(for example, engine will not run), tie-downs
must be fastened to the axles (not to the
body). Failure to follow these instructions
may cause fault codes to be set and/or loss
of proper tie-down tension.
Shift Lever Override Access Cover
291

Towing ConditionWheels OFF the Ground 4WD Models
Flat Tow NONESee instructions in “Recreational Towing” under “Starting and Operating”
•
Transmission in PARK
• Transfer case in NEUTRAL
• To w i n forward direction
Wheel Lift or Dolly Tow Front
NOT ALLOWED
Rear NOT ALLOWED
Flatbed ALL BEST METHOD
Proper towing or lifting equipment is required to
prevent damage to your vehicle. Use only tow
bars and other equipment designed for the
purpose, following equipment manufacturer’s
instructions. Use of safety chains is mandatory.
Attach a tow bar or other towing device to main
structural members of the vehicle, not to bum-
pers or associated brackets. State and local
laws applying to vehicles under tow must be
observed. If you must use the accessories (wipers, de-
frosters, etc.) while being towed, the ignition
must be in the ON/RUN position, not the ACC
position.
If the vehicle’s battery is discharged, see
Brake/Transmission Interlock Manual Override
(under Starting and Operating, Automatic
Transmission) for instructions on shifting the
automatic transmission out of the PARK posi-
tion for towing.
CAUTION!
•
Do not attempt to use sling type equipment
when towing. When securing the vehicle to
a flat bed truck, do not attach to front or rear
suspension components. Damage to your
vehicle may result from improper towing.
• If the vehicle being towed requires steering,
the ignition must be in the ON/RUN or ACC
position, not in the LOCK/OFF position.
292

Cargo Tie-Downs.............148
Cellular Phone ............. 74,204
Center High Mounted Stop Light .....325
Chains, Tire ................254
Changing A Flat Tire ...........283
Checking Your Vehicle For Safety .....55
Checks, Safety ...............55
Child Restraint .......... 47,49,51,53
Child Restraint Tether Anchors .......51
Child Safety Locks .............21
Clean Air Gasoline .............263
Climate Control ...............205
Cold Weather Operation .........218
Compact Disc (CD) Maintenance ....204
Compass ..................176
Compass Calibration ...........179
Compass Variance .............177
Computer, Trip/Travel ...........174
Connector UCI ....................183
Universal Consumer Interface (UCI) . . 183
Conserving Fuel ..............173
Console, Overhead ............138
Cooling System ..............308
Adding Coolant (Antifreeze) ......309
Coolant Capacity ............326
Coolant Level ..............310 Disposal of Used Coolant
.......310
Drain, Flush, and Refill .........309
Inspection ................308
Points to Remember ..........311
Pressure Cap ..............310
Radiator Cap ..............310
Selection of Coolant
(Antifreeze) ............. 309,326
Cruise Control (Speed Control) ......117
Cupholders .................144
Customer Assistance ...........356
Data Recorder, Event ............46
Daytime Running Lights ..........107
Defroster, Rear Window ..........150
Defroster, Windshield .........57,207
Diagnostic System, Onboard .......301
Diesel Fuel .................264
Diesel Fuel Requirements .........264
Dipsticks Automatic Transmission .........315
Oil (Engine) ...............302
Power Steering .............243
Disabled Vehicle Towing .........291
Disposal Engine Oil ................304 Door Locks
.................20
Door
Locks, Automatic ...........21
Driving ...................238
Off-Pavement ..............239
Off-Road .................239
Driving to Achieve Maximum Fuel
Economy ..................173
Electric Remote Mirrors ...........68
Electrical Outlet, Auxiliary
(Power Outlet) ...............142
Electronic Brake Control System .....245
Anti-Lock Brake System ........245
Brake Assist System ..........246
Electronic Roll Mitigation ........246
Traction Control System ........246
Electronic Roll Mitigation (ERM) .....246
Electronic Speed Control (Cruise
Control) ................ 115,117
Electronic Stability Control (ESC) .....247
Electronic Vehicle Information Center
(EVIC) ................. 160,164
Emergency, In Case of Freeing Vehicle When Stuck ......289
Hazard Warning Flasher ........282
Jacking ..................283
367
