JEEP GRAND CHEROKEE 2016 WK2 / 4.G User Guide

6. Engine Oil Fill
7. Brake Fluid Reservoir
8. Air Cleaner Filter
9. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
219

ENGINE COMPARTMENT — 5.7L
1. Remote Jump Start Positive Terminal
2. Engine Oil Dipstick
3. Power Distribution Center (Fuses)
4. Engine Coolant Reservoir Pressure Cap
5. Remote Jump Start Negative Terminal
MAINTAINING YOUR VEHICLE
220

6. Engine Coolant Reservoir
7. Engine Oil Fill
8. Brake Fluid Reservoir
9. Air Cleaner Filter
10. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
221

ENGINE COMPARTMENT — 3.0L DIESEL
1. Remote Jump Start Positive Terminal
2. Engine Oil Dipstick
3. Power Distribution Center (Fuses)
4. Engine Coolant Reservoir Pressure Cap
5. Remote Jump Start Negative Terminal
MAINTAINING YOUR VEHICLE
222

6. Engine Oil Fill
7. Brake Fluid Reservoir
8. Air Cleaner Filter
9. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
223

ENGINE COMPARTMENT — 6.4L
1. Remote Jump Start Positive Terminal
2. Engine Oil Dipstick
3. Power Distribution Center (Fuses)
4. Engine Coolant Reservoir Pressure Cap
5. Engine Coolant Reservoir
MAINTAINING YOUR VEHICLE
224

6. Remote Jump Start Negative Terminal
7. Engine Oil Fill
8. Brake Fluid Reservoir
9. Air Cleaner Filter
10. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
225

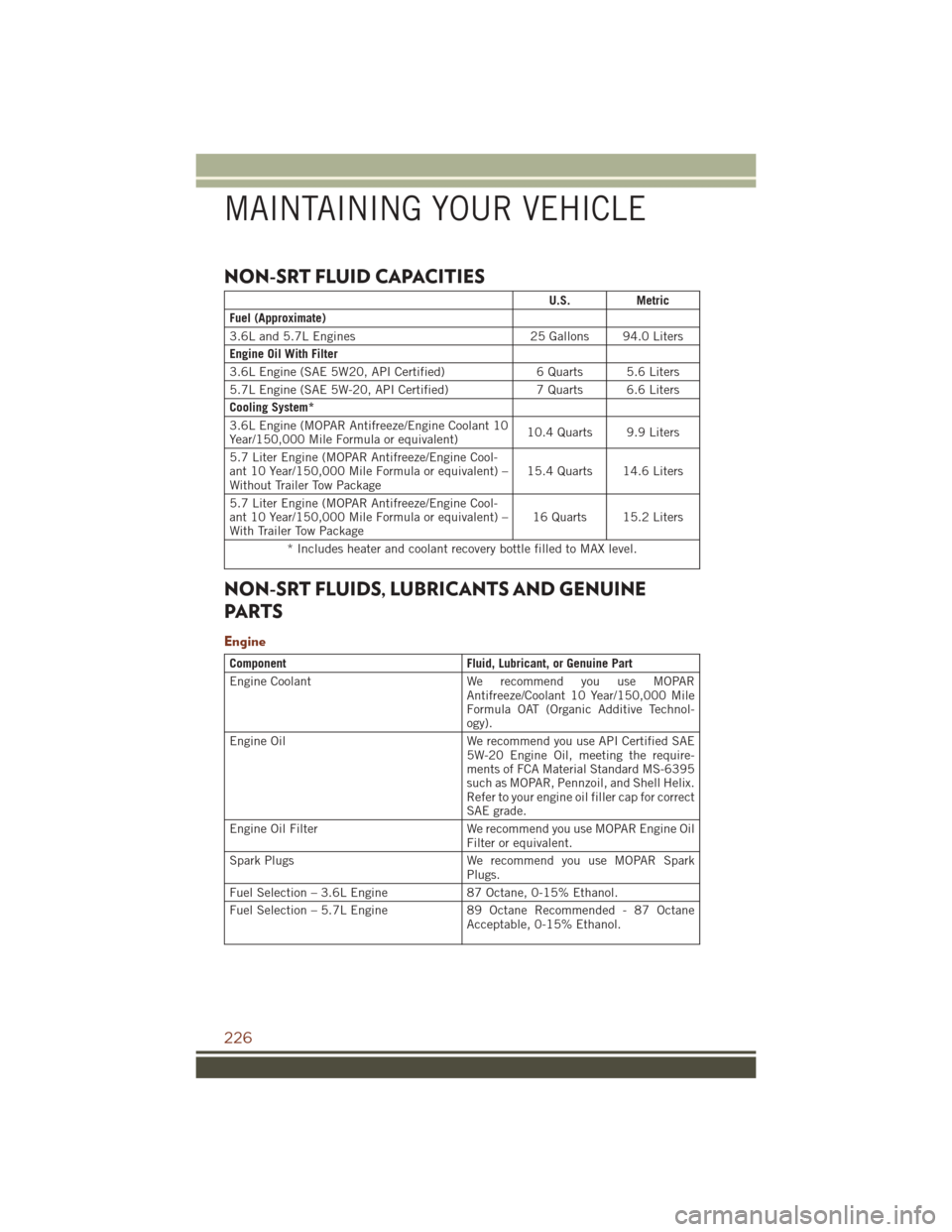

NON-SRT FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
3.6L and 5.7L Engines 25 Gallons 94.0 Liters
Engine Oil With Filter
3.6L Engine (SAE 5W20, API Certified) 6 Quarts 5.6 Liters
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts 6.6 Liters
Cooling System*
3.6L Engine (MOPAR Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or equivalent) 10.4 Quarts 9.9 Liters
5.7 Liter Engine (MOPAR Antifreeze/Engine Cool-
ant 10 Year/150,000 Mile Formula or equivalent) –
Without Trailer Tow Package 15.4 Quarts 14.6 Liters
5.7 Liter Engine (MOPAR Antifreeze/Engine Cool-
ant 10 Year/150,000 Mile Formula or equivalent) –
With Trailer Tow Package 16 Quarts 15.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
NON-SRT FLUIDS, LUBRICANTS AND GENUINE
PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR
Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technol-
ogy).
Engine Oil We recommend you use API Certified SAE
5W-20 Engine Oil, meeting the require-
ments of FCA Material Standard MS-6395
such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct
SAE grade.
Engine Oil Filter We recommend you use MOPAR Engine Oil
Filter or equivalent.
Spark Plugs We recommend you use MOPAR Spark
Plugs.
Fuel Selection – 3.6L Engine 87 Octane, 0-15% Ethanol.
Fuel Selection – 5.7L Engine 89 Octane Recommended - 87 Octane
Acceptable, 0-15% Ethanol.
MAINTAINING YOUR VEHICLE
226

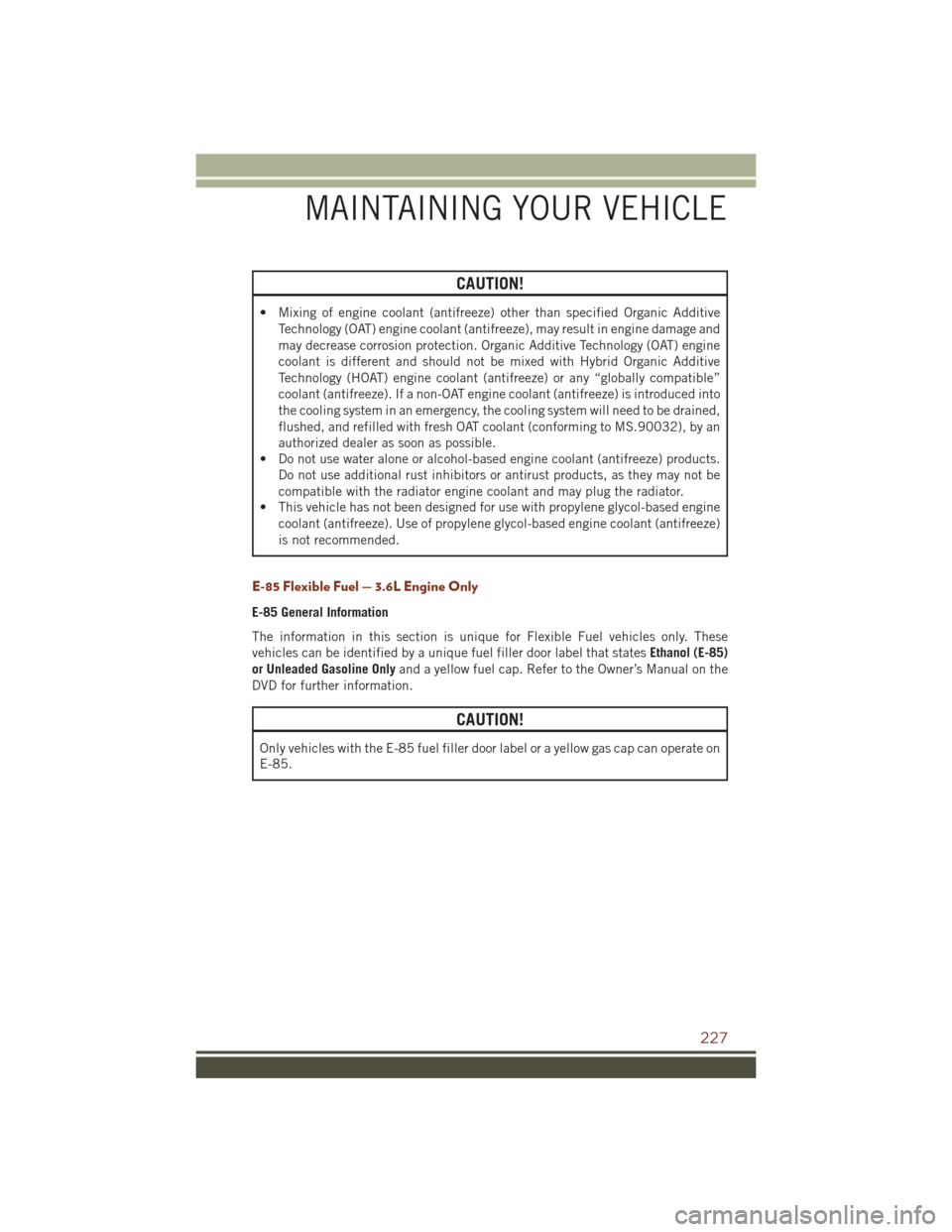

CAUTION!
• Mixing of engine coolant (antifreeze) other than specified Organic AdditiveTechnology (OAT) engine coolant (antifreeze), may result in engine damage and
may decrease corrosion protection. Organic Additive Technology (OAT) engine
coolant is different and should not be mixed with Hybrid Organic Additive
Technology (HOAT) engine coolant (antifreeze) or any “globally compatible”
coolant (antifreeze). If a non-OAT engine coolant (antifreeze) is introduced into
the cooling system in an emergency, the cooling system will need to be drained,
flushed, and refilled with fresh OAT coolant (conforming to MS.90032), by an
authorized dealer as soon as possible.
• Do not use water alone or alcohol-based engine coolant (antifreeze) products.
Do not use additional rust inhibitors or antirust products, as they may not be
compatible with the radiator engine coolant and may plug the radiator.
• This vehicle has not been designed for use with propylene glycol-based engine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze)
is not recommended.
E-85 Flexible Fuel — 3.6L Engine Only
E-85 General Information
The information in this section is unique for Flexible Fuel vehicles only. These
vehicles can be identified by a unique fuel filler door label that states Ethanol (E-85)
or Unleaded Gasoline Only and a yellow fuel cap. Refer to the Owner’s Manual on the
DVD for further information.
CAUTION!
Only vehicles with the E-85 fuel filler door label or a yellow gas cap can operate on
E-85.
MAINTAINING YOUR VEHICLE
227

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission Use only Mopar ZF 8&9 Speed ATF Auto-
matic Transmission Fluid or equivalent.
Failure to use the correct fluid may affect
the function or performance of your trans-
mission.
Transfer Case – Single-Speed
(Quadra-Trac I) We recommend you use Automatic Trans-
mission Fluid 3353.
Transfer Case – Two-Speed (Quadra-Trac II) We recommend you use MOPAR ATF+4 Automatic Transmission Fluid.
Axle Differential (Front) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85.
Axle Differential (Rear) – With Electronic
Limited-Slip Differential (ELSD) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85 with
friction modifier additive.
Axle Differential (Rear) – Without Elec-
tronic Limited-Slip Differential (ELSD) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85.
Brake Master Cylinder We recommend you use MOPAR DOT 3
Brake Fluid, SAE J1703 should be used. If
DOT 3, SAE J1703 brake fluid is not avail-
able, then DOT 4 is acceptable.
SRT FLUID CAPACITIES
U.S. Metric
Fuel (Approximate) 25 Gallons 94.0 Liters
Engine Oil With Filter
6.4 Liter Engine (SAE 0W-40, Synthetic API Certi-
fied) 7 Quarts 6.6 Liters
Cooling System*
6.4 Liter Engine (MOPAR Antifreeze/Engine Cool-
ant 10 Year/150,000 Mile Formula that meets the
requirements of FCA Material Standard
MS.90032. 16 Quarts 15.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE
228
